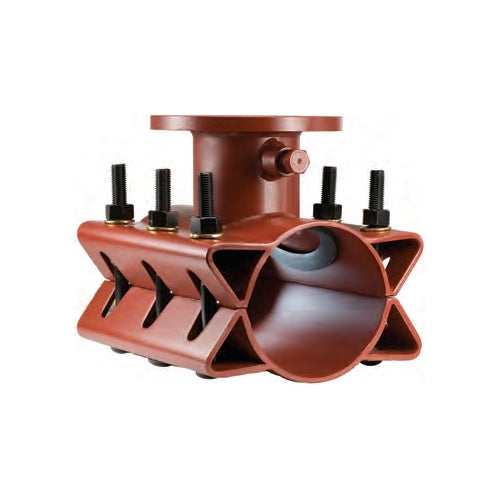

JCM 412 Fabricated Steel Tapping Sleeve

JCM Industries Waterworks Products

The JCM Industries waterworks line for water, wastewater and gas mains: repair clamps, couplings and end caps, flanged coupling adapters, service saddles, tapping sleeves, joint restraints, transition gaskets and tools. Fittings are sized to the actual pipe OD, many cover several pipe classes, and the universal and stainless clamps, transition gaskets and steel tapping sleeves carry NSF/ANSI 61 and 372. Watermain Supply offers engineering-led selection and cross references to Smith-Blair and Dresser. Call 1-888.510.4036.

78 products
Sort by:
Best selling
Sort by:
Best selling

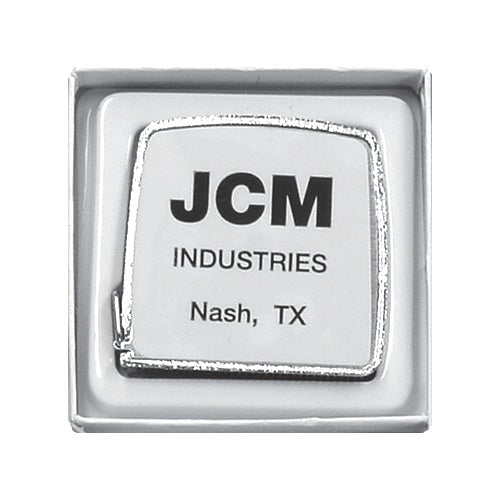

JCM 920 Pipe Diameter Tape - OD Tape for Clamp and Coupling Sizing
JCM 920 Pipe Diameter Tape - product photo

JCM Industries

Free Shipping $499 or more

JCM 920 Pipe Diameter Tape - OD Tape for Clamp and Coupling Sizing

$30.42
JCM 225 Insulating Adapter Gasket - IPS to Copper Tube Size, 1/2 to 2 in
JCM 225 Insulating Adapter Gasket - IPS to Copper Tube Size, 1/2 to 2 in

JCM Industries

Free Shipping $499 or more

JCM 225 Insulating Adapter Gasket - IPS to Copper Tube Size, 1/2 to 2 in

From $14.19
JCM G212 Transition Gasket for Ductile Iron Couplings - 2 to 12 in

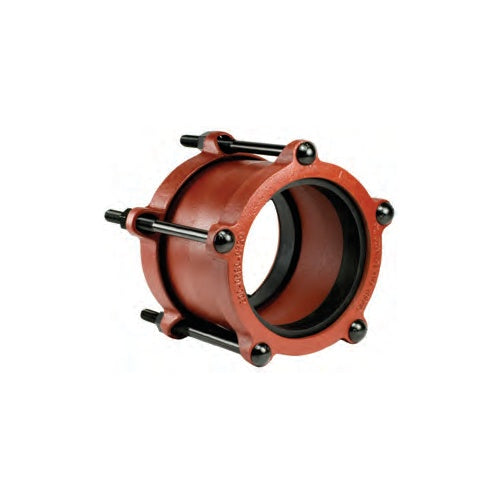

JCM 210 Ductile Iron Coupling - the coupling the G212 transition gasket fits

JCM Industries

Free Shipping $499 or more

JCM G212 Transition Gasket for Ductile Iron Couplings - 2 to 12 in

From $8

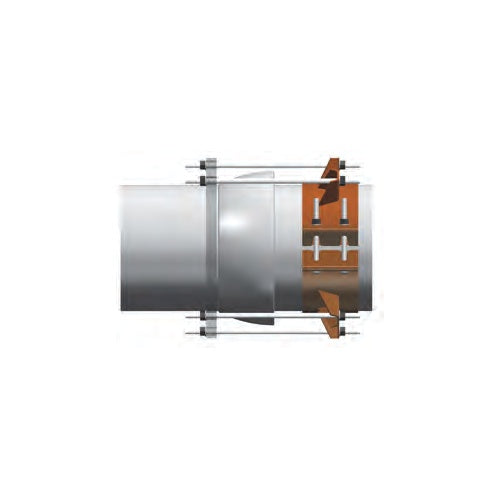

JCM 631 Coupling Restrainer for Asbestos Cement Pipe - 4 to 16 in
JCM 631 Coupling Restrainer for Asbestos Cement Pipe - product photo

JCM Industries

Free Shipping $499 or more

JCM 631 Coupling Restrainer for Asbestos Cement Pipe - 4 to 16 in

From $815.16

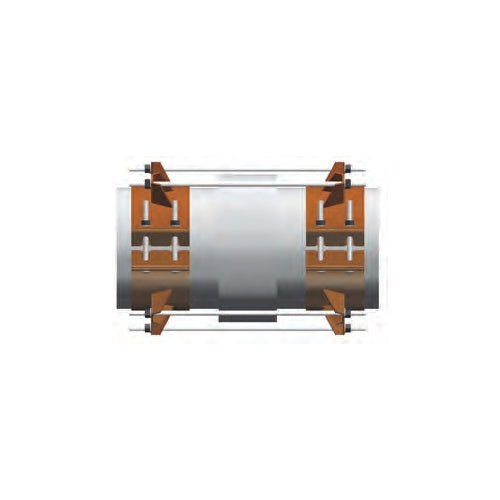

JCM 630 Fitting Restrainer for Asbestos Cement Pipe - 4 to 16 in
JCM 630 Fitting Restrainer for Asbestos Cement Pipe - product photo

JCM Industries

Free Shipping $499 or more

JCM 630 Fitting Restrainer for Asbestos Cement Pipe - 4 to 16 in

From $361.49

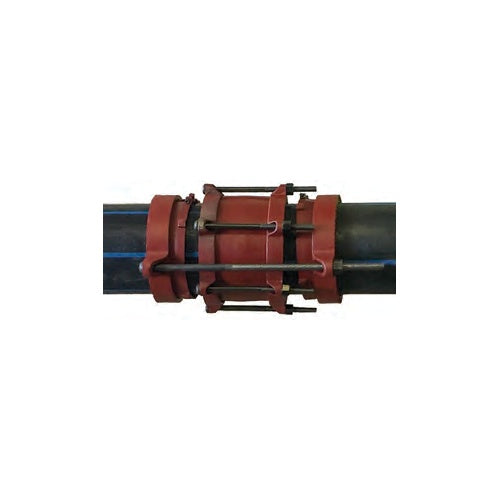

JCM 621 Sur-Grip Joint Restrainer - PVC, HDPE and Ductile Iron, 6 to 24 in
JCM 621 Sur-Grip Joint Restrainer - product photo

JCM Industries

Free Shipping $499 or more

JCM 621 Sur-Grip Joint Restrainer - PVC, HDPE and Ductile Iron, 6 to 24 in

From $359.61
JCM 438 All Stainless Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT
JCM 438 All Stainless Threaded Outlet Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 438 All Stainless Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT

From $966.32
JCM 418 Fabricated Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT
JCM 418 Fabricated Threaded Outlet Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 418 Fabricated Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT

From $466.63
JCM 465 Heavy Duty Stainless Tapping Sleeve - Carbon Steel MJ Outlet
JCM 465 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 465 Heavy Duty Stainless Tapping Sleeve - Carbon Steel MJ Outlet

From $1,338.11
JCM 459 Heavy Duty Stainless Tapping Sleeve - Stainless MJ Outlet
JCM 459 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 459 Heavy Duty Stainless Tapping Sleeve - Stainless MJ Outlet

From $1,452.63
JCM 464 Heavy Duty Stainless Tapping Sleeve - Carbon Steel Flange
JCM 464 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 464 Heavy Duty Stainless Tapping Sleeve - Carbon Steel Flange

From $1,277.07
JCM 452 Heavy Duty Stainless Tapping Sleeve - Flanged Outlet
JCM 452 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 452 Heavy Duty Stainless Tapping Sleeve - Flanged Outlet

From $1,379.40

JCM Industries Waterworks Products

JCM Industries · Waterworks Products

JCM Industries Waterworks Products: Repair, Join, Tap and Restrain

The JCM Industries line for water, wastewater and gas mains: repair clamps, couplings and end caps, flanged coupling adapters, service saddles, tapping sleeves, joint restraints and the gaskets and tools that go with them, 1/2 in to 54 in.

JCM 412 Fabricated Steel Tapping Sleeve
78 ListingsOver 18,000 builds
7 CategoriesRepair to restraint
NSF/ANSI 61 and 372Clamps, gaskets, 412-429 sleeves
AWWAC219, C223, C230, C800
HoustonGulf Coast service

JCM Industries manufactures fittings and fabrications for the repair, connection and branching of every common pipe type. The line covers stainless band repair clamps, steel and ductile iron couplings, flanged coupling adapters, ductile iron and stainless service saddles, carbon steel and stainless tapping sleeves, and Sur-Grip and A/C pipe restrainers.

Watermain Supply supplies the JCM line alongside Smith-Blair and Dresser, with engineering-led selection across all three. Send the pipe OD, material and pressure and we will name the fitting. Email sales@watermainsupply.com or call 1-888.510.4036. Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Shop JCM by Category

Each category page has its own comparison, cross reference and selection guide.

JCM 101 Universal Clamp Coupling

Repair Clamps

30 styles: universal, stainless, tapped, joint leak, patch, gas, cap sleeve 0.63-39.20 in OD JCM 210 Ductile Iron Coupling

Couplings and End Caps

Steel, ductile iron, optimum range, stainless, compression, end cap 1/2-42 in JCM 301 Ductile Iron Flanged Coupling Adapter

Flanged Coupling Adapters

301 ductile iron, 303 and 306 fabricated 3-24 in JCM 404 Service Saddle

Service Saddles

Ductile iron, coated, stainless, concrete pipe 1/2-2-1/2 in taps JCM 412 Fabricated Steel Tapping Sleeve

Tapping Sleeves

Carbon steel, PVC, stainless, heavy duty, threaded 2-12 in outlets JCM 610 Sur-Grip Fitting Restrainer

Joint Restraints

Sur-Grip and A/C pipe restrainers 4-24 in JCM 920 Pipe Diameter Tape

Gaskets and Tools

G212 transition gaskets, 225 gaskets, 920 tape Parts

Will It Work for Me?

Warranty

12 months from the date of purchase against defects in materials and workmanship on every JCM product we sell (Watermain Supply standard).

Reliability

304 stainless bands and bodies, ASTM A536 ductile iron, fabricated carbon steel, fusion epoxy and fusion-plastic coatings, NSF/ANSI 61 and 372 on the universal and stainless clamps, transition gaskets and the 412, 419, 422 and 429 carbon steel tapping sleeves.

Fit

Every JCM fitting is sized to the actual pipe OD, and many cover more than one pipe class. Ratings are published per product; where JCM rates by application, we obtain the rating for your pipe.

Size It Now

Send the OD, material and pressure.

Email Sales

JCM Cross Reference: Smith-Blair, Dresser, Ford, Romac, PowerSeal

Every JCM style we list that appears on JCM's chart, with its nearest equivalents. Linked Smith-Blair and Dresser styles are on our site.

JCM Description Smith-Blair Dresser Ford Romac PowerSeal
101 Universal clamp coupling, standard range 226 Alloy / 226 SS Style 360 F1 CL1 3121
102 Universal clamp coupling, extended range 227 Alloy / 227 SS, 228 Alloy / 228 SS 361 F2, F3 CL2, CL3 3122
103 Tapped universal clamp, standard range 238 Alloy / 238 SS Style 360 F1 CL1 3131
104 Tapped universal clamp, extended range 239 Alloy / 239 SS 361 F2, F3 CL2, CL3 3132
131 All stainless universal clamp, standard range 256 364 FLS1 SS1* -
132 All stainless universal clamp, extended range 257 Style 360 FLS2 SS2*, SS3* -
133 Tapped all stainless clamp, standard range 264 - FLS1 SS1* -
134 Tapped all stainless clamp, extended range 265 - FLS2 SS2*, SS3* -
161 All stainless fabricated clamp 261 8364 FS1 SS1 3121AS
162 All stainless fabricated clamp, extended range 262 - FS2 SS2 3122AS
163 Tapped all stainless fabricated clamp 264 - FS1 - -
164 Tapped all stainless fabricated clamp, extended range 265 - FS2 - -
168 Stainless fabricated lightweight clamp - - - LSS1, LSS2 3121ASLW
105 PVC collar leak clamp 229 - FCC CLC 3141
135 All stainless PVC collar leak clamp 269 - FCC CLC 3143AS
106 Bell joint leak clamp, IPS PVC - - FBC 517 -
110 Patch clamp 245 Galv / 245 SS, 248 Style 118 FSLC SC 3151A, 3151AS
111 Full repair clamp 244 Galv / 244 SS - FLSC-R SCC 3152
112 Heavy duty patch clamp - - - - 3151HD
113 Heavy duty patch clamp, multi-band 246 Alloy / 246 SS 77, 79 - - -
143 Bell joint clamp, DI, CI, C900 PVC 274 Short / 274 Long Style 60, Style 160 FBC 416, 516 3231, 3232
201 Steel coupling 411 Steel / 411 Cast/DI Style 38, Style 138 FC3-7 400 3538
202 Long steel coupling 411 Long Style 40 FLC - 3540
203 Steel transition coupling 413 / 413 14-48 in Style 62 TII FC5 TC400 -
204 Steel reducing coupling 415 Style 62 TII FC6 RC400 3562R
210 Ductile iron coupling 441 - FC1 501 -
211 Ductile iron coupling, steel and IPS PVC - - FC1 501 -
212 Ductile iron transition coupling 433 - FC2 501 3501
214 Pipe end cap coupling 481, 482 Style 31 FEC EC501 3501EC
220 Compression coupling 525 Style 65 - 702 3504
225 Insulating adapter gasket - Style 3065 - - -
241 Optimum range coupling, standard 461 - FC2W XR501 3506
242 Optimum range coupling, long 462 - FC2W-L12 XR501 -
262 Fabricated stainless steel coupling - - - - -
301 Cast flanged coupling adapter 912 127 FFCA FCA501 3521
303 Fabricated flanged coupling adapter 913 Style 128 FCA FC400 3528
306 Fabricated FCA, ductile iron coupling 913 - - - -
401 Single strap service saddle 311 291 F101 101U -
402 Double strap service saddle 313 Galv / 313 SS 291 F202 202U -
403 Wide body service saddle, SS strap 315 194 - 101S -
404 Service saddle, double SS straps 317 - FS202 202S -
405 Coated wide service saddle, SS strap 315 - FC101 101N 3415
406 Coated service saddle, double SS straps 317 - FCD202 202N 3417DI
407 Coated service saddle, galvanized strap 311 - F101 101NU 3411DI
408 Coated service saddle, double galvanized straps 313 Galv / 313 SS - F202 202NU 3413DI
502 Stainless steel service saddle 372 - FS313 306 3412AS
425 Service saddle for concrete steel cylinder pipe 362 - - - 3465CS
412 Fabricated tapping sleeve, flanged outlet 622 Alloy / 622 SS 610 FTS, FTSC FTS420 3460
419 Fabricated tapping sleeve, MJ outlet 622 MJ Alloy / 622 MJ SS - MJ - 3460MJCS
422 Fabricated tapping sleeve for PVC, steel, HDPE - 615 - FTS419 -
429 Fabricated tapping sleeve for PVC, steel, HDPE, MJ outlet - - - - -
418 Fabricated threaded outlet tapping sleeve 366 - - FTS420T -
432 All stainless tapping sleeve 665 630 FTSS SSTIII 3490AS
438 All stainless threaded outlet tapping sleeve - - - STS420T -
439 All stainless tapping sleeve, MJ outlet 665 MJ - FTSS-MJ SST-MJ 3490MJAS
452 All stainless tapping sleeve, outlet seal gasket - - FTSAS STS420 3460AS
462 Stainless tapping sleeve, carbon steel flange 664 630 FTSS SSTIII 3490CS
464 Stainless tapping sleeve, outlet seal gasket, carbon flange - - FTSAS - -
465 Stainless tapping sleeve, outlet seal gasket, carbon MJ 664 MJ - - - -
469 Stainless tapping sleeve, full gasket, carbon MJ - - FTSAS SST-III-MJ 3490MJCS
459 All stainless tapping sleeve, MJ outlet, outlet seal gasket - - FTSAS - 3460ASMJ

From the JCM Industries Product Cross Reference and Comparison Chart (Product Directory 8-25). Linked styles are on our site. Equivalents are matched by function: OD ranges, pressure ratings, gaskets and materials differ, so confirm the part for your pipe before ordering. * = similar materials, designs vary (JCM note).

JCM, Smith-Blair and Dresser at a Glance

All three lines are on our site; each category page compares specific products.

JCM Industries Smith-Blair Dresser
Repair clamps Universal 101, fabricated 161, removable lug 171 Style 226, 261 (to 300 PSI on the 226) Style 360, Quick-Cam (to 250 PSI on the 360)
Couplings Ductile 210 with G212 transition gaskets; optimum range 241 Style 441, 461 Quantum Style 38 (to 1,500 PSI), TX3
Tapping sleeves 412 steel, 432 stainless, 419 MJ at 250 PSI Style 622, 663 (240 PSI) Triple Tap, Ultra Tap
Service saddles 404 ductile iron at 250 PSI, 502 stainless at 200 PSI Style 317 (300 PSI) T3 wide range
Where it leads Widest choice of builds per job: lugs, coatings, outlets and transition gaskets Highest published ratings on many clamps and saddles High-pressure steel couplings and wide-range fittings

Verdict: no one brand wins every job. Choose by the pipe, the pressure and the build you need, and we will quote the right one from whichever line fits.

Sizing Basics

Measure the OD, not the nominal size

Wrap a pipe OD tape (or a string) around the pipe at the repair. Circumference divided by 3.1416 is the OD. Our JCM 920 pipe diameter tape reads the diameter directly in 100ths of an inch.

Pick the range around your number

Choose the OD range that contains the measured OD, ideally near the middle of the range. Out-of-round or corroded pipe is a reason to step to an extended range style.

Know the pipe material

Cast iron, ductile iron and C900 PVC share one OD family; IPS PVC, steel and HDPE share another; asbestos cement runs larger. Two pipes of the same nominal size can need different fittings.

Accessories

JCM 920 Pipe Diameter Tape

Reads pipe OD in 100ths of an inch Sizing tool

JCM G212 Transition Gaskets

For 210, 211, 212, 214, 262, 301 and 306 Gaskets

JCM 225 Insulating Adapter Gaskets

IPS fitting to copper tube size Gaskets

Why Buy JCM From Watermain Supply

Engineering-led selection

Send the measured OD, pipe material, damage and pressure. We name the style, range and width, and we obtain JCM's rating and a submittal when the job needs one.

Three brands, one honest answer

We sell JCM, Smith-Blair and Dresser side by side. If another style fits your pipe better, we will say so and quote it.

Every part on one order

Clamps, couplings, saddles, tapping sleeves, restraints and gaskets on one PO, with account terms for utilities and contractors.

Parts and aftermarket

JCM transition gaskets, OD tapes and replacement parts listed alongside the fittings, so the job does not stall on a gasket.

Odd sizes handled

JCM builds special ranges, widths, outlets and materials to order. We handle the request and the submittal for you.

Houston based, Gulf Coast service

Watermain Supply is based in Houston and serves utilities, contractors and plants across the Gulf Coast and nationwide.

Frequently Asked Questions

What warranty do JCM products carry?

Watermain Supply covers JCM products for 12 months from the date of purchase against defects in materials and workmanship.

How do I size a JCM fitting?

By actual pipe OD. Measure the circumference and divide by 3.1416, or use the JCM 920 tape, then choose the range that contains your OD.

Are JCM products approved for drinking water?

JCM certifies its universal and stainless clamps, transition gaskets and its 412, 419, 422 and 429 carbon steel tapping sleeves to NSF/ANSI 61 and 372. Each product page states its certification.

Can you cross reference my Smith-Blair or Dresser part?

Yes. Each JCM category page carries JCM's cross-reference chart, and we can match a Smith-Blair, Dresser, Ford, Romac or PowerSeal part to a JCM style.

Do you build odd sizes?

JCM builds special ranges, widths, outlets and materials to order. Email the pipe OD, material and pressure.

How do I get a submittal?

Email sales@watermainsupply.com with the product and job details and we will obtain the JCM submittal.

Ready to Order JCM?

Send the pipe OD, material and pressure. We will name the JCM fitting, or the Smith-Blair or Dresser one if it fits better.

1-888.510.4036Email SalesRequest a Quote
Technical data on this page is taken from JCM Industries product literature and is subject to change by the manufacturer. Confirm against the current installation instructions before specifying.
JCM Industries and Sur-Grip are trademarks of JCM Industries, Inc.; Smith-Blair, Dresser, Ford, Romac, PowerSeal, Cascade, Robar and Mueller are trademarks of their respective owners, used here for product identification only. Cross-reference equivalents are by function; ranges, ratings and materials differ.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
