Campbell Check & Foot Valves
Availability
Type
Price
$0
$3,116.09
Campbell Cast Iron Foot Valve & Replacement Parts
Campbell
Campbell Cast Iron Foot Valve & Replacement Parts
- Price
- Call for pricing
Campbell Check Valve (Enviro-Check & Specialty)
Campbell
Campbell Check Valve (Enviro-Check & Specialty)
- Price
- Call for pricing
Campbell Check & Foot Valves
Brass · Cast Iron · PVC · Specialty
Check & Foot ValvesDomestic Brass · Import Brass · Cast Iron · Brady · Flo PVC · Jackel
Domestic and import brass check valves, cast iron foot valves, Brady spring-loaded valves, Flo PVC checks, and Jackel sewage check valves. 1/2 in through 6 in across the line, with NSF 61/372 lead-free across all brass categories. Standard sizing for jet pump suction, drop pipe check, and tank discharge service.
6
Material Categories
1/2–6"
Size Range
LF
Lead-Free Standard
160+
Catalog SKUs
Valve Categories
Check valves prevent backflow; foot valves are check valves with a strainer for jet-pump suction. Six material families cover everything from drinking-water service to sewage backwater protection.

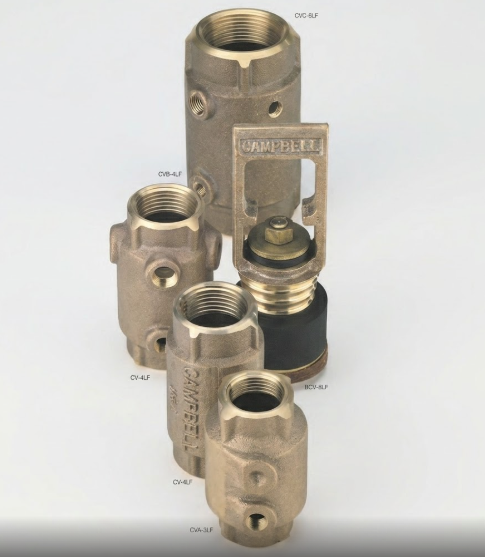

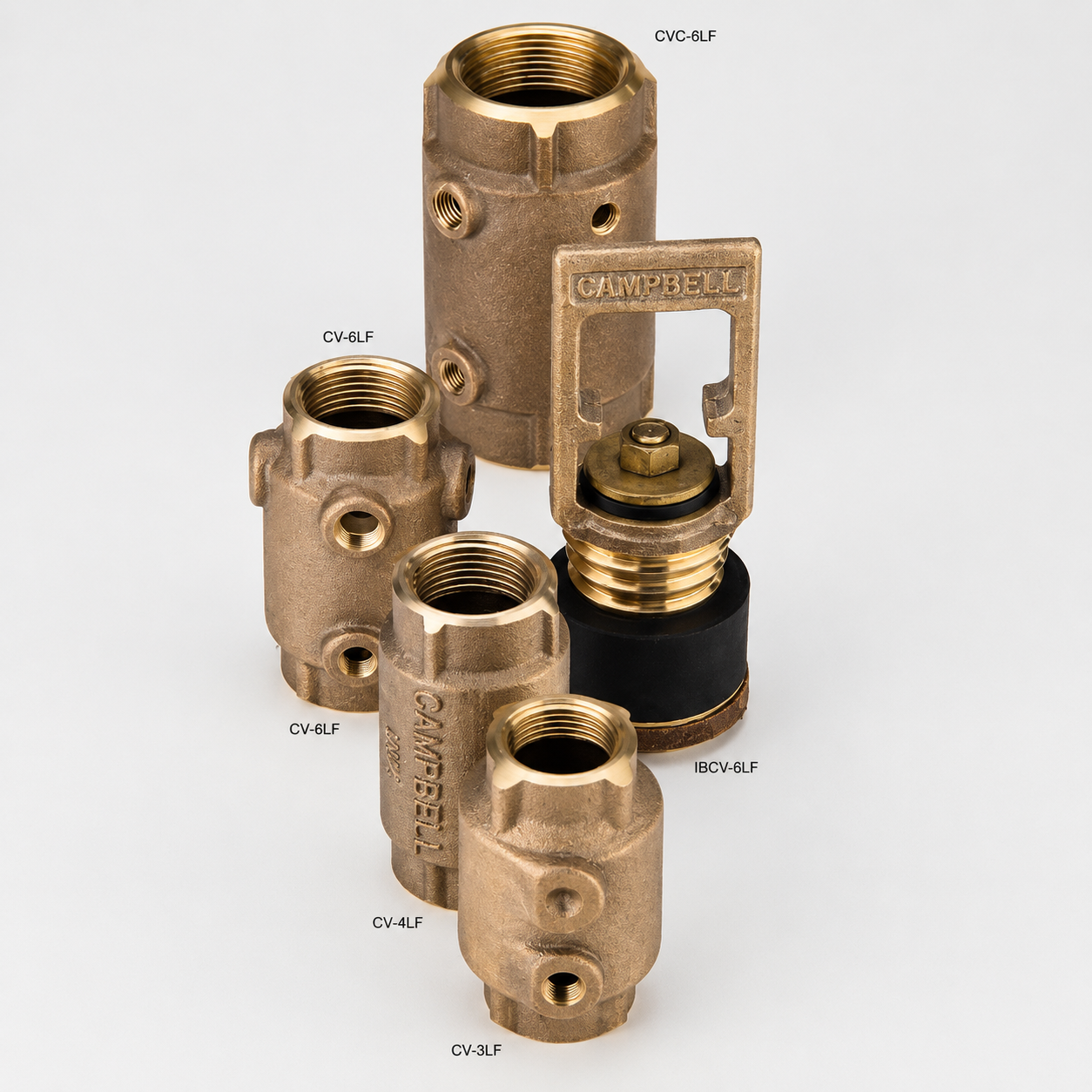

Domestic Brass Check Valves (CV / CVA / CVB / CVC)
U.S. Made · Lead-Free · Multi-Tap Options
Domestic brass check valves with lead-free LF construction. Standard CV-3LF (3/4 in) through CV-5LF (1 1/4 in). CVA series adds one tap, CVB adds two taps, CVC adds four taps for accessories like gauges, drains, and bleeders. CV-SP variants include 1/4 in outlet tap. BCV-8LF Bremer 2 in for larger commercial.
StandardCV-3LF, CV-4LF, CV-5LF
1-TapCVA-4LF, CVA-5LF
2-TapCVB-3LF, CVB-4LF, CVB-5LF
4-TapCVC-4LF, CVC-5LF
2 inBCV-8LF Bremer
Import Brass Check Valves (CV-T)
Lower Cost · LF or Stainless
Import-pricing brass check valves — lower cost than domestic with same NSF 61/372 lead-free compliance. CV-T series in 1/2 in (CV-2TLF) through 1 1/2 in (CV-6TLF). SS variants (CV-3TSS, CV-4TSS, etc.) for aggressive water chemistry. CV-TYB-LF yellow brass alternative for budget installs.
LF SeriesCV-2TLF thru CV-6TLF
SS SeriesCV-3TSS thru CV-6TSS
YB VariantCV-TYB-LF (yellow brass)
Best ForBudget · volume installs

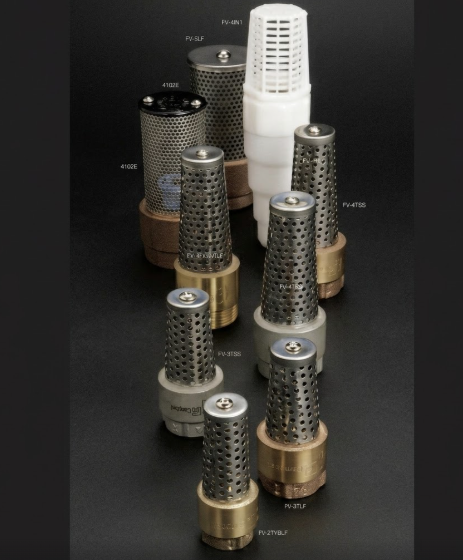

Foot Valves — Brass & Cast Iron
Jet Pump Suction · Strainer Built In
Brass foot valves (FV-3LF through FV-8TLF) for jet-pump suction service — check valve plus integral strainer to keep debris out of the suction line. Cast iron foot valves (FV540-8 through FV540-24) for larger 2 in through 6 in commercial and irrigation suction. Replacement valve leathers (RP-series) and suction strainers available.
Brass DomesticFV-3LF, FV-4LF, FV-5LF
Brass ImportFV-T series, SS variants
Cast IronFV540-8 thru FV540-24
ReplacementRP15, RP32-40 leathers
Brady Spring-Loaded Valves
SLC / SFV / LC / FV · Spring & Non-Spring
Brady valves — lightweight check and foot valves with optional spring for positive closure. SLC spring-loaded check valves and LC non-spring check valves in 3/4 in through 1 1/2 in. SFV spring-loaded foot valves and FV non-spring foot valves — the spring versions close instantly under reverse flow.
Spring CheckSLC75, SLC100, SLC125, SLC150
Non-Spring CheckLC125, LC150
Spring FootSFV075, SFV100, SFV125, SFV150
Non-Spring FootFV075, FV100, FV125
Flo PVC Check Valves (FCCV)
PVC Body · FxF or SxS · Specialty
Flomatic FCCV PVC check valves in 1/2 in (FCCV 2) through 2 in (FCCV 8). FxF threaded and SxS slip variants. Specialty SC5 swing check, SPCV1 sump pump check valve, and 1205-05 adjustable check. PVC body resists corrosion in chemically aggressive water and is the standard choice for sump and irrigation discharge.
FxF SeriesFCCV 2 thru FCCV 8 (1/2–2 in)
SxS SeriesFCCV 3S thru FCCV 8S
Sump CheckSPCV1 (1400-15)
Swing CheckSC5 (1500-12 1 1/4 in)
Jackel Sewage Check Valves
2-Way / 3-Way / 4-Way · Sewage Service
Jackel check valves designed for sewage and effluent backflow prevention. H-125/150MT 4-way for combined inlet/outlet configurations. DJ545 2-way and DJ125MT 3-way for standard sewage discharge. 2GP heavy-duty 2 in sewage check — SLV x SLV ends for solvent-weld connection in sewage main.
4-WayH-125/150MT
3-WayDJ125MT (1 1/4 in)
2-WayDJ545 (1 1/4 / 1 1/2 in)
2 in Sewage2GP (SLV x SLV)
Brass Check Valve Sizing — Domestic Series
Domestic CV-LF series for premium drinking-water installs. Tap variants add gauge, drain, and accessory ports without separate fittings.
| Part Number | Size | Taps | Application |
|---|---|---|---|
| CV-3LF | 3/4 in | None | Standard residential drop pipe / supply |
| CV-4LF | 1 in | None | Standard residential / commercial — most-used |
| CV-5LF | 1 1/4 in | None | Larger residential / commercial |
| CVA-4LF | 1 in | 1 tap | Includes pressure gauge port |
| CVA-5LF | 1 1/4 in | 1 tap | Includes pressure gauge port |
| CVB-3LF | 3/4 in | 2 taps | Gauge + drain ports built in |
| CVB-4LF | 1 in | 2 taps | Gauge + drain ports built in |
| CVB-5LF | 1 1/4 in | 2 taps | Gauge + drain ports built in |
| CVC-4LF | 1 in | 4 taps | All accessory ports — gauge, drain, switch, relief |
| CVC-5LF | 1 1/4 in | 4 taps | Full accessory layout — commercial |
| CV-4SPLF | 1 in | 2 1/4 in outlet tap | Special outlet for unique installs |
| CV-5SPLF | 1 1/4 in | 2 1/4 in outlet tap | Special outlet larger |
| BCV-8LF | 2 in | None | Larger commercial / Bremer 2 in |
Brass Foot Valve Reference
Foot valves are check valves with a strainer for jet-pump suction. The strainer keeps debris out of the suction line. Domestic LF and import T-LF / TSS variants.
| Part Number | Size | Type | Application |
|---|---|---|---|
| FV-3LF | 3/4 in | Domestic LF | Standard residential jet pump |
| FV-4LF | 1 in | Domestic LF | Larger residential jet pump — most-used |
| FV-5LF | 1 1/4 in | Domestic LF | Commercial jet pump |
| FV-2TLF | 1/2 in | Import LF | Small jet pump / shallow-well budget |
| FV-3TSS | 3/4 in | Import SS | Aggressive water residential |
| FV-3TLF | 3/4 in | Import LF | Standard residential budget |
| FV-4TSS | 1 in | Import SS | Aggressive water 1 in |
| FV-4TLF | 1 in | Import LF | Standard 1 in budget — most-used import |
| FV-5TSS | 1 1/4 in | Import SS | Aggressive 1 1/4 in |
| FV-5TLF | 1 1/4 in | Import LF | Standard 1 1/4 in budget |
| FV-6TSS | 1 1/2 in | Import SS | Aggressive 1 1/2 in commercial |
| FV-6TLF | 1 1/2 in | Import LF | Standard 1 1/2 in commercial |
| FV-8TLF | 2 in | Import LF | Large commercial / irrigation suction |
Cast Iron Foot Valves & Replacement Parts
Cast iron foot valves for larger 2 in through 6 in suction service. Field-serviceable — replace the leather, not the whole valve.
| Part Number | Size | Application |
|---|---|---|
| FV540-8 | 2 in cast iron foot valve | Larger jet / centrifugal pump suction |
| FV540-12 | 3 in cast iron foot valve | Commercial / irrigation suction |
| FV540-16 | 4 in cast iron foot valve | Larger commercial / municipal suction |
| FV540-24 | 6 in cast iron foot valve | Heavy commercial / municipal main suction |
| RP15 | FV540-10 valve seat replacement | Restore seal on FV540-10 series |
| RP32 | FV540-5 valve leather replacement | Restore seal on FV540-5 series |
| RP34 | FV540-8 valve leather replacement | Restore seal on FV540-8 (2 in) |
| RP35 | FV540-10 & -12 valve leather | Restore seal on FV540-10/12 (3 in) |
| RP37 | FV540-16 valve leather | Restore seal on FV540-16 (4 in) |
| RP39 | FV540-24 valve leather | Restore seal on FV540-24 (6 in) |
| RP40 | FV540-32 valve leather | Restore seal on FV540-32 (8 in) |
| SSS6 | 1 1/2 in suction strainer | Add-on strainer for suction line |
| SSS8 | 2 in suction strainer | Add-on strainer for 2 in suction |
Brady & Flo PVC Quick Reference
Brady spring-loaded valves close instantly under reverse flow — choose spring for vertical installs and high-cycle service. Flo PVC checks for sump and chemically aggressive applications.
| Brady Spring Check | Brady Foot Valve | Size | Flo PVC Check |
|---|---|---|---|
| SLC75IND | SFV075IND / FV075IND | 3/4 in | FCCV 3 / 3S |
| SLC100IND | SFV100IND / FV100IND | 1 in | FCCV 4 / 4S |
| SLC125IND / LC125IND | SFV125IND / FV125IND | 1 1/4 in | FCCV 5 / 5S |
| SLC150IND / LC150IND | SFV150IND | 1 1/2 in | FCCV 6S |
| — | — | 2 in | FCCV 8 / 8S |
| — | — | Sump pump | SPCV1 (1400-15) |
| — | — | 1 1/4 in swing | SC5 (1500-12) |
Check & Foot Valve Best Practices
The check valve is invisible until it fails — and when it fails, the symptoms are subtle (loss of prime, pump short cycling, slow tank refill). Get the install right and you forget about them.
Match Size to Pipe
Check and foot valves are sized to pipe NPT. Don't downsize — restricting the line at the valve raises pump head and drops flow. 1 in pipe = 1 in valve. Always.
Spring Loaded for Vertical
In vertical pipe runs (drop pipe, vertical risers), specify spring-loaded check valves (Brady SLC series). Gravity alone takes too long to seat the disk — backflow happens in the milliseconds before the disk drops. Spring closes the valve instantly.
Foot Valve at the Bottom of Suction
Jet-pump suction lines need a foot valve at the bottom of the suction pipe — the strainer keeps debris out and the check keeps the line primed. Without one, the pump loses prime every time it shuts off.
Lead-Free for Potable
NSF 61/372 LF compliance is required on all post-2014 potable installs. Specify the LF suffix on every brass check or foot valve. Standard (non-LF) brass is acceptable only for industrial, irrigation, or non-potable replacement service.
Stainless for Aggressive Water
High-iron, high-chloride, sulfide-bearing, or salt-influenced water destroys brass check valves within 5–8 years. Specify stainless (TSS suffix on import series) for these installs. The cost premium is small relative to the labor of replacing a corroded check.
Cast Iron Field-Serviceable
Cast iron foot valves (FV540 series) are designed to be rebuilt in place. Replace the leather (RP-series) every 5–7 years on regularly-cycled installs — the leather is $10–$120 vs $200–$900 for a full valve.
Application Selection
Submersible Drop Pipe Check
Use CV-4LF (1 in) brass check valve at the pump discharge or every 200 ft on deep installs. Prevents backflow when pump shuts off and reduces water hammer.
Jet Pump Suction
Use FV-4LF (1 in) brass foot valve at the bottom of the suction pipe. Strainer keeps debris out, check keeps the line primed. Standard residential jet-pump install.
Larger Commercial Centrifugal
Use FV540-12 (3 in) or FV540-16 (4 in) cast iron foot valve. Standard for commercial pumps with 3 in or 4 in suction. Field-serviceable — rebuild with RP-series leather.
Tank Discharge / System Outlet
Use CVA or CVB series brass check valve with built-in taps for gauge and drain ports. Saves separate fittings on the outlet line.
Sump Pump Discharge
Use SPCV1 sump pump check valve or FCCV 4S PVC. Vertical install, light-duty cycling. Quiet operation important in basement/utility room installs.
Sewage Backflow Protection
Use 2GP Jackel sewage check valve (2 in SLV x SLV). Heavy-duty for raw sewage service. Standard on sewage ejector and lift-station discharge.
Aggressive Water Chemistry
Use CV-TSS or FV-TSS stainless in 3/4 in through 1 1/2 in. Standard for high-iron East Texas wells, high-chloride coastal, and any sulfide-bearing groundwater.
Booster Pump Discharge
Use CV-5LF (1 1/4 in) with Brady SLC125 spring backup. The brass check is the primary backflow stop; the Brady SLC adds instant-close protection for high-cycle booster service.
Frequently Asked Questions
What's the difference between a check valve and a foot valve?
A check valve stops backflow — allows flow one direction only. A foot valve is a check valve with a strainer screen built into the inlet end — designed to install at the bottom of a jet pump's suction pipe to keep the pump primed and keep debris out of the line. Same internal mechanism, different application.
Spring-loaded vs gravity check — when do I use each?
Spring-loaded (SLC, SFV) closes instantly under reverse flow — required for vertical installs and high-cycle service where gravity alone is too slow. Gravity (LC, FV without spring) works in horizontal runs and lower-cycle applications. Spring versions cost slightly more but eliminate water hammer and prevent the pump-cycling losses that gravity checks miss.
Domestic vs import brass — is there a quality difference?
Both are NSF 61/372 lead-free and meet the same potable-water standards. Domestic CV-LF series uses thicker brass castings and tighter machining tolerances — longer life, premium choice. Import CV-T series is roughly 30–50% lower cost, suitable for budget installs and high-volume contractor work. Both seal water; the difference is service life expectancy.
What does the tap variant (CVA, CVB, CVC) mean?
Number of accessory ports built into the valve body. CVA = 1 tap (typically pressure gauge). CVB = 2 taps (gauge + drain). CVC = 4 taps (gauge, drain, switch, relief). Saves separate tee fittings on the line. Use the multi-tap variants when you need to mount multiple accessories at the check-valve location.
How do I rebuild a cast iron foot valve?
Pull the foot valve, disassemble the cap (typically 4–6 bolts), remove the old leather, install the matching RP-series replacement leather, reassemble. RP34 for FV540-8 (2 in), RP35 for FV540-12 (3 in), RP37 for FV540-16 (4 in), RP39 for FV540-24 (6 in). Total job time: 30–60 minutes. Cost: $10–$120 vs $200–$900 for a new valve.
Do I need stainless or is brass enough?
Brass is fine for clean residential drinking water. Specify stainless (TSS suffix) for: (1) high-iron groundwater — common East Texas. (2) High-chloride or salt-influenced water — coastal Gulf Coast. (3) Sulfide-bearing water — rotten-egg smell. (4) Hot water service — brass corrodes faster at temperature. Stainless costs more upfront but eliminates 5–8 year corrosion replacement.
Why use PVC check valves (FCCV) instead of brass?
Three reasons: (1) Cost — PVC is significantly less than brass at the same size. (2) Chemical resistance — PVC tolerates chlorinated, acidic, and brine service that destroys brass. (3) Sump and irrigation — the standard for low-pressure non-potable applications. Use PVC for sump, irrigation, and chemical service. Use brass for drinking water and high-pressure.
What's a Jackel valve and where is it used?
Jackel makes specialty sewage check valves — designed to handle raw sewage and effluent without clogging on solids. The 2GP 2 in SLV x SLV is the workhorse on sewage ejector pump discharge and lift-station discharge. The DJ and H-series 3-way and 4-way variants are for combined inlet/outlet applications. Don't substitute a standard PVC check — sewage check valves have wider flow paths designed for solids passage.
How often should I replace a check valve?
Brass check valves typically last 15–25 years in clean residential service, 8–15 years in heavy commercial. Cast iron foot valves last 20+ years with periodic leather replacement. PVC checks last 10–15 years before the disk and seat wear creates leakage. Symptoms of failing check: pump short cycles, tank doesn't hold pressure with pump off, jet pump loses prime overnight. Replace at first sign of these symptoms.
Need Help Picking the Right Valve?
Tell us your application (drop pipe check, jet pump suction, sump discharge, sewage), pipe size, water chemistry, and whether you need spring-loaded or gravity. We'll spec the right Campbell SKU and ship from Houston same day.
