Campbell Tank Tees & Fittings
Red Brass · Lead-Free · Pre-Built Packages
Tank Tees & FittingsSTC Solid · FTX Fabricated · UTT Universal · TFP Packages
Red brass tank tees and crosses for pressure tanks — 1 in and 1 1/4 in primary sizes with 3/4 in branch ports for gauge, switch, drain, and relief. Solid, fabricated, union, and pre-built fitting packages. Lead-free options across the line.
1&1.25"
Primary Sizes
5
Configurations
LF
NSF 61/372 Standard
55+
Catalog SKUs
Tank Tee Configurations
A tank tee or cross is the central plumbing manifold at every pressure tank install — tank in, system out, gauge, pressure switch, drain, and relief valve all converge on this single fitting.
Solid Tank Cross (STC)
One-Piece Casting · Standard · Stainless
Solid one-piece red brass casting — the lowest leak-path option. Available in 1 in (STC4) and 1 1/4 in (STC5) sizes with 3/4 in or 1 in branch. Lead-free TLF and stainless TSS variants. STC4-3XTLF adds an extra 1/2 in tap for additional accessory.
Sizes1 in · 1 1/4 in
MaterialRed brass · LF · SS
Branch3/4 in standard
Best ForLong-life · permanent installs
Fabricated Tank Cross (FTX)
Multi-Port · Custom Lengths · Higher Capacity
Fabricated from threaded brass components into a single assembly. More ports than the solid version — FTX series adds extra accessory taps. Available in 11 in, 13 in, and 16 in lengths to match your tank height. Lead-free LF standard.
Sizes1 in · 1 1/4 in
Lengths11, 13, 16 in
Branch3/4 in (multi-tap)
Best ForLarger tanks · multi-accessory

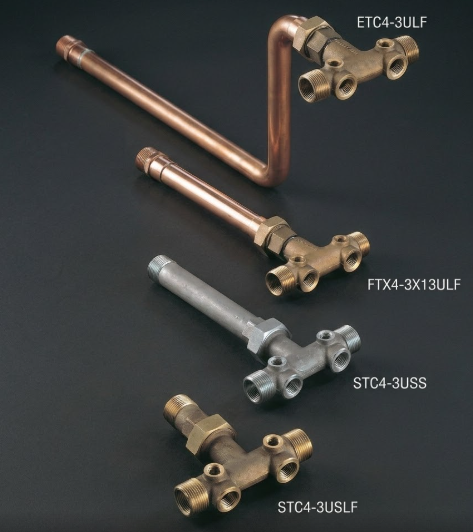

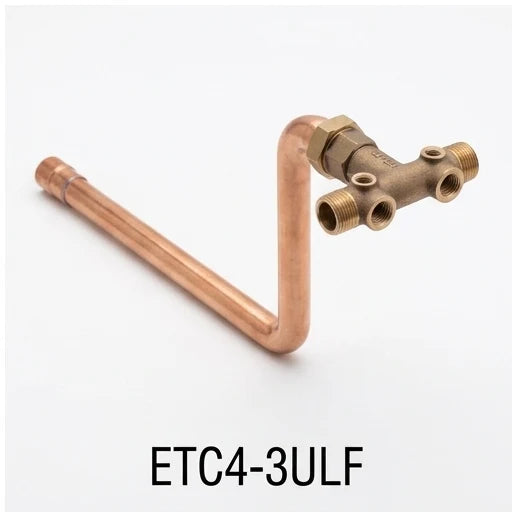

Union Tank Cross (ETC / USS)
Service-Friendly · Removable Union
Built-in union joint allows the tank tee to be removed for tank service without breaking pipe joints. ETC series has the union threaded into the tee body. STC4-3ULF adds a union to the solid casting. STC4-3USSS is the union short-tee in stainless. A must on installs where the tank gets serviced or replaced regularly.
Sizes1 in · 1 1/4 in
MaterialRed brass · LF · SS
LengthStandard · 18 in
Best ForService-prone installs
Tank Manifolds & Specialty
Multi-Tank · Constant Pressure · Plastic
TM-2, TM-12, TM-13 lead-free tank manifolds for parallel multi-tank installs. CPM series constant-pressure manifolds for VFD-driven systems. Galvanized GTC4T cross with two taps for budget installs. Plastic PTC54 cross for non-corrosive applications.
TM SeriesMulti-tank manifold
CPM SeriesConstant pressure
GTC4TGalvanized cross w/ 2 taps
PTC54Plastic 1 1/4 x 1 cross

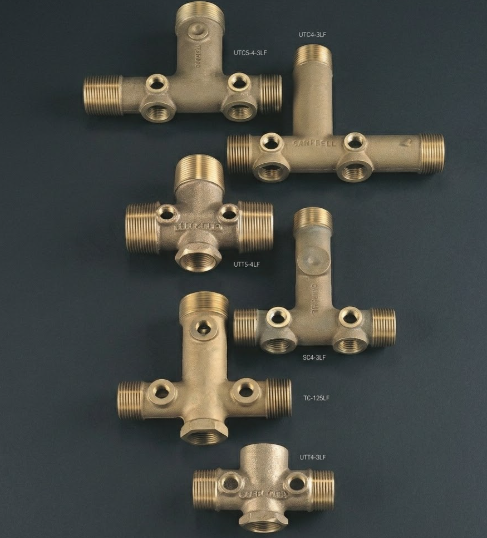

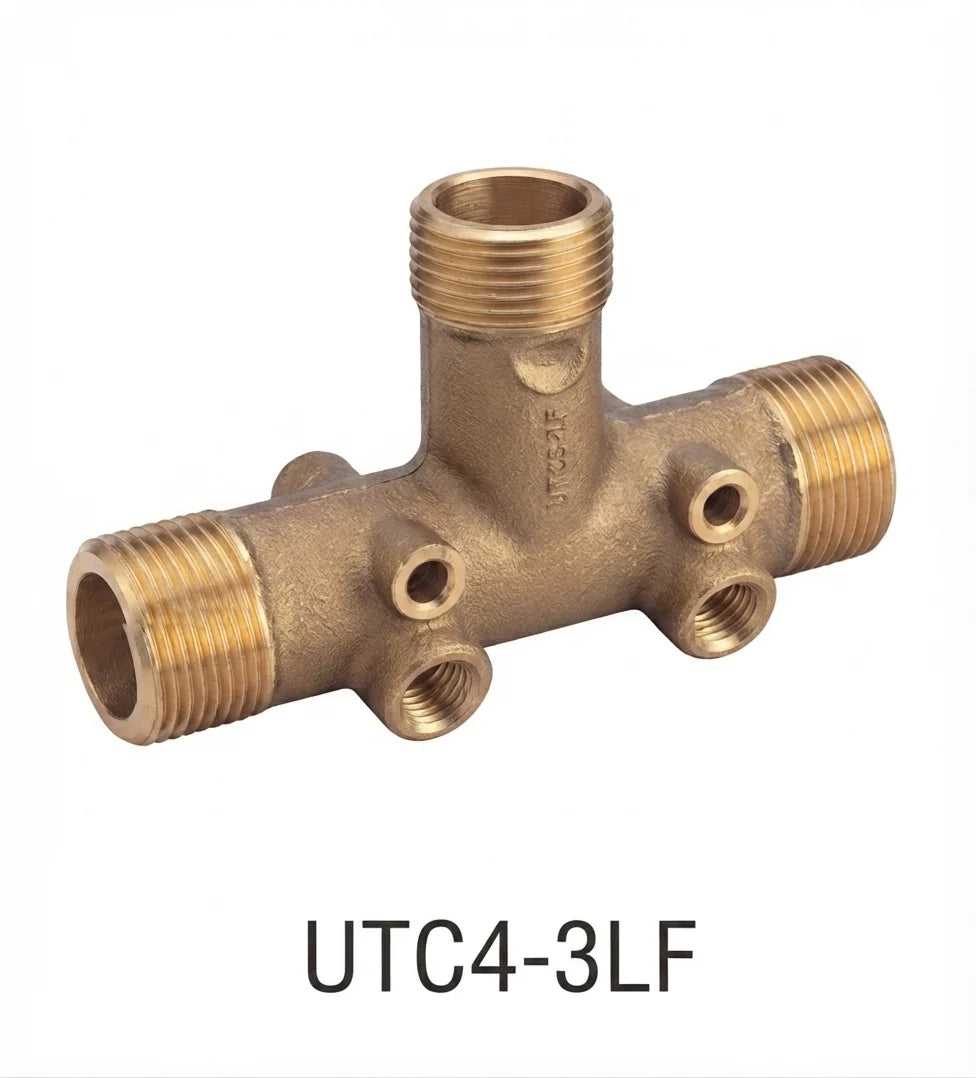

Universal Tank Tee (UTT) & Solid Cross Reference
UTT-series universal tank tees fit a wide range of tank-port sizes. STC-series solid tank crosses are the workhorse compact option.
| Part Number | Configuration | Material | Application |
|---|---|---|---|
| UTT4-3LF | 1 in x 3/4 in tank tee | Red brass LF | Standard 1 in residential install |
| UTT4-3X9LF | 1 in x 3/4 in · 9 in long | Red brass LF | Taller tank or extra clearance |
| UTT5-4LF | 1 1/4 in x 1 in tank tee | Red brass LF | Larger tank install |
| STC4-3TLF | 1 in x 3/4 in solid cross | Red brass LF (import) | Standard residential |
| STC4-3TSS | 1 in x 3/4 in solid cross | Stainless (import) | Aggressive water chemistry |
| STC5-4TLF | 1 1/4 in x 1 in solid cross | Red brass LF (import) | Larger tank install |
| STC5-4TSS | 1 1/4 in x 1 in solid cross | Stainless (import) | Larger · aggressive water |
| STC4-3XTLF | 1 in x 3/4 in w/ 1/2 in tap | Red brass LF | Extra accessory port (filter, treatment) |
| STC4-3ULF | 1 in x 3/4 in solid w/ union | Red brass LF | Service-friendly residential |
| STC5-4ULF | 1 1/4 in x 1 in solid w/ union | Red brass LF | Service-friendly larger install |
Fabricated Tank Cross (FTX) Reference
FTX series provides more ports and longer body lengths for taller pressure tanks and multi-accessory installs.
| Part Number | Size | Length | Notes |
|---|---|---|---|
| FTX4-3LF | 1 in x 3/4 in | 11 in | Standard fabricated tank cross LF |
| FTX4-3TLF | 1 in x 3/4 in | 11 in | Import LF version |
| FTX4-3X13LF | 1 in x 3/4 in | 13 in | Taller body for larger tanks |
| FTX5-4LF | 1 1/4 in x 1 in | Standard | Larger tank install LF |
| FTX5-4TLF | 2 1/4 in x 1 in | Standard | Import LF larger |
| FTX5-4X16LF | 1 1/4 in x 1 in | 16 in | Tallest body — commercial tanks |
| FTX5-4-3X13TLF | 2 1/4 x 1 x 3/4 in | 13 in | Three-size body LF |
| FTX5-4-3X16TLF | 2 1/4 x 1 x 3/4 in | 16 in | Three-size body · tallest |
| FTX4-3X13ULF | 1 in x 3/4 in | 13 in w/ union | Service-friendly fabricated |
| FTX5-4X16ULF | 1 1/4 in x 1 in | 16 in w/ union | Largest service-friendly |

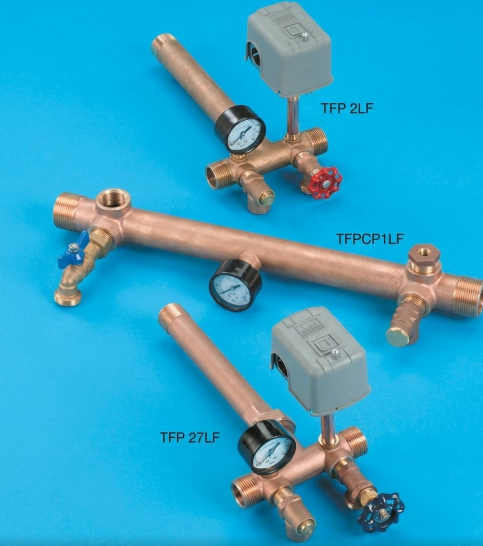

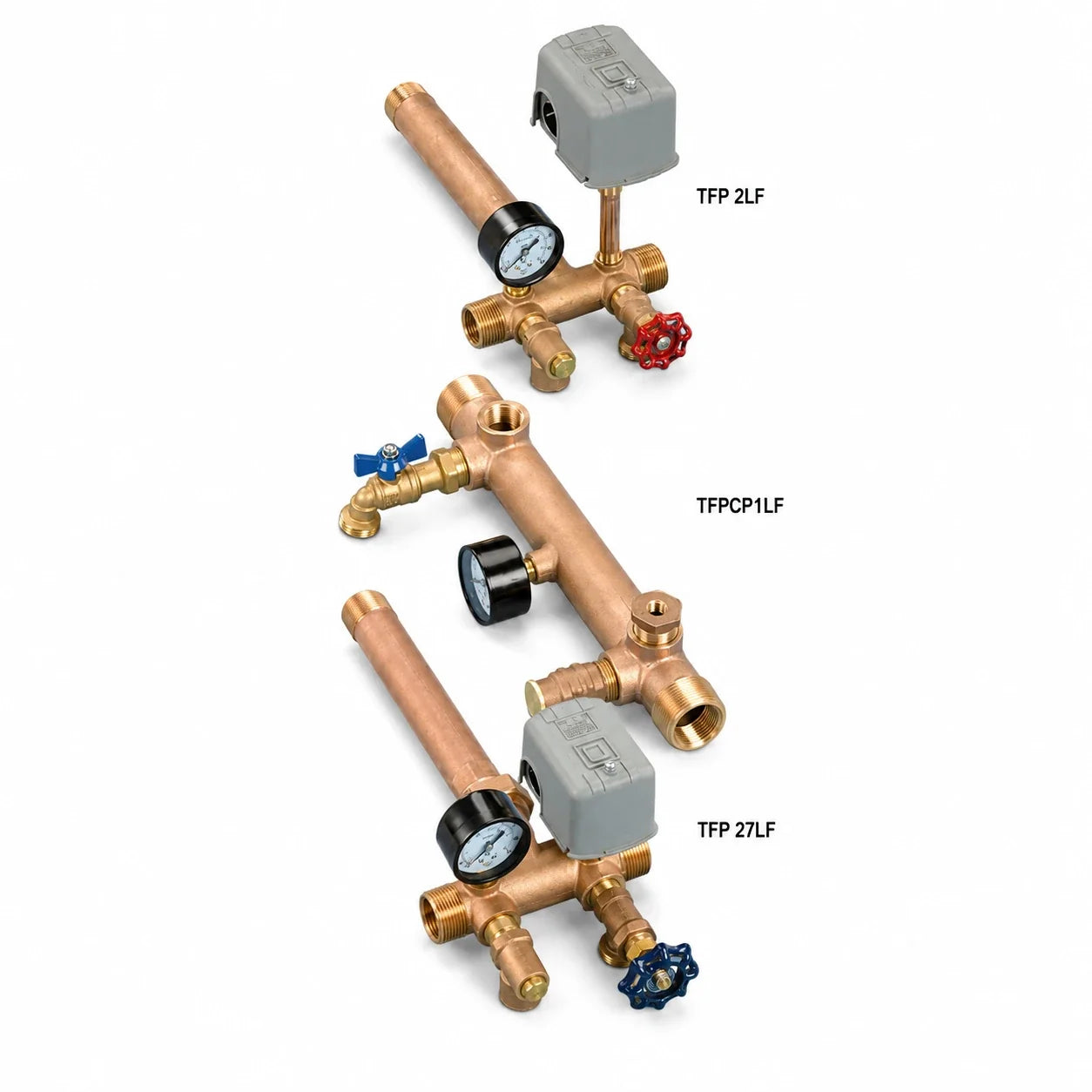

Pre-Built Tank Fitting Packages (TFP)
Complete plumb-and-go packages with tee, gauge, switch, drain, and relief — eliminates 30+ minutes per install and reduces leak points. All lead-free unless noted.
| Package | Configuration | Best For |
|---|---|---|
| TFPCP1LF | 3/4 in x 1/4 in · CPM5 manifold | Constant-pressure VFD systems |
| TFPCP2LF | 3/4 in x 1/2 in · CPM5 manifold | Larger constant-pressure VFD |
| TFP 8LF | Standard 1 in tank tee package | Most common residential package |
| TFP 27LF | 1 in tank tee · alt configuration | Standard residential variant |
| TFP 38LF | 1 1/4 in tank cross package | Larger residential / light commercial |
| TFP 39LF | 1 in package w/ extra ports | Multi-accessory residential |
| TFP 41-LF | 1 in compact package | Tight installation space |
| TFP 49LF | 1 1/4 in package | Larger tank install |
| TFP 51-LF | 1 in standard plumbing package | Standard install |
| TFP 65SS | Stainless tank fitting package | Aggressive water chemistry |
| TFP 73LF | 1 in alternate package | Standard install variant |
| TFP 75-LF | 1 in package · extra ports | Multi-accessory |
| TFP 92LF | 1 in/1 1/4 in mixed package | Specific OEM matches |
| TFP 125LF | 1 1/4 in deluxe package | Premium larger install |
Pre-built packages save 30+ minutes per install and eliminate the "I forgot one fitting" trip back to the truck. On any install with more than 5 tanks per year, the price premium pays for itself in labor savings.
Tank Tee Selection Logic
Pick the configuration that matches your tank port size, install permanence, and water chemistry.
Match to Tank Inlet
Tank port is 1 in NPT? Use 1 in tank tee. Port is 1 1/4 in? Use 1 1/4 in. Don't undersize the tee — the restriction defeats the purpose of the larger tank port.
Solid vs Fabricated
Solid (STC): One-piece casting, fewer leak paths, lower cost, fewer ports. Use on standard residential.
Fabricated (FTX): More ports, longer body options, custom configurations. Use on larger tanks or multi-accessory installs.
Union Where Service Matters
If you anticipate replacing the tank in 5–15 years, spend the extra $20–$50 for a union variant (ETC, ULF, USS). The union joint lets you swap tanks without breaking the entire plumbing run.
Lead-Free is the Default
NSF 61/372 lead-free is required on all potable installs after January 2014. Always specify the LF variant — non-LF is for industrial/non-potable only. Don't risk a code rejection.
Stainless for Hot/Aggressive
For hot-water tanks, brine systems, high-iron, or salt-water-influenced groundwater: specify stainless (TSS, USSS). Brass corrodes within 5–8 years in these conditions.
Pre-Built TFP for Volume Installers
If you install more than 5 tanks per year, switch to TFP pre-built packages. The labor savings (30+ min per tank) plus eliminated callbacks for forgotten fittings pay for the premium within the first 10 installs.
Application Selection
Standard Residential 30 gal Tank
Use STC4-3TLF solid tank cross or UTT4-3LF universal tank tee. Pair with TFP 8LF for a complete pre-built package.
Larger Residential 80 gal Tank
Use STC5-4TLF 1 1/4 in solid cross or UTT5-4LF. Pre-built option: TFP 38LF or TFP 49LF.
Tank Replacement / Service-Heavy
Use union variant (ETC4-3ULF or STC4-3ULF). Allows tank swap without breaking system plumbing — cuts replacement labor in half.
Constant Pressure VFD Booster
Use CPM5-4SSA or CPM5-4SSB stainless constant-pressure manifold. Pair with TFPCP1LF or TFPCP2LF pre-built package.
Multi-Tank Parallel Install
Use TM-2LF, TM-12LF, or TM-13LF tank manifold fittings. Allows two or more pressure tanks to share a common system header.
Aggressive Water Chemistry
Use STC4-3TSS or STC5-4TSS stainless. Standard for high-iron, high-chloride, or salt-influenced wells. Higher upfront cost, eliminates 5–8 year corrosion replacement.
Tall / Vertical Pressure Tank
Use FTX4-3X13LF (13 in long) or FTX5-4X16LF (16 in long). Adds vertical space between tank port and accessories on tall vertical tanks.
Multi-Accessory (Filter + Treatment)
Use STC4-3XTLF with extra 1/2 in tap or FTX5-4-3 series with three-size port options. Lets you mount filter housing, water treatment metering, and standard accessories on one fitting.
Frequently Asked Questions
What's a tank tee for and what mounts on it?
A tank tee is the central plumbing manifold at every pressure tank install. Five things mount on it: (1) the tank inlet port, (2) the system supply line going to the house, (3) a pressure gauge, (4) a Square D pressure switch, (5) a drain valve and/or relief valve. One fitting consolidates all of these into a single connection point at the tank.
Solid (STC) vs Fabricated (FTX) — which is better?
Solid (STC) is one-piece cast brass — fewer leak paths, lower cost, simpler. Best for standard residential. Fabricated (FTX) is assembled from threaded brass parts — more ports, longer body length options, more accessory mounting flexibility. Best for larger tanks, commercial, or multi-accessory installs. Both are equally reliable when properly installed.
Why a union variant?
A union joint lets you remove the tank tee from the system without unscrewing all the connected plumbing. Critical when the tank gets serviced or replaced — without a union, you have to break and re-thread the system supply line every time. Spend the extra $20–$50 on the union variant for any install where the tank is likely to be replaced within the system's life.
Are pre-built TFP packages worth the price premium?
Yes, especially for volume installers. A TFP package eliminates roughly 30 minutes of fitting assembly, removes 4–6 individual fitting purchases, and prevents the "I forgot the relief valve" callback. If you install more than 5 pressure tanks per year, the labor savings pay for the premium within the first 10 installs.
Lead-free or standard?
Lead-free (LF) is the default for any potable water install. Federal law (Reduction of Lead in Drinking Water Act, 2014) requires ≤0.25% lead by weight on potable wetted surfaces. Standard (non-LF) brass is for industrial, non-potable, or pre-2014 service replacement only. Specify LF on every new install — the cost difference is negligible compared to a code rejection.
When should I use stainless instead of brass?
Specify stainless (TSS, USSS suffix) for: (1) hot-water service — brass corrodes faster at elevated temps. (2) High-iron groundwater — common in East Texas. (3) High-chloride or salt-influenced wells — coastal Gulf Coast. (4) Brine systems. Brass typically lasts 5–8 years in these conditions; stainless lasts the life of the tank.
What size port for accessories?
Standard configuration: 3/4 in NPT for gauge, switch, and drain. Some tank tees offer an additional 1/2 in tap (STC4-3XTLF) for a fourth accessory like a filter sediment trap. The pressure switch and gauge always use 3/4 in — don't reduce these to 1/2 in or you risk pressure-reading errors.
Can I use galvanized or plastic instead of brass?
Galvanized (GTC4T) works for non-potable industrial installs — cattle troughs, irrigation, washdown. Plastic (PTC54) is for non-pressurized or low-pressure applications and water-treatment systems where brass would corrode. For potable residential and commercial, always brass — galvanized rusts internally and contaminates water; plastic creeps under pressure cycling.
How do I handle a multi-tank install?
Use tank manifold fittings (TM-2LF, TM-12LF, or TM-13LF) in place of a single tank tee. Each tank gets a port on the manifold, and the manifold has a single system inlet/outlet. Lets two, three, or more tanks share a common header. Critical for high-demand installs where one tank can't handle the cycling load.
Need Help Specifying a Tank Tee?
Tell us your tank size, port size, water chemistry, and whether you want a pre-built TFP package or individual components. We'll spec the exact Campbell SKU and ship from Houston same day.
