Franklin Electric Repair Parts & Accessories
Franklin Electric · Parts, Motors and Pump Ends
Franklin Electric Repair Parts, Replacement Motors and Accessories
Seal kits, overhaul kits, O-ring sets, companion flanges, pump end kits, deep well injectors, booster drives and sensors, and the replacement motors Franklin lists for its own pumps, from the 56C, 56J, JM and JP frames to the C-face TC and TSC motors on VR Series pumps. It includes parts for Little Giant jet and sprinkler pumps and FPS non-clog pumps. Every item is listed by Franklin Electric order number with the pump models it fits. Send the nameplate and we confirm the part before it ships.
690+Franklin order numbers
30Parts and motor listings
1/3–75 HPReplacement motors
1VR–95VRVR service kits
20–120 ftDeep well injectors
A pump that leaks at the shaft, loses prime, loses pressure or trips its motor usually has one worn part on a sound machine. This collection is the service side of the Franklin Electric pump range in one place. It covers repair parts and kits for the VersaJet, Cyclone, C Series, Convertible Pro RM2 and Little Giant JP and JPC jet pumps; Turf Boss, Little Giant LSP and FBSE self-priming pumps; DR, CE and non-corrosive end suction pumps; BT4 and MH multi-stage boosters; VR and VRL vertical multistage pumps; FPS 3NC and 4NC non-clog pumps; and Inline 400, Inline 1100 and Inline SpecPAK booster packages. It also carries seals for the D, AG, HC and XS close-coupled centrifugals, complete pump ends supplied less motor, 4 in deep well injectors, and the motors that drive all of them. It is built for maintenance crews, well and irrigation contractors, plumbers and facility engineers who need the right part the first time.
We supply the U.S. 60 Hz part under Franklin Electric's own order number, so what arrives matches the manual, the exploded view and the box label. Our engineering-led selection starts from your nameplate. Send the pump model, the date code or serial number, the motor frame and a photo, and we confirm the kit, seal faces, elastomer, flange or motor against Franklin's published fitment before you order. Call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Will It Fit My Pump?
Four answers before you order: what warranty applies, what makes the repair last, what decides the fit, and how to get the part confirmed today.
Warranty
Franklin publishes the warranty per pump family, in the owner's manuals:
- Convertible jet pumps and VR Series: 1 year from the date of original purchase.
- End suction centrifugals: 1 year from installation or 2 years from manufacture, whichever comes first.
- Inline SpecPAK packages: 12 months from installation or 24 months from manufacture, whichever comes first. This extends to 36 months from installation with an approved start-up and commissioning checklist.
Baldor, Emerson, Nidec and WEG motors follow the motor maker's warranty to Franklin. We confirm the terms for your part with the quote.
Reliability
Genuine kits return the pump to Franklin's original materials and clearances.
- VR cartridge seals use 316 stainless hardware with graphite, silicon carbide or tungsten carbide faces, rated to 248 °F.
- Close-coupled seals step up from carbon/ceramic to SiC/SiC for abrasive or dry-run duty.
- Most listed motors carry a 1.15 service factor. All VR Series three-phase motors are premium efficiency and inverter-duty rated.
Fit
Two things rule a part in or out.
- The nameplate model, not horsepower. The same HP is built on more than one hydraulic.
- The motor frame letters. 56C is a keyed shaft and 56J a threaded shaft. The JM shaft extends 4.25 to 5.25 in; the JP shaft 7.312 to 8.125 in.
On VR pumps, the date code decides the kit. Date code 22H19 and earlier takes Before 9/2022 kits; 22J19 and later takes After 9/2022 kits.
Match It Now
Send the pump nameplate, motor nameplate and the symptom. We name the Franklin order number and confirm it against the parts breakdown before the order is released.
Request a Parts Quote
1-888.510.4036
sales@watermainsupply.com
See the System These Parts Keep Running
Franklin Electric's overview of the Inline and VR SpecPAK pressure boosting systems. The headers, control panels, transformers, communication cards and isolator kits listed here expand and service these packages.
Three Ways to Put a Franklin Pump Back in Service
Fix the part that failed, replace the motor that drives it, or replace the whole wet end. Each group is matched a different way.
Repair Parts and Seal Kits
19 listings · residential to commercial
Jet to VREvery surface line
6 VR sealsGraphite, SiC, TC
EPDM / FKMElastomer options
By order no.With fitment
This group covers:
- Overhaul, impeller, seal, seal plate, case and nozzle kits for the jet and self-priming pumps.
- Stage assemblies for the BT4 and MH.
- 86 VR repair kits and 26 VR cartridge seal kits.
- Inline 400, Inline 1100 and SpecPAK service parts.
- Mechanical seals for the D, AG, HC and XS, and parts for the 3NC and 4NC non-clog pumps.
Best forA leaking shaft, lost prime or lost pressure on a pump whose motor is healthy.
Replacement Motors
6 listings · 231 motors
1/3–75 HPNameplate HP
56C to 365TSCFrames
ODP / TEFCEnclosures
115–575 V1Ph and 3Ph
These are the motors Franklin lists against its own pumps:
- 56C ODP and TEFC motors for the RM2 Pro, DR and D Series.
- 56J threaded shaft motors for the FBSE and FBSEF.
- JM and JP close-coupled motors for the AG, D, FAC, HC and XS.
- C-face TC and TSC motors for the VR and VRL.
Best forA failed motor on a sound pump, matched on frame letters, shaft, HP, voltage, speed and enclosure.
Pump End Kits and Injectors
5 listings · wet end, less motor
68 pump endsFBSE, Turf Boss, DR, BT4
1/3–5 HPPump ratings
12 injectors4 in wells
20–120 ftDepth to water
A pump end kit is the complete hydraulic assembly without the motor. It rebuilds a worn pump on a healthy motor. Deep well injectors take a C Series, RM2 or SRP3 convertible jet pump below 25 ft of lift. Pump end kits for the AG, D, HC, XS, FAC, FBSEF and gas engine pumps, and VR pump ends and stacks, are in our pump ends and stacks collection.
Best forA tired wet end on a good motor, or a water level that has dropped out of shallow well range.
Find Your Part: Every Listing in This Collection
Start from the pump you own. Each listing opens with its fitment table, and the owner's manual and exploded view are on the product page.
| Listing | Fits | What is in it | Order nos. |
|---|---|---|---|
| Jet and self-priming pumps | |||
| VersaJet Repair Parts | VersaJet, VersaJet Pro: 05VJ–15VJ, FVJ05CI–FVJ15CI | O-ring, impeller, seal, seal plate and jet nozzle kits; small and large cases; overhaul kits | 21 |
| Cyclone Repair Parts | Cyclone FSWJ05P, FSWJ07P, FSWJ1P | Volute case kit, overhaul kits, nozzle and venturi sets, seal plate | 7 |
| C Series Repair Parts | C Series 3C, 5C, 7C; Convertible VersaJet | Bracket, case, impeller, diffuser, shallow well injector and water slinger kits; CVJ seal and impeller kits | 13 |
| RM2 Pro Repair Parts | Convertible Pro FP05CI-C to FP1CI-C | Overhaul kits with and without impeller, injector, case, coupling and seal kits | 12 |
| Little Giant JP and JPC Parts | Little Giant JP shallow well, JPC convertible | Overhaul, casing, seal plate, nozzle and venturi, injector and control valve kits; 40/60 psi pressure sensor | 14 |
| Deep Well Jet Injectors | C Series, RM2, SRP3; 4 in wells | Injectors matched to pump model and depth to water, 20–120 ft | 12 |
| Turf Boss Repair Parts | Turf Boss 1–2 HP | Overhaul kits, plastic or stainless impeller; case, sprinkler bracket, elastomer, seal and hardware kits | 10 |

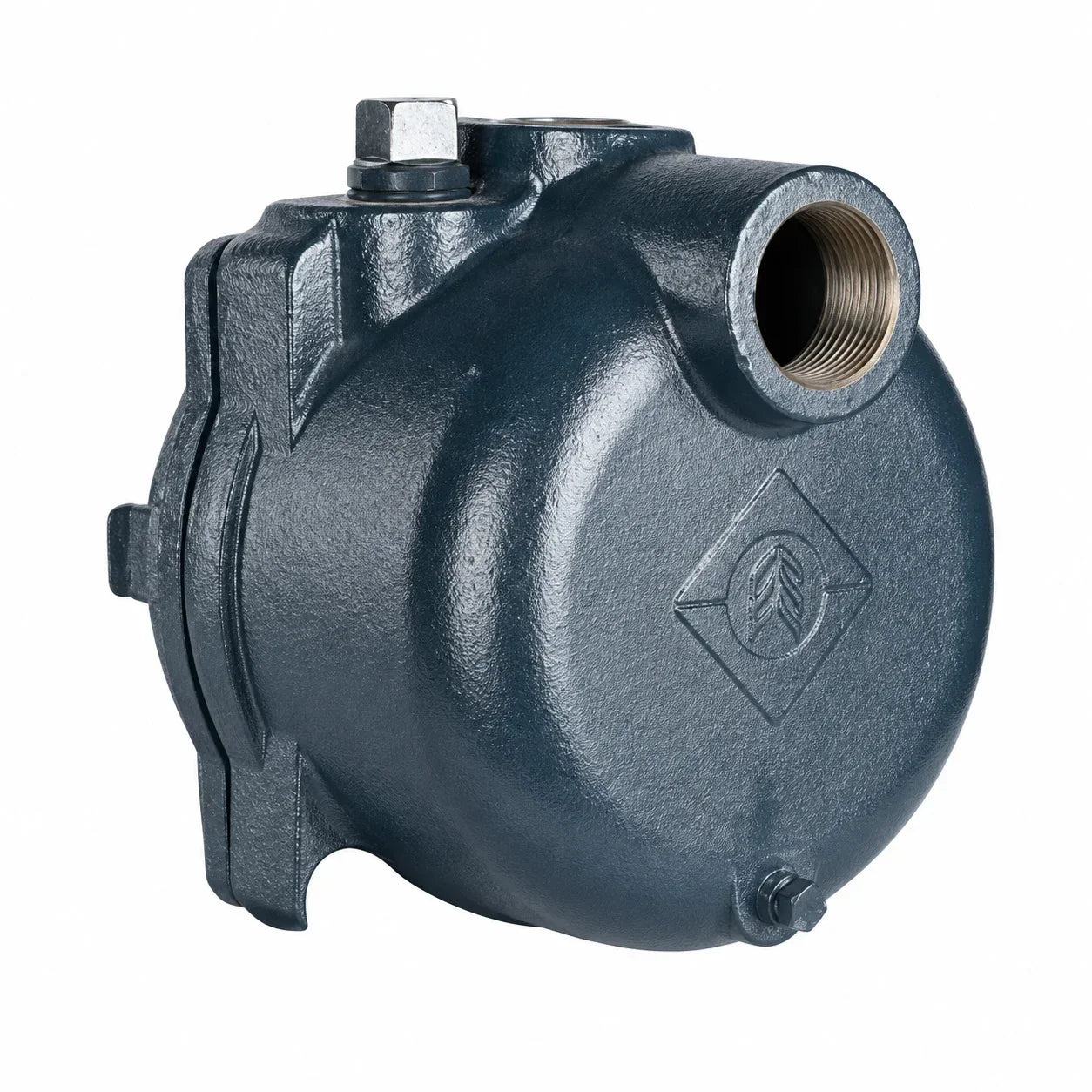

| Turf Boss Pump End Kits | Turf Boss 1–5 HP | Wet end less motor, standard or stainless impeller (SSI), 28–60 lb | 8 |
| LSP, CE and Non-Corrosive Parts | Little Giant LSP sprinkler, CE and non-corrosive end suction | Overhaul and gasket kits by 1, 1.5, 2 HP and 2 HP high pressure; CE case and seal kits; impellers, bracket, case | 17 |
| FBSE Repair Parts | FBSE-50S to FBSE-200S | Case, impeller, seal plate, seal, base plate and gasket kits; hardware | 18 |
| FBSE Pump End Kits | FBSE 1/2–3 HP | Wet end less motor, FBSE-50K to FBSE-300PEK, 18–35 lb | 6 |
| End suction, non-clog and multi-stage boosters | |||
| DR Series Repair Parts | DR1S, 2S, 1J, 2J, 1C, 2C | Impeller and wear ring sets, 5/8 in SiC seal, square rings, impeller bolt, coupling | 22 |
| DR Series Pump End Kits | DR 1/2–2 HP, 56J or 56C motor | Wet end less motor, cast iron or stainless | 15 |
| NC Series Non-Clog Parts | FPS 3NC and 4NC submersible non-clog pumps | Impellers by trim, 146–196 mm; seals, bearings, wear plates, stators, cover assemblies and kits | 41 |
| BT4 Repair Parts | BT4 5–45 GPM | Stage assemblies, bearings, discharge heads, brackets, couplings, O-rings, buna and FKM seals | 23 |
| BT4 56C Pump Ends | BT4 1/3–3 HP on 56C motors | Tri-Seal stainless hydraulics, less motor | 39 |
| MH Series Repair Parts | MH 15, 30, 45 GPM | Casing and shaft kits by stage count; suction, intermediate and discharge stages; seal plate, flange | 23 |
| VR vertical multistage and Inline boosters | |||
| VR Series Repair Kit | 1VR–95VR, VRL; 56C to 365TC | Brackets, thrust bearing adapters, couplings, guards, casings, flanges, plugs, bolts, O-ring kits | 86 |
| VR Series Mechanical Seal Kit | 1VR–95VR, VRL; before and after 9/2022 | Cartridge seals, seal Types 1 to 6 | 26 |
| VR Companion Flange Kit | 1VR–20VR, round or oval | 2 flanges, 2 gaskets, bolts and nuts; 1.00, 1.25, 2.00 in FNPT | 5 |
| Inline SpecPAK Accessories | SpecPAK duplex, triplex, quad | Headers, control panels, 7.5–15 KVA transformers, Modbus and Ethernet cards, isolator kits | 18 |
| Inline 400 Repair Parts | Inline 400, 115V and 230V | Tank, cover, base, flow piston, inlet pressure switch, capacitor | 10 |
| Inline 1100 Repair Parts | Inline 1100 package | Replacement drive, pump-motor assembly, pressure sensors, duplex alternator | 10 |
| Industrial Centrifugal Seal | D, AG, HC, XS close-coupled | 1.250, 1.625, 1.750, 2.125 in seals; carbon/ceramic or SiC/SiC, EPDM or FKM | 10 |
| Replacement motors | |||
| 56C Replacement Motors | RM2 Pro, D Series; DR1C, DR2C, BT4 56C ends | ODP keyed shaft, 1/2–3 HP, 115/230V 1Ph and 208-230/460V 3Ph | 12 |
| 56C TEFC Pump Motors | D Series end suction | TEFC, 0.625 in shaft, 1/3–3 HP, 3600 and 1800 RPM, 1Ph, 3Ph and 575V | 26 |
| 56J Replacement Motors | FBSE-300, FBSEF-150 to 300 | Threaded shaft, 1-1/2–3 HP, ODP and TEFC | 5 |
| JM Close-Coupled Motor | AG (most), D Series, FAC | 143JM–326JM, 1–60 HP, ODP and TEFC | 57 |
| JP Close-Coupled Motor | HC, XS, AG packing | 145JP–365JP, 3–75 HP, ODP and TEFC | 54 |

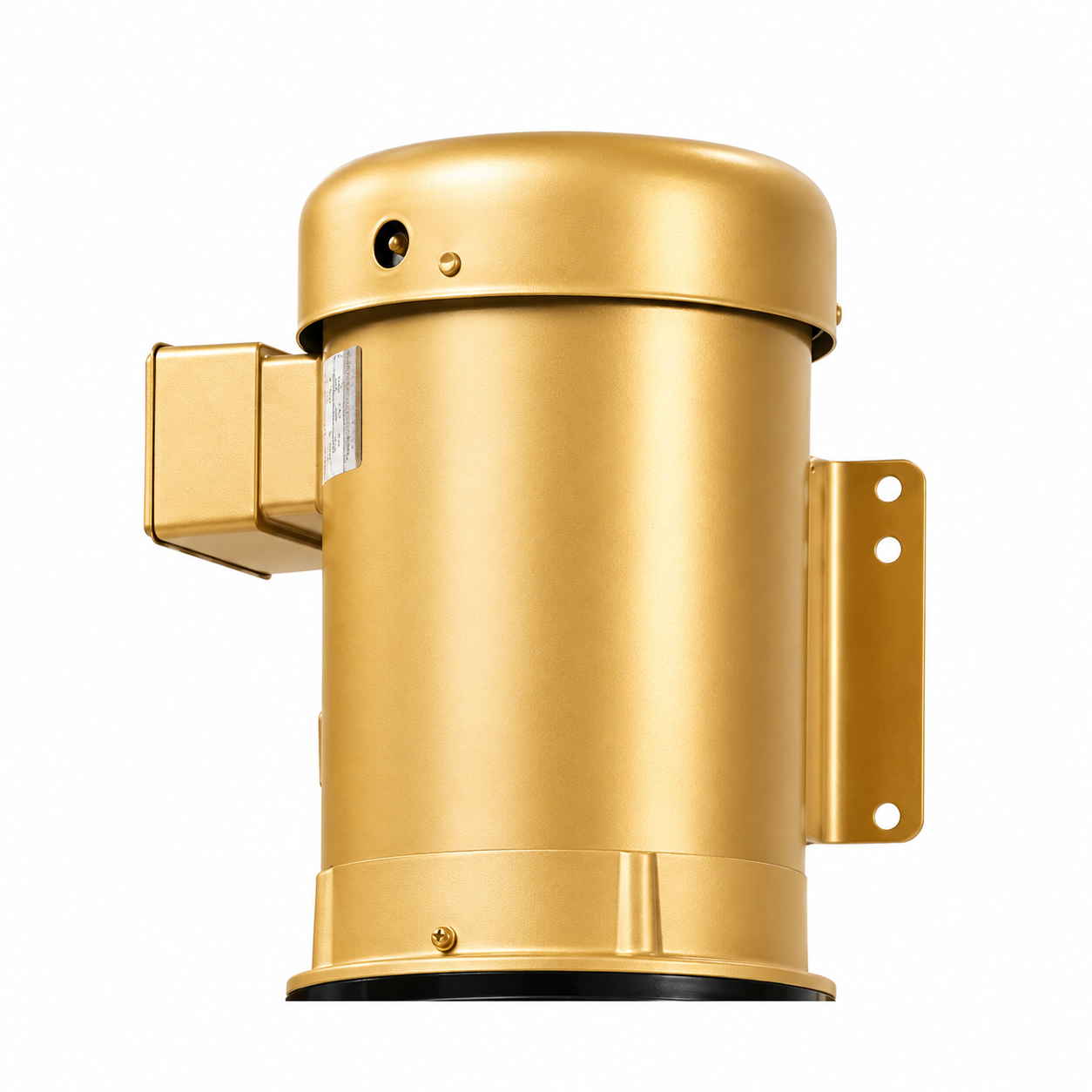

| VR Series Replacement Motor | 1VR–95VR, 1VRL–95VRL | 56C, 182–256TC, 284–365TSC, 1/2–75 HP | 77 |
Which Motor Goes on Which Pump
The same horsepower comes in five shaft designs. The letters after the frame number decide the motor, before HP or voltage.
| Attribute | 56C | 56J | JM | JP | TC / TSC (VR) |
|---|---|---|---|---|---|
| Shaft | Keyed, 0.625 in | Threaded | 0.875 or 1.250 in, 4.25–5.25 in long | 0.875 or 1.250 in, 7.312–8.125 in long | 0.625 in (56C) to 1.875 in (324–365TSC) |
| Mounting | C-face; pump end or bracket | C-face; impeller threads on shaft | Close-coupled; impeller on motor shaft | Close-coupled; impeller on motor shaft | C-face on VR bracket, coupled to pump shaft |
| HP on listings | 1/3–3 | 1-1/2–3 | 1–60 | 3–75 | 1/2–75 |
| Enclosure | ODP and TEFC | ODP and TEFC | ODP and TEFC | ODP and TEFC | ODP and TEFC |
| 575 V | TEFC 3/4–3 HP, 3600 RPM | — | 3–50 HP TEFC, 3600 RPM | 25–75 HP TEFC, 1800 RPM | 1–50 HP at 3600; 1/2–15 HP at 1800 |
| Service factor | Per nameplate | Per nameplate | 1.15 typical | 1.15; 1.25 on WEG 575 V | 1.25 to 1 HP; 1.15 above; 1.00 on 1Ph TC 3–10 HP |
| Franklin pumps | RM2 Pro, DR1C/DR2C, BT4 ends, D Series | FBSE-300, FBSEF | AG, D Series, FAC | HC, XS, AG packing | VR and VRL |
| Motor makers | Baldor, Emerson (TEFC); per nameplate (ODP) | Per listing | Baldor, Nidec | Baldor, Nidec, WEG | Baldor |
| Listing | ODP · TEFC | 56J motors | JM motors | JP motors | VR motors |
Sources: Franklin Electric Close-Coupled AG, HC 7.5 in and XS Series catalogs; VR Series Catalog; Franklin surface pump price pages (15 Jun 2026). Confirm AK, U and AH on your pump before ordering.
Quick rule. Read the letters after the frame number and order the same letters. A JM nameplate takes a JM motor, JP takes JP, 56J takes 56J, and a C, TC or TSC nameplate on a VR or VRL pump takes the VR Series motor. Then match HP, voltage, phase, RPM and enclosure.
Franklin Parts Compared with Other Brands We Supply
If you are choosing which pump to keep in service, or which brand to standardize on, here is how the parts support compares. Every brand below is available from us, and the figures come from our own product pages.
Vertical multistage service: Franklin VR vs Grundfos CR vs A.Y. McDonald DuraMAC
| Attribute | Franklin VR seal and repair kits | Grundfos CR, CRI, CRN service kits | A.Y. McDonald DuraMAC IQ1000 parts |
|---|---|---|---|
| Pumps covered | 1VR–95VR and 1VRL–95VRL | CR, CRI and CRN 1s, 1, 3, 5, 10, 15, 20 | DuraMAC vertical multistage VSD booster, 3–10 HP, simplex to triplex |
| Shaft seal | 26 cartridge seal kits in 6 seal types: graphite/SiC, SiC/SiC or tungsten carbide faces; EPDM or FKM | 2 pre-set cartridge kits cover the range: HQQE (SiC faces, EPDM) or HQQV (SiC faces, FKM) | SiC/carbon/EPDM, or SiC/SiC/EPDM for sandy water |
| Static seals | O-ring kits by size, EPDM or FKM, in the VR repair kit listing | Gasket kit, EPDM or FKM, ordered separately from the seal kit | See the IQ1000 parts page |
| How kits split | By size and by build date: before or after 9/2022 | By size group: 1s–5 and 10–20 | By booster model; contact the factory for drive programming |
| Beyond seals | Brackets, couplings, casings, replacement stacks, pump ends and motors to 75 HP | Pump ends for CR, CRI and CRN 3, 5, 10 | Drives, 4-20 mA transducers (15, 150, 200 psi), disconnects |
| Listing | VR seal kits · VR repair kits | CR shaft seal kits · CR gasket kits | IQ1000 parts |
Verdict. Grundfos wins on simplicity: two shaft seal kits and two gasket kits cover every CR, CRI and CRN from the 1s to the 20, and the cartridge arrives pre-set. Franklin wins on choice and depth: six seal materials including tungsten carbide for abrasive duty, kits for the large 30VR–95VR sizes, and brackets, stacks, pump ends and motors under one brand. DuraMAC wins where the drive is the service item, with drives and transducers listed by rating. Order parts by the brand on the nameplate; seal kits are built for each maker's own seal chamber and are not listed as interchangeable.
Jet pump service: Franklin vs A.Y. McDonald
| Attribute | Franklin jet pump parts | A.Y. McDonald 8100 / 8200 parts | A.Y. McDonald 8500 / 8600 parts |
|---|---|---|---|
| Pumps covered | VersaJet, Cyclone, C Series, RM2 Pro, Little Giant JP and JPC | 8100 shallow well, 8200 convertible | 8500 / 8600 jet pumps |
| Wear kit | Overhaul kits: impeller, wear ring, diffuser, seal, O-ring, nozzles, venturi, hardware | Impeller, diffuser, rotary seal and housing gasket kit | Impeller, diffuser, rotary seal and housing gasket kit |
| Deep well | 12 injectors matched to model and 20–120 ft depth | Ejector packages (separate listings) | Ejector packages (separate listings) |
| Motor | 56C keyed shaft ODP or TEFC; 56J threaded | NEMA J, 7/16-20 thread, 0.625 in shaft | NEMA C keyed, 0.625 in by 2.07 in (1500 Series) |
| Build split | By model and suffix (-P, -C) | Gasket D09 and older; O-ring E09 and newer | Gasket D03 and older; O-ring E03 and newer |
| Listing | VersaJet parts | 8100 / 8200 parts | 8500 / 8600 parts |
Verdict. Franklin wins on complete overhaul kits: one order number restores the whole wet end, nozzle and venturi included. A.Y. McDonald wins on piece-part depth. Individual gaskets, capscrews and valve parts are sold separately, so a small repair can cost less. Keep the brand you own in service with its own parts, because the two do not cross over.
Selection Guide: From Symptom to Part
Start from what you see. We confirm the final order number against Franklin's parts breakdown for your model.
| What you see | Likely cause | Order this | Notes |
|---|---|---|---|
| Water at the shaft | Worn mechanical seal | Seal kit for the family; VR seal kit on VR | Order the O-ring kit with a VR seal |
| Runs, but pressure and flow are down | Worn impeller, diffuser, wear ring; jet nozzle and venturi | Impeller kit or overhaul kit | Match the nameplate model, not HP |
| Will not hold prime | Seal, gaskets or a cracked case | Seal and gasket kits; case kit | Check the suction line for air leaks too |
| Wet end worn, motor healthy | Tired hydraulics | Pump end kit, less motor | Motor frame and shaft must match the kit |
| Motor failed, wet end sound | Winding or bearings | Replacement motor, same frame letters | Replace the seal on close-coupled pumps |
| Water level below 25 ft | Beyond shallow well lift | Convertible jet plus deep well injector | Give model and depth to water |
| VR hot or treated water | Elastomer attack | EPDM seal and O-rings, Type 1 or 2 | FKM where oils or hydrocarbons are present |
| VR abrasive duty | Face wear | Seal Type 2, 3, 5 or 6 | SiC/SiC or tungsten carbide faces |
| 1–20VR on threaded pipe | No counter-flanges | Companion flange kit | F = round, T = oval in model code |
| NC pump down on flow | Worn impeller, wear plate or seal | NC repair parts | Impeller trim is the last number of the model, e.g. 3NC-323P1-184 is 184 mm |
| Inline 400 short-cycling | Flow piston, pressure switch | Inline 400 parts | Check the inlet screen first |
| Inline 1100 drive fault | Drive, sensor or PMA | Inline 1100 parts | Test the sensor first; it can read as a drive fault |
| SpecPAK needs another pump | Demand growth | SpecPAK header, panel, isolators | Triplex header adds 1 circuit; quad adds 2 |
| Close-coupled seal leak | Seal by shaft size | Industrial centrifugal seal | Replace sleeve and case O-ring with it |
| Motor and wet end both worn | End of service life | A complete pump | We quote both routes and say which costs less |
How to Match a Franklin Part or Motor
Parts are matched, not sized. The pump you own already sets the answer. Four pieces of nameplate data settle almost every order.
1. Model number first
The model identifies the pump family and, with it, the seal, impeller, case and pump end. Where the nameplate carries Franklin's order number, send it too. On jet pumps, the suffix matters: an FVJ07CI and an FVJ07CI-P take different overhaul kits.
2. On VR pumps, read the model code and date code
Worked example from the VR Series Catalog: 30VR 03 2A G F 1 A K 6 E 3.
| Code | Meaning | Parts it decides |
|---|---|---|
| 30VR | Series and size | 30–95VR seal kit, O-ring kit, bracket, coupling |
| 03 / 2A | 3 stages; 2 trimmed | Replacement stack or pump end |
| G | Cast iron casing, 316 SS hydraulics | Pump base and case kits |
| F | Round flange (T = oval, V = grooved) | Companion flange kit, 1–20VR |
| 1 | Seal Type 1: graphite/SiC, EPDM | Type 1 seal kit, EPDM O-ring kit |
| A / K | NEMA motor; 15 HP, 250TC frame family | Bracket, thrust bearing adapter, bolt kit |
| 6 / E / 3 | 3600 RPM; premium TEFC; 230/460V 3Ph | VR Series motor |
Franklin changed VR construction in September 2022. Brackets, seal plates, upper flanges, split couplings and thrust bearing adapters differ between builds. O-ring kits, plugs, shaft pins, bolt kits and matching flanges fit both. The return we see most is a seal kit ordered by pump size alone, from the wrong build.
3. Check the connection pressure
Inlet pressure plus the pump's shut-off pressure must stay under the connection rating. Convert head to pressure at 0.433 psi per ft of water.
Example: a 10VR with 400 ft of shut-off head and 60 psi at the inlet sees 400 × 0.433 = 173.2 psi, plus 60 = 233.2 psi. That is above the 230 psi oval PN16 rating. It calls for the round-flange (F) pump build, which takes the round PN25 kit rated 360 psi. The flange kit follows the pump's flange; changing the kit does not re-rate an oval-flange pump. We confirm against the manufacturer curve and submittal for your model.
4. For a motor, read the frame letters
| Fit code | Rabbet AK (in) | Shaft U (in) | Shaft AH (in) | Frames |
|---|---|---|---|---|
| JM-1 | 4.5 | 0.875 | 4.25 | 143, 145, 182, 184 |
| JM-2 | 8.5 | 0.875 | 4.25 | 213, 215 |
| JM-3 | 8.5 | 1.250 | 5.25 | 254, 256 |
| JM-4 | 12.5 | 1.250 | 5.25 | 284, 286, 324, 326, 364, 365 |
| JP-1 | 4.5 | 0.875 | 7.312 | 143, 145, 182, 184 |
| JP-2 | 8.5 | 1.250 | 8.125 | 213, 215, 254, 256 |
| JP-3 | 12.5 | 1.250 | 8.125 | 284, 286, 324, 326 |
| JP-4 | 12.5 | see note | 8.125 | 364, 365 |
Source: Close-Coupled AG Series Catalog, motor fit codes. The fit-code table lists 1.250 in for JP-4, while the JP motor tables list 1.625 in for 364JP and 365JP. We confirm on the motor drawing.
Worked example, close-coupled. An AG Series A2256NM-10D2P3 has lost its motor. The code reads 10 HP, ODP (D), 3600 RPM (2P) and three phase (3). The AG catalog lists this pump on a 213JM motor, fit code JM-2. In the JM listing, that is EJMM3312T: 10 HP, 213JM, ODP, 3600 RPM, 208-230/460V, FLA 26-24/12 A.
Worked example, load check. A CEM3711T VR motor (10 HP, 215TC, TEFC) is rated 23.2/11.6 A FLA and 27/13.5 A service-factor amps. A measured 12.5 A at 460 V is above FLA but inside the 1.15 service factor. The motor is working into its margin, so we would review the duty point on the pump curve.
What to send us. Photos of the pump and motor nameplates, the supply voltage and phase, indoor or outdoor, VFD or across-the-line, and the symptom. For a deep well injector, add the measured depth to water. Email sales@watermainsupply.com. For how pumps are rated, see Pump Curve 101.
Ratings and Service Data
Documented Franklin Electric figures only. The nameplate on the supplied part governs.
| Item | Figure | Source |
|---|---|---|
| VR liquid temperature | 14 to 248 °F | VR Series Catalog |
| VR seal temperature | Type 1: -22 to 248 °F; Types 2–6: 14 to 248 °F | VR Series Catalog |
| 1–20VR pump rating | Oval (T) 230 psi; round and grooved (F, V) 375 psi | VR Series Catalog |
| 30–95VR pump rating | PN16 230 psi; PN25/40 460 psi (30, 45VR), 360 psi (65, 95VR) | VR Series Catalog |
| Companion flange kits | Oval PN16 230 psi; round PN25 360 psi | VR Series Catalog |
| VR seal torque | Cartridge 40 ±2 Nm; set screws 3 +1/-0 Nm | VR Series Owner's Manual |
| VR coupling torque | 10.5 Nm (NEMA 56); 24 Nm (182–215); 50 Nm (254–365) | VR Series Owner's Manual |
| VR supply voltage | Within 6% of motor rating; ambient to 104 °F | VR Series Owner's Manual |
| SpecPAK transformers | 7.5 KVA duplex, 10 KVA triplex, 15 KVA quad | Inline SpecPAK Catalog M5122 |
| SpecPAK connections | 3 or 4 in grooved headers; 150# flanged pumps | Inline SpecPAK Catalog M5122 |
| Close-coupled seal sizes | 1.250, 1.625, 1.750, 2.125 in | D and AG Series catalogs |
| NC impeller trims | 3NC 160–196 mm; 4NC 146–182 mm | NC Series parts listing |
| Deep well injectors | 4 in minimum well; 20–120 ft to water | Franklin surface pump price list |
Motor full-load amps, 3Ph ODP, 3600 RPM
| HP | VR motor (TC) | JM motor | JP motor |
|---|---|---|---|
| 5 | CEM3212T, 182TC: 12/6 A | EJMM3212T, 182JM: 12.4-11.8/5.9 A | EJPM3212T, 182JP: 12/6 A |
| 7-1/2 | CEM3219T, 184TC: 17.2/8.6 A | EJMM3219T, 184JM: 18.4-17.4/8.7 A | EJPM3219T, 184JP: 17.2/8.6 A |
| 15 | CEM3314T, 215TC: 35/17.5 A | EJMM3314T, 215JM: 37.4-35.4/17.7 A | EJPM3314T, 215JP: 35/17.5 A |
| 25 | CEM2516T, 256TC: 56/28 A | EJMM2516T, 256JM: 62-56/28 A | EJPM2516T, 256JP: 56/28 A |
Sources: Franklin Electric VR Series Catalog Mi9041 (60 Hz), VR Series Owner's Manual 106821101, 1100 Booster Pump Packages Owner's Manual 106983101, Inline SpecPAK Catalog M5122, Close-Coupled AG and HC 7.5 in Series catalogs, and the Franklin Electric price list effective 15 Jun 2026. Many motors share a Baldor catalog stem; the prefix (CEM, EJMM, EJPM) marks the shaft, so order by the full number on your nameplate. Request the manufacturer parts breakdown, motor data sheet and curve for your exact model.
Why These Parts Make the Repair Go Right
The design details that change how the job goes on site.
Complete Overhaul Kits
Jet pump overhaul kits carry the impeller, wear ring, diffuser, seal, O-ring, nozzles, venturi and hardware, so one order number restores the whole wet end.
Cartridge VR Seals
The VR seal is a preassembled cartridge, and the manual describes replacing it without pulling the motor. That shortens downtime on large frames.
Kits Split by Build Date
Franklin labels each VR kit Before 9/2022, After 9/2022 or All builds, which prevents the most common return.
Pump Ends, Less Motor
FBSE, Turf Boss, DR and BT4 wet ends go straight onto a sound motor, which costs less than a complete pump.
Close-Coupled Fit Codes
JM-1 to JM-4 and JP-1 to JP-4 set the rabbet, shaft diameter and shaft length. One pump end kit covers a range of frames, with no alignment job after a motor swap.
Thrust Carried by the Pump
The VR pump end has its own oversized thrust bearing, so a standard NEMA C-face motor replaces the original.
The Complete Pumps These Parts Belong To
When the motor and the wet end are both worn, a new pump is often the better buy. Every parts listing links back to its pump.
Genuine Franklin Electric parts keep a pump built to its original specification, with the torque values, materials and clearances in the Franklin manuals.
Why Buy Franklin Parts from Watermain Supply
Engineering-Led Selection
We read your nameplate, model code and date code and confirm the order number against Franklin's published fitment before the order is released.
Multi-Brand Honesty
We supply Franklin Electric, A.Y. McDonald, DAB and Grundfos. If a repair is not worth it, or another pump is the better replacement, we will say so.
Account Terms
Net-30 for qualified contractor, property-management and municipal accounts.
Parts and Aftermarket
Seal kit, motor, pump end or a complete pump on one order, for the life of the installation.
Factory Order Numbers
Every listing is Franklin's own order number, with the manual and exploded view on the product page.
Houston Based
Based in Houston and serving the Gulf Coast, with the correct U.S. 60 Hz part for your voltage. Call 1-888.510.4036.
Franklin Electric Parts and Motors FAQ
What our technical desk gets asked most.
What warranty comes with Franklin Electric parts and motors?
Franklin publishes the warranty per pump family in its owner's manuals. Convertible jet pumps and VR Series carry 1 year from original purchase. End suction centrifugals carry 1 year from installation or 2 years from manufacture, whichever comes first. Baldor, Emerson, Nidec and WEG motors follow the motor maker's warranty to Franklin. We confirm the terms for your part with the quote.
How do I find the right part for my pump?
Start from the model number on the pump nameplate, not the horsepower. Each listing has a fitment table naming the models every order number fits, with the exploded view and owner's manual on the same page. Send us the nameplate and we confirm the order number before it ships.
How do I know if my VR pump needs a Before or After 9/2022 kit?
Read the date code on the nameplate. 22H19 and earlier takes Before 9/2022 kits, 22J19 and later takes After 9/2022 kits, and kits marked All builds fit both.
What is the difference between JM, JP, 56C and 56J motors?
JM and JP are close-coupled motors that carry the impeller on the motor shaft. The JP shaft is longer, 7.312 to 8.125 in against 4.25 to 5.25 in for JM. 56C is a keyed shaft and 56J a threaded shaft. Order the same letters as the old nameplate.
What is a pump end kit?
It is the complete wet end, meaning casing, impeller, diffuser, seal and hardware, supplied without the motor. It rebuilds a pump whose motor is still good. DR1J and DR2J kits fit 56J motors; DR1C, DR2C and BT4 56C pump ends fit 56C keyed shaft motors.
Which VR seal type should I order?
Match the seal type digit in the model code:
- Type 1: graphite/SiC with EPDM (standard).
- Types 2 and 3: SiC/SiC with EPDM or FKM.
- Type 4: graphite/SiC with FKM.
- Types 5 and 6: tungsten carbide with EPDM or FKM.
Does a Franklin VR seal kit fit a Grundfos CR pump?
Order by the brand on the nameplate. Franklin VR and Grundfos CR seal kits are built for each maker's own seal chamber and are not listed as interchangeable. We supply both: VR cartridge seal kits by size and build date, and Grundfos CR, CRI and CRN shaft seal and gasket kits by size group.
What is a deep well injector and how is it sized?
It is the jet assembly that lets a convertible jet pump draw from below 25 ft. It fits a 4 in or larger well and is matched to the pump model and the depth to water. Franklin lists injectors from 20 to 120 ft for the C Series, Convertible Pro RM2 and SRP3.
Can I run a 230/460 V motor on 208 V?
Only when the nameplate includes 208 V. Many JM and 56C motors are listed as 208-230/460 V for that reason. The VR Series manual limits supply deviation to 6% of the motor rating.
Will a VR Series motor run on a VFD?
Yes. Franklin specifies all VR Series three-phase motors as premium efficiency and inverter-duty rated. For JM and JP motors we confirm the inverter rating from the motor maker's data for your part number.
Send Us the Nameplate
Give us the pump model, motor frame, horsepower, voltage and the symptom, or a photo of the nameplate. We will match the exact Franklin Electric part, motor, pump end or injector before it ships.
Technical data on this page is taken from Franklin Electric product literature and, for other brands, from our product pages; it is subject to change by the manufacturer. Confirm against the current installation manual before specifying.
Franklin Electric, Little Giant, FPS, VersaJet, Turf Boss, Tri-Seal, VR Series, VRL, Inline SpecPAK, Inline 400, Inline 1100 and X-Drive are trademarks of Franklin Electric Co., Inc. Grundfos, CR, CRI and CRN are trademarks of Grundfos Holding A/S. A.Y. McDonald and DuraMAC are trademarks of A.Y. McDonald Mfg. Co. DAB is a trademark of DAB Pumps S.p.A. Baldor, Emerson, Nidec, WEG and Modbus are trademarks of their respective owners. All are used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
Franklin Electric, Little Giant, FPS, VersaJet, Turf Boss, Tri-Seal, VR Series, VRL, Inline SpecPAK, Inline 400, Inline 1100 and X-Drive are trademarks of Franklin Electric Co., Inc. Grundfos, CR, CRI and CRN are trademarks of Grundfos Holding A/S. A.Y. McDonald and DuraMAC are trademarks of A.Y. McDonald Mfg. Co. DAB is a trademark of DAB Pumps S.p.A. Baldor, Emerson, Nidec, WEG and Modbus are trademarks of their respective owners. All are used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
- Choosing a selection results in a full page refresh.
