Dresser Style 91 Service Saddle - Cast Iron Pipe

Nominal Size - OD Range: 4 in CIP - 4.80-5.43 in OD
Tap Size: 1/2 in NPT
Strap - Part No.: Double Strap, Conductive - 0091-1058-001

Product variant with selected options does not exist!
$229.19
SKU: 0091-1058-001
Weight : 9.5 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Service Saddle

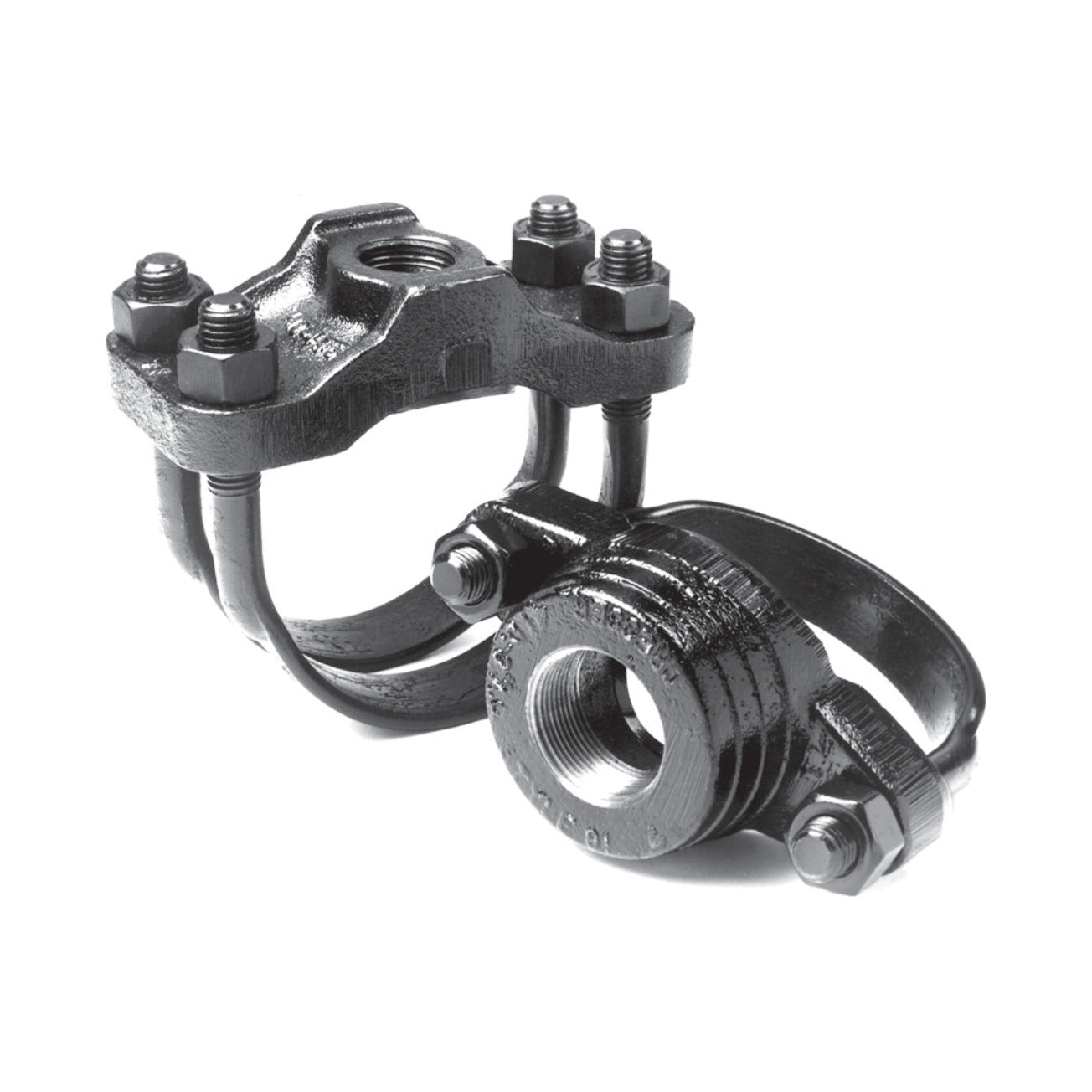

Style 91 Service Saddle for Cast Iron Pipe
Double-strap service saddle with NPT-tapped body, conductive or insulating, for natural gas service connections.
150 PSIG Seal Only
Gasket Cemented in Place
Double Strap, Dresserloy
1/2 to 2 in NPT Tap
Conductive or Insulating (AL-CLAD Plastisol)
3.56-9.54 in Pipe OD
8.75-16.5 lb Weight
Overview

Dresser Style 91 service saddles make service connections on cast iron pipe quickly. High-strength Dresserloy straps are shaped to the pipe with an extra-wide bearing surface that will not cut or crush it, and the gasket, a Dresser compound for natural gas, is cemented in place. The range of fit is marked on each body.

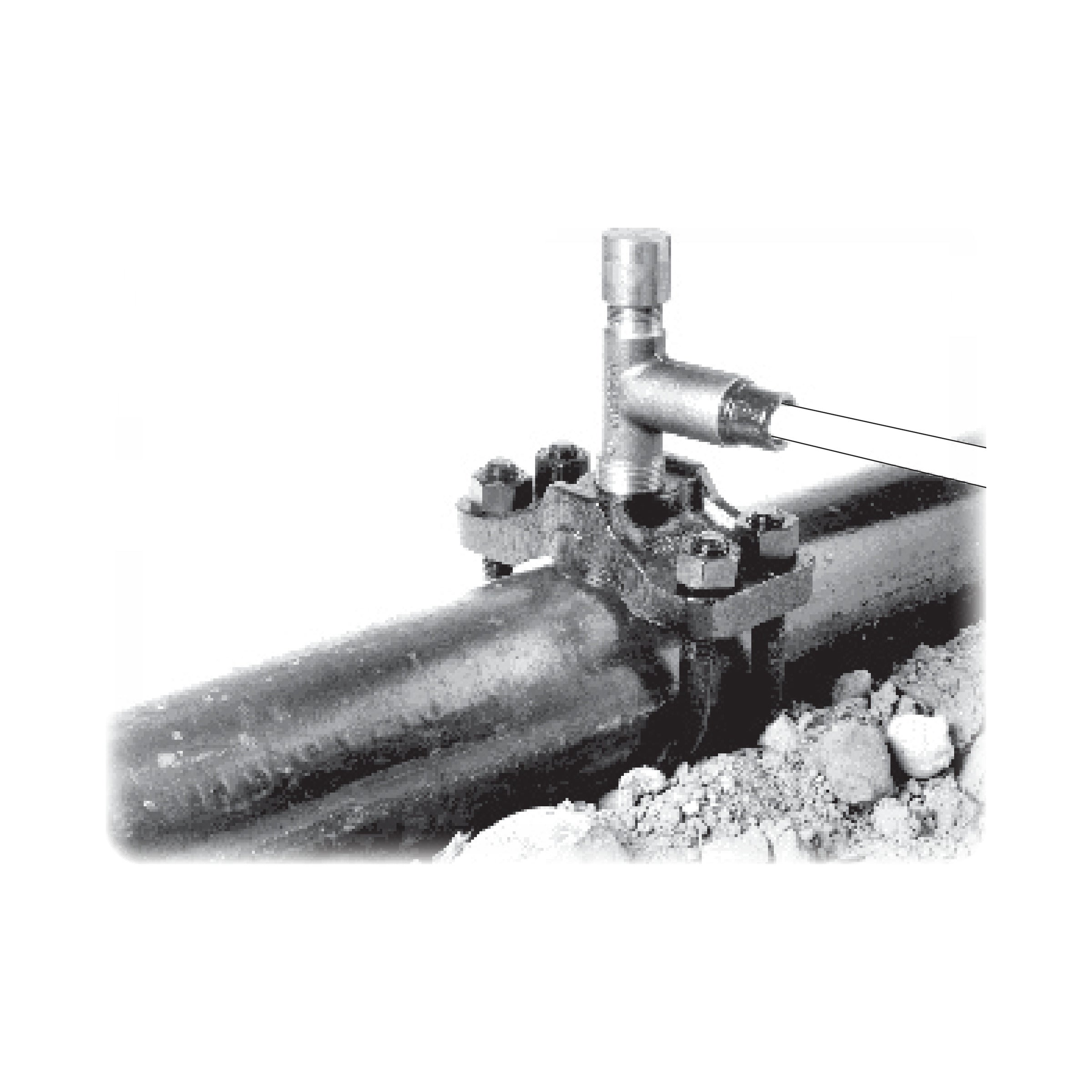

Application: Natural gas service taps on steel and cast iron mains.

  • Double strap on every build listed
  • Conductive (E-coat) or insulating (AL-CLAD plastisol) for cathodic protection
  • NPT-tapped body, 1/2 through 2 in
  • Pairs with the Dresser Style 501 Tap-N-Valve tee
What Ships and What It Needs to Run

Included: saddle body with cemented gasket, two straps and nuts.

Tapping, by others: the main is tapped through the saddle after installation.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

150 psig, seal only, per Dresser’s gas product selection guide. The allowable pressure on a job also depends on the pipe, its condition, the service and the workmanship.

Materials Specifications
Body Ductile iron
Straps High-strength Dresserloy
Gasket Dresser compound for natural gas, cemented in place
Coating E-coat (conductive) or AL-CLAD plastisol (insulating)

Source: Dresser Style 91 submittal and Steel Products catalog.

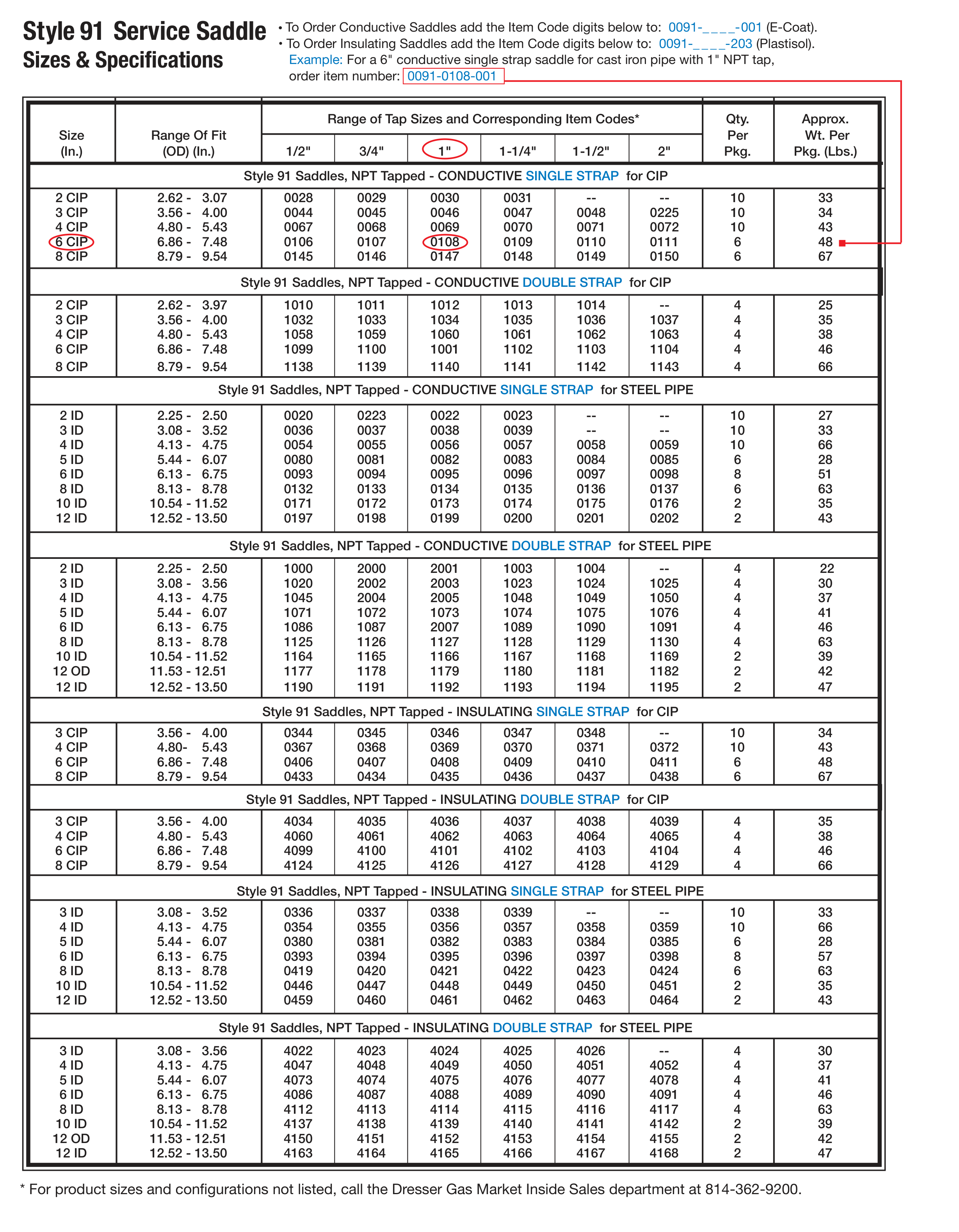

Sizes
Nominal Size - OD Range Tap Size
4 in CIP - 4.80-5.43 in OD 1/2 in NPT, 1-1/2 in NPT, 3/4 in NPT, 1-1/4 in NPT, 1 in NPT, 2 in NPT
3 in CIP - 3.56-4.00 in OD 1/2 in NPT, 1-1/2 in NPT, 3/4 in NPT, 1-1/4 in NPT, 1 in NPT, 2 in NPT
6 in CIP - 6.86-7.48 in OD 1/2 in NPT, 1-1/2 in NPT, 3/4 in NPT, 1-1/4 in NPT, 1 in NPT, 2 in NPT
8 in CIP - 8.79-9.54 in OD 1/2 in NPT, 1-1/2 in NPT, 3/4 in NPT, 1-1/4 in NPT, 1 in NPT, 2 in NPT

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Before You Order. Check the range of fit in the options against the measured pipe OD. Built for natural gas service. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
