JCM 301 Ductile Iron Flanged Coupling Adapter

JCM Flanged Coupling Adapters

JCM Industries flanged coupling adapters connect plain-end pipe to flanged valves, fittings, meters and pumps: the 301 ductile iron FCA (150 PSI, standard or restrained with set screws, 3-12 in), the 303 fabricated steel FCA with an AWWA C207 Class D flange (3-24 in) and the 306 fabricated FCA built on the JCM ductile iron coupling for mixed and A/C pipe. They absorb vibration, take deflection and make equipment easy to remove. Watermain Supply offers engineering-led selection and cross references to Smith-Blair and Dresser. Call 1-888.510.4036.

3 products
Sort by:
Best selling
Sort by:
Best selling
JCM 306 Fabricated Flanged Coupling Adapter - Ductile Iron Sleeve, 3 to 12 in

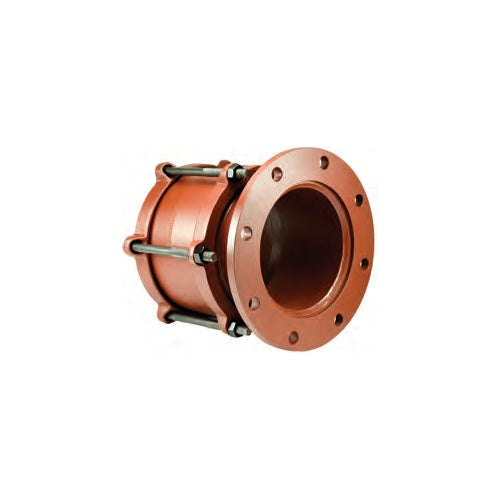

JCM 306 Fabricated Flanged Coupling Adapter - product photo

JCM Industries

Free Shipping $499 or more

JCM 306 Fabricated Flanged Coupling Adapter - Ductile Iron Sleeve, 3 to 12 in

From $474.44
JCM 301 Ductile Iron Flanged Coupling Adapter - Standard or Restrained, 3 to 12 in
JCM 301 Ductile Iron Flanged Coupling Adapter - product photo

JCM Industries

Free Shipping $499 or more

JCM 301 Ductile Iron Flanged Coupling Adapter - Standard or Restrained, 3 to 12 in

From $238.09
JCM 303 Fabricated Flanged Coupling Adapter - AWWA Class D Flange, 3 to 24 in

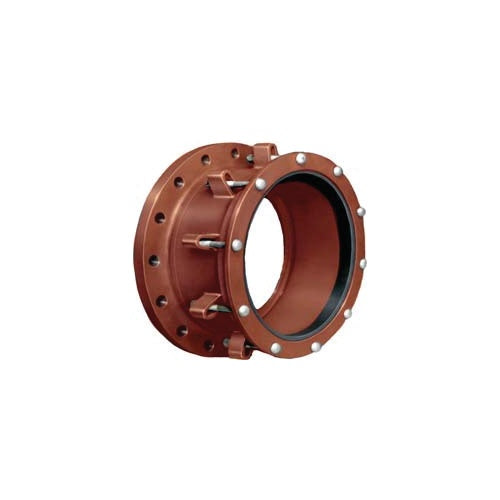

JCM 303 Fabricated Flanged Coupling Adapter - product photo

JCM Industries

Free Shipping $499 or more

JCM 303 Fabricated Flanged Coupling Adapter - AWWA Class D Flange, 3 to 24 in

From $502.04

JCM Flanged Coupling Adapters

JCM Industries · Flanged Coupling Adapters · 3 to 24 in

JCM Flanged Coupling Adapters: Cast Ductile Iron and Fabricated Steel

Connect plain-end pipe to flanged valves, fittings, meters and pumps without exact measurement: the 301 ductile iron FCA with optional restraining set screws, the 303 fabricated steel FCA with an AWWA Class D flange, and the 306 that pairs a ductile iron coupling with a fabricated flange.

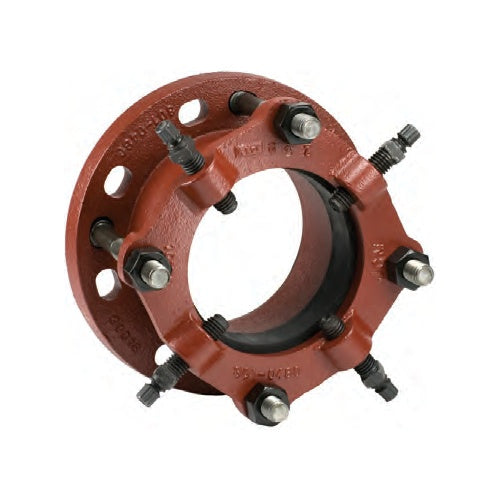

JCM 301 Ductile Iron Flanged Coupling Adapter
3 StylesCast and fabricated
3-24 inNominal sizes
150 PSI301 working pressure
Class DAWWA C207 flanges
AWWA C219As applicable

A flanged coupling adapter is half coupling, half flange: the coupling end takes plain-end pipe with a gasket and follower, and the flange bolts to a valve, fitting, meter or pump. It absorbs vibration, takes deflection and expansion, eliminates exact pipe cutting and makes equipment easy to remove.

Watermain Supply supplies JCM flanged coupling adapters with engineering-led selection: send the pipe OD and material, the flange size and class, and the pressure. Email sales@watermainsupply.com or call 1-888.510.4036. Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Will It Work for Me?

The four questions that decide an FCA.

Warranty

12 months from the date of purchase against defects in materials and workmanship (Watermain Supply standard).

Reliability

Ductile iron ASTM A536 bodies, fabricated A285 Gr C steel flanges, high-strength low-alloy bolts to AWWA C111, shop coat with fusion epoxy optional.

Fit

JCM rates the 301 at 150 PSI. Standard FCAs do not restrain the pipe; the 301 restrained build anchors on steel, cast iron and ductile iron only (not A/C, HDPE or PVC).

Size It Now

Send the pipe OD and material and the flange. We confirm the FCA and drilling.

Email the details

Three JCM Flanged Coupling Adapters

JCM 301 Ductile Iron Flanged Coupling Adapter

JCM 301 Ductile Iron FCA

Standard or restrained

150 PSIWorking pressure
3-12 inSizes
A536 DIBody and flange
Set screwsRestrained build

Cast ductile iron flange and sleeve with a lip-seal flange gasket that tightens as pressure rises. The restrained build adds retainer set screws that anchor on steel, cast iron and ductile iron pipe without tie rods.

  • Many sizes use half the standard flange bolts
  • Suits wafer valves
  • Wide-range gaskets interchange with JCM couplings
Best for valve insertions and equipment connections, 3 to 12 in.
JCM 301
JCM 303 Fabricated Flanged Coupling Adapter

JCM 303 Fabricated Steel FCA

AWWA Class D flange

3-24 inSizes
Carbon steelFabricated
Class DAWWA C207
AWWA C219Coupling end

A fabricated carbon steel flanged coupling adapter for larger sizes, with the flange drilled to AWWA C207 Class D.

  • Up to 24 in
  • Built for steel and iron pipe
  • Coatings and bolts to order
Best for larger valves and pump stations.
JCM 303
JCM 306 Fabricated Flanged Coupling Adapter

JCM 306 Fabricated FCA

Ductile iron coupling, steel flange

3-12 inSizes
A285 Gr CFlange and neck
Class DANSI 150 drilling
TransitionG212 gaskets

Combines the JCM ductile iron coupling with a fabricated steel flanged end: adapts from one pipe type to another with the transition gasket system and comes in the hard-to-find 10 and 12 in sizes.

  • Transition gaskets adapt pipe types
  • Integral set screws available
  • Epoxy coating and stainless bolts available
Best for A/C and mixed-material connections to flanges.
JCM 306

JCM FCAs Side by Side

Style Construction Size Pressure Gasket
JCM 301 Cast ductile iron, standard or restrained 3 to 12 in 150 PSI SBR
JCM 303 Fabricated steel, Class D flange 3 to 24 in By application -
JCM 306 Fabricated flange, DI coupling 3 to 12 in By application SBR

Rated by application where no figure is printed; send the pipe, flange and pressure and we obtain JCM's rating.

Flanged Coupling Adapter Cross Reference

JCM styles and their nearest equivalents.

JCM Description Smith-Blair Dresser Ford Romac PowerSeal
301 Cast flanged coupling adapter 912 127 FFCA FCA501 3521
303 Fabricated flanged coupling adapter 913 Style 128 FCA FC400 3528
306 Fabricated FCA, ductile iron coupling 913 - - - -

From the JCM Industries Product Cross Reference and Comparison Chart (Product Directory 8-25). Linked styles are on our site. Equivalents are matched by function: OD ranges, pressure ratings, gaskets and materials differ, so confirm the part for your pipe before ordering. * = similar materials, designs vary (JCM note).

JCM vs Smith-Blair vs Dresser

Specs below are taken from our own listings.

Cast FCAs

JCM 301 Smith-Blair 912
Construction Ductile iron sleeve and flange Epoxy-coated ductile iron body and follower
Pressure 150 PSI working 250 PSI max working
Restraint option Restrained build with set screws Restrained FCAs are separate styles (911, 920)
Sizes 3-12 in 2.85-14.20 in pipe OD
Certification AWWA C219 as applicable NSF/ANSI 61 and 372

Verdict: Smith-Blair 912 OMNI publishes the higher rating (250 PSI) and NSF certification. The JCM 301 is the one with a restrained build in the same listing. The cast Dresser equivalent on JCM's chart, Style 127, is not on our site.

Fabricated FCAs

JCM 303 Smith-Blair 913 Dresser 128
Construction Fabricated carbon steel Epoxy-coated fabricated steel Fabricated steel, fusion-bonded epoxy coated
Flange AWWA C207 Class D ANSI 150 / AWWA C207 Class D AWWA C207 Class D
Pressure Rated by application 150 PSI max working 150 PSI MAOP, 4-24 in
Sizes 3-24 in 3.44-26.41 in pipe OD 2-36 in

Verdict: the JCM 303, Smith-Blair 913 and Dresser 128 are close equivalents with Class D flanges; the 913 and 128 publish 150 PSI, and the 128 runs the widest size range, to 36 in. The JCM 306 adds the JCM transition gasket system for mixed pipe.

Selection Guide

Job JCM style Note
Valve or meter on steel, cast iron or ductile iron, 3-12 in, thrust to hold JCM 301 restrained Set screws; not for A/C, HDPE or PVC
Valve or fitting, 3-12 in, any pipe JCM 301 standard Add restraint or thrust blocks
Larger valves, 14-24 in JCM 303 Class D flange
A/C or mixed pipe to a flange, 3-12 in JCM 306 G212 transition gaskets

Accessories and Gaskets

JCM 920 Pipe Diameter Tape

Reads pipe OD in 100ths of an inch Sizing tool

JCM G212 Transition Gaskets

For 210, 211, 212, 214, 262, 301 and 306 Gaskets

JCM 225 Insulating Adapter Gaskets

IPS fitting to copper tube size Gaskets

Why Buy JCM From Watermain Supply

Engineering-led selection

Send the measured OD, pipe material, damage and pressure. We name the style, range and width, and we obtain JCM's rating and a submittal when the job needs one.

Three brands, one honest answer

We sell JCM, Smith-Blair and Dresser side by side. If another style fits your pipe better, we will say so and quote it.

Every part on one order

Clamps, couplings, saddles, tapping sleeves, restraints and gaskets on one PO, with account terms for utilities and contractors.

Parts and aftermarket

JCM transition gaskets, OD tapes and replacement parts listed alongside the fittings, so the job does not stall on a gasket.

Odd sizes handled

JCM builds special ranges, widths, outlets and materials to order. We handle the request and the submittal for you.

Houston based, Gulf Coast service

Watermain Supply is based in Houston and serves utilities, contractors and plants across the Gulf Coast and nationwide.

Frequently Asked Questions

What warranty do JCM flanged coupling adapters carry?

Watermain Supply covers them for 12 months from the date of purchase against defects in materials and workmanship.

Does a flanged coupling adapter restrain the pipe?

Standard FCAs do not. The JCM 301 restrained build uses set screws to anchor steel, cast iron and ductile iron pipe; they are not for A/C, HDPE or PVC.

What pressure is the JCM 301 rated for?

JCM rates the 301 for 150 PSI working pressure when installed per its instructions.

Are flange bolts and the flange gasket included?

Flange bolts are not included with any of the three. The 301 ships with its gaskets, including its lip-seal flange gasket; on the 303 and 306, provide the flange gasket for the mating flange.

Which FCA joins A/C pipe to a flange?

The JCM 306, with the JCM transition gasket for the A/C OD.

What flange drilling do they use?

The fabricated 303 and 306 use AWWA C207 Class D flanges with ANSI 150 lb drilling.

Ready to Connect to the Flange?

Send the pipe OD and material, the flange size and the pressure.

1-888.510.4036Email SalesRequest a Quote
Technical data on this page is taken from JCM Industries product literature and is subject to change by the manufacturer. Confirm against the current installation instructions before specifying.
JCM Industries and Sur-Grip are trademarks of JCM Industries, Inc.; Smith-Blair, Dresser, Ford, Romac, PowerSeal, Cascade, Robar and Mueller are trademarks of their respective owners, used here for product identification only. Cross-reference equivalents are by function; ranges, ratings and materials differ.
