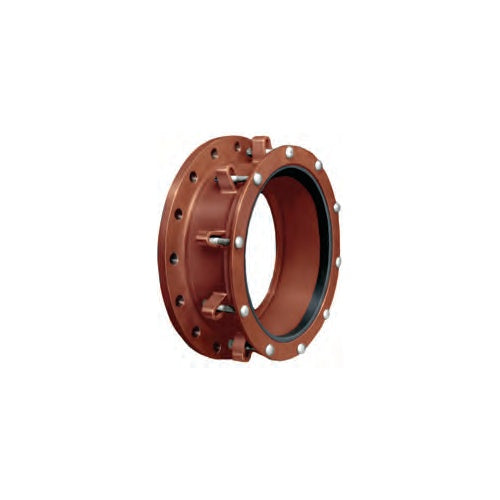

JCM 303 Fabricated Flanged Coupling Adapter
Carbon steel · AWWA Class D flange · 3 to 24 in
AWWA C207 Class D Flange
Fabricated Carbon Steel
Joins Plain End to Flange
AWWA C219
3 to 24 in
19-220 lb Weight
Description
The JCM 303 fabricated flanged coupling adapter joins plain-end pipe to flanged fittings, valves and equipment. Fabricated of carbon steel, it is available in large and small sizes with a standard ANSI/AWWA Class D (125 lb) flange; special or heavier flanges are built to order.
Each catalog number pairs the pipe OD with the flange size, so steel, ductile iron and cast iron ODs each have their own adapter.
Typical application: Connection, temporary or permanent: connection and insertion of valves, backflow preventers, flanged fittings and monitoring equipment; retrofit of inline fittings.
Key Features
- Standard 125 lb AWWA Class D flange; other flanges on request
- Pipe ODs for steel, ductile iron and cast iron in each size
- Epoxy coating and stainless steel bolts available as an extra
- Meets or exceeds ANSI/AWWA C219 as applicable
- Installs with a wrench; allows valve and fitting removal and retrofit
What Ships and What It Needs to Run
Included: the flanged body, follower, gasket, and coupling bolts and nuts.
Flange bolts and flange gasket, ordered separately. The adapter bolts to the mating flange with standard flange bolts and a flange gasket.
Pipe anchorage, provided at install. The adapter does not restrain the pipe; anchor or restrain it where thrust could pull the pipe out.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. JCM rates the adapter for the flange class and pipe; send the pipe OD, pipe type and working and test pressures and we will obtain JCM's rating.
Materials Specifications
| Body and flange |
Fabricated carbon steel; ANSI/AWWA Class D (125 lb) flange |
| Gasket |
SBR standard |
| Bolts |
Low-alloy steel; stainless steel available as an extra |
| Finish |
Shop-coat primer; epoxy coating available as an extra |
From the JCM 303 literature. Request the JCM data sheet for full material detail.
Pipe Applications
Steel, ductile iron, cast iron and other plain-end pipe at the listed ODs.
Sizes
27 sizes. Open the table for every pipe OD and flange.
All 27 sizes
| Nominal |
Pipe OD |
Flange |
| 3 in |
3.50 in |
3 in Class D Flange |
| 4 in |
4.50 in |
4 in Class D Flange |
| 4 in |
4.80-5.00 in |
4 in Class D Flange |
| 5 in |
5.56 in |
5 in Class D Flange |
| 6 in |
6.63 in |
6 in Class D Flange |
| 6 in |
6.90-7.10 in |
6 in Class D Flange |
| 8 in |
8.63 in |
8 in Class D Flange |
| 8 in |
9.05-9.30 in |
8 in Class D Flange |
| 10 in |
10.75 in |
10 in Class D Flange |
| 10 in |
11.10-11.40 in |
10 in Class D Flange |
| 12 in |
12.75 in |
12 in Class D Flange |
| 12 in |
13.20-13.50 in |
12 in Class D Flange |
| 14 in |
14.00 in |
14 in Class D Flange |
| 14 in |
15.30 in |
14 in Class D Flange |
| 14 in |
15.65 in |
14 in Class D Flange |
| 16 in |
16.00 in |
16 in Class D Flange |
| 16 in |
17.40 in |
16 in Class D Flange |
| 16 in |
17.80 in |
16 in Class D Flange |
| 18 in |
18.00 in |
18 in Class D Flange |
| 18 in |
19.50 in |
18 in Class D Flange |
| 18 in |
19.92 in |
18 in Class D Flange |
| 20 in |
20.00 in |
20 in Class D Flange |
| 20 in |
21.60 in |
20 in Class D Flange |
| 20 in |
22.06 in |
20 in Class D Flange |
| 24 in |
24.00 in |
24 in Class D Flange |
| 24 in |
25.80 in |
24 in Class D Flange |
| 24 in |
26.32 in |
24 in Class D Flange |
From the JCM 303 size table. Other sizes available on request.
Before You OrderConfirm the pipe OD and the flange size and class before ordering.
Anchor the pipe: the coupling joins the pipe but does not restrain it, so JCM calls for proper anchorage wherever the pipe could move out of the coupling.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
