Grundfos Submersible Pump Systems
Grundfos · Groundwater
Grundfos Submersible Pump Systems
The whole Grundfos groundwater line in one place: SQ and SQE pumps for 3 in wells, SP pumps for 4 in to 10 in wells, CUE 100 constant-pressure packages, SPE variable-speed pumps, plus the pump ends, motors and controls that build and service them.
81Listings
5–1,100GPM
1/2–250HP
3–10 inWells
1,818 ftMax head
Grundfos builds its groundwater range in stainless steel, from the 3 in SQ with its own built-in protection to the 1,100 GPM SP 1100S. Homes and farms run the SQ, SQE and 4 in SP; constant-pressure homes run the SQE with a CU 302 or a CUE 100 package; irrigation, community water and industrial wells run the 6 in and larger SP and the variable-speed SPE.
We supply every listing here, and we size the set together: pump, motor, control and cable, against your pumping level, flow and pressure. Call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Will It Work for Me?
What decides a submersible order.
Warranty
SP and SPE pumps, pump ends and MS/MMS motors: 24 months from installation, no more than 30 months from manufacture, under the Grundfos limited warranty. SQ, SQE and CUE 100 terms are on the Data Sheet tab of each listing.
Reliability
AISI 304 stainless pumps with sand-channel bearings and built-in check valves. The SQ and SQE motor carries its own soft start and dry-run, overload and voltage protection; MP 204 protects three-phase motors.
Fit
Casing size first: SQ and SQE from 3 in, SP 4 in from 4 in, SP 90S–300S from 6 in, 385S and 475S from 8 in, 625S–1100S from 10 in. Single-phase to 5 HP on the SP; three-phase to 250 HP.
Size It Now
Get flow and total dynamic head in two minutes, or send the well log to 1-888.510.4036.
Submersible CalculatorShop by Line
Each line has its own page with a full comparison and selection guide.
SQ and SQE
3 in wells · 5 flow families
5–30GPM
3 inMin well
2-wireNo control box
CU 302Constant pressure
Permanent magnet 3 in submersibles with built-in soft start and protection. SQ runs on a pressure switch; SQE with a CU 302 holds constant pressure.
- Dry-run and overload protection built in
- Fits any 3 in or larger well
- SQE plus CU 302 for constant pressure
Best for Homes, cabins and small farms.
Shop SQ and SQE
SP 4 in Well Pumps
9 flow families · 5S to 77S
5–77GPM
1/2–20HP
4 inWells
1Ph/3PhSupply
Complete 4 in stainless submersibles with a matched Grundfos motor and, on 3-wire single-phase units, the control box.
- 100 percent AISI 304 stainless
- 2-wire, 3-wire and three-phase builds
- Head to about 1,600 ft
Best for Homes, farms and light commercial wells.
Shop SP 4 in
CUE 100 Packages
15 packages · constant pressure
10–35GPM
1–3HP
1Ph in3Ph out
NEMA 4XDrive
An SP pump end, a three-phase motor and a CUE 100 drive with transducer under one order number. Single-phase supply in, constant pressure out.
- Runs a three-phase motor from 1Ph power
- Small tank instead of a large pressure tank
- Outdoor-rated drive
Best for Homes and light commercial wells wanting steady pressure.
Shop CUE 100

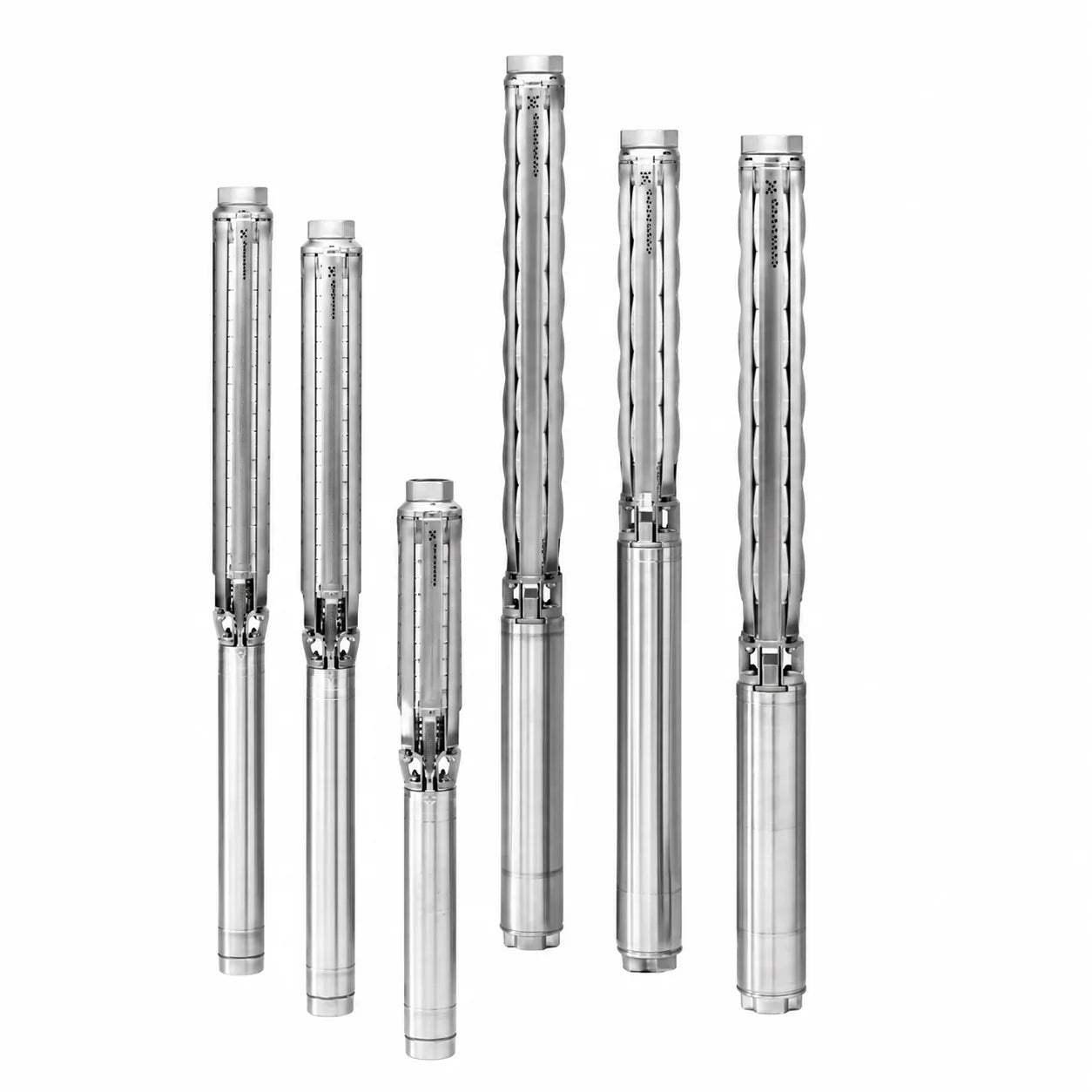

SP and SPE 6 in and Larger
13 listings · 6, 8, 10 in wells
90–1,100GPM
1–250HP
6–10 inWells
SPEVariable speed
Complete SP 90S to 1100S pumps on Grundfos motors, and SPE variable-speed pumps on a permanent magnet motor and CUE drive.
- Single-phase to 5 HP; three-phase to 250 HP
- Head at rated flow on every build
- SPE holds constant pressure
Best for Irrigation, community water and industrial wells.
Shop 6 in and Larger
Which Grundfos Pump for Your Well?
Start with the casing, then the flow.
| Your well | Flow | Grundfos line | Why |
|---|---|---|---|
| 3 in casing | 5–30 GPM | SQ or SQE | The only Grundfos range for 3 in wells; no control box |
| 4 in casing, fixed speed | 5–77 GPM | SP 4 in | Widest 4 in range, to about 1,600 ft |
| 4 in casing, constant pressure | 10–35 GPM | CUE 100 package or SQE with CU 302 | Steady pressure from single-phase power |
| 6 in casing | 90–300 GPM | SP 90S–300S or SPE 6 in | Complete pump; single-phase to 5 HP |
| 8 in and 10 in casing | 385–1,100 GPM | SP 385S–1100S or SPE 8/10 in | High-flow irrigation and municipal wells |
| Existing Grundfos pump, one half failed | Match the nameplate | Pump end or motor | Replace the failed half by HP and diameter |
Quick rule: Casing size picks the line, flow picks the series, and total head picks the build. If you are replacing one half of a working Grundfos SP, buy the pump end or the motor alone.
Grundfos vs Franklin Electric vs A.Y. McDonald vs DAB — the Submersible Lines
Line-level comparison from the listings on this site.
| Spec | Grundfos | Franklin Electric | A.Y. McDonald | DAB |
|---|---|---|---|---|
| 3 in wells | SQ and SQE, 5–30 GPM | — | — | S3 |
| Complete 4 in pumps | SP 5–77 GPM | 5–90 GPM incl. QuickPAK | 5–80 GPM in brass, thermoplastic and stainless | S4 5–25 GPM |
| 6 in and larger | Complete SP and SPE pumps, 90–1,100 GPM | SR, SSI and STS pump ends to 1,200 GPM | Pump ends to 1,100 GPM | — |
| Motors | MS and MMS 4 in and 6 in | 4, 6, 8 in; MagForce | 4, 6, 7, 8, 10 in | Tesla 4 in and 6 in |
| Constant pressure | SQE with CU 302; CUE 100; SPE with CUE | SubDrive and MagForce QuickPAK | AutoDrive | Esybox Diver |
| Shop | This page | Franklin | A.Y. McDonald | DAB |
Verdict. Grundfos is the only line here with a full 3 in range and with complete pumps for 6 in to 10 in wells. Franklin wins on sandy and corrosive water, with ductile iron STS turbines and 316 SS SR pump ends, and on permanent magnet motors to higher horsepower. A.Y. McDonald offers the most motor diameters, to 10 in. DAB brings the Esybox Diver for compact constant-pressure homes.
Pump Ends, Motors and Controls
Service and build parts for every Grundfos submersible.
SP and SPE Pump Ends
402 builds, 5–1,100 GPM
MS and MMS Motors
4 in and 6 in, 1/2–60 HP
Controls and Drives
Control boxes, MP 204, CUE, filters, leads
SA-SPM6 Control Box
Starts 3-wire single-phase motors
MP 204
Three-phase motor protection
Solar-powered SQFlex systems are on the Grundfos Solar Water Pumps page.
Why Buy From Watermain Supply
Engineering-led sizing
Send the well depth, pumping level, flow and pressure. We work the total dynamic head and match pump, motor, control and cable before you order.
Straight answers across brands
We also supply Franklin Electric, A.Y. McDonald and DAB submersibles. If Grundfos is not the right fit for the well, we will say so and show you what is.
Account terms
Contractor, driller and municipal accounts on approved credit. Ask us to set one up.
Parts and aftermarket
Pump ends, motors, control boxes, drives, motor protection and leads are listed alongside the pumps.
Whole well in one order
Pump, motor, control, protection and leads on one order and one invoice.
Houston based, Gulf Coast service
We size, quote and support from Houston for drillers, contractors and utilities.
Frequently Asked Questions
What warranty does Grundfos give on submersible pumps and motors?
SP and SPE pumps, pump ends and MS/MMS motors carry 24 months from installation, no more than 30 months from manufacture, under the Grundfos limited warranty. SQ, SQE and CUE 100 terms are on the Data Sheet tab of each listing.
Which Grundfos pump fits a 3 in well?
The SQ or SQE. They are the only Grundfos submersibles built for 3 in casing, and they need no control box.
Should I buy a complete pump or a pump end and motor?
A complete pump for a new well or a full replacement. A pump end or motor alone when one half of a working Grundfos SP has failed.
How do I get constant pressure from a well?
SQE with a CU 302 for 3 in wells, a CUE 100 package for 4 in wells to 35 GPM, or an SPE pump on a CUE drive for 6 in and larger wells.
How do I size the pump?
Work out flow and total dynamic head: pumping level, rise to the tank, pressure × 2.31 and friction. Then pick the build whose head at your flow clears it. The Submersible Calculator does the math.
Do you have Grundfos solar pumps?
Yes, on the Grundfos Solar Water Pumps page: SQFlex pumps, controls and accessories.
Ready to Size Your Well?
Send the well log, the flow and the pressure you need. We will match the pump, motor, control and cable.
Technical data on this page is taken from Grundfos product literature and is subject to change by the manufacturer. Confirm against the current installation manual before specifying.
