Grundfos SPE 10 in Submersible Pump End

HP: 25 HP
Model - Head: SPE625S250-1 - 106 ft at 625 GPM

Product variant with selected options does not exist!

Price
$4,714.16
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 92720072
Weight : 136.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Submersible Pump End
SPE 10 in Pump End
Replacement pump ends for Grundfos SPE variable speed submersibles, 625, 800 and 1,100 GPM classes: 4 builds for the 25 to 50 HP permanent magnet motors.
102-212 ft Head at Rated Flow
625, 800 and 1,100 GPM Rated Flow
25-50 HP PM Motor Fit
6 in Permanent Magnet Motor
6 in NPT Discharge
Built-In Check Valve
AISI 304 Stainless Steel
cCSAus
8.3-9.3 in Dia x 25.6-31.8 in L
73.2-86.4 lb Weight
Overview

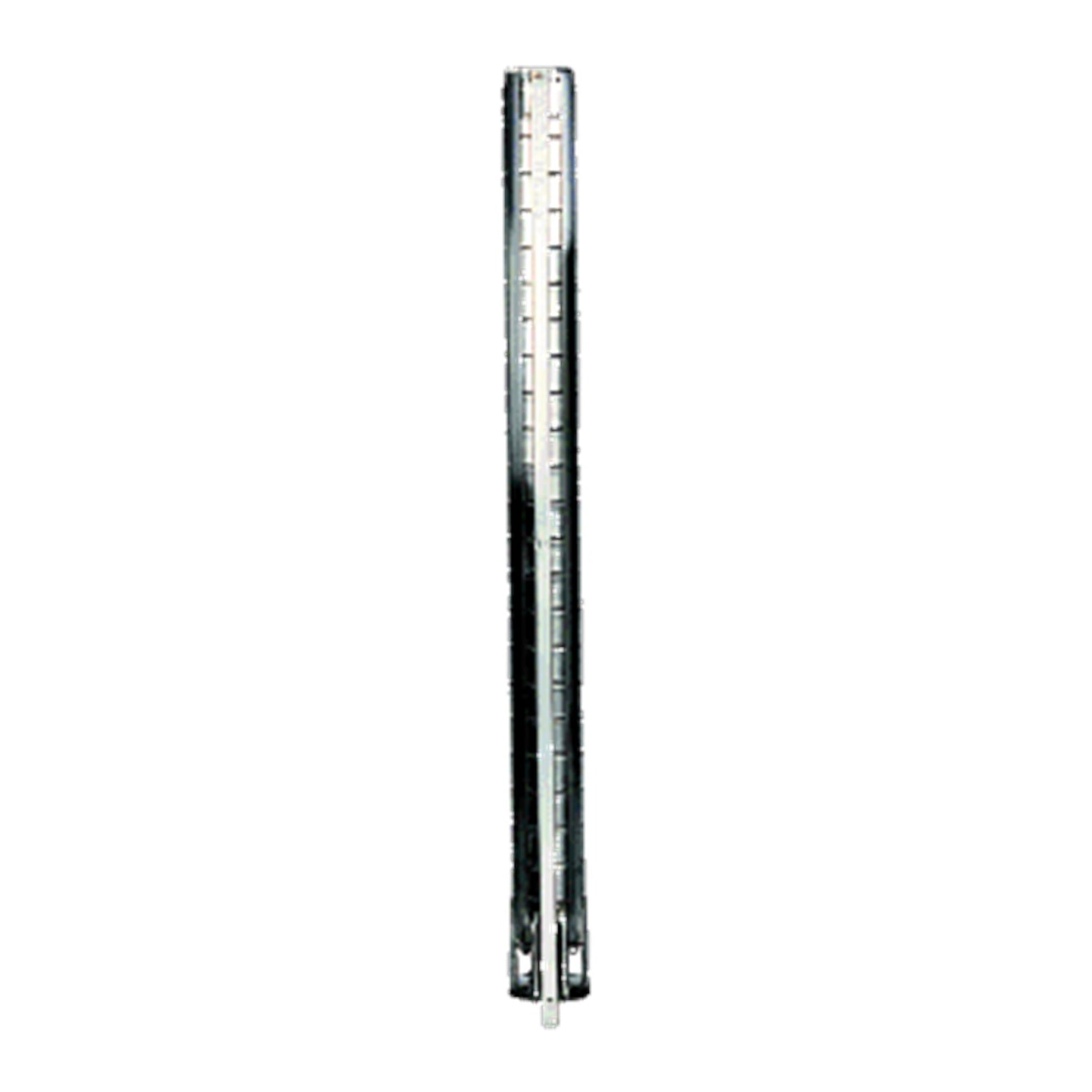

These are the Grundfos SPE replacement pump ends: the stainless steel hydraulic end of an SPE variable speed submersible, with its built-in check valve, sold without the motor. Pump and impellers are AISI 304 stainless steel. The SPE runs on a Grundfos 6 in permanent magnet motor driven by a Grundfos CUE drive; Grundfos rates the motors 4-pole, 3600 RPM, three-phase 460V, operating on 410V.

Use one to rebuild an SPE installation on a sound permanent magnet motor. The complete SPE 10 in pump, with its motor, is listed separately.

What Ships and What It Needs to Run

Included: the Grundfos SPE replacement pump end with its built-in check valve.

SPE permanent magnet motor required, ordered separately. The pump end mounts on the Grundfos 6 in permanent magnet motor of the horsepower in the selector; the SPE PM replacement motor part number for each build is in the Motor by Horsepower table under Models & Performance.

Drive and filter required, ordered separately. The permanent magnet motor starts and runs only from a drive with IPM motor control, the Grundfos CUE variable frequency drive, with a sine-wave output filter.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
24-Month Grundfos Warranty

Covered for 24 months from the date of installation, but not more than 30 months from the date of manufacture. In Grundfos’s words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab. Grundfos’s 5-year system warranty applies when the complete SPE pump, CUE drive and sine-wave filter are bought together.

Specifications
Included Pump end with built-in check valve; PM motor, CUE drive and sine-wave filter ordered separately
Rated flow 625, 800 and 1,100 GPM, by series
Motor Grundfos 6 in permanent magnet motor, 25 to 50 HP; Grundfos motor flange
Drive Grundfos CUE with IPM motor control, plus a sine-wave output filter
Discharge 6 in NPT (female), by series
Minimum borehole 8.5-9.7 in by build (Grundfos Product Center)
Liquid temperature Up to 140°F (60°C) at the pump end; the motor sets the working limit
Approvals cCSAus and CULDWUS (Grundfos Product Center codes)
Curve tolerance ISO 9906
Models & Performance — Will It Do What You Need?

Each table reads like the curve: the head the pump end on its matching motor adds at shut-off, along its curve and at the rated flow of 625 GPM, 800 GPM and 1100 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

SPE 625S · rated 625 GPM at 3600 rpm · 25 to 50 HP · 2 models
Model HP 0 GPM (Shut-off) 177 GPM 442 GPM 625 GPM (Rated) 883 GPM (Max)
SPE625S250-1 25 148 146 121 106 64
SPE625S500-2 50 289 288 248 212 137
SPE 800S · rated 800 GPM at 3600 rpm · 40 to 40 HP · 1 model
Model HP 0 GPM (Shut-off) 227 GPM 568 GPM 800 GPM (Rated) 1137 GPM (Max)
SPE800S400-1 40 166 162 125 102 65
SPE 1100S · rated 1100 GPM at 3600 rpm · 50 to 50 HP · 1 model
Model HP 0 GPM (Shut-off) 307 GPM 766 GPM 1100 GPM (Rated) 1533 GPM (Max)
SPE1100S500-1 50 191 181 144 119 57

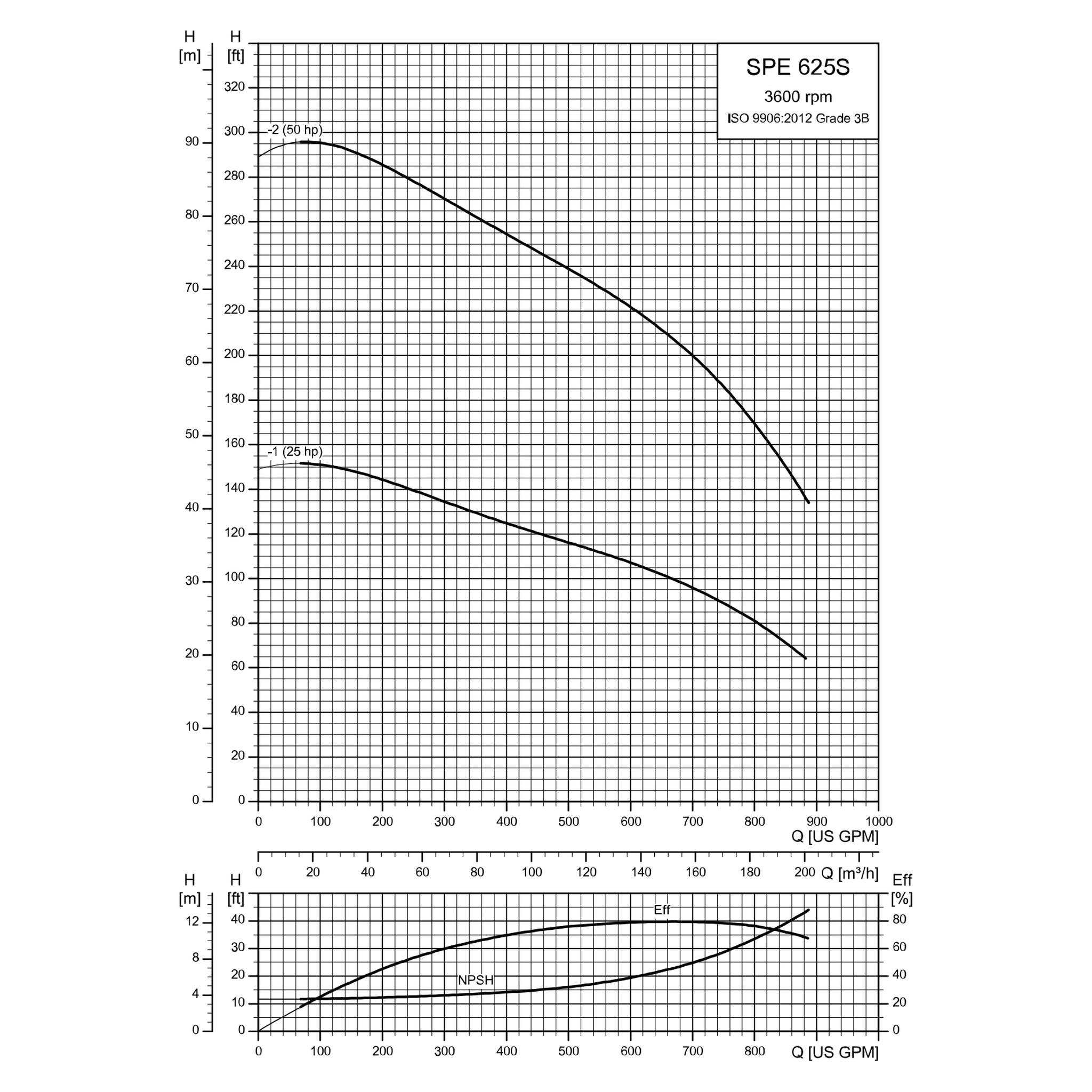

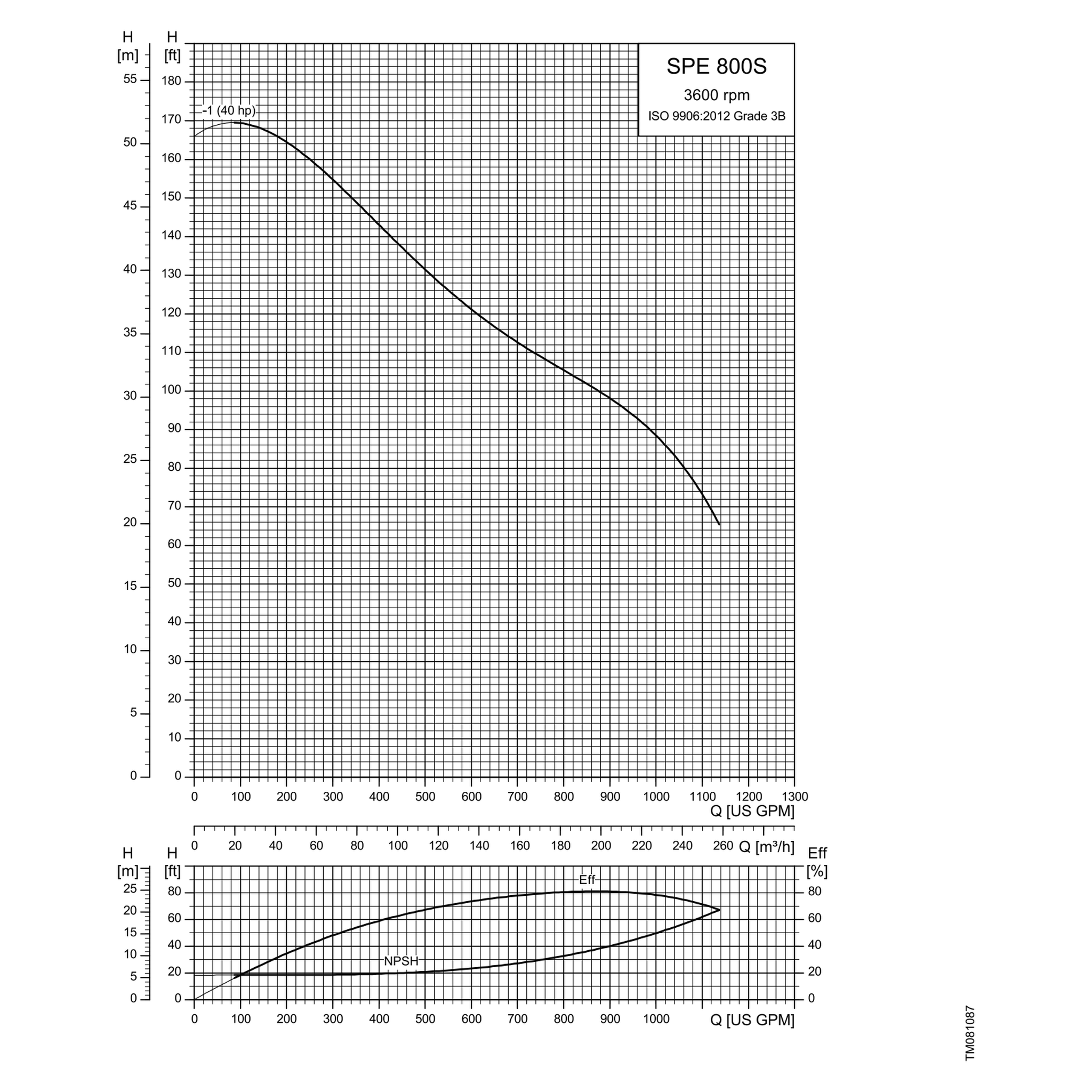

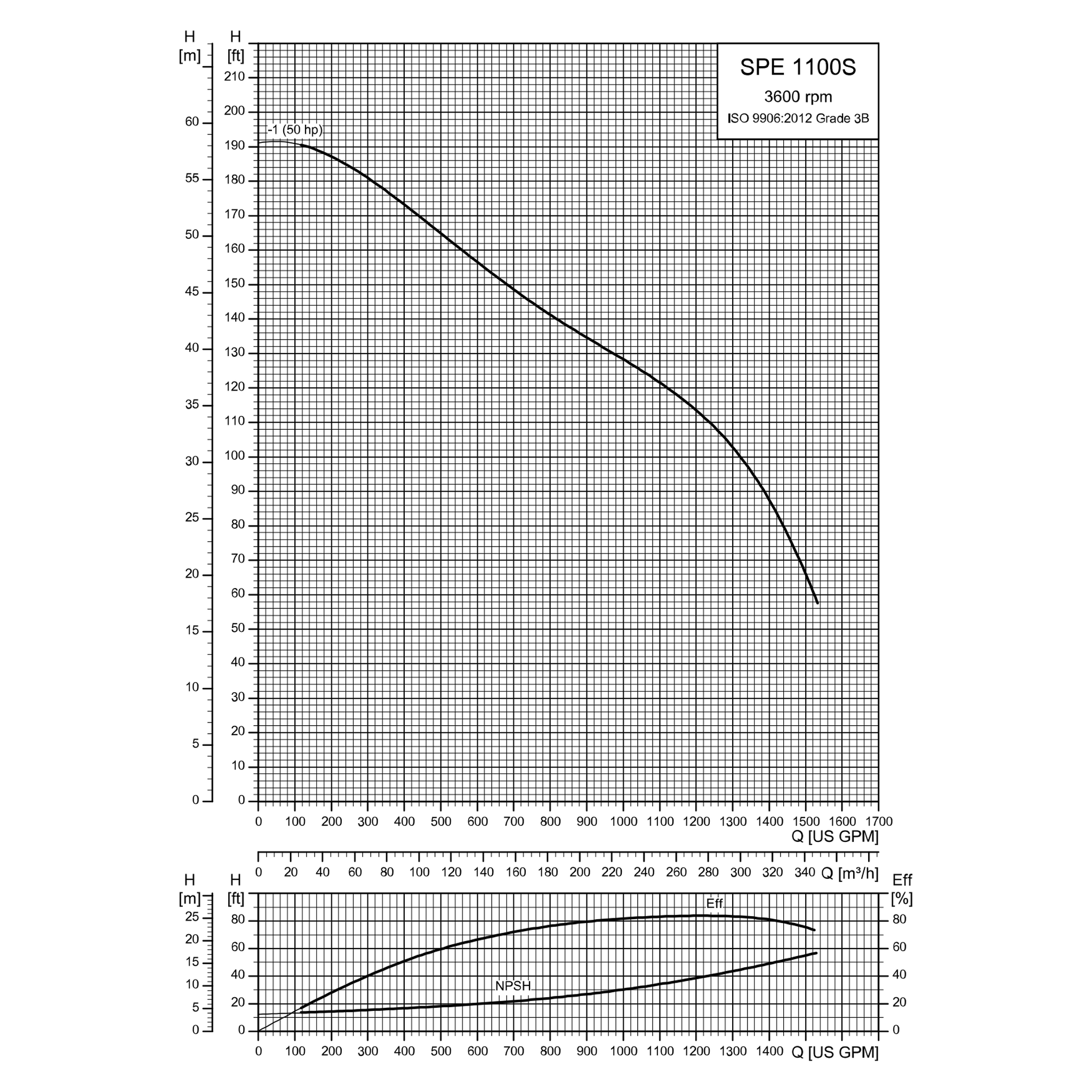

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves at 3600 rpm, digitized from the published vector curves in the Grundfos SPE data booklet, at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.

Motor by Horsepower

Motor HP Models Grundfos MS6000P PM motor
25 HP SPE625S250-1 99843439
40 HP SPE800S400-1 99843440
50 HP SPE625S500-2, SPE1100S500-1 99843441

Grundfos US price list, January 2026. The SPE PM motor runs only from a drive with IPM motor control and an IPM-ready sine-wave filter; both are sized on the complete-pump listing.

Before You Buy — The Limits That Decide the Fit
Motor A Grundfos 6 in permanent magnet motor of the horsepower in the selector (part numbers in the Motor by Horsepower table under Models & Performance)
Drive A Grundfos CUE drive with IPM motor control and a sine-wave output filter; the motor does not run across the line
Power Three-phase 460V supply to the drive
Well size At least the minimum borehole for the build (Specifications)
Duty point Choose the model from the Grundfos curve at your flow and total head. Send us the pumping level, pipe run and pressure and we will check it against the curve
Water temperature Up to 140°F (60°C) at the pump end; the motor sets the working limit
Materials of Construction
Pump Stainless steel, EN 1.4301 (AISI 304)
Impellers Stainless steel, EN 1.4301 (AISI 304)

Source: Grundfos Product Center.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
