Genuine Grundfos accessories, spare and repair parts for Grundfos submersible, vertical multistage, horizontal multistage and booster pumps. Find control boxes, motor leads and bolt kits for SQ and SP well pumps; CUE drives, sine-wave filters and MP 204 motor protectors; shaft seal and gasket kits for CR pumps; diaphragm tanks and installation accessories for boosters; and CIM modules and antennas for BMS and remote monitoring. Every part is ordered by its Grundfos product number, and we confirm fit against your pump nameplate before it ships. Call 1-888.510.4036 or send us a nameplate photo.

15 products
Sort by:
Most relevant
Sort by:
Most relevant
Grundfos MP 204 Motor Protector - 96079927
Grundfos MP 204 motor protection unit

Grundfos

Free Shipping $499 or more

Grundfos MP 204 Motor Protector - 96079927

$815.92
Grundfos SQ and SQE Pump Accessories
Cutaway diagram of a Grundfos SQE constant pressure system in a home, showing the well pump, control unit and pressure tank

Grundfos

Free Shipping $499 or more

Grundfos SQ and SQE Pump Accessories

From $90.67
Grundfos CIM 500 and CIU900 Communication Interface Modules
Grundfos CIU900 / CIU901 communication interface unit box

Grundfos

Free Shipping $499 or more

Grundfos CIM 500 and CIU900 Communication Interface Modules

From $406.64
Grundfos Diaphragm Tank for Hydro Multi-E and Multi-B Booster Systems - Non-Code

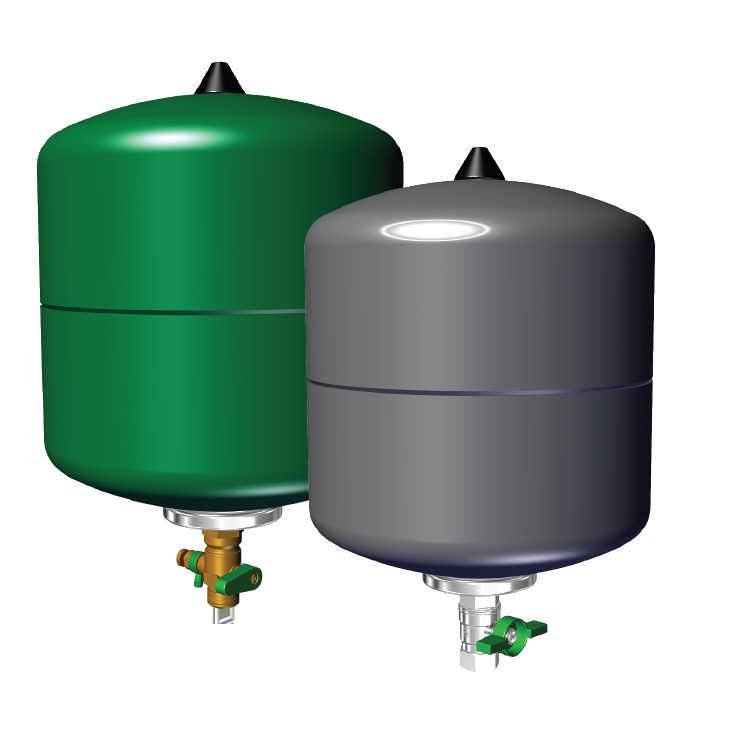

Grundfos non-code diaphragm tanks for Hydro Multi booster systems

Grundfos

Free Shipping $499 or more

Grundfos Diaphragm Tank for Hydro Multi-E and Multi-B Booster Systems - Non-Code

From $214.25
Grundfos TCI Sine-Wave Output Filter
Grundfos TCI Sine-Wave Output Filter

Grundfos

Free Shipping $499 or more

Grundfos TCI Sine-Wave Output Filter

From $1,625.18
Grundfos SP Motor Nut and Bolt Kits
Grundfos SP Motor Nut and Bolt Kits

Grundfos

Free Shipping $499 or more

Grundfos SP Motor Nut and Bolt Kits

From $34.13
Grundfos SA-SPM6 3-Wire Control Box
Grundfos SA-SPM6 3-wire submersible motor control box

Grundfos

Free Shipping $499 or more

Grundfos SA-SPM6 3-Wire Control Box

From $204.29
Grundfos MS Submersible Motor Leads
Grundfos MS Submersible Motor Leads

Grundfos

Free Shipping $499 or more

Grundfos MS Submersible Motor Leads

From $78.93
Grundfos CUE Variable Frequency Drive
Grundfos CUE variable frequency drive

Grundfos

Free Shipping $499 or more

Grundfos CUE Variable Frequency Drive

From $1,774.69
Grundfos CUE Sine-Wave Output Filter
Grundfos CUE Sine-Wave Output Filter

Grundfos

Free Shipping $499 or more

Grundfos CUE Sine-Wave Output Filter

From $1,600.21
Grundfos CUE IP66 Variable Frequency Drive
Grundfos CUE variable frequency drive

Grundfos

Free Shipping $499 or more

Grundfos CUE IP66 Variable Frequency Drive

From $2,278.99
Grundfos CUE IP21 NEMA 1 Enclosure Kit
Grundfos CUE IP21 NEMA 1 Enclosure Kit

Grundfos

Free Shipping $499 or more

Grundfos CUE IP21 NEMA 1 Enclosure Kit

From $310.69

Grundfos Accessories, Spare and Repair Parts

Grundfos Parts

Grundfos Accessories,
Spare and Repair Parts

Genuine Grundfos accessories, drives, controls, seal kits and service parts for submersible, vertical multistage, horizontal multistage and booster pumps — matched to your pump by Grundfos product number.

GenuineGrundfos product numbers
6Pump families covered
DrivesControls and protection
SealsKits and repair parts
Same OrderShip with the pump

Grundfos designs its pumps as systems: the pump, the motor, the drive or control box, the protection and the fittings are specified together, and each part carries its own Grundfos product number. This collection gathers the accessories, spare parts and repair parts that complete or keep those systems running, from the control box on a well pump to the shaft seal in a vertical multistage pump and the communication module on a commercial booster.

We supply U.S. 60 Hz parts and help you confirm the right one before it ships: send a photo of the pump nameplate, or call 1-888.510.4036. Ordering accessories with the pump means the job arrives together. Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Getting the Right Part

Four things decide whether an accessory or spare is right for your pump.

Match the Number

Every Grundfos part is ordered by its product number. The pump or motor nameplate gives the product number and the model code, which is the fastest way to the right part.

Warranty

Parts made by Grundfos carry Grundfos’s published warranty terms. Some accessories Grundfos sells are made by others, such as sine-wave filters and diaphragm tanks, and carry their maker’s warranty. Each product page states which applies.

Fit

Check the motor size, voltage and phase, the connection size, and for seals and gaskets the pump size and elastomer. Voltage-specific parts are not interchangeable.

Ask Us

Send a nameplate photo to sales@watermainsupply.com or call 1-888.510.4036 and we will confirm the part number before you order.

What You Will Find Here

Six categories, each tied to the Grundfos pumps it serves. New parts are added to this collection as they are released.

Submersible Well Pump Accessories

SQ, SQE and SP pumps with MS and MMS motors

Control boxes for single-phase 3-wire motors, replacement motor leads and cable kits, pump-to-motor nut and bolt kits, flow sleeves, well seals and pump wrenches.

Used on: Well contractors, irrigation, farm and municipal wells

Drives and Constant Pressure

CUE drives, CUE 100, filters

Grundfos CUE variable-frequency drives for submersible and surface pumps, CUE 100 single-phase-in constant-pressure drives, sine-wave output filters, enclosure kits, local panels, sensor and multipump modules.

Used on: Constant-pressure wells, irrigation, booster and process pumps

Motor Protection and Control

MP 204, control boxes, status units

Electronic motor protectors that watch current, voltage, temperature and insulation; control boxes with overload protection; status and setpoint units for SQE constant-pressure systems; pressure transducers.

Used on: Pump panels, well systems and commercial installations

Vertical Multistage (VMS) Spares

CR, CRI, CRN and CRE pumps

Cartridge shaft seal kits and gasket kits in EPDM or FKM, sized by pump range, for the most common repairs on Grundfos vertical multistage pumps.

Used on: Plant maintenance, boosters, HVAC and process water

Booster Accessories

CMBE, SCALA, Hydro Multi

Diaphragm tanks sized to the pump, inlet filters, twin installation sets, and the mobile interface that connects boosters to Grundfos GO.

Used on: Homes, light commercial and commercial buildings

Communication and Remote Monitoring

CIM, CIU, GRM, MI 301

Communication interface modules for BACnet, Modbus, PROFINET and EtherNet/IP; cellular and Ethernet modules for Grundfos Remote Management; antennas, brackets, interface boxes and the GENIbus PC tool link.

Used on: Building management, SCADA and remote sites

Parts by Pump Family

Start from the pump you have. The last column is what to read off the nameplate or drawing before you order.

Pump family What it is Typical accessories and spares Check before ordering
SQ and SQE 3 in submersible well pumps with built-in motor protection; SQE adds constant pressure Cable kits, flow sleeves, well seals, CU 300 status box, transducers, potentiometer, pump wrench Motor model letter on the nameplate, cable size, well casing size
SP 4 to 10 in stainless submersible pumps on MS and MMS motors Control boxes, motor leads, nut and bolt kits, CUE drives, sine-wave filters, MP 204 Motor diameter and model, HP, voltage and phase, 2-wire or 3-wire
CR, CRI, CRN and CRE (VMS) Vertical multistage in-line pumps; CRE adds an integrated drive Shaft seal kits, gasket kits, CUE drives for fixed-speed CR, MP 204 Pump range from the type key, seal code, elastomer
CM, CME and CMBE Horizontal multistage pumps and compact boosters Mobile interface for Grundfos GO, diaphragm tanks, CUE drives Pump model, voltage, tank size
SCALA Compact all-in-one domestic boosters Inlet filters, twin installation sets SCALA1 or SCALA2, connection size
Hydro Multi-E and Hydro Multi-B Factory-built duplex and triplex commercial boosters Diaphragm tanks per pump size, CIM and CIU communication modules, GRM antennas, seal kits Pump size in the system, BMS protocol, data plan for remote management

How to Find Your Part

Five steps that get the right part the first time.

1. Read the nameplate

The nameplate carries the Grundfos product number, the model or type designation and a production code. The product number identifies the exact build; the type designation tells you the range, stages, materials and seal.

2. Note the motor

For submersible pumps, record the motor model, diameter, HP, voltage, phase and whether it is 2-wire or 3-wire. Control boxes, leads and bolt kits are specific to the motor, not the pump end.

3. Decode the seal

On CR-family pumps the shaft seal is a four-letter code such as HQQE: the first letter is the seal type, the next two are the seal face materials, and the last is the elastomer, E for EPDM or V for FKM. Order the kit for your pump size with the same code.

4. Match the electrics

Drives, filters and protectors are rated by motor current as well as horsepower. Size them to the full-load amps on the motor nameplate, and check the cable length between drive and motor.

5. Send a photo

If the nameplate is worn or the pump is in a well, a photo of whatever is readable plus the installation details is usually enough for us to identify the part.

Tip. When you order a new pump, add the seal kit, gasket kit or control accessory at the same time. It costs nothing extra in freight and saves a second trip when the pump is first serviced.

Drives, Filters and Motor Protection

The electrical side of a Grundfos installation, and when each piece is needed.

CUE Variable-Frequency Drives

Grundfos CUE drives run submersible and surface pumps at variable speed to hold pressure or flow, with pump-specific setup built in. IP20, IP55 and IP66 enclosures cover panel, plant-room and outdoor installations.

CUE 100 Constant Pressure

Takes a single-phase supply and runs a three-phase submersible motor at variable speed to hold a set water pressure, with the transducer supplied.

Sine-Wave Output Filters

Condition the drive output for the motor cable and submersible motor. Grundfos rates them by amps and by the pump horsepower they serve; check the drive manual for the cable lengths that call for one.

Drive Options

Sensor input and multipump modules, remote-mount control panels, enclosure kits and floor-mounting options adapt a CUE drive to the installation.

Motor Protectors

Electronic protectors such as the MP 204 monitor current, voltage and temperature to trip before a motor is damaged, and can report over GENIbus.

Control Boxes

Single-phase 3-wire submersible motors need a control box with starting capacitor and relay; standard and deluxe versions add overload breakers and contactors.

Seals, Gaskets and Repair Kits

The wear parts behind most pump repairs.

A leaking shaft seal is the most common repair on a vertical multistage pump. Grundfos CR-family pumps use cartridge seals that are replaced as a unit without disturbing the hydraulics, and gasket kits renew the O-rings and gaskets opened during the repair. Kits are grouped by pump range, so one kit covers several sizes.

EPDM

The standard elastomer for clean, potable and hot water.

FKM

For oils, many chemicals and liquids that attack EPDM. Match the elastomer to the liquid, not to the original if the service has changed.

Fasteners and Leads

Nut and bolt kits couple submersible pump ends to their motors, and replacement motor leads are matched to motor family and wiring.

Before you open the pump. Isolate power and water, relieve pressure, and have the kit on hand. A seal replaced with a new gasket set is a one-visit job.

Communication and Remote Monitoring

Connecting Grundfos pumps and boosters to people and systems.

Grundfos GO

The free Grundfos app for setup, live data, alarm troubleshooting and reports. Pumps without Bluetooth connect through the MI 301 mobile interface.

BMS Modules

CIM communication interface modules put Grundfos products on BACnet, Modbus, PROFINET or EtherNet/IP networks. CIU boxes house a module for products without an internal slot.

Remote Management

Cellular and Ethernet modules connect to Grundfos Remote Management and iSolutions Cloud for off-site alarms and data, with antennas and brackets for weak-signal sites. Remote access needs a Grundfos data plan.

PC Tool Link

The GENIbus-to-USB link connects a laptop running Grundfos PC Tool for advanced setup and diagnostics.

Why Order Grundfos Parts from Watermain Supply

Right Part, First Time

We confirm the part against your nameplate, motor and installation before it ships.

Pump and Parts Together

Order accessories and spares with the pump so the whole job arrives in one delivery.

Engineering-Led Help

Drive sizing, filter selection and seal material advice from people who size pumps every day.

Multi-Brand Perspective

If a part is obsolete or on long lead, we will tell you and suggest the practical alternative.

Account Terms

Net-30 for qualified contractor, municipal and facility accounts.

Houston, Gulf Coast Service

Based in Houston and serving the Gulf Coast, with aftermarket support after the sale.

Frequently Asked Questions

Fit, warranty and ordering first.

Are these genuine Grundfos parts?

Yes. Every item is genuine Grundfos equipment, factory-new in original packaging, ordered by its Grundfos product number.

How do I find the right part for my Grundfos pump?

Start with the product number and type designation on the pump or motor nameplate. Send us a photo and we will confirm the part before you order.

Which shaft seal kit fits my CR pump?

Kits are grouped by pump range and seal code. Read the four-letter seal code from the pump type designation, such as HQQE, and match the pump size and elastomer: E is EPDM and V is FKM.

Do I need a sine-wave filter with a CUE drive?

Grundfos lists sine-wave output filters for submersible motors run on CUE drives, rated by amps and pump horsepower. Whether you need one depends on the motor and the cable length; check the CUE manual or ask us.

Does a single-phase submersible motor need a control box?

Single-phase 3-wire submersible motors need a control box with a starting capacitor and relay. 2-wire motors have the starting components built into the motor.

Can I connect a Grundfos booster to my building management system?

Many Grundfos pumps and boosters accept a CIM communication module for BACnet, Modbus, PROFINET or EtherNet/IP. Check the product page or ask us which module fits your model.

What warranty do Grundfos accessories carry?

Parts made by Grundfos carry Grundfos published warranty terms. Accessories Grundfos sells that are made by others carry their maker warranty, stated on each product page.

Can I order parts with a new pump?

Yes, and we recommend it. Adding the seal kit, control accessory or tank to the pump order means one delivery and the parts on hand for first service.

Need a Grundfos Part?

Send us the pump nameplate photo, the motor details and what you need to fix or add. We will confirm the part number, availability and shipping.
