Smith-Blair Style 482 OMNI Cast Pipe End Cap, 2-12 in
Smith-Blair Style 482 Cast Line Cap - 2 in to 12 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 482 OMNI Cast Pipe End Cap, 2-12 in

From $199.04
Smith-Blair EZW Seal & Restraint Line Cap - 2-12 in
Smith-Blair EZW Seal & Restraint Line Cap - 2-12 in

Smith Blair

Free Shipping $499 or more

Smith-Blair EZW Seal & Restraint Line Cap - 2-12 in

From $227.44
Smith-Blair Style 481 Steel Pipe End Cap - 2 in FIPT Outlet, 2-20 in
Smith-Blair Style 481 Steel Pipe End Cap - 2 in to 20 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 481 Steel Pipe End Cap - 2 in FIPT Outlet, 2-20 in

From $585.18

Smith-Blair Pipe Repair Caps

Smith-Blair · End Caps · Line Caps · 2 in to 20 in

Smith-Blair Pipe End Caps and Restrained Line Caps

Seal a plain pipe end in minutes with no welding, threading or flanging. Dead-end a main, cap an abandoned line, close a branch for later, or test a new section. Cast OMNI and fabricated steel caps with a threaded outlet, and the EZW-C line cap that restrains itself.

Smith-Blair Style 482 OMNI cast line cap
3 Styles481 · 482 · EZW-C
2–20 inPipe sizes
To 250 PSIWorking pressure
OutletBlow-off, drain or test
NSF/ANSI 61Potable water

A Smith-Blair end cap works like one end of a pipe coupling: a sleeve closed at the far end slides over the pipe, and a follower drawn in by the bolts presses a Nitrile gasket onto the pipe OD. No pipe-end preparation is needed beyond cleaning, and the cap comes off again when the line is extended. Crews use them to dead-end mains, cap abandoned segments, close branches built ahead of service, and test new pipe.

A cap that only seals must be held on by a thrust block or anchoring whenever the line is under pressure. A restrained line cap grips the pipe and holds itself. Send the pipe material, measured OD and pressure and we confirm the cap and part number the same day: call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Which End Cap Do I Need?

First decide who holds the cap on the pipe, then match the pipe.

Thrust Block or Anchor in Place

  • Cast, ductile iron or AC pipe to 12 in: Style 482 OMNI, 250 PSI.
  • Steel pipe, or any main 14 to 20 in: Style 481, 150 PSI.
  • Both have a threaded outlet for blow-off, draining or testing.

No Thrust Block: Restrained Cap

  • EZW-C line cap: seal and restraint in one stab-fit unit, 2 to 12 in.
  • For temporary dead ends, phased construction and tight trenches.
  • Pressure confirmed for your pipe type before you order.
Never pressurize an unrestrained cap: Smith-Blair requires thrust restraint on the 481 and 482 whenever the line is in use. Without it, line pressure pushes the cap off the pipe end.

Which Cap for Which Pipe?

Smith-Blair published pipe applications.

Pipe 482 OMNI 481 Steel EZW-C
Ductile iron Yes, 2–12 in Yes Yes, DIPS OD
Cast iron Yes, wide range By OD Ask us
Steel Yes Yes, 2–20 in Yes, IPS OD
Asbestos cement Yes, gray follower Yes Ask us
PVC Yes Yes; check thin wall Yes, by OD
HDPE With stiffeners With stiffeners Ask us

The Caps

Every listing shows the Smith-Blair part number on each size and OD.

Smith-Blair Style 482 OMNI cast line cap

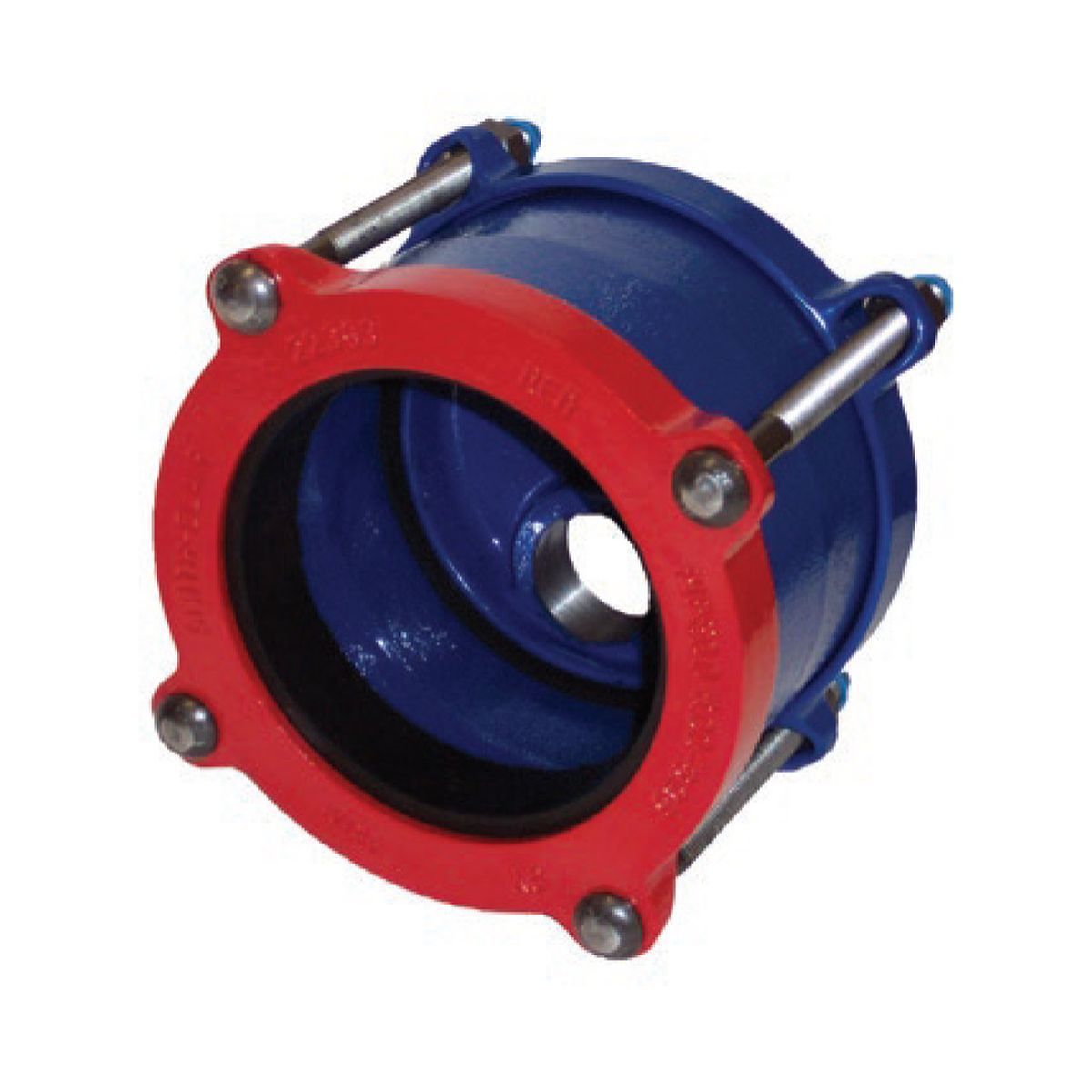

OMNI Cast Line Cap: 482

Ductile iron sleeve and end cap · range gasket

2–12 inSizes
250 PSIWorking pressure
Up to 2.40 inOD range per size
1 or 2 in NPTOutlet

One cast ductile iron cap per nominal size covers iron pipe size, ductile iron and asbestos cement ODs. Color-coded followers: red for IPS, blue for ductile, gray for AC. Offset outlet for blow-off, draining or testing.

  • Highest-rated standard cap: 250 PSI
  • Rebuild with OMNI replacement parts
  • NSF/ANSI 61 and 372; AWWA C219
Best forCast and ductile iron mains 2–12 in, especially where the OD is uncertain.
View Style 482
Smith-Blair Style 481 steel pipe end cap

Steel End Cap: 481

Fabricated steel sleeve and welded end plate

2–20 inStock sizes
150 PSIWorking pressure
2 in FNPTOffset outlet
Many ODsSteel, DI, AC, PVC

Works like one end of a steel coupling: a sleeve closed by a welded end plate, sealed by a follower and Nitrile gasket. Every cap has a 2 in FNPT outlet, offset to drain or blow off the line.

  • Sizes past 12 in and up to 20 in from stock
  • Larger sizes and stainless hardware to order
  • NSF/ANSI 61 and 372; AWWA C219
Best forSteel pipe, and any main larger than 12 in.
View Style 481
Smith-Blair EZW seal and restraint line cap

Restrained Line Cap: EZW-C

Seal and restraint · grip ring · stab fit

2–12 inSizes
IPS and DIPSODs
RestrainedHolds the pipe
Alloy or 304Hardware

Seals and restrains a plain pipe end in one stab-fit unit, from the same EZ-W family as the EZWS restrained couplings. The grip ring holds the cap on the pipe.

  • Restraint built in, from the EZ-W family
  • Low-alloy or 304 stainless hardware
  • Pressure confirmed by pipe type before you order
Best forDead ends and test caps where a thrust block is not practical.
View EZW Line Cap
Smith-Blair 482 end cap replacement parts

482 Replacement Parts

Bodies, gaskets, followers, boltsView

How Much Thrust Is on an End Cap?

Thrust on a dead end equals line pressure times the pipe area. It is larger than most people expect.

Nominal size Ductile iron OD Thrust at 150 PSI Thrust at 200 PSI
4 in 4.80 in 2,714 lb 3,619 lb
6 in 6.90 in 5,609 lb 7,479 lb
8 in 9.05 in 9,649 lb 12,865 lb
10 in 11.10 in 14,515 lb 19,354 lb
12 in 13.20 in 20,527 lb 27,370 lb
16 in 17.40 in 35,668 lb 47,557 lb
20 in 21.60 in 54,965 lb 73,287 lb
Size the restraint for test pressure: a hydrostatic test usually runs above working pressure, so the block or restraint must hold the test thrust. Your project engineer sets the block size from the thrust and the soil bearing capacity.

Compare the Caps

Smith-Blair datasheet figures.

Spec 482 OMNI 481 Steel EZW-C
Body Ductile iron sleeve and cast end Steel sleeve, welded end plate EZ-W seal and restraint body
Sizes 2–12 in 2–20 in stock, larger to order 2–12 in
Working pressure 250 PSI 150 PSI; higher to order By pipe type, confirmed per order
Restrains itself No: block or anchor No: block or anchor Yes
Outlet 1 in NPT (2–3 in), 2 in NPT (4–12 in) 2 in FNPT, all sizes —
Gasket Nitrile, -20°F to +180°F Nitrile, -20°F to +180°F EZ-W gasket and grip ring
Hardware Low-alloy; 304 or 316 to order Low-alloy; 304 or 316 to order Low-alloy or 304 stainless
Certification NSF/ANSI 61 and 372; AWWA C219 NSF/ANSI 61 and 372; AWWA C219 —

Measure the Pipe OD

Caps seal on the outside diameter. Order by the measured OD, not the nominal size.

Nominal size Steel and IPS PVC OD Ductile iron and C900 PVC OD
4 in 4.50 in 4.80 in
6 in 6.63 in 6.90 in
8 in 8.63 in 9.05 in
10 in 10.75 in 11.10 in
12 in 12.75 in 13.20 in
How to measure: clean the last few inches of the pipe, wrap a pi tape around it and take two readings 90° apart. Old cast iron and AC run larger than these figures by class; the 482 range covers most of them.

End Cap Questions

What is a pipe end cap or line cap?

A bolted fitting that seals the plain end of a pipe without welding, threading or flanging. A gasket and follower seal around the pipe OD, the same way one end of a coupling does.

Do end caps need thrust restraint?

The 481 and 482 seal but do not restrain: Smith-Blair requires thrust restraint whenever the line is in use, by thrust block, anchoring or a restraint harness. The EZW-C line cap restrains itself with a grip ring.

How much thrust is on a capped pipe?

Pressure times the pipe area. An 8 in ductile iron main (9.05 in OD) at 150 PSI pushes about 9,650 lb on the cap; a 12 in main about 20,500 lb. The table on this page gives more sizes.

Which cap for cast iron or ductile iron pipe?

The 482 OMNI: one cap per size covers iron pipe size, ductile iron and AC ODs, rated to 250 PSI. Above 12 in, use the 481.

Which cap for PVC pipe?

The 482 and 481 both seal PVC of matching OD; check thin-wall PVC with us. On unanchored PVC, the restrained EZW-C or a thrust block is needed.

Which cap for HDPE pipe?

The 481 and 482 fit HDPE with Smith-Blair pipe stiffeners in the pipe end, which are required on polyethylene.

Can I test a line against an end cap?

Yes: both caps are used for line testing, and the threaded outlet takes a test plug, gauge or blow-off. Keep test pressure within the cap rating and restrain the cap before pressurizing.

What size outlet do the caps have?

The 481 has a 2 in FNPT outlet on every size. The 482 has a 1 in NPT outlet on 2–3 in and 2 in NPT on 4–12 in. Both are offset for draining.

481 or 482?

The 482 for cast, ductile and AC pipe to 12 in: 250 PSI and a wide OD range. The 481 for steel pipe, sizes to 20 in, or when you want the 2 in outlet on a small main.

Are end caps returnable?

No. Smith-Blair caps are made to order and non-returnable, so we confirm the pipe OD and build before the order ships.

Need a Cap Matched?

Send the pipe material, measured OD and working or test pressure, and whether the cap must restrain itself. We reply the same day with the part number, price and ship date.

1-888.510.4036Email sales@watermainsupply.comRequest a Quote
Technical data on this page is taken from Smith-Blair product literature and is subject to change by the manufacturer. Confirm against the current installation instructions before installing. All Smith-Blair caps are made to order and non-returnable.
