Smith-Blair Replacement Parts: OMNI Gaskets, Followers, Sleeves

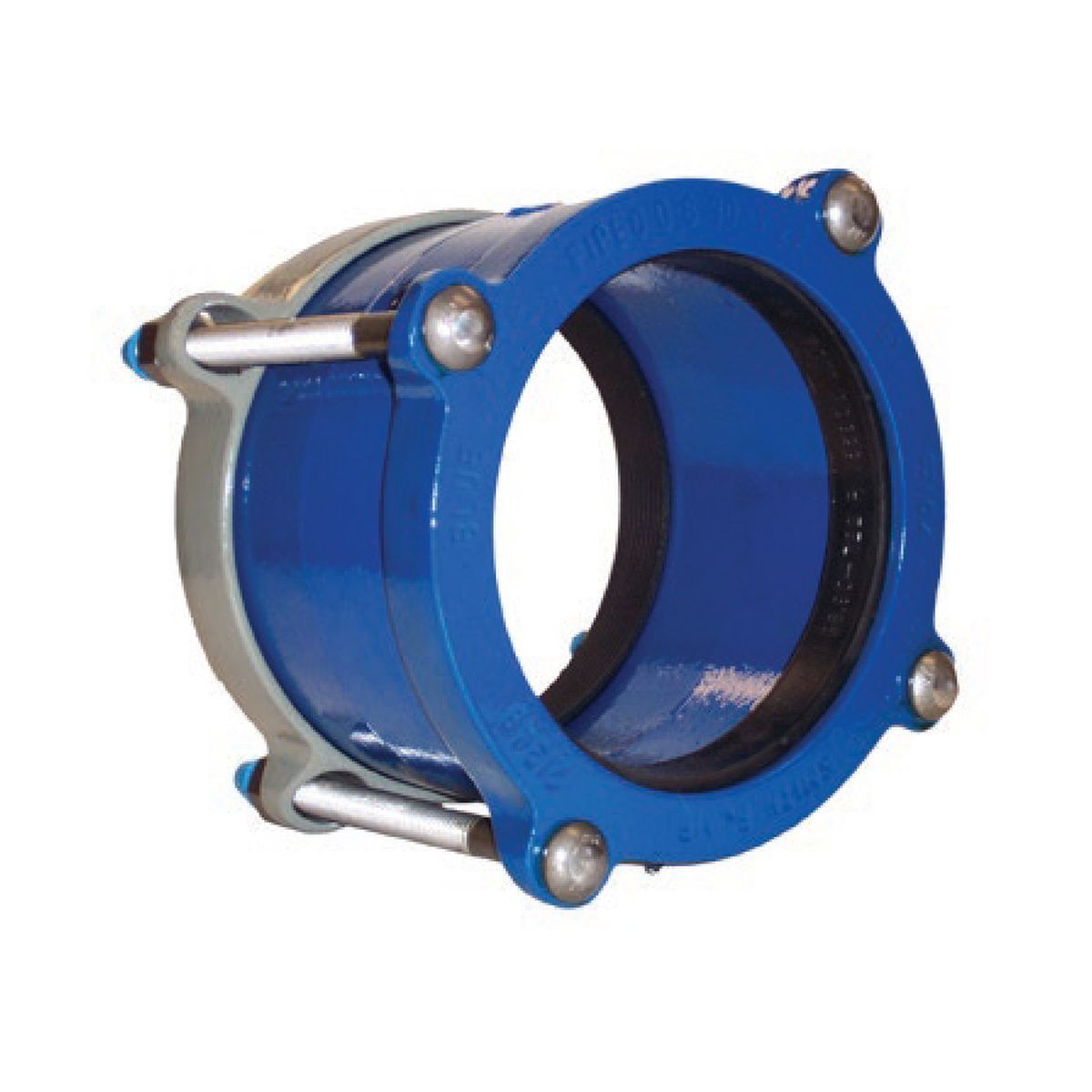

Smith-Blair OMNI Coupling Gasket, Nitrile, for 441, 442, 482 and 912
Smith Blair
Smith-Blair OMNI Coupling Gasket, Nitrile, for 441, 442, 482 and 912
- Price
- From $50
Smith-Blair Coupling and FCA Bolts, Studs, Nuts and Washers
Smith Blair
Smith-Blair Coupling and FCA Bolts, Studs, Nuts and Washers
- Price
- From $50
Smith-Blair Copper Tubing Adapter Gasket, Nitrile, for 411 and 525 Couplings
Smith Blair
Smith-Blair Copper Tubing Adapter Gasket, Nitrile, for 411 and 525 Couplings
- Price
- From $50
Smith-Blair 912 OMNI FCA Parts, Ductile Iron Body, Follower Flange and O-Ring
Smith Blair
Smith-Blair 912 OMNI FCA Parts, Ductile Iron Body, Follower Flange and O-Ring
- Price
- From $50
Smith-Blair 482 OMNI End Cap Body, Ductile Iron, Flexi-Coat Epoxy
Smith Blair
Smith-Blair 482 OMNI End Cap Body, Ductile Iron, Flexi-Coat Epoxy
- Price
- From $144.26
Smith-Blair 442 OMNI Long Center Sleeve, Ductile Iron, Flexi-Coat Epoxy
Smith Blair
Smith-Blair 442 OMNI Long Center Sleeve, Ductile Iron, Flexi-Coat Epoxy
- Price
- From $224.18
Smith-Blair 441 OMNI Follower Flange, Ductile Iron, Flexi-Coat Epoxy
Smith Blair
Smith-Blair 441 OMNI Follower Flange, Ductile Iron, Flexi-Coat Epoxy
- Price
- From $50
Smith-Blair 441 OMNI Center Sleeve, Ductile Iron, Flexi-Coat Epoxy
Smith Blair
Smith-Blair 441 OMNI Center Sleeve, Ductile Iron, Flexi-Coat Epoxy
- Price
- From $63.61
Smith-Blair Replacement Parts: OMNI Gaskets, Followers, Sleeves
Smith-Blair · Replacement Parts · OMNI System
Smith-Blair Replacement Parts for OMNI Couplings, Caps and FCAs
Gaskets, follower flanges, center sleeves, end cap bodies, 912 FCA bodies and the bolts, nuts and washers that hold them together. Every part carries its Smith-Blair part number, so you can match the one in your hand and keep a coupling, cap or adapter in service.
211 PartsSmith-Blair part numbers
441 · 442 · 482 · 912OMNI system styles
2–16 inNominal sizes
2.34–19.20 inPipe OD range
NSF/ANSI 61-GNitrile gaskets
The Smith-Blair OMNI system is built from interchangeable parts: one center sleeve per nominal size, a follower flange and a gasket on each end that set the pipe OD, and track-head bolts that draw the followers in. The Style 441 cast coupling, 442 long-sleeve coupling, 482 end cap and 912 flanged coupling adapter share the same gaskets and follower system. When one part is damaged or a pipe OD changes, you replace that part, not the whole fitting.
Send the part number from the old part, or the coupling style and measured pipe OD, and we confirm the replacement the same day. Call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Will It Work for Me?
Answered from Smith-Blair published data.
Warranty
One year from the date of shipment by Smith-Blair, against defects in materials and workmanship, under Smith-Blair's published warranty.
Reliability
Ductile iron ASTM A536 sleeves, followers and bodies with Flexi-Coat fusion-bonded epoxy, and Nitrile gaskets certified to NSF/ANSI 61-G.
Fit
Parts fit the Smith-Blair 441, 442, 482 and 912 OMNI styles, plus copper tubing adapter gaskets for the 411 and 525. Each gasket and follower is made for a set pipe OD range.
Match It Now
Read the part number cast or molded on the old part, or measure the pipe OD with a pi tape, and email it. We confirm the part number the same day, or call 1-888.510.4036.
The Parts
Every listing shows the Smith-Blair part number in the last option.
OMNI Coupling Gaskets
Nitrile (Buna-N) · NSF/ANSI 61-G
41Part numbers
2.34–19.20 inPipe OD
441 · 442Couplings
482 · 912Cap and FCA
One molded gasket per pipe OD range, permanently marked with its part number and range. The same gaskets seat in the 441 and 442 couplings, the 482 end cap and the 912 FCA.
- Two per coupling, one per end cap or FCA
- The 482 takes the largest gasket of its size
- Order by measured pipe OD
Best forA leaking or damaged coupling end, or reusing a coupling on a different pipe OD.
View Gaskets
441 Follower Flanges
Ductile iron ASTM A536 · Flexi-Coat epoxy
22Part numbers
2–16 inNominal
Red · Blue · GrayIPS · DI · AC OD
2Per coupling
The follower sets the pipe OD each end of the coupling fits. Followers are color-coded by pipe type: red for iron pipe size OD, blue for ductile OD, gray for asbestos cement OD.
- Mix and match on one sleeve per nominal size
- Change pipe OD by changing follower and gasket
- Fusion-bonded epoxy finish
Best forCracked followers, or converting a 441 from one pipe OD to another.
View Followers
441 and 442 Center Sleeves
Ductile iron ASTM A536 · Flexi-Coat epoxy
13441 sleeves
10442 long sleeves
7 or 12 in442 lengths
3Reducing sleeves
One sleeve per nominal size covers every OD of that size; gaskets and followers set the ends. The 442 long sleeves bridge longer gaps; reducing 441 sleeves join 2 x 2-1/2, 4 x 6 and 6 x 8 in.
- Smooth inside taper for uniform gasket seating
- Reducing sleeves for size transitions
- Long sleeves for wider repair gaps
Best forBuilding a coupling from stock parts, or a longer repair gap.
View 441 Sleeves
482 End Cap Bodies
Ductile iron ASTM A536 · Flexi-Coat epoxy
8Part numbers
2–12 inNominal
250 PSI482 rating
1Gasket per cap
Replacement body for the 482 OMNI cast line cap. Seats one OMNI gasket and one follower flange on a plain pipe end.
- Uses the largest gasket of its nominal size
- Thrust restraint required in service
- Same followers as the 441
Best forRebuilding line caps kept for testing and temporary shut-offs.
View End Caps
912 FCA Parts
Ductile iron body and follower · Nitrile O-ring
27Part numbers
3–12 inNominal
ANSI 125/150Flange drilling
3Components
Body, follower flange and flange O-ring for the 912 OMNI FCA. One body per nominal size; the follower and an OMNI gasket set the pipe OD.
- Body drilled to ANSI 125/150 lb
- Color-coded followers by pipe type
- Pipe gasket in the gasket listing
Best forRebuilding a 912 at a pump station or meter set without replacing the whole adapter.
View 912 Parts
Bolts, Studs, Nuts, Washers
Alloy · Electro-galvanized · 304 stainless
84Part numbers
3/8–7/8 inDiameters
PacksLow-cost items
-037912 ductile bolts
Oval and square neck track-head bolts, 912 cross bolts, tee bolts, flange bolts and studs, heavy hex nuts, flat washers and stainless spring washers for approved HDPE products.
- Smith-Blair part numbers on every item
- Low-cost items sold in packs of 2 to 50
- 304 stainless options for corrosive soil
Best forReplacing corroded hardware on an existing coupling, cap or FCA.
View Hardware
Identify Your Part
OMNI gaskets and followers are permanently marked with a part number and OD range.
| Part | What to look for | How to order |
|---|---|---|
| Gasket | Part number ending -069 and an OD range molded on the gasket | Match the part number, or the measured pipe OD |
| Follower flange | Part number ending -045 cast in; color shows pipe type: red IPS, blue ductile, gray AC | Match the part number and color, or the pipe OD and type |
| Center sleeve | Nominal size; 441 standard length or 442 7 in or 12 in | Nominal size and style; reducing sleeves by both sizes |
| 482 end cap body | Part number ending -245 | Nominal size |
| 912 body and O-ring | One body per nominal size, ANSI 125/150 drilling | Nominal size; follower by pipe OD |
| Bolts and nuts | Diameter, length, neck shape (oval or square) and finish | Size and finish: alloy, electro-galvanized or 304 stainless |
How to measure: clean the pipe where the gasket seats, wrap a pi tape around the bare pipe and take two readings 90° apart. Order by that OD, not the nominal size: a 6 in pipe can be 6.63 in (steel, IPS PVC), 6.90 in (ductile iron, C900 PVC) or larger on old cast iron.
Bolt Counts by Size
From the Smith-Blair 441 and 442 selection charts. One 5/8 in heavy hex nut per bolt.
| Nominal size | 441 bolts | 442 bolts, 7 in sleeve | 442 bolts, 12 in sleeve |
|---|---|---|---|
| 2 and 2-1/2 in | (2) 5/8 x 8 in oval | — | — |
| 3 in | (4) 5/8 x 8 in oval | — | — |
| 4 in | (4) 5/8 x 8 in oval | (4) 5/8 x 10-1/2 in | (4) 5/8 x 15 in |
| 6 in | (4) 5/8 x 8 in oval | (4) 5/8 x 10-1/2 in | (4) 5/8 x 15 in |
| 8 in | (6) 5/8 x 8 or 9 in oval | (6) 5/8 x 10-1/2 in | (6) 5/8 x 15 in |
| 10 in | (6) 5/8 x 9 or 10-1/2 in oval | — | (6) 5/8 x 17 in |
| 12 in | (8) 5/8 x 9 or 10-1/2 in oval | — | (8) 5/8 x 15 in |
| 14 in | (8) 5/8 x 9 in oval | — | (8) 5/8 x 15 in |
| 16 in | (10) 5/8 x 9 or 10-1/2 in oval | — | (10) 5/8 x 17 in |
| Reducing 4 x 6, 6 x 8 in | (8) or (10) 5/8 x 4-1/2 in oval | — | — |
912 FCA: four cross bolts and four flange bolts or studs on 3–8 in (plus four tee bolts on 4–8 in), six of each on 10–12 in. Three nuts per stud and one per flange bolt. Bolt length depends on the pipe OD within a size: check the selection chart on the 441, 442 or 912 datasheet before ordering.
Parts or a New Fitting?
We tell you which is cheaper before you order.
Buy the Part
- 4 in and larger: one gasket and follower costs about half a new coupling or less.
- Changing a coupling end to a different pipe OD.
- Corroded hardware on a sound sleeve, cap or FCA body.
Buy a New Fitting
- 2 and 2-1/2 in: a complete Style 441 often costs about the same as a gasket and follower.
- More than one end damaged, or the sleeve is cracked.
- A complete 482 end cap or 912 FCA when the body is damaged.
Frequently Asked Questions
Are these genuine Smith-Blair parts?
Yes. Every part is factory-new Smith-Blair equipment with its Smith-Blair part number, sold and supported by Watermain Supply, an independent industrial supplier.
How do I find the right gasket or follower?
Measure the pipe OD with a pi tape and pick the OD range, or read the part number and range molded on the old gasket or cast on the follower. Email the number or a photo and we confirm the part.
Do the same gaskets fit the 441, 442, 482 and 912?
Yes. They all use the OMNI gasket system. The 482 end cap takes the largest gasket within its nominal size.
What do the follower colors mean?
Smith-Blair color-codes followers by pipe type: red for iron pipe size OD, blue for ductile iron OD, gray for asbestos cement OD.
Why are some parts sold in packs?
Small bolts, nuts and washers are sold in packs of 2 to 50 so each line is worth shipping. The pack size shows in the part number option.
Should I buy parts or a complete coupling?
On 2 and 2-1/2 in, a complete 441 coupling often costs about the same as a gasket and follower, so a new coupling is usually the better buy. From 4 in up, replacing one end costs about half a new coupling or less.
How many bolts does a 441 take?
Two 5/8 in bolts on 2 and 2-1/2 in, four on 3 to 6 in, six on 8 and 10 in, eight on 12 and 14 in and ten on 16 in, with one heavy hex nut per bolt per the Smith-Blair selection chart.
Are spare parts returnable?
No. Smith-Blair parts are made to order and non-returnable, so we confirm the part number before the order ships.
What is the warranty?
One year from the date of shipment by Smith-Blair, against defects in materials and workmanship, under Smith-Blair published warranty.
Need a Smith-Blair Part Matched?
Send the part number, a photo of the part marking, or the coupling style and measured pipe OD. We reply the same day with the part number, price and ship date.
Technical data on this page is taken from Smith-Blair product literature and the Smith-Blair 2025 price book and is subject to change by the manufacturer. Confirm against the current datasheet and installation instructions before ordering. All Smith-Blair products are made to order and non-returnable.
