Grundfos CMBE Booster Systems

Grundfos Pumps

Grundfos CMBE
Constant Pressure Booster Systems

Packaged variable-speed boosters built on the stainless CME multistage pump β€” ten single-pump models and three twin systems, from a single-family home to an apartment building, hotel or small industrial plant.

10 ModelsSingle-pump range
Up to 60 GPMMax flow
Up to 325 ftMax head
145 psiMax system pressure
NSF 61 / 372Drinking water

Grundfos CMBE is a complete packaged pressure-boosting system, not a bare pump. Each unit pairs a stainless-steel CME horizontal multistage pump and premium-efficiency IE5 motor with an integrated variable frequency drive, and arrives with the five-way fitting, integrated non-return valve, diaphragm tank, outlet pressure sensor and pressure gauge already fitted. A pressure sensor watches demand and the drive varies motor speed to hold a constant pressure in the pipe system β€” connect the pipes, plug it in, set the pressure on the panel, and it runs.

The range covers ten single-pump models serving up to 60 GPM and 325 ft of head, plus three CMBE TWIN systems that put two pumps in parallel on a common base with cascade control and automatic alternation. Watermain Supply stocks the U.S. 60 Hz range in 115 V and 230 V with engineering-led sizing to your fixture count, elevation and inlet pressure. Compare the models below, or call 1-888.510.4036 and we will size it for you. Genuine Grundfos equipment, factory-new in original packaging β€” sold and supported by Watermain Supply, an independent industrial distributor.

Grundfos GO app for pump setup, status and monitoring

Control It From Your Phone β€” Grundfos GO

Every CMBE is radio-enabled for the free Grundfos GO app: set functions, read status overviews, technical product information and live operating parameters from an iOS or Android device. Connection uses the Grundfos MI 301 radio module, which pairs the pump to your phone over Bluetooth β€” order it with the pump and commissioning takes minutes, not a laptop.

Grundfos GO is a free app from Grundfos Holding A/S. The MI 301 communication module is required for CMBE and is sold separately.

The CMBE Line

Two configurations of the same integrated-VFD system: one pump for domestic and light-commercial supply, or two in parallel with cascade control for larger buildings and standby duty.

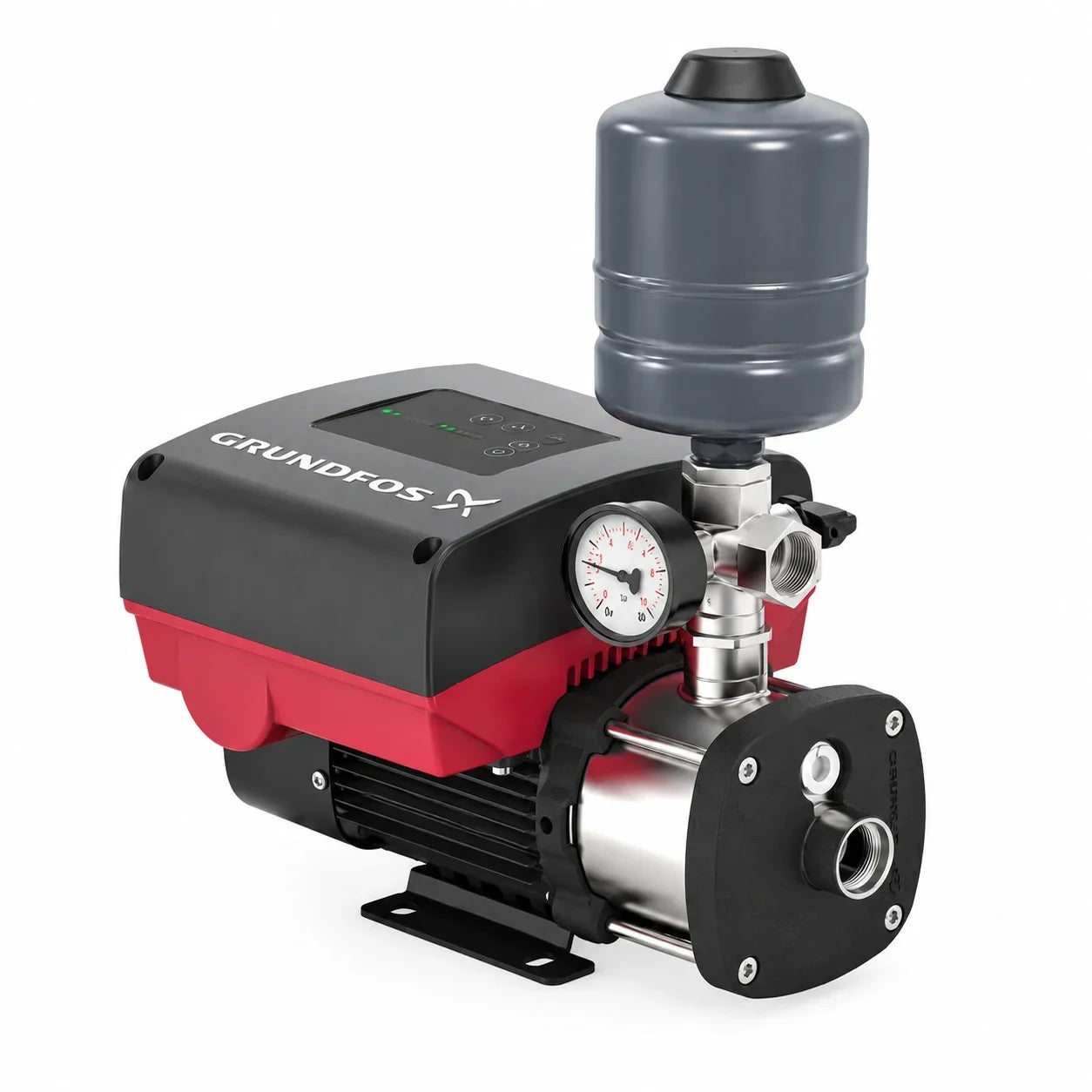

Grundfos CMBE constant pressure booster pump system

CMBE

Single-pump constant pressure

10 Models1, 3, 5 and 10 families
Up to 60 GPMmax flow
98–325 ftmax head
115 / 230 V1-phase

A CME multistage pump with integrated frequency converter, five-way valve, diaphragm tank, pressure sensor and gauge in one compact package. The integrated speed controller holds constant pressure as demand changes, with dry-running, overload and over-temperature protection built in. Stainless AISI 304 wetted hydraulics, IP55 pump enclosure, under 55 dB(A).

Key specifications
  • Max system pressure 145 psi (10 bar)
  • Cut-in 7.25 psi below set point, 100 starts/hour
  • Liquid 32–140Β°F, ambient -4 to 131Β°F
  • Flooded suction; max 3.28 ft lift, not self-priming
  • NSF/ANSI 61 + 372; 230 V models UL listed packaged system
Best forSingle- and two-family houses, cluster homes, blocks of flats, schools, small hotels and offices, agriculture and irrigation supply.
View CMBE
Grundfos CMBE TWIN parallel booster system with cascade control

CMBE TWIN

Two pumps, cascade control

3 Systems1-44, 3-51, 10-54
2 Pumpsparallel on one base
Cascade+ auto alternation
115 / 230 Vfuse-box wired

Two complete CMBE pumps mounted in parallel on a common base plate with a manifold set of inlet and outlet pipes, ball valves and unions. Each pump keeps its own VFD, tank, sensor and check valve. Cascade control stages the second pump in as demand rises and pump alternation distributes runtime evenly, starting whichever pump has the fewest running hours.

Available systems
  • CMBE TWIN 1-44 β€” 115 V, product no. 99503861
  • CMBE TWIN 3-51 β€” 115 V, product no. 99503873
  • CMBE TWIN 10-54 β€” 200-240 V, product no. 99503875
  • Connections 1-1/2 in NPT (2 in NPT on 10-54)
  • Fuse-box connection; 15 ft cable, no plug
Best forApartment buildings, cluster homes, hotels, schools, small office buildings, hospitals, small industrial plants, and domestic fire suppression.
Request TWIN Quote

CMBE In Two Minutes

The packaged system, the integrated drive and the constant-pressure control β€” straight from Grundfos.

Grundfos CMBE Booster Pump Overview

Video published by Grundfos on its official YouTube channel. Content Β© Grundfos Holding A/S.

CMBE Model Range

All ten U.S. 60 Hz models. Model numbers state nominal flow (mΒ³/h) and max head (m) β€” a CMBE 3-62 is a 3 mΒ³/h (13 GPM) nominal pump with 203 ft of head, and per the manufacturer curves and selection charts it serves up to about 26 GPM at reduced head. Power figures are maximum P1 input.

Model Max / Nominal Flow Max Head 115 V 230 V Max P1 Product No.
CMBE 1-44 ~15 GPM Β· 4.4 nom 144 ft Yes Yes 0.84 HP 98810910 / 98548109
CMBE 1-75 ~15 GPM Β· 4.4 nom 246 ft Yes Yes 1.34 HP 98810921 / 98548110
CMBE 1-99 ~15 GPM Β· 4.4 nom 325 ft β€” Yes 1.68 HP 98548111
CMBE 3-30 ~26 GPM Β· 13 nom 98 ft Yes Yes 0.92 HP 98810922 / 98548112
CMBE 3-51 ~26 GPM Β· 13 nom 167 ft Yes β€” 1.18 HP 98810924
CMBE 3-62 ~26 GPM Β· 13 nom 203 ft β€” Yes 1.62 HP 98548113
CMBE 3-93 ~26 GPM Β· 13 nom 305 ft β€” Yes 2.31 HP 98548114
CMBE 5-31 ~35 GPM Β· 22 nom 102 ft β€” Yes 1.46 HP 98548115
CMBE 5-62 ~35 GPM Β· 22 nom 203 ft β€” Yes 2.31 HP 98548116
CMBE 10-54 ~60 GPM Β· 44 nom 177 ft β€” Yes 2.29 HP 98548118

Connections are 1 in NPT except the 5-31 and 5-62 outlet (1-1/4 in NPT) and the 10-54 (1-1/2 in NPT both ports). Request the manufacturer pump curve for your duty point before specifying.

CMBE TWIN: Cascade Control & Alternation

What the twin system adds over two independent pumps, and why it matters in a building.

Cascade control

The system adapts to consumption by switching pumps on or off and varying the speed of those running, so it holds constant pressure using only the number of pumps the demand actually requires.

Automatic alternation

Running hours are distributed evenly. The system starts whichever pump has accumulated the fewest running hours since power was last switched off, so neither unit wears out ahead of the other.

Standby redundancy

Two independent pumps, each with its own drive, tank, sensor and check valve, on a shared manifold. If one is down, the building still has water β€” the reason CMBE TWIN suits hospitals and hotels.

Higher peak flow

Both pumps run together when demand calls for more flow than one can deliver at the set pressure, roughly doubling available flow at a given head compared with a single CMBE.

Wiring note. Single CMBE units ship with a 4.9 ft cable and a US plug. CMBE TWIN is intended for fuse-box connection and ships with a 15 ft cable and no plug β€” plan for an electrician on twin installations.

Sizing & Best Practices

How we size a CMBE, and the one limit that catches people out.

1. Calculate required boost

Required boost equals the pressure you want at the highest fixture, plus 0.433 psi for every foot of elevation from the pump to that fixture, plus friction loss in the piping, minus the pressure already available at the pump inlet. A three-story building wanting 45 psi at the top floor, 30 ft above the pump, with 30 psi at the main, needs roughly 45 + 13 + friction βˆ’ 30 β‰ˆ 28 psi of boost plus pipe losses.

2. Estimate peak flow honestly

Size to simultaneous demand, not the sum of every fixture. A water-supply-fixture-unit method (IPC Table 604.3 / Hunter’s curve) converts fixture counts into a realistic peak GPM for residential work; the IAPMO Water Demand Calculator is more accurate for light commercial. The CMBE 1 family suits small homes, the 3 and 5 families cover most multi-bath and small-commercial work, and the 10-54 serves up to about 60 GPM.

3. Check the suction condition first

CMBE is not self-priming. Maximum suction lift is 3.28 ft (1 m) including inlet-pipe pressure loss, so it wants a flooded or near-flooded suction from a main or a tank at or above pump level. If you are drawing up from a below-grade tank, cistern or shallow well, that is a job for the self-priming Grundfos SCALA line instead.

Sizing rules. Never set the pressure set point above the model’s maximum head β€” the panel allows it, the pump cannot deliver it. Keep the sum of inlet pressure and pump head under the 145 psi system limit, and if your duty point lands past 70 percent of a model’s maximum head at design flow, step up a model.

Grundfos Selection Charts

Grundfos publishes selection tables for residential work. Find your required boost in psi and your flow range, and read the recommended model β€” then confirm against the pump curve.

By floors and taps

Floors 1-5 taps 6-10 taps 11-20 taps 21-50 taps
4 CMBE 1-75 CMBE 1-75 CMBE 3-62 CMBE 3-93
3 CMBE 1-44 CMBE 1-75 CMBE 3-62 CMBE 3-62
2 CMBE 1-44 CMBE 1-44 CMBE 3-62 CMBE 3-62
1 CMBE 1-44 CMBE 1-44 CMBE 3-30 CMBE 3-62

1 Γ— 230 V β€” by boost and flow

PSI boost 0-15 gpm 0-25 gpm 0-30 gpm 0-45 gpm 0-55 gpm 0-65 gpm
20 CMBE 1-44 CMBE 3-30 CMBE 5-31 CMBE 10-54 CMBE 10-54 CMBE 10-54
25 CMBE 1-44 CMBE 3-30 CMBE 5-31 CMBE 10-54 CMBE 10-54 CMBE 10-54
30 CMBE 1-75 CMBE 5-31 CMBE 5-31 CMBE 10-54 CMBE 10-54 CMBE 10-54
35 CMBE 1-75 CMBE 3-62 CMBE 5-31 CMBE 10-54 CMBE 10-54 β€”
40 CMBE 1-75 CMBE 3-62 CMBE 5-62 CMBE 10-54 β€” β€”
45 CMBE 1-75 CMBE 3-62 CMBE 5-62 CMBE 10-54 β€” β€”
50 CMBE 1-99 CMBE 3-62 CMBE 5-62 β€” β€” β€”
55 CMBE 1-99 CMBE 3-93 CMBE 5-62 β€” β€” β€”
60 CMBE 1-99 CMBE 3-93 CMBE 5-62 β€” β€” β€”
65 CMBE 1-99 CMBE 5-62 β€” β€” β€” β€”
70-80 CMBE 3-93 CMBE 5-62 β€” β€” β€” β€”

1 Γ— 115 V β€” by boost and flow

PSI boost 0-10 gpm 0-15 gpm 0-20 gpm
20 CMBE 1-44 CMBE 1-44 CMBE 3-30
25 CMBE 1-44 CMBE 3-30 CMBE 3-30
30 CMBE 1-44 CMBE 3-30 CMBE 3-51
35 CMBE 1-44 CMBE 3-51 CMBE 3-51 *
40 CMBE 1-44 CMBE 3-51 β€”
45 CMBE 1-44 CMBE 3-51 β€”
50 CMBE 1-75 CMBE 3-51 β€”
55-60 CMBE 1-75 * β€” β€”

* Indicated pump may be 5-10 percent undersized on flow at the desired pressure. Charts reproduced from Grundfos CMBE literature for reference; confirm the duty point on the manufacturer curve before ordering.

What Makes CMBE Different

The engineering behind the package, and why it matters on an installation.

Complete packaged system

Five-way fitting with integrated non-return valve, diaphragm tank, outlet pressure sensor and pressure gauge are fitted at the factory. Nothing to source separately, nothing to plumb but suction and discharge.

IE5 premium-efficiency motor

The MGE motor with integrated frequency converter is a premium-efficiency IE5 design; Grundfos rates the drive at up to 40 percent energy savings against fixed-speed boosting.

Stainless hydraulics

Pump sleeve, shaft, impellers, chambers and nozzle in AISI 304 stainless with an AISI 316 sensor fitting β€” corrosion resistance that suits chlorinated, softened and raw water alike.

Structured dry-run recovery

On loss of inlet pressure the pump stops and alarms, then attempts five restarts at 10-second intervals and eight at 5-minute intervals, repeating the cycle after 24 hours β€” it recovers on its own when water returns.

Wide model ladder

Ten models across four flow families mean the duty point can be matched closely instead of oversizing, from a small cottage supply to about 60 GPM.

Grundfos GO connectivity

Radio communication with the Grundfos GO app through the MI 301 module gives setup, status and operating parameters from a phone or tablet.

Simple setpoint control

The panel sets pressure with up/down buttons and light fields across the sensor range, so a service tech can change the set point without a laptop or a proprietary tool.

Drinking-water certified

Classified to NSF/ANSI 61 and NSF/ANSI 372 for potable water, and the 1 Γ— 230 V CMBE models are UL listed as a packaged pumping system.

How CMBE Compares

We stock every major booster line, so we can be straight about fit. The single most important distinction: CMBE is a flooded-suction system, while most of the compact residential boosters below are self-priming.

CMBE vs Grundfos SCALA

Specification CMBE SCALA2 SCALA1
Control Variable speed Variable speed Fixed speed
Flow range up to ~60 GPM up to 18 GPM 13-22 GPM
Max head up to 325 ft 147 ft 150-180 ft
Models 10 1 2
Self-priming No (max 3.28 ft lift) Yes, 26 ft Yes, 26 ft
Max system pressure 145 psi 145 psi 116 psi
Hydraulics Stainless AISI 304 Aluminum + composite Composite
Noise ≀ 55 dB(A) 44 dB(A) < 55 dB(A)
Multi-pump TWIN with cascade control Parallel twin kit Electronic twin
Typical use Whole building, light commercial Whole home comfort Home, irrigation, transfer

SCALA is the compact, self-priming, quieter choice for a single residence or a tank draw. CMBE is the larger, stainless, wider-ranging system for buildings β€” and the only Grundfos option here that reaches 60 GPM or 325 ft. If you need suction lift, choose SCALA.

CMBE vs DAB Esybox

Specification CMBE DAB Esybox DAB Esybox Max
Control Variable speed Variable speed Variable speed
Max flow up to ~60 GPM 31.7 GPM 76 GPM per unit
Max head up to 325 ft 213 ft up to 316 ft
Self-priming No Yes, 26 ft No (flooded via dock)
Max system pressure 145 psi 116 psi 174 psi nominal
Hydraulics Stainless AISI 304 Composite/technopolymer Stainless
Multi-pump TWIN, cascade + alternation Wireless to 4 units 1-4 via Esydock
Phase Single phase Single phase Single or three phase

Esybox is the more compact, self-priming, plug-and-pump alternative and scales further with Esybox Max for commercial stations. CMBE counters with stainless hydraulics, a finer model ladder for close duty matching, and a higher system-pressure rating than the standard Esybox.

CMBE vs A.Y. McDonald DuraMAC

Specification CMBE DuraMAC VS DuraMAC Light Commercial
Control Variable speed Variable speed Fixed speed
Flow up to ~60 GPM 6-35 GPM 35 GPM
Boost / head up to 325 ft 25-65 psi 40-78 psi
Max system pressure 145 psi 120 psi β€”
Hydraulics Stainless AISI 304 SS 304/316 Stainless components
Self-priming No Yes Yes
Multi-pump TWIN with cascade Single Single
Origin Denmark / assembled Mexico & US Made in USA Made in USA

DuraMAC is self-priming, domestically manufactured, and typically the lower-cost route to a residential VFD booster. CMBE goes higher on head and system pressure, offers ten models instead of two, and is the only one of the three with a factory twin system.

CMBE vs Goulds Water Technology

Specification CMBE Goulds ResiBoost Goulds Aquavar
Control Variable speed Variable speed Variable speed (e-AB3 / e-AB2)
Max flow up to ~60 GPM up to 35 GPM up to 80 GPM (e-AB2)
Motor IE5, up to 2.31 HP P1 0.75-2 HP 0.5-5 HP
Pump Stainless CME multistage Stainless e-HM e-HM / MCS
Self-priming No No No
Packaged Fully assembled Pre-wired, tank separate Kit / drive package
Multi-pump TWIN with cascade Single Duplex / multi-master
Install rating IP55 pump, indoor Indoor NEMA 1 / NEMA 3R

The closest architectural match on this page β€” both are stainless multistage VFD boosters that want flooded suction. Aquavar scales higher in horsepower and offers outdoor-rated enclosures; CMBE arrives fully assembled with tank and sensor fitted and adds a factory twin system.

CMBE vs Davey

Specification CMBE Davey DD Series Davey EvoDrive
Control Variable speed Variable speed Variable speed (PM motor)
Max flow up to ~60 GPM 15-34 GPM 28 GPM
Max pressure up to 325 ft (~141 psi) up to 91 psi set up to 95 psi
Max casing / system 145 psi 116-145 psi 145 psi
Self-priming No Limited 13 ft lift
Hydraulics Stainless AISI 304 304 stainless 304 stainless
Multi-pump TWIN, cascade + alternation Daisy-chain 2 pumps Duty/standby 2 pumps
Certifications NSF 61/372, cULus NSF 61 (WQA) NSF-oriented

Davey DD and EvoDrive are strong compact options with stainless hydraulics and simple two-pump modes. CMBE reaches substantially higher head, offers a wider model ladder, and its TWIN adds true cascade control and alternation rather than a simple pairing.

CMBE vs Franklin Electric

Specification CMBE FE VersaBoost Pro FE MH Series
Type Packaged VFD booster Packaged VFD booster Multi-stage bare pump
Max flow up to ~60 GPM 18-25 GPM 15-90 GPM
Max head up to 325 ft β€” to 140 psi capability
Integrated tank / CV Yes Yes No
Self-priming No No No
Motor IE5 with integrated VFD Encapsulated 4 in submersible + VFD Square-flange, 1 & 3-phase
Multi-pump TWIN with cascade Single Build custom (SpecPAK)
Install rating IP55, indoor NEMA 3R indoor/outdoor Indoor/outdoor motor

VersaBoost Pro is the closest packaged competitor and adds an outdoor-rated NEMA 3R enclosure; CMBE offers far more models and higher head. MH Series is a bare pump for custom-built stations, and Franklin’s Inline SpecPAK sits above the CMBE class for duplex through quadplex commercial work.

Why Source Grundfos CMBE from Watermain Supply

Gulf Coast Stock

CMBE single and twin systems in U.S. 60 Hz configurations, shipping across Texas and the Gulf Coast.

Engineering-Led Sizing

We size from fixture count, elevation, inlet pressure and pipe friction against the manufacturer curve β€” and tell you when a smaller model will do.

Multi-Brand Perspective

We also stock Grundfos SCALA, DAB, A.Y. McDonald DuraMAC, Goulds, Davey and Franklin Electric. If CMBE is not the right fit, we will say so and quote the one that is.

Twin & Building Systems

Guidance on CMBE TWIN for standby redundancy and staged flow in apartment buildings, hotels and light industrial plants.

Account Terms Available

Net-30 terms for qualified contractor, property-management and municipal accounts, handled in-house.

Parts & Aftermarket

Genuine Grundfos service kits and spares with model cross-reference, so you get the right sensor, valve or tank the first time.

Frequently Asked Questions

Common questions from plumbers, property managers and engineers specifying a CMBE booster.

Is the CMBE self-priming?

No. CMBE is designed for flooded suction, with a maximum suction lift of 3.28 ft (1 m) including inlet-pipe pressure loss. Feed it from a pressurized main or from a tank at or above pump level. If you need to lift water from a below-grade tank, cistern or shallow well, the self-priming Grundfos SCALA line is the correct choice.

Do I need a separate pressure tank?

No. Every CMBE ships with a diaphragm tank, five-way fitting with integrated non-return valve, outlet pressure sensor and pressure gauge already fitted. Connect suction and discharge, plug it in, and set the pressure.

What do the numbers in CMBE 3-62 mean?

The first number is rated flow in cubic metres per hour and the second is maximum head in metres. A CMBE 3-62 is a 3 mΒ³/h (about 13 GPM) nominal pump with 62 m (203 ft) of head; per the manufacturer curves it serves up to about 26 GPM at reduced head. A CMBE 10-54 is 10 mΒ³/h (44 GPM) nominal, serving up to about 60 GPM.

Which models run on 115 V?

Four models are offered in 1 Γ— 115 V, 60 Hz: CMBE 1-44, 1-75, 3-30 and 3-51. Everything else in the range is 1 Γ— 200-240 V. Single CMBE units ship with a 4.9 ft cable and a US plug.

What is the difference between CMBE and CMBE TWIN?

CMBE TWIN is two complete CMBE pumps mounted in parallel on a common base plate with a manifold set. It adds cascade control, which stages the second pump in as demand rises, and automatic alternation, which starts whichever pump has the fewest running hours. Three TWIN systems are offered: 1-44 and 3-51 at 115 V, and 10-54 at 200-240 V.

Does CMBE TWIN plug in like a single unit?

No. CMBE TWIN is intended for fuse-box connection and ships with a 15 ft cable and no plug, so plan for an electrician. Single CMBE units are plug-and-play.

How high can I set the pressure?

The set point must never exceed the pump’s maximum head, which is on the nameplate; the panel will let you set a value the pump cannot deliver. The pump also cuts in at 7.25 psi below the set point, and the sum of inlet pressure and pump head must stay under the 145 psi maximum system pressure.

Does CMBE need external motor protection?

No. Single-phase CMBE requires no external motor protection. The variable-speed MGE motor incorporates thermal protection against slow overloading and blocking, plus dry-running protection that stops the pump, alarms, and retries automatically when water returns.

Can I install a CMBE outdoors?

The pump carries an IP55 enclosure rating (sensor IP54) but Grundfos requires a protective cover for outdoor installation, large enough to shield the motor from direct sunlight, rain and snow. Ambient range is -4 to 131Β°F; provide freeze protection in cold climates.

Is CMBE certified for drinking water?

Yes. CMBE is classified to NSF/ANSI 61 for drinking water system components and NSF/ANSI 372 for low lead content. The 1 Γ— 230 V CMBE models are additionally UL listed as a packaged pumping system.

Ready to Size Your Booster?

Send us your fixture count, number of floors, inlet pressure and required flow. We will respond with a sized CMBE or CMBE TWIN selection, accessories and lead time.

Technical data on this page is taken from Grundfos CMBE and CMBE TWIN North America product literature (98647967, 10.2025) and is subject to change by the manufacturer. Confirm against the current installation manual and pump curve before specifying.
Grundfos, CMBE, CME, SCALA, MGE and Grundfos GO are trademarks of Grundfos Holding A/S, used here for product identification only. DAB, Esybox, DuraMAC, Goulds, ResiBoost, Aquavar, Davey, EvoDrive, Franklin Electric, VersaBoost and SpecPAK are trademarks of their respective owners, used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
