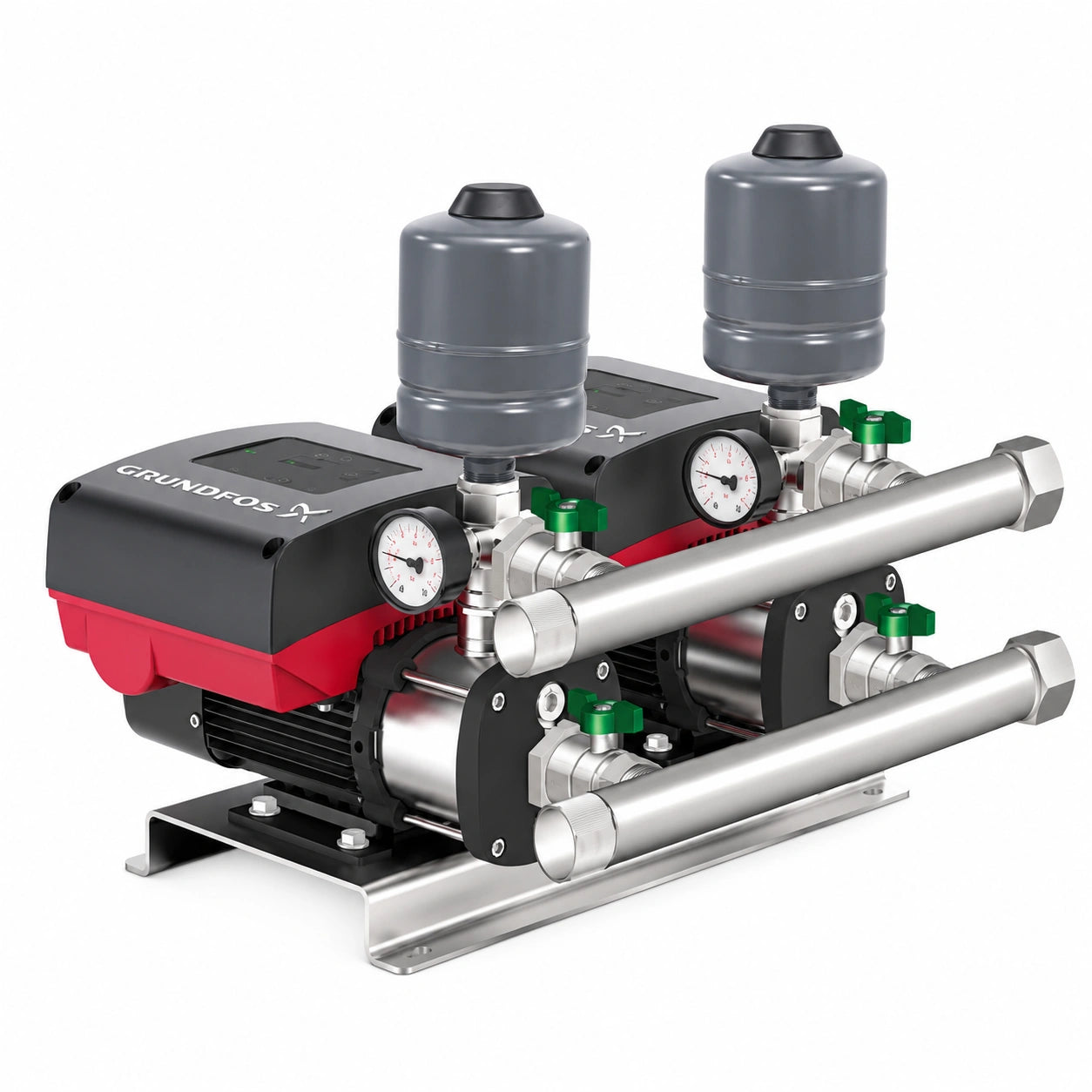

Every figure below is the pressure the unit adds on top of whatever arrives at its inlet. Pick the flow family first, then read across for the build that covers the boost you need.
CMBE 1 — to 14.5 GPM
| Flow — GPM |
0 |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
| CMBE 1-44 — Pressure Added, psi |
68.3 |
65.7 |
61.8 |
56.6 |
50.3 |
43.0 |
34.9 |
26.5 |
| CMBE 1-44 — Pressure Added, ft of head |
157.8 |
151.8 |
142.7 |
130.8 |
116.2 |
99.3 |
80.7 |
61.3 |
| CMBE 1-75 — Pressure Added, psi |
115.3 |
111.0 |
104.5 |
95.9 |
85.4 |
73.4 |
60.1 |
45.7 |
| CMBE 1-75 — Pressure Added, ft of head |
266.2 |
256.4 |
241.3 |
221.4 |
197.2 |
169.6 |
138.9 |
105.5 |
| CMBE 1-99 — Pressure Added, psi |
158.0 |
152.3 |
142.0 |
130.3 |
111.3 |
93.7 |
77.1 |
59.5 |
| CMBE 1-99 — Pressure Added, ft of head |
365.0 |
351.7 |
327.9 |
301.0 |
257.0 |
216.5 |
178.0 |
137.3 |
CMBE 3 — to 26.4 GPM
| Flow — GPM |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
26 |
| CMBE 3-30 — Pressure Added, psi |
— |
— |
36.7 |
34.3 |
31.5 |
28.3 |
24.7 |
20.5 |
| CMBE 3-30 — Pressure Added, ft of head |
— |
— |
84.7 |
79.1 |
72.7 |
65.4 |
57.1 |
47.4 |
| CMBE 3-51 — Pressure Added, psi |
62.0 |
54.6 |
48.0 |
42.2 |
36.9 |
32.0 |
27.3 |
22.7 |
| CMBE 3-51 — Pressure Added, ft of head |
143.2 |
126.1 |
110.9 |
97.5 |
85.3 |
73.9 |
63.0 |
52.5 |
| CMBE 3-62 — Pressure Added, psi |
78.9 |
75.1 |
70.8 |
65.8 |
60.1 |
53.4 |
45.8 |
37.0 |
| CMBE 3-62 — Pressure Added, ft of head |
182.2 |
173.5 |
163.5 |
152.0 |
138.7 |
123.4 |
105.7 |
85.4 |
| CMBE 3-93 — Pressure Added, psi |
123.2 |
117.2 |
107.1 |
96.7 |
86.2 |
75.8 |
65.5 |
55.6 |
| CMBE 3-93 — Pressure Added, ft of head |
284.5 |
270.6 |
247.4 |
223.4 |
199.1 |
175.0 |
151.3 |
128.3 |
Shut-off at zero flow: CMBE 3-51, 73.8 psi (170.5 ft). The 3-30, 3-62 and 3-93 curves are not drawn below 14.5, 11.7 and 4.6 GPM; at those lowest plotted points they read 38.4, 79.3 and 138.7 psi. At 4.6 to 12 GPM the 3-93 runs from 138.7 down to 123.2 psi.
CMBE 5 — to 35.2 GPM
| Flow — GPM |
22 |
24 |
26 |
28 |
30 |
32 |
34 |
| CMBE 5-31 — Pressure Added, psi |
— |
— |
— |
36.2 |
34.2 |
32.1 |
29.7 |
| CMBE 5-31 — Pressure Added, ft of head |
— |
— |
— |
83.5 |
79.0 |
74.2 |
68.6 |
| CMBE 5-62 — Pressure Added, psi |
80.1 |
74.8 |
69.4 |
64.0 |
58.7 |
53.5 |
48.4 |
| CMBE 5-62 — Pressure Added, ft of head |
185.0 |
172.7 |
160.3 |
147.9 |
135.6 |
123.5 |
111.8 |
Neither CMBE 5 curve is drawn to zero flow. The 5-31 begins at 26.4 GPM and 37.5 psi; the 5-62 begins at 20.3 GPM and 84.5 psi.
CMBE 10-54 — to 70.4 GPM
| Flow — GPM |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
| CMBE 10-54 — Pressure Added, psi |
79.2 |
76.4 |
64.3 |
54.3 |
46.0 |
38.7 |
31.9 |
25.1 |
| CMBE 10-54 — Pressure Added, ft of head |
182.8 |
176.5 |
148.6 |
125.5 |
106.2 |
89.3 |
73.6 |
57.9 |
Fed by a city main — which is what CMBE is built for, since it wants a flooded suction. The drive holds the pressure you set and only makes up the difference between the main and your setting, so on a stronger main the same unit reaches that setting at a higher flow. Incoming pressure buys you more flow, not more pressure.
Drawing from an atmospheric tank — nothing arrives with pressure, so what the unit adds is what you get. Read the tables straight through, and keep the tank within 3.3 ft of the pump inlet.
Best operating range is listed per model in the ratings table above, in flow only. This is where the pump turns the most electricity into water pressure. Ask for more flow than it can deliver at your setting and it runs at full speed continuously, which is where motors and seals wear out. Sizing a booster to the building rather than to the headline numbers is what makes it last.
Zero flow is the shut-off point — a ceiling, not a working point. Figures are at full drive speed; the drive holds lower pressures by running slower. Grundfos publishes CMBE performance only as a plotted family chart with no accompanying duty table, so these figures are read from the published curve and rounded down where the reading is uncertain. Nothing is extrapolated beyond the drawn range, and nothing is transposed. Best operating ranges are derived, not published. For a certified duty point, call 1-888.510.4036 and we will request the factory submittal. Source: Grundfos CMBE & CMBE TWIN Data Booklet 98647967 (10.2025), charts TM090716 (printed page 17) and TM090949 (printed page 21), ISO 9906:2012 3B. The CMBE 3-51 and CMBE 10-54 rows are read from the single-pump axis of TM090949, which draws those two curves in full.
