Every bend, tee, reducer and dead end on a pressurized main pushes on its joints with thousands of pounds of force. Smith-Blair restraint products carry that thrust in the fitting itself: PipeLock and EZW restrained couplings, Flange-Lock and EZW-F restrained flange adapters, the EZW-C restrained line cap, and 907 lugs with 101 tie rods for flanged piping.

Water under pressure pushes on every surface that changes its direction or its area. On a straight run those forces cancel. At a bend, tee, reducer, valve or dead end they do not, and the leftover force tries to slide the pipe out of its joint. Push-on and mechanical joints, standard couplings and standard flange adapters seal against that force but do not hold against it.
This collection is everything Smith-Blair makes to hold it. Send the pipe material, OD, working and test pressure and the fitting you need to restrain, and we confirm the product and part number the same day: call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Worked for an 8 in ductile iron main (9.05 in OD, 64.3 sq in) at 150 PSI. Thrust rises in step with pressure and with the square of the OD.
| Fitting | Formula | Thrust, 8 in at 150 PSI |
|---|---|---|
| Dead end, cap or closed valve | P x A | 9,649 lb |
| Tee, on the branch | P x A of the branch | 9,649 lb |
| 90° bend | 2 x P x A x sin 45° | 13,646 lb |
| 45° bend | 2 x P x A x sin 22.5° | 7,385 lb |
| 22-1/2° bend | 2 x P x A x sin 11.25° | 3,765 lb |
| 11-1/4° bend | 2 x P x A x sin 5.625° | 1,892 lb |
| 8 x 6 in reducer | P x (A large - A small) | 4,040 lb |
Every restrained water main uses one or more of these. The job conditions decide which.
| Concrete thrust block | Tie-rod harness | Restrained fitting | |
|---|---|---|---|
| How it holds | Concrete bears on undisturbed soil | Rods in tension tie flange to flange | Wedges or grip ring bite the pipe |
| Install time | Forms, pour, cure before pressure | Hours, inspectable | Minutes; backfill the same day |
| Direction | One way | Both ways | Both ways |
| Soil dependence | Total: poor or disturbed soil fails it | None | Low: pipe friction does the rest |
| Future digging nearby | Can undermine the block | Not affected | Not affected |
| Space needed | Large, behind the fitting | Around the flanges | The fitting only |
| Smith-Blair products | — | 907 Plates, 101 Tie Rods | PipeLock, EZW, Flange-Lock, RazorLock |
Four mechanisms, each matched to a pipe material and a job.
Individual single-tooth ductile iron wedges in the follower gland bite the pipe while a standard MJ gasket seals. Black wedges for ductile iron and steel, red wedges for PVC. Used in PipeLock 471, 472, 473 and Flange-Lock 911, 920.
A case-hardened grip ring behind an SBR timing gasket: the gasket seals first, then the ring sets as the bolts are drawn up. Stab fit, no disassembly. Used in the EZW couplings, EZW-C line cap and EZW-F adapter.
One bolt per end compresses gasket and grip together through a controlled-flex follower, on a wide-range body that fits any mix of steel, iron, PVC, PVCO and PE. Used in the 431.

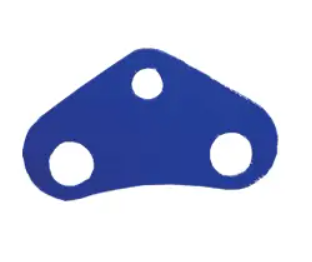

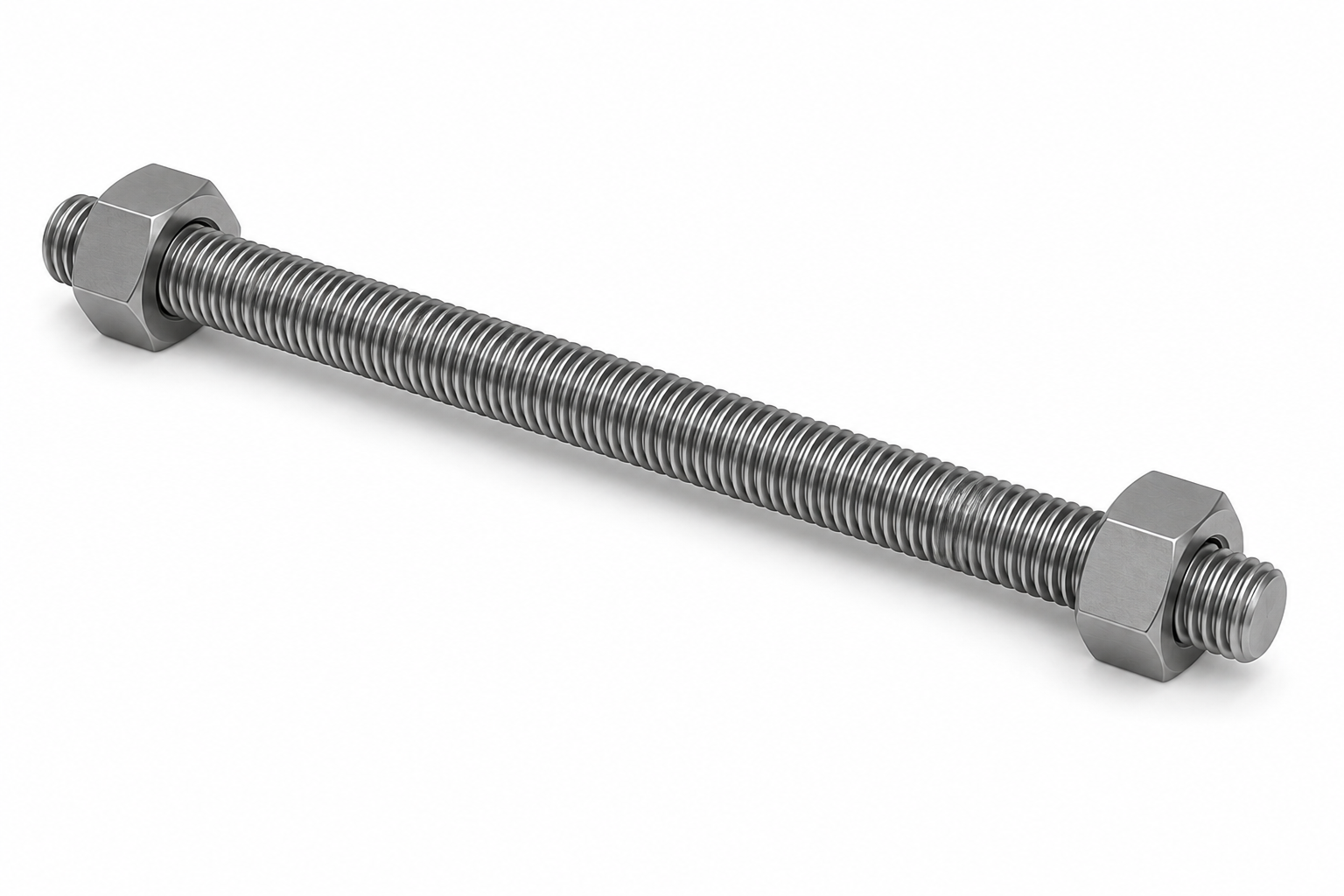

907 triangular lugs on each flange and 101 alloy tie rods between them carry the thrust in tension around a standard flanged connection. Rod count set by flange size and pressure.
What needs holding decides the product.
| Where | Restrain with |
|---|---|
| Pipe-to-pipe joint or repair | PipeLock 471 DI, PipeLock 472 PVC, PipeLock 473 PVC to DI or steel, EZW Straight, RazorLock 431 |
| Change of pipe size | EZW Reducing: restrains the reducer thrust in the fitting itself |

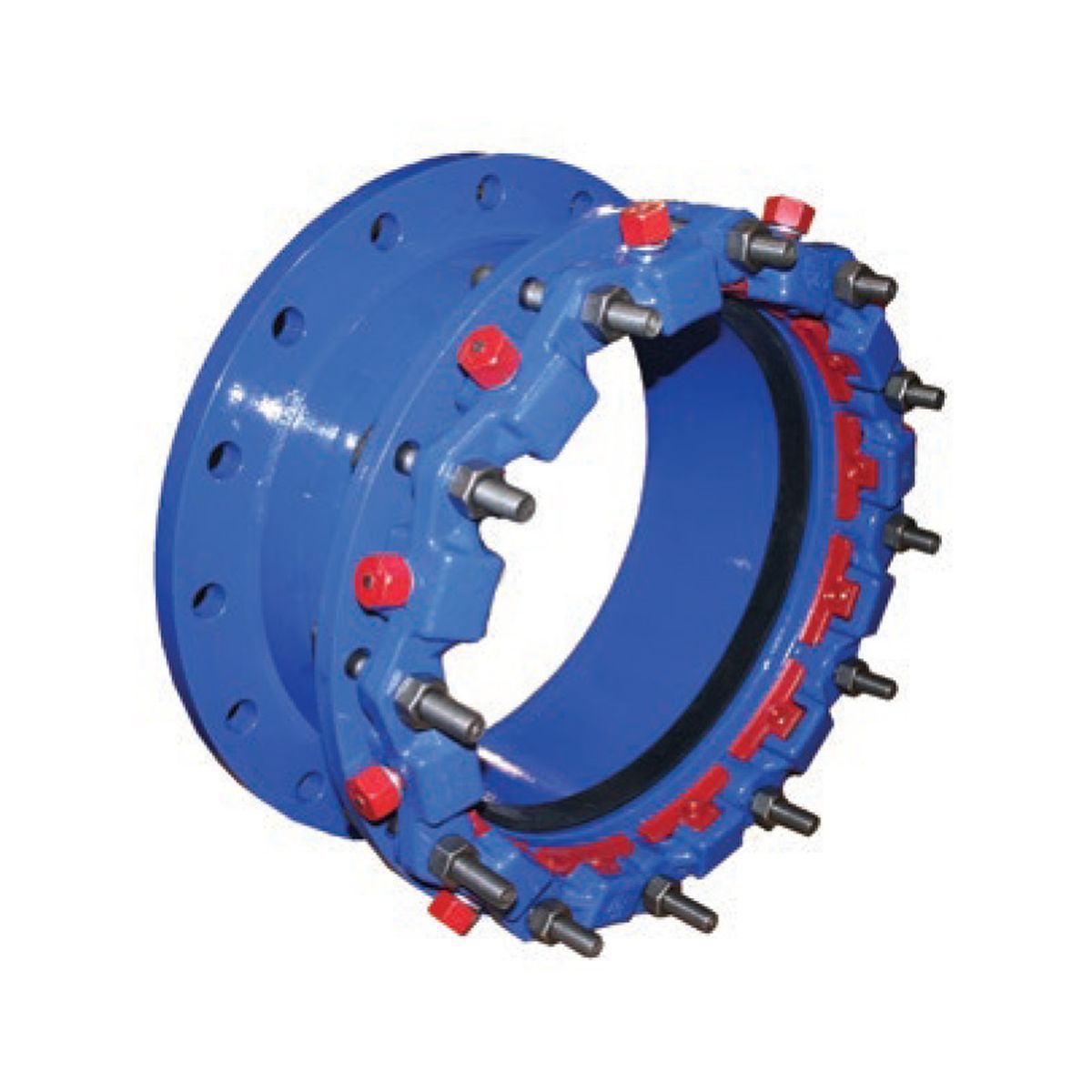

| Flanged valve, meter or pump | Flange-Lock 911 DI and steel, Flange-Lock 920 PVC, Flange-Lock 923 body with Cam-Lock gland, EZW-F |
| Dead end or test closure | EZW-C Line Cap: seals and grips the pipe end |
| Flange-to-flange piping | 907 Plates lugs with 101 Tie Rods: the tie-rod harness |
| Long repair span, MJ ends | PipeLock 477 sleeve with MJ gaskets and restraints, 3–48 in |
Standard couplings, flange adapters and end caps are in Couplings, Flanged Coupling Adapters and End Caps.
Gripping steel, ductile iron, PVC and polyethylene are different problems. Use the restraint made for the pipe.
| Pipe | Restraint products | Key rule |
|---|---|---|
| Ductile iron | PipeLock 471 (3–48 in), Flange-Lock 911, EZW Straight, EZW-F, RazorLock 431 | Black Cam-Lock wedges |
| Steel (IPS) | EZW Straight, EZW Reducing, EZW-F, RazorLock 431; PipeLock 471, PipeLock 473 and Flange-Lock 911 at 3–12 in | Black Cam-Lock wedges |
| PVC (C900, C905, IPS) | PipeLock 472, PipeLock 473, Flange-Lock 920, EZW Straight DR26+, RazorLock 431 | Red Cam-Lock wedges, SDR 26 or heavier |
| HDPE and PE | EZW Straight, EZW Reducing, EZW-F, RazorLock 431 | Stiffener in the pipe end, always |
| Cast iron | RazorLock 431 | Other styles: confirm with us first |
| Flanged piping | 907 Plates and 101 Tie Rods | Any bolted flange, 4–48 in |
Smith-Blair recommended tie-rod quantity by flange size and maximum line pressure.
| Flange | 50 PSI | 100 PSI | 150 PSI | 200 PSI | 250 PSI | Rod size |
|---|---|---|---|---|---|---|
| 4 in | 2 | 2 | 2 | 2 | 2 | 5/8 in |
| 6 in | 2 | 2 | 2 | 2 | 2 | 5/8 in |
| 8 in | 2 | 2 | 2 | 2 | 2 | 5/8 in |
| 10 in | 2 | 2 | 2 | 3 | 3 | 5/8 in |
| 12 in | 2 | 2 | 3 | 3 | 4 | 5/8 in |
| 14 in | 2 | 2 | 3 | 3 | 4 | 3/4 in |
| 16 in | 2 | 2 | 2 | 2 | 3 | 1 in |
| 18 in | 2 | 2 | 2 | 3 | 4 | 1 in |
| 20 in | 2 | 2 | 3 | 3 | 4 | 1 in |
| 24 in | 2 | 2 | 2 | 3 | 4 | 1-1/4 in |
| 30 in | 2 | 2 | 3 | 4 | 6 | 1-1/4 in |
| 36 in | 2 | 3 | 5 | 6 | 8 | 1-1/4 in |
| 42 in | 2 | 4 | 6 | 8 | 10 | 1-1/4 in |
| 48 in | 2 | 4 | 6 | 8 | 9 | 1-1/2 in |
Restraining only the bend is a common mistake.
Smith-Blair datasheet figures. Working pressure also depends on the pipe, its class and the installation.
| Product | Type | Pipe | Sizes | Pressure | Restraint |
|---|---|---|---|---|---|
| PipeLock 471 | Coupling | DI to DI | 3–48 in | 350 PSI | Cam-Lock wedges |
| PipeLock 472 | Coupling | PVC to PVC | 3–36 in | 235 PSI | Cam-Lock wedges |
| PipeLock 473 | Coupling | PVC to DI or steel | 3–36 in | 235 PSI | Cam-Lock wedges |
| PipeLock 477 | Sleeve | DI, PVC; steel 3–12 in | 3–48 in | 350 PSI sleeve | Takes MJ restraints |
| EZW Straight | Coupling | Steel, DI, PVC, PE | 2–12 in | 300 PSI | Grip ring, timing gasket |
| EZW Reducing | Reducing coupling | Steel, DI, PVC, PE | 3–12 in | 300 PSI | Grip ring, timing gasket |
| RazorLock 431 | Coupling | Any mix incl. PE | 4–8 in | 250 PSI | Dual Drive grip |
| EZW-C Line Cap | Line cap | IPS and DIPS OD | 2–12 in | By pipe type | Grip ring |
| EZW-F | Flange adapter | Steel, DI, PVC, PE | 2–12 in | 175 PSI | Gripping band |
| Flange-Lock 911 | Flange adapter | DI; steel 3–12 in | 3–48 in | 150 PSI | Cam-Lock, black |
| Flange-Lock 920 | Flange adapter | PVC | 3–36 in | 175 PSI | Cam-Lock, red |
| Flange-Lock 923 | Flange adapter body | With 111 or 120 gland | 3–48 in | 150 PSI | Gland sets the pipe |
| 907 Plates | Restraint lug | Bolted flanges | 4–48 in | 50–250 PSI | Tie-rod harness |
| 101 Tie Rods | Tie rod set | With 907 lugs | 5/8–1-1/2 in rods | By rod count | Tension member |














Any method that stops line pressure from pushing pipe out of its joints: a concrete thrust block, a tie-rod harness, or a fitting that grips the pipe itself. A standard coupling or flange adapter seals but does not restrain.
Wherever flow changes direction or the line ends: bends, tees, reducers, dead ends, caps, plugs and closed valves, plus the joints on either side of them out to the restrained length your engineer calculates.
Dead end or tee branch: pressure times the pipe area. Bend: 2 times pressure times area times the sine of half the bend angle. Reducer: pressure times the difference in areas. Use the test pressure if it is higher than working pressure.
The length of pipe on each side of a fitting that must be restrained so soil friction and bearing can hold the thrust. It depends on pressure, pipe size, depth of cover, soil and the fitting, and is calculated by the design engineer, for example with the DIPRA or Uni-Bell methods.
Thrust blocks need undisturbed soil, formwork and cure time, and can be undermined by later digging. Restrained joints install in minutes, work in poor soil and tight right-of-way, and hold in both directions. Many utilities now specify restrained joints by default.
Black wedges are for ductile iron and steel; red wedges are made for PVC so they grip without overstressing the wall. Use the Flange-Lock 911 or Cam-Lock 111 on metal pipe and the 920 or Cam-Lock 120 on PVC.
Yes, with PVC-specific restraints: the PipeLock 472 and 473, the Flange-Lock 920, the EZW couplings on DR26 or heavier, and the RazorLock 431. Smith-Blair limits PVC restraint to SDR 26 or heavier wall.
Yes, with the EZW couplings, EZW-F and RazorLock 431, always with a stiffener in the pipe end. The stiffener carries the grip load the polyethylene wall cannot.
It depends on flange size and pressure. With Smith-Blair 907 lugs and 101 rods, 4 to 8 in flanges need 2 rods up to 250 PSI, while a 42 in flange needs 10 at 250 PSI. The full table is on this page.
Some do. PipeLock and Flange-Lock allow up to 5° depending on size, and the RazorLock 2° per end. Check each listing before using deflection to make a bend.
No. Smith-Blair restraints are made to order and non-returnable, so we confirm the pipe material, OD and pressure before the order ships.
Send the pipe material and OD, the working and test pressure, and what you need to restrain: joint, reducer, valve, dead end or flanged connection. We reply the same day with the product, part number, price and ship date.
