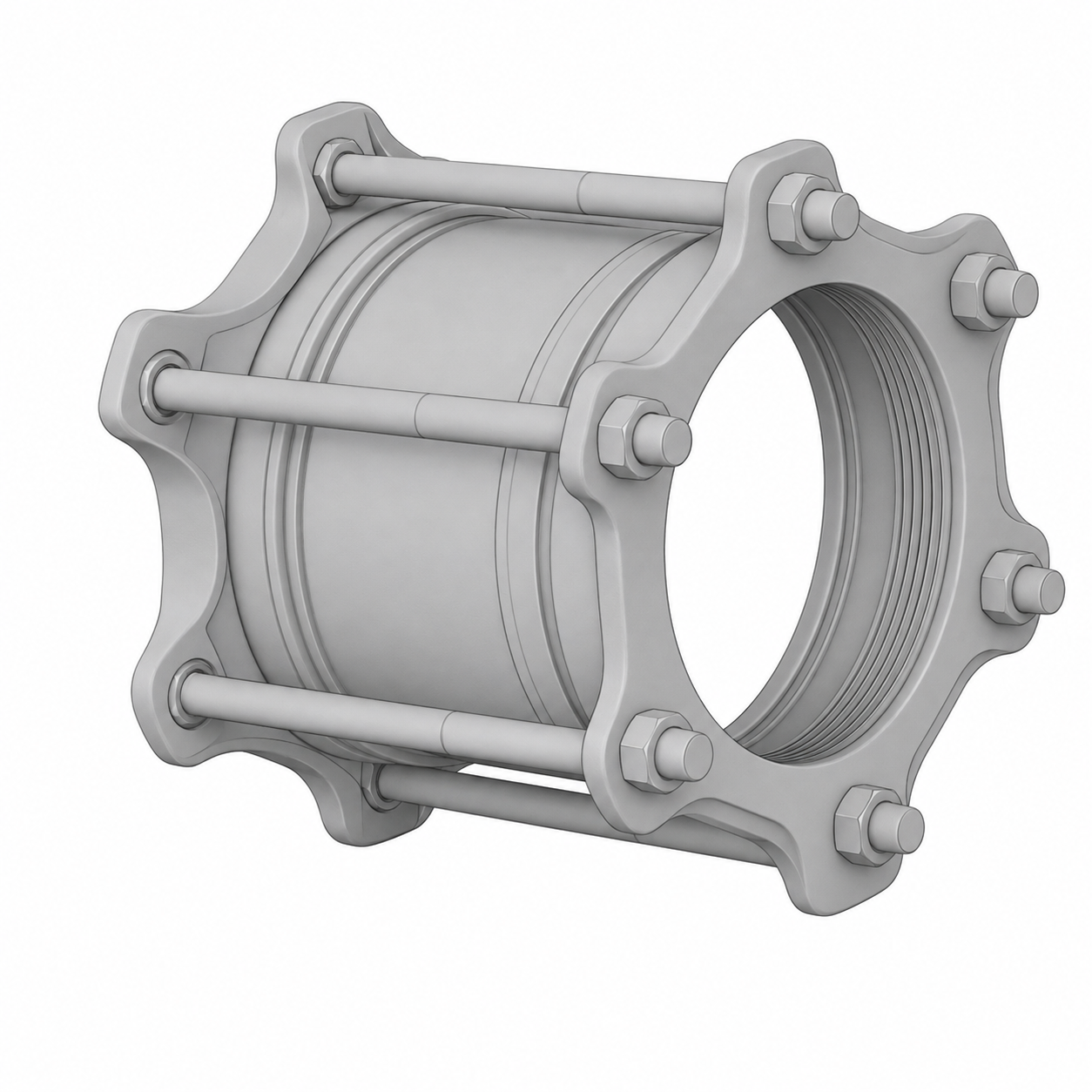

Smith-Blair EZW Maxi-Grip Restraint Coupling - Straight, 2-12 in

Nominal Size - OD: 2 in - 2.38 in OD
Hardware: Low Alloy Bolts
Part No.: EZWS00023802003

Product variant with selected options does not exist!

Price
$318.34
Coupon 5% off applied automatically in your cart. No code needed.
SKU: EZW-S-000238020-03
Weight : 14.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Restraint Coupling
EZ-W Maxi-Grip Restraint Coupling (EZWS)
Straight Seal and Restraint Coupling, Steel Sleeve
300 PSI Max Working Pressure
-40°F to +150°F Temperature
SBR Timing Gasket
Epoxy-Coated Steel Sleeve
Case-Hardened Grip Rings
Low-Alloy or 304 Stainless Bolts
AWWA C219
Restrained Joint
2.38-13.20 in Pipe OD
14-150 lb Weight
Description

The Smith-Blair Maxi-Grip EZ-W EZWS joins and restrains plain-end pipe of the same OD in one stab-fit unit, with no thrust blocks or separate restraint hardware. Tightening the followers seats the SBR timing gasket first, then drives the pressure ring and the case-hardened grip ring into the pipe, so each end seals and then restrains.

Choose the pipe size and OD in the first option and the hardware in the second: high-strength low-alloy steel, or 304 stainless steel with fluoropolymer-coated nuts for corrosive soils.

Application: joining and restraining plain-end steel, ductile iron, PVC and PE pipe of the same OD.

Key Features

  • Working pressure up to 300 PSI on steel and ductile iron
  • Seals and restrains in one coupling, stab fit
  • Timing gasket seals before the grip ring engages
  • Low-alloy or 304 stainless hardware; anode connector available
  • Meets applicable AWWA C219; Flexi-Coat epoxy meets AWWA C213
What Ships and What It Needs to Run

Included: the sleeve, two follower flanges, timing gaskets, pressure rings, grip rings and the bolts and nuts, ready to stab.

Pipe stiffeners on MDPE and HDPE, ordered separately. Smith-Blair requires stiffeners on PE pipe and recommends stainless steel stiffeners for water and wastewater; ask us to quote them with the coupling.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 300 PSI. The rating depends on the pipe type at each end, as below.

Pipe type Working pressure
Steel 300 PSI
Ductile iron 300 PSI
PVC 235 PSI
MDPE and HDPE (with stiffener) 200 PSI

The pipe on each end sets the rating; where the two ends differ, the lower figure applies.

Materials Specifications
Sleeve Carbon steel: ASTM A513 Gr 1008/1010 HREW on 2-4 in, ASTM A283 Gr C on 6-12 in; standard length 7 in (10 in on 12 in)
Follower flanges Carbon steel ASTM A569 Gr 1008/1010 HR on 2-6 in; ductile iron ASTM A536 65-45-12 on 8-12 in
Grip rings Carbon steel ASTM A513 DOM 1026 on 2-8 in, ASTM A36 on 12 in; case-hardened teeth, red oxide primer
Pressure rings Carbon steel ASTM A569 Gr 1008/1010 HR, red oxide primer
Timing gaskets SBR per ASTM D2000; resists carbon dioxide, water, UV and ozone; -40°F to +150°F
Bolts High-strength low-alloy steel per AWWA C111/A21.11, 5/8-11 UNC oval-neck track-head, rolled threads; or 304 stainless steel
Nuts HSLA steel per AWWA C111/A21.11, 5/8-11 UNC heavy hex semi-finished; fluoropolymer-coated nuts with the stainless option
Finish Flexi-Coat fusion-bonded epoxy, meets AWWA C213

Materials subject to change by the manufacturer.

Pipe Applications

Steel, ductile iron, PVC (DR26 minimum) and MDPE or HDPE with a stiffener (DR32.5 minimum). Smith-Blair builds the EZWS to IPS ODs 1 to 12 in and DIPS ODs 2 to 8 and 12 in; the sizes listed here are the ones in the current price book.

Sizes
Pipe size and OD Hardware
2 in - 2.38 in OD Low Alloy Bolts; 304 SS Bolts
3 in - 3.50 in OD Low Alloy Bolts; 304 SS Bolts
3 in - 3.80 in OD Low Alloy Bolts; 304 SS Bolts
4 in - 4.50 in OD Low Alloy Bolts; 304 SS Bolts
4 in - 4.80 in OD Low Alloy Bolts; 304 SS Bolts
6 in - 6.63 in OD Low Alloy Bolts; 304 SS Bolts
6 in - 6.90 in OD Low Alloy Bolts; 304 SS Bolts
8 in - 8.63 in OD Low Alloy Bolts; 304 SS Bolts
8 in - 9.05 in OD Low Alloy Bolts; 304 SS Bolts
12 in - 12.75 in OD Low Alloy Bolts; 304 SS Bolts
12 in - 13.20 in OD Low Alloy Bolts; 304 SS Bolts

Choose the size in the first option; the part number shows in the last option.

Bolts by Size
Pipe OD Bolts
2.38 in 3
3.50-4.80 in 4
6.63-6.90 in 6
8.63-9.05 in 8
12.75-13.20 in 12

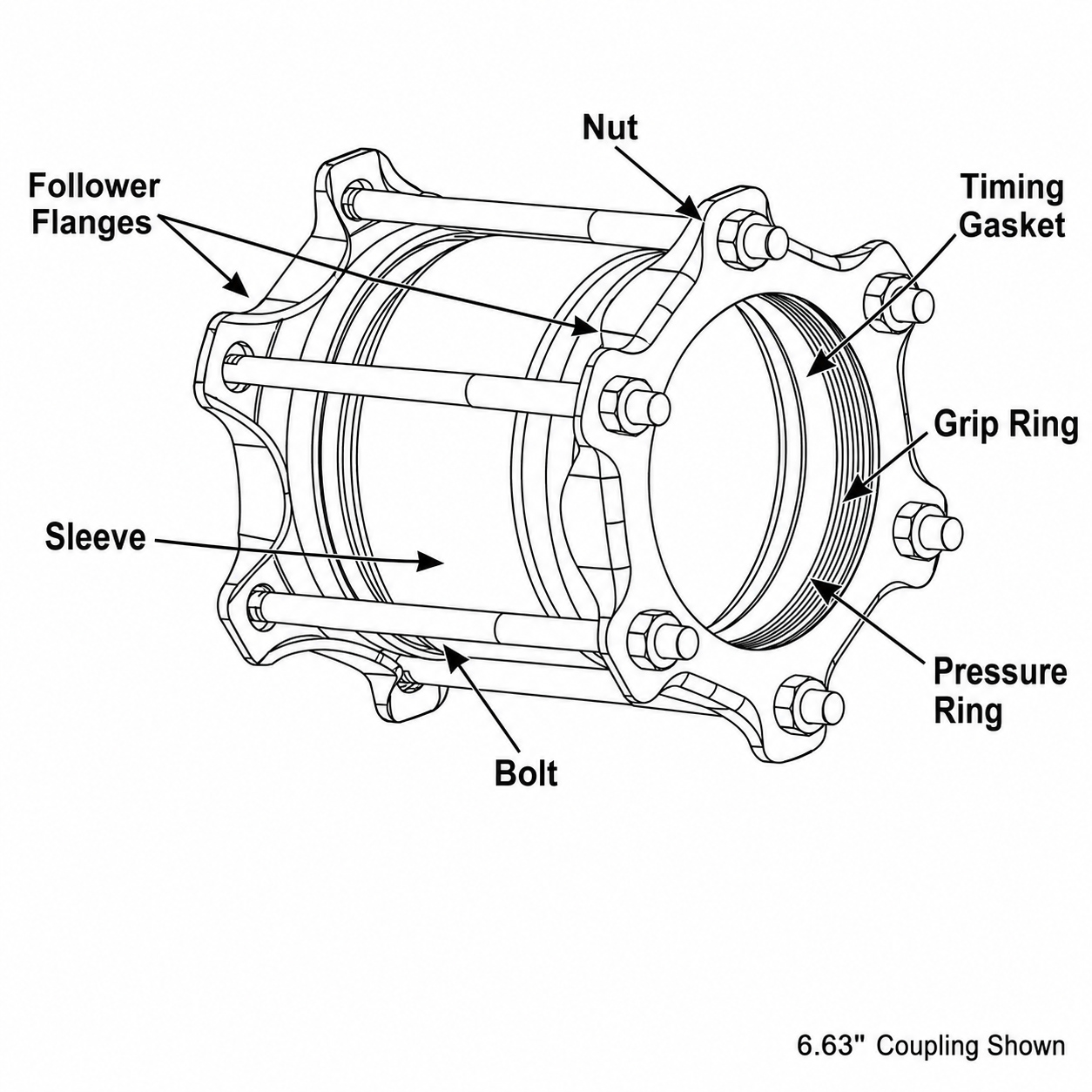

5/8-11 UNC bolts. From the EZWS specification drawing.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Other pipe ODs, longer sleeves and anode connectors are built to order — email sales@watermainsupply.com with both pipe ODs and pipe types.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
