DuraMAC Dual-Mode commercial booster systems from A.Y. McDonald deliver constant water pressure for light-commercial and multi-unit buildings — apartments, restaurants, small hotels and offices. Available as factory-assembled simplex, duplex and modular packaged systems, each sized to your building's flow, pressure and redundancy needs by Watermain Supply's engineering-led sales desk in Houston, TX.
Packaged booster systems for steady water pressure in light-commercial and multi-unit buildings — configured simplex, duplex or modular and sized to your duty point.
70–120GPM
44 or 60 psiBoost
2 HP230V, 1 Ph
3Configurations
DuraMAC Dual-Mode commercial boosters from A.Y. McDonald share one pump, one motor and one two-mode digital control across three configurations. The Simplex and Duplex arrive factory-assembled on a stainless steel skid with a 20-gallon tank and the piping already made up — set them, connect them and commission. The Modular is the same booster supplied bare, for a system that already has a tank and header. They deliver consistent water pressure for light-commercial buildings, apartments, restaurants, small hotels and similar multi-unit demand.
Compare the configurations below, then choose the system that matches your building from the products listed underneath. For the wider DuraMAC family — residential, E-Series, light commercial and variable-speed, with the full model table and sizing method — see A.Y. McDonald DuraMAC Booster Pumps. For larger commercial, high-rise or engineered packages, ask our sales desk about the vertical multistage VFD systems.
Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor. Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month A.Y. McDonald Warranty. All three Dual-Mode configurations are covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms. Full detail is in the A.Y. McDonald Pumps & Accessories Price List.
Compare Configurations
All three share the DuraMAC Dual-Mode platform, 44 or 60 psi of boost and a 2 HP TEFC motor on 230V single phase. What changes is how much water they carry, what ships with them, and whether there is a second pump.
Configuration
Pumps
Maximum flow
Tank & skid
Redundancy
Best fit
Modular
One
70 GPM
Pressure tank required, purchased and sized separately. No skid, no factory plumbing.
None
Buildings that already have a pressure tank and header, or where there is no room for a factory skid
Simplex
One
70 GPM
20 gallon tank on a 304 stainless skid, piping made up
None
Smaller commercial buildings and steady, predictable demand a single pump can carry

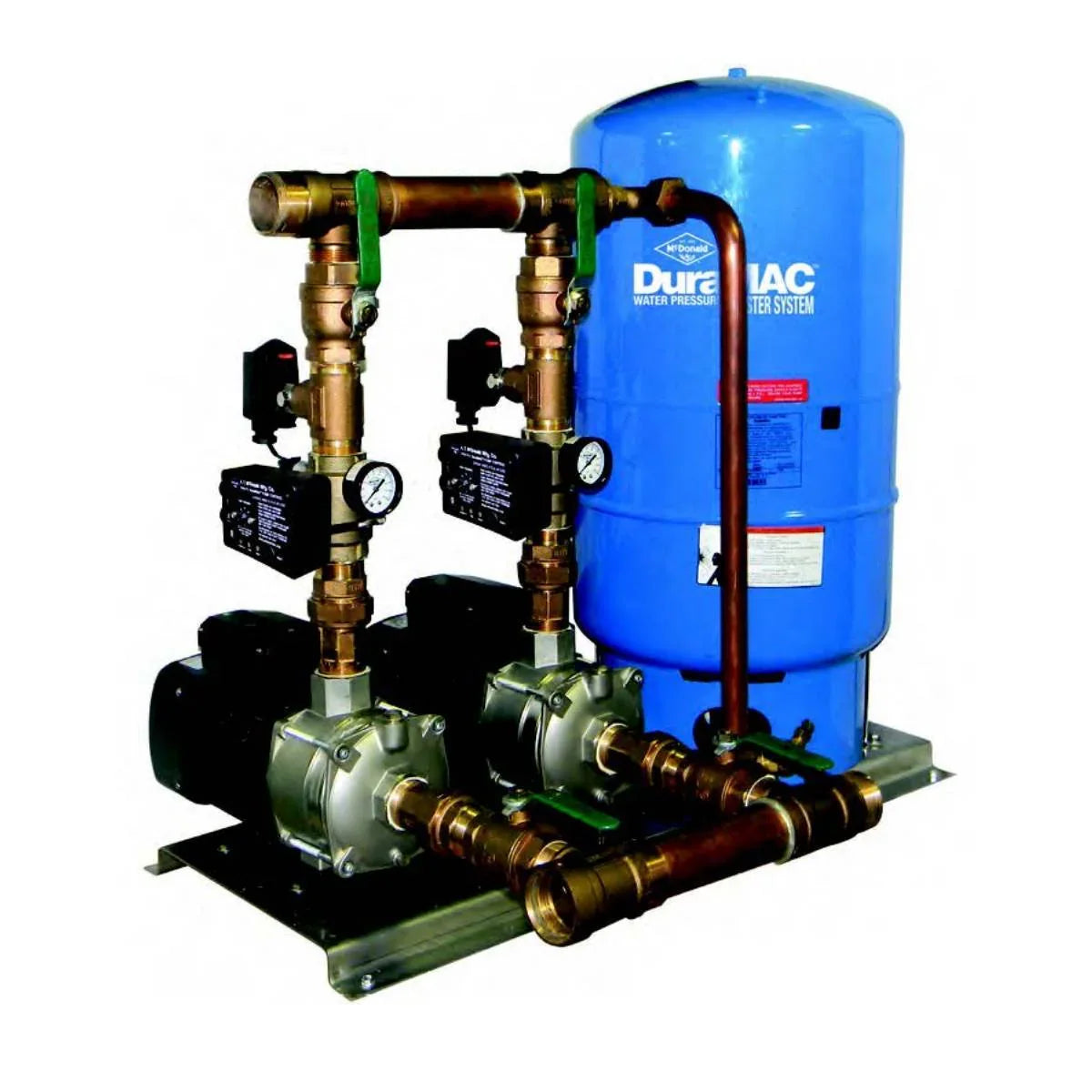

Duplex
Two, lead/lag
120 GPM
20 gallon tank on a 304 stainless skid, 2 in NPT manifolds with ball valves
Either pump can be set to carry the building alone
Multi-unit and higher-demand buildings, and anywhere downtime is unacceptable
Lead/lag on the Duplex means the lead pump is set higher than the lag — typically 60 psi and 50 psi. If the lead cannot hold the setpoint and pressure falls to the lag figure, the second pump starts and both run together. Configuration is chosen at purchase: a simplex cannot be converted to a duplex in the field.
Before It Ships — Access, Weight & Power
These are skid-mounted systems. The commonest problem on delivery day is not the pump — it is the door, the stair or the circuit.
Check
Modular
Simplex
Duplex
Catalog weight
56 lbs
168 lbs
252 lbs
Overall size
21.5 in high, 15.1 in long, 7.3 in wide
34 in high, 18 in wide, 28 in deep
34 in high, 27 in wide, 36 in deep
Connections
1-1/2 in NPT
1-1/2 in NPT
2 in NPT manifolds
Power
230V single phase, 2 HP TEFC per pump. Published amps are 7.0 on the 44 psi models and 8.0 on the 60 psi. Size the Duplex circuit for both pumps running. There is no three-phase option in this family.
Control rating
230 VAC, 60 Hz, 8 FLA, 48 LRA. The pump stops below three gallons per minute in either mode.
Pressure reducing valve
A.Y. McDonald recommends a PRV above 36 psi incoming on the 44 psi models and above 20 psi on the 60 psi models, so total boosted pressure stays under 80 psi. Many plumbing codes cap system pressure there — check local code.
Dimensions and weights from the Baker Water Systems DuraMAC Booster Pumps catalog, rev 3/26, pages 241 to 245.
What To Send Us
Booster systems are sized to the building, not pulled off a shelf. Give us these and we will confirm the right configuration, pump count and lead time.
Sizing Checklist
Peak Flow — design demand in GPM (or fixture units / unit count if flow isn’t known).
Pressure — required boosted (discharge) pressure and available inlet/suction pressure.
Building — number of floors or height, number of units, and use type.
Power — available voltage and phase at the install location.
Redundancy — whether standby backup is required for the application.
Access — door width, stair or lift, and whether there is a housekeeping pad.
Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor. We hold DuraMAC in Houston in the correct US 60 Hz build on 230V single phase.
Packaged & Ready
Simplex and Duplex arrive as complete factory-assembled systems — set, connect and commission, with no field assembly and no control sequence to build. The Modular ships bare by design, for tying into piping that is already there.
Engineering-Led Sizing
We size to your actual flow, pressure and building conditions — not catalog assumptions or guesswork.
Right-Sized Recommendation
Simplex, duplex or modular — we will tell you which fits, and flag when a job needs an engineered system instead.
Submittals Included
Spec sheets and documentation for permitting, plan review and your records. Factory curves available on request.
Parts & Service
70 GPM commercial service parts carried for all three configurations, so a seal or a control board does not mean a new system.
Let’s Spec Your Booster System
Send your building’s flow, pressure, voltage, redundancy and access constraints and we will confirm the right DuraMAC Dual-Mode configuration — with pricing and lead time.
Technical data on this page is taken from A.Y. McDonald and Baker Water Systems US 60 Hz product literature and is subject to change by the manufacturer. Confirm against the current installation manual and pump curve before specifying. DuraMAC and A.Y. McDonald are trademarks of A.Y. McDonald Mfg. Co., used here for product identification only. Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
