Grundfos HQQE shaft seal kit for CR, CRI, CRN 1s, 1, 3, 5 vertical multistage pumps, part 96455086

Grundfos CR Repair Parts & Kits

Genuine Grundfos service kits for CR, CRI and CRN vertical multistage pumps: shaft seal kits and gasket kits.
The shaft seal kit is the cartridge seal and its sleeve, with the faces set at the factory. The gasket kit is the static elastomer set that goes back in when a pump is opened up.
A seal kit and a gasket kit are separate products and are ordered separately - a full strip-down usually needs both.
Each comes in EPDM and FKM, in two size groups: the 1s, 1, 3 and 5 frames, and the 10, 15 and 20 frames. The same kits fit all three material grades.
All 8 published part numbers listed with the Grundfos order number on every variant.
Send us the pump nameplate and we will confirm the kit before you order - or tell you if a kit is not the answer.
Call 1-888.510.4036 or email sales@watermainsupply.com.

2 products
Sort by:
Most relevant
Sort by:
Most relevant
Grundfos CR, CRI, CRN Gasket Kit
Grundfos EPDM gasket kit for CR, CRI, CRN 1s, 1, 3, 5 vertical multistage pumps, part 96455090

Grundfos

Free Shipping $499 or more

Grundfos CR, CRI, CRN Gasket Kit

From $75
Grundfos CR, CRI, CRN Shaft Seal Kit
Grundfos HQQE shaft seal kit for CR, CRI, CRN 1s, 1, 3, 5 vertical multistage pumps, part 96455086

Grundfos

Free Shipping $499 or more

Grundfos CR, CRI, CRN Shaft Seal Kit

From $302.86

Grundfos CR Repair Parts & Kits

Grundfos · Vertical Multistage

Grundfos CR Repair Parts & Kits

Genuine Grundfos service kits for CR, CRI and CRN vertical multistage pumps. Shaft seal kits and gasket kits, in EPDM and FKM, covering the whole range in two size groups. A seal kit and a gasket kit are separate products — a full strip-down usually needs both.

8Part numbers listed
2Kit types
2Size groups
EPDM / FKMElastomers
CR / CRI / CRNFits

A CR service kit is the wear set for a Grundfos vertical multistage pump. Two kits cover the platform: the shaft seal kit, which is the cartridge seal and its sleeve, and the gasket kit, which is the static elastomer set that goes back in when the pump is opened up. Each comes in two elastomers and two size groups — the 1s, 1, 3 and 5 frames, and the 10, 15 and 20 frames.

Watermain Supply lists all 8 published part numbers with the Grundfos order number on every variant. Send us the pump nameplate and we will confirm the kit before you order — call 1-888.510.4036 or email sales@watermainsupply.com.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Two separate products. The shaft seal kit and the gasket kit are ordered separately, and buying one does not bring the other with it. A seal change on a pump that has been in service a long time usually wants both, because the gaskets will not seal the same way twice. Ask us and we will quote the pair against your pump.

The Two Kits

Different jobs, different parts. Neither one contains the other.

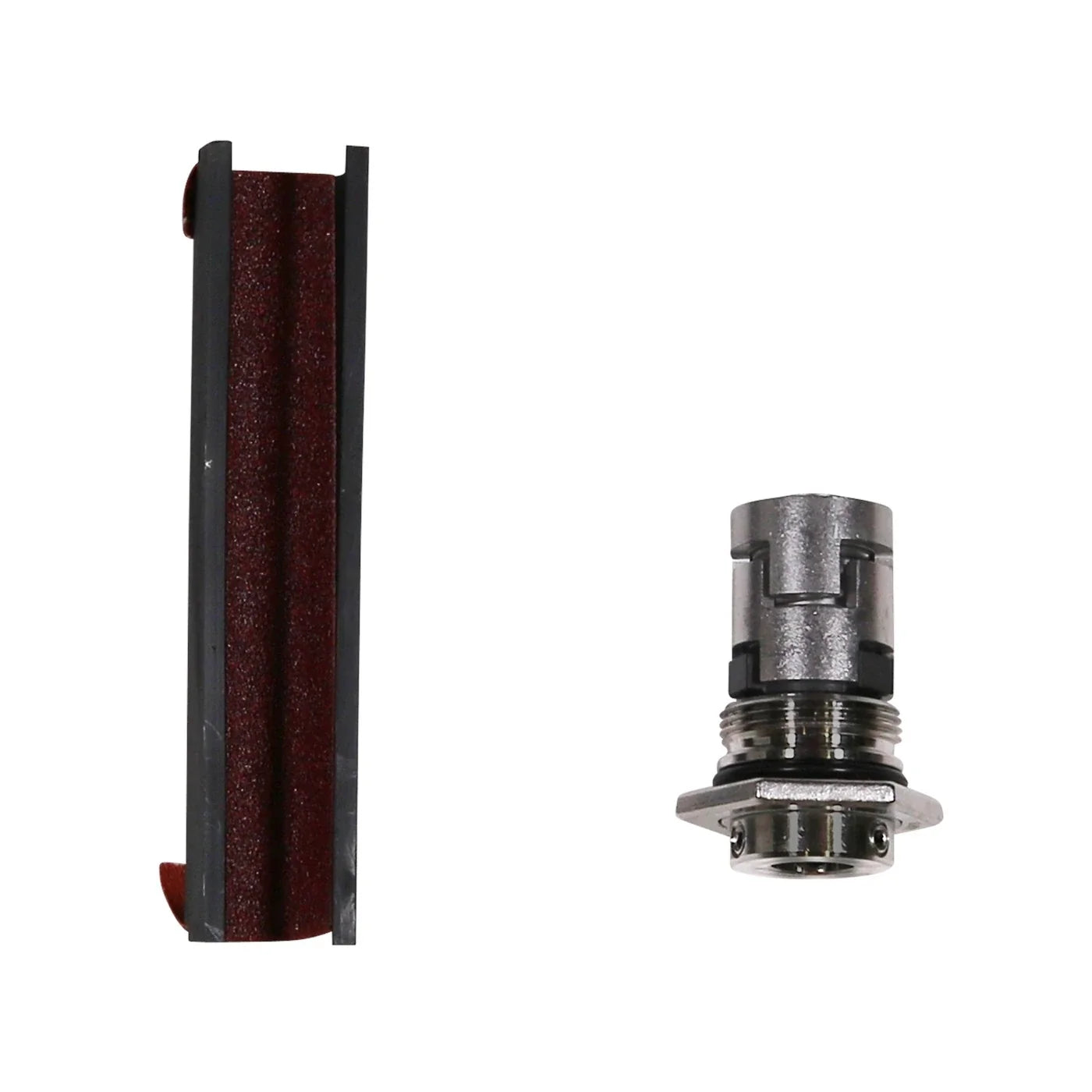

Grundfos HQQE shaft seal kit for CR, CRI, CRN 1s, 1, 3, 5 vertical multistage pumps, part 96455086

Grundfos CR Shaft Seal Kits

The cartridge seal, pre-set
4 part numbers
HQQE and HQQV
2 size groups
Genuine Grundfos

The replacement cartridge shaft seal for a CR, CRI or CRN vertical multistage pump. The cartridge is changed as a complete unit with the faces already set — no lapping, no measuring, no setting spring length on the bench. That is most of the reason a seal change is a morning rather than a day.

  • What is in it — Cartridge seal, shaft sleeve with its O-rings, and on the larger size group a setting clip.
  • Elastomers — HQQE and HQQV.
  • Size groups — CR, CRI, CRN 1s, 1, 3, 5, and CR, CRI, CRN 10, 15, 20.
  • Option 1 — Fits Pump Family. Option 2 — Seal Type.
Best for: A leaking seal with the rest of the pump sound. The most common single repair on this platform.
Shop shaft seal kits
Grundfos EPDM gasket kit for CR, CRI, CRN 1s, 1, 3, 5 vertical multistage pumps, part 96455090

Grundfos CR Gasket Kits

The elastomer set
4 part numbers
EPDM and FKM
2 size groups
Genuine Grundfos

The replacement elastomer set — the static seals that go back in when a pump is opened up. It is what you order alongside a strip-down so the pump does not go back together on gaskets that have already been compressed once.

  • What is in it — Chamber gaskets, flange gaskets and the O-ring set for the frame group.
  • Elastomers — EPDM and FKM.
  • Size groups — CR, CRI, CRN 1s, 1, 3, 5, and CR, CRI, CRN 10, 15, 20.
  • Option 1 — Fits Pump Family. Option 2 — Gasket Material.
Best for: Any job where the pump comes apart: a re-stage, a chamber inspection, a shaft seal change on a pump that has been in service a long time.
Shop gasket kits

Which One

Kit What is in it Elastomers Part numbers When you need it
Shaft Seal Kits Cartridge seal, shaft sleeve with its O-rings, and on the larger size group a setting clip. HQQE and HQQV 4 A leaking seal with the rest of the pump sound. The most common single repair on this platform.
Gasket Kits Chamber gaskets, flange gaskets and the O-ring set for the frame group. EPDM and FKM 4 Any job where the pump comes apart: a re-stage, a chamber inspection, a shaft seal change on a pump that has been in service a long time.
Quick rule. Seal leaking and nothing else wrong: the shaft seal kit on its own. Pump coming apart for any reason: both. The gasket kit is cheap insurance against a second strip-down, and a compressed gasket rarely seals the same way twice.

Part Numbers

All 8 published kits. The part number is the Grundfos order number and is what ships.

Kit Fits pump family Code Elastomer Part No.
Shaft Seal Kit CR, CRI, CRN 1s, 1, 3, 5 HQQE EPDM 96455086
Shaft Seal Kit CR, CRI, CRN 10, 15, 20 HQQE EPDM 96511844
Shaft Seal Kit CR, CRI, CRN 1s, 1, 3, 5 HQQV FKM (Viton) 96455087
Shaft Seal Kit CR, CRI, CRN 10, 15, 20 HQQV FKM (Viton) 96511845
Gasket Kit CR, CRI, CRN 1s, 1, 3, 5 EPDM EPDM 96455090
Gasket Kit CR, CRI, CRN 10, 15, 20 EPDM EPDM 96509609
Gasket Kit CR, CRI, CRN 1s, 1, 3, 5 FKM FKM (Viton) 96455091
Gasket Kit CR, CRI, CRN 10, 15, 20 FKM FKM (Viton) 96509610

Order against the pump you have, not the pump you are replacing it with. The nameplate carries the model and the seal code; send us both and we will confirm the kit.

Identify Your Kit

Three things off the nameplate. There are only eight kits, so the answer falls out quickly.

1. Which kit do you need. A seal that weeps or drips at the shaft is the shaft seal kit. A pump that is coming apart for any other reason wants the gasket kit as well, because the static seals get disturbed the moment the chambers are separated.

2. Which size group. The frame is the first number in the model. CR 3-4 is the 3 frame, so it takes the kit for the 1s, 1, 3 and 5 group. CR 10-6 is the 10 frame and takes the 10, 15 and 20 group. There is no overlap and no universal kit.

3. Which elastomer. The last letter of the seal code on the nameplate is the elastomer — E is EPDM, V is FKM (Viton). So an HQQE pump takes the HQQE seal kit and the EPDM gasket kit. If you are pumping water it will almost always be E. Match what is in the pump unless the liquid has changed.

If the nameplate is unreadable. Send us a photograph of the pump, the duty point and anything legible off the motor. The frame is usually identifiable from the chamber stack and the port size even when the plate has gone.

Selection Guide

Symptom or job What to order Notes
Seal weeping or dripping at the shaft Shaft seal kit Match the seal code and the frame group. The faces arrive pre-set.
Re-staging for a new duty Both kits The chambers come apart, so the gaskets are disturbed. Order the pump end or the chamber parts alongside.
Chamber or impeller inspection Gasket kit The seal may be fine. The gaskets will not be once the pump is open.
Long service life, first overhaul Both kits Replace the wear set together rather than opening the pump twice.
Liquid has changed to something aggressive Both kits in FKM FKM where EPDM is no longer suitable. Confirm the new liquid with us first.
Pump beyond a wear set Pump end If the chambers or impellers are worn, a kit will not recover the duty.

Features

Cartridge design

The seal arrives as one unit with the faces set at the factory. Nothing is lapped or measured on site, which is why a seal change on this platform is quick.

Silicon carbide faces

Both seal codes run silicon carbide against silicon carbide. The difference between HQQE and HQQV is the elastomer, not the faces.

Two elastomers

EPDM for water and most utility duty, FKM where the liquid or the temperature rules EPDM out. The nameplate tells you which the pump was built with.

Two size groups, no overlap

One kit covers the 1s, 1, 3 and 5 frames, the other covers 10, 15 and 20. A kit from the wrong group will not fit.

Genuine Grundfos parts

Factory kits with the Grundfos order number on every variant, not an aftermarket equivalent built to fit.

Fits the whole range

The same kits serve CR, CRI and CRN. The material grade of the pump does not change the wear set.

Grundfos Spare Parts and Service Kits

When a Kit Is Not Enough

A wear set recovers a pump that is otherwise sound. These are the next steps up.

Pump Ends

The whole hydraulic assembly without a motor — chambers, impellers, shaft and seal. What you order when the chambers are worn, or when the duty has changed enough to need a different stack.

Pump ends

Complete Pumps

Pump and motor together, for a replacement rather than a repair.

Complete pumps

Not sure which of the three is the right call? Send us the nameplate, the duty point and what the pump is doing now, and we will say so honestly — including when a kit will do.

Why Watermain Supply

The right kit first time

Send the nameplate and we confirm the frame group and the elastomer before you order, so the pump is not open waiting for a second delivery.

Multi-brand honesty

We sell more than one pump line. If a kit will not recover the pump, we will say so rather than sell you one.

Order numbers published

Every kit is listed with its Grundfos order number, so the next rebuild is a reorder rather than a research project.

Everything on one order

Seal kit, gasket kit and the pump end if it turns out you need one, quoted together.

Genuine parts only

Factory Grundfos kits in original packaging. No aftermarket substitutes offered as equivalents.

Houston and the Gulf Coast

Account terms, submittals and service support from people who take the call.

Frequently Asked

Does a shaft seal kit include the gaskets?

No. The shaft seal kit and the gasket kit are separate products and are ordered separately. Buying one does not bring the other with it. A full strip-down usually needs both.

What is in a shaft seal kit?

The cartridge seal, the shaft sleeve with its O-rings, and on the larger size group a setting clip. The faces arrive pre-set, so nothing is lapped or measured on site.

What is in a gasket kit?

The static elastomer set for the frame group: chamber gaskets, flange gaskets and the O-ring set.

How do I know which size group I need?

The frame is the first number in the model. CR 3-4 is the 3 frame and takes the kit for the 1s, 1, 3 and 5 group. CR 10-6 takes the 10, 15 and 20 group. There is no overlap and no universal kit.

What is the difference between HQQE and HQQV?

The elastomer. Both are cartridge seals with silicon carbide faces. E is EPDM, V is FKM (Viton). For water, E. Match what is already in the pump unless the liquid has changed.

Do the same kits fit CR, CRI and CRN?

Yes. The material grade of the pump housing does not change the wear set, so one kit per size group and elastomer serves all three ranges.

Can I use an EPDM kit in a pump built with FKM?

It will fit, but it changes what the pump can handle. FKM is specified where EPDM is not suitable for the liquid or the temperature. Do not downgrade the elastomer without checking the duty with us.

When should I buy a pump end instead of a kit?

When the chambers or impellers are worn rather than the seals. A wear set restores sealing, not hydraulic performance. If the pump has lost head it is not a kit problem.

Are these genuine Grundfos kits?

Yes, factory kits in original packaging with the Grundfos order number on every variant. No aftermarket equivalents are offered.

Can you tell me the kit from a photograph?

Usually. Send a photograph of the nameplate, or of the pump and anything legible off the motor, plus the duty point, and we will identify the frame and the seal code.

Send Us the Nameplate

Model, seal code and what the pump is doing. We will confirm the kit, or tell you if a kit is not the answer.

1-888.510.4036Email sales@watermainsupply.comRequest a Quote

Specifications and part numbers are subject to change without notice; confirm against the current Grundfos documentation before ordering.
