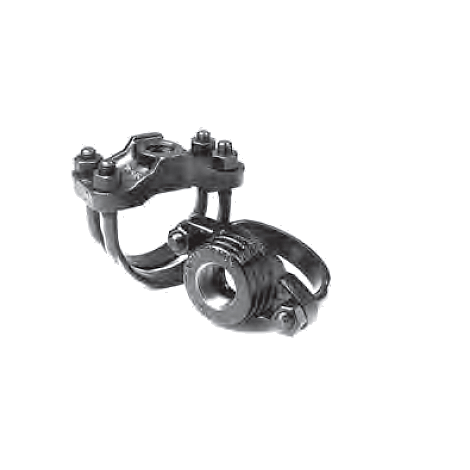

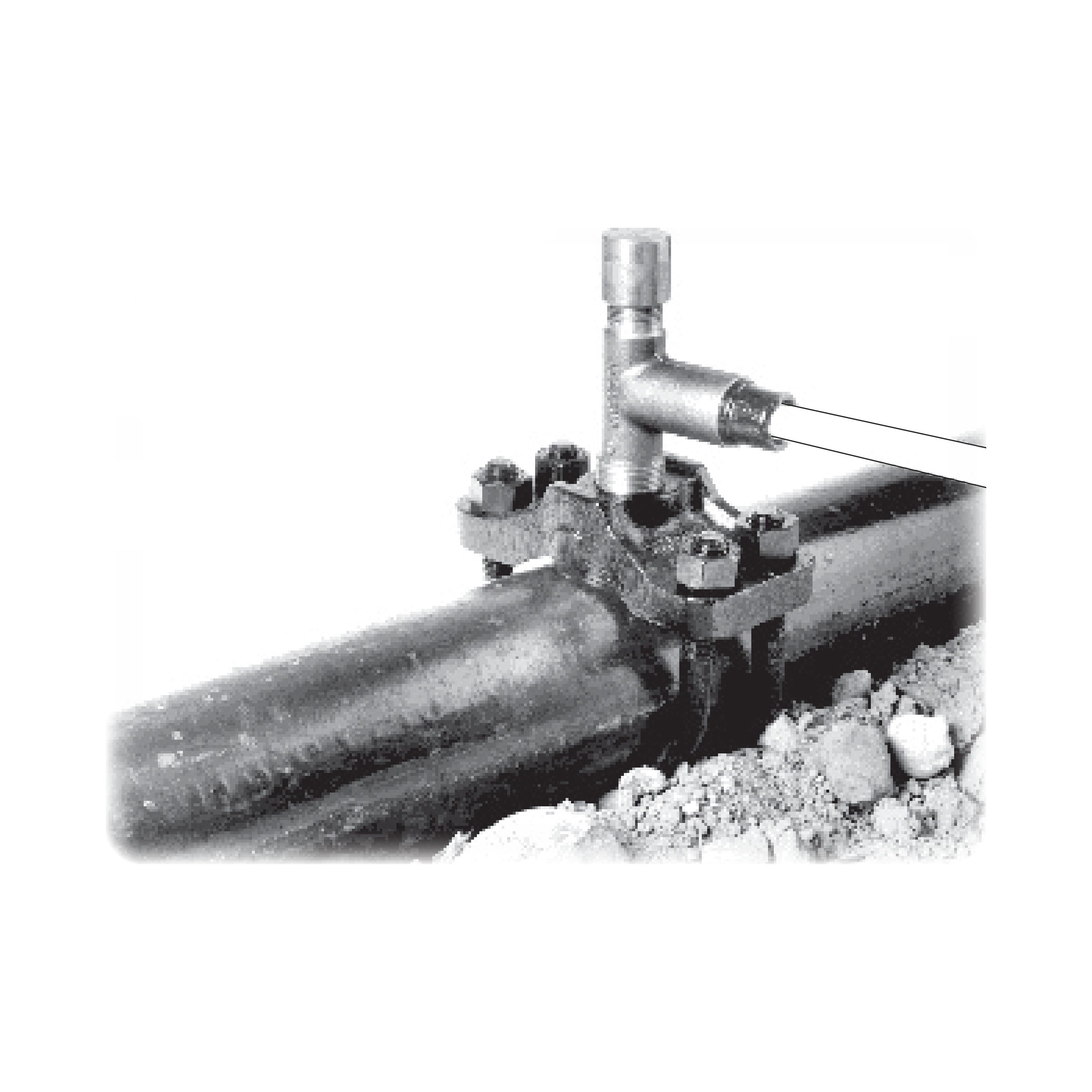

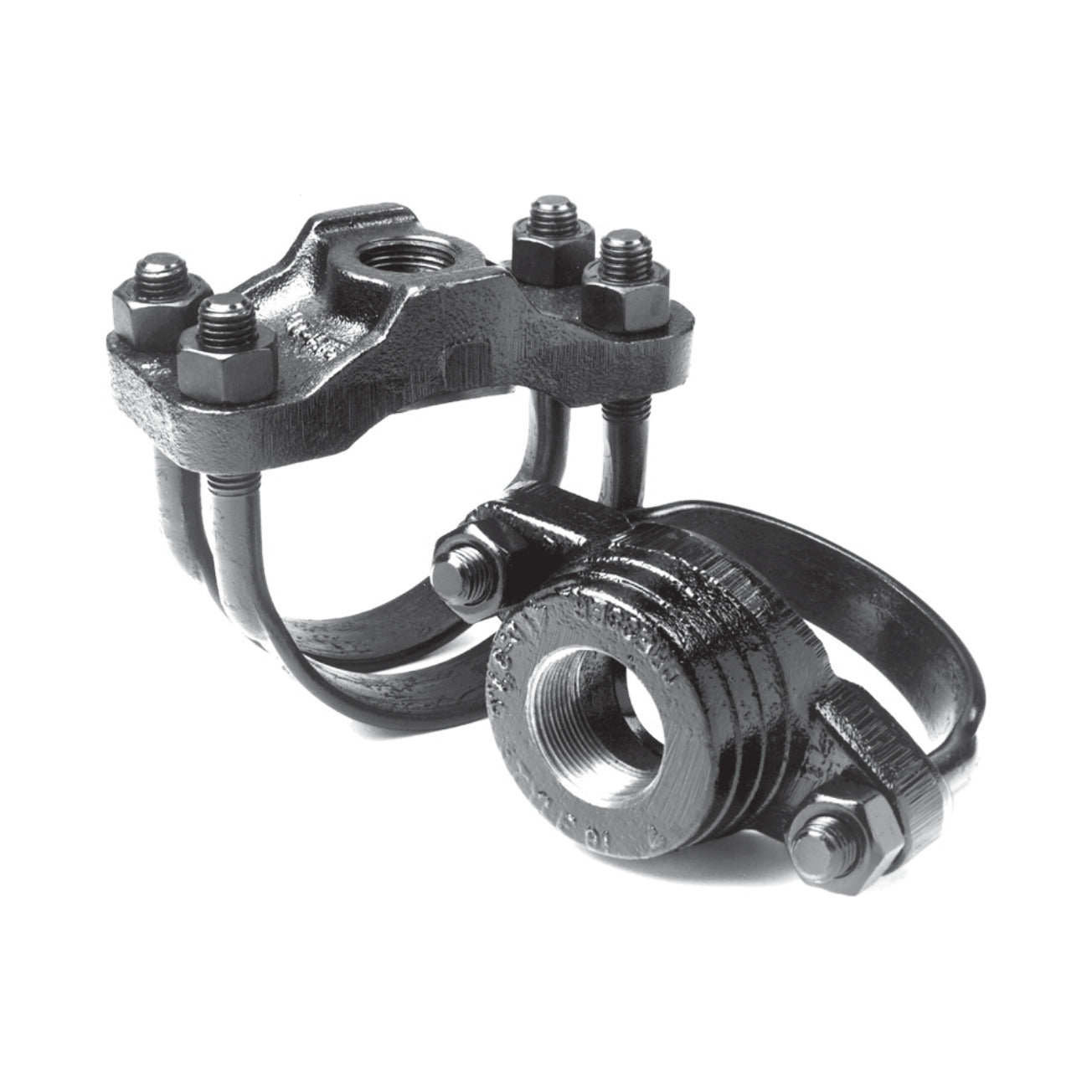

The Dresser Style 91 Service Saddle for steel pipe provides a dependable, code-compliant branch connection on steel pressure pipe — enabling live taps for new service lines, meters, fire protection connections, and distribution system extensions without shutting down the main. The saddle body wraps around the steel pipe and is secured by straps, making contact with the full pipe circumference for a stable platform for drilling and tapping. The threaded outlet accepts standard corporation stops, ball valves, or tapping sleeves to complete the service connection.

Key Features

• Designed specifically for steel pipe OD dimensions
• Strap-secured body provides a stable, rigid platform for tapping operations
• Full-circle gasket seals the connection between saddle body and pipe surface
• Available in a range of nominal pipe sizes and outlet configurations
• Accepts standard corporation stop (CC) and NPT thread outlets
• Compatible with wet-tap drilling and tapping operations under pressure
• Ductile iron body with steel or stainless steel straps standard

Materials of Construction

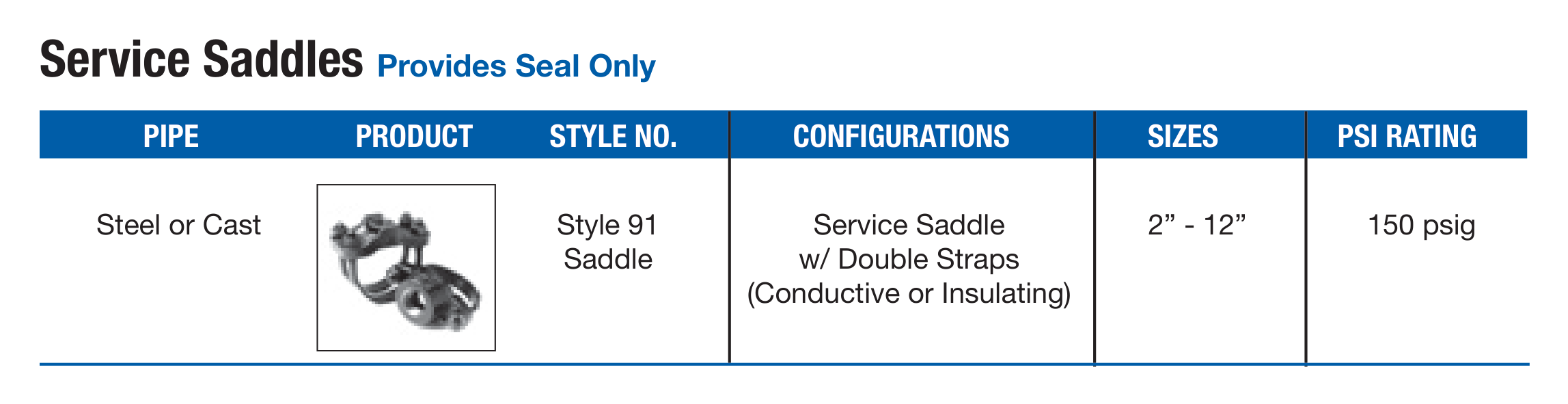

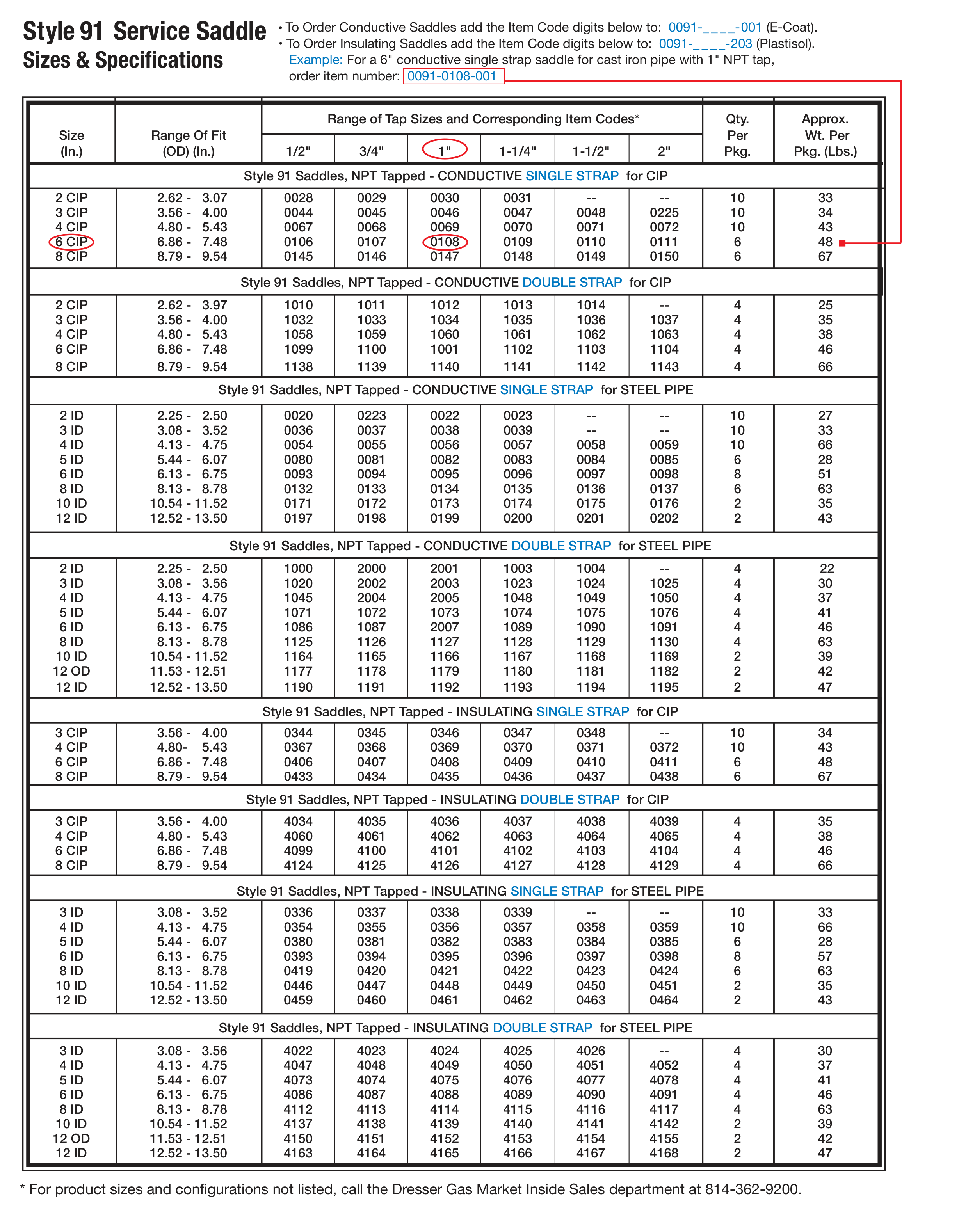

Size availability, OD ranges, part numbers, and pressure ratings available on request. Contact us to confirm the correct configuration for your pipe material, OD, and application.

This configuration is for steel pipe OD dimensions. For cast iron or ductile iron pipe, see Style 91 — Service Saddle for Cast Iron. Outlet size and thread type must be specified at time of order.
