Smith-Blair Water | Wastewater Products
Availability
Type
Price
$0
$13,501.08
Style 101 - Tie Rod and Nut Set - Alloy Steel
Smith Blair
Style 101 - Tie Rod and Nut Set - Alloy Steel
- Price
- From $28.47
Style 120 - CamLock Joint Restraint - MultiSeal
Smith Blair
Style 120 - CamLock Joint Restraint - MultiSeal
- Price
- From $37.64
Style 120 - CamLock Joint Restraint - MultiSeal - MJ Gaskets
Smith Blair
Style 120 - CamLock Joint Restraint - MultiSeal - MJ Gaskets
- Price
- From $12.85
Style 120 - CamLock Joint Restraint - PVC Pipe
Smith Blair
Style 120 - CamLock Joint Restraint - PVC Pipe
- Price
- From $109.51
Style 120 - CamLock Joint Restraint - PVC Pipe - MultiSeal
Smith Blair
Style 120 - CamLock Joint Restraint - PVC Pipe - MultiSeal
- Price
- From $112.63
Style 120 - CamLock Joint Restraint - Steel Pipe
Smith Blair
Style 120 - CamLock Joint Restraint - Steel Pipe
- Price
- From $135.40
Style 221 - Full Circle Repair Clamp - Single Band
Smith Blair
Style 221 - Full Circle Repair Clamp - Single Band
- Price
- From $175.48
Style 226 - Full Circle Repair Clamp - Low Alloy
Smith Blair
Style 226 - Full Circle Repair Clamp - Low Alloy
- Price
- From $192.06
Style 226 - Full Circle Repair Clamp - Stainless Steel
Smith Blair
Style 226 - Full Circle Repair Clamp - Stainless Steel
- Price
- From $246.77
Style 227 - Full Circle Repair Clamp - Low Alloy
Smith Blair
Style 227 - Full Circle Repair Clamp - Low Alloy
- Price
- From $329.42
Style 227 - Full Circle Repair Clamp - Stainless Steel
Smith Blair
Style 227 - Full Circle Repair Clamp - Stainless Steel
- Price
- From $464.76
Style 228 - Full Circle Repair Clamp - Low Alloy
Smith Blair
Style 228 - Full Circle Repair Clamp - Low Alloy
- Price
- From $1,308.77
Smith-Blair Water | Wastewater Products
Description
Authorized Smith-Blair Waterworks Distributor
Smith-Blair
Repair Clamps,
Sleeves & Fittings
Complete Smith-Blair inventory: full circle repair clamps, tapping sleeves, couplings, flanged coupling adapters, Pipe-Lock restraints, service saddles, and more — in stock, ready to ship from Houston.
3,800+
Smith-Blair SKUs
½"–36"
Size Range
Same Day
Quote Turnaround
Smith-Blair Waterworks Products
Complete Product Families
Every Smith-Blair product category stocked and available. From ½" Redi-Clamps to 36" tapping sleeves and full circle repair clamps. Authorized Xylem dealer carrying the full Smith-Blair line.
Best Sellers — Repair Clamps & Tapping Sleeves
Best Seller
Full Circle Repair Clamps — Low Alloy
Single-band (226), medium OD (227), and large diameter (228) full circle clamps. Alloy or stainless bolts. The go-to repair clamp for water and wastewater mains.
Best Seller
Full Circle Repair Clamps — Stainless
All-stainless construction for corrosive soils and aggressive service. Single-band (261), double-band (262), and multi-band (263) configurations.
Top Seller
Style 622 Carbon Steel Tapping Sleeve
The standard carbon steel tapping sleeve for wet taps on water mains. Alloy or stainless bolts. NPT and MJ outlets. 4"–36" main × 4"–16" outlet.
Top Seller
Style 664/665 Tapping Sleeves
664: Carbon steel for pipe OD 4.5"–14.09". 665: All-stainless construction for aggressive environments. Both available with NPT or MJ outlets.
Top Seller
Style 411 Steel Coupling
Straight-connection steel pipe coupling for IPS steel pipe. ½"–12". Versatile, economical, and field proven. Available in multiple suffix configurations.
Top Seller
Style 441/442 Cast Couplings
Cast coupling (441, 5" sleeve) and long sleeve cast coupling (442, 7" sleeve) in 304 SS, 316 SS, and standard configurations. 2"–12".
Best Sellers · Pipeline Repair
Full Circle Repair Clamps
Smith-Blair full circle repair clamps are the industry standard for stopping leaks on water mains, gas lines, and wastewater pipe without taking the system out of service.
Full circle clamps wrap 360° around the pipe, compressed by through-bolts to create a watertight seal over cracks, pits, or defective joints. Three tiers cover every service condition: Low alloy body + alloy bolts (226/227/228) for standard buried service; low alloy + stainless bolts for moderate soils; all-stainless (261/262/263) for marine or high-chloride environments.
How to Choose the Right Clamp Style
226: Small to medium pipe (OD 2.35"–8.94"). Standard first choice for distribution mains. 227: Medium to large pipe (OD 3.49"–14.85") — the workhorse for 4"–12" mains. 228: Large diameter (OD 14.38"–30.72") — transmission mains and force mains. When in doubt on size: order the next width wider.
Pipe: Steel, C.I., D.I., PVCOD Range: 2.35"–30.72"Widths: 7.5"–20"Bolts: Alloy or 304 SSBody: Low Alloy or 304 SS
Part Number Decoder
226-00023807-000 = Style 226 · OD range 2.35–2.63" · Width 7.5" · Suffix -000 (alloy bolts). Suffix -001 = stainless steel bolts. Style 261 = all-stainless body + SS bolts. Width encoded in last 2 digits of middle segment (07=7.5", 10=10", 12=12", 15=15", 20=20").
Beyond 226/227/228: Specialty Clamp Styles
Style 221: single band, smaller OD ranges. Style 256: for PVC/CI ODs outside 226/227 ranges. Styles 267/268: higher pressure-rated (carbon steel/stainless). Styles 229/269: collar leak clamps for bell joints. Style 274: bell joint leak clamp. Style 281: wide range repair clamp. Styles 246/257: double-band variants. Styles 238/239/264/265: tapped repair clamps with threaded outlets.
Repair Clamp Family — Style Selector
226
Full Circle Clamp — Small/Med OD
OD 2.35"–8.94". 2"–6" mains. Low alloy. Alloy or SS bolts. Widths 7.5"–20".
227
Full Circle Clamp — Med/Large OD
OD 3.49"–14.85". 4"–12" mains. Alloy or SS bolts. Widths 7.5"–20".
228
Full Circle Clamp — Large Diameter
OD 14.38"–30.72". 14"–30" transmission mains. Low alloy, alloy or SS bolts.
261
All-Stainless Clamp — Single Band
OD 2.35"–8.99". 304 SS body and bolts. Corrosive soils, coastal, high-chloride.
262
All-Stainless Clamp — Double Band
OD 3.49"–8.94". Double band. All 304 SS construction.
263
All-Stainless Clamp — Multi Band
OD 11.04"–14.34". Large diameter, all-SS. Corrosive environments.
245
Redi-Clamp — Full Circle, Small Pipe
OD 0.84"–2.38". ½"–2" service lines. Galv or SS bolts. 3"–6" wide.
256
Full Circle Clamp — PVC/CI ODs
For PVC and CI ODs outside 226/227 ranges. OD 2.35"–8.94". Multiple widths.
281
Wide Range Repair Clamp
Multi-OD coverage for inventory reduction. Single SKU covers multiple pipe materials.
Material Selection: Alloy vs. Stainless Steel
Standard Service · Most Common
Low Alloy
Styles 226, 227, 228 — Low Alloy Body
- Body MaterialLow Alloy Carbon Steel
- Bolt OptionsAlloy (-000) or SS (-001)
- Normal Buried ServiceExcellent ✓
- Corrosive/Marine SoilUse Stainless ×
- Cost vs. SSLower Cost
- Size Range2"–30"+ OD
- Suffix (Alloy Bolts)-000
- Suffix (SS Bolts)-001
Corrosive / Aggressive Environments
304 SS
Styles 261, 262, 263 — All-Stainless Body
- Body Material304 Stainless Steel
- Bolt Material304 Stainless Steel
- Normal Buried ServiceExcellent ✓
- Corrosive/Marine SoilExcellent ✓
- Cost vs. AlloyPremium
- Size Range2"–14"+ OD
- ConfigurationsSingle/Double/Multi Band
- Suffix-000 (standard)
Clamp Width Selection Guide
7.5" Width
Point leaks, pinhole corrosion, single crack or split. Minimum coverage for well-defined defects.
→ Most common for spot repairs
10"–12" Width
Moderate corrosion zone, longitudinal crack, or defect of unknown length. Standard workhorse width.
→ When in doubt, start here
15"–20" Width
Extended pitting, multiple defects in a short span, or corroded pipe section where exact defect edges are unclear.
→ Extended coverage applications
Complete OD Range Reference
Repair clamp OD ranges span 2.35"–30.72" across Styles 226, 227, and 228. Contact sales@watermainsupply.com or call 281.664.8000 for a complete OD range table and part number lookup by pipe material and size.
Top Seller · Wet Taps

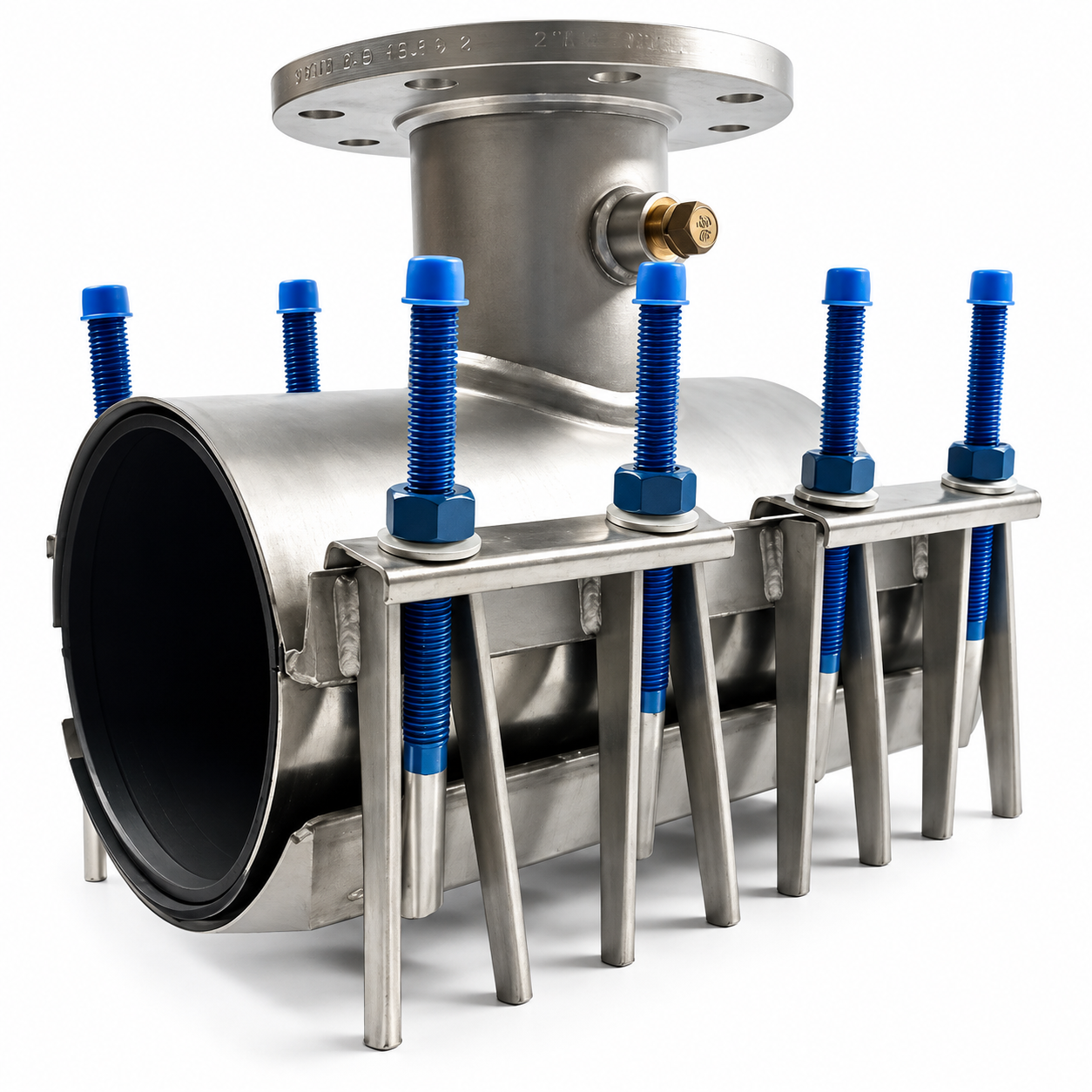

Tapping Sleeves — Styles 622, 664 & 665
Smith-Blair tapping sleeves allow new service connections and branch line installations on pressurized water mains without shutting down the system — the only choice for live main tapping.
A tapping sleeve wraps around a pressurized main and provides a flanged or threaded outlet for installing a tapping valve. End gaskets seal against the main OD while the outlet holds full working pressure during and after the tap — no shutdown required.
622 vs. 664 vs. 665 — Which to Specify
Style 622 is the broadest-range carbon steel sleeve — covers 4.5"–19.03" main OD with NPT or MJ outlets up to 16". Style 664 is a compact carbon steel sleeve optimized for 4.5"–14.09" main OD with a cleaner design. Style 665 is the all-stainless version of 664 for corrosive environments. All three are available with MJ outlets for direct connection to mechanical joint valves.
Main: 4"–36" (622)Outlet: NPT or MJBody: Carbon Steel or SSBolts: Alloy or SSPressure: ≤ 200 psi typical
MJ vs. NPT Outlet
NPT outlet is standard for connections to standard tapping valves with threaded flanges. MJ (Mechanical Joint) outlet connects directly to mechanical joint gate valves for faster, no-thread installation — preferred where MJ valves are stocked. MJ suffix: part number contains "MJ" in outlet position.
Tapping Sleeve Comparison — At a Glance
Style 622 Main OD4.5"–19.03"
Style 664 Main OD4.5"–14.09"
Style 665 Main OD4.5"–14.09"
622 Body MaterialCarbon Steel
664 Body MaterialCarbon Steel
665 Body Material304 Stainless ✓
NPT Outlet AvailableAll Three ✓
MJ Outlet AvailableAll Three ✓
Alloy Bolt Option622 & 664 ✓
SS Bolt OptionAll Three ✓
Critical Ordering Information
Specify: (1) Main pipe OD (measured, not nominal). (2) Outlet size. (3) Outlet type (NPT or MJ). (4) Bolt material (alloy or SS). A 4" steel IPS main (4.500" OD) and 4" cast iron main (4.800" OD) require different part numbers. Always confirm the actual OD.
Style 622 Part Numbers
The Style 622 tapping sleeve is available in hundreds of OD × outlet size × outlet type combinations across 4"–36" main sizes. Contact sales@watermainsupply.com or call 281.664.8000 with your main OD, outlet size, and outlet type (NPT/MJ) for an immediate part number and quote.
Top Seller · Pipe Joining
Couplings — Styles 411, 413, 441 & 442
Smith-Blair couplings join pipe ends without welding or threading. From economical steel couplings to stainless cast couplings to wide-range Quantum and OMNI variants — the full range covers water, gas, and industrial service.
411
Steel Coupling — Straight Connection
Top Seller
▸
Use: Joining two steel IPS pipe ends of the same OD — new construction and repair.
▸
Sizes: ½"–12" nominal IPS steel pipe.
▸
Sleeve length: 4½" standard. Multiple suffix configurations available.
▸
Bolts: Low alloy standard (-003 suffix). Stainless available.
▸
Best for: Steel natural gas distribution, water service lines, industrial piping.
413
Steel Transition Coupling
Specialty
▸
Use: Joins pipes of different OD — IPS steel to cast iron, or IPS to other IPS sizes.
▸
Sizes: 2"–6" nominal range (OD 1.94"–5.84").
▸
End gaskets: Each end independently sized to match respective pipe OD.
▸
Bolts: Low alloy standard (-103 suffix).
▸
Best for: System modernization — connecting new IPS steel to old cast iron pipe.
441/442
Cast Couplings — 5" & 7" Sleeve
Top Seller
▸
441: 5" sleeve cast coupling. 442: 7" long sleeve for greater pull-out resistance.
▸
Sizes: 2"–12" (441), 4"–12" (442).
▸
Material: Standard, 304 SS (-931), or 316 SS (-943) construction.
▸
Pipe range: Accepts both IPS steel and cast iron ODs within each nominal size.
▸
Best for: Potable water applications, corrosive environments (SS), MJ-compatible systems.
Specialty Couplings — OMNI, Quantum & More
Style 415 — Reducing Coupling
Steel reducing coupling with alloy bolts & nuts. For joining pipes of stepped diameter in steel piping systems.
→ Stepped diameter joining
Style 416 — Insulating Coupling
Steel insulating coupling, single boot, alloy bolts & nuts. Provides dielectric isolation between dissimilar metals to prevent galvanic corrosion.
→ Dielectric isolation
Style 418 — OMNI Long Sleeve
OMNI long sleeve couplings, straight & transition. Wider sleeve for higher pull-out resistance and pipe end concealment.
→ Long sleeve restraint
Style 421 — Quantum Coupling
Quantum wide-range couplings — accommodates wider OD tolerance per nominal size, reducing inventory and stocking complexity.
→ Multi-OD coverage
Style 422 — Quantum 12" Sleeve
Quantum coupling with 12" sleeve for greater axial restraint and end concealment in high-pressure or high-thrust applications.
→ High-thrust applications
Style 525 — OMNI Cast Couplings
OMNI cast couplings, straight & transition. Cast body construction with OMNI gasket sealing system for water and wastewater service.
→ Cast body OMNI service
Style 411 — Common Sizes
| Nom. Size | Pipe OD (in.) | Sleeve Length | Part No. (Low Alloy) |
|---|---|---|---|
| ½" | 0.840 | 4½" | 411-00008401-003 |
| 1" | 1.320 | 5" | 411-00013201-003 |
| 1½" | 1.900 | 5" | 411-00019001-003 |
| 2" | 2.375 | 5" | 411-00023801-003 |
| 3" | 3.500 | 5" | 411-00035001-003 |
| 4" | 4.500 | 5" | 411-00045001-003 |
| 6" | 6.625 | 5" | 411-00066301-003 |
| Sizes 8"–12" and stainless variants available — contact us | |||
-003 = Low alloy bolts. Stainless bolt variants available. Additional suffix configurations for special sleeve lengths.
Specialty · Flanged Connections
Flanged Coupling Adapters — Styles 912 & 913
Connect plain-end pipe to flanged valves, pumps, and equipment. No welding or threading — mechanical joint seal, AWWA Class D flange face.
FCAs use a mechanical joint gasket against the pipe OD while the flange face provides an AWWA Class D / 150 lb bolt pattern for connection to valves, meters, hydrants, and equipment — no welding or threading required.
Style 912 vs. Style 913
Style 912 accommodates a wider OD tolerance range on each nominal size — useful when the exact pipe OD is not precisely known, or when connecting to older cast iron pipe with variable ODs. Style 913 uses a tighter OD range per size for a more secure gasket seal — preferred when the pipe OD is confirmed and consistent. Both are available in alloy, 304 SS, and 316 SS bolt options.
Restrained FCA Options

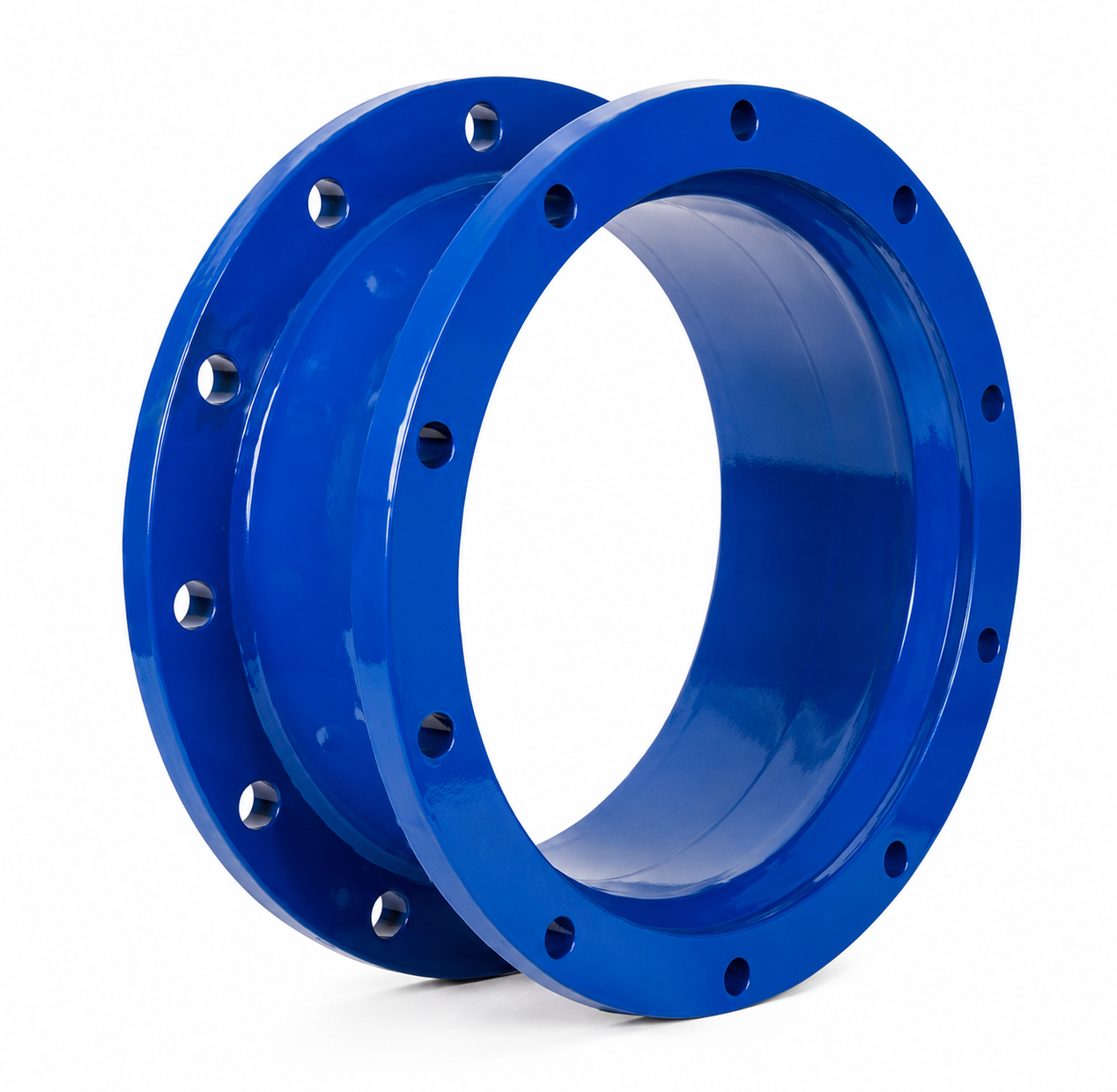

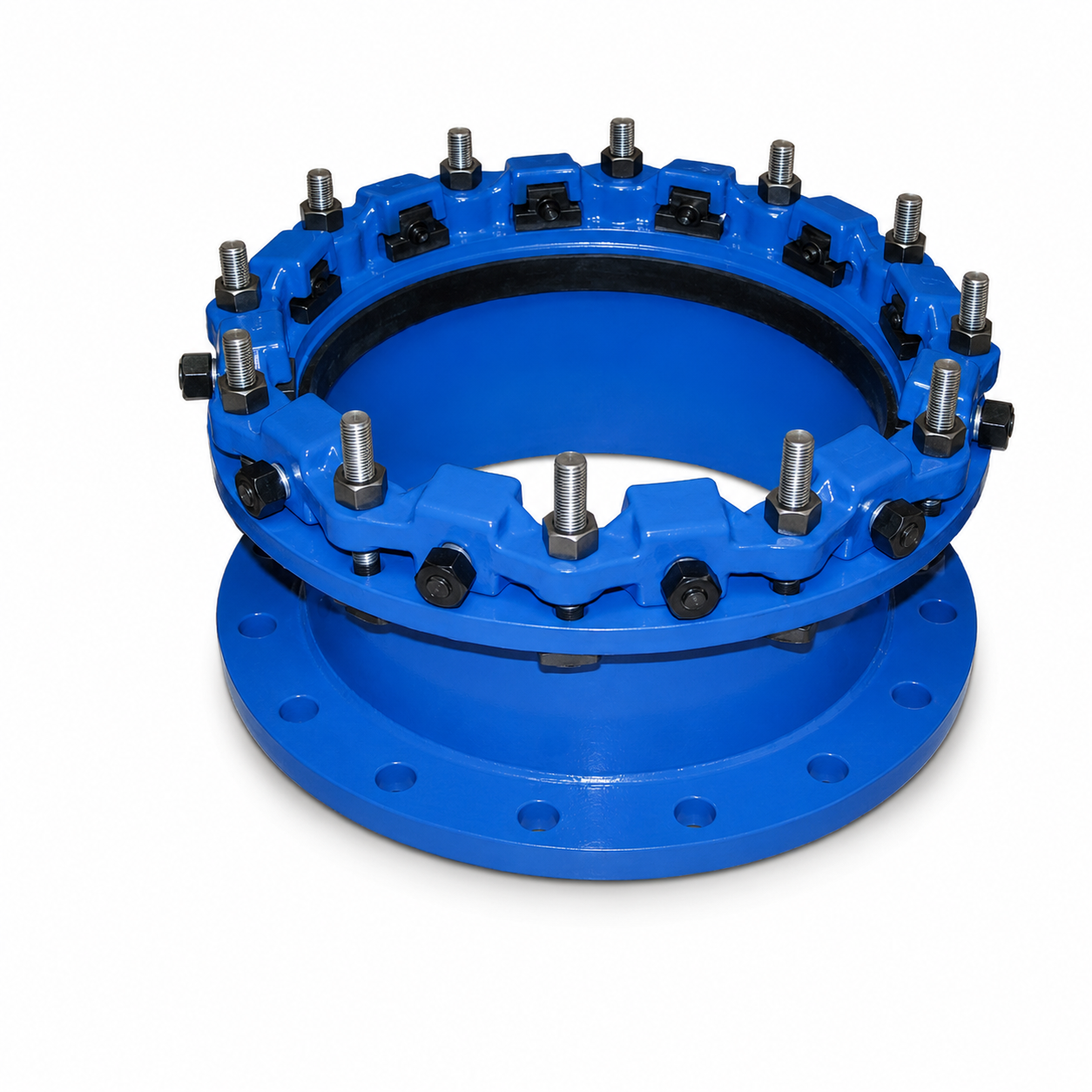

Styles 907 (Flange-Lock systems), 911 (DI/steel), 920 (PVC), and 923 (Cam-Lock) are restrained FCAs that prevent pipe pull-out — required when no thrust block is present or system operates at higher pressures. Style 975 restrained dismantling joint provides an adjustable-length flanged connection for valve/pump installation/removal in tight spaces.
Style 913 — FCA Size Reference
| Nom. Size | OD (in.) | Alloy Bolts | 304 SS Bolts | 316 SS Bolts |
|---|---|---|---|---|
| 3" | 3.44–3.56 | 913-03500300-003 | 913-03500300-031 | 913-03500300-043 |
| 4" | 3.94–4.06 | 913-04000400-003 | 913-04000400-031 | 913-04000400-043 |
| 4" C.I. | 4.74–5.06 | 913-04800400-003 | 913-04800400-031 | — |
| 6" | 6.59–6.71 | 913-06630600-003 | 913-06630600-031 | 913-06630600-043 |
| 8" | 8.57–8.69 | 913-08625800-003 | 913-08625800-031 | — |
| 10" | 10.69–10.81 | 913-10751000-003 | 913-10751000-031 | — |
| 12" | 12.69–12.81 | 913-12751200-003 | 913-12751200-031 | — |
| 14"–24" and cast iron OD variants available — contact us | ||||
-003 = Alloy bolts. -031 = 304 SS bolts. -043 = 316 SS bolts. Flange standard: AWWA Class D / 150 lb. Specify pipe material (steel/cast iron/PVC) when ordering. Style 912 available for wide OD range applications.
Service Connections · Wet Tap Saddles
Service Saddles — Complete Smith-Blair Line
Smith-Blair service saddles provide tapped service line connections to distribution mains. Configurations span single bale, double bale, double strap, single/double stud, and large-diameter saddle types in ductile iron, electro-galvanized, bronze, and all-stainless construction. CC and NPT thread outlets available.
Style 311 — Single Bale DI & Galv
Single bale service saddle, ductile iron and electro-galvanized construction. Standard for most water service taps. 4"–16" main pipe sizes.
→ Standard water service taps
Style 313 — Double Bale DI
Double bale service saddle, ductile iron body. Increased clamping force for higher pressure or larger taps. 4"–16" main.
→ Higher pressure / large taps
Style 315 — Single Bale DI
Single bale service saddle, all ductile iron construction (no galvanized option). For applications requiring DI throughout.
→ All-DI applications
Style 317 — Double Strap DI
Double strap service saddle, ductile iron body. Provides distributed clamping load across two straps for stable seating on rough or irregular pipe surfaces.
→ Irregular pipe surfaces
Style 325 — Bronze + SS Strap
Bronze body service saddle with extra-wide 304 stainless steel strap. Combines bronze tap durability with SS strap corrosion resistance.
→ Bronze tap + SS strap
Style 331 — Repair Saddle, Epoxy DI
Repair service saddle, double bale, epoxy coated DI body. Combines saddle and repair clamp function for service taps over compromised pipe areas.
→ Repair + service tap
Style 357 — SS Straps, DI Body
Service saddle with stainless steel straps and ductile iron body. SS straps for corrosive soils, DI body for cost efficiency.
→ Mixed-material economy
Style 362 — DI Body, Epoxy Straps
Service saddle, ductile iron body with epoxy coated straps. Full corrosion protection at lower cost than stainless construction.
→ Corrosion-resistant economy
Style 366 — Large Diameter
Service saddles for large diameter pipe, DI body with epoxy coated straps. Sized for transmission mains and large distribution mains.
→ Large diameter pipe
Style 371 — Single Stud All SS
Single stud service saddle, all 304 stainless steel construction. For corrosive environments where DI is unacceptable.
→ Corrosive single-stud
Style 372 — Double Stud All SS
Double stud service saddle, all 304 stainless steel construction. Higher clamping force for stainless service applications.
→ Corrosive double-stud
Style 377 — Wide Range Saddle
Wide range service saddle covering multiple OD ranges per part number. Reduces inventory and simplifies stocking for utilities.
→ Multi-OD inventory savings
Style 397 — DI & PVC Sized Pipe
Service saddle specifically sized for ductile iron pipe ODs and PVC pipe with DI ODs (PVC C-900). Critical correct OD match for PVC.
→ DI-OD pipe (DI & C-900 PVC)
How to Order Service Saddles
Specify: (1) Main pipe OD (measured) and pipe material; (2) Outlet thread size and type (NPT or CC thread); (3) Body and strap material; (4) Single vs. double bale/strap/stud. CC thread (Corporation Cock) is the AWWA standard for water service taps. Always verify pipe OD against the saddle's rated OD range.
Specialty · Pipeline Restraint
Pipe-Lock, Cam-Lock & Flange-Lock Restraints
Smith-Blair restraint products prevent pipe pull-out and joint separation at mechanical connections under pressure, surge, and thrust loads — meeting AWWA and local utility specifications.
Style 471 — Pipe-Lock for PVC
Restrained sleeve coupling for PVC pipe. Stainless steel gripping inserts engage the pipe OD and resist longitudinal pull-out. 3"–16".
→ Cast iron OD PVC pipe
Style 472 — Pipe-Lock for Steel IPS
Restrained sleeve coupling for steel IPS pipe. Provides both a flexible connection and axial restraint in one fitting. 3"–12".
→ IPS steel pipe
Style 473 — Fabricated Steel Restraint
Fabricated steel Pipe-Lock coupling for IPS steel and cast iron connections. Handles OD transitions. 3"–12".
→ Steel/C.I. transitions
Style 477 — Pipe-Lock Sleeve
Restraint sleeve only (no end couplings) for systems using separate coupling halves. 3"–12". 7" sleeve standard.
→ Sleeve-only applications
Style 111 — Cam-Lock Joint Restraint
Cam-lock wedge restraint for mechanical joint pipe connections. With or without gasket. 3"–12". For DI bell and spigot joints.
→ MJ bell & spigot
Styles 115 & 165 — Serrated Restraints
Serrated joint restraints for MJ fittings (115) and bell and spigot PVC joints (165). IPS and ductile iron pipe ODs. 4"–16".
→ PVC & DI joint restraint
Style 907 — Flange-Lock System
Flange-Lock straight seal & restraint coupling. Combines an MJ-style mechanical seal with through-bolt restraint to prevent joint separation under pressure or thrust.
→ Combined seal + restraint
EZW Restraint Series
EZW restraint products for waterworks: straight seal & restraint couplings, reducing seal & restraint couplings, seal & restraint line caps, and flanged coupling adapters.
→ Multiple EZW configurations
Tie Rods, Nuts & Restraint Plates
Smith-Blair tie rods and nuts for external joint restraint of MJ connections. Restraint plates for thrust transfer at fittings, hydrants, and valve installations.
→ External MJ restraint
Technical Reference
Full Circle Repair Clamp — Installation Guide
Proper installation is essential for a leak-free, long-service repair. Follow these steps for all Smith-Blair full circle clamps (Styles 226, 227, 228, 261, 262, 263).
01
Measure Pipe OD
Measure the actual OD with an OD tape or calipers. Measure at two points straddling the defect. Select the clamp part number whose OD range brackets your measured OD. Cast iron, ductile iron, and steel pipe of the same nominal size have different ODs — always measure.
02
Clean the Pipe
Wire brush the pipe surface 2" beyond each clamp edge. Remove loose rust, scale, tuberculation, tar, and raised defects. Gasket must contact a continuous surface to seal. Intact coating is acceptable — bare metal is not required.
Do not attempt to install over a bulging blowout or heavily deformed pipe section — pipe must be round enough to seat the gasket.
03
Position Clamp
Center the clamp over the defect with at least 1.5" coverage on each side of the visible defect edge. If edges are unclear, center conservatively. For multiple defects — a wider clamp is better than repositioning.
04
Install Bolts Hand Tight
Install all bolts hand tight before applying torque. Gasket must be fully seated — not rolled, bunched, or twisted. Clamp halves should show approximately equal gap on both sides.
05
Torque in Sequence
Tighten in opposing pairs — top/bottom, then sides. Bring all bolts to 50% torque before any reaches final. Final torque: ½" bolt = 40–45 ft-lbs · 5/8" = 75–85 ft-lbs · ¾" = 110–125 ft-lbs.
Do not over-torque — excess torque can deform the clamp or cut the gasket edge. Gaps between clamp halves should be equal when properly torqued.
06
Pressure Test
Return slowly to operating pressure. A small weep at the gasket seam often self-seals as the gasket swells. If an active leak persists, depressurize and re-inspect gasket seating. Never re-torque under pressure.
Line Termination
Style 481 & 482 Line Caps
Smith-Blair steel pipe end caps (481) and cast line caps (482) provide permanent mechanical dead-end closure for steel and cast iron pipe without welding or threading.
Style 481 — Steel Pipe End Cap
①
For Steel IPS Pipe
Caps steel pipe using IPS ODs (2.375", 2.500", 3.500", 4.500", 6.625"...). Uses same MJ gasket system as Style 411 coupling.
②
Sizes Available
2"–12" nominal IPS steel pipe. Part number mid-segment encodes OD (e.g. 02380 = 2.375" OD).
③
Suffix -003 = Low Alloy Bolts
Standard configuration. Stainless bolt option available for corrosive environments.
Style 482 — Cast Line Cap
①
For Cast Iron Pipe
Caps cast iron pipe using CI ODs (2.34–2.63", 2.65–2.88", 2.85–3.13", 3.44–3.62"...). Cast body construction.
②
Sizes Available
2"–8" nominal cast iron pipe. Suffix -900 = standard configuration.
③
OD Range Specification
Cast iron pipe OD varies — confirm actual measured OD before ordering. A 4" CI pipe may be 4.80" or 5.00" OD — different part numbers.
| Style | Nom. Size | Pipe Type | OD (in.) | Part Number |
|---|---|---|---|---|
| 481 | 2" | Steel IPS | 2.380 | 481-02380114-003 |
| 481 | 3" | Steel IPS | 3.500 | 481-03500114-003 |
| 481 | 4" | Steel IPS | 4.500 | 481-04500114-003 |
| 482 | 2" | Cast Iron | 2.34–2.63 | 482-00026306-900 |
| 482 | 3" | Cast Iron | 2.85–3.13 | 482-00031306-900 |
| 482 | 4" | Cast Iron | 3.44–3.62 | 482-00035006-900 |
| Additional sizes and OD ranges available — contact us | ||||
Complete Line
All Smith-Blair Products We Carry
Every Smith-Blair style available through Watermain Supply. Contact us for part numbers and availability on any item below.
| Style | Product | Spec / Range |
|---|---|---|
| Style 111 | Cam-Lock Joint Restraint | MJ pipe. 3"–12". With/without gasket. |
| Style 115 | Serrated MJ Fitting Restraint | MJ fittings. 4"–16". IPS & DI. |
| Style 120 | Cam-Lock Restraint for PVC | PVC pipe. 3"–12". |
| Style 165 | Serrated PVC Bell/Spigot Restraint | Bell & spigot PVC. 4"–16". |
| Style 221 | Single Band Repair Clamp | Smaller OD ranges than 226. |
| Style 226 | Full Circle Repair Clamp | Low alloy. OD 2.35"–8.94". |
| Style 227 | Full Circle Repair Clamp | Low alloy. OD 3.49"–14.85". |
| Style 228 | Full Circle Repair Clamp — Large | Low alloy. OD 14.38"–30.72". |
| Style 229 | Collar Leak Clamp | Bell joint sealing. Single band. |
| Style 238 | Tapped Repair Clamp | Alloy. Threaded outlet. 3"–8". |
| Style 239 | Tapped Repair Clamp — Large | Alloy/SS. With outlet. 4"–16". |
| Style 244 | Redi-Clamp — Full Circle | Galv bolts. OD 0.63"–2.38". |
| Style 245 | Redi-Clamp — Full Circle | Galv/SS bolts. OD 0.84"–2.38". |
| Style 246 | Repair Clamp — Multi Band | Galv bolts. 10"–12"+ pipe. |
| Style 247 | Redi-Clamp — 304 SS | All SS Redi-Clamp. ½"–2". |
| Style 248 | Redi-Clamp — Partial 304 SS | Partial coverage SS Redi-Clamp. |
| Style 256 | Full Circle Clamp — PVC/CI | CI/PVC ODs. 2.35"–8.94". |
| Style 257 | Repair Clamp — Double Band SS | Stainless. 2"–6". |
| Style 261 | Full Circle Clamp — All SS | 304 SS. OD 2.35"–8.99". |
| Style 262 | Double Band Clamp — All SS | 304 SS. OD 3.49"–8.94". |
| Style 263 | Multi Band Clamp — All SS | 304 SS. OD 11.04"–14.34". |
| Style 264 | Tapped Clamp — SS Single | Stainless tapped. 3"–8". |
| Style 265 | Tapped Clamp — SS Double | Stainless double band tapped. |
| Style 267 | Higher Pressure Clamp — CS | Carbon steel. Higher pressure. |
| Style 268 | Higher Pressure Clamp — SS | Stainless. Higher pressure. |
| Style 269 | Collar Leak Clamp | Bell joint leak sealing. |
| Style 274 | Bell Joint Leak Clamp | Short bell. 2"–8". Alloy. |
| Style 281 | Wide Range Repair Clamp | Multi-OD coverage. |
| Style 311 | Saddle — Single Bale DI/Galv | DI & galv. 4"–16". |
| Style 313 | Saddle — Double Bale DI | Ductile iron. 4"–16". |
| Style 315 | Saddle — Single Bale DI | All ductile iron. 4"–16". |
| Style 317 | Saddle — Double Strap DI | DI body, dual strap. 4"–16". |
| Style 325 | Bronze Saddle — SS Strap | Bronze body, 304 SS strap. |
| Style 331 | Repair Saddle — Epoxy DI | Double bale. 4"–16". |
| Style 357 | Saddle — SS Straps DI Body | SS straps, DI body. |
| Style 362 | Saddle — DI Body Epoxy Strap | Epoxy coated straps. |
| Style 366 | Saddle — Large Diameter | DI body, epoxy. Large pipe. |
| Style 371 | Saddle — Single Stud SS | All 304 SS. |
| Style 372 | Saddle — Double Stud SS | All 304 SS. |
| Style 377 | Wide Range Saddle | Multi-OD coverage. |
| Style 397 | Saddle — DI/PVC Sized | DI ODs and PVC C-900. |
| Style 411 | Steel Coupling — Straight | Steel IPS. ½"–12". |
| Style 413 | Steel Transition Coupling | Different OD ends. 2"–6". |
| Style 415 | Steel Reducing Coupling | Stepped diameters. Alloy bolts. |
| Style 416 | Steel Insulating Coupling | Single boot. Dielectric. |
| Style 418 | OMNI Long Sleeve Coupling | Straight & transition. |
| Style 421 | Quantum Coupling | Wide-range, multi-OD. |
| Style 422 | Quantum — 12" Sleeve | Long sleeve Quantum. |
| Style 441 | Cast Coupling — 5" Sleeve | 2"–12". Std/304/316 SS. |
| Style 442 | Long Sleeve Cast Coupling — 7" | 4"–12". Std/304/316 SS. |
| Style 471 | Pipe-Lock Restraint — PVC | Cast iron OD PVC. 3"–16". |
| Style 472 | Pipe-Lock Restraint — Steel IPS | IPS steel. 3"–12". |
| Style 473 | Pipe-Lock — Fabricated | Fabricated steel. 3"–12". |
| Style 477 | Pipe-Lock Sleeve Only | Restraint sleeve. 3"–12". |
| Style 481 | Steel Pipe End Cap | Steel IPS. 2"–12". |
| Style 482 | Cast Line Cap | Cast iron. 2"–8". |
| Style 525 | OMNI Cast Coupling | Straight & transition. |
| Style 622 | Tapping Sleeve — CS | 4"–36" main. NPT & MJ. |
| Style 664 | Tapping Sleeve — CS | 4"–14" main. NPT & MJ. |
| Style 665 | Tapping Sleeve — Stainless | All-SS. 4"–14" main. |
| Style 907 | Flange-Lock System | Seal & restraint coupling. |
| Style 911 | Flange-Lock FCA — DI/Steel | Restrained FCA. 3"–12". |
| Style 912 | Flanged Coupling Adapter | Wide OD. 3"–24". |
| Style 913 | Flanged Coupling Adapter | Tight OD. 3"–24". Alloy/SS. |
| Style 920 | Flange-Lock FCA — PVC | Restrained FCA. 4"–12". |
| Style 923 | Flange-Lock FCA — Cam-Lock | Restrained FCA. Cam-lock. |
| Style 975 | Restrained Dismantling Joint | 4"–12". Alloy or SS. |
| EZW Series | EZW Restraints | Seal & restraint products. |
| Tie Rods | Tie Rods, Nuts, Plates | External MJ joint restraint. |
Technical FAQ
Common Questions
What's the difference between Style 226 and Style 227 repair clamps?
Both are low alloy full circle clamps — they differ by OD range. Style 226 covers OD 2.35"–8.94" (2"–6" pipe). Style 227 covers OD 3.49"–14.85" (4"–12" mains). They overlap on 4"–6" — either works, though utilities often standardize on 227 for that range.
When should I specify stainless clamps (261/262) instead of low alloy (226/227)?
Specify stainless when: soil has high chloride or conductivity; installation is coastal, marine, or chemically contaminated; utility specification requires it; or service life exceeds 30+ years. Low alloy is acceptable for standard buried service in normal soils.
How do I select the correct tapping sleeve for my main?
You need: (1) measured main OD; (2) pipe material (steel, cast iron, PVC, DI); (3) outlet size; (4) outlet type (NPT or MJ); (5) body material (carbon steel or SS). A 6" steel IPS and 6" cast iron main have different ODs — always measure, never assume nominal size.
Can Smith-Blair clamps be used on PVC pipe?
Yes — Styles 226, 227, 256, and 261 are all used on PVC. PVC is more prone to crushing under over-torqued bolts, so use the lower torque range. Confirm OD match and check local specs for PVC stiffener requirements.
What does the -000 vs. -001 suffix mean on repair clamps?
-000 = low alloy bolts. -001 = stainless steel bolts on a low alloy body. For all-stainless construction (body and bolts), specify Styles 261/262/263 — not 226/227 with -001 suffix, which still uses a low alloy body.
What's the clamp width I need for a pitting leak?
For a defined pitting leak, 7.5" is typically sufficient if it gives 1.5" coverage past the pit edge on each side. If pitting is scattered or edges are unclear, use 10"–12". Over-specifying width is always safer than risking a secondary leak at the clamp edge.
What is the difference between Style 912 and Style 913 FCAs?
Style 912 has a wider OD tolerance — useful for older cast iron or when OD is uncertain. Style 913 uses a tighter OD range for a more precise gasket seat. If the pipe OD is confirmed, 913 is the more secure choice.
How do I order the correct part for a tapped repair clamp?
Tapped clamps (238, 239, 264) add a threaded outlet for a branch or blowoff at the repair point. Specify pipe OD, clamp width, outlet thread size/type, and bolt material. Contact sales@watermainsupply.com — a quick conversation saves reorder time.
Which Smith-Blair service saddle is right for ductile iron pipe?
For DI pipe specifically, Style 397 is sized for DI ODs and PVC pipe with DI ODs (PVC C-900). For corrosion-resistance, Styles 371/372 are all 304 SS. For combined repair + service tap on a compromised pipe section, Style 331 repair service saddle (epoxy DI body) handles both functions.
What is the Quantum coupling (Styles 421/422) and when do I use it?
Quantum couplings are wide-range couplings that accept multiple pipe ODs in a single SKU. Use them when stocking multiple precise-fit couplings is impractical — emergency response inventories, contractors handling diverse pipe materials, or utilities consolidating SKU counts. Style 422 has a 12" sleeve for higher pull-out resistance.
What restraint products do I need for buried PVC pipe?
For PVC pipe restraint at MJ joints, Style 165 serrated bell/spigot restraint is most common. For restrained sleeve couplings on PVC pipe, Style 471 Pipe-Lock provides both flexible connection and axial restraint. For restrained FCAs on PVC, Style 920 Flange-Lock is the standard.
Are you an authorized Smith-Blair distributor?
Yes — Watermain Supply (DBA of E4 Industrial LLC) is an authorized Xylem dealer carrying the full Smith-Blair waterworks product line. All products ship factory-direct or from Houston stock with full Xylem/Smith-Blair warranty.
Ready to Order or Need a Quote?
We stock the complete Smith-Blair line and turn quotes same day. Volume pricing available for utilities, municipalities, and contractors.
sales@watermainsupply.com
281.664.8000Technical Sales Support
sales@watermainsupply.comSame-Day Quote Response
Stocked & Ready to ShipHouston, TX Distribution
- Choosing a selection results in a full page refresh.
