TIGERFLOW Pumps and Booster Systems
TIGERFLOW TMHS Multistage Centrifugal Pump - NPT Threaded Ports
TIGERFLOW
TIGERFLOW TMHS Multistage Centrifugal Pump - NPT Threaded Ports
- Price
- From $728.02
TIGERFLOW Tigercub Thermal Purge Valve - 1/4 in, 400 PSI
TIGERFLOW
TIGERFLOW Tigercub Thermal Purge Valve - 1/4 in, 400 PSI
- Price
- From $532.55
TIGERFLOW Tigercub and Ocelot Diaphragm Expansion Tank - 150 PSI
TIGERFLOW
TIGERFLOW Tigercub and Ocelot Diaphragm Expansion Tank - 150 PSI
- Price
- From $167.32
TIGERFLOW Tigercub CD5 Simplex Variable Speed Booster System
TIGERFLOW
TIGERFLOW Tigercub CD5 Simplex Variable Speed Booster System
- Price
- From $7,679.92
TIGERFLOW Tigercub CD3 Simplex Variable Speed Booster System
TIGERFLOW
TIGERFLOW Tigercub CD3 Simplex Variable Speed Booster System
- Price
- From $7,941.31
TIGERFLOW Tigercub CD20 Simplex Variable Speed Booster System
TIGERFLOW
TIGERFLOW Tigercub CD20 Simplex Variable Speed Booster System
- Price
- From $11,021.47
TIGERFLOW Tigercub CD15 Simplex Variable Speed Booster System
TIGERFLOW
TIGERFLOW Tigercub CD15 Simplex Variable Speed Booster System
- Price
- From $10,242.02
TIGERFLOW Tigercub CD10 Simplex Variable Speed Booster System
TIGERFLOW
TIGERFLOW Tigercub CD10 Simplex Variable Speed Booster System
- Price
- From $8,627.87
TIGERFLOW TEFC NEMA C-Face Pump Motor - 2-Pole, 3500 RPM, 60 Hz
TIGERFLOW
TIGERFLOW TEFC NEMA C-Face Pump Motor - 2-Pole, 3500 RPM, 60 Hz
- Price
- From $411.09
TIGERFLOW T1HS Stainless Steel End Suction Centrifugal Pump - NSF 61/372
TIGERFLOW
TIGERFLOW T1HS Stainless Steel End Suction Centrifugal Pump - NSF 61/372
- Price
- From $1,074.57
TIGERFLOW Ocelot Duplex Variable Speed Booster System - Lead-Lag
TIGERFLOW
TIGERFLOW Ocelot Duplex Variable Speed Booster System - Lead-Lag
- Price
- $8,798.06
TIGERFLOW Ocelot Duplex Booster Accessory - Flange Adapters and Gauge
TIGERFLOW
TIGERFLOW Ocelot Duplex Booster Accessory - Flange Adapters and Gauge
- Price
- From $80.97
TIGERFLOW Pumps and Booster Systems
TIGERFLOW Systems · Pumps and Booster Systems
TIGERFLOW Pumps
TIGERFLOW Pumps
CD Vertical Multistage, Tigercub and Ocelot Boosters
Stainless steel vertical multistage pumps from 1/2 to 50 HP, packaged Tigercub simplex booster systems with a variable frequency drive, and self-priming Ocelot variable speed boosters for homes and light commercial buildings. Every selection is checked against TIGERFLOW’s published curve before it ships.
10 SeriesCD1 to CD85
572 GPMMax flow, CD85
807 ftMax head, CD10
362 psiCD max working pressure
NSF 61 / 372cULus listed
TIGERFLOW Systems builds packaged booster systems and the CD vertical multistage pump family that runs inside them. The CD is an in-line pump with laser-welded stainless steel impellers and chambers, a cartridge mechanical seal and a premium-efficiency TEFC motor, in ten flow classes from 4.4 to 374 GPM nominal. Around it TIGERFLOW offers the Tigercub simplex booster, the Ocelot 25, Ocelot 60 and Ocelot Duplex variable speed boosters, the T1HS stainless end suction pump and the TMHS threaded multistage pump.
Watermain Supply lists the full TIGERFLOW range: complete CD pumps and wet ends, Tigercub systems, Ocelot boosters, T1HS and TMHS pumps, TEFC replacement motors, seals, flange kits and tanks. Send your flow, pressure and power and we will reply the same day with a sized selection. Call 1-888.510.4036. Genuine TIGERFLOW equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Booster Pump Sizing CalculatorFlow, boost and the boosters that fit Well and Irrigation Pump CalculatorTotal dynamic head and flow for a CD or T1HS Pressure Tank Sizing CalculatorDrawdown and tank size
Will a TIGERFLOW Pump Work for Your Job?
The four questions buyers ask first, answered from TIGERFLOW’s published data.
Warranty
CD pumps and wet ends carry TIGERFLOW’s one-year guarantee under normal operating conditions, per the CD Series manual; wearable parts are excluded. Tigercub, Ocelot, T1HS, TMHS, motors and parts are covered for 12 months from the date of purchase.
Built to Last
Hydraulically balanced stainless impellers and guide vanes, stamped and laser-welded on robotic equipment. A cartridge seal in carbon, silicon carbide and Viton comes out as one piece, and the TEFC motors reach a Minimum Efficiency Index of up to 0.7.
The Fit Limits
CD: 362 psi maximum working pressure, liquid 5°F to 248°F as a guide, ANSI Class 300 flanges 1-1/4 to 4 in, fill and vent before start. T1HS: 115 psi, 14°F to 185°F. Ocelot: self-priming to 9 ft, water to 167°F.
Size It Now
Enter flow and pressure and the calculator returns the pumps that hold your duty point.
Or send the numbers: sales@watermainsupply.com · 1-888.510.4036
CD Cartridge Seal Replacement
TIGERFLOW’s walkthrough of the cartridge seal swap on a CD pump, the most common service job on a vertical multistage pump.
CD cartridge mechanical seal replacement
The TIGERFLOW Range
Three families cover most jobs: the CD pump on its own, the CD packaged as a Tigercub booster, and the Ocelot for homes and light commercial buildings.

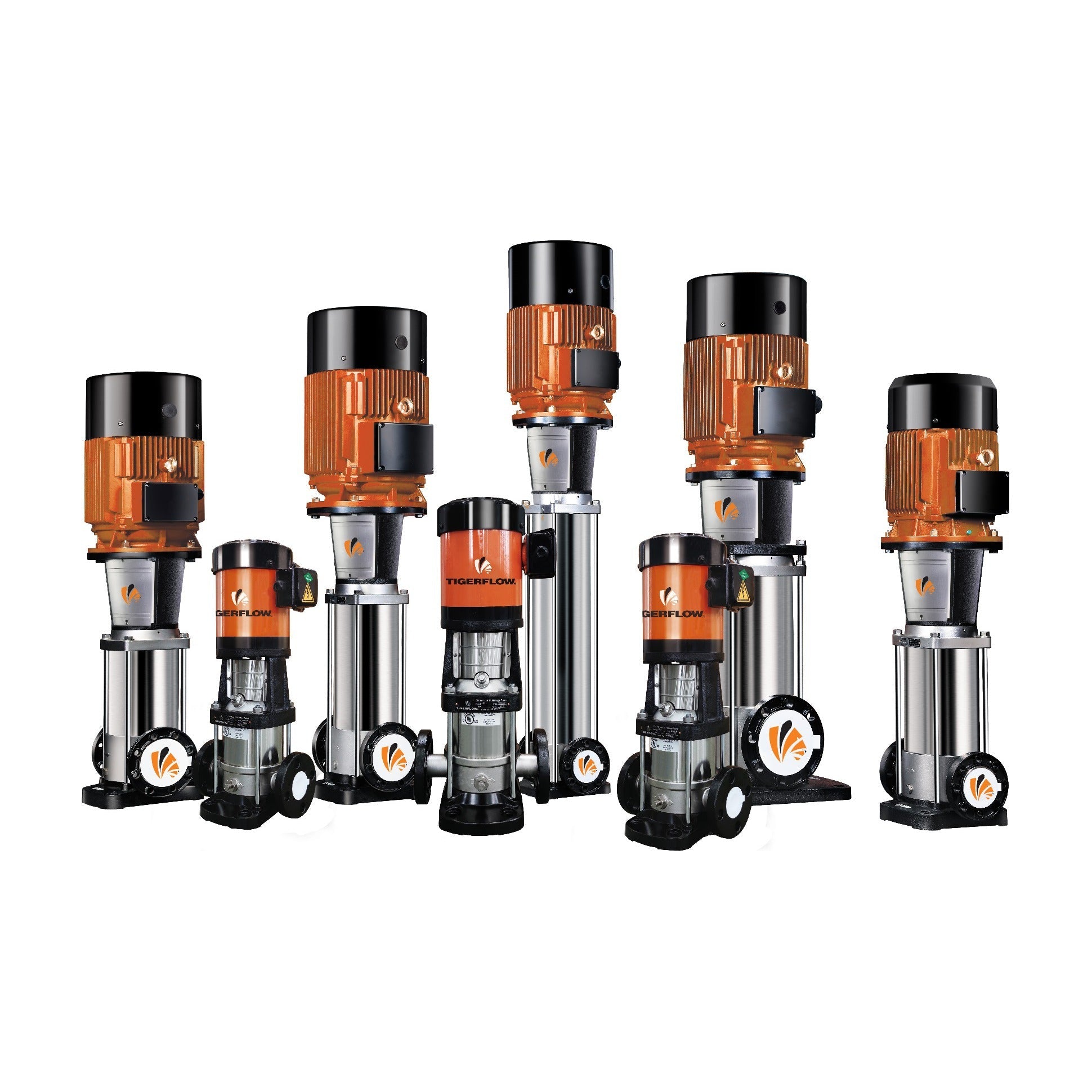

CD Vertical Multistage Pumps
Ten flow classes, 1/2 to 50 HP
572 GPMMax flow, CD85
807 ftMax head, CD10
362 psiMax working
Class 300ANSI flanges
In-line suction and discharge on a common base, stacked stainless impellers and a NEMA TC-frame TEFC motor on top. More stages give more head at the same flow. Sold complete with motor or as a wet end.
- CD1 to CD85, 4.4 to 374 GPM nominal
- 304/316 stainless impellers and chambers; cast iron or 316 head and base
- Cartridge seal: carbon / silicon carbide / Viton
- NSF/ANSI 61 and 372, cULus Listed
Best forPressure boosting, boiler feed, fire-system jockey pumps, HVAC circulation, industrial and municipal water, irrigation.
View CD Pumps

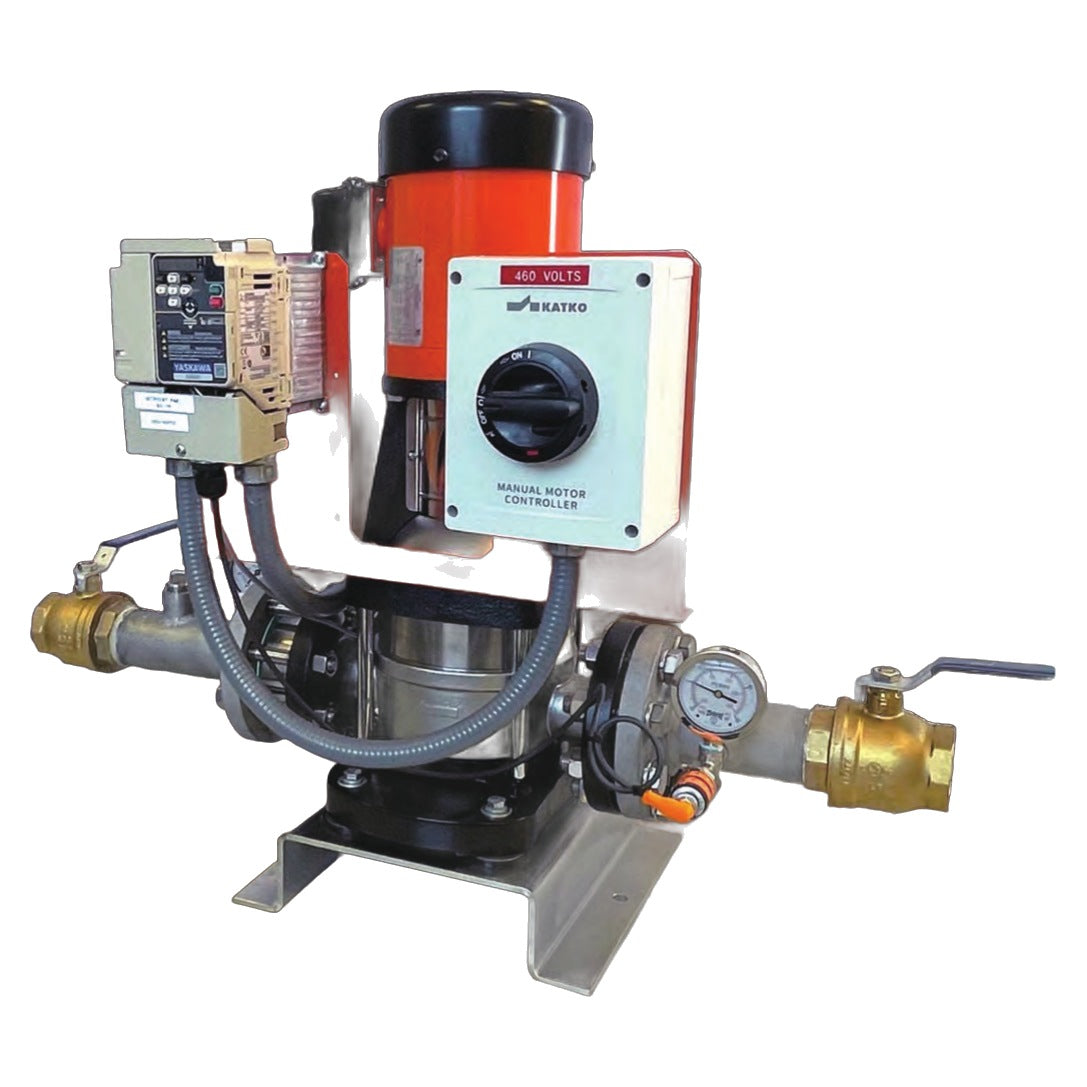

Tigercub Simplex Booster
A CD pump, drive and panel on one base
305 psiMax boost, CD5
154 GPMMax flow, CD20
1 to 7-1/2HP
UL / cULPackaged system
A CD3, CD5, CD10, CD15 or CD20 pump on a stainless base and manifold with a variable frequency drive and a UL 508A listed disconnect panel, prefabricated and factory tested. The drive holds constant pressure as demand changes.
- Non-slam stainless check valve and low suction alarm
- Liquid-filled gauges and vibration isolators
- Union-ball valves on suction and discharge
- 208-230V 1Ph; 208-230V or 460V 3Ph
Best forApartment buildings, hotels, municipal sites and shopping centers that need high boost from one packaged pump.
View Tigercub Systems
Ocelot Variable Speed Boosters
Self-priming, permanent magnet motor
77 GPMMax flow, Ocelot 60
99 psiMax boost
9 ftSelf-priming
IPX6Outdoor cover
Variable speed boosters with an integrated drive, built-in expansion tank and check valves on suction and discharge, in a 304 stainless pump body. Low-flow detection slows or stops the pump when demand drops.
- Ocelot 25: 1 HP, 120V, 24 GPM max
- Ocelot 60: 2 HP, 208-230V 1Ph or 3Ph, 77 GPM max
- Ocelot Duplex: two Ocelot 60, lead-lag, 144 GPM max
- Water to 167°F
Best forHomes on low city pressure, tank or cistern supply, and multifamily or light commercial buildings.
View Ocelot 60
Single Pumps, End Suction and Wet Ends
Ocelot 25
24 GPM max · 164 ft max head · 1 HP · 120VSelf-priming to 9 ft

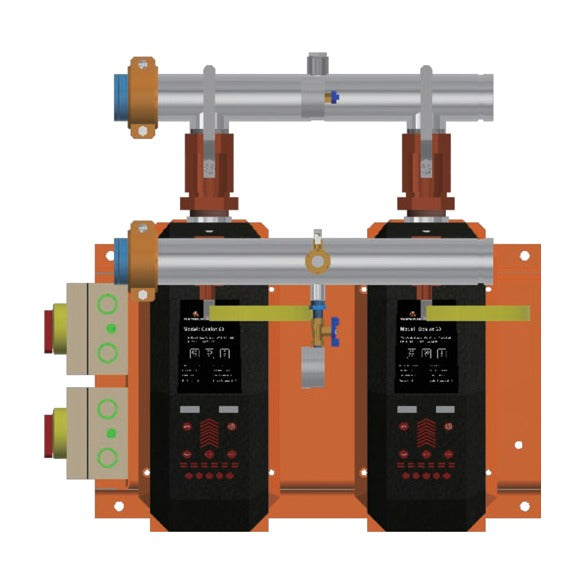

Ocelot Duplex
144 GPM max · 230 ft max head · 2 x 2 HPLead-lag with alternation
T1HS End Suction
92 GPM max · 131 ft max head · 1-1/2 to 3 HP304 stainless, closed-coupled
CD Wet Ends
Pump end only, CD1 to CD85Fits your NEMA C-face motor
TEFC Pump Motors
3/4 to 30 HP · 56C to 286TSC2-pole, 3500 RPMAlso in the range: the TMHS multistage pump, six series from 1/2 to 10 HP with NPT threaded ports and an IP55 TEFC motor.
CD Series at a Glance
The model number is the nominal flow in cubic metres per hour. Pick the series whose flow range covers your duty, then the stage count that gives the head.
| Series | Nominal GPM | Max GPM | Max head (ft) | HP | Power | Flanges, Class 300 | Pump end |
|---|---|---|---|---|---|---|---|
| CD1 | 4.4 | On request | On request | 1/2 to 2 | 1Ph or 3Ph | 1-1/4 in | Wet end |
| CD3 | 13 | 22 | 643 | 3/4 to 5 | 1Ph or 3Ph | 1-1/4 in | Wet end |
| CD5 | 22 | 44 | 705 | 1 to 7-1/2 | 1Ph or 3Ph | 1-1/4 in | Wet end |
| CD10 | 44 | 74 | 807 | 2 to 15 | 3Ph | 2 in | Wet end |
| CD15 | 66 | 127 | 784 | 5 to 25 | 3Ph | 2 in | Wet end |
| CD20 | 88 | 154 | 666 | 5 to 25 | 3Ph | 2 in | Wet end |
| CD32 | 141 | 211 | 462 | 7-1/2 to 20 | 3Ph | 2-1/2 in | Wet end |
| CD42 | 185 | 286 | 453 | 7-1/2 to 40 | 3Ph | 3 in | Wet end |
| CD65 | 286 | 440 | 446 | 15 to 40 | 3Ph | 4 in | Wet end |
| CD85 | 374 | 572 | 540 | 15 to 50 | 3Ph | 4 in | Wet end |
Max GPM is where TIGERFLOW’s curve ends; max head is the shut-off head of the tallest model in the series. Power: 1Ph builds are 115/230V to 2 HP and 230V at 3 HP; 3Ph builds are 230/460V. CD1 curves are supplied by TIGERFLOW on request. Every series page carries the full model table in psi at four flows.
Quick rule. Divide the series number by 0.227 for nominal GPM. Choose the series whose nominal flow sits at or just above your duty, then the fewest stages that clear the required head with margin at that flow.
TIGERFLOW vs Grundfos, Franklin Electric and DAB
We sell every line below, so we can be straight about fit. Specifications are taken from our own product pages for each brand.
Mid-size vertical multistage pumps
| Specification | TIGERFLOW CD10 | Grundfos CR 10 | Franklin Electric 10VR |
|---|---|---|---|
| Nominal flow | 44 GPM | 53.3 GPM rated | 60 GPM at BEP |
| Max head, tallest model | 807 ft | 817 ft | 2 to 17 stages |
| Motor range | 2 to 15 HP TEFC | 3/4 to 15 HP TEFC | 1-1/2 to 15 HP, ODP or TEFC |
| Single phase | No, 3Ph only on CD10 | Yes, to 3 HP | Yes, to 7-1/2 HP |
| Wetted materials | 304/316 stainless impellers and chambers; cast iron or 316 head and base | Cast iron head and base; other wetted parts 304 stainless | 316 stainless throughout (N version) |
| Connections | 2 in ANSI Class 300 flanges | 2 in NPT oval (232 psi) or 2 in ANSI 250 lb (362 psi) | 2 in round flange |
| Max working pressure | 362 psi | 232 psi oval; 362 psi ANSI | Per flange and piping rating |
| Liquid temperature | 5°F to 248°F guide | −4°F to 248°F (HQQE seal) | 14°F to 248°F |
| Seal | Cartridge: carbon / SiC / Viton | Cartridge HQQE or HQQV | Type 1 cartridge: graphite / SiC / EPDM |
| Drinking water | NSF/ANSI 61 and 372; cULus | NSF/ANSI 61 | NSF/ANSI 61 and 372 |
Verdict. The CD10 matches the CR 10 on maximum head and on the 362 psi rating, and comes with Class 300 flanges as standard and NSF/ANSI 372 plus cULus on the pump. Grundfos CR 10 is the pick when you need NPT oval flanges or a single-phase motor to 3 HP. Franklin 10VR wins where the water calls for 316 stainless throughout or the job needs a single-phase motor to 7-1/2 HP or an ODP motor.
Residential and light commercial boosters
| Specification | TIGERFLOW Ocelot 25 | TIGERFLOW Ocelot 60 | DAB Esybox Mini3 | DAB Esybox |
|---|---|---|---|---|
| Max flow | 24 GPM | 77 GPM | 22 GPM | 31.7 GPM |
| Max head | 164 ft (70 psi) | 230 ft (99 psi) | 183 ft (79 psi) | 213 ft (92 psi) |
| Motor | 1 HP | 2 HP | 1.1 HP (P1) | 2.1 HP (P1) |
| Power | 120V 1Ph | 208-230V 1Ph or 3Ph | 115-127V or 208-240V 1Ph | 230V 1Ph |
| Connections | 1 in NPT | 2 in NPT | 1 in NPT | 1 in NPT |
| Self-priming | 9 ft standard, to 25 ft | 9 ft standard, to 25 ft | 26 ft | 26 ft |
| Pump body | 304 stainless | 304 stainless | Glass-filled polypropylene | Technopolymer |
| Water temperature | 32°F to 167°F | 32°F to 167°F | 32°F to 104°F | To 104°F |
| Multi-pump | Single unit | Ocelot Duplex skid, lead-lag | Pairs with one more, wireless | Up to four, wireless |
| App | None | None | H2D app | H2D app |
| Weight | 17.6 lb | 53 lb | 32.2 lb | 59.5 lb |
| Warranty | 12 months from purchase | 12 months from purchase | 24 months from purchase | 24 months from purchase |
Verdict. The Ocelot 60 carries more than twice the flow of the Esybox, 77 against 31.7 GPM, runs on three-phase power as well as single phase, and takes water to 167°F in a stainless body. The Esybox and Mini3 lead on warranty (24 months), suction lift (26 ft), app control and wireless grouping. The Ocelot 25 is the choice when only 120V is available and the job needs a stainless pump body.
Which TIGERFLOW Pump Do You Need?
Typical selections by job. Demand figures are starting points; send us the duty for an engineering-led selection.
| Application | Typical duty | Recommended | Notes |
|---|---|---|---|
| Single home on low city pressure, 120V only | Up to 13 GPM at 39 psi boost | Ocelot 25 | Self-priming; works from a tank or cistern too. |
| Large home or light commercial, 208-230V | Up to 35 GPM at 61 psi boost | Ocelot 60 | Single or three phase; 2 in NPT. |
| Multifamily that needs a standby pump | Up to 70 GPM at 61 psi boost | Ocelot Duplex | Two Ocelot 60 pumps, lead-lag with alternation. |
| Commercial building that needs high boost | 22 to 154 GPM, boost to 305 psi | Tigercub CD3 to CD20 | Simplex; add the expansion tank and purge valve. |
| Boiler feed, RO, wash-down, industrial boosting | 4.4 to 374 GPM nominal | CD complete pump | Class 300 flanges; NPT companion flange kits available. |
| Worn pump end on a good motor | Same model as installed | CD wet end | Match motor frame and HP. |
| Transfer, circulation or irrigation at low head | 10 to 92 GPM, up to 56 psi | T1HS end suction | 304 stainless, 115 psi max working pressure. |

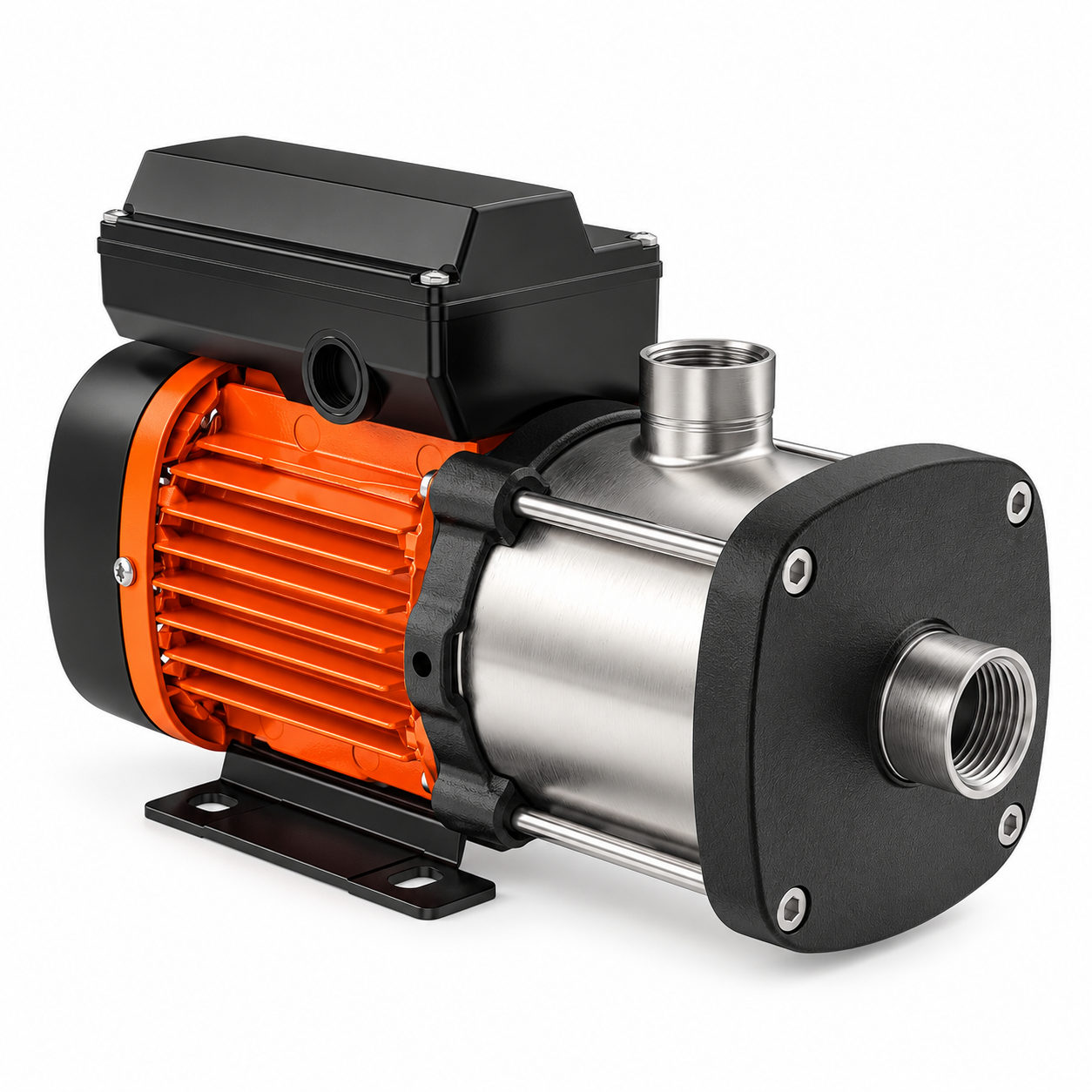

| Small threaded multistage replacement | 1/2 to 10 HP | TMHS | NPT threaded ports; send the old nameplate. |
Sizing a CD Pump
Two numbers pick the pump: the flow you need and the pressure the pump must add at that flow.
1. Pressure the pump must add
Pressure needed at the outlet + 0.433 psi per foot of lift to the highest point + friction losses − pressure already at the pump inlet. Convert to feet of head by multiplying psi by 2.31.
2. Flow
Use the peak simultaneous demand, not the total connected load. Then pick the series whose nominal flow sits at or a little above your duty.
Worked example: 40 GPM at 130 psi of added pressure. 130 psi × 2.31 = 300 ft of head. 40 GPM is inside the CD10 range (44 GPM nominal). On the CD10 curves, the CD10-6 adds 278 ft at 40 GPM, which falls short; the CD10-7 adds 330 ft, about 142 psi, a 12 psi margin, on a 7-1/2 HP motor. Its shut-off head is 371 ft, 160 psi, so with 40 psi at the inlet the casing sees about 200 psi, well inside the 362 psi limit.
3. Check the limits
Inlet pressure plus shut-off pressure below 362 psi. Never run against a closed valve or below the minimum flow. Fill and vent before start; a suction lift works only where NPSH available exceeds NPSH required. Confirm the power: CD10 and larger are three phase.
What Sets TIGERFLOW Apart
The construction details that matter on an installation.
Laser-Welded Stainless Hydraulics
Impellers and guide vanes are stamped and laser-welded on robotic equipment and hydraulically balanced, for consistent clearances and lower axial thrust.
Cartridge Seal on Every CD
The carbon, silicon carbide and Viton seal comes out as one cartridge, so a seal change is a short job without disturbing the hydraulics.
Premium-Efficiency TEFC Motors
Standard on every complete CD pump, with a Minimum Efficiency Index up to 0.7 on the pump end.
Class 300 Flanges
ANSI Class 300 flanged suction and discharge, in line, 1-1/4 to 4 in. NPT companion flange kits in 304 stainless or A105 carbon steel are listed separately.
Packaged and Listed
The Tigercub is prefabricated and factory tested as one UL / cUL listed packaged pumping system with a UL 508A listed disconnect panel.
Permanent Magnet Boosters
The Ocelot pairs a permanent magnet motor with an integrated drive; the pump slows as demand falls and stops at no flow.

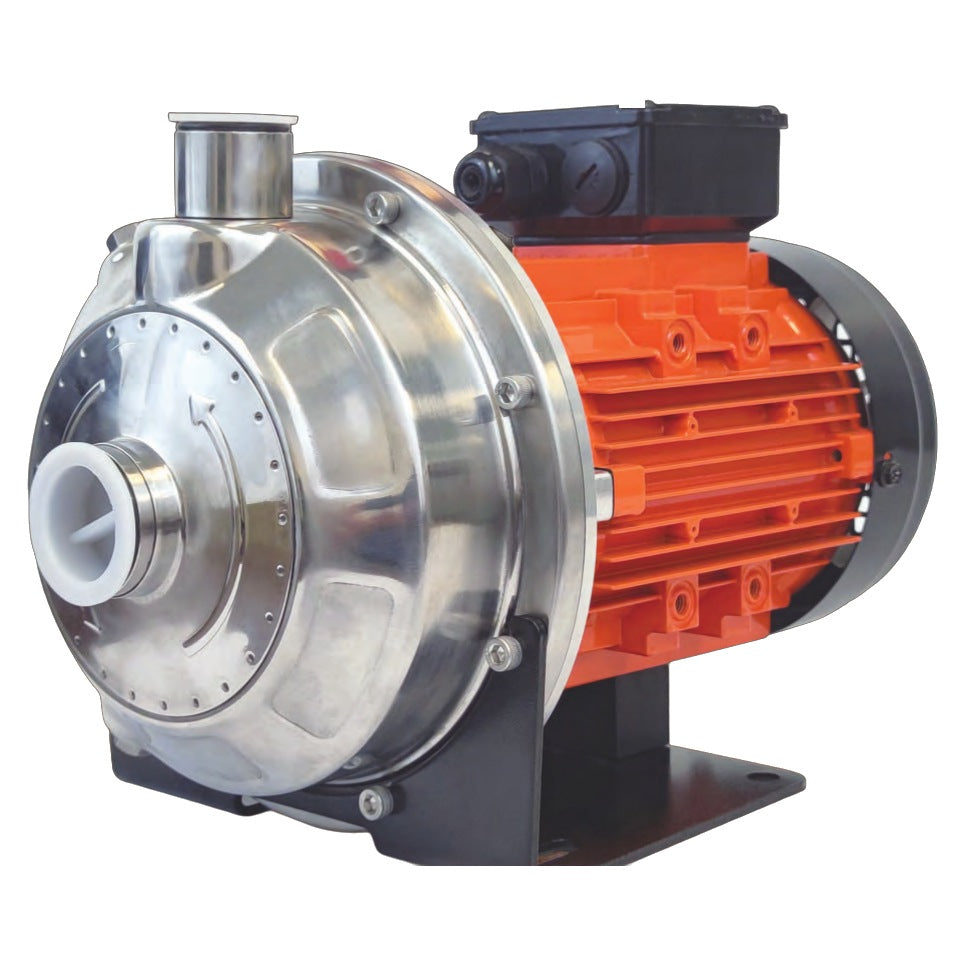

Stainless End Suction
The T1HS has a 304 stainless pump body, diffuser and impeller, closed-coupled to an IP55 / NEMA 4 TEFC motor.
Drinking Water Certified
CD and T1HS pumps are certified to NSF/ANSI 61 and NSF/ANSI 372 and are cULus Listed.
TIGERFLOW Parts and Accessories
Order them with the pump so the job ships together.
CD Wet Ends
The pump end without motor, for every CD model from CD1 to CD85.

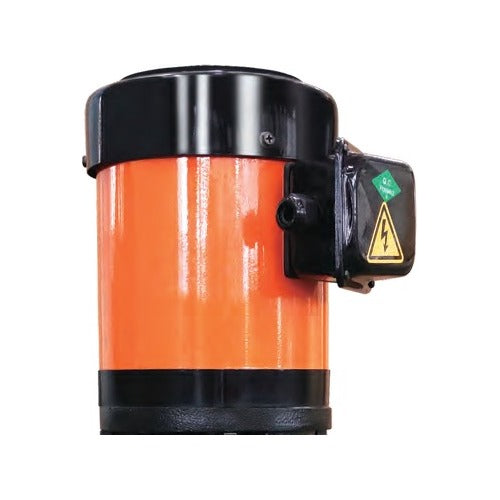

TEFC Motors
3/4 to 30 HP, 56C to 286TSC, 230/460V 3Ph or 115/230V 1Ph.

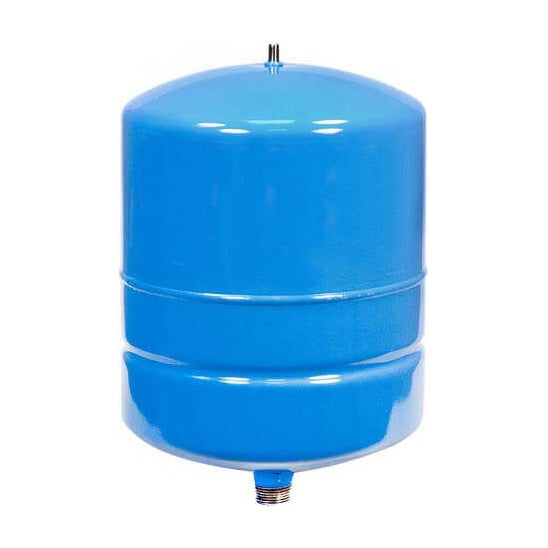

Expansion Tanks
Diaphragm tanks rated 150 psi for the Tigercub and the Ocelot Duplex.

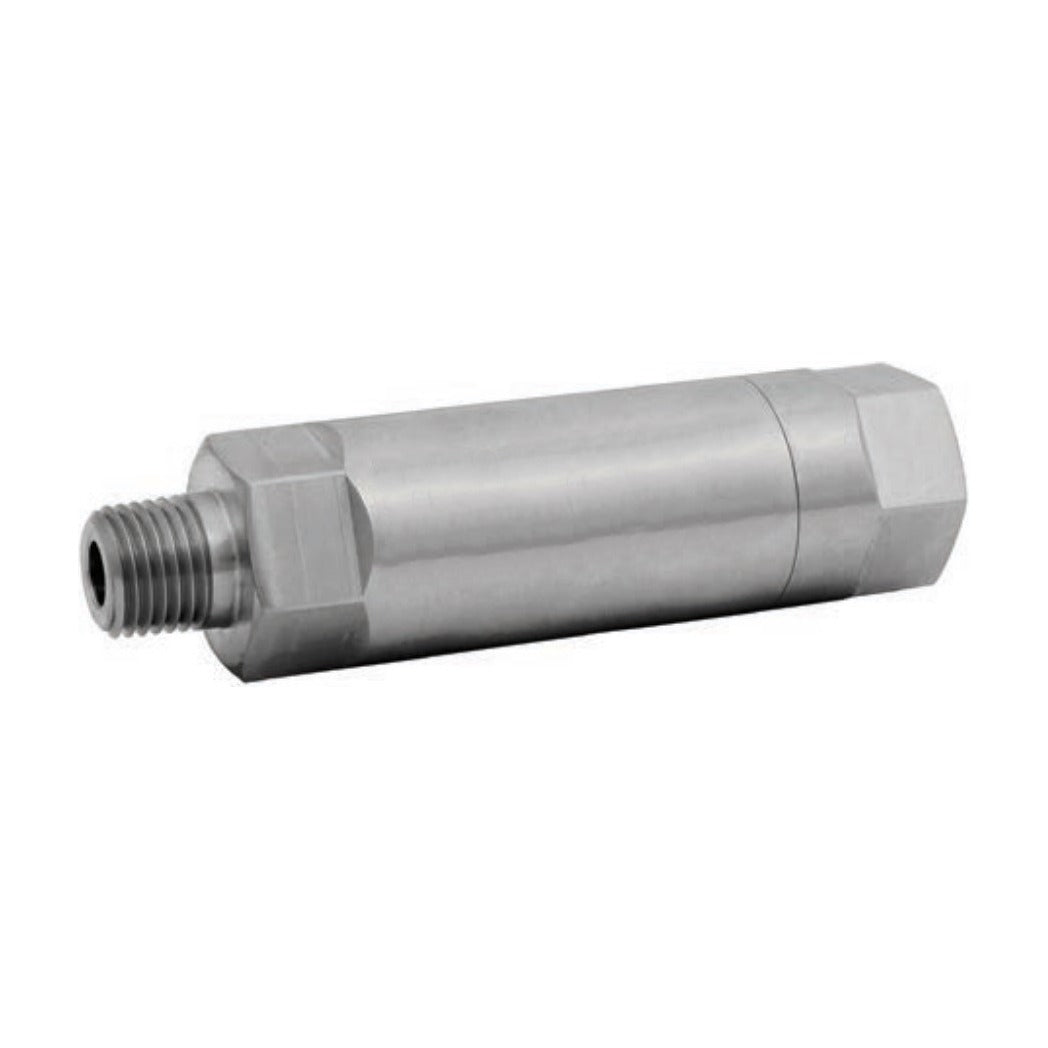

Thermal Purge Valve
Bleeds hot water off a Tigercub at low flow to protect the pump.
Also listed: CD cartridge mechanical seals, NPT companion flange kits, CD connection options and Ocelot Duplex accessories.
Why Buy TIGERFLOW from Watermain Supply
Engineering-Led Sizing
Send the duty and we select the series, stage count and motor from TIGERFLOW’s published curves, with the margin shown.
Same-Day Quote
Flow, pressure and power in the morning; a sized selection, accessories and ship date back the same day.
We Verify Your Duty Point
Every order is checked against the curve for your flow, inlet pressure and set point before it ships. Submittals on request.
Multi-Brand Honesty
We also sell Grundfos, Franklin Electric, DAB, Goulds and A.Y. McDonald. If TIGERFLOW is not the right fit, we will say so and quote the one that is.
Account Terms Available
Net-30 for qualified contractor, industrial and municipal accounts. PO and credit applications handled in-house.
Parts and Aftermarket
Seals, wet ends, motors, flange kits and tanks, cross-referenced by model number.
Frequently Asked Questions
Common questions from engineers, contractors and facility teams selecting a TIGERFLOW pump.
What warranty comes with TIGERFLOW pumps?
CD vertical multistage pumps and wet ends carry TIGERFLOW’s one-year guarantee under normal operating conditions, as stated in the CD Series installation, operation and maintenance manual; wearable parts are not covered. Tigercub, Ocelot, T1HS, TMHS, motors and parts are covered for 12 months from the date of purchase.
Are TIGERFLOW pumps approved for drinking water?
Yes. CD and T1HS pumps are certified to NSF/ANSI 61 and NSF/ANSI 372 and are cULus Listed. The Tigercub is a UL / cUL listed packaged pumping system built on a CD pump.
How does the TIGERFLOW CD compare with Grundfos CR and Franklin Electric VR?
All three are in-line vertical multistage pumps with cartridge seals and stainless hydraulics. The CD ships with ANSI Class 300 flanges and a 362 psi maximum working pressure, and carries NSF/ANSI 61 and 372 plus cULus. Grundfos CR offers NPT oval flanges and single-phase builds to larger frames; Franklin VR offers all-316 stainless wetted parts and ODP motors.
Does a CD pump prime itself?
No. Fill and vent the CD before it starts and never run it dry or against a closed valve. The Ocelot 25 and Ocelot 60 are the self-priming TIGERFLOW pumps, 9 ft standard and up to 25 ft depending on installation conditions.
What is the difference between a complete CD pump and a CD wet end?
A complete pump ships with the TEFC motor coupled to the pump end. A wet end is the pump end only, for a customer who already has a good NEMA C-face motor or is replacing a worn pump end. Match the motor frame and horsepower to the wet end model.
Which TIGERFLOW booster is right for a house?
The Ocelot 25 runs on 120V and adds 39 psi at 13 GPM, which covers most single homes on city water. The Ocelot 60 runs on 208-230V single or three phase and adds 61 psi at 35 GPM, for larger homes and light commercial use.
What does a Tigercub booster system include?
A CD vertical multistage pump and TEFC motor on a stainless base and manifold, a variable frequency drive, a UL 508A listed disconnect panel, a non-slam stainless check valve, low suction alarm, gauges, vibration isolators and union-ball valves, factory tested as one unit. The expansion tank and thermal purge valve are options.
What is the maximum working pressure of a CD pump?
362 psi. Inlet pressure plus the pump’s shut-off pressure must stay below that figure. The T1HS end suction pump is rated to 115 psi.
Can a CD pump run on single-phase power?
CD1, CD3 and CD5 have single-phase builds: CD1, CD3 and CD5 up to 2 HP at 115/230V, and CD3 and CD5 at 3 HP on 230V. CD10 and larger are three phase, 230/460V.
Ready to Size Your TIGERFLOW Pump?
Send your flow, the pressure you need, the inlet pressure and the power available. We will reply the same day with a sized selection, accessories and ship date.
Technical data on this page is taken from TIGERFLOW Systems product literature (CD Series catalog 2023 and manual, Tigercub catalog 2022, T1HS 2022, Ocelot brochure April 2025) and is subject to change by the manufacturer. Confirm against the current installation manual before specifying.
TIGERFLOW, CD, Tigercub, Ocelot, T1HS and TMHS are trademarks of TIGERFLOW Systems, LLC; Grundfos and CR of Grundfos Holding A/S; Franklin Electric and VR of Franklin Electric Co., Inc.; DAB, Esybox and Esybox Mini3 of DAB Pumps S.p.A. All are used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
TIGERFLOW, CD, Tigercub, Ocelot, T1HS and TMHS are trademarks of TIGERFLOW Systems, LLC; Grundfos and CR of Grundfos Holding A/S; Franklin Electric and VR of Franklin Electric Co., Inc.; DAB, Esybox and Esybox Mini3 of DAB Pumps S.p.A. All are used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
- Choosing a selection results in a full page refresh.
