Irrigation and Water Transfer Pumps
A.Y. McDonald 27000 Super Booster Multistage Pump - NSF 61/372 Potable
A.Y. McDonald
A.Y. McDonald 27000 Super Booster Multistage Pump - NSF 61/372 Potable
- Price
- From $968.63
A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump
A.Y. McDonald
A.Y. McDonald 89000 E-Series Self-Priming Sprinkler Pump
- Price
- From $705.95
A.Y. McDonald 8600SW Self-Priming Irrigation Pump
A.Y. McDonald
A.Y. McDonald 8600SW Self-Priming Irrigation Pump
- Price
- From $573.02
A.Y. McDonald Workhorse End Suction Centrifugal Pump
A.Y. McDonald
A.Y. McDonald Workhorse End Suction Centrifugal Pump
- Price
- From $591.41

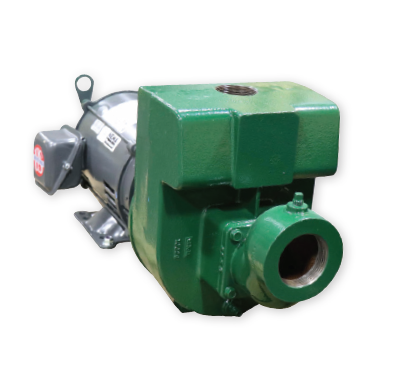

A.Y. McDonald 84000 Self-Priming Irrigation Pump
A.Y. McDonald
A.Y. McDonald 84000 Self-Priming Irrigation Pump
- Price
- From $2,370.78
A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump
A.Y. McDonald
A.Y. McDonald 1500XSW Multi-Stage Centrifugal Pump
- Price
- From $1,616.78
Irrigation and Water Transfer Pumps
A.Y. McDonald Pumps
Irrigation & Water Transfer
Irrigation & Water Transfer
Centrifugal Pumps
Self-priming sprinkler and irrigation pumps, end suction transfer pumps and high-pressure multistage pumps from A.Y. McDonald, 1/3 to 5 HP: up to 173 GPM on the 84000 and up to 297 PSI on the 27000 Super Booster. Held in Houston for Gulf Coast delivery.
1/3–5 HPSingle or Three Phase
173 GPMMax Flow, 84500
297 PSIMax Pressure, 27000
6 SeriesIrrigation, Transfer, Multistage
25 ftPublished Self-Priming Lift
A.Y. McDonald surface centrifugal pumps move water for lawn sprinkling, field and nursery irrigation, pond and tank transfer, cooling towers and booster duty. Three self-priming pumps lift from a source below the pump; the Workhorse end suction pump moves volume on a flooded suction; the 1500XSW and the 27000 Super Booster build pressure across stages for spray, filtration and high-head work.
We supply all six series with their repair parts, and size them from your flow, the pressure you need and your suction lift. Call 1-888.510.4036 or email sales@watermainsupply.com. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor. Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Will It Work for Your Job?
The four questions that decide an irrigation or transfer pump, answered before the detail.
Warranty
1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms. The motor carries its original manufacturer’s warranty.
Reliability
Cast iron bodies on the 84000, 89000, 8600SW, 1500XSW and Workhorse; a stainless steel shell on the 27000. Ceramic/carbon seals on the 8600SW, 1500XSW and 27000, rear pull-out service on the Workhorse, and repair parts listed by series.
Fit
Flow and pressure decide the series: up to 173 GPM at lower pressure on the self-priming and end suction pumps, up to 297 PSI at 12 to 36 GPM on the 27000. The 84000 and Workhorse are rated for non-potable water; the 27000 is certified to NSF/ANSI 61 and 372.
Size It Now
Enter flow, pressure and suction lift and see which pumps cover the duty. Or send the numbers to sales@watermainsupply.com or call 1-888.510.4036.
The A.Y. McDonald Line
Three families. Whether the water is below the pump, and how much pressure you need, picks the family.
Self-Priming Irrigation
84000 · 89000 E-Series · 8600SW
34–71 PSIMax pressure
52–173 GPMMax flow
1/2 – 5 HPSingle or three phase
To 25 ftPublished suction lift
Pumps that lift from a pond, cistern, stream or shallow source below the pump and push it to the sprinkler heads. The 84000 carries the volume, the 89000 the typical residential zone, and the 8600SW the small shallow source.
- 84000: 3 and 5 HP, up to 173 GPM, non-potable
- 89000 E-Series: 1 to 2 HP, 1 1/2 in inlet and outlet
- 8600SW: 1/2 to 1 HP, up to 65 GPM, square flange motor
Best forLawn sprinkler and landscape irrigation, nursery and farm watering, pond and tank pickup.
View 84000 89000 E-Series 8600SW
End Suction Transfer
92000 · 93000 Workhorse
83–150 ftMax head (36–65 PSI)
30–125 GPMMax flow
1/3 – 3 HP92000 1Ph · 93000 3Ph
175°FMaximum
A cast iron end suction pump with a Noryl impeller, a four-position discharge and a rear pull-out design that services without disturbing the plumbing.
- Single phase 92000 and three phase 93000
- Four-position discharge, three drain ports
- Rated for non-potable water
Best forWater transfer, farms and industry, air conditioning and tower cooling, booster systems and irrigation.
View Workhorse
High-Pressure Multistage
27000 Super Booster · 1500XSW
To 297 PSIMax pressure
12–42 GPMMax flow
1/2 – 2 HPSingle phase; 1500XSW also 3Ph
NSF 61 / 37227000 Super Booster
Multistage pumps for high pressure at modest flow. The 27000 comes in 23 models across six flow groups, 5 to 25 GPM nominal; the two-stage 1500XSW gives pressures to 60 PSI at up to 42 GPM.
- 27000: stainless shell, no-lead brass ports, NEMA 56C motor
- 27000: pressure relief valve required on every install
- 1500XSW: cast iron, single or three phase
Best forSpray and filtration systems, reverse osmosis, pressure washing, and irrigation at higher pressure.
View 27000 Super Booster 1500XSW
Compare All Six Side by Side
Maximum pressure is the shut-off at zero flow; maximum flow is the end of the published curve. Your duty point sits between them on the curve.
| Series | Type | HP | Max pressure | Max flow | Self-priming | Power | Drinking water |
|---|---|---|---|---|---|---|---|
| 84000 | Self-priming irrigation | 3–5 | 58–71 PSI | 132–173 GPM | Yes | 230V 1Ph; 208-230/460V 3Ph | Non-potable |
| 89000 E-Series | Self-priming sprinkler | 1–2 | 46–50 PSI | 70–84 GPM | Yes | 230/115V or 230V 1Ph | Not rated by A.Y. McDonald |
| 8600SW | Self-priming convertible centrifugal | 1/2–1 | 34–42 PSI at 10 ft lift | 52–65 GPM | Under normal conditions | 115/230V 1Ph | Not rated by A.Y. McDonald |
| 1500XSW | Two-stage centrifugal | 1–1 1/2 | To 50–60 PSI | 41–42 GPM | Not stated | 115/230V 1Ph; 230/460V 3Ph | Not rated by A.Y. McDonald |
| Workhorse | End suction | 1/3–3 | 36–65 PSI | 30–125 GPM | No; flooded suction or foot valve | Single phase; 208-230/460V 3Ph | Non-potable |
| 27000 Super Booster | High-head multistage | 1/2–2 | 74–297 PSI | 12–36 GPM | No | 115/230V or 230V 1Ph | NSF/ANSI 61 and 372 |
Quick rule. Water below the pump and moderate pressure: one of the self-priming pumps, sized by flow. A flooded suction and volume: the Workhorse. High pressure at low flow: the 27000 Super Booster. For drinking water, only the 27000 carries NSF/ANSI 61 and 372 on this page.
Source: Pumps by Baker catalog, rev 3/26, pp. 275-286. Each product page carries the full table and curve.
A.Y. McDonald vs the Other Pumps We Supply
The closest pumps on our site, compared on the figures in their own listings.
Self-Priming Irrigation Pumps
| A.Y. McDonald 84000, 89000, 8600SW | Franklin Turf Boss | Franklin FBSE | Franklin FBSEF | |
|---|---|---|---|---|
| HP | 1/2–5 | 1–5 | 1/2–3 | 1 1/2–7 1/2 |
| Self-priming | Yes; published to 25 ft of lift (84000, 89000) | Yes, to 25 ft | Yes | Yes |
| Max flow | 52–173 GPM by model | To 70 GPM on 1–2 HP | By model | 295 GPM |
| Max pressure | 34–71 PSI at shut-off | Shut-off to 130 ft (56 PSI) on 1–2 HP | By model | By model |
| Built for | Lawn sprinkling and irrigation; 84000 non-potable | Timer-operated turf irrigation, nursery, dewatering, car wash, transfer | Fertilizer, salt water and dirty water, semi-open cast iron impeller | Tough liquids, TEFC motor |
| Published performance | Lift-by-pressure table on every model | Per listing | Per listing | Per listing |
Verdict. The Franklin Turf Boss covers 1 to 5 HP in one family with back pull-out service. The FBSE wins on fertilizer, salt and dirty water with its semi-open cast iron impeller. The FBSEF wins on volume, to 295 GPM at 7 1/2 HP. A.Y. McDonald wins on published data and availability: a lift-by-pressure table for every model, held in Houston, and 173 GPM from the 5 HP 84500. For end suction transfer, the Franklin DR adds vertical, motor-up installation; the Workhorse adds a four-position discharge and 1/3 HP to 3 HP sizes.
High-Pressure Multistage Pumps
| A.Y. McDonald 27000 Super Booster | A.Y. McDonald 1500XSW | Franklin BT4 | Grundfos CM 3-A | |
|---|---|---|---|---|
| HP | 1/2–2 | 1–1 1/2 | 1/3–3 | 0.58–1.5 |
| Max pressure | 74–297 PSI at shut-off | To 60 PSI | To 128 PSI boost; 400 PSI max discharge | 64–164 ft rated head; 145 PSI max |
| Flow | 12–36 GPM max | 41–42 GPM | 5–45 GPM nominal, 87 models | 16.4 GPM rated |
| Construction | Stainless shell, thermoplastic stages, no-lead brass ports | Cast iron, two stages | Tri-Seal floating stage | Cast iron and 304 stainless; cartridge seal |
| Drinking water | NSF/ANSI 61 and 372 | Not rated by A.Y. McDonald | Per listing | NSF 61 |
Verdict. The Franklin BT4 wins on range: 87 models from 5 to 45 GPM nominal, three phase available and a 400 PSI discharge rating. The Grundfos CM 3-A wins on construction, with 304 stainless steel and a cartridge seal. The 27000 Super Booster wins on pressure, to 297 PSI at shut-off, with NSF/ANSI 61 and 372 for drinking water; the 1500XSW wins on flow at moderate pressure.
Which Pump Do You Need?
Selection by job and demand. Call with flow, pressure and suction lift for an engineering-led pick.
| Application | Typical demand | Recommended | Notes |
|---|---|---|---|
| Lawn sprinkler zone, residential | 20–70 GPM at 30–40 PSI | 89000 E-Series, 1 to 2 HP | Self-priming; 1 1/2 in inlet and outlet. |
| Large irrigation or nursery system | 60–160 GPM at 20–50 PSI | 84000, 3 or 5 HP | Non-potable water; single or three phase. |
| Small shallow source, low pressure | to 65 GPM at 5–30 PSI | 8600SW, 1/2 to 1 HP | Self-priming under normal conditions. |
| Higher-pressure irrigation | to 37 GPM at 40 PSI; to 60 PSI | 1500XSW, 1 or 1 1/2 HP | Two stages; three phase available. |
| Tank-to-tank or pond transfer, cooling tower | to 125 GPM, up to 150 ft of head | Workhorse 92000 or 93000 | Flooded suction or a foot valve; non-potable. |
| Spray, filtration, reverse osmosis | 5–25 GPM nominal at high pressure | 27000 Super Booster | Pressure relief valve required; not self-priming. |
| Pressure washing, agriculture | 12–36 GPM, to 297 PSI | 27000 Super Booster, 1 to 2 HP | Clean water only; 150°F maximum. |
| Replacing an existing pump | match the duty | Match series, HP and voltage | Send the old nameplate and we will cross it. |
Sizing & Best Practices
How we size an irrigation or transfer pump, and what to check before it goes in.
1. Add up the flow
For irrigation, add the flow of every head in the largest zone that runs at once, from the sprinkler maker’s chart. For household supply, use WSFU and Hunter’s curve (IPC Table 604.3); for light commercial, the IAPMO Water Demand Calculator.
2. Work out the pressure at the pump
Pressure at the pump = pressure the heads need + 0.433 psi per foot of elevation to the highest head + friction loss. Example: a zone of heads needing 25 PSI at 40 GPM, level with the pump, with 5 PSI of friction, from a pond 10 ft below the pump: 30 PSI at 40 GPM from 10 ft of lift. The 1 1/2 HP 89150 delivers 51 GPM at 30 PSI from 10 ft; the 1 HP 89100 delivers 32 GPM and falls short.
3. Check the limits before the curve
Suction: the self-priming pumps are published to 25 ft of lift and lose flow as lift rises; the Workhorse and the 27000 want a flooded suction. Water: the 84000 and Workhorse are rated non-potable. Power: confirm single or three phase and the voltage. Pressure: the 27000 adds its pressure to whatever arrives, so a relief valve is required.
Sizing rule of thumb. If the duty point lands past 70 percent of a model’s maximum pressure at design flow, step up a model. A pump working at the far right of its curve is one that will be replaced early.
Performance — Published Figures
Maximums and one printed duty point per model, from A.Y. McDonald’s tables and curves. Each product page carries the full table, the head-at-flow curve and every model.
| Model | HP | Max pressure | Max flow | Published duty point |
|---|---|---|---|---|
| 84300 / 84300-3 | 3 | 58 PSI (135 ft) | 132 GPM | 87 GPM at 40 PSI, 5 ft lift |
| 84500 / 84500-3 | 5 | 71 PSI (165 ft) | 173 GPM | 146 GPM at 40 PSI, 5 ft lift |
| 89100 | 1 | 46 PSI | 71 GPM | 32 GPM at 30 PSI, 10 ft lift |
| 89150 | 1 1/2 | 49 PSI | 70 GPM | 51 GPM at 30 PSI, 10 ft lift |
| 89200 | 2 | 50 PSI | 84 GPM | 56 GPM at 30 PSI, 10 ft lift |
| 8650SW | 1/2 | 34 PSI at 10 ft lift | 52 GPM | 39.5 GPM at 20 PSI, 10 ft lift |
| 8670SW | 3/4 | 38 PSI at 10 ft lift | 60 GPM | 56 GPM at 20 PSI, 10 ft lift |
| 8610SW | 1 | 42 PSI at 10 ft lift | 65 GPM | 60.8 GPM at 20 PSI, 10 ft lift |
| 1510XSW / 1510XSW3 | 1 | To 50 PSI | 41 GPM | 31.7 GPM at 40 PSI, 10 ft lift |
| 1515XSW / 1515XSW3 | 1 1/2 | To 60 PSI | 42 GPM | 36.5 GPM at 40 PSI, 10 ft lift |
| 92100 / 93100 | 1 | 48 PSI (113 ft) | 59 GPM | 42 GPM at 60 ft of head |
| 92200 / 93200 | 2 | 57 PSI (132 ft) | 82 GPM | 69 GPM at 60 ft of head |
| 92300 / 93300 | 3 | 65 PSI (150 ft) | 125 GPM | 103 GPM at 60 ft of head |
| 27000, J group | 1/2–1 | 145–257 PSI | 12 GPM | 5 GPM nominal |
| 27000, K group | 1/2–2 | 118–297 PSI | 20–21 GPM | 10 GPM nominal |
| 27000, M group | 1–2 | 77–141 PSI | 34–36 GPM | 25 GPM nominal |
Max pressure is the shut-off at zero flow — a ceiling, not a working point; max flow is the end of the published curve, rounded down. Head in feet = PSI x 2.31; 0.433 PSI per foot of elevation. Source: Pumps by Baker catalog, rev 3/26, pp. 277-286. For a certified curve at a stated duty point, ask us and we will request it from A.Y. McDonald.
What Makes These Pumps Different
The design decisions that show up on the job.
Self-Priming Where It Matters
The 84000, 89000 and 8600SW lift from a source below the pump; the 84000 holds its prime with a flapper valve in the suction flange.
Published Lift-by-Pressure Tables
A.Y. McDonald prints the flow at each suction lift and pressure for the self-priming pumps, so the duty point is read, not guessed.
Rear Pull-Out Workhorse
The Workhorse services without disturbing the plumbing, with a four-position discharge and three drain ports.
Multistage Pressure
The 27000 builds up to 297 PSI across its stages in 23 models; the 1500XSW gives pressures to 60 PSI from two cast iron stages.
Single or Three Phase
The 84000, 1500XSW and Workhorse come in single and three phase; the three-phase Workhorse rewires for 208-230V or 460V.
Drinking-Water Option
The 27000 Super Booster is certified to NSF/ANSI 61 and NSF/ANSI 372, with a stainless steel shell and no-lead brass ports.
Repair Parts & Tanks
What keeps these pumps running.
84000 Repair Parts
Suction kits, flapper valve, housing kits and seals.
89000 Repair Parts
Self-priming sprinkler pump repair parts.
Workhorse Repair Parts
92000 and 93000 repair parts by part number.
27000 Pump Ends
Replacement pump end for each Super Booster model.
Diaphragm Pressure Tanks
2 to 119 gallons, for booster and pressure-switch systems.
Genuine A.Y. McDonald parts, listed by part number. Send the nameplate and we will identify the right part.
Why Source A.Y. McDonald Pumps from Watermain Supply
Stocked in Houston
Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor. We hold these pumps in Houston for Gulf Coast delivery, in the correct US 60 Hz build.
Engineering-Led Sizing
Send flow, pressure and suction lift and we come back with the series, the HP and the voltage, read from A.Y. McDonald’s published tables.
Multi-Brand Perspective
If A.Y. McDonald is not the right fit, we will say so and quote the one that is. We also supply Franklin Electric and Grundfos surface pumps.
Complete System, One Order
Pump, repair parts and tank on one purchase order and one delivery.
Account Terms Available
Net-30 for qualified contractor, irrigation, property-management and municipal accounts.
Parts & Aftermarket
Seals, impellers, housings, flapper valves and 27000 pump ends listed by series, so a worn part does not mean a new pump.
Frequently Asked Questions
The questions we answer most often on these pumps.
How long is the warranty?
1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms. The motor carries its original manufacturer’s warranty.
Which of these pumps are self-priming?
The 84000, the 89000 E-Series and the 8600SW, the last under normal conditions. The Workhorse end suction pump and the 27000 Super Booster want a flooded suction, or a foot valve and priming tee where the water sits slightly below.
Can I use them for drinking water?
The 27000 Super Booster is certified to NSF/ANSI 61 and NSF/ANSI 372. The 84000 and Workhorse are rated for non-potable use only. For the 89000, 8600SW and 1500XSW, A.Y. McDonald publishes no drinking-water rating; ask us before specifying one for potable water.
Which pump for a lawn sprinkler system?
Add up the flow of the largest zone and the pressure the heads need. Most residential zones land on the 89000 E-Series at 1 to 2 HP; large systems on the 84000 at 3 or 5 HP.
How far below the pump can the water be?
A.Y. McDonald publishes the self-priming pumps to 25 ft of suction lift, with flow falling as lift rises. The tables on each product page show the flow at each lift.
What does maximum pressure mean on these pages?
It is the shut-off: the pressure at zero flow, a ceiling rather than a working point. Your duty point sits lower on the curve, at the flow you need.
Does the 27000 Super Booster need a relief valve?
Yes. A.Y. McDonald requires a pressure relief valve on every installation, because the pump adds its pressure to whatever arrives at the inlet.
Do you have three-phase models?
Yes: the 84000, the 1500XSW and the 93000 Workhorse. The 89000, 8600SW and 27000 are single phase.
Can you help select the right pump?
Send flow, pressure, suction lift and voltage to sales@watermainsupply.com or call 1-888.510.4036. You will get a sized selection from the published tables.
Ready to Size Your Pump?
Send flow, the pressure you need, suction lift and voltage. We will come back with the series, the HP and the parts to go with it.
