Included: the two-stage pump with its NEMA standard motor, coupled-shaft design.
Suction and discharge piping: sized to your installation and ordered separately.

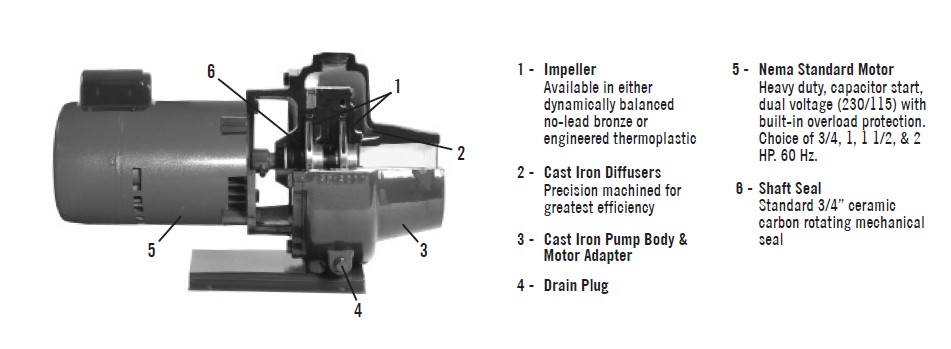

The 1500XSW is A.Y. McDonald’s two-stage multi-stage centrifugal pump, giving pressure to 60 PSI for high-pressure applications. Motors are NEMA standard construction with a coupled-shaft design, in single and three phase. Housing and adapter are cast iron.
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms, as set out in the A.Y. McDonald Pumps & Accessories Price List. Components made by other manufacturers, such as the motor, carry their original manufacturer’s warranty.
Each pump runs as one unit. Size it to peak demand at the pressure you need.
| Model | Part No. | Power | Voltage | Stages | Max flow, 10 ft lift | Highest published pressure | Suction / discharge | Ship weight |
|---|---|---|---|---|---|---|---|---|
| 1510XSW | 6326-100 | 1 HP | 115/230V 1Ph | 2 | 41 GPM | 50 PSI | 1 1/4 in / 1 in | 64 lb |
| 1510XSW3 | 6326-102 | 1 HP | 230/460V 3Ph | 2 | 41 GPM | 50 PSI | 1 1/4 in / 1 in | 61 lb |
| 1515XSW | 6327-100 | 1 1/2 HP | 115/230V 1Ph | 2 | 42 GPM | 60 PSI | 1 1/4 in / 1 in | 66 lb |
| 1515XSW3 | 6327-102 | 1 1/2 HP | 230/460V 3Ph | 2 | 42 GPM | 60 PSI | 1 1/4 in / 1 in | 64 lb |
Max flow is the printed capacity at 20 PSI from 10 ft of lift; highest published pressure is the last column the table fills. Weights are shipping weights as printed. Source: Pumps by Baker catalog, rev 3/26, p. 283.
| Suction / discharge | 1 1/4 in suction; 1 in discharge |
| Stages | 2 |
| Motor | NEMA standard, coupled shaft, single or three phase |
| Shaft seal | 3/4 in ceramic/carbon rotating mechanical seal |
| App or remote connectivity | None |
Find your suction lift and read across to the discharge pressure. Each figure is gallons per minute from A.Y. McDonald’s published table.
| Model | HP | Suction lift, ft | 20 PSI | 30 PSI | 40 PSI | 50 PSI | 60 PSI |
|---|---|---|---|---|---|---|---|
| 1510XSW / 1510XSW3 | 1 | 10 | 41.7 | 37.7 | 31.7 | 24.2 | |
| 15 | 40 | 36.5 | 30.2 | 22.2 | |||
| 20 | 36.6 | 34.3 | 28.5 | 19.8 | |||
| 25 | 29.5 | 28.5 | 26.5 | 16.5 | |||
| 1515XSW / 1515XSW3 | 1 1/2 | 10 | 42.3 | 40.5 | 36.5 | 32 | 24.5 |
| 15 | 41.7 | 39.8 | 35.3 | 29.3 | 23 | ||
| 20 | 40.3 | 39 | 34 | 28 | 21 | ||
| 25 | 33.3 | 32.5 | 31 | 26.5 | 18.8 |
Reading it: at 40 PSI from 15 ft of lift, the 1 HP delivers 30.2 GPM and the 1 1/2 HP 35.3 GPM; only the 1 1/2 HP reaches 60 PSI.
A blank cell is a combination the pump does not reach. A.Y. McDonald publishes no shut-off pressure for this series. Source: Pumps by Baker catalog, rev 3/26, p. 283.
| Pressure | Published to 50 PSI on the 1 HP and 60 PSI on the 1 1/2 HP. |
| Suction lift | Published from 10 to 25 ft of lift. |
| Power | Single phase 115/230V or three phase 230/460V; confirm the service before ordering. |
| Pairing | Single unit. |
| Part | Code | Use |
|---|---|---|
| 1000 and 1500 repair parts | By part number | Multi-stage repair parts |
