NSF-certified convertible jet pumps for shallow OR deep wells — J+, JRD and HSJ series. 0.5–2 HP, cast iron, single phase.
Goulds convertible jet pumps run on shallow wells (to 25 ft) with a bolt-on shallow well adapter, or deep wells (over 25 ft) with a twin-pipe or packer jet assembly and pressure control valve — using the appropriate Goulds fittings. This listing covers three series: the J+ (0.5–1.5 HP), the value JRD (0.5–1 HP), and the multi-stage HSJ (0.75–2 HP) for higher capacity and pressure at depth. All NSF/ANSI 61 & 372 certified.
Select your series and horsepower from the options above.
| Pump Type | Convertible jet (shallow or deep well) |
| Suction Connection | 1¼? NPT |
| Discharge Connection | 1? NPT |
| Drive (Pressure) Connection | 1? NPT |
| Pressure Switch | AS4 preset 30–50 PSI (HSJ 2 HP: AS10) |
| Motor | NEMA standard, 60 Hz, 3500 RPM, single phase, capacitor start |
| Voltage | 115/230 V (HSJ 2 HP: 230 V only); built-in overload with automatic reset |
| Shaft / Rotation | Stainless steel; clockwise viewed from motor end |
| Maximum Temperature | 140°F (60°C) |
| Casing | Cast iron, electro-coat finish |
| Agency Listings | NSF/ANSI 61 & 372, CSA (HSJ also UL listed) |
| Series | Model | HP | Stages | Weight | Notes |
|---|---|---|---|---|---|

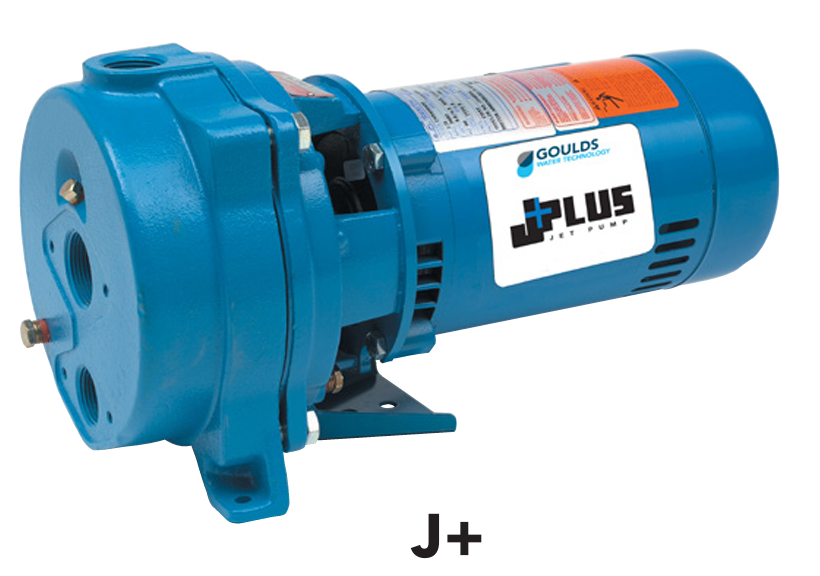

| J+ | J5 | 0.5 | 1 | 50 lb* | Shallow or deep well |
| J+ | J7 | 0.75 | 1 | 55 lb* | Shallow or deep well |
| J+ | J10 | 1 | 1 | 59 lb* | Shallow or deep well |
| J+ | J15 | 1.5 | 1 | 68 lb* | Shallow or deep well |

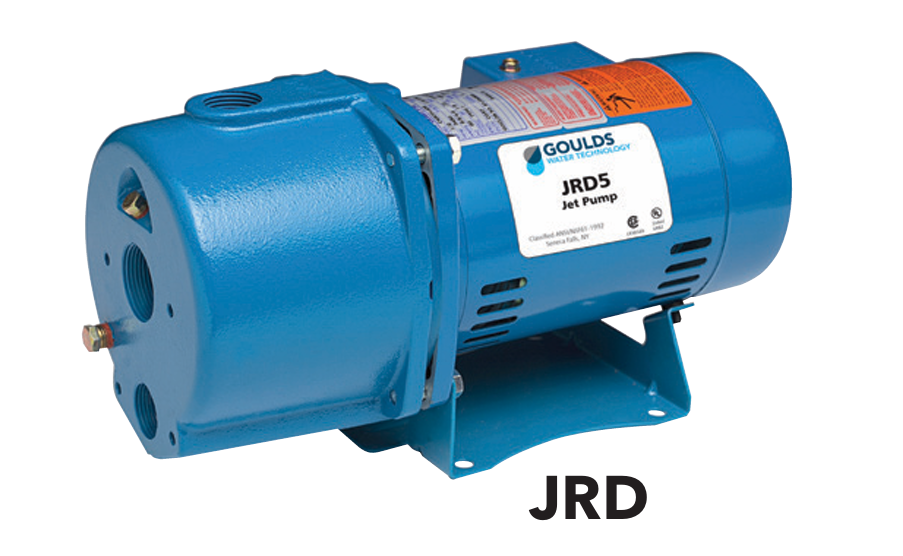

| JRD | JRD5 | 0.5 | 1 | 37 lb | Value line |
| JRD | JRD7 | 0.75 | 1 | 42 lb | Value line |
| JRD | JRD10 | 1 | 1 | 47 lb | Value line |

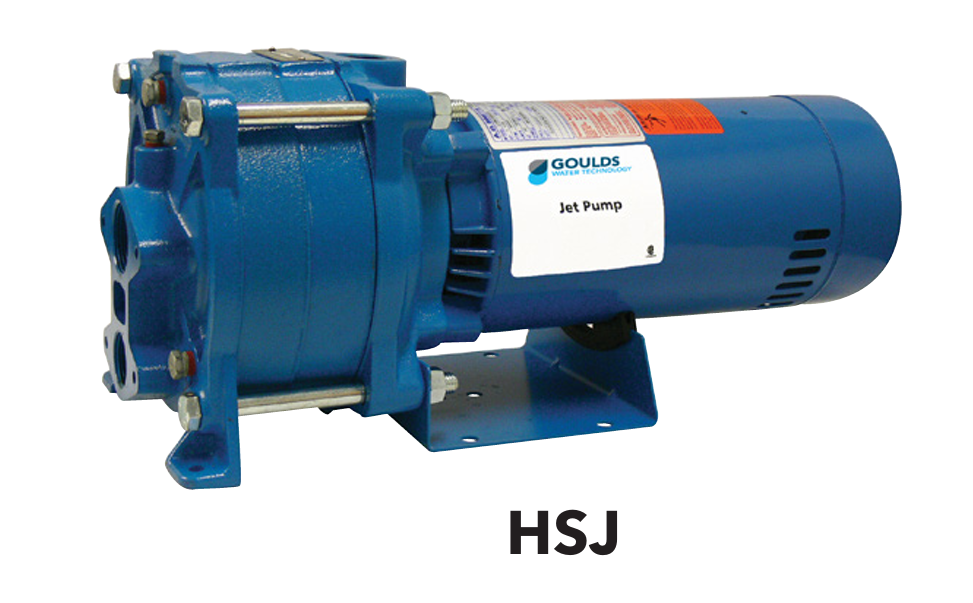

| HSJ | HSJ07N | 0.75 | 2 | 53 lb | Multi-stage, high pressure |
| HSJ | HSJ10N | 1 | 2 | 58 lb | Multi-stage |
| HSJ | HSJ15N | 1.5 | 3 | 72 lb | Multi-stage |
| HSJ | HSJ20N | 2 | 3 | 75 lb | Multi-stage, 230V only |
*J+ weight includes shallow well adapter.
| J+ Peak Capacity | Up to 26 GPM (shallow well) |
| JRD Peak Capacity | Up to 22 GPM (shallow well) |
| HSJ Peak Capacity | Up to 28 GPM (shallow well) |
| Deep Well | Over 25 ft with a twin-pipe or packer jet assembly + pressure control valve |
| Detailed Ratings | See the Technical Brochure for shallow well, twin-pipe and packer GPM by depth. |
"""
"""
