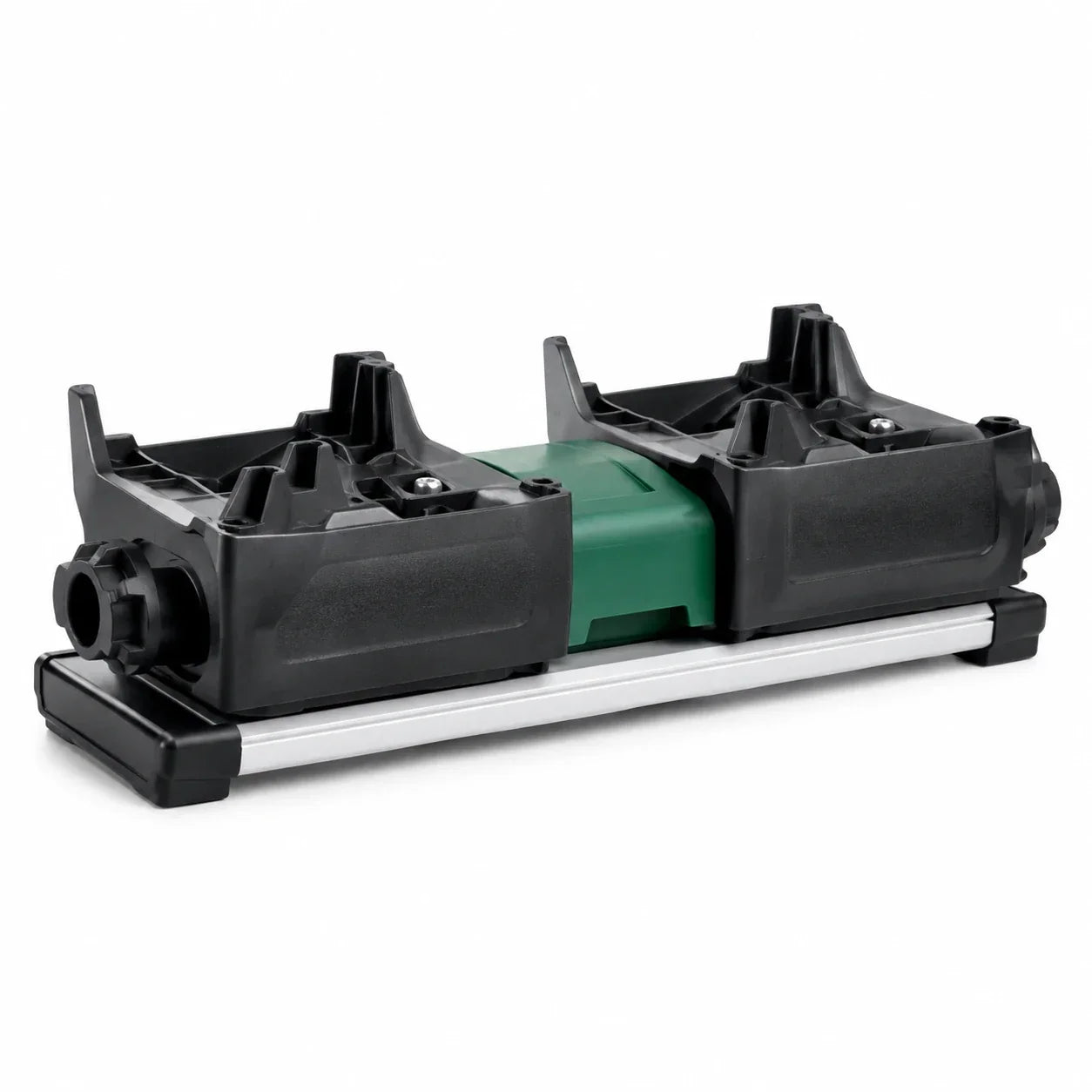

DAB Esytwin Mini twin docking base for Esybox Mini 3, code 60218780

DAB Booster Accessories & Spare Parts

Genuine DAB accessories and spare parts for the Esybox Mini 3, Esybox, and Esybox Max constant pressure boosters. Esydock and Esydock Max docking stations, Esytwin twin bases, Esywall mount kits, Esycover rain covers, Esy I/O modules, and stainless union kits, plus factory spares: HMI displays, main boards, hydraulic kits, pressure and flow sensors, non-return valves, tanks, shutters, and seal kits. Every item is listed by DAB code and the pump version it fits. Check the version on your rating label before ordering electronics, or call 281.664.8000 with the serial number and we will confirm the part.

4 products
Sort by:
Most relevant
Sort by:
Most relevant
DAB Esybox Spare Parts - HMI Screen, Main Board, Hydraulic Kit, Pressure Sensor, Non-Return Valve, Tank, Feet
DAB Esybox exploded parts diagram with position numbers

DAB

DAB Esybox Spare Parts - HMI Screen, Main Board, Hydraulic Kit, Pressure Sensor, Non-Return Valve, Tank, Feet

From $13.85
DAB Esybox Mini 3 Spare Parts - HMI, Main Board, Pressure Sensor, Flowmeter, Non-Return Valve, Tank, O-Ring Kit

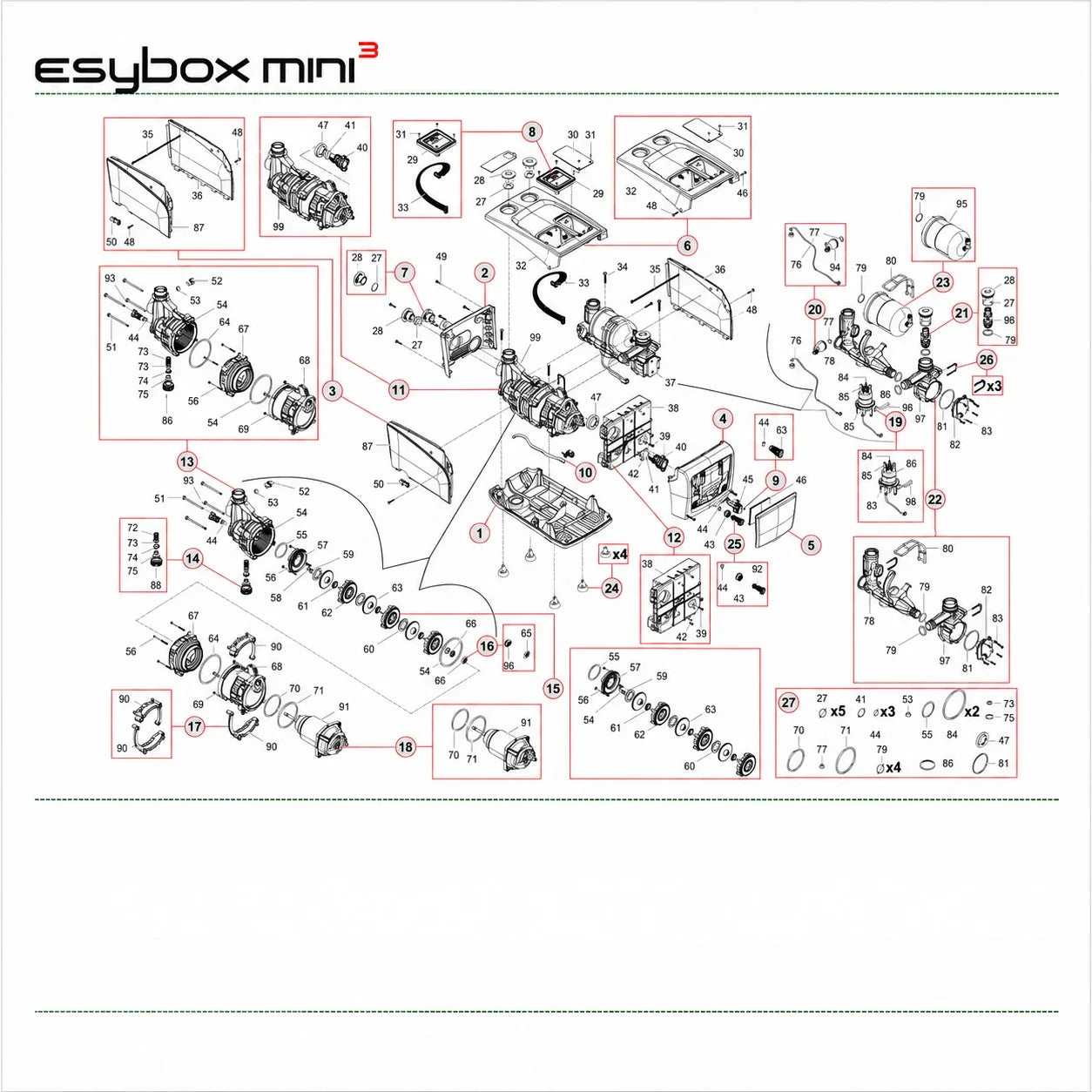

DAB Esybox Mini 3 exploded parts diagram with position numbers

DAB

DAB Esybox Mini 3 Spare Parts - HMI, Main Board, Pressure Sensor, Flowmeter, Non-Return Valve, Tank, O-Ring Kit

From $30.77
DAB Esybox Max Spare Parts - HMI, Main Board, Non-Return Valve, Pressure Sensor, Tank, Tank Hull, Top Cover, O-Ring Kit

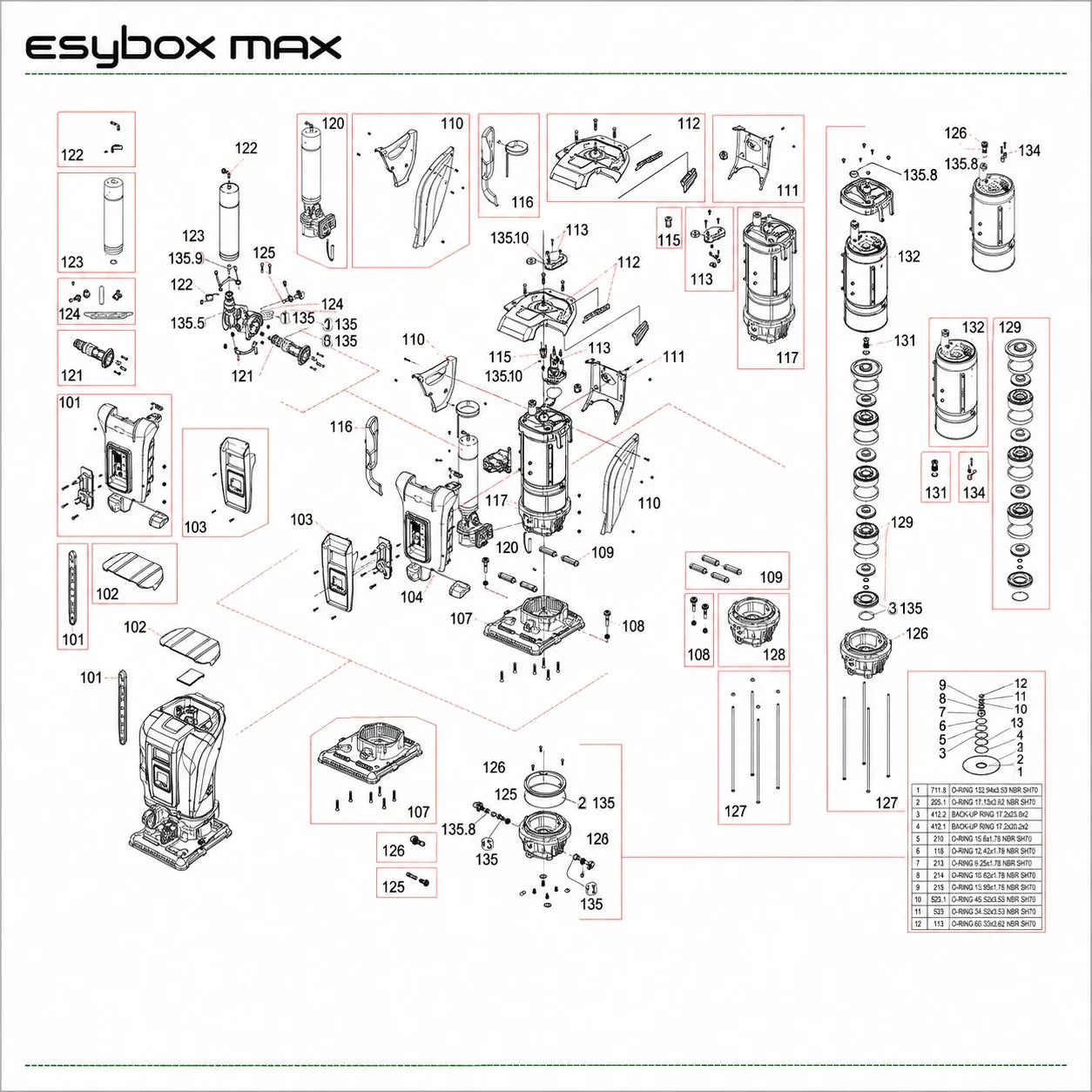

DAB Esybox Max exploded parts diagram with position numbers

DAB

DAB Esybox Max Spare Parts - HMI, Main Board, Non-Return Valve, Pressure Sensor, Tank, Tank Hull, Top Cover, O-Ring Kit

From $29.23
DAB Esybox Accessories - Esydock and Esydock Max Docking Bases, Esytwin, Esywall, Esycover, Esy I/O, Union Kit

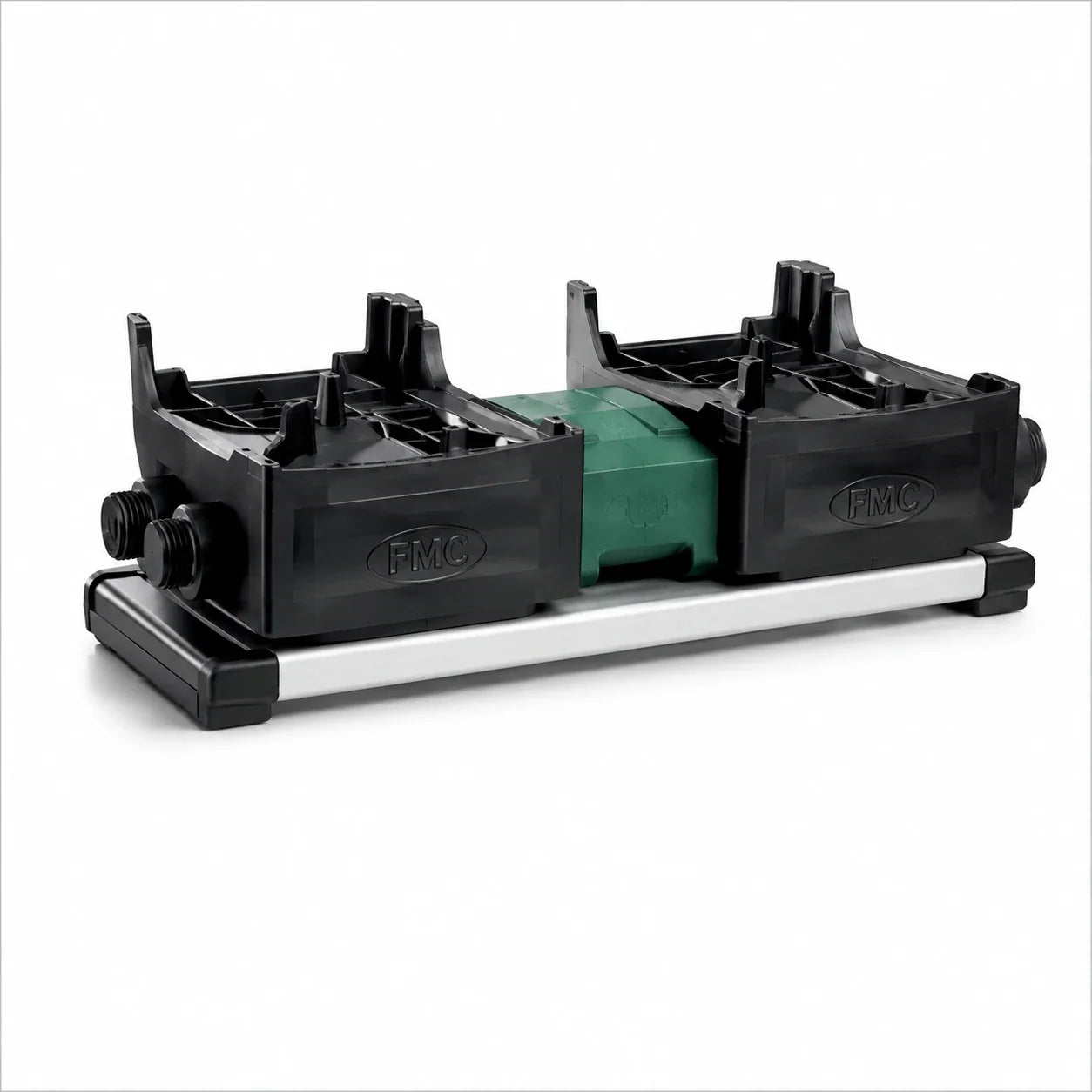

DAB Esytwin twin docking base for Esybox, code 60162081

DAB

DAB Esybox Accessories - Esydock and Esydock Max Docking Bases, Esytwin, Esywall, Esycover, Esy I/O, Union Kit

From $86.15

DAB Booster Accessories & Spare Parts

DAB Pumps

DAB Esybox Accessories
and Genuine Spare Parts

Docking stations, wall kits, rain covers, Esy I/O modules, and factory spare parts for the Esybox Mini 3, Esybox, and Esybox Max. Identified by DAB code and pump version so the right part ships the first time.

11Accessories
37Spare parts
3Esybox platforms
SPDAB service codes
HoustonStock and support

Esybox systems are modular by design. The pump unit carries the drive, sensors, tank, and check valve; the docking station carries the pipe connections; covers and wall kits adapt the unit to the installation. That is why an Esybox Max cannot be piped without an Esydock Max, and why an Esybox can move from floor to wall to outdoors with a kit rather than a new pump.

The same modular design makes field repair practical. DAB publishes every serviceable assembly as a coded spare part: HMI displays, main boards, hydraulic kits, pressure and flow sensors, non-return valves, tanks, shutters, feet, and seal kits. This collection lists all of them by pump, by DAB code, and by the pump version each part fits. If you are unsure of a version or a position number, call 281.664.8000 with the pump serial number and we will confirm it before you order.

Accessories by Pump

Every accessory DAB offers for the U.S. Esybox range, grouped by the pump it fits. One product, select the pump then the accessory.

Esybox Mini 3

Residential compact booster

The Mini 3 installs on the floor, on a wall, or outdoors under a cover. The Esytwin Mini base pairs two units into a duplex group in a fraction of the footprint of a conventional twin set.

Available accessories
  • Esywall wall mount kit, code 60161442
  • Esycover Mini outdoor rain cover, code 60203671
  • Esytwin Mini twin docking base, code 60218780
  • 1 in NPT stainless union kit, code 60220601
Shop Accessories

Esybox

Full-size residential booster

The Esydock base gives four plumbing configurations with all fittings supplied, so suction and discharge can exit whichever way the room allows. Esytwin joins two Esybox units on one manifold for redundancy or double peak flow.

Available accessories
  • Esydock docking base, code 60150514
  • Esytwin twin docking base, code 60162081
  • Esywall wall mount kit, code 60161442
  • Esycover outdoor rain cover, code 60203667
  • 1 in NPT stainless union kit, code 60220601
Shop Accessories

Esybox Max

Commercial modular booster station

The pump unit has no pipe connections of its own. Every installation requires an Esydock Max docking station in single, twin, or triple form, each with 2 in NPT threads. The Esy I/O module adds float switch, pressure switch, remote alarm, and building management system connections.

Available accessories
  • Esydock Max single dock, code 60199045
  • 2 Esydock Max twin dock, code 60199055
  • 3 Esydock Max triple dock, code 60199056
  • Esy I/O expansion module, code 60206085
Shop Accessories
Ordering an Esybox Max? Add the dock to the same order. A single pump needs one Esydock Max; a duty/standby pair needs one 2 Esydock Max; a three-pump station needs one 3 Esydock Max. Quad stations are built from two twin docks with a connection kit, available on request.

Docking and Mounting Guide

Which base or kit goes with which installation.

Installation Esybox Mini 3 Esybox Esybox Max
Single pump, floor mounted No accessory required No accessory required, or Esydock for fixed fittings Esydock Max, 60199045
Single pump, wall mounted Esywall, 60161442 Esywall, 60161442 Not applicable, floor dock only
Single pump, outdoors Esycover Mini, 60203671, vertical only Esycover, 60203667, vertical only IP X5 motor; consult us on enclosure
Two pumps, duty/standby or duty/assist Esytwin Mini, 60218780 Esytwin, 60162081 2 Esydock Max, 60199055
Three pumps Not offered Not offered 3 Esydock Max, 60199056
Serviceable pipe connections 1 in union kit, 60220601 1 in union kit, 60220601 Included in dock
External inputs, alarms, BMS Esy I/O V2, code pending Esy I/O V2, code pending Esy I/O, 60206085

Esycover kits are for vertical installation only. Esydock Max docks are 2 in NPT; a 1-1/4 in option is available from DAB on request. Wireless pump-to-pump grouping on Esybox and Esybox Max needs no accessory.

Spare Parts by Pump

One product per pump. Select the part, then the version or model it fits. Position numbers reference the DAB exploded diagram shown on each product page.

Esybox Mini 3 Parts

DAB code 60212610 · 10 parts

Display and control electronics are version-specific: one HMI code covers versions N.4 and N.5, another covers N.6, and the main board assembly fits N.5 and N.6. Hydraulic and sensor parts fit versions N.2 through N.6.

Includes
  • HMI display assembly, SP00007063 and SP00007858
  • Main board assembly, SP00007474
  • Pressure sensor 0-16 bar, SP00002196
  • Flowmeter kit, SP00002195
  • Complete non-return valve, SP00002197
  • Self-priming shutter, charge port cap, 100 cc tank, O-ring kit
Shop Mini 3 Parts

Esybox Parts

DAB code 60212311 · 13 parts

Version N.3 is the Esybox V2 and takes its own HMI screen, main board, and complete hydraulic kit. Versions N.1 and N.2 share the original codes. Valves, sensors, tank, shutter, feet, and caps fit all three versions.

Includes
  • HMI screen, SP00000135 and SP00008378 (V2)
  • Main board, SP00000136 and SP00008380 (V2)
  • Complete hydraulic kit, SP00000158 and SP00008451 (V2)
  • Pressure sensor assembly, SP00000150
  • Flowmeter cover with sensor, SP00000147
  • Non-return valve, 2 L tank, shutter, feet, filling port cap
Shop Esybox Parts

Esybox Max Parts

45/120 M, 60/120 M, 60/120 T, 85/120 T · 14 parts

HMI assemblies are specific to the pump model and main boards are specific to single or three phase. Mechanical parts, tank, hull, valves, and the seal kit are common to the whole Esybox Max range.

Includes
  • HMI assemblies, SP00007136, SP00007137, SP00007138
  • Main board 1PH SP00007140, 3PH SP00007139
  • Non-return valve group, SP00006704
  • Pressure sensor 0-16 bar, SP00008137
  • Water tank 2 L, tank hull, top cover, eyebolt
  • Schrader air valve, self-priming shutter, O-ring kit
Shop Esybox Max Parts

Version-Specific Parts

The parts that change with pump version or model. Everything not listed here fits every version of its pump.

Pump Part Fits DAB Code Diagram Position
Esybox Mini 3 HMI display assembly Version N.4 and N.5 SP00007063 Pos 8
Esybox Mini 3 HMI display assembly Version N.6 SP00007858 Pos 8
Esybox Mini 3 Main board assembly Version N.5 and N.6 SP00007474 Pos 12
Esybox Complete hydraulic kit Version N.1 and N.2 SP00000158 Pos 251
Esybox Complete hydraulic kit Version N.3 (V2) SP00008451 Pos 251
Esybox HMI screen Version N.1 and N.2 SP00000135 Pos 361
Esybox HMI screen Version N.3 (V2) SP00008378 Pos 361
Esybox Main board Version N.1 and N.2 SP00000136 Pos 458
Esybox Main board Version N.3 (V2) SP00008380 Pos 458
Esybox Max HMI assembly 45/120 M and 60/120 M SP00007136 Pos 103
Esybox Max HMI assembly 60/120 T SP00007137 Pos 103
Esybox Max HMI assembly 85/120 T SP00007138 Pos 103
Esybox Max Main board assembly Single phase SP00007140 Pos 104
Esybox Max Main board assembly Three phase SP00007139 Pos 104

Electronic assemblies are not interchangeable across versions. Fitting a version N.1 main board to a V2 Esybox will not work and is not covered by warranty.

How to Identify Your Pump Version

Three steps before ordering an HMI, main board, or hydraulic kit.

1

Find the rating label

On Esybox and Esybox Mini 3 the label is under the clear plastic cover on top of the unit. On Esybox Max it is on the pump unit body below the display.

2

Read the version number

The version appears as N. followed by a digit, near the top center of the label beside the four-digit date code. An Esybox marked N.3 is a V2. A Mini 3 marked N.6 takes the newer HMI.

3

Match to the parts table

Use the version-specific table above or the parts reference on each product page. When in doubt, send us a photo of the label and we will confirm the code.

Esybox Max owners: the model (45/120 M, 60/120 M, 60/120 T, 85/120 T) is on the label and determines both the HMI code and whether you need the single-phase or three-phase main board.

Why Buy DAB Parts from Watermain Supply

Genuine DAB Codes

Every accessory and spare part is listed under its factory code. No cross-referenced substitutes.

Version Matching

We check the version on your label against DAB's parts data before shipping electronics, so boards and displays fit.

Houston Stock

Docks and common wear parts ship from Houston. Less common spares are sourced by DAB code on request.

Full System Support

We sell the pumps too. Sizing, dock selection, accessories, and parts from one desk.

Parts Not Listed

Any part on the DAB exploded diagram can be quoted by position number and pump serial number.

Account Terms

Net-30 terms for qualified plumbing, mechanical, and property management accounts.

Frequently Asked Questions

Do I need an Esydock Max with every Esybox Max?

Yes. The Esybox Max pump unit has no pipe connections. It seats on an Esydock Max docking station which carries the 2 in NPT suction and discharge connections, the pump-to-pump manifold on twin and triple docks, and the anti-vibration mounting.

Does the Esybox or Esybox Mini 3 need a dock?

No. Both connect directly with 1 in NPT threads and can be installed horizontally or vertically as delivered. Esydock and Esytwin are optional: they add fixed fittings, alternative plumbing orientations, and twin-pump manifolding.

Which Esycover do I need?

Esycover 60203667 fits the Esybox; Esycover Mini 60203671 fits the Esybox Mini 3. They are not interchangeable. Both are for vertical installation only.

My Esybox display is blank. Which part do I order?

Most often the HMI screen, sometimes the main board. Check the version on the label first: N.1 and N.2 take SP00000135 and SP00000136; N.3 (V2) takes SP00008378 and SP00008380. Call us with the fault symptoms and version and we will help you narrow it down.

What is in the complete hydraulic kit?

The impellers, diffusers, and wear components of the multistage pump end supplied as one assembly, which restores original flow and pressure without replacing the motor or electronics. Esybox has separate kits for versions N.1/N.2 and N.3.

Can I get a part that is not listed?

Yes. DAB codes every item on the exploded diagrams. Send the pump model, serial number, and the position number from the diagram on the product page and we will quote it.

What does the Esy I/O module do?

It gives the Esybox Max digital inputs and relay outputs: float switch for tank level, external pressure switch, remote alarm contact, and a Modbus connection to a building management system. The Esy I/O V2 for Esybox and Mini 3 has been announced by DAB without a U.S. code yet.

Are these parts covered by DAB warranty?

Genuine DAB spare parts carry DAB's parts warranty when installed on the correct pump version. Installing a part from the wrong version voids coverage on that part.

Need a Part or a Dock?

Send the pump model, the version or model from the rating label, and the part you need. We will confirm the DAB code, availability, and lead time.
