DAB Esybox Max exploded parts diagram with position numbers
DAB Esybox Max spare parts list with DAB service part codes
DAB Esybox Max exploded parts diagram with position numbers
DAB Esybox Max spare parts list with DAB service part codes

DAB Esybox Max Spare Parts - HMI, Main Board, Non-Return Valve, Pressure Sensor, Tank, Tank Hull, Top Cover, O-Ring Kit

Part: Top Cover
Fits: All Esybox Max

Product variant with selected options does not exist!
$33.85
SKU: SP00006685
Weight : 1.4991 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description

Genuine DAB spare parts for the DAB Esybox Max commercial booster (45/120 M, 60/120 M, 60/120 T, 85/120 T). Covers the display, control boards, non-return valve group, pressure sensor, self-priming shutter, 2 L tank, tank hull, top cover, eyebolt, air valve, and seal kit. Select the part, then the version or model it fits. Position numbers reference the DAB exploded parts diagram.

HMI assemblies are specific to the pump model and main boards are specific to single or three phase. Confirm the model on the rating label before ordering.

Parts Reference

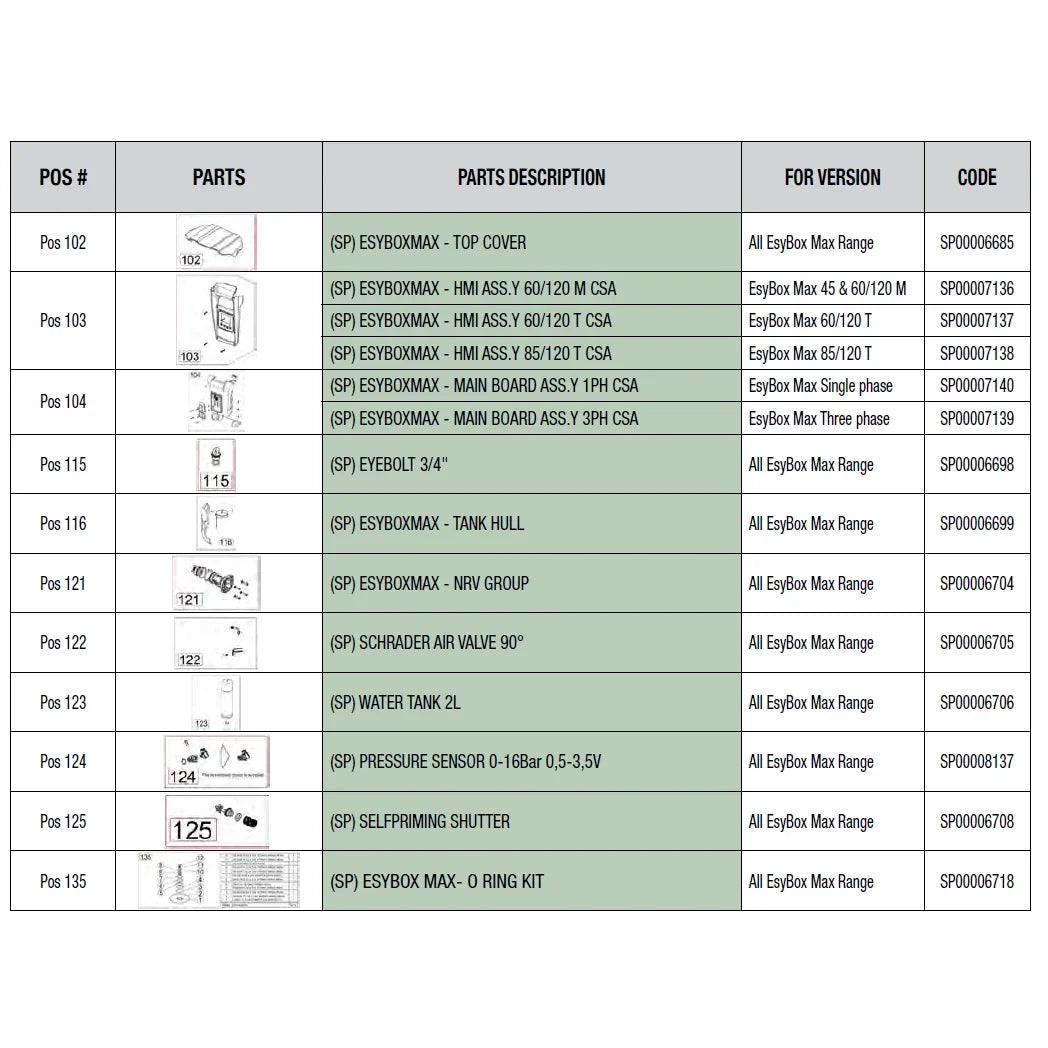

Part Fits DAB Code Diagram Position

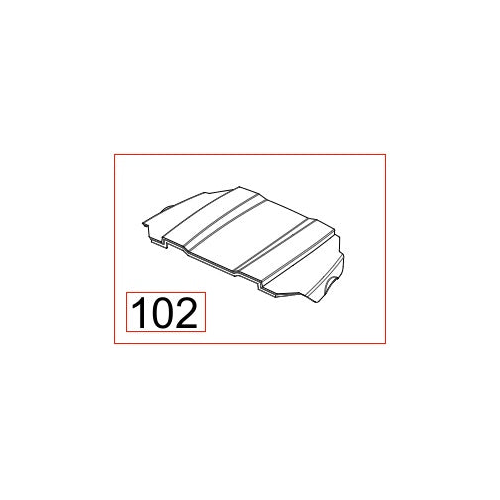

Top Cover All Esybox Max SP00006685 Pos 102

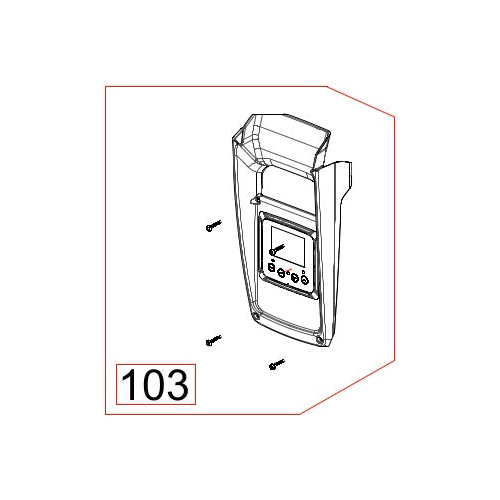

HMI Display Assembly 45/120 M and 60/120 M SP00007136 Pos 103
HMI Display Assembly 60/120 T SP00007137 Pos 103
HMI Display Assembly 85/120 T SP00007138 Pos 103

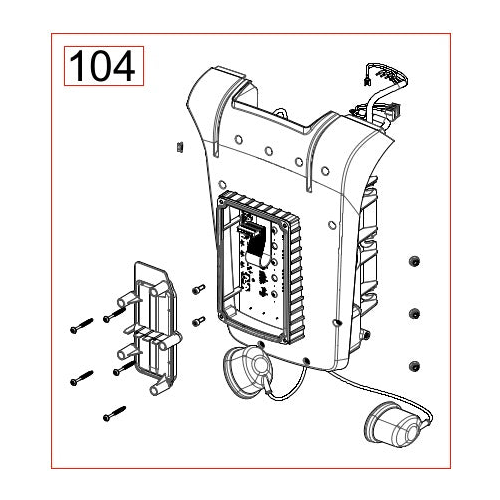

Main Board Assembly Single phase (45/120 M, 60/120 M) SP00007140 Pos 104
Main Board Assembly Three phase (60/120 T, 85/120 T) SP00007139 Pos 104

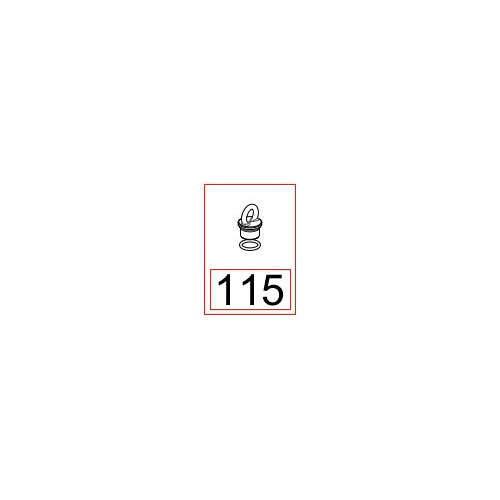

Eyebolt 3/4 in All Esybox Max SP00006698 Pos 115
Tank Hull All Esybox Max SP00006699 Pos 116

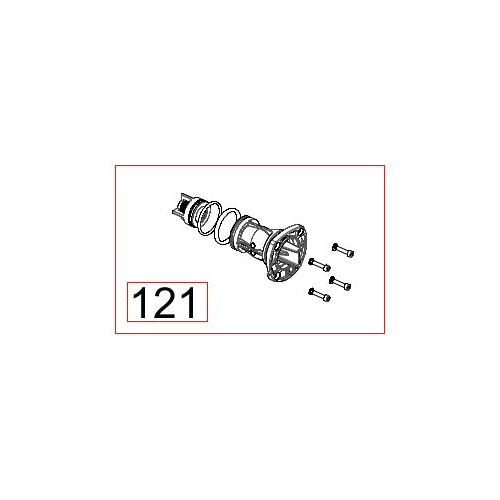

Non-Return Valve Group All Esybox Max SP00006704 Pos 121

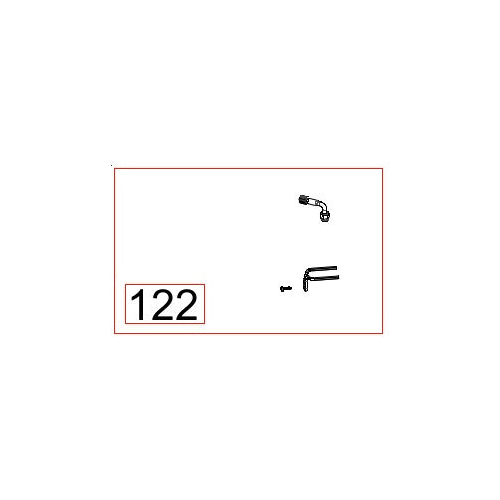

Schrader Air Valve 90 Degree All Esybox Max SP00006705 Pos 122

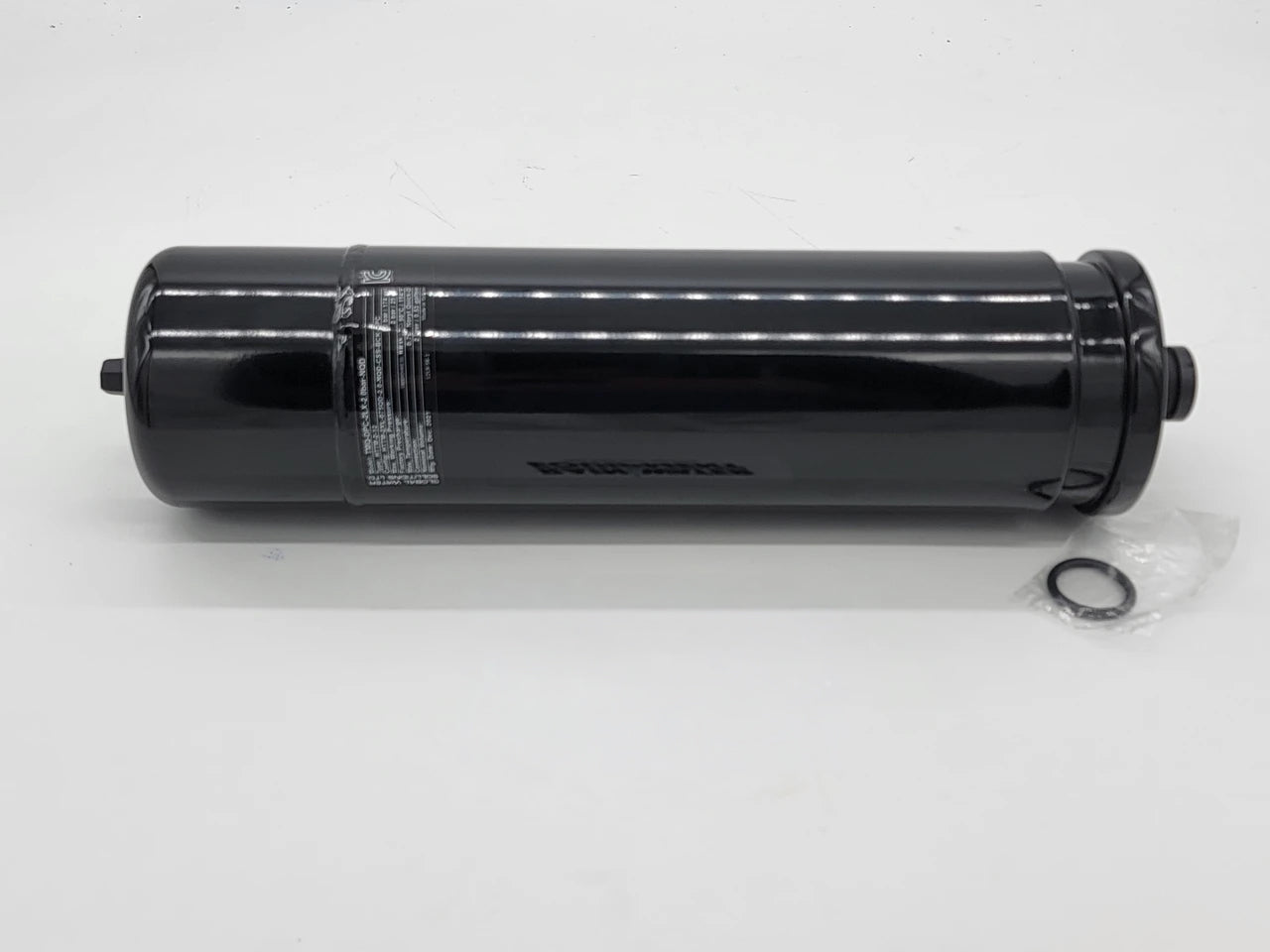

Water Tank 2 L All Esybox Max SP00006706 Pos 123

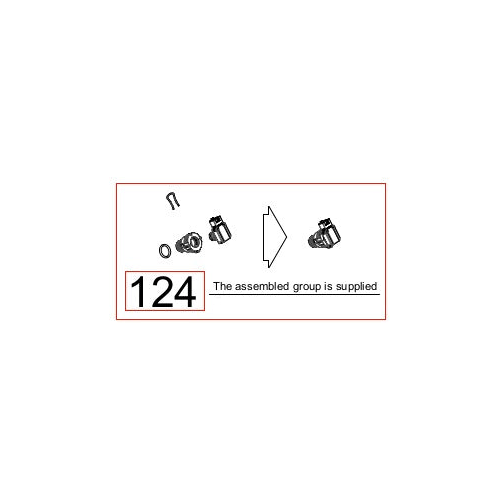

Pressure Sensor 0-16 bar All Esybox Max SP00008137 Pos 124

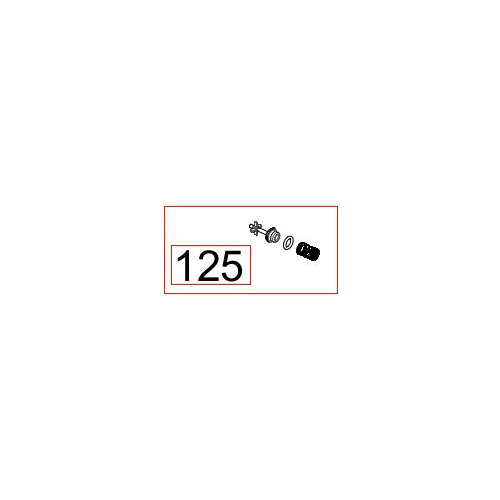

Self-Priming Shutter All Esybox Max SP00006708 Pos 125

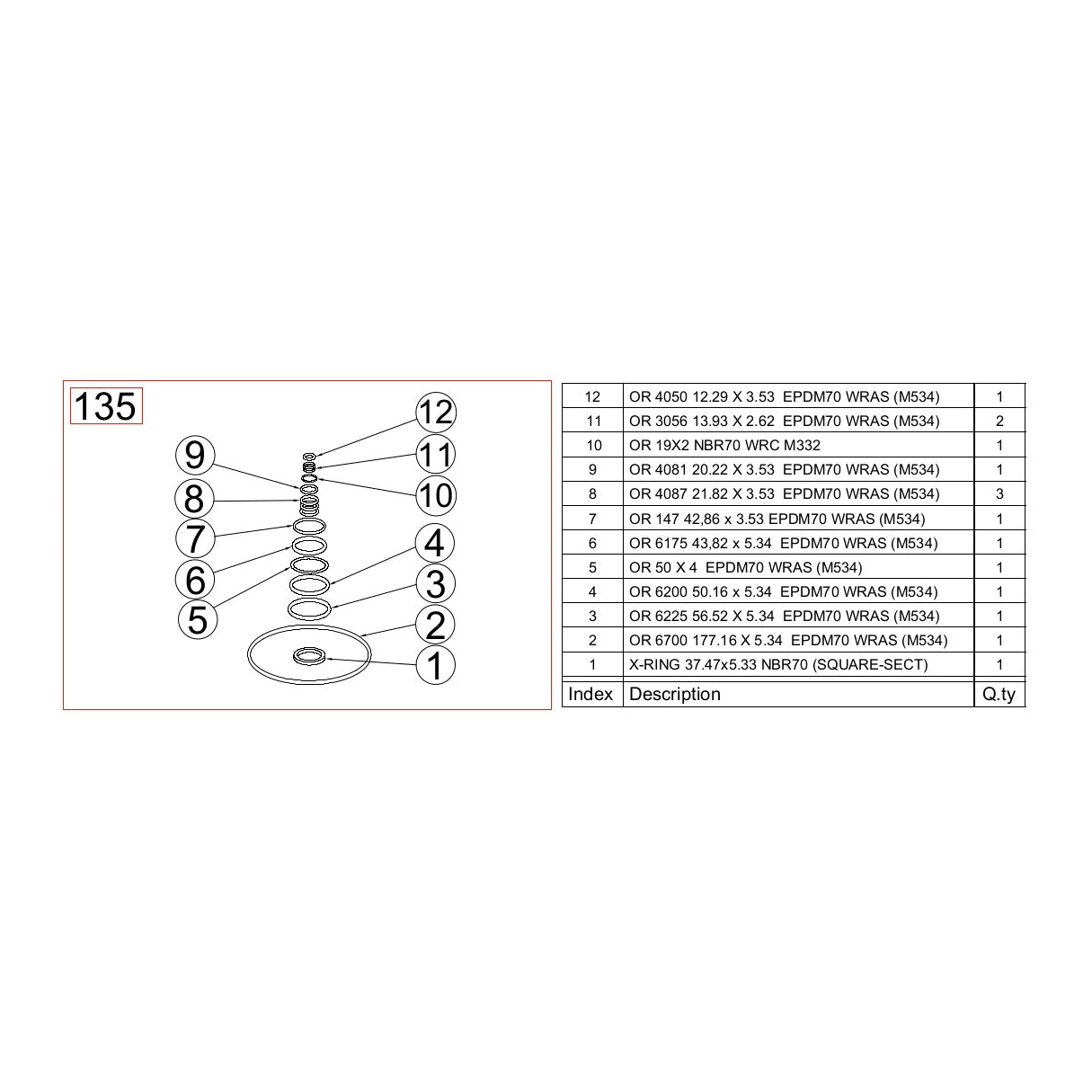

O-Ring Kit All Esybox Max SP00006718 Pos 135
Notes
  • All parts are factory DAB spares. Codes prefixed SP are DAB service part numbers.
  • Electronic assemblies (HMI, main board) are version-specific and are not interchangeable across versions.
  • Parts not listed here can be sourced by DAB code and pump serial number. Contact us.
Literature

DAB Esybox, Esybox Mini 3 and Esybox Max product data, accessories and spare parts brochure (PDF)

Need help identifying a part or version? Email sales@watermainsupply.com or call 281.664.8000 with the pump model, DAB code, and the version number printed on the pump rating label.
