Goulds Booster Pumps

Goulds Booster Pumps

Goulds Water Technology booster pumps — packaged variable-speed constant-pressure systems where the pump, drive, transducer and tank ship as one unit rather than parts you assemble. As demand rises the drive changes pump speed to hold line pressure constant, which eliminates large supply tanks and, Goulds publishes, up to 50 percent of the energy a full-speed pump would use.

ResiBoost covers residential boosting to 40 gpm on a stainless e-HM pump, with the transducer inside the controller and an LCD that stores run hours, starts and faults. Aquavar e-AB3 runs on the Xylem Smart Motor — an IE5 permanent magnet motor with the drive built in — reaching 75 gpm and 290 ft of head, and controlling up to three pumps with automatic lead/lag and alternation without an external panel or PLC. A range of pressure switches covers conventional fixed-speed systems.

Boost is the pressure the pump adds, not total system pressure — Goulds states this on its own selection table, and it is the figure most booster selections get wrong.

Worth comparing against DAB before you commit. The Esybox range self-primes to 26 ft where neither Goulds system self-primes at all, and pairs four units wirelessly with no controller or rewiring. Goulds wins on flow. We supply both and will say which fits.

Warranty is 12 months from the date of purchase.

Genuine Goulds Water Technology equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor. Send your inlet pressure, required flow and supply type and we will size it — 1-888.510.4036.

2 products
Sort by:
Most relevant
Sort by:
Most relevant
Goulds Aquavar e-AB Booster Pump
Goulds Aquavar Booster Pump - e-AB3 and e-AB2, 230V, 1/2-3 HP

Goulds Water Technology

Free Shipping $499 or more

Goulds Aquavar e-AB Booster Pump

From $3,993.60
Goulds ResiBoost Booster Pump
Goulds ResiBoost Booster Pump

Goulds Water Technology

Free Shipping $499 or more

Goulds ResiBoost Booster Pump

From $3,993.60

Goulds Booster Pumps

Goulds Water Technology

Goulds
Booster Pumps

Packaged variable-speed constant-pressure boosting — ResiBoost for residential, Aquavar e-AB3 on the Xylem Smart Motor for buildings up to ten floors. Sized against published data by our technical desk in Houston.

to 75GPM
to 290 ftHead
1/2 – 2 HPMotor
3 PumpsNo PLC Needed

Goulds Water Technology, part of Xylem, builds packaged constant-pressure boosters — pump, drive, transducer and tank sold as one system rather than parts you assemble. As demand rises the drive changes pump speed to hold line pressure constant, so large supply tanks are eliminated and, Goulds publishes, up to 50 percent of the energy a full-speed pump would use.

Two systems. ResiBoost covers residential boosting to 40 GPM on a stainless e-HM pump. Aquavar e-AB3 runs on the Xylem Smart Motor — an IE5 permanent magnet motor with the drive built into it — and controls up to three pumps with auto lead/lag and no external panel.

Genuine Goulds Water Technology equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor. Send your inlet pressure, required flow and supply type to 1-888.510.4036 and we will size it.

The Range

Two packaged variable-speed systems. Pick on flow and boost. Boost is the pressure the pump adds — Goulds states on its own selection table that it is not total system pressure.

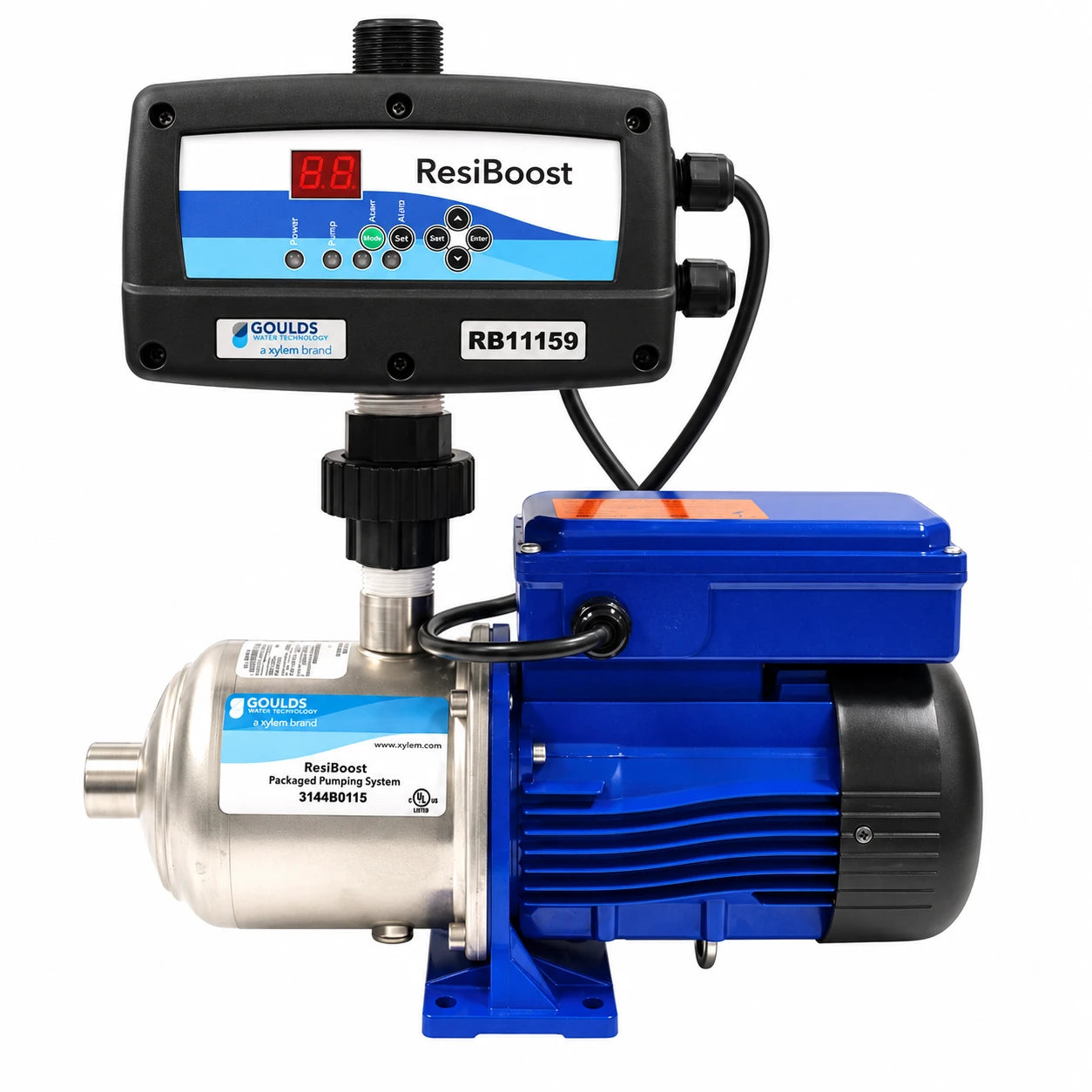

Goulds ResiBoost packaged constant pressure booster pump

ResiBoost

Residential · six models

13 or 22 GPMAt best efficiency
38–68 psiBoost
to 40 GPMMaximum
115V & 230VSupply

Stainless e-HM pump, a ResiBoost drive pre-wired to it with the transducer inside the controller, and a diaphragm tank. LCD with stored run hours, starts and faults. Protection against dry run, over-current, open lead, low pressure, overheating, short circuit and over/under-voltage.

View ResiBoost
Goulds Aquavar e-AB3 integrated variable speed constant pressure booster

Aquavar e-AB3

Residential to 10 floors · seven configurations

to 75 GPMFlow
20–80 psiBoost
to 290 ftHead
3 PumpsAuto lead/lag

Built on the Xylem Smart Motor, an IE5 permanent magnet motor with the drive integrated. Goulds publishes an average 15 percent energy saving against comparable pumps. Runs single or multi-pump with auto lead/lag and alternation for up to three pumps — no control panel, no PLC. UL 778, NSF 61 and 372.

View Aquavar e-AB3

Which Goulds System

The deciding question is whether one pump will still be enough in five years.

Consideration ResiBoost Aquavar e-AB3
Motor Standard induction Xylem Smart Motor, IE5 permanent magnet
Maximum flow 40 GPM 75 GPM
Boost range 38 – 68 psi rated duty 20 – 80 psi published selection
Head — to 290 ft
Power 115V or 230V, single or three phase out 230V single phase only
Multi-pump Single unit Up to 3, auto lead/lag, no panel
Tank Included Included, V6P or V15P
Enclosure Type 3 NEMA Type 3R
Best for A house on a weak main Apartment buildings, commercial services, OEM
Both are single-source packages. ResiBoost is one unit and stays one unit. The e-AB3 groups to three, but the pumps must match and the grouping is designed at purchase. If the building might grow past what you buy today, read the next section before you commit.

Before You Buy — Look at DAB

We supply both, so we can be straight about it. Goulds and DAB overlap heavily at this size, and on three specific things the DAB Esybox range does something Goulds does not.

Consideration Goulds Aquavar e-AB3 DAB Esybox
Self-priming No Yes — to 26 ft
Units in a group 3, wired 4, wireless
Adding a pump later Designed at purchase Wireless pairing, no controller
Maximum flow 75 GPM 32 GPM (Esybox) · more on Esybox Max
App No Yes
Noise Quiet — published as almost silent 43 dB published

Esybox

Self-priming to 26 ft, 2.1 HP, 31.7 GPM, 213 ft head, integrated tank. Four units pair wirelessly with no controller.

View Esybox

Esybox Mini 3

The compact one. Self-priming, 1.1 HP, 22 GPM, 183 ft head, 1 in NPT — for a house or a small unit where space is the constraint.

View Mini 3

Esybox Max

The commercial member of the range, for buildings past what a residential booster covers.

View Esybox Max

Esybox Diver

Submersible variable-speed constant pressure — 1.3 HP, 31.7 GPM, 180 ft head — where the pump goes in the tank rather than beside it.

View Diver

The honest verdict. Goulds wins on flow — the e-AB3 reaches 75 GPM where the standard Esybox stops at 32, and on a high-flow duty it is the better answer. DAB wins on suction and on growth: the Esybox self-primes to 26 ft where neither Goulds system is self-priming at all, and it pairs four units wirelessly with no controller and no rewiring. If the supply is a tank below the pump, or the building may outgrow what you buy today, start with DAB. Tell us the job and we will say which.

Tell Us the Job

Send inlet pressure, required flow, building height and supply type. You will get a sized selection against published data, the brochure, and an honest note if a different brand fits better.

1-888.510.4036 Email sales@watermainsupply.com Sizing Calculator
Technical data is taken from Goulds Water Technology and Xylem US 60 Hz literature — ResiBoost brochure BRESIBOOST R4 and the Aquavar e-AB3 technical brochure — and is subject to change by the manufacturer. Confirm against the current installation and operating instructions before specifying.
