DAB Esybox Diver Submersible Pressure Pump - 1.3 HP, 31.7 GPM, 180 ft Head, 1-1/4 in NPT

Price
$2,903.60
SKU: 60197922
Weight : 37.5 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description
DAB · Esybox Diver

Esybox Diver

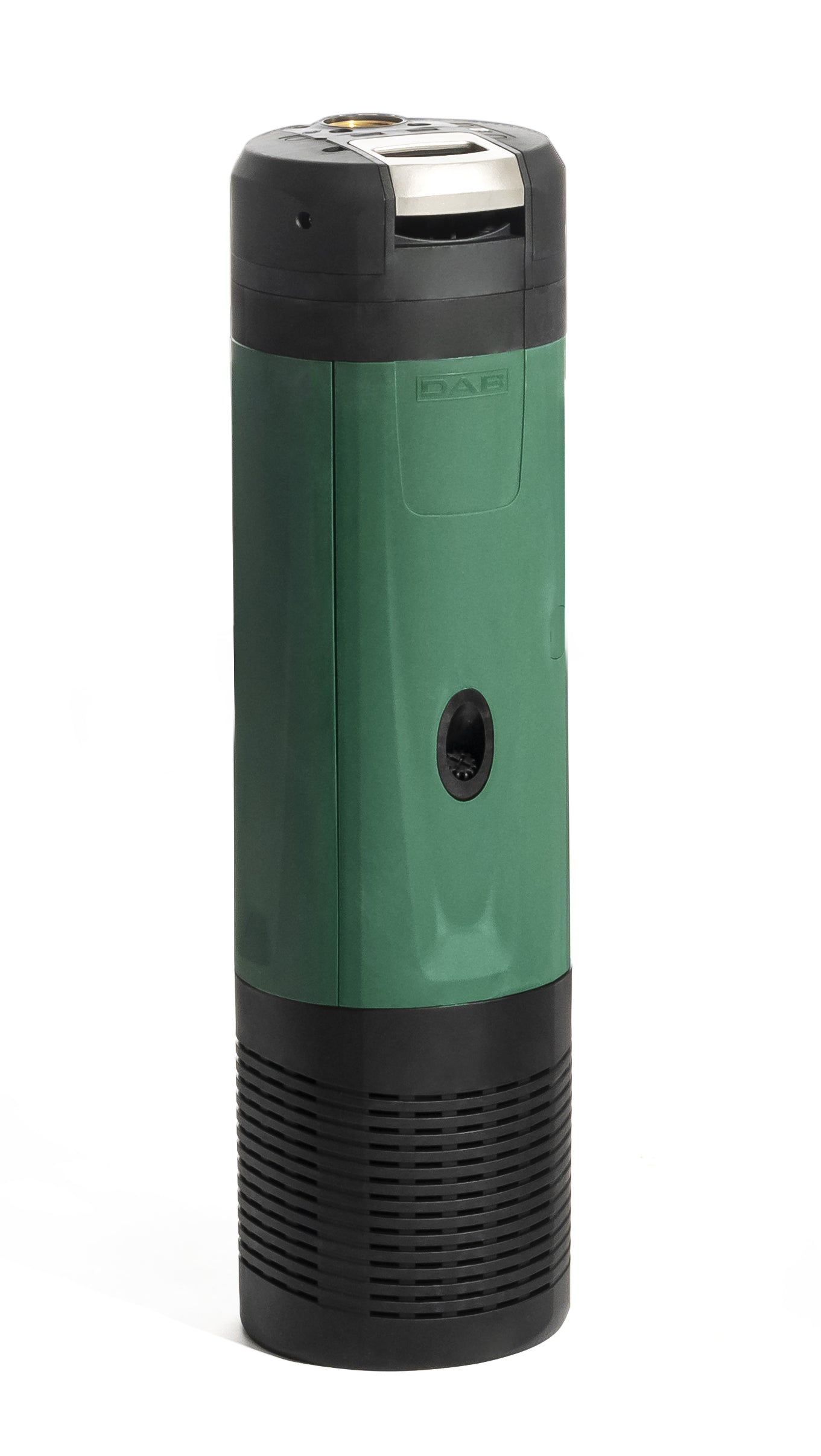

7-Inch Electronic Multistage Submersible Pump

7-inch electronic multistage submersible pump with integrated variable frequency drive for clean water in wells, cisterns and tanks. Runs submerged, partially submerged, or on the surface with the DOC68 accessory. Holds constant pressure, preset at 43 psi and adjustable from 14 to 80 psi. Equipped with PowerLine Communication and Wi-Fi, and supplied with a DConnect Box 2.

1.3 HP / 0.95 kW
31.7 GPM Max Flow
180 ft Max Head
1-1/4" NPT Discharge
3 Impellers
230V Single Phase
IP 68 Rated
39 ft Immersion Depth
14-80 psi Adjustable
Permanent Magnet Motor
PLC & Wi-Fi
DConnect Box 2 Included
NSF 61 / NSF 372
UL 778 / CSA C22.2

7-inch electronic multistage submersible pump with integrated variable frequency drive for clean water in wells, cisterns and tanks. Runs submerged, partially submerged, or on the surface with the DOC68 accessory. Holds constant pressure, preset at 43 psi and adjustable from 14 to 80 psi. Equipped with PowerLine Communication and Wi-Fi, and supplied with a DConnect Box 2.

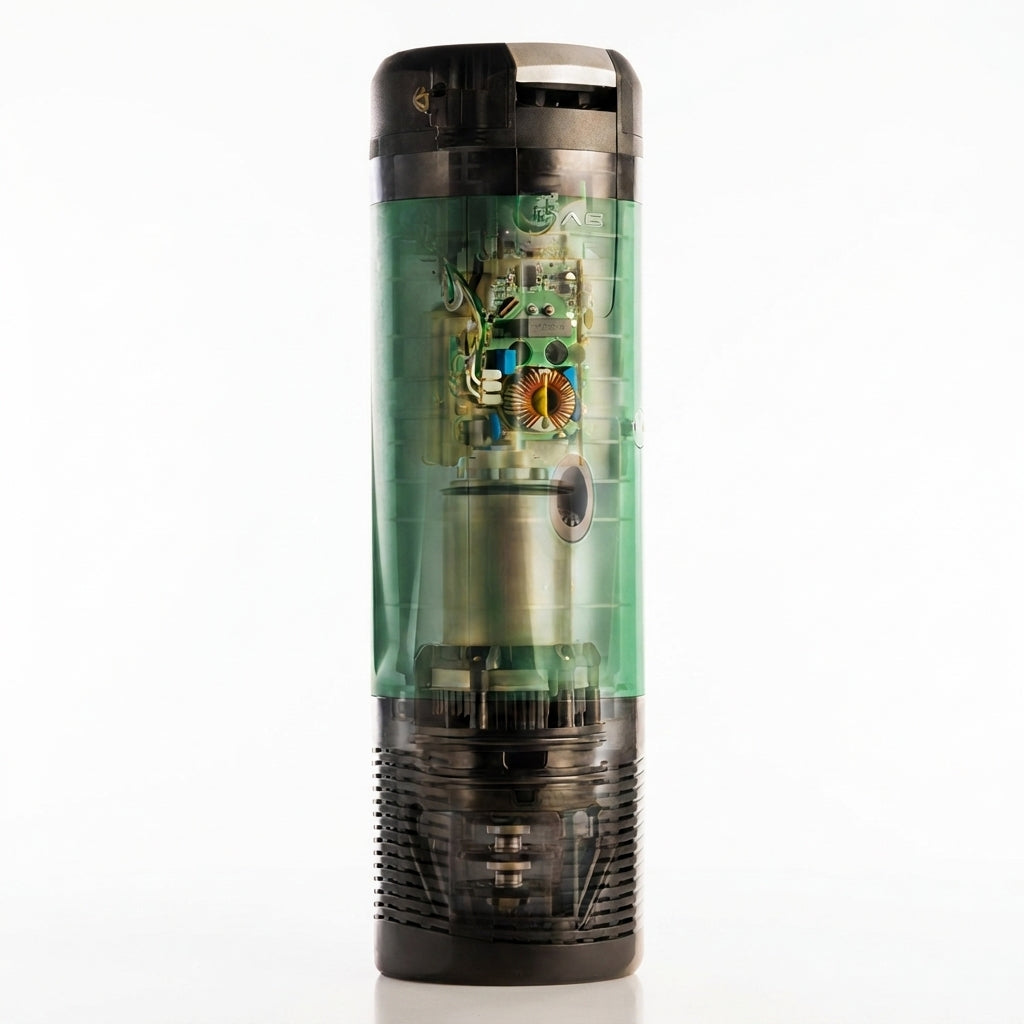

Suitable for pressurisation, rainwater reuse, gardening and irrigation in domestic and residential settings. The pump can be installed vertically or horizontally. A high-efficiency permanent magnet motor is cooled by the pumped liquid, with a double mechanical seal in an oil chamber so the motor-side seal sees only submersible pressure while the other side handles full operating pressure up to 80 psi.

Submerged, Semi-Submerged or Surface
Runs fully submerged, partially submerged, or on the surface with the DOC68 accessory.
IP 68 Throughout
The entire pump carries an IP 68 rating, not just the motor.

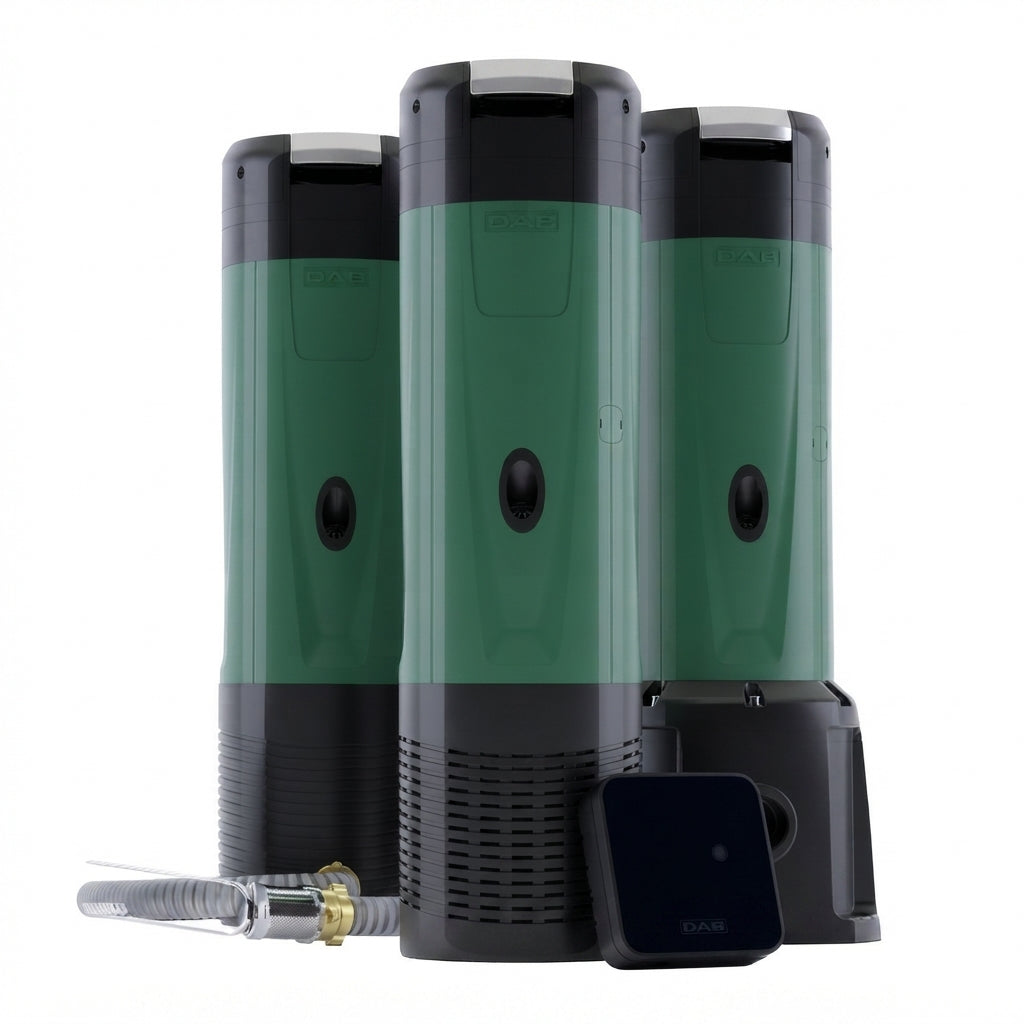

Twin Mode Operation
Paired with an identical pump, two Divers alternate or run together when demand exceeds one unit.

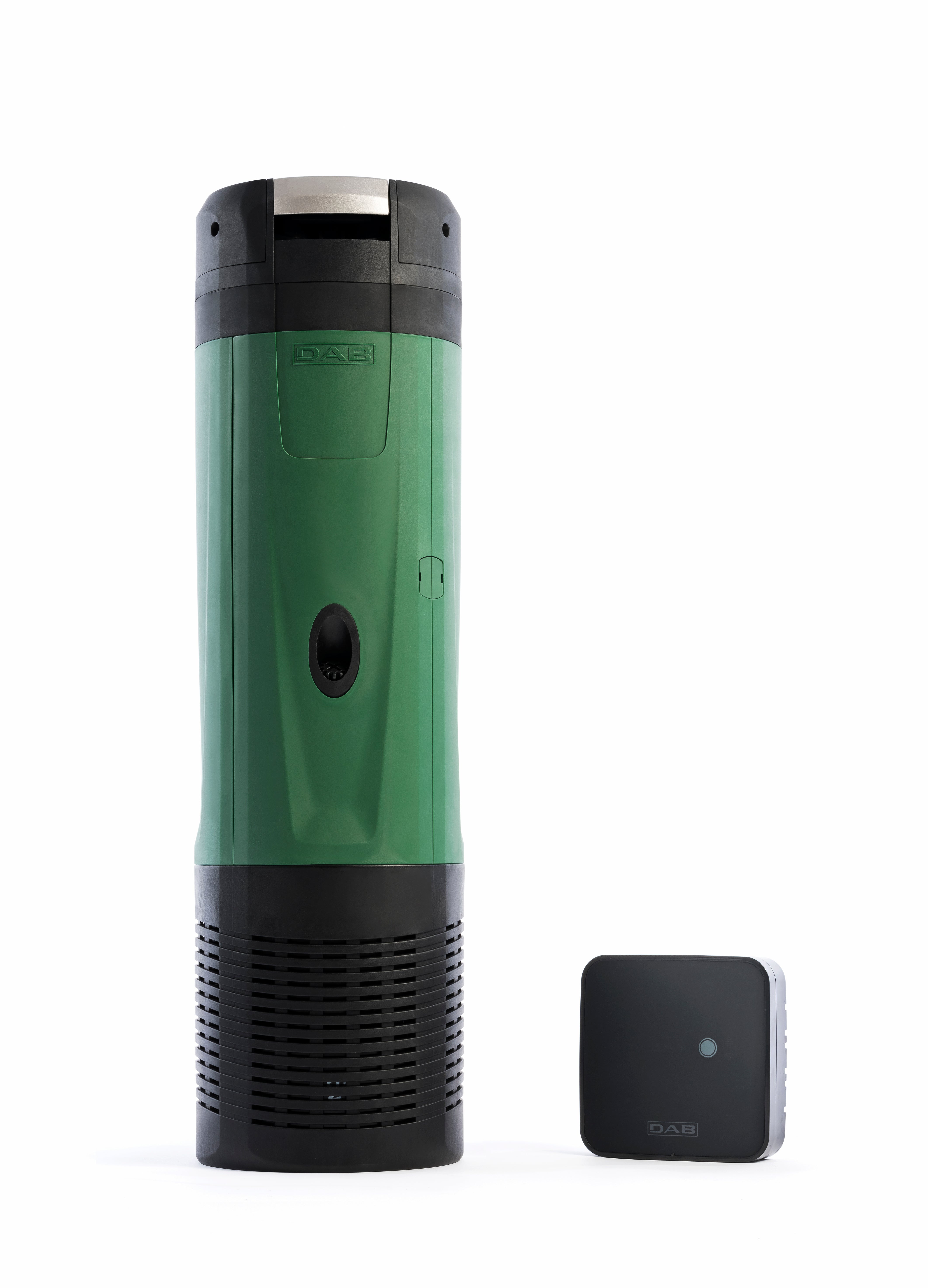

DConnect Box 2 Included
Monitor pressure, alarms and residual tank water from a phone or tablet.
Adjustable Suction Height
Accessory included, adjustable to 1.4", 1.6", 2.4" or 3.2".
Integrated Valves & Filter
Non-return valve, overpressure valve, air-vent valve and debris filter built in.
Dry-Run Protection
Electronics start and stop the pump autonomously and protect against dry running.
NFC Float Sensor Pocket
A float sensor connects without opening the pump, preserving the watertight seal.
Max Flow Rate
31.7 GPM
7.2 m³/h
Max Head
180 ft
55 m
P1 Power Input
1.3 kW
60 Hz
P2 Nominal
0.95 kW / 1.3 HP
Rated Current
5.5 A
Voltage
1 x 220-240V
50/60 Hz
Discharge Connection
1-1/4" NPT
Threaded
Max Immersion Depth
39 ft (12 m)
Standard version
Free Passage
0.08 in
2 mm
Min Suction Depth
4.33 in
110 mm
Min Water Level
1.38 in
35 mm
Adjustable Constant Pressure
14 - 80 psi
Preset 43 psi
Liquid Temperature
32°F to 131°F
0°C to +55°C
Ambient Temperature
<32°F to 122°F
0°C to +50°C
Max Starts per Hour
60
Protection Class
IP 68
Entire pump
Motor Insulation Class
F
Motor Type
Permanent magnet, fluid cooled
High efficiency
Power Cable
49 ft (15 m)
NEMA 6/15P plug
Pump Diameter
7.28 in
185 mm
Overall Height
29.1 in
740 mm
Expansion Vessel
0.04 litre integrated
No maintenance or recharging
Impeller Material
Technopolymer / AISI 304
Non-Stop Service
Yes
Shipping Weight
37.5 lbs
17 kg
Pallet Quantity
15
Certification
NSF 61, NSF 372, UL 778, CSA C22.2 No. 108-14
Flow (GPM) 0 4 8 12 16 20 24 28 31
Head (ft) 180 180 180 180 173 130 82 37.3 2.1
Pump Body
Technopolymer
Corrosion and oxidation resistant
Impellers
Technopolymer / AISI 304
Three stages, floating ring
Diffuser
Technopolymer
Handle
AISI 304 Stainless Steel
Motor Shaft
AISI 303 Stainless Steel
Hydraulic side
Motor Sleeve
AISI 304 Stainless Steel
Mechanical Seals
Carbon / AISI 304 / AISI 302 / NBR
Double seal in oil chamber
Check Valve
Technopolymer / NBR / Ferrite / AISI 302
Integrated
Overpressure Valve
Technopolymer / Brass
Ice and water hammer protection
Venting Valve
Technopolymer / AISI 420 / NBR
Improves first-fill priming
Expansion Vessel
Technopolymer / AISI 304 / EPDM 70
With spring and membrane
Filter
Technopolymer
Integrated debris filter
Accessory Description
DOC68 Converts the Diver to an IP 68 surface pump for outdoor vertical installation.
Kit X / Floating Intake X version with threaded inlet, 3.3 ft suction pipe and float to stop debris pickup.
Float Sensor Connects via the NFC pocket without breaking the watertight seal.

Accessory order codes are not published in the DAB Esybox Diver technical sheet or commercial leaflet. Confirm codes with DAB before quoting.
