Residential Booster Pumps

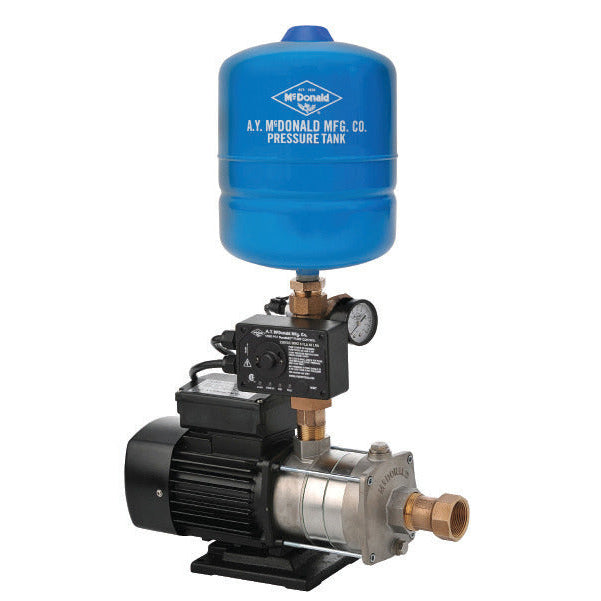

A.Y. McDonald DuraMAC Residential Booster Pump
A.Y. McDonald
A.Y. McDonald DuraMAC Residential Booster Pump
- Price
- From $1,466.47
A.Y. McDonald DuraMAC Light Commercial Booster Pump
A.Y. McDonald
A.Y. McDonald DuraMAC Light Commercial Booster Pump
- Price
- From $1,893.77
A.Y. McDonald Variable Speed Constant Pressure Booster Pump
A.Y. McDonald
A.Y. McDonald Variable Speed Constant Pressure Booster Pump
- Price
- From $1,091.29
A.Y. McDonald DuraMAC E-Series Booster Pump
A.Y. McDonald
A.Y. McDonald DuraMAC E-Series Booster Pump
- Price
- From $1,035.07
DAB Esybox Mini3 Variable Speed Water Pressure Booster Pump for Home, 80 PSI Max Boost - 22 GPM Max / 1.1 HP - 115/230V 1Ph / 60212610
DAB
DAB Esybox Mini3 Variable Speed Water Pressure Booster Pump for Home, 80 PSI Max Boost - 22 GPM Max / 1.1 HP - 115/230V 1Ph / 60212610
- Price
- $1,351.13
Franklin Electric VersaBoost Pro Booster Pump
Franklin Electric
Franklin Electric VersaBoost Pro Booster Pump
- Price
- From $1,491
DAB Esybox Variable Speed Water Pressure Booster Pump for Home, 92 PSI Max Boost - 32 GPM Max / 2.1 HP - 230V 1Ph / 60212311
DAB
DAB Esybox Variable Speed Water Pressure Booster Pump for Home, 92 PSI Max Boost - 32 GPM Max / 2.1 HP - 230V 1Ph / 60212311
- Price
- $2,569.32
DAB Esytwin Mini Duplex Variable Speed Booster System, Dock, Tank, 80 PSI Max Boost - 44 GPM Max / 2 x 1.1 HP - 115/230V 1Ph / 2 x 60212610
DAB
DAB Esytwin Mini Duplex Variable Speed Booster System, Dock, Tank, 80 PSI Max Boost - 44 GPM Max / 2 x 1.1 HP - 115/230V 1Ph / 2 x 60212610
- Price
- $3,333.57
DAB Esytwin Duplex Variable Speed Booster System, Dock, Tank, 92 PSI Max Boost - 64 GPM Max / 2 x 2.1 HP - 230V 1Ph / 2 x 60212311
DAB
DAB Esytwin Duplex Variable Speed Booster System, Dock, Tank, 92 PSI Max Boost - 64 GPM Max / 2 x 2.1 HP - 230V 1Ph / 2 x 60212311
- Price
- $5,885.57
Grundfos SCALA2 Constant Pressure Booster
Grundfos
Grundfos SCALA2 Constant Pressure Booster
- Price
- $1,488.88
Grundfos SCALA1 Self-Priming Booster Pump
Grundfos
Grundfos SCALA1 Self-Priming Booster Pump
- Price
- From $1,084.35
Davey DD Series Constant Pressure Booster
Davey
Davey DD Series Constant Pressure Booster
- Price
- From $2,510.40
Residential Booster Pumps
Residential Booster Pumps · All BrandsResidential
Residential
Booster Pumps
Booster pumps that turn low city or tank pressure into a steady shower on every floor. DuraMAC, DAB Esybox, Grundfos SCALA, Franklin Electric, Davey and Goulds, compared on one page.
6 BrandsOne collection
115V · 230VHome power
Variable SpeedConstant pressure
NSF 61 / 372Potable models
A booster pump adds pressure to the water already coming into the house, from a city main, a well tank or a cistern. A variable speed booster holds one set pressure as fixtures open and close, so the shower stays steady when a toilet flushes. A fixed-speed booster with a pressure tank is the simple choice for lifting water from a storage tank.
Watermain Supply supplies residential boosters from six manufacturers and checks your duty against the manufacturer's curve before you order. Send your incoming pressure, the pressure you want and the number of bathrooms, or call 1-888.510.4036. All products are genuine, factory-new equipment in original manufacturer packaging, sold and supported by Watermain Supply, an independent industrial supplier.
Booster Pump Sizing CalculatorBoost and flow, and the models that fit Pressure Tank Sizing CalculatorDrawdown and tank size for your booster
Shop by Brand
Each brand's full residential line, with its own performance tables and data sheets.
A.Y. McDonald DuraMAC
Residential, light commercial and variable speed boostersShop DuraMAC
DAB Esybox Mini3
Compact variable speed booster, 115/230VView Esybox Mini3
DAB Esybox
Higher flow and head for larger homes, 230VView Esybox
Grundfos SCALA1 and SCALA2
Self-priming SCALA1 and constant-pressure SCALA2Shop SCALA
Franklin Electric VersaBoost Pro
Constant pressure with FE ConnectView VersaBoost Pro
Davey
Constant pressure and cistern boostersShop Davey
Goulds
ResiBoost and Aquavar boostersShop GouldsHow to Choose a Home Booster
Three numbers pick the booster. Measure them before you compare models.
1. Pressure to Add
Boost = the pressure you want at the fixtures, minus the pressure coming in at peak use, plus 0.433 PSI for every foot the water climbs to the top floor. Measure incoming pressure in the morning, when the street is busiest.
2. Peak Flow
Size for the fixtures that run at the same time, not every fixture in the house. Two showers, a toilet and a sink together are a common peak for a family home. The calculator turns your fixtures into a peak flow.
3. Power and Location
Check the circuit: some models run on 115V, others need 230V. Check where it goes: indoor only, or rated for outdoor installation. Check the supply: on city water or a pressurized line, or lifting from a tank, where a self-priming pump helps.
4. Room to Grow
Some boosters pair into a two-pump set on a twin dock or base, so a second pump adds flow and a standby. The growth section on each product page says how.
Worked example. City pressure at peak is 35 PSI and you want 60 PSI on the second floor, 20 ft above the meter. Boost = 60 - 35 + (20 x 0.433) = 33.7, so about 34 PSI of boost at your peak flow. Pick a booster whose curve adds more than 34 PSI at that flow.
Why Buy Your Booster from Watermain Supply
Engineering-Led Sizing
Send the duty and we check it against the manufacturer's published data before you order.
Multi-Brand Honesty
We sell several brands in every category. If one is not the right fit, we will say so and quote the one that is.
Account Terms Available
Net-30 for qualified contractor, property management and municipal accounts.
Parts and Aftermarket
Genuine repair parts and accessories, matched by model, so the job ships complete.
Frequently Asked Questions
Straight answers to the questions buyers ask us most.
What size booster pump do I need for my house?
Work out the pressure to add (target pressure minus incoming pressure, plus 0.433 PSI per foot of rise) and the peak flow of the fixtures that run together. The booster must add that pressure at that flow; the calculator on this page does the arithmetic.
Variable speed or fixed speed?
A variable speed booster holds one set pressure as demand changes and starts softly, so it is quieter and gentler on plumbing. A fixed-speed booster with a pressure tank costs less and works well for steady lifts from a storage tank.
Can I put a booster on city water?
Usually yes. Many utilities and plumbing codes require a backflow preventer and set rules for boosting off the main, so check with your water provider and local code before installing.
Do I need a pressure tank with a booster?
Most variable speed boosters need only a small tank or have one built in; fixed-speed boosters need a tank sized to limit starts. Each product page lists what ships, and the tank calculator sizes the tank.
What warranty do residential boosters carry?
It depends on the brand and model, and each product page states it. For example, DAB boosters carry 24 months from purchase, and the A.Y. McDonald DuraMAC Residential and Light Commercial boosters carry 3 years from installation.
Can you help me choose?
Yes. Send your incoming pressure, the pressure you want, the number of floors and bathrooms and your power supply to sales@watermainsupply.com or call 1-888.510.4036.
Ready to Size Your Booster?
Send your incoming pressure, target pressure and number of bathrooms. We will reply with the boosters that fit, from the brands we carry.
Technical data on this page is taken from manufacturer product literature and is subject to change by the manufacturer. Confirm against the current installation manual before specifying.
