Franklin Electric · Constant Pressure Booster System

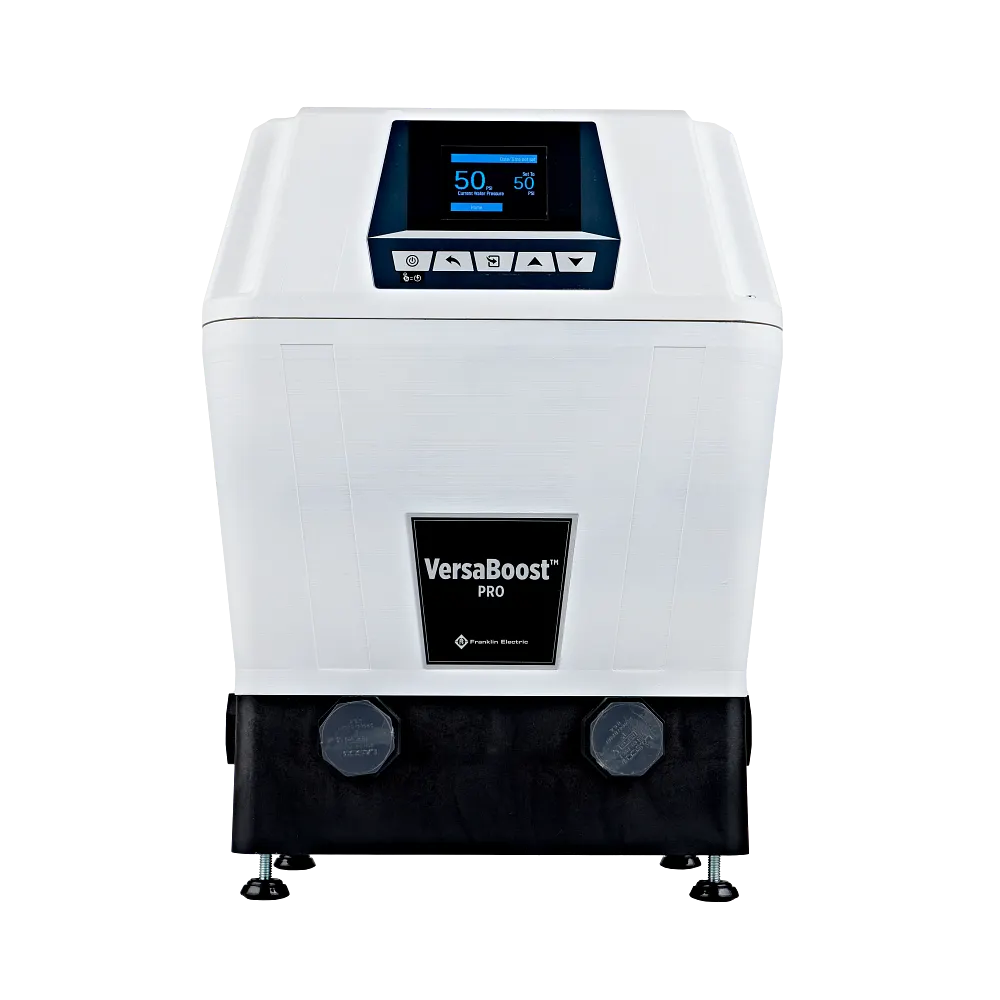

VersaBoost Pro Booster Pump
All-in-one constant pressure system on a Franklin encapsulated 4 in submersible pump-motor, with the drive, check valve and expansion tank built in. 18 or 25 GPM; up to four units link wirelessly in parallel.
80 PSI Max Boost · 18-25 GPM Max Flow
0.8-1.1 HP
120V or 208-240V 1Ph
100 PSI Max System Pressure
1 in NPT Inlet and Outlet
Built-In VFD · 14-80 PSI Set Point
Up to 25 ft Suction Lift
NSF/ANSI/CAN 61 and 372 · UL/CSA
18.0 x 13.3 x 10.8 in
39-41.2 lb Weight
NEMA 3R Indoor or Outdoor
Overview
VersaBoost Pro is a complete constant-pressure booster rather than a pump you build a system around. Inside is a Franklin Electric encapsulated 4 in submersible pump-motor assembly driven by a Franklin-engineered variable frequency drive, with an integrated check valve and expansion tank. It holds a steady set pressure from 14 to 80 psi as demand changes, for city water boosting, constant pressure on private wells, pressurizing from a cistern above or below the unit, re-pressurizing after filtration, and hydroponic or irrigation boosting.
-
Protection built in — underload, overload, overpressure, overheating, anti-cycling and freeze protection.
-
Scales wirelessly — up to four units in parallel, no control panel.
-
Quiet — as low as 45 dB, with rubber feet damping vibration.
-
Easy service — removable top, front and rear covers; the top cover and LCD rotate 180° for front or rear plumbing.
-
Connected — set up from the display or the FE Connect app over Bluetooth and WiFi.
What Ships and What It Needs to Run
Included: the complete VersaBoost Pro: pump-motor, variable frequency drive, integrated check valve, expansion tank and a 6 ft power cord.
Pressure relief valve required, ordered separately. Franklin’s VersaBoost manual calls for a pressure relief valve able to pass full pump flow up to 100 psi, installed near the outlet and piped to a drain that can take full system flow.
Inlet and outlet piping, isolation valves and any added pressure tank: sized to your installation and ordered separately.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Franklin Electric Warranty — 3 Years
Franklin Electric warrants VersaBoost Pro for 3 years from the date of installation, but in no event more than 3 years from the date of manufacture (VersaBoost owner’s manual, Standard Limited Warranty).
Growth — Up to Four Units in Parallel
Up to four VersaBoost Pro units link wirelessly into one system. Each unit carries a share of the flow, so each runs higher on its own curve and the set holds pressure at more flow; the 80 psi maximum output stays the same. Franklin publishes no combined table, so size a multi-unit set against the system demand.
Specifications
| Models |
FE-VBPRO-115 (120V), FE-VBPRO-230 (208-240V), FE-VBPROXT-230 (208-240V) |
| Horsepower |
0.8 HP (18 GPM); 1.1 HP (25 GPM, XT) |
| Max input amps |
9.6 A (120V); 5.5 A (208-240V); 7.0 A (XT) |
| Pressure set point |
14 to 80 psi |
| Maximum system pressure |
100 psi |
| Maximum suction lift |
25 ft |
| Water temperature |
104 °F maximum |
| Ambient temperature |
33 to 122 °F |
| Connections |
1 in NPT inlet and outlet, molded-in hex grip with stainless inserts |
| Enclosure |
NEMA 3R, indoor or outdoor |
| Certification |
NSF/ANSI/CAN 61 and 372; UL/CSA listed |
Performance — Will It Do What You Need?
Pressure added in PSI, 18 GPM models
| Model |
0 GPM (Shut-off) |
5 GPM |
10 GPM |
12 GPM |
15 GPM |
18 GPM (Max) |
| VersaBoost Pro · 0.8 HP |
80 |
80 |
70 |
60 |
40 |
10 |
Pressure added in PSI, 25 GPM XT
| Model |
0 GPM (Shut-off) |
5 GPM |
10 GPM |
15 GPM |
20 GPM |
25 GPM (Max) |
| VersaBoost Pro XT · 1.1 HP |
80 |
80 |
78 |
65 |
45 |
10 |
Digitized from Franklin’s published VersaBoost Pro curve (spec sheet M5058) and rounded down; the drive caps output at the 80 psi set-point maximum. Zero flow is the shut-off. The full curve is in the product images.
Flow in GPM under suction lift, by discharge pressure — Franklin’s printed table
| Model |
Suction lift |
20 PSI |
30 PSI |
40 PSI |
50 PSI |
60 PSI |
70 PSI |
80 PSI |
| VersaBoost Pro |
5 ft |
16.8 |
15.7 |
14.0 |
12.0 |
8.6 |
4.6 |
0 |
|
10 ft |
16.0 |
14.7 |
13.0 |
10.9 |
7.6 |
2.3 |
0 |
|
15 ft |
14.6 |
13.5 |
11.9 |
9.7 |
6.5 |
0.8 |
0 |
|
20 ft |
13.2 |
12.1 |
10.7 |
8.6 |
5.2 |
0 |
0 |
|
25 ft |
11.3 |
10.2 |
8.7 |
6.8 |
1.8 |
0 |
0 |
| VersaBoost Pro XT |
5 ft |
24.5 |
23.7 |
22.6 |
19.7 |
16.8 |
13.6 |
9.7 |
|
10 ft |
22.9 |
22.4 |
21.3 |
18.9 |
16.1 |
13.1 |
9.2 |
|
15 ft |
21.0 |
20.6 |
19.9 |
17.9 |
15.8 |
12.6 |
8.1 |
|
20 ft |
18.7 |
18.6 |
18.1 |
17.1 |
15.5 |
12.0 |
6.0 |
|
25 ft |
15.2 |
15.0 |
15.0 |
14.4 |
13.6 |
9.8 |
1.4 |
Fed by a city main — incoming pressure turns into extra flow at the same set point, up to the 100 psi system maximum. Drawing from a tank or cistern — read the suction-lift table at your lift and set point.
Suction-lift table as printed in Franklin spec sheet M5058; Franklin notes the flow rates are approximations subject to application and atmospheric pressure.
Before You Buy — The Limits That Decide the Fit
| Water |
Cold, potable water: NSF/ANSI/CAN 61 and 372. |
| Water temperature |
104 °F maximum. |
| Maximum pressure |
100 psi system pressure; set point 14 to 80 psi. |
| Suction |
Up to 25 ft suction lift. |
| Power |
120V (18 GPM) or 208-240V single phase; 6 ft cord. |
| Connections |
1 in NPT inlet and outlet. |
Applications
City water pressure boosting, constant pressure for private wells, pressurizing from cistern tanks above or below the unit, re-pressurizing after filtration, hydroponic and irrigation boosting.
