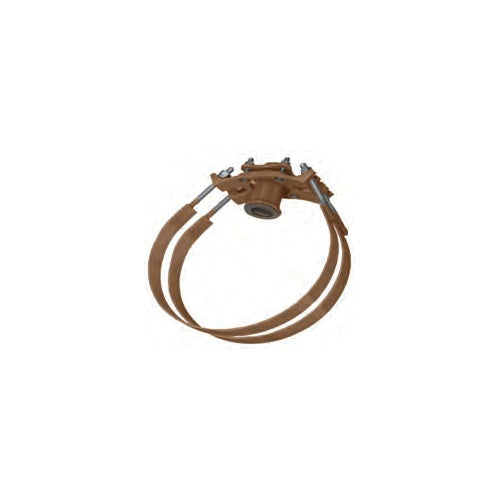

JCM 425 Service Saddle for Concrete Steel Cylinder Pipe - 16 to 48 in
JCM 425 Service Saddle for Concrete Steel Cylinder Pipe - product photo

JCM Industries

Free Shipping $499 or more

JCM 425 Service Saddle for Concrete Steel Cylinder Pipe - 16 to 48 in

From $626.44

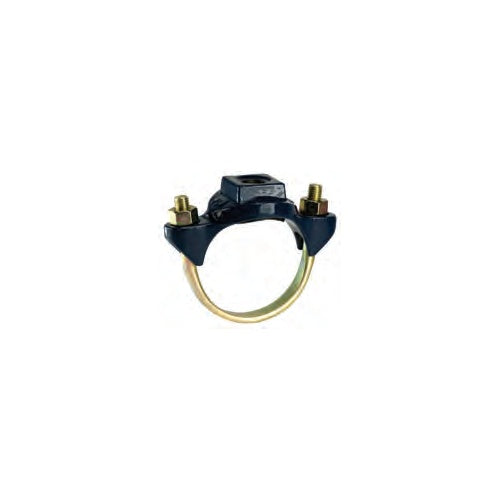

JCM 407 Coated Wide Body Service Saddle - Galvanized Strap
JCM 407 Coated Wide Body Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 407 Coated Wide Body Service Saddle - Galvanized Strap

From $45.35

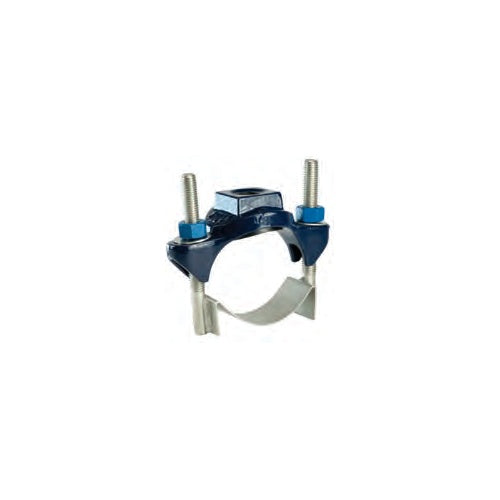

JCM 405 Coated Wide Body Service Saddle - Stainless Strap
JCM 405 Coated Wide Body Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 405 Coated Wide Body Service Saddle - Stainless Strap

From $75.11

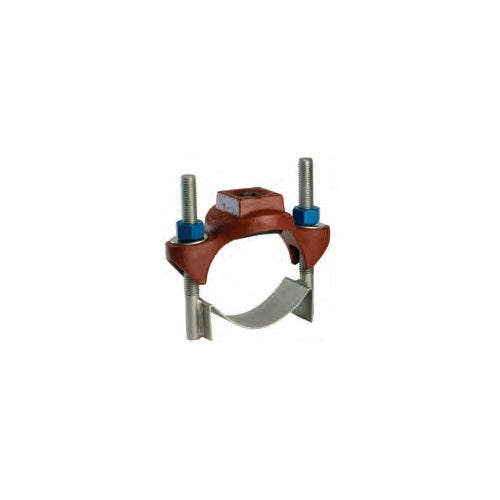

JCM 403 Wide Body Service Saddle - Stainless Steel Strap
JCM 403 Wide Body Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 403 Wide Body Service Saddle - Stainless Steel Strap

From $62.16

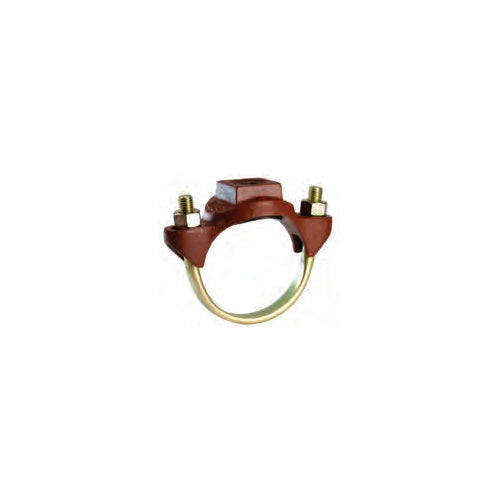

JCM 401 Single Strap Service Saddle - Galvanized Strap
JCM 401 Single Strap Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 401 Single Strap Service Saddle - Galvanized Strap

From $33.51

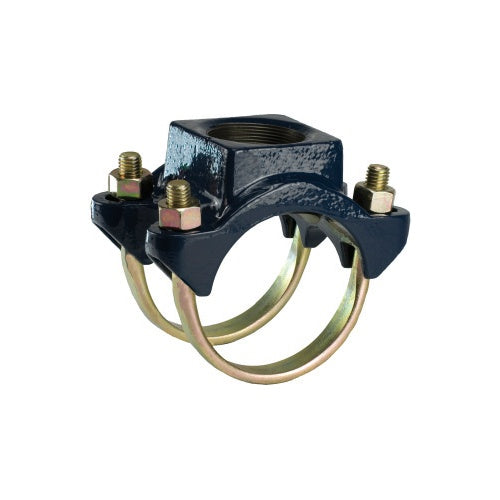

JCM 408 Coated Service Saddle - Double Galvanized Straps
JCM 408 Coated Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 408 Coated Service Saddle - Double Galvanized Straps

From $58.68

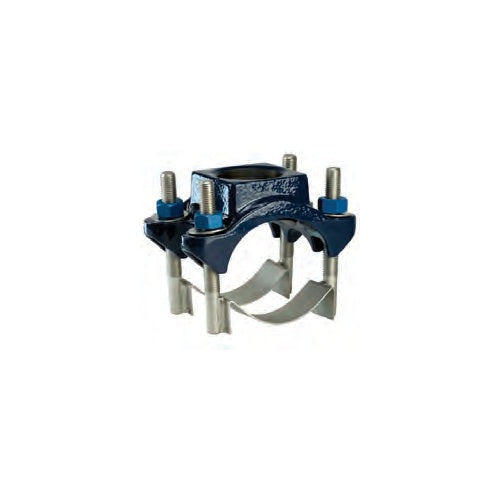

JCM 406 Coated Service Saddle - Double Stainless Steel Straps
JCM 406 Coated Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 406 Coated Service Saddle - Double Stainless Steel Straps

From $130.32

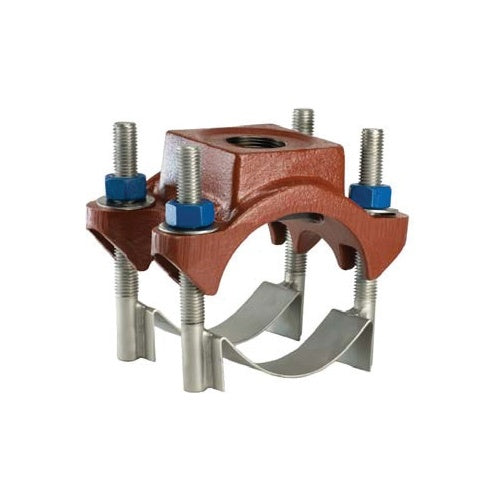

JCM 404 Service Saddle - Double Stainless Steel Straps
JCM 404 Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 404 Service Saddle - Double Stainless Steel Straps

From $104.96
JCM 402 Double Strap Service Saddle - Galvanized Straps
JCM 402 Double Strap Service Saddle - product photo

JCM Industries

Free Shipping $499 or more

JCM 402 Double Strap Service Saddle - Galvanized Straps

From $47.23

JCM Service Saddles

JCM Industries · Service Saddles · 2 to 48 in

JCM Service Saddles: Ductile Iron, Coated, Stainless and Concrete Pipe

Tap a service, air valve or branch into a water main without the risks of a direct tap: ductile iron saddles with galvanized or stainless straps, fusion-plastic coated saddles for hot soils, the all-stainless 502 and the 425 for concrete steel cylinder pipe.

JCM 404 Service Saddle
10 StylesDuctile, coated, stainless, CCP
250 PSIDuctile iron saddles
1/2-2-1/2 inNPT and CC taps
AWWA C800Outlet threads
-40 to +212°FBuna-N gasket

A service saddle clamps a threaded outlet onto the main with a broad, pressure-activated gasket, so the corporation stop threads into the saddle instead of the pipe wall. It avoids leaking threads and split pipe and reinforces the connection. JCM builds ductile iron saddles with single or double straps, coated versions for hot and corrosive soils, an all-stainless saddle and a saddle for concrete steel cylinder pipe.

Watermain Supply supplies JCM service saddles with engineering-led selection: send the pipe OD and material, the tap size and thread (IP or CC) and the pressure. Email sales@watermainsupply.com or call 1-888.510.4036. Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Will It Work for Me?

The four questions that decide a saddle.

Warranty

12 months from the date of purchase against defects in materials and workmanship (Watermain Supply standard).

Reliability

ASTM A536 ductile iron bodies, Buna-N gaskets bonded into a retaining cavity, electro-galvanized or 304 stainless straps, and an optional 12 mil fusion-plastic coating rated over 12,000 volts dielectric.

Fit

JCM rates its ductile iron saddles at 250 PSI working pressure and the 502 at 200 PSI working, 225 PSI test. Wide body and wide straps suit PVC and thin-wall pipe; the 502 is not for HDPE.

Size It Now

Send the pipe OD, material, tap size and thread. We confirm the saddle and part number.

Email the OD

Three Kinds of JCM Service Saddle

JCM 401 Single Strap Service Saddle

Single Strap Saddles

Styles 401, 403, 405, 407

250 PSIWorking pressure
2-12 inPipe sizes
1/2-2-1/2 inTaps
Galv or SSStrap

A ductile iron body with one strap for service taps on 2 to 12 in pipe. The 403 uses an extra-wide stainless strap that avoids point loading on PVC and thin-wall pipe; the 405 and 407 are wide-body saddles with a fusion-plastic coating.

  • Wide-body wrap-around design
  • Broad pressure-activated gasket
  • IP (NPT) or CC outlet thread
Best for residential and light commercial service taps.
JCM 401JCM 403JCM 405

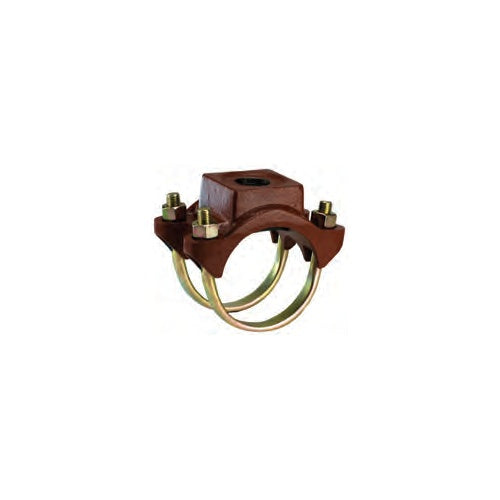

JCM 402 Double Strap Service Saddle

Double Strap Saddles

Styles 402, 404, 406, 408

250 PSIWorking pressure
2-24 inPipe sizes
1/2-2-1/2 inTaps
2 strapsGalv or SS

Heavy-duty double strap saddles for larger mains and larger taps, with a large sealed outlet area that also repairs holes, pin holes and leaking 3/4 and 1 in direct taps. Coated 406 and 408 for hot and corrosive soils.

  • Two wide straps with closed canted ears
  • C900 PVC ODs on 14 in and larger
  • Repairs leaking direct taps
Best for municipal mains, air valves and larger service connections.
JCM 402JCM 404JCM 406
JCM 502 Stainless Steel Service Saddle

Stainless and Concrete Pipe

Styles 502, 425

200 PSI502 working
8 in502 band width
16-48 in425 concrete pipe
EPDM / Buna-NGaskets

The 502 is all 304 stainless with an 8 in band, 5/8 in studs and an EPDM gasket for chloramine and hot water. The 425 makes 3/4 to 2 in taps on concrete steel cylinder pipe with a separate bolt-in outlet that reinforces the pipe before the prestress wire is removed.

  • 502: IPS PVC, C900, DI, CI, steel (not HDPE)
  • 425: 0 to 1-1/8 in concrete coating
  • 425: grout the saddle
Best for stainless service lines and concrete cylinder transmission mains.
JCM 502JCM 425

Every JCM Saddle Side by Side

Style Construction Pipe OD Taps Pressure
JCM 401 Ductile iron, single galvanized strap 2.35-14.38 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 403 Ductile iron wide body, SS strap 2.35-14.38 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 405 Coated wide body, SS strap 2.35-14.38 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 407 Coated wide body, galvanized strap 2.35-14.38 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 402 Ductile iron, double galvanized straps 2.35-26.50 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 404 Ductile iron, double SS straps 2.35-26.50 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 406 Coated, double SS straps 2.35-26.50 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 408 Coated, double galvanized straps 2.35-26.50 in 1/2 to 2-1/2 in NPT and CC 250 PSI
JCM 502 All 304 stainless, 8 in band, EPDM 2.38-14.40 in 3/4 to 2 in NPT and CC 200 PSI Working, 225 PSI Test
JCM 425 Concrete steel cylinder pipe, bolt-in outlet 16 to 48 in 3/4 to 2 in NPT and CC By application

Taps vary by size; the variant picker shows only the outlets JCM builds for each range. IP (NPT) = iron pipe thread; CC = AWWA corporation stop thread.

Service Saddle Cross Reference

JCM styles and their nearest equivalents.

JCM Description Smith-Blair Dresser Ford Romac PowerSeal
401 Single strap service saddle 311 291 F101 101U -
403 Wide body service saddle, SS strap 315 194 - 101S -
405 Coated wide service saddle, SS strap 315 - FC101 101N 3415
407 Coated service saddle, galvanized strap 311 - F101 101NU 3411DI
402 Double strap service saddle 313 Galv / 313 SS 291 F202 202U -
404 Service saddle, double SS straps 317 - FS202 202S -
406 Coated service saddle, double SS straps 317 - FCD202 202N 3417DI
408 Coated service saddle, double galvanized straps 313 Galv / 313 SS - F202 202NU 3413DI
502 Stainless steel service saddle 372 - FS313 306 3412AS
425 Service saddle for concrete steel cylinder pipe 362 - - - 3465CS

From the JCM Industries Product Cross Reference and Comparison Chart (Product Directory 8-25). Linked styles are on our site. Equivalents are matched by function: OD ranges, pressure ratings, gaskets and materials differ, so confirm the part for your pipe before ordering. * = similar materials, designs vary (JCM note).

JCM vs Smith-Blair vs Dresser

Specs below are taken from our own listings.

Double Strap Saddles vs Stainless Wide Range

JCM 404 Smith-Blair 317 Dresser T3
Body Ductile iron, shop-coat primer Epoxy-coated ductile iron 304 stainless
Straps Double 304 stainless Double 304 stainless Stainless band
Pressure 250 PSI working 300 PSI max working Up to 250 PSI
Taps 1/2-2-1/2 in NPT and CC 5/8-4 in CC and NPT 1/2-2 in NPT or CC
Pipe OD 2.35-26.50 in 4.40-25.80 in Up to 0.9 in range per saddle
Gasket Buna-N, -40°F to +212°F Nitrile TaperSeal, -20°F to +180°F NBR, NSF/ANSI 61

Verdict: Smith-Blair 317 publishes a higher rating (300 PSI) and taps to 4 in. The JCM 404 carries a Buna-N gasket rated to 212°F and has a fusion-plastic coated twin (406). Dresser T3 is the wide-range answer when the OD is uncertain.

All Stainless

JCM 502 Smith-Blair 372 Dresser T3 Stainless
Pressure 200 PSI working, 225 PSI test 150 PSI max working Up to 250 PSI
Band 304 stainless, 8 in wide 304 stainless, 7-1/2 in wide 304 or 316 stainless
Gasket EPDM (chloramine, hot water) Nitrile NBR, NSF/ANSI 61
Taps 3/4-2 in NPT and CC 1/2-2 in CC and NPT 1/2-2 in NPT or CC
Pipe OD 2.38-14.40 in 4.50-17.46 in Wide range

Verdict: the JCM 502 publishes 200 PSI against the Smith-Blair 372's 150 PSI, and its EPDM gasket suits chloraminated water. Smith-Blair 372 reaches larger pipe (17.46 in OD); Dresser T3 also comes in 316 stainless and a removable-lug version.

Selection Guide

Job JCM style Note
Service tap on PVC or thin-wall pipe JCM 403 (coated: JCM 405) Extra-wide stainless strap on the 403
Everyday service tap, 2-12 in JCM 401 Galvanized strap
Larger main or larger tap JCM 402 or JCM 404 Double straps, to 24 in
Hot or corrosive soil JCM 406 or JCM 405 Fusion-plastic coating, stainless straps
Chloraminated water, stainless service JCM 502 EPDM gasket, 200 PSI
Concrete steel cylinder pipe JCM 425 Bolt-in outlet, grout diaper recommended
Larger branch than 2-1/2 in See the JCM tapping sleeves Threaded outlets to 4 in on the 418 and 438

Sizing and Best Practices

Measure the OD, not the nominal size

Wrap a pipe OD tape (or a string) around the pipe at the repair. Circumference divided by 3.1416 is the OD. Our JCM 920 pipe diameter tape reads the diameter directly in 100ths of an inch.

Pick the range around your number

Choose the OD range that contains the measured OD, ideally near the middle of the range. Out-of-round or corroded pipe is a reason to step to an extended range style.

Know the pipe material

Cast iron, ductile iron and C900 PVC share one OD family; IPS PVC, steel and HDPE share another; asbestos cement runs larger. Two pipes of the same nominal size can need different fittings.

Match the thread

IP (NPT) and CC (AWWA corporation stop) threads are not interchangeable. Order the outlet that matches the corporation stop.

Tap through the saddle

Install the saddle and corporation stop, then tap the main through the stop with a tapping machine.

Large taps

Above 2-1/2 in, use a tapping sleeve; the full sleeve reinforces the pipe around a larger hole.

Accessories

JCM 920 Pipe Diameter Tape

Reads pipe OD in 100ths of an inch Sizing tool

Why Buy JCM From Watermain Supply

Engineering-led selection

Send the measured OD, pipe material, damage and pressure. We name the style, range and width, and we obtain JCM's rating and a submittal when the job needs one.

Three brands, one honest answer

We sell JCM, Smith-Blair and Dresser side by side. If another style fits your pipe better, we will say so and quote it.

Every part on one order

Clamps, couplings, saddles, tapping sleeves, restraints and gaskets on one PO, with account terms for utilities and contractors.

Parts and aftermarket

JCM transition gaskets, OD tapes and replacement parts listed alongside the fittings, so the job does not stall on a gasket.

Odd sizes handled

JCM builds special ranges, widths, outlets and materials to order. We handle the request and the submittal for you.

Houston based, Gulf Coast service

Watermain Supply is based in Houston and serves utilities, contractors and plants across the Gulf Coast and nationwide.

Frequently Asked Questions

What warranty do JCM service saddles carry?

Watermain Supply covers them for 12 months from the date of purchase against defects in materials and workmanship.

What pressure are JCM saddles rated for?

JCM rates its ductile iron service saddles for 250 PSI working pressure (hydrostatic) and the 502 stainless saddle for 200 PSI working, 225 PSI test.

What is the difference between IP and CC?

IP is iron pipe thread (NPT); CC is the AWWA corporation stop thread. Order the outlet that matches your corporation stop.

Which saddle for PVC pipe?

The 403 has an extra-wide stainless strap that avoids point loading, which JCM recommends for PVC, thin-wall pipe and pipe sensitive to point loading. The 502 also covers IPS and C900 PVC.

Can a saddle fix a leaking direct tap?

Yes. The double strap 402 to 408 have a large sealed outlet area that repairs holes, pin holes and leaking 3/4 and 1 in direct taps.

Is the 502 suitable for HDPE?

No. JCM recommends the 502 for IPS PVC, C900 PVC, ductile iron, cast iron and steel, not HDPE.

What does the coating do?

The 405, 406, 407 and 408 carry a fusion-bonded blue plastic coating, 12 mils minimum, with over 12,000 volts dielectric strength, for hot and corrosive soils.

How do I tap concrete cylinder pipe?

Use the JCM 425: its bolt-in outlet reinforces the pipe before the prestress wire is removed, and it takes 0 to 1-1/8 in of concrete coating. JCM recommends grouting the saddle.

Ready to Make the Tap?

Send the pipe OD, material, tap size and thread. We will name the JCM saddle.

1-888.510.4036Email SalesRequest a Quote
