Smith-Blair Style 311 Ductile Iron Service Saddle - Galvanized Bale, 1-14 in

Nominal Size - OD Range: 1 in - 1.31-1.39 in OD
Tap Size: 5/8 in CC
Part No.: 311-00013905-000

Product variant with selected options does not exist!
$46.68
SKU: 311-00013905-000
Weight : 3.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Service Saddle
Style 311 Service Saddle
Single Bale, Epoxy-Coated Ductile Iron Body — Electro-Galvanized Bale
200 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
Epoxy-Coated Ductile Iron Body
Electro-Galvanized Steel Bale
5/8 to 2 in CC and NPT Taps
NSF/ANSI 61 and 372
AWWA C800
1.31-14.32 in Pipe OD
3-7 lb Weight
Description

The Smith-Blair Style 311 is a single-bale ductile iron service saddle with a TaperSeal gasket and a wraparound bale, used to connect branch lines, instruments and other appurtenances to the pipe. The wide, wraparound body with a heavy tapping boss sits stable on the pipe, and the TaperSeal lip lets the saddle hold pressure with minimal nut torque.

Choose the pipe size and OD range in the first option and the outlet in the second: CC (AWWA corporation-stop thread) from 5/8 to 1-1/2 in and NPT from 3/4 to 2 in, from 1 in to 12-14 in nominal pipe; not every tap is made on every pipe size.

Application: tapping pipe for branch and service connections and installing air and vacuum valves, drain valves, pitot tubes and other service equipment.

Key Features

  • Working pressure up to 200 PSI, depending on size and application
  • Wide saddle body and heavy tapping boss give stability on the pipe
  • Gasket is fully cemented in its cavity to hold it in place
  • A closed lug on one side works with the bale as a hinge for easier installation; the open lug slips on without removing the nuts
  • Meets applicable AWWA C800 standards; certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the epoxy-coated ductile iron saddle body with the gasket cemented in place, one electro-galvanized steel bale, nuts and washers, ready to install.

Outlet: supplied with the CC or NPT tap chosen in the options; the outlet connection is made with pipe thread compound, not tape.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 200 PSI. depending on size and application. Smith-Blair notes that the allowable pressure depends on the type of pipe, pipe diameter, service conditions and installation workmanship.

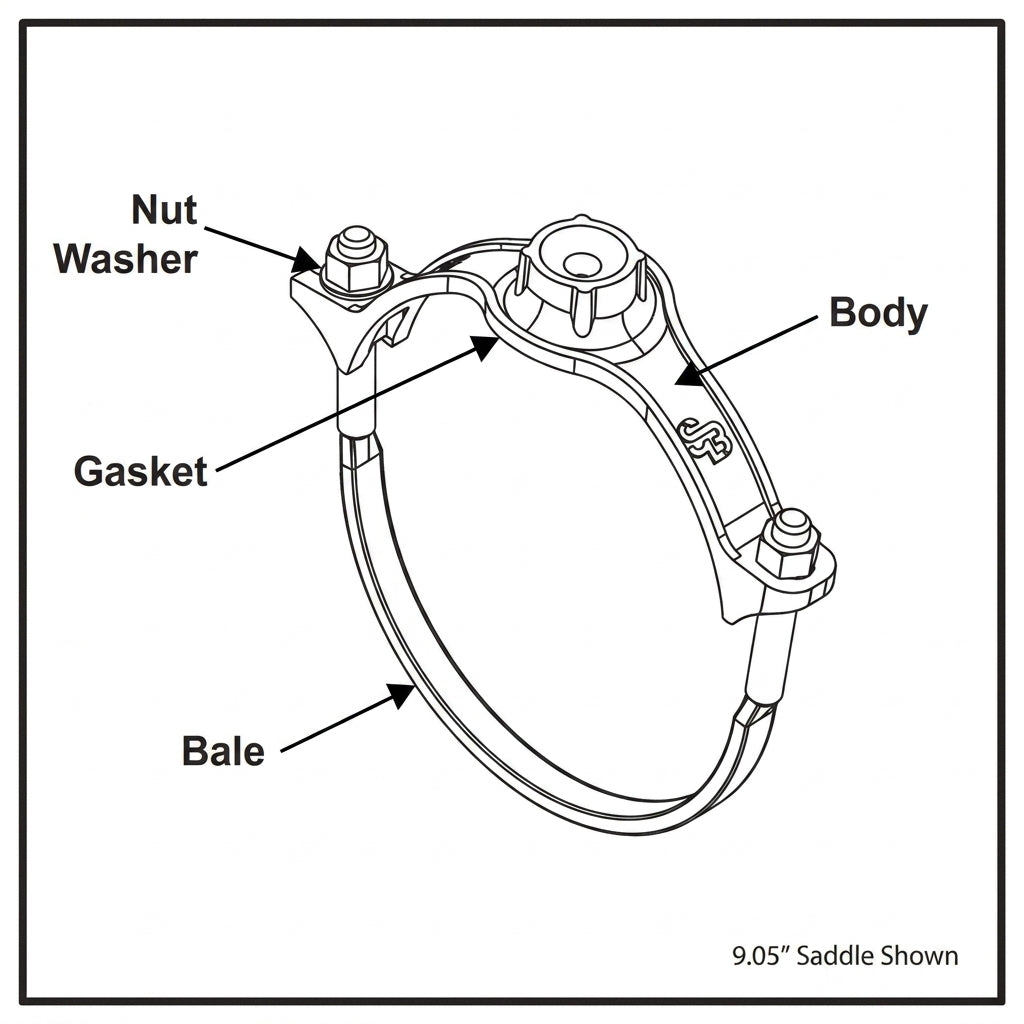

Materials Specifications
Body Ductile iron 65-45-12 per ASTM A536, Flexi-Coat fusion-bonded epoxy finish (application meets AWWA C213); closed ear one side, open ear the other, canted ears
Bale HSLA carbon steel per AWWA C111/A21.11, Fe/Zn (electro-galvanized) coated per ASTM F1941; pipe contact surface flattened for a wider bearing surface
Nuts Carbon steel per ASTM A307, heavy hex semi-finished, Fe/Zn coated per ASTM F1941
Washers Carbon steel per ASTM F844, Type A plain, Fe/Zn coated per ASTM F1941; protect the epoxy coating and add bearing surface
Gasket Nitrile (Buna-N) per ASTM D2000, TaperSeal hydro-mechanical lip, compounded to resist water, oil, natural gas, acids, alkalies, most (aliphatic) hydrocarbon fluids and many other chemicals; -20°F to +180°F
Hardware size 1/2-13 UNC on 1-3 in nominal pipe; 5/8-11 UNC on 4-14 in nominal pipe

Materials subject to change by the manufacturer.

Pipe Applications

Steel, ductile iron and cast iron pipe per the datasheet; Smith-Blair's spec adds stainless steel, asbestos cement and aluminum. Bale saddles are not recommended on PVC or HDPE pipe; Smith-Blair's stainless strap styles are built for those.

Sizes
17 sizes from 1.31 to 14.32 in OD — open for the full list
Nominal size - pipe OD NPT taps CC taps
1 in - 1.31-1.39 in 3/4 in 5/8, 3/4 in
1-1/4 to 1-1/2 in - 1.61-1.92 in 3/4, 1 in 5/8, 3/4, 1 in
2 in - 2.35-2.56 in 3/4, 1, 1-1/4, 1-1/2 in 5/8, 3/4, 1, 1-1/4 in
2 in - 2.38 in 3/4, 1 in 5/8, 3/4, 1 in
2-1/4 to 2-1/2 in - 2.44-2.91 in 3/4, 1, 1-1/4, 1-1/2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
3 in - 2.97-3.54 in 3/4, 1, 1-1/4, 1-1/2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
4 in - 4.40-4.50 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
4 in - 4.40-4.80 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
4-5 in - 4.74-5.63 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
5-6 in - 5.94-6.70 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
5-6 in - 5.94-6.90 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
6 in - 6.84-7.60 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
6-8 in - 7.69-8.72 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
6-8 in - 7.69-9.05 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
8-10 in - 8.54-10.10 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
10-12 in - 10.64-12.12 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
12-14 in - 12.62-14.32 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in

Choose the size and pipe OD in the first option and the tap in the second; the part number shows in the last option.

Installation Notes
  • Confirm the saddle type, tap size and pipe OD range before you start, then clean the pipe thoroughly where the gasket will seat, removing scale, dirt and debris.
  • Check that the gasket sits properly in the body, then lubricate the pipe surface and gasket with a soap-and-water solution (anti-freeze may be required) that meets the water and pipe supplier's requirements.
  • Mount the body as close to the final tap position as possible and set its orientation before tightening; do not move the body once it is on the pipe, as this can damage the gasket.
  • Fit the bale, washers and nuts, with the washers on the open-lug side; tighten the nuts progressively and uniformly to the torque in the instructions, keeping the bolt lengths on both sides equal. Do not over-torque; a calibrated torque wrench is recommended.
  • Make the outlet connection with a good-quality pipe thread compound that lubricates and seals (no tape products) and meets the water supplier's requirements; do not cross-thread or rock the body while threading.
  • The torque is set to seal the gasket to the pipe: the saddle is not designed to give structural rigidity to connections or equipment, and Smith-Blair does not recommend bale saddles on PVC or HDPE pipe.

From Smith-Blair Installation Instructions TI-009 (311, 313 and 331 saddles with bales, Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
BSP and 1/2 in taps, a 304 stainless steel bale with fluoropolymer-coated 304 stainless nuts, Viton or EPDM gaskets and anode connectors are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and tap.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
