JCM 432 All Stainless Steel Tapping Sleeve

JCM Tapping Sleeves

JCM Industries tapping sleeves make branch connections on live water mains: fabricated carbon steel sleeves (412 flanged, 419 MJ), extra-wide epoxy sleeves for PVC and steel (422, 429), full-circle gasket stainless sleeves (432, 462, 439, 469), heavy-duty outlet-seal stainless sleeves (452, 464, 459, 465) and threaded outlet sleeves (418, 438). Flanged outlets carry the MSS-SP60 tapping valve recess; JCM service ratings run 175 to 250 PSI. Watermain Supply offers engineering-led selection and cross references to Smith-Blair and Dresser. Call 1-888.510.4036.

14 products
Sort by:
Best selling
Sort by:
Best selling

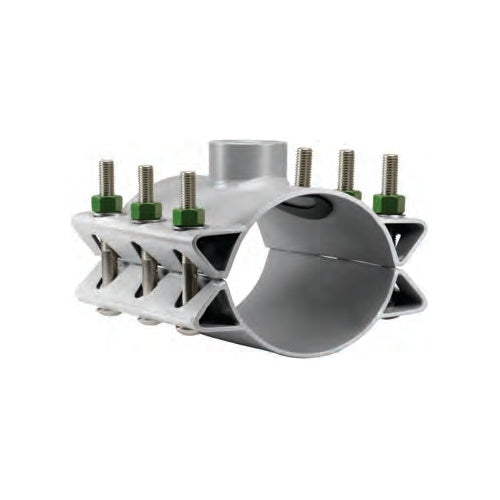

JCM 438 All Stainless Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT
JCM 438 All Stainless Threaded Outlet Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 438 All Stainless Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT

From $966.32

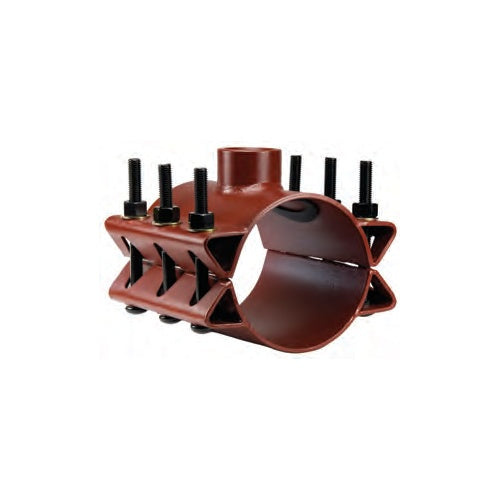

JCM 418 Fabricated Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT
JCM 418 Fabricated Threaded Outlet Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 418 Fabricated Threaded Outlet Tapping Sleeve - 3/4 to 4 in NPT

From $466.63

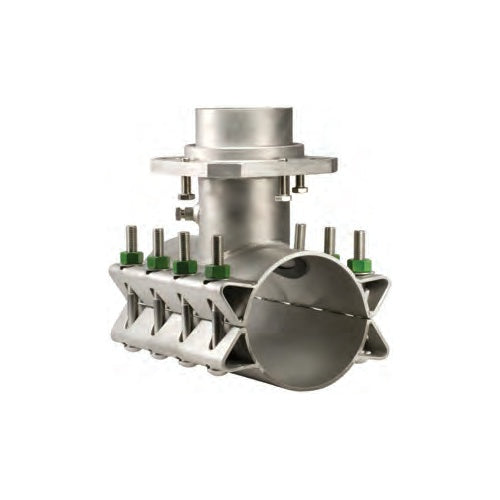

JCM 465 Heavy Duty Stainless Tapping Sleeve - Carbon Steel MJ Outlet
JCM 465 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 465 Heavy Duty Stainless Tapping Sleeve - Carbon Steel MJ Outlet

From $1,338.11
JCM 459 Heavy Duty Stainless Tapping Sleeve - Stainless MJ Outlet
JCM 459 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 459 Heavy Duty Stainless Tapping Sleeve - Stainless MJ Outlet

From $1,452.63

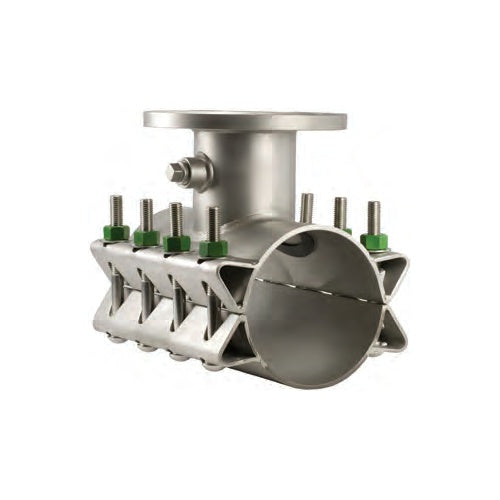

JCM 464 Heavy Duty Stainless Tapping Sleeve - Carbon Steel Flange
JCM 464 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 464 Heavy Duty Stainless Tapping Sleeve - Carbon Steel Flange

From $1,277.07
JCM 452 Heavy Duty Stainless Tapping Sleeve - Flanged Outlet
JCM 452 Heavy Duty Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 452 Heavy Duty Stainless Tapping Sleeve - Flanged Outlet

From $1,379.40

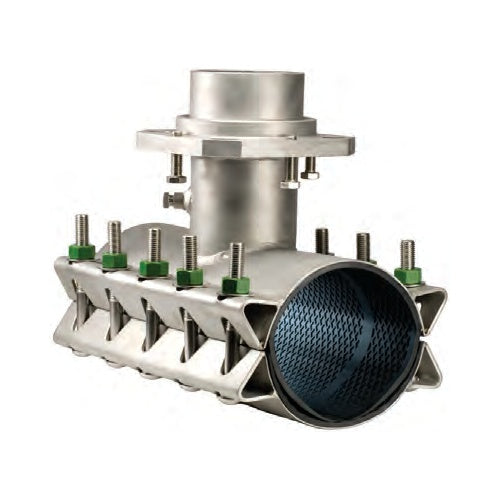

JCM 469 Stainless Tapping Sleeve - Carbon Steel MJ Outlet
JCM 469 Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 469 Stainless Tapping Sleeve - Carbon Steel MJ Outlet

From $1,594.40
JCM 439 All Stainless Steel Tapping Sleeve - MJ Outlet
JCM 439 All Stainless Steel Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 439 All Stainless Steel Tapping Sleeve - MJ Outlet

From $1,800.02

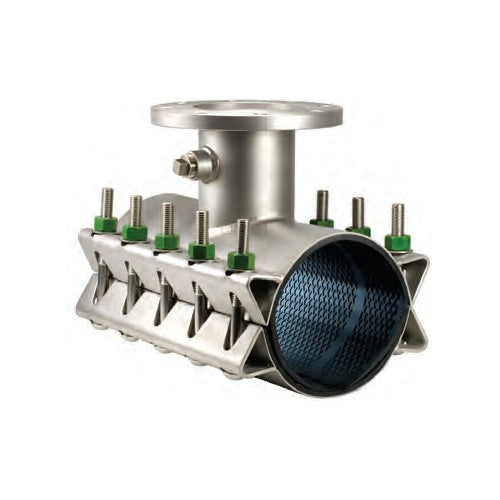

JCM 462 Stainless Tapping Sleeve - Carbon Steel Flange
JCM 462 Stainless Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 462 Stainless Tapping Sleeve - Carbon Steel Flange

From $1,078.54
JCM 432 All Stainless Steel Tapping Sleeve - Flanged Outlet
JCM 432 All Stainless Steel Tapping Sleeve - product photo

JCM Industries

Free Shipping $499 or more

JCM 432 All Stainless Steel Tapping Sleeve - Flanged Outlet

From $1,530.93

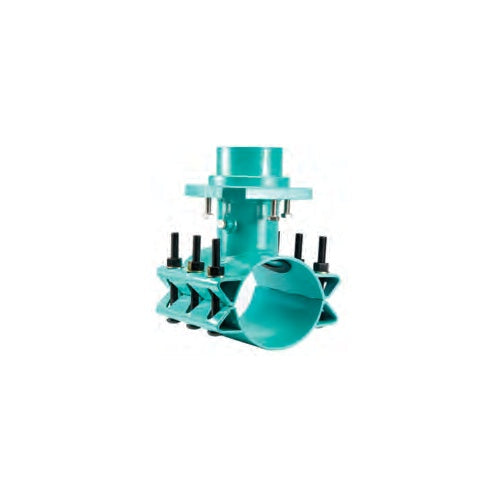

JCM 429 Tapping Sleeve for PVC and Steel - MJ Outlet
JCM 429 Tapping Sleeve for PVC and Steel - product photo

JCM Industries

Free Shipping $499 or more

JCM 429 Tapping Sleeve for PVC and Steel - MJ Outlet

From $829.25

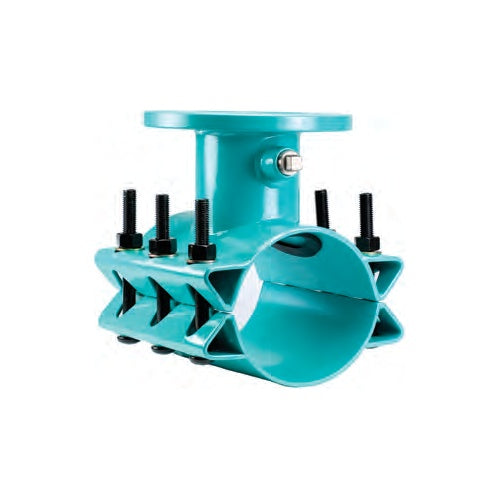

JCM 422 Tapping Sleeve for PVC and Steel - Flanged Outlet
JCM 422 Tapping Sleeve for PVC and Steel - product photo

JCM Industries

Free Shipping $499 or more

JCM 422 Tapping Sleeve for PVC and Steel - Flanged Outlet

From $749.44

JCM Tapping Sleeves

JCM Industries · Tapping Sleeves · 4 to 54 in

JCM Tapping Sleeves: Carbon Steel, Stainless, Heavy Duty and Threaded Outlet

Make a new branch on a live water main without a shutdown: fabricated carbon steel sleeves, epoxy-coated sleeves built for PVC, full-gasket and outlet-seal stainless sleeves with flanged or MJ outlets, and threaded outlet sleeves for service and air relief taps.

JCM 432 All Stainless Steel Tapping Sleeve
14 StylesSteel, stainless, threaded
2-12 inFlanged and MJ outlets
3/4-4 inNPT threaded outlets
175-250 PSIJCM service ratings
AWWA C223MSS-SP124

A tapping sleeve wraps the main with a full sleeve and a gasketed outlet; a tapping valve bolts to the outlet and a tapping machine cuts the main through the valve while it stays in service. JCM builds fabricated carbon steel sleeves that weigh less than cast sleeves, extra-wide epoxy-coated sleeves for PVC, stainless sleeves with full-circle or outlet-seal gaskets, and threaded outlet sleeves.

Watermain Supply supplies JCM tapping sleeves with engineering-led selection: send the run pipe OD and material, the outlet size, flanged or MJ, and the working pressure. Email sales@watermainsupply.com or call 1-888.510.4036. Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Will It Work for Me?

The four questions that decide a tapping sleeve.

Warranty

12 months from the date of purchase against defects in materials and workmanship (Watermain Supply standard).

Reliability

A full sleeve reinforces the pipe opposite the tap. Large-section gaskets in a retaining cavity seal tighter as pressure rises; flanged outlets carry the MSS-SP60 tapping valve recess; MJ outlets have load-bearing set pins.

Fit

JCM service ratings: 175 PSI on flanged carbon steel, PVC and outlet-seal stainless sleeves; 250 PSI on the 419, 429 and 439 on 4-12 in pipe and on the 418 and 438. The 422 and 429 are for PVC and steel, not cast iron, ductile iron or A/C.

Size It Now

Send the run OD, material, outlet size and outlet type. We confirm the sleeve.

Email the details

Three Families of JCM Tapping Sleeve

JCM 412 Fabricated Steel Tapping Sleeve

Carbon Steel Sleeves

Styles 412, 419, 422, 429

175-250 PSIJCM ratings
3-12 inOutlets
Flanged or MJOutlet
NSF 61/372Certified

Heavy fabricated steel sleeves with a built-in range that fits more than one pipe class. The 412 and 419 suit all pipe types; the extra-wide, fusion-epoxy 422 and 429 spread the load on IPS PVC, C900 PVC, steel and HDPE.

  • Shop coat or fusion epoxy; alloy, E-coat or SS bolts
  • 3/4 in NPT test plug furnished
  • Lighter than cast iron sleeves
Best for everyday branch taps on ductile iron, cast iron, steel and PVC mains.
JCM 412JCM 419JCM 422
JCM 432 All Stainless Steel Tapping Sleeve

Stainless Sleeves

Styles 432, 462, 439, 469, 452, 464, 459, 465

175-250 PSIJCM ratings
2-12 inOutlets
304 SSBody
Full or outlet sealGasket

Full-circle gasket sleeves (432, 462, 439, 469) seal the whole pipe, insurance against beam breaks on size-on-size taps, with replaceable self-aligning bolts torqued to 125 ft-lb. Heavy-duty outlet-seal sleeves (452, 464, 459, 465) add thicker metal and extra bolting for high pressure and problem taps.

  • Stainless or carbon steel flange or MJ outlet
  • Full-circle sleeves not for HDPE
  • Outlet-seal sleeves for pump stations and large outlets
Best for corrosive soils, size-on-size taps and high-pressure mains.
JCM 432JCM 439JCM 452
JCM 418 Fabricated Threaded Outlet Tapping Sleeve

Threaded Outlet Sleeves

Styles 418, 438

250 PSI3/4-4 in outlets
3/4-4 inNPT outlets
4.50-57.25 inPipe OD
Carbon or SSConstruction

A full sleeve with an IPS threaded outlet for services and air relief on larger, thin-wall or reinforced pipe: much more support than a strapped saddle. The 438 is all stainless for aggressive conditions.

  • A/C, cast iron, ductile iron, PVC, concrete
  • Corporation stop threads straight in
  • Shop coat and alloy bolts on the 418
Best for service and air relief taps on large mains.
JCM 418JCM 438

Every JCM Tapping Sleeve Side by Side

Style Type Pipe OD Outlets Pressure Gasket
JCM 412 Carbon steel, flanged 6.83-32.22 in 3 to 12 in Flanged 175 PSI Buna-N
JCM 419 Carbon steel, MJ 6.83-32.22 in 3 to 12 in MJ 250 PSI Buna-N
JCM 422 Epoxy steel for PVC, flanged 4.50-13.20 in 3 to 12 in Flanged 175 PSI Buna-N
JCM 429 Epoxy steel for PVC, MJ 4.50-13.20 in 3 to 12 in MJ 250 PSI Buna-N
JCM 432 All stainless, flanged 4.40-26.60 in 2 to 12 in Flanged 175 PSI Full-Circle SBR
JCM 462 Stainless, carbon flange 4.40-26.60 in 2 to 12 in Flanged By application Full-Circle SBR
JCM 439 All stainless, MJ 4.40-26.60 in 3 to 12 in MJ 250 PSI Full-Circle SBR
JCM 469 Stainless, carbon MJ 4.40-26.60 in 3 to 12 in MJ By application Full-Circle SBR
JCM 452 HD stainless, outlet seal, flanged 4.50-14.56 in 3 to 12 in Flanged 175 PSI Buna-N
JCM 464 HD stainless, outlet seal, carbon flange 4.50-14.56 in 3 to 12 in Flanged 175 PSI Buna-N
JCM 459 HD stainless, outlet seal, MJ 4.50-14.56 in 3 to 12 in MJ 175 PSI Buna-N
JCM 465 HD stainless, outlet seal, carbon MJ 4.50-14.56 in 3 to 12 in MJ 175 PSI Buna-N
JCM 418 Carbon steel, threaded outlet 4.50-57.25 in 3/4 to 4 in NPT 250 PSI Buna-N
JCM 438 All stainless, threaded outlet 4.50-57.25 in 3/4 to 4 in NPT 250 PSI Buna-N

Ratings are JCM service ratings; higher ratings are available for specific applications and sizes. Outlets vary by run size; the picker shows only what JCM builds.

Tapping Sleeve Cross Reference

JCM styles and their nearest equivalents from Smith-Blair, Dresser, Ford, Romac and PowerSeal.

JCM Description Smith-Blair Dresser Ford Romac PowerSeal
412 Fabricated tapping sleeve, flanged outlet 622 Alloy / 622 SS 610 FTS, FTSC FTS420 3460
419 Fabricated tapping sleeve, MJ outlet 622 MJ Alloy / 622 MJ SS - MJ - 3460MJCS
422 Fabricated tapping sleeve for PVC, steel, HDPE - 615 - FTS419 -
429 Fabricated tapping sleeve for PVC, steel, HDPE, MJ outlet - - - - -
432 All stainless tapping sleeve 665 630 FTSS SSTIII 3490AS
462 Stainless tapping sleeve, carbon steel flange 664 630 FTSS SSTIII 3490CS
439 All stainless tapping sleeve, MJ outlet 665 MJ - FTSS-MJ SST-MJ 3490MJAS
469 Stainless tapping sleeve, full gasket, carbon MJ - - FTSAS SST-III-MJ 3490MJCS
452 All stainless tapping sleeve, outlet seal gasket - - FTSAS STS420 3460AS
464 Stainless tapping sleeve, outlet seal gasket, carbon flange - - FTSAS - -
459 All stainless tapping sleeve, MJ outlet, outlet seal gasket - - FTSAS - 3460ASMJ
465 Stainless tapping sleeve, outlet seal gasket, carbon MJ 664 MJ - - - -
418 Fabricated threaded outlet tapping sleeve 366 - - FTS420T -
438 All stainless threaded outlet tapping sleeve - - - STS420T -

From the JCM Industries Product Cross Reference and Comparison Chart (Product Directory 8-25). Linked styles are on our site. Equivalents are matched by function: OD ranges, pressure ratings, gaskets and materials differ, so confirm the part for your pipe before ordering. * = similar materials, designs vary (JCM note). Dresser 610, 615 and 630 tapping sleeves are not on our site; the Dresser sleeves we list are compared below.

JCM vs Smith-Blair vs Dresser

Specs below are taken from our own listings.

Carbon Steel, Flanged

JCM 412 Smith-Blair 622 Dresser Triple Tap
Body Fabricated carbon steel, shop coat or fusion epoxy Epoxy-coated carbon steel Stainless
Pressure 175 PSI working 175 PSI max working 175 PSI with Class D flange, 250 PSI max
Outlets 3-12 in flanged, MSS-SP60 recess 4-12 in AWWA C207 Class D flanged Stainless or carbon steel flange
Pipe OD 6.83-32.22 in 4.50-32.22 in Up to 0.9 in range
Certification NSF/ANSI 61 and 372; AWWA C223 NSF/ANSI 61 and 372 NSF-61 gasket

Verdict: the JCM 412 and Smith-Blair 622 are like-for-like 175 PSI steel sleeves; Smith-Blair starts at 4.50 in OD pipe, JCM offers a 3 in outlet. Dresser Triple Tap is stainless and wide range, publishing 250 PSI max.

All Stainless, Flanged

JCM 432 Smith-Blair 665 Smith-Blair 663
Construction All 304 stainless, full-circle SBR gasket Type 304 body, stainless flanged outlet Type 304 body, stainless flanged outlet
Pressure 175 PSI on 2-12 in outlets (C228); 150 PSI on a full break 150 PSI max working 240 PSI max working
Outlets 2-12 in flanged 4-12 in 4-12 in
Pipe OD 4.40-26.60 in 4.50-29.00 in 4.46-29.00 in
Bolts Replaceable, self-aligning, 125 ft-lb Removable 304 stainless 304 stainless studs

Verdict: Smith-Blair 663 publishes the highest rating (240 PSI). The JCM 432's full-circle gasket seals the whole pipe and it offers a 2 in outlet; the Smith-Blair 665 is its closest match at 150 PSI.

MJ Outlet

JCM 419 Smith-Blair 622 MJ Dresser Triple Tap MJ
Pressure 250 PSI on 4-12 in pipe; 200 PSI on 14-24 in 175 PSI max working 200 PSI with MJ outlet, 250 PSI max
Outlet MJ to AWWA C111, load-bearing set pins MJ outlet AWWA C111 MJ outlet
Pipe OD 6.83-32.22 in 4.50-32.22 in Up to 0.9 in range
Certification NSF/ANSI 61 and 372; AWWA C223 NSF/ANSI 61 and 372; AWWA C223 NSF-61 gasket

Verdict: on 4-12 in pipe the JCM 419 publishes 250 PSI working, matching the Dresser Triple Tap MJ maximum and above the Smith-Blair 622 MJ, with load-bearing set pins on the gland. Dresser Triple Tap MJ is the wide-range option.

Selection Guide

Job JCM style Note
Branch on ductile iron or cast iron, flanged tapping valve JCM 412 Shop coat or fusion epoxy
Branch on ductile iron or cast iron, MJ tapping valve JCM 419 250 PSI on 4-12 in pipe
Branch on IPS PVC, C900 PVC, steel or HDPE JCM 422 or JCM 429 Extra wide, fusion epoxy
Corrosive soil or size-on-size tap JCM 432 or JCM 439 Full-circle gasket; not for HDPE
Stainless body, economical carbon outlet JCM 462 or JCM 469 Coated carbon steel flange or MJ
Pump station, high pressure or large outlet JCM 452, JCM 459 Heavy duty, outlet seal gasket
Service or air relief tap on a large main JCM 418 or JCM 438 3/4-4 in NPT outlets

Sizing and Best Practices

Measure the OD, not the nominal size

Wrap a pipe OD tape (or a string) around the pipe at the repair. Circumference divided by 3.1416 is the OD. Our JCM 920 pipe diameter tape reads the diameter directly in 100ths of an inch.

Pick the range around your number

Choose the OD range that contains the measured OD, ideally near the middle of the range. Out-of-round or corroded pipe is a reason to step to an extended range style.

Know the pipe material

Cast iron, ductile iron and C900 PVC share one OD family; IPS PVC, steel and HDPE share another; asbestos cement runs larger. Two pipes of the same nominal size can need different fittings.

Undersized cutter on size-on-size

Size-on-size taps need a shell cutter 1/2 in undersize; the 422 and 429 always take the 1/2 in undersized cutter.

Valve recess

Flanged outlets are recessed for the tapping valve per MSS-SP60; for outlets 14 in and larger, name the tapping valve make.

Test before tapping

Sleeves furnished with the 3/4 in NPT test plug let you pressure-test the sleeve before cutting.

Accessories

JCM 920 Pipe Diameter Tape

Reads pipe OD in 100ths of an inch Sizing tool

Why Buy JCM From Watermain Supply

Engineering-led selection

Send the measured OD, pipe material, damage and pressure. We name the style, range and width, and we obtain JCM's rating and a submittal when the job needs one.

Three brands, one honest answer

We sell JCM, Smith-Blair and Dresser side by side. If another style fits your pipe better, we will say so and quote it.

Every part on one order

Clamps, couplings, saddles, tapping sleeves, restraints and gaskets on one PO, with account terms for utilities and contractors.

Parts and aftermarket

JCM transition gaskets, OD tapes and replacement parts listed alongside the fittings, so the job does not stall on a gasket.

Odd sizes handled

JCM builds special ranges, widths, outlets and materials to order. We handle the request and the submittal for you.

Houston based, Gulf Coast service

Watermain Supply is based in Houston and serves utilities, contractors and plants across the Gulf Coast and nationwide.

Frequently Asked Questions

What warranty do JCM tapping sleeves carry?

Watermain Supply covers them for 12 months from the date of purchase against defects in materials and workmanship.

What pressure are JCM tapping sleeves rated for?

JCM service ratings: 175 PSI working for the 412 and 422; 175 PSI on 2-12 in outlets for the outlet-seal stainless sleeves; 175 PSI (C228) on the 432; 250 PSI on 4-12 in pipe for the 419, 429 and 439; 250 PSI on the 418 and 438 threaded outlets. Higher ratings are available for specific applications.

Flanged or MJ outlet?

Match the tapping valve: a flanged tapping valve needs a flanged outlet with the MSS-SP60 recess; an MJ tapping valve needs an MJ outlet.

Which sleeve for PVC pipe?

The 422 (flanged) and 429 (MJ) are extra wide and fusion-epoxy coated for IPS PVC, C900 PVC, steel and HDPE. JCM does not recommend them for cast iron, ductile iron or A/C.

Full-circle or outlet seal gasket?

Full-circle gasket sleeves (432, 462, 439, 469) seal the whole pipe and guard against beam breaks on size-on-size taps; JCM does not recommend them for HDPE. Outlet-seal sleeves (452, 464, 459, 465) are heavy duty for high pressure and large outlets.

Do I need an undersized cutter?

Yes for size-on-size taps: use a shell cutter 1/2 in undersize. The 422 and 429 call for the 1/2 in undersized cutter.

Can tapping sleeves be returned?

JCM lists the 459 and 465 with outlets 3 in and smaller as non-returnable. Confirm the run OD, outlet size and outlet type before ordering.

What is a threaded outlet sleeve for?

The 418 and 438 give a full-sleeve 3/4-4 in NPT outlet for services and air relief on larger, thin-wall or reinforced pipe where a saddle is not enough.

Ready to Tap the Main?

Send the run OD and material, the outlet size and type, and the pressure.

1-888.510.4036Email SalesRequest a Quote
Technical data on this page is taken from JCM Industries product literature and is subject to change by the manufacturer. Confirm against the current installation instructions before specifying.
JCM Industries and Sur-Grip are trademarks of JCM Industries, Inc.; Smith-Blair, Dresser, Ford, Romac, PowerSeal, Cascade, Robar and Mueller are trademarks of their respective owners, used here for product identification only. Cross-reference equivalents are by function; ranges, ratings and materials differ.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
