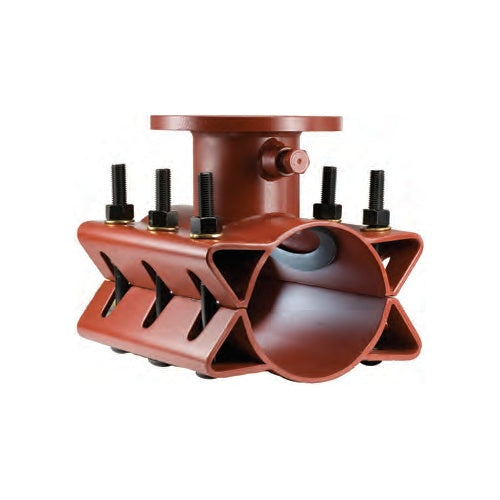

JCM 412 Fabricated Carbon Steel Tapping Sleeve - Flanged Outlet
Carbon Steel · 3 to 12 in flanged outlets · 6.83-32.22 in pipe OD
175 PSI Working Pressure
Carbon Steel
Buna-N Gasket
-40°F to +212°F Gasket
3 to 12 in Flanged Outlets
MSS-SP60 Tapping Valve Recess
AWWA C223 and MSS-SP124
NSF/ANSI 61 and 372
6.83-32.22 in Pipe OD
74-312 lb Weight
Description

The JCM 412 fabricated carbon steel tapping sleeve makes larger taps on all types of pipe with a built-in range that fits more than one pipe class, so the right sleeve is on hand more often. The heavy steel sleeve reinforces the pipe directly, eliminating flexing opposite the tap, and weighs less than a cast iron sleeve.

A large-section gasket in a retaining cavity makes a positive initial seal that increases with line pressure. The flanged outlet has an alignment recess for the tapping valve. Choose shop coat with alloy bolts, or fusion epoxy with e-coat or stainless bolts.

Typical application: Branching: line branches, valves, internal line access.

Key Features

  • Flanged outlet recessed for the tapping valve per MSS-SP60
  • Full sleeve reinforces the pipe; lighter than cast sleeves
  • Furnished with a 3/4 in NPT test plug
  • Rated 175 PSI working on 3-12 in outlets
  • Meets MSS-SP124 and ANSI/AWWA C223 as applicable; ANSI/NSF 61 and 372 certified
What Ships and What It Needs to Run

Included: the sleeve halves with the gasket, bolts and nuts, and the 3/4 in test plug.

Tapping valve and tapping machine, ordered separately. A flanged tapping valve bolts to the outlet; size-on-size taps need a 1/2 in undersized shell cutter.

Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.

Working Pressure

175 PSI working on 3-12 in outlets. JCM's service rating; higher ratings are available for specific applications and sizes.

Materials Specifications
Body Carbon steel, ASTM A36, A516 Gr 70 or equal
Outlet AWWA C207 Class D flange, ANSI 150 lb drilling, recessed for the tapping valve per MSS-SP60
Bolts Electrocoated (Powercron 590-534) high-strength low-alloy oval-neck track bolts per ASTM A242, nuts per A563: 5/8 in on sleeves 7.45 in and smaller, 3/4 in on 9.05 in and larger; 304 or 316 stainless optional
Gasket NBR (Buna-N) per ASTM D2000, pressure-activated hydromechanical design bonded into a cavity; -40°F to +212°F
Finish Shop-coat primer standard; fusion epoxy per ANSI/AWWA C213, 12 mils minimum, optional

From the JCM 412 material specification.

Pipe Applications

Cast iron, ductile iron, PVC, PE, steel, A/C and other pipe within the listed ranges.

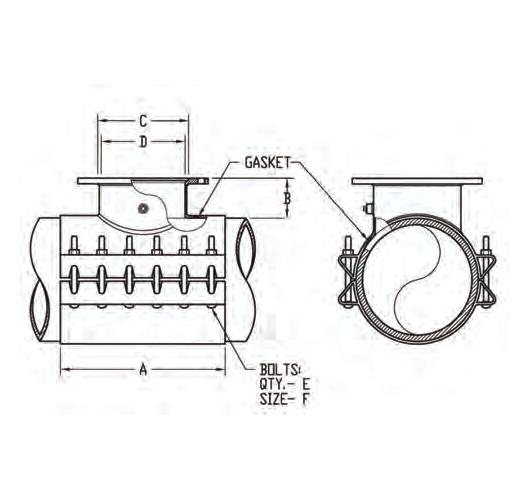

Sizes and Outlets

40 OD ranges from 6.83 to 32.22 in. Open the table for every range and outlet.

All 40 sizes
Nominal Sleeve OD range Outlets
6 in 6.83-7.16 in 3, 4, 6 in
6 in 7.05-7.40 in 3, 4, 6 in
6 in 7.40-7.73 in 3, 4, 6 in
8 in 8.98-9.37 in 3, 4, 6, 8 in
8 in 9.27-9.69 in 3, 4, 6, 8 in
10 in 9.83-10.25 in 3, 4, 6, 8 in
10 in 10.64-10.86 in 3, 4, 6, 8, 10 in
10 in 11.03-11.47 in 3, 4, 6, 8, 10 in
10 in 11.36-11.80 in 3, 4, 6, 8, 10 in
10 in 11.76-12.24 in 3, 4, 6, 8, 10 in
12 in 12.62-12.88 in 3, 4, 6, 8, 10, 12 in
12 in 13.13-13.60 in 3, 4, 6, 8, 10, 12 in
12 in 13.60-14.09 in 3, 4, 6, 8, 10, 12 in
12 in 14.08-14.56 in 3, 4, 6, 8, 10, 12 in
14 in 14.59-15.08 in 3, 4, 6, 8, 10, 12 in
14 in 15.23-15.80 in 3, 4, 6, 8, 10, 12 in
14 in 15.73-16.22 in 3, 4, 6, 8, 10, 12 in
14 in 16.30-16.73 in 3, 4, 6, 8, 10, 12 in
16 in 16.74-17.26 in 3, 4, 6, 8, 10, 12 in
16 in 17.33-17.87 in 3, 4, 6, 8, 10, 12 in
16 in 17.88-18.43 in 3, 4, 6, 8, 10, 12 in
16 in 18.62-19.19 in 3, 4, 6, 8, 10, 12 in
18 in 18.87-19.45 in 3, 4, 6, 8, 10, 12 in
18 in 19.41-20.01 in 3, 4, 6, 8, 10, 12 in
18 in 20.00-20.60 in 3, 4, 6, 8, 10, 12 in
18 in 20.29-20.94 in 3, 4, 6, 8, 10, 12 in
18 in 20.93-21.57 in 3, 4, 6, 8, 10, 12 in
20 in 21.51-22.15 in 3, 4, 6, 8, 10, 12 in
20 in 22.16-22.81 in 3, 4, 6, 8, 10, 12 in
20 in 22.78-23.45 in 3, 4, 6, 8, 10, 12 in
20 in 23.46-24.16 in 3, 4, 6, 8, 10, 12 in
20 in 24.15-24.85 in 3, 4, 6, 8, 10, 12 in
20 in 24.82-25.52 in 3, 4, 6, 8, 10, 12 in
24 in 25.71-26.41 in 3, 4, 6, 8, 10, 12 in
24 in 26.55-27.25 in 3, 4, 6, 8, 10, 12 in
24 in 27.26-27.96 in 3, 4, 6, 8, 10, 12 in
24 in 28.14-28.84 in 3, 4, 6, 8, 10, 12 in
30 in 29.78-30.48 in 3, 4, 6, 8, 10, 12 in
30 in 30.48-31.18 in 3, 4, 6, 8, 10, 12 in
30 in 31.52-32.22 in 3, 4, 6, 8, 10, 12 in

From the JCM price list.

Before You OrderConfirm the pipe OD, outlet size and outlet type before ordering.
For outlets 14 in and larger, the tapping valve make must be specified for the alignment recess.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
