Dresser Tapping Sleeves and Line Stops

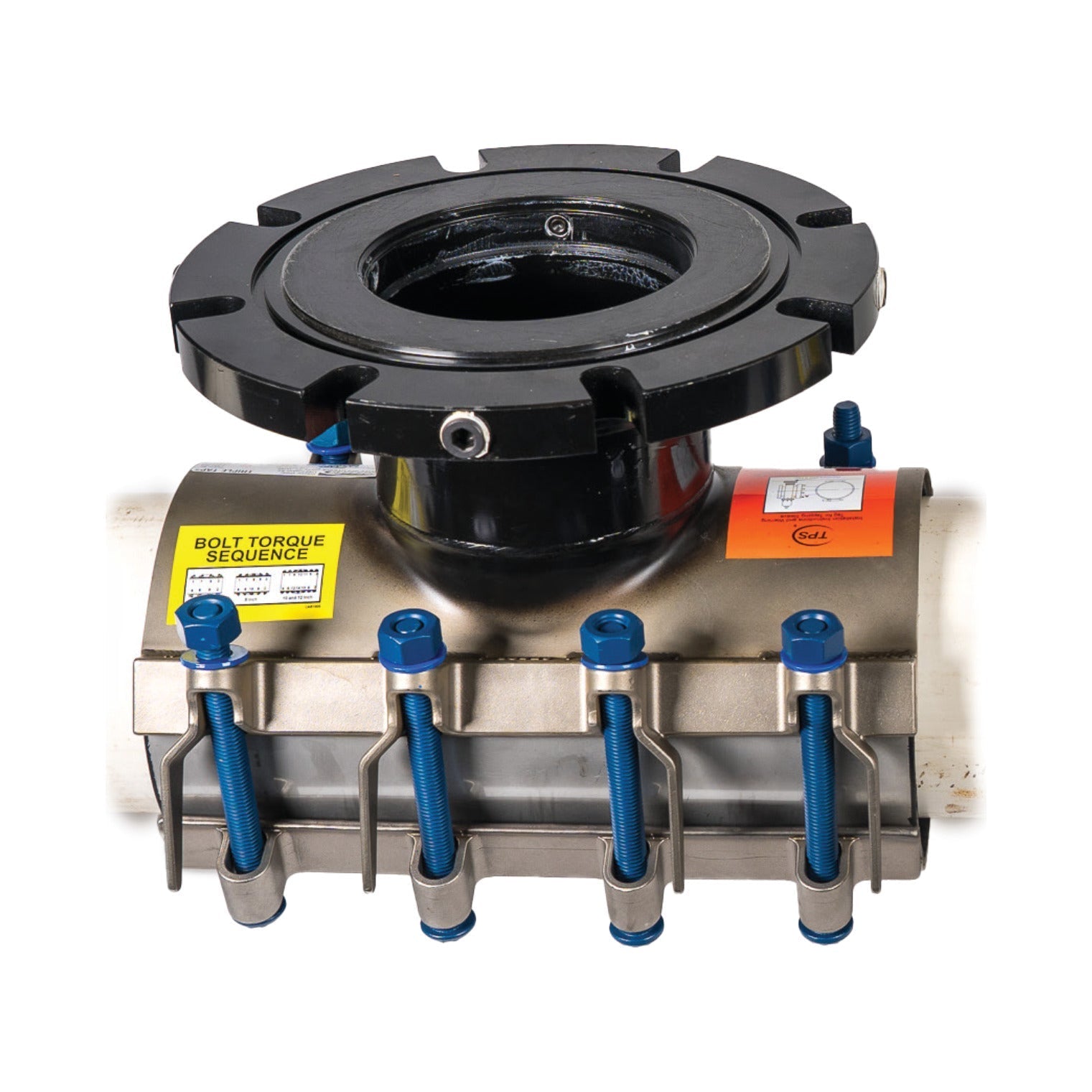

Dresser Triple Tap Type H Line Stop Fitting
Dresser
Dresser Triple Tap Type H Line Stop Fitting
- Price
- From $3,295.49
Dresser Triple Tap Stainless Tapping Sleeve - Flanged Outlet
Dresser
Dresser Triple Tap Stainless Tapping Sleeve - Flanged Outlet
- Price
- From $1,754.82
Dresser Triple Tap Line Stop Fitting - Stainless Sleeve
Dresser
Dresser Triple Tap Line Stop Fitting - Stainless Sleeve
- Price
- From $3,073.65
Dresser Triple Tap Mechanical Joint Tapping Sleeve
Dresser
Dresser Triple Tap Mechanical Joint Tapping Sleeve
- Price
- From $1,853.70

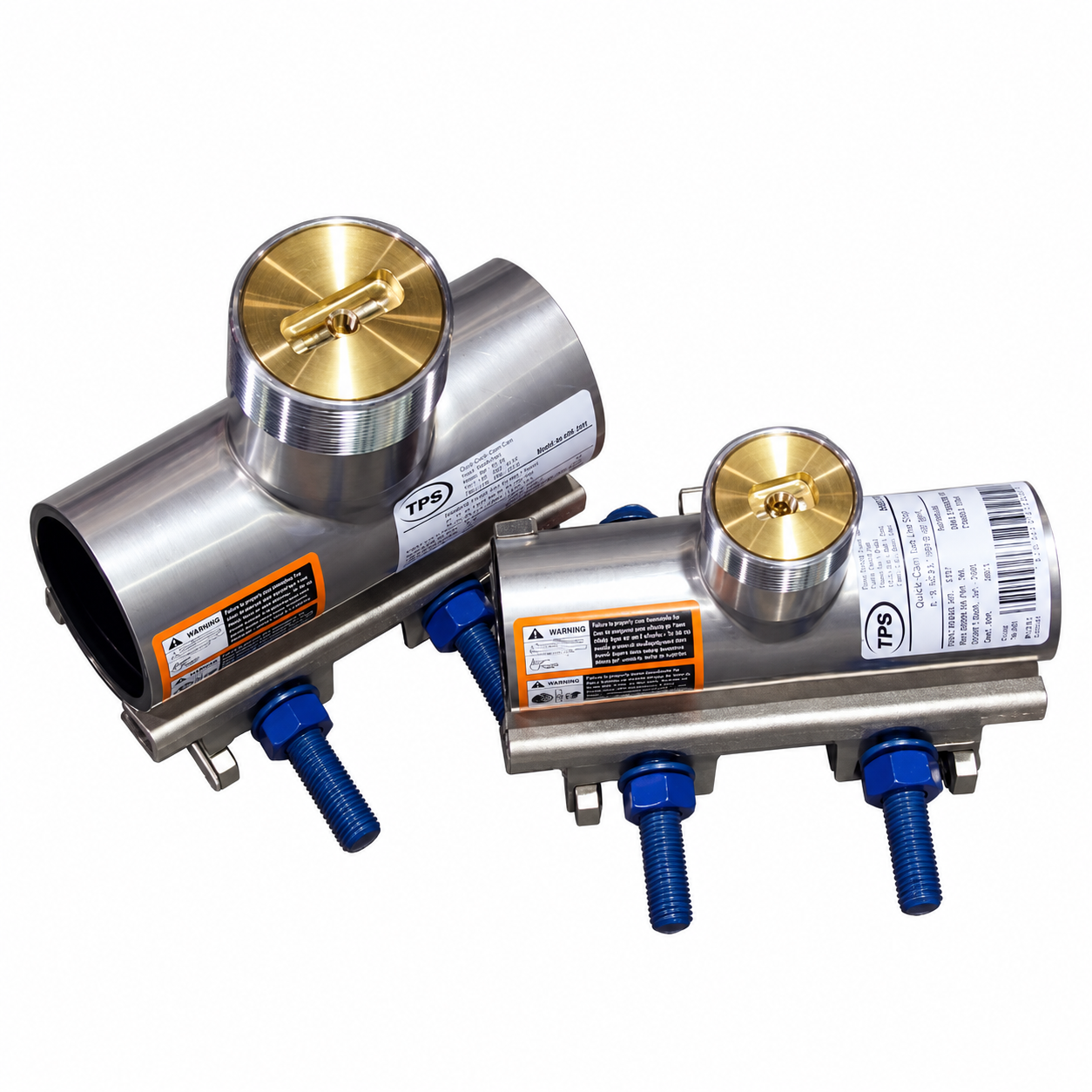

Dresser Quick-Cam Line Stop Fitting - 360 Degree Seal
Dresser
Dresser Quick-Cam Line Stop Fitting - 360 Degree Seal
- Price
- From $765.95
Dresser Tapping Sleeves and Line Stops
Dresser · Tapping and Line Stops
Dresser Tapping Sleeves and Line Stops
Triple Tap stainless tapping sleeves, Ultra-Tap sleeves and line stop fittings for live water mains.
250 PSITriple Tap MAOP
0.9 inOD range per sleeve
4 to 30 inTriple Tap runs
225 PSIUltra-Tap on DI
This collection covers Dresser fittings for tapping and stopping live water mains: Triple Tap stainless tapping sleeves with flanged or MJ outlets, Ultra-Tap cast sleeves for size on size taps, Triple Tap and Type H line stop fittings, and Quick-Cam line stops for small pipe.
We supply each sleeve by run range, outlet size and flange type by Dresser part number. Call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Will It Work for Your Job?
Pressure
Triple Tap: up to 250 PSI MAOP, tested to 375 PSI, limited by the outlet flange and the pipe. Ultra-Tap: 225 PSI on DI, cast and AC, 175 PSI on IPS (6 and 8 in). Quick-Cam line stop: 150 PSI.
Range
One Triple Tap sleeve covers up to 0.9 in of OD. Measure with a pi tape.
Outlets
AWWA C207 or C228 flanges recessed per MSS SP-60, ANSI Class 150, or AWWA C111 MJ.
Size It With Us
Send the pipe OD, pipe material and line content. We confirm the part number before you order. 1-888.510.4036 · sales@watermainsupply.com
Product Lines
Pick by the job: a branch tap, a size on size tap, or stopping the line.
Triple Tap Flanged
Flanged Outlet
Runs4 to 30 in
MAOP250 PSI
Shell18-8 stainless
OutletFlanged
Extended range stainless tapping sleeve with a recessed flanged outlet for the tapping valve.
- 3/4 in NPT test outlet
- Carbon steel flange option
Best for Branch taps on live mains
View Triple Tap Flanged

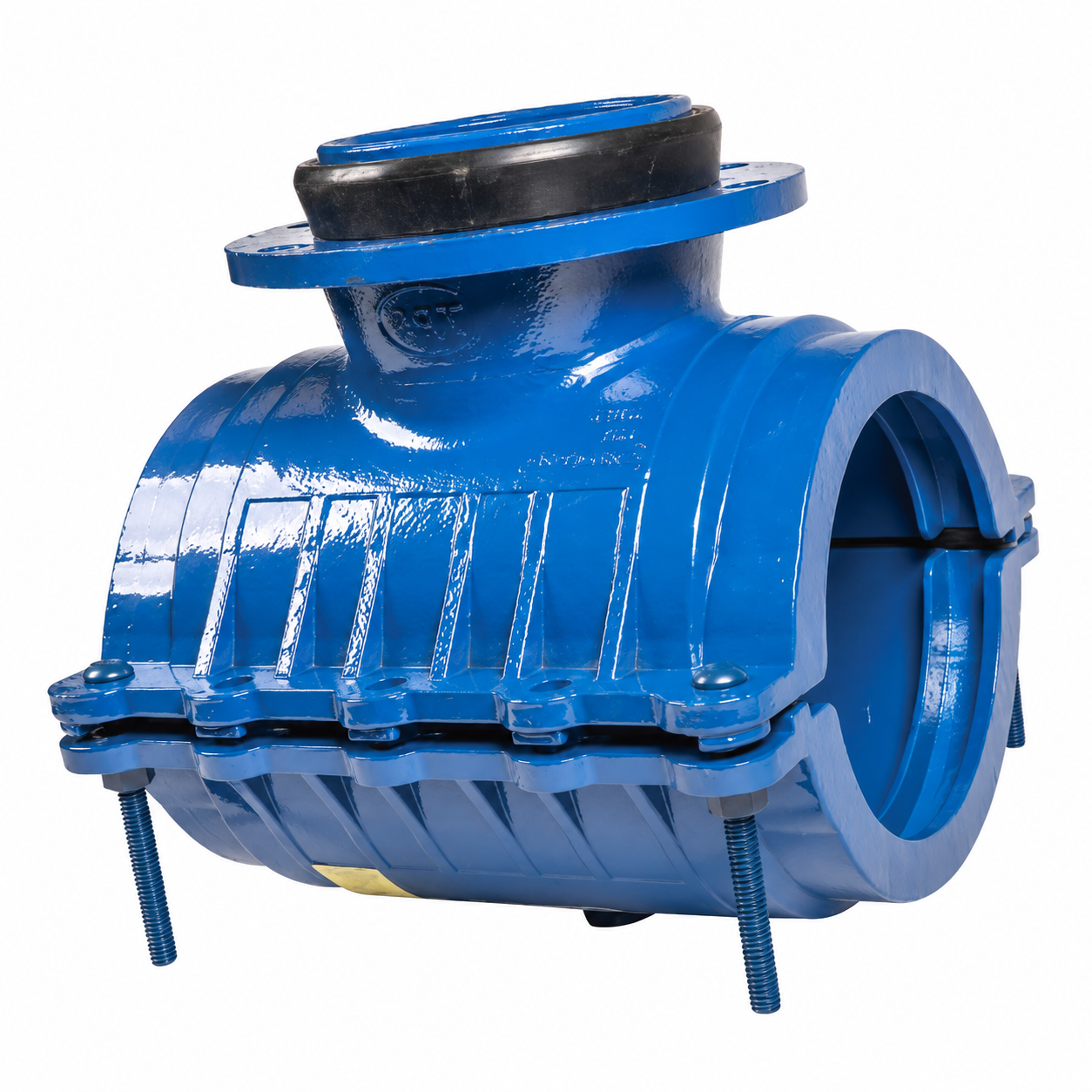

Ultra-Tap
Sizes6, 8, 12 in
RatingTo 225 PSI
BodyDuctile iron
OutletMJ
Cast tapping sleeve for size on size taps, with end gaskets that need no extra bolting.
- 360 degree seal
- FBE coated
Best for Size on size taps
View Ultra-Tap
Triple Tap Line Stop
Stainless Sleeve
Runs4 to 24 in
MAOP250 PSI
PlugThreaded or push
ShellStainless
Line stop fitting with a completion plug so the main can be stopped and closed off.
- Threaded or push plugs
- Stainless or carbon steel
Best for Stopping a live main
View Triple Tap Line Stop
Compare the Line
| Listing | Runs | Rating (Dresser) | Outlet | Use |
|---|---|---|---|---|
| Triple Tap Flanged | 4 to 30 in | 250 PSI | Flanged | Taps |
| Triple Tap MJ | 4 to 48 in | 250 PSI | MJ | Taps |
| Ultra-Tap | 6 to 12 in | 175 to 225 PSI | MJ | Size on size |
| Triple Tap Line Stop | 4 to 24 in | 250 PSI | Line stop | Stops |
| Triple Tap Type H | 4 to 12 in | 250 PSI | Type H | Stops |
| Quick-Cam Line Stop | 3/4 to 4 in | 150 PSI | Saddle | Small pipe stops |
Quick rule: Branch smaller than the run, use a Triple Tap. Same size as the run, use the Ultra-Tap. To stop the line, use a Triple Tap line stop, or the Quick-Cam for pipe up to 4 in.
Dresser vs Other Brands We Carry
| Need | Dresser | Smith-Blair (also on our site) | Verdict |
|---|---|---|---|
| Stainless tapping sleeve, flanged | Triple Tap: 0.9 in OD range, 250 PSI MAOP | Style 665: all stainless | Both are stainless sleeves; ask us for the outlet and range you need and we quote both |
| Stainless tapping sleeve, MJ | Triple Tap MJ | Style 665 MJ | Comparable; lead time and range usually decide |
We carry both brands. Send the run OD and outlet size and we quote the better fit.
Selection Guide
| Job | Run | Recommended | Notes |
|---|---|---|---|
| Branch tap, flanged valve | 4 to 30 in | Triple Tap Flanged | Stainless or carbon flange |
| Branch tap, MJ valve | 4 to 48 in | Triple Tap MJ | AWWA C111 |
| Size on size tap | 6, 8, 12 in | Ultra-Tap | MJ outlet |
| Stop the main | 4 to 24 in | Triple Tap Line Stop | Threaded or push plug |
| Stop with Type H equipment | 4 to 12 in | Triple Tap Type H | |
| Stop a small line | 3/4 to 4 in | Quick-Cam Line Stop | NBR or EPDM |
Sizing and Best Practices
Measure the run
Pi tape the pipe OD. Each sleeve is listed by OD range.
Test before tapping
Pressure test through the 3/4 in NPT test outlet before you cut.
Valve and machine
The tapping valve and tapping machine are separate. Match the flange or MJ outlet to your valve.
Need help? Send the pipe OD and material to sales@watermainsupply.com and we confirm the Dresser part number.
Why Engineers Specify It
Extended Range
Up to 0.9 in of OD per Triple Tap sleeve.
Recessed Flanges
Per MSS SP-60, ready for the tapping valve.
Test Outlet
3/4 in NPT test outlet on every Triple Tap.
Size on Size
Ultra-Tap cast sleeve with MJ outlet.
Line Stop Builds
Threaded or push plugs, stainless or carbon.
Part Number Ordering
Every variant ends with the Dresser part number.
Related Dresser Products
Quick-Cam Hot Tap Saddle
CTS and IPS PipeView
T3 Wide Range Service Saddle
304 StainlessView
Quick-Cam Extended Range Repair Clamp
All StainlessView
TX3 Wide Range Transition Coupling
ViewGenuine Dresser parts, listed by Dresser part number.
Why Buy From Watermain Supply
Engineering-Led Selection
We check pipe OD, material and line content against Dresser data before we quote.
Multi-Brand Honesty
We carry Dresser and Smith-Blair. If one is not the right fit for your job, we say so.
Order by Part Number
Every variant ends with the Dresser part number, so you get exactly what the spec calls for.
Account Terms
Net terms for contractors, utilities and municipalities on approved accounts.
Data Sheets on Every Listing
Dresser technical specifications and installation instructions are attached to each product.
Gulf Coast Service
Houston-based team for the Gulf Coast and nationwide shipping.
Frequently Asked Questions
What warranty applies?
12 months from the date of purchase under Dresser published warranty terms.
What pressure is the Triple Tap rated for?
Up to 250 PSI MAOP, tested to 375 PSI. The outlet flange and the pipe can limit it.
What flange options are available?
AWWA C207 or C228 Class D, ANSI Class 150, or AWWA C111 MJ.
When should I use the Ultra-Tap?
For a size on size tap on 6, 8 or 12 in pipe.
Is a tapping valve included?
No. The valve and tapping machine are separate.
Can I test before tapping?
Yes, through the 3/4 in NPT test outlet.
What is the temperature rating?
Triple Tap: 180°F continuous.
Can I get a factory submittal?
Yes. Email sales@watermainsupply.com with the part numbers.
Ready to Size Your Tap?
Send the pipe OD, material and line content. We confirm the Dresser part number and quote the same day.
Technical data on this page is taken from Dresser product literature and is subject to change by the manufacturer. Confirm against the current installation manual before specifying. Dresser, Triple Tap, Ultra-Tap, Quick-Cam, TPS are trademarks of Dresser, LLC, used here for product identification only. Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
