Dresser TX3 Wide Range Transition Coupling

Nominal Size - OD Range: 2 in - 2.10-3.03 in OD
Body - Part No.: Regular Body - TX3-0303-0000-000

Product variant with selected options does not exist!

Price
$677.63
Coupon 5% off applied automatically in your cart. No code needed.
SKU: TX3-0303-0000-000
Weight : 8.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Transition Coupling

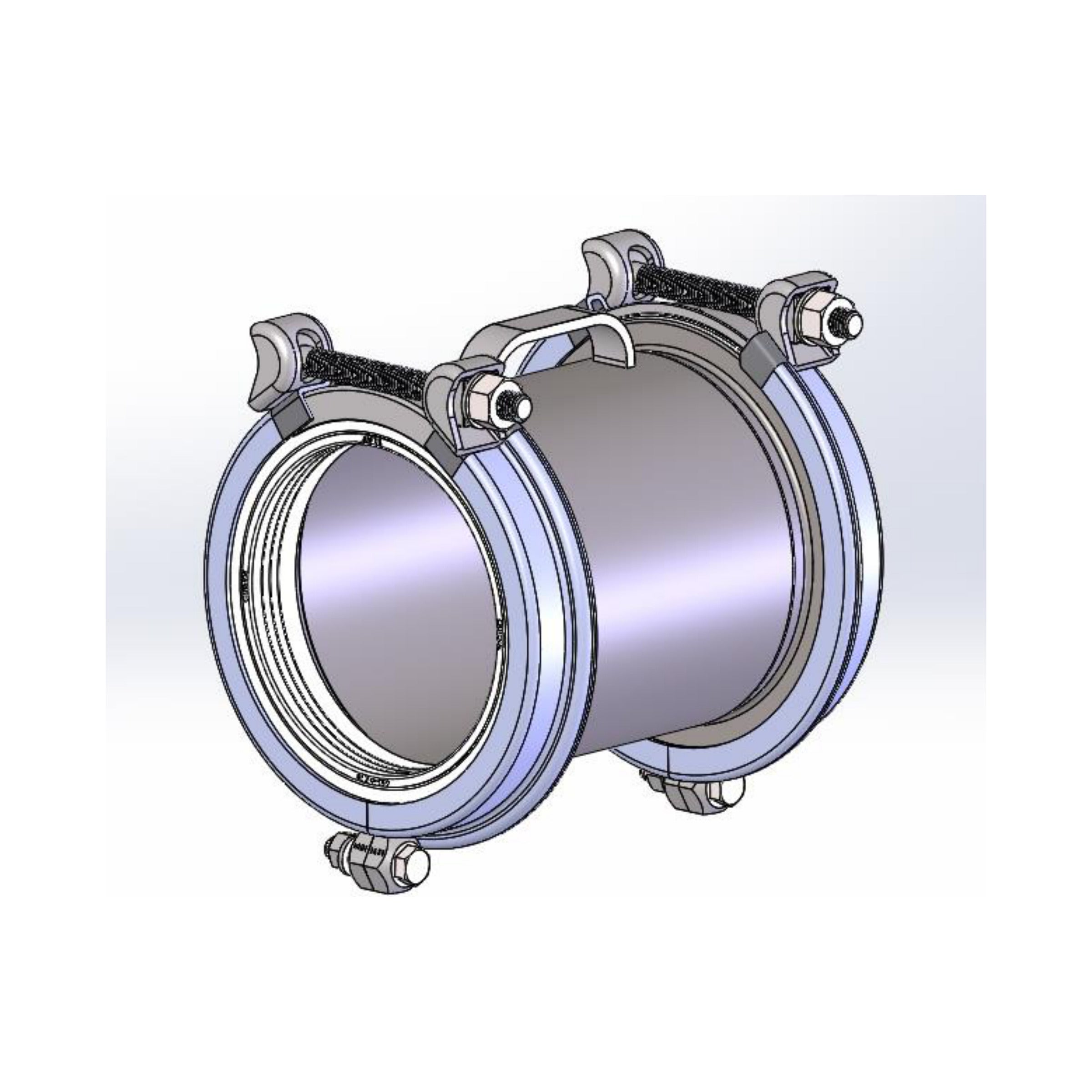

TX3 Wide Range Transition Coupling
Wide range transition coupling for pipes of different materials and ODs, 2 in to 24 in.
275 PSI 2-8 in, 260 PSI 10 in+
-20°F to 125°F
Fusion Bonded Epoxy Coated
NSF 61 and 372
8-140 lb Weight
Overview

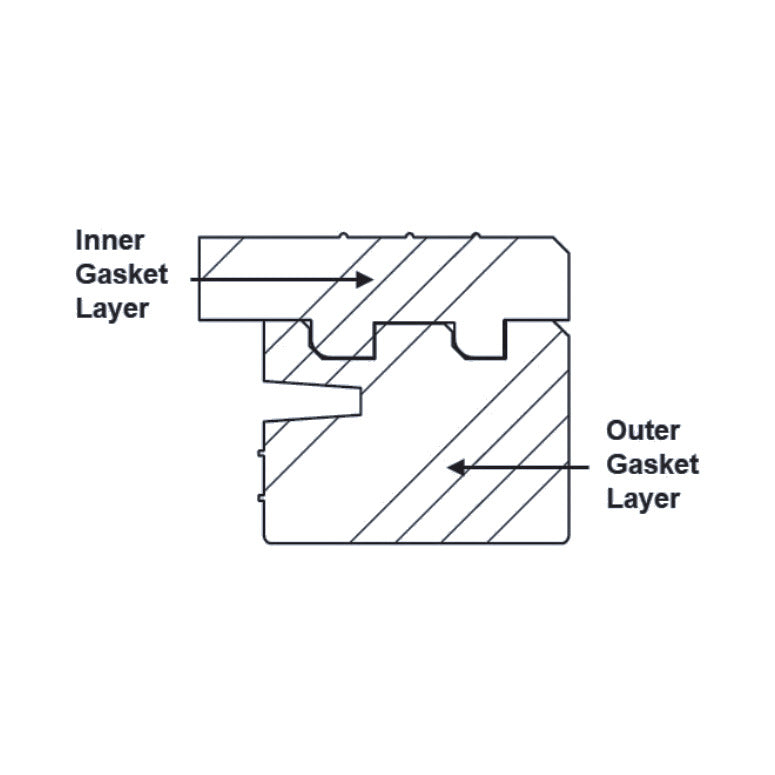

The TX3 joins pipes of different materials and ODs with a dual layer, hydraulically assisted gasket: remove the inner layer and the same coupling fits the upper half of its range.

Application: Joining and repairing ductile iron, cast iron, steel, PVC and AC water mains.

  • Regular and long body
  • Stainless drawbolts, Xylan coated against galling
  • Chloramine resistant NBR gasket
What Ships and What It Needs to Run

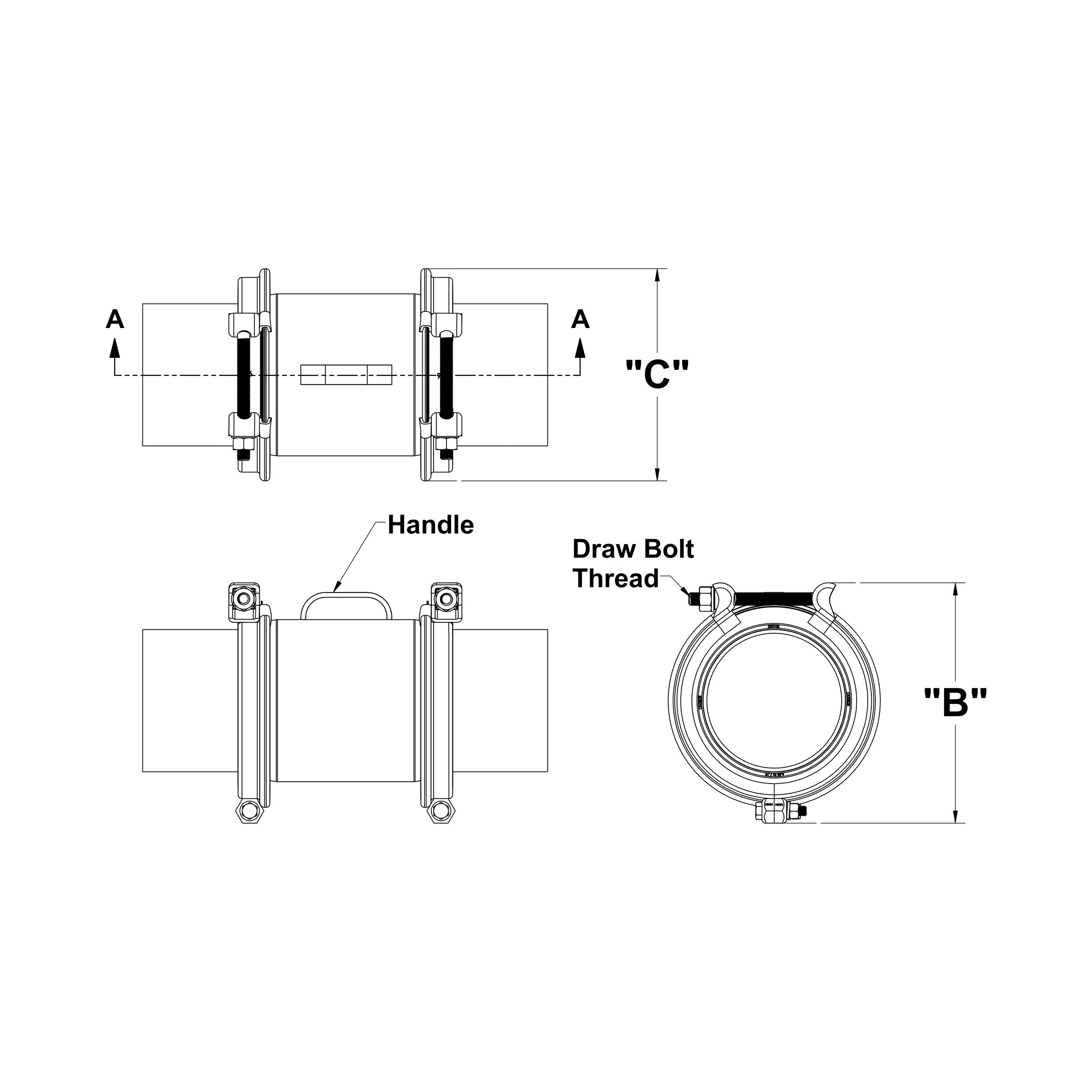

Included: coupling with gaskets, end rings and drawbolts.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

275 PSI on 2 in to 8 in and 260 PSI on 10 in and larger.

Source: TPS TX3 Coupling Specifications (2019). The rating on the product label is the actual rating of each part.

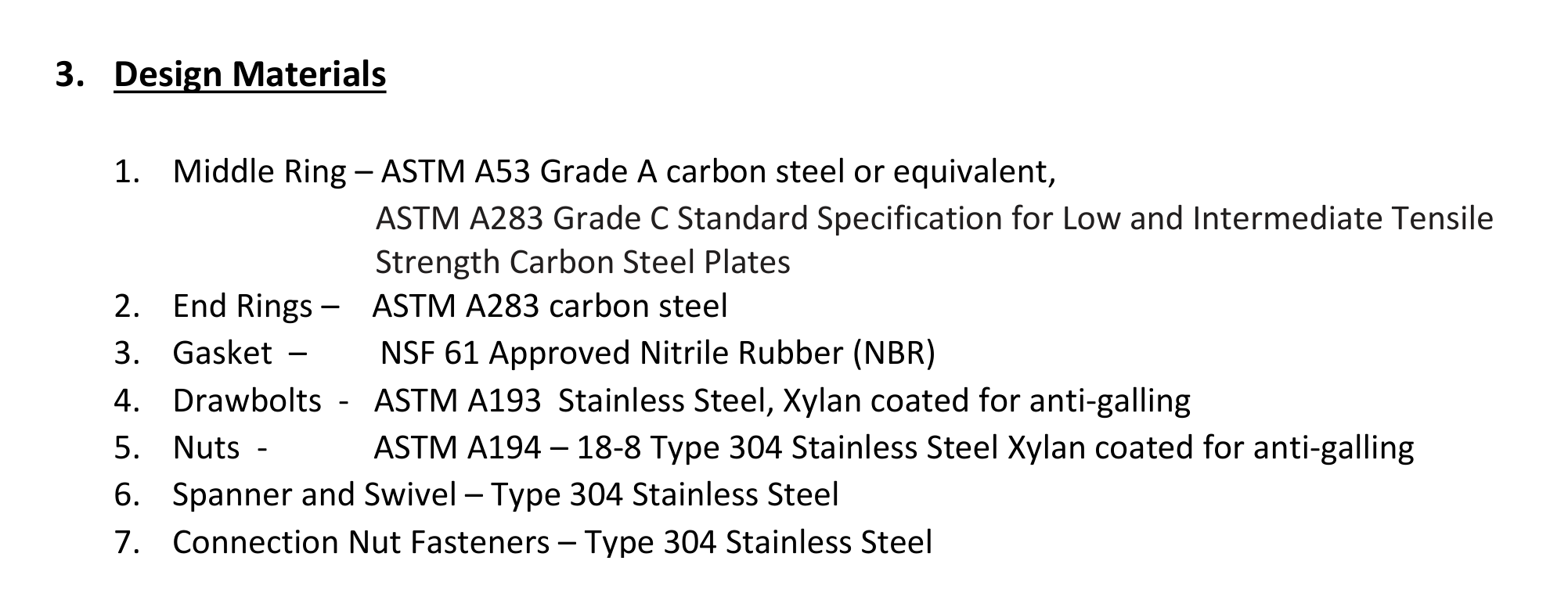

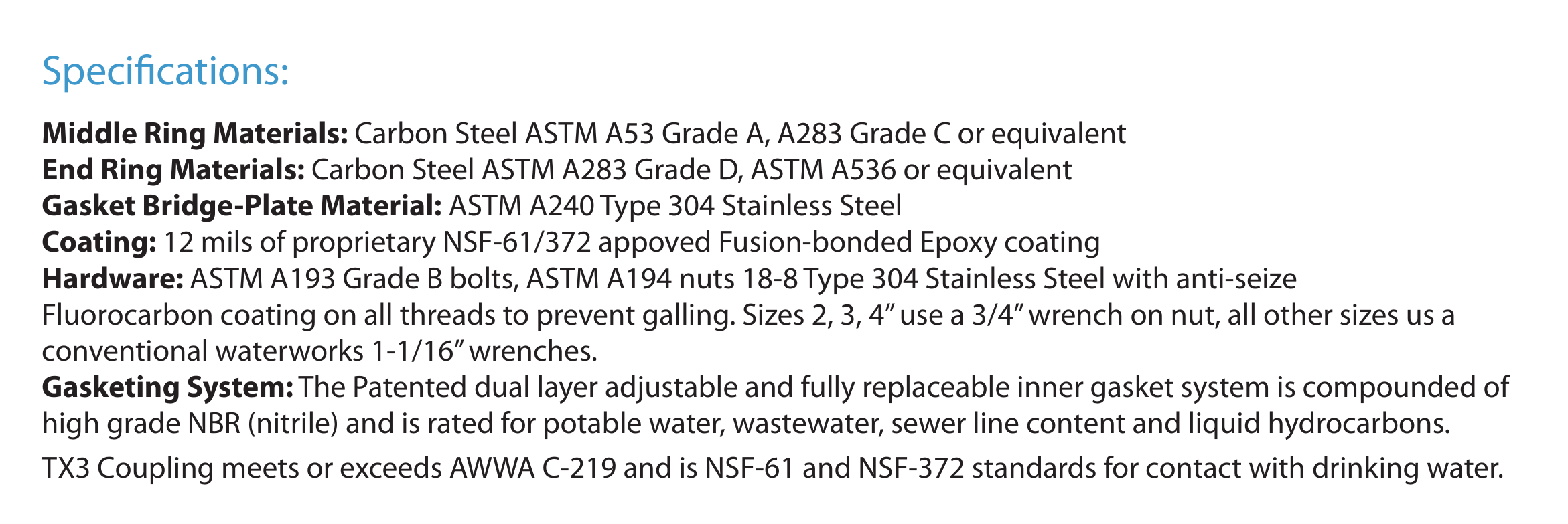

Materials Specifications
Coating Fusion bonded epoxy per AWWA C213, 12 mil nominal, NSF-61
Gasket NBR, NSF 61, chloramine resistant
Drawbolts ASTM A193 stainless steel, Xylan coated

Source: TPS TX3 Coupling Specifications (2019).

Pipe Applications

Ductile iron, cast iron, steel, PVC, asbestos cement and HDPE (SDR 17 or thicker, buried service only), including transitions between them.

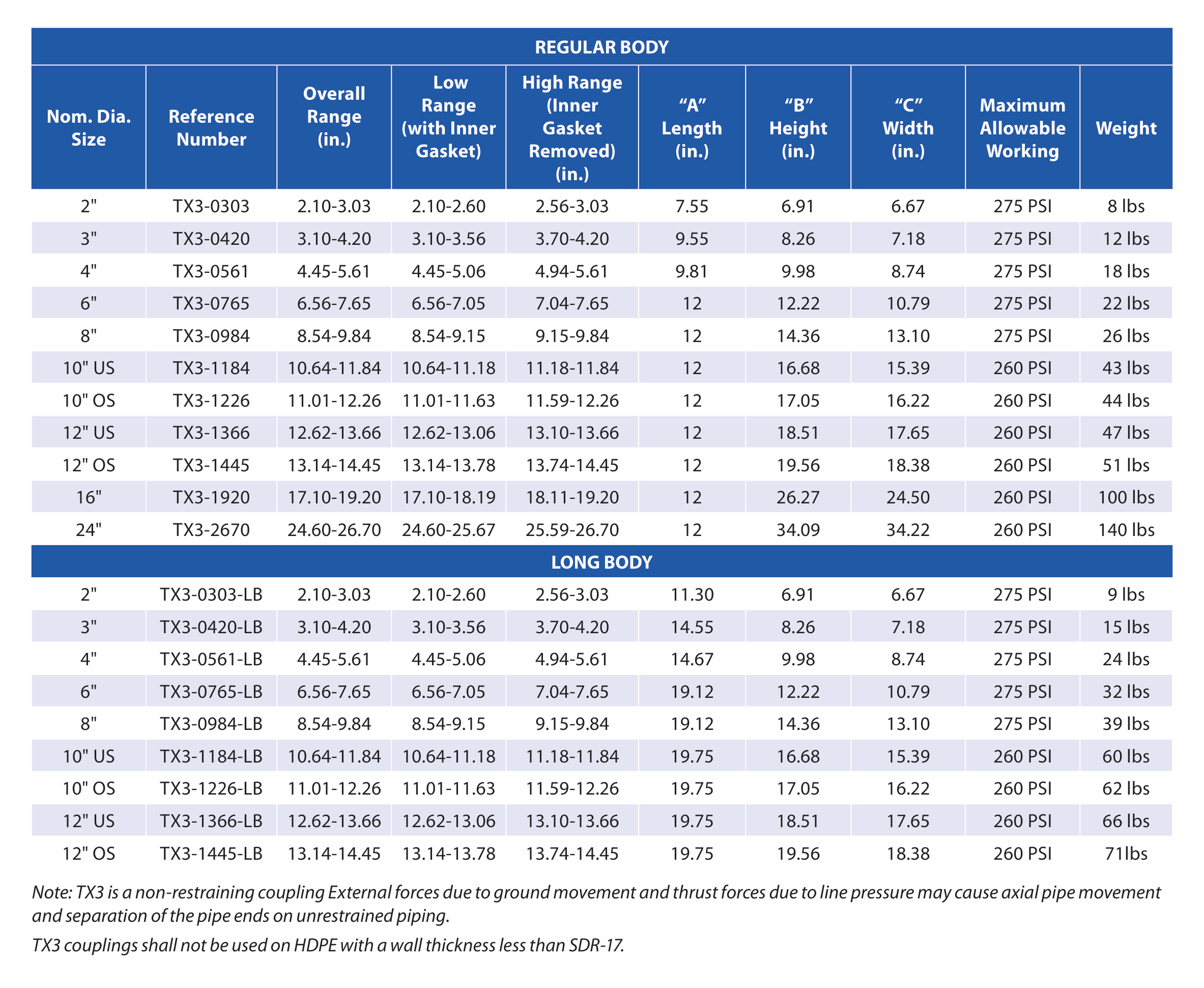

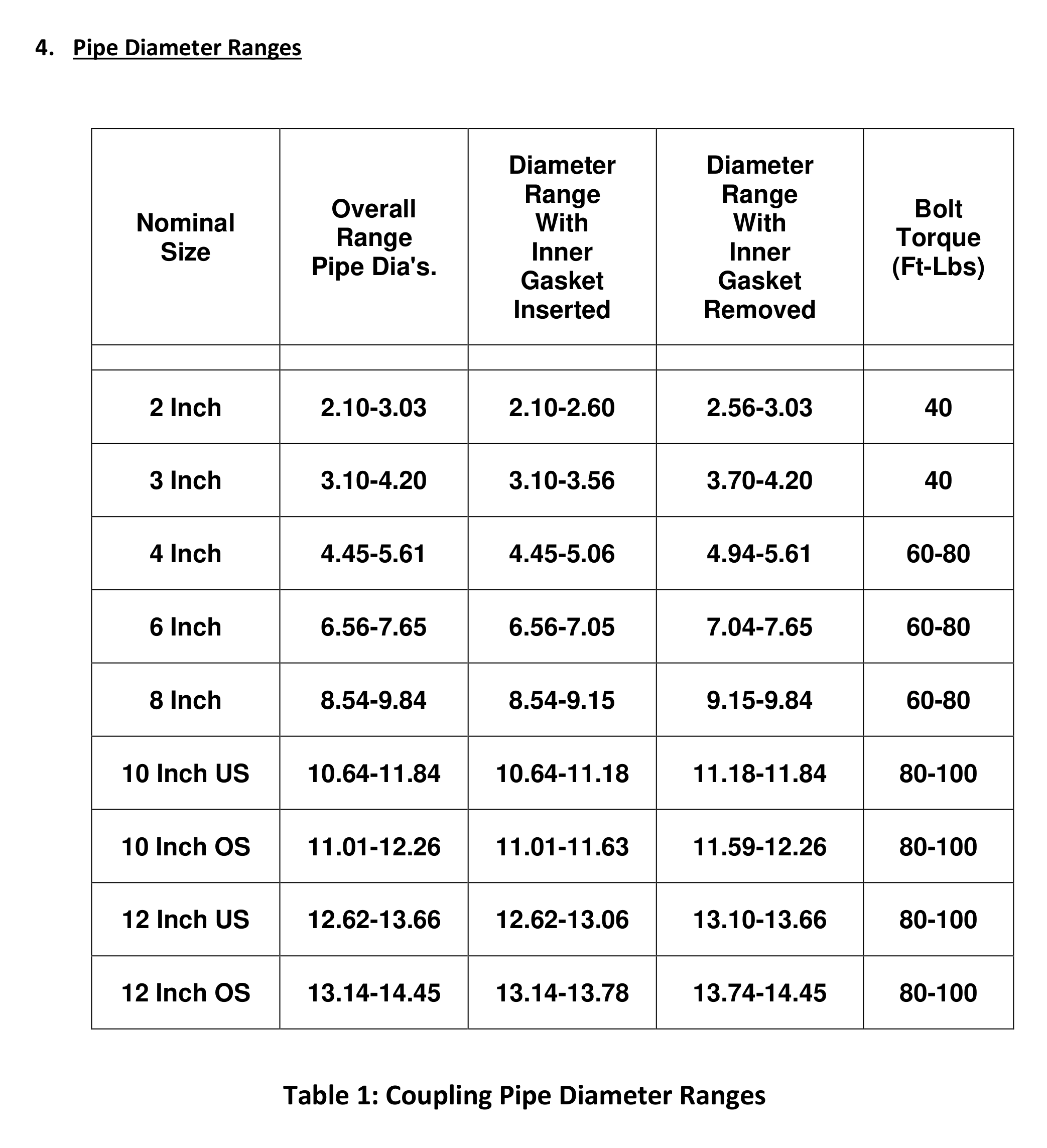

Sizes
All sizes (16 rows)
Nominal Size - OD Range Body
2 in - 2.10-3.03 in OD Regular Body, Long Body
3 in - 3.10-4.20 in OD Regular Body, Long Body
4 in - 4.45-5.61 in OD Regular Body, Long Body
6 in - 6.56-7.65 in OD Regular Body, Long Body
8 in - 8.54-9.84 in OD Regular Body, Long Body
10 in - 10.64-11.84 in OD Regular Body, Long Body
10 in OS - 11.01-12.26 in OD Regular Body, Long Body
12 in - 12.62-13.66 in OD Regular Body, Long Body
12 in OS - 13.14-14.45 in OD Regular Body, Long Body
Up to 17.10 in OD Regular Body
16 in - 17.10-19.20 in OD Regular Body
Up to 21.30 in OD Regular Body
Up to 21.70 in OD Regular Body
Up to 23.35 in OD Regular Body
Up to 25.95 in OD Regular Body
24 in - 24.60-26.70 in OD Regular Body

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Do not disassemble the coupling: it is a stab fit. Do not lubricate the bolts.
  • Clean about 1 ft back from each pipe end; the pipe must be round and free of gouges, dents and corrosion where the gasket seats.
  • Lubricate all pipe surfaces and gaskets: NSF 61 pipe joint lubricant on rough pipe, soapy water on PVC and HDPE.
  • Keep the inner gasket layer in unless the measured pipe OD falls in the upper range.
  • Center the coupling with each pipe end at least 1/2 in past the inside edge of the gasket, then tighten the drawbolts evenly to the label torque.
  • HDPE: SDR 17 or thicker, buried service only. Water service only, not gas.

Source: Dresser TPS TX3 Coupling Installation Instructions (LAB1009 Rev 2).

Before You Order. Measure both pipe ODs; check each falls inside the coupling range. Anchor the pipe wherever pullout could occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
