Smith-Blair Pipe Repair Clamps

Smith-Blair full circle repair clamps are the preferred solution for municipal water utilities and pipeline contractors dealing with active leaks, pipe splits, corrosion pits, and circumferential breaks. Unlike partial-coverage clamps, full circle designs encircle the entire pipe circumference — distributing load evenly and creating a leak-free seal that can hold pressure under operating conditions without taking the line out of service.

Smith-Blair offers the most complete repair clamp catalog in the waterworks industry, covering cast iron, ductile iron, steel, PVC, and asbestos cement pipe from ¾" through 48" in standard alloy, low alloy carbon steel, and all-304-stainless configurations. As an authorized distributor, Watermain Supply stocks and sources the full line. Contact us with your pipe OD and operating pressure and we'll identify the right clamp for the job.

Single-Band Full Circle Repair Clamps — Styles 221, 226, 256, 261

Single-band clamps are the most widely used repair product in the water distribution industry. They cover a defined pipe OD range with a single continuous band and are used to stop active leaks, seal corrosion pits, and repair pinhole failures. Smith-Blair offers single-band clamps in three material tiers:

• Style 221 — Standard carbon steel with low-alloy hardware; entry-level cost for short-term or low-corrosion environments
• Style 226 — Available in Low Alloy or Stainless Steel hardware variants; workhorse product for standard municipal repair applications
• Style 256 — All 304 Stainless Steel, single band; corrosion-resistant for aggressive soils, coastal environments, or CIPP-lined mains
• Style 261 — All 304 Stainless Steel, single band with full stainless body; premium specification for high-value or long-life repair requirements

Single-band clamps are sized by pipe OD, not nominal pipe size. Always verify the actual outside diameter of the pipe being repaired — particularly for older cast iron mains where OD can vary from modern pipe schedules.

Double-Band Full Circle Repair Clamps — Styles 227, 257, 262

Double-band clamps span a greater axial length along the pipe than single-band models, making them the right choice for longitudinal cracks, elongated corrosion zones, or repairs that span a joint or fitting. The additional band width provides greater gasket coverage and improves sealing reliability on irregular or deteriorated pipe surfaces.

• Style 227 — Double band; available in Low Alloy or Stainless Steel hardware
• Style 257 — Double band, All 304 Stainless Steel construction
• Style 262 — Double band, All 304 Stainless Steel; heavy-duty specification for corrosive soils or high-priority distribution mains

Triple-Band & Multi-Band Repair Clamps — Styles 228, 263

Used when the defect or compromised pipe zone extends beyond the coverage of a double-band clamp, or when a single repair must span multiple isolated defects in close proximity. Multi-band designs are particularly valuable on large-diameter mains where excavating for a full pipe replacement is cost-prohibitive.

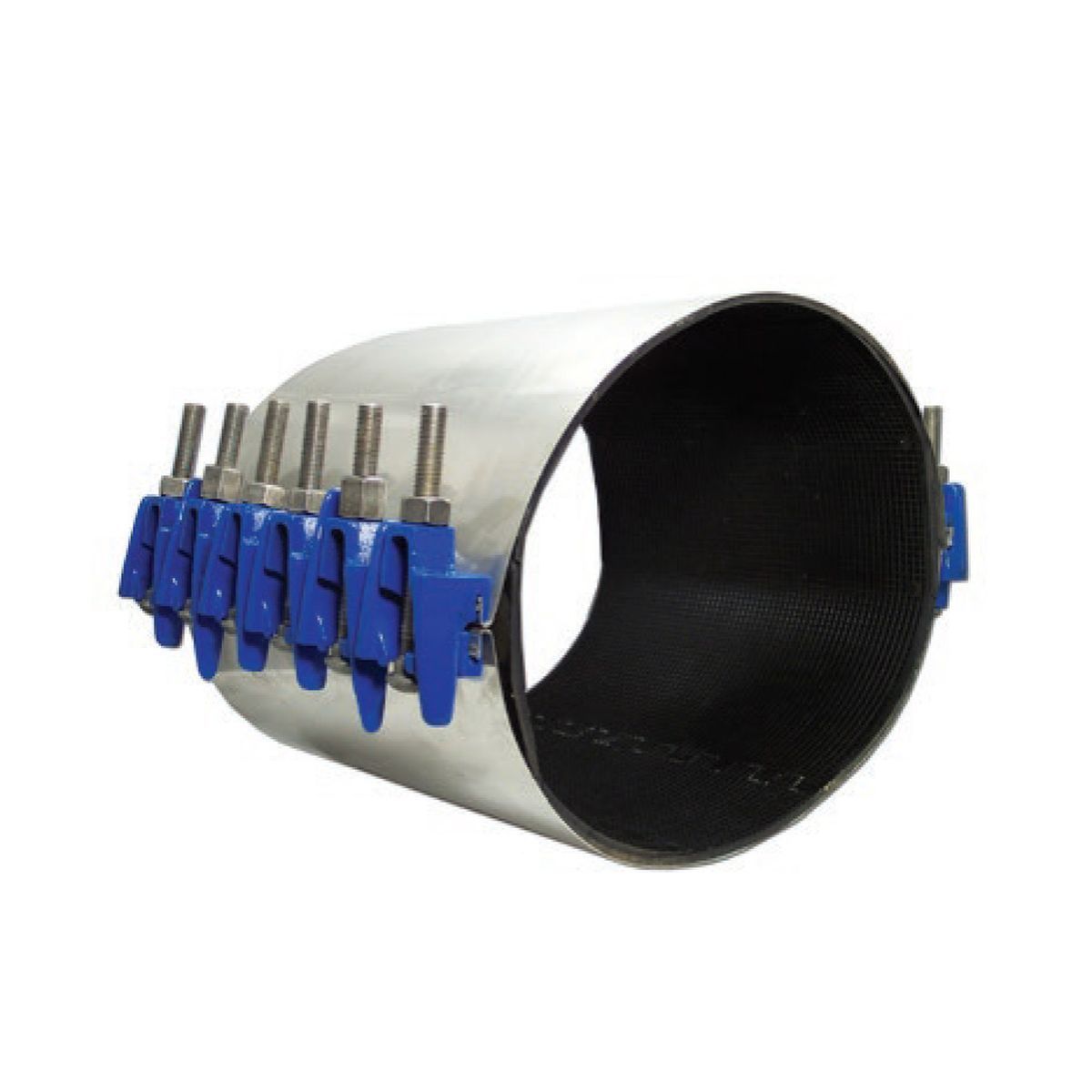

• Style 228 — Triple band; Low Alloy or Stainless Steel hardware; covers repairs from 2" through 48"
• Style 263 — Multi-band, All 304 Stainless Steel; engineered for maximum coverage and corrosion resistance on large-diameter infrastructure

Full Circle Redi-Clamps — Style 244

The Style 244 Redi-Clamp is designed for fast emergency deployment. Its pre-formed, snap-together design installs without tools in the initial placement step, reducing repair time in emergency situations. Available with Stainless Steel bolts for corrosive environments. Ideal for municipal crews that need to get a main back into service quickly with minimal crew time in the excavation.

Bell Joint Leak Clamps — Style 274

Bell joint failures are among the most common defects in aging cast iron water mains. As lead-packed bell-and-spigot joints deteriorate over decades, leakage begins at the bell face — an area that a standard cylindrical repair clamp cannot effectively seal without expensive joint excavation and re-lead.

Smith-Blair Style 274 is engineered specifically for this failure mode. Its stepped gasket profile seats against both the bell face and the spigot pipe simultaneously, creating a dual-point seal without disturbing the existing joint. Available in two configurations:

• Style 274 – Short Bell — for standard bell depth on 4" through 12" cast iron pipe
• Style 274 – Longer Bell — for deeper or oversized bell profiles on larger diameter cast iron mains

Full Circle Collar Leak Clamps — Style 229

Style 229 is designed to repair leaks occurring at the collar or flange faces of mechanical joints, threaded connections, and coupling shoulders — points where a standard repair clamp body cannot achieve a clean gasket seat. The clamp's internal geometry accommodates the collar profile to create a complete seal around the fitting connection. Used frequently in valve box repairs and service connection failures.

All-Stainless Full Circle Clamps — Styles 261, 262, 263

Where aggressive soil conditions, high chloride environments, or long design life requirements make standard carbon steel inadequate, Smith-Blair's all-304-stainless repair clamp series provides maximum corrosion resistance throughout the entire assembly — band, lugs, bolts, and nuts. These clamps meet the most demanding specifications for coastal utilities, industrial water systems, and long-term unexcavated repairs.

Selecting the Right Repair Clamp

Correct repair clamp selection requires four pieces of information: pipe material, actual outside diameter (OD) in inches, nature of the defect (pit, crack, longitudinal split, circumferential break, bell joint failure), and system operating pressure. Do not specify by nominal pipe size alone — OD varies significantly across pipe materials, schedules, and eras of manufacture.
