Nominal Size - OD: 1/2 in - 0.63 in OD
Width - Part No.: 3 in - 244-00006303-001

Product variant with selected options does not exist!
$114.53
SKU: 244-00006303-001
Weight : 0.7 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Redi-Clamp
Style 244 Full Circle Redi-Clamp
Single Bolt, Small Diameter
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
304 Stainless Band
Epoxy-Coated Ductile Iron Lugs
304 Stainless Bolts, Coated Nuts
NSF/ANSI 61 and 372
0.63-2.38 in Pipe OD
0.7-6.4 lb Weight
Description

The Smith-Blair Style 244 Full Circle Redi-Clamp is an economical repair for pin holes, punctures and splits in small-diameter pipe. Each clamp is built to a specific pipe OD in IPS and copper tube sizes, with a smooth 1/4 in thick gasket, an 18-8 Type 304 stainless band and epoxy-coated lugs.

Application: steel, copper, and IPS-sized PVC and HDPE.

Key Features

  • Working pressure up to 150 PSI
  • Built to a specific pipe OD; IPS and copper tube sizes
  • Widths 3, 6 and 12 in; 6 in or longer joins pipe ends of like size
  • Drop-in bolts and 360° coverage of the pipe surface
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the clamp with its Nitrile gasket, lugs, bolts and nuts, ready to install.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 150 PSI. Smith-Blair rates the allowable working pressure of a repair clamp to fall as pipe diameter rises; for a particular installation it is set by pipe size and type, the type and extent of the damage, service conditions and installation workmanship.

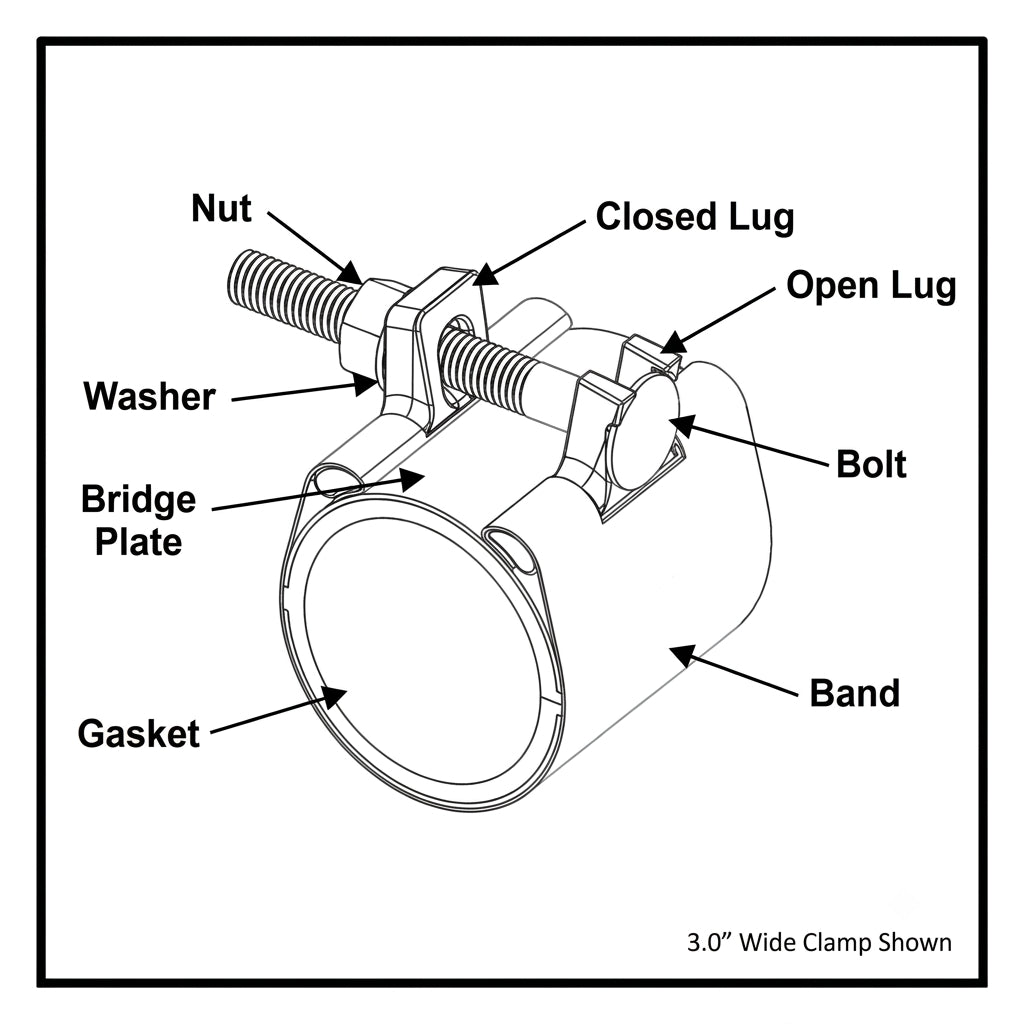

Materials Specifications
Band 18-8 Type 304 stainless steel
Lugs Ductile iron (ASTM A536) with Flexi-Coat epoxy finish
Gasket Nitrile (Buna-N), compounded to resist oil, natural gas, acids, alkalies, most (aliphatic) hydrocarbons, water and many chemicals
Bolts Type 304 stainless steel with fluoropolymer-coated nuts to prevent galling
Temperature range -20°F to +180°F

Materials subject to change by the manufacturer.

Pipe Applications

Steel, copper, and IPS-sized PVC and HDPE.

Sizes
Pipe size and OD Widths
1/2 in - 0.63 in 3, 6 in
1/2 in - 0.84 in 3, 6, 12 in
3/4 in - 0.88 in 3, 6 in
3/4 in - 1.05 in 3, 6, 12 in
1 in - 1.13 in 3, 6 in
1 in - 1.32 in 3, 6, 12 in
1-1/4 in - 1.38 in 3, 6 in
1-1/2 in - 1.63 in 3, 6 in
1-1/4 in - 1.66 in 3, 6, 12 in
1-1/2 in - 1.90 in 3, 6, 12 in
2 in - 2.13 in 3, 6 in
2 in - 2.38 in 3, 6, 12 in

Choose the pipe OD in the first row above; the part number shows in the second row.

Installation Notes
  • Clean the pipe where the clamp will sit, removing scale, dirt and debris that could spoil the gasket seal, and lubricate pipe and gasket with a soap-and-water solution.
  • Snap the gasket cartridge around the pipe, centered over the leak, with the gasket split 180° from the damaged section.
  • Rotate the band so the bridge-plate dimples sit centered between the open and closed lugs, engage the bolt head in the open lug, and tighten to the torque in the instructions.
  • Joining pipe on gas lines: use a different clamp; the 244 and 247 are not for that service.
  • Repairing or connecting separated pipes: the 244 can act as an insulator, so install a jumper wire where electrical continuity is required (grounded or cathodically protected systems).
  • Anchor the pipe: the clamp seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.

From Smith-Blair Installation Instructions TI-011 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Odd pipe ODs, other widths and other materials are built to order — email sales@watermainsupply.com with the pipe OD and material.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
