Smith-Blair 441 OMNI Center Sleeve, Ductile Iron, Flexi-Coat Epoxy

Smith-Blair Pipe Repair Couplings

Smith-Blair bolted pipe couplings for water main repair, transition, reducing and restraint, 1/2 to 48 in, on steel, ductile and cast iron, PVC, AC and HDPE pipe, with alloy, 304 or 316 stainless hardware, plus a head-to-head comparison and cross-reference with Dresser couplings.

30 products
Sort by:
Best selling
Sort by:
Best selling
Smith-Blair Style 471 PipeLock Restraint Coupling - Ductile, 3-48 in
Smith-Blair Style 471 PipeLock Restraint Coupling - Ductile, 3-36 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 471 PipeLock Restraint Coupling - Ductile, 3-48 in

Price
From $410.50
Smith-Blair Style 441 Cast Coupling - 2-16 in
Smith-Blair Style 441 Cast Coupling - 2-1/2-16 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 441 Cast Coupling - 2-16 in

Price
From $137.63
Smith-Blair Style 411 Steel Coupling - Steel Pipe, 1/2-48 in
Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS316 Bolts, 1/2-48 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 411 Steel Coupling - Steel Pipe, 1/2-48 in

Price
From $95.70
Smith-Blair Style 525 Compression Coupling - 1/2 in to 2 in
Smith-Blair Style 525 Compression Coupling - 1/2 in to 4 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 525 Compression Coupling - 1/2 in to 2 in

Price
From $68.28
Smith-Blair Style 472 PipeLock Restraint Coupling - PVC, 3-36 in
Smith-Blair Style 472 PipeLock Restraint Coupling - PVC, 3-30 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 472 PipeLock Restraint Coupling - PVC, 3-36 in

Price
From $408.13
Smith-Blair Style 421 Two Bolt Coupling - Top Bolt, 2-24 in
Smith-Blair Style 421 Two Bolt Coupling - Top Bolt, 2-12 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 421 Two Bolt Coupling - Top Bolt, 2-24 in

Price
From $252.92

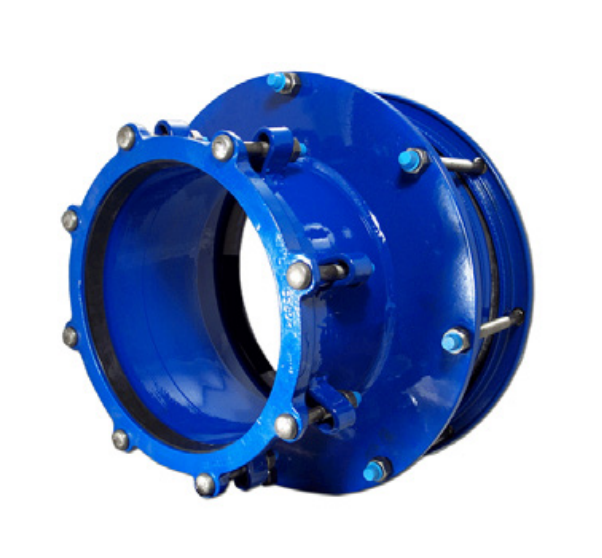

Smith-Blair Style 415 Steel Reducing Coupling
Smith-Blair Style 415 Steel Reducing Coupling

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 415 Steel Reducing Coupling

Price
From $1,363.83
Smith-Blair EZW Maxi-Grip Restraint Reducing Coupling - 3-12 in
Smith-Blair EZW Maxi-Grip Restraint Reducing Coupling - 3-12 in

Smith Blair

Free Shipping $499 or more

Smith-Blair EZW Maxi-Grip Restraint Reducing Coupling - 3-12 in

Price
From $474.46
Smith-Blair EZW Maxi-Grip Restraint Coupling - Straight, 2-12 in
Smith-Blair EZW Maxi-Grip Restraint Coupling - Straight, 2-12 in

Smith Blair

Free Shipping $499 or more

Smith-Blair EZW Maxi-Grip Restraint Coupling - Straight, 2-12 in

Price
From $318.34
Smith-Blair Style 473 PipeLock Restraint Steel Coupling - 3-36 in
Smith-Blair Style 473 PipeLock Restraint Steel Coupling - 3-24 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 473 PipeLock Restraint Steel Coupling - 3-36 in

Price
From $394.94
Smith-Blair Style 411 Steel Coupling - Cast and Ductile Iron, SS304 Bolts
Smith-Blair Style 411 Steel Coupling - Cast & Ductile Iron, SS316 Bolts, 2-48 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 411 Steel Coupling - Cast and Ductile Iron, SS304 Bolts

Price
From $304.71
Smith-Blair Style 411 Steel Coupling - Cast and Ductile Iron, SS316 Bolts
Smith-Blair Style 411 Steel Coupling - Cast & Ductile Iron, SS316 Bolts, 2-48 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 411 Steel Coupling - Cast and Ductile Iron, SS316 Bolts

Price
From $382.48
Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS304 Bolts, 1/2-48 in
Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS316 Bolts, 1/2-48 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS304 Bolts, 1/2-48 in

Price
From $153.17
Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS316 Bolts, 1/2-48 in
Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS316 Bolts, 1/2-48 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 411 Steel Coupling - Steel Pipe, SS316 Bolts, 1/2-48 in

Price
From $247.90
Smith-Blair Style 431 RazorLock Wide Range Restrained Coupling - 4-8 in
Smith-Blair Style 431 RazorLock Wide Range Restrained Coupling - 4-8 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 431 RazorLock Wide Range Restrained Coupling - 4-8 in

Price
From $892.53

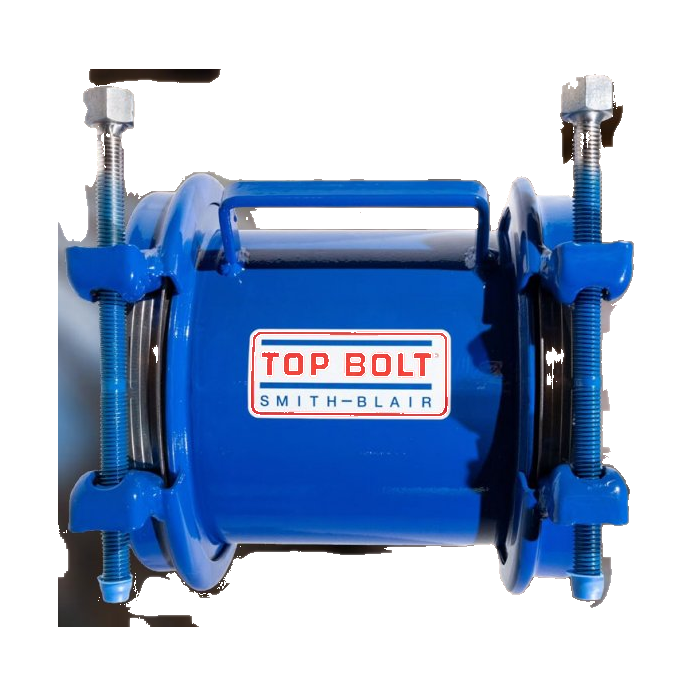

Smith-Blair Style 422 Top Bolt Long Sleeve Coupling - 2-24 in
Smith-Blair Style 422 Top Bolt Long Sleeve Coupling - 2-24 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 422 Top Bolt Long Sleeve Coupling - 2-24 in

Price
From $339.73
Smith-Blair Style 411 Steel Coupling - Cast & Ductile Iron, 2-48 in
Smith-Blair Style 411 Steel Coupling - Cast & Ductile Iron, SS316 Bolts, 2-48 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 411 Steel Coupling - Cast & Ductile Iron, 2-48 in

Price
From $232.42
Smith-Blair Style 418 Tee Coupling - 3/4 in to 2 in
Smith-Blair Style 418 Tee Coupling - 3/4 in to 2 in

Smith Blair

Free Shipping $499 or more

Smith-Blair Style 418 Tee Coupling - 3/4 in to 2 in

Price
From $184.19

Smith-Blair Pipe Repair Couplings

Smith-Blair · Pipe Couplings · 1/2 in to 48 in

Smith-Blair Pipe Couplings for Water Main Repair, Transition and Restraint

Join, repair, transition and reduce plain-end steel, ductile iron, cast iron, PVC, AC and HDPE pipe with no welding or threading. Fabricated steel, OMNI cast, Quantum wide range, Top Bolt, insulating and restrained couplings, with low-alloy, 304 or 316 stainless hardware. Compared head to head with Dresser below.

Smith-Blair Style 441 OMNI cast coupling
16 StylesStandard and restrained
1/2–48 inPipe sizes
To 350 PSIWorking pressure
Alloy · 304 · 316Bolt choices
NSF/ANSI 61Potable water

A bolted pipe coupling joins two plain pipe ends with a sleeve, a gasket at each end, and followers that the bolts draw in to press each gasket onto the pipe. The seal is made on the outside of the pipe, so a coupling does not care what the pipe is made of, only its outside diameter under each gasket. That is why one coupling joins new ductile iron to old cast iron, spans a corroded section of steel, or ties PVC into a steel riser.

Pick by three things: the measured OD at each end, whether the joint must restrain itself against pressure thrust, and the soil the bolts will sit in. Send the pipe material and ODs and we confirm the style and part number the same day: call 1-888.510.4036 or email sales@watermainsupply.com. Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.

Will It Work for Me?

Answered from Smith-Blair published data.

Warranty

One year from the date of shipment by Smith-Blair, against defects in materials and workmanship, under Smith-Blair's published warranty.

Reliability

Epoxy-coated steel and ductile iron bodies, Nitrile gaskets, and most styles certified to NSF/ANSI 61 and 372 and built to AWWA C219.

Fit

Steel, ductile and cast iron, PVC, AC, copper, and HDPE with stiffeners. 150 to 350 PSI depending on style, from 1/2 to 48 in.

Size It Now

Measure the OD at each pipe end with a pi tape and email it with the pipe materials and pressure. We match the part number the same day, or call 1-888.510.4036.

Which Coupling for Which Pipe?

Pipe material sets the OD family and whether the wall can be gripped for restraint.

Pipe Standard couplings Restrained couplings Notes
Steel (IPS OD) 411 steel OD, 421, 461; transition 413; reducing 415 EZW, 431, 471 (3–12 in) Insulate steel to iron with a 416.
Ductile iron 411 cast and DI OD, 441, 461, 421 471 to 48 in, 431, EZW Standard ODs: 4.80, 6.90, 9.05, 11.10, 13.20 in.
Cast iron 441, 461, 411 cast and DI OD 431 Old classes run larger than DI: measure the OD.
PVC (C900, IPS) 411 or 411 CI/DI by OD, 441, 461, 421 472, 473, EZW DR26+, 431 Unanchored PVC needs a restrained coupling.
Asbestos cement 441, 461, 411 CI/DI by OD, 413 — AC OD depends on class: measure.
HDPE and PE Any listed coupling with Smith-Blair pipe stiffeners 431, EZW DR32.5+ with stiffener Stiffeners are required on polyethylene.
Copper 411 at copper OD, 421, 525 with adapter gaskets — —

Which Coupling for the Job?

Once the pipe narrows the field, the job picks the style.

Job Choose
Straight repair, known OD 411 in the steel or CI/DI build
Gap or damaged section 442, 411 long sleeve, 422 or 462
Old pipe, OD uncertain 461 Quantum or 441 OMNI
New pipe meets old, same size 413, 441; restrained 473
Change of pipe size 415, 441 Reducing; restrained EZW Reducing
Dead end, bend, unanchored PVC Restrained: 431, EZW, PipeLock
Deep or crowded trench 421 Top Bolt
Steel to iron, cathodic protection 416
Repair plus a small branch 418
Service line, 1/2–2 in 525
Meter setting 926

Standard or Restrained Coupling?

Line pressure pushes pipe out of its joints at every dead end, bend, tee and reducer. Something has to hold it.

Standard Coupling Works

  • Mid-run repairs on a straight, well-bedded main.
  • Anchored pipe, thrust blocks or restrained joints already carry the load.
  • 411, 413, 415, 421, 441, 461 and the other standard styles.

Restrain the Joint

  • Dead ends, bends and tees without thrust blocks.
  • Unanchored PVC and PE, slopes, poor bedding.
  • Testing against a closed valve: RazorLock 431, EZW or PipeLock.
Restrained couplings replace thrust blocks: no formwork, no cure time, restraint in both directions, and nothing left in the trench to undermine later. Ratings run 235 to 350 PSI depending on style and pipe.

Standard Couplings

Every listing shows the Smith-Blair part number on each size.

Smith-Blair Style 411 steel pipe coupling

Steel Coupling: 411

Fabricated steel sleeve · Nitrile gaskets

1/2–48 inSteel OD
2–48 inCast and DI OD
150 PSIWorking pressure
3Bolt materials

The straight bolted coupling for plain-end pipe of the same OD. Two builds: steel pipe OD (1/2–48 in) and cast and ductile iron OD (2–48 in), each in low-alloy, 304 or 316 stainless bolts. Sleeve thickness, length and bolt count are chosen per size.

  • Sleeves from 4-1/2 to 16 in long for wider gaps
  • Fits PVC, copper and stainless pipe of matching OD
  • NSF/ANSI 61 and 372; AWWA C219
Best forJoining and repairing pipe of a known, matching OD, up to 48 in.
View 411 Steel Pipe
Smith-Blair Style 413 transition coupling

Transition Coupling: 413

Steel sleeve · different OD each end

2–24 inStraight sleeve
14–48 inExpanded sleeve
150 PSIWorking pressure
Alloy or 304Bolts

Each end is built to its own OD, so it joins pipes of the same nominal size but different outside diameters, such as steel to ductile iron, or PVC to cast iron.

  • End 1 and End 2 chosen separately
  • 14–48 in expanded sleeve for steel to DI OD
  • NSF/ANSI 61 and 372; AWWA C219
Best forNew pipe meeting old pipe of a different OD.
View 413 Transition
Smith-Blair Style 415 steel reducing coupling

Reducing Coupling: 415

Steel · large end and small end

6–48 inLarge end
4–46 inSmall end
150 PSIWorking pressure
NitrileGasket

Joins pipes of different nominal sizes in one bolted fitting. Choose the large end and the small end by OD; most sizes accept anchor studs to restrain the joint.

  • Any catalog large end with any smaller end
  • Reductions over 3 sizes priced on request
  • Steel, cast iron, AC, PVC and ductile iron
Best forTrue size changes from 6 to 48 in.
View 415 Reducing
Smith-Blair Style 441 OMNI cast coupling

OMNI Cast Coupling: 441, 442

Ductile iron sleeve and followers · range gaskets

2–16 inSizes
250 PSIWorking pressure
StraightTransition, reducing
3Bolt materials

One ductile iron sleeve per nominal size; gaskets and followers set the OD at each end, so it couples same or different ODs. The 442 adds 7 and 12 in long sleeves. Every part is replaceable.

  • 250 PSI: higher than fabricated steel couplings
  • Alloy, 304 or 316 stainless bolts
  • Rebuild in place with OMNI replacement parts
Best forCast and ductile iron repairs, transitions, and truck stock.
View 441 OMNI
Smith-Blair Style 461 Quantum wide range coupling

Quantum Wide Range: 461, 462

Epoxy-coated ductile iron · wide-range gasket

1-1/2–12 inSizes
250 PSIWorking pressure
WideOD range per part
12 in462 sleeve

The widest OD range per part in the line: one coupling takes the steel, PVC and ductile iron OD of its size. The 462 has a 12 in sleeve for gaps and bad pipe.

  • Fewer part numbers on the truck
  • Alloy or stainless hardware
  • NSF/ANSI 61 and 372; AWWA C219
Best forUnknown or mixed pipe ODs, emergency repair stock.
View 461 Quantum
Smith-Blair Style 421 Top Bolt coupling

Top Bolt: 421, 422

Epoxy-coated steel · two top bolts

2–24 inSizes
260 PSIWorking pressure
2Bolts, both on top
304 SSHardware

Two bolts, both on top: install without reaching under the pipe or rotating the coupling. Wide-range removable gaskets; the 422 long sleeve spans gaps and damaged pipe.

  • Fast install in deep or crowded trenches
  • 260 PSI with 304 stainless hardware
  • Steel, DI, AC, PVC and copper tube sizes
Best forDeep trenches, wall penetrations, pipe close to other utilities.
View 421 Top Bolt

Restrained Couplings

Seal and restrain in one fitting. Each family is matched to a pipe material.

Smith-Blair Style 431 RazorLock restrained coupling

RazorLock: 431

Ductile iron · one Dual Drive bolt per end

4–8 inSizes
250 PSIWorking pressure
2°Deflection per end
Any mixPVC, DI, steel, PE

A wide-range restrained coupling that seals and grips with a single Dual Drive bolt per end, for any combination of carbon steel, cast and ductile iron, PVC, PVCO and PE.

  • Fastest restrained install in the line
  • PE with stiffeners; minimum walls on the listing
  • 304 stainless hardware
Best forRestrained repairs and tie-ins on 4–8 in mixed pipe.
View RazorLock
Smith-Blair EZW Maxi-Grip restrained coupling

EZW Maxi-Grip: Straight and Reducing

Steel sleeve · timing gasket · grip rings

2–12 inStraight
3–12 inReducing
300 PSIWorking pressure
Alloy or 304Bolts

The SBR timing gasket seals before the case-hardened grip rings set, so one fitting seals and restrains. The reducing build changes size and carries its own thrust.

  • Steel, DI, PVC DR26 and PE DR32.5 with stiffener
  • Only restrained reducing coupling in the line
  • AWWA C219
Best forRestrained joints and reductions on 2–12 in water mains.
View EZW Straight
Smith-Blair Style 471 PipeLock restrained coupling

PipeLock: 471, 472, 473

Fabricated steel · Cam-Lock glands · MJ gaskets

3–48 in471 ductile
3–36 in472 PVC, 473 PVC x DI
To 350 PSI471 rating
5°Deflection

A steel sleeve with Cam-Lock ductile iron glands on MJ ends, matched to the pipe: 471 ductile iron to ductile iron, 472 PVC to PVC, 473 PVC to ductile iron or steel.

  • 471: 350 PSI; 472 and 473: 235 PSI
  • PVC SDR 26 or heavier wall
  • NSF/ANSI 61 and 372
Best forLarge-diameter restrained repairs and tie-ins without thrust blocks.
View PipeLock 471

Specialty Couplings

Smith-Blair vs Dresser Couplings: Head to Head

Figures from each manufacturer's published data as listed on our product pages. Both brands carry NSF/ANSI 61 and 372 on most of their water couplings; exceptions are noted.

Steel Pipe Coupling: Smith-Blair 411 vs Dresser Style 38

Spec Smith-Blair 411 Dresser 38
Sizes 1/2–48 in steel OD; 2–48 in cast and DI OD Steel 0.84–60.00 in OD; cast and DI 2.50–50.80 in OD
Working pressure Up to 150 PSI Up to 1,500 PSI on small sizes, falling with diameter; 150 PSI light pattern
Gasket Nitrile (Buna-N), -20°F to +180°F Grade 27 Buna-S standard, 212°F; Viton build to 350°F at 100 PSI
Sleeve and followers Fabricated steel, epoxy coated Carbon steel, fusion-bonded epoxy
Bolts Low-alloy, 304 or 316 stainless AWWA C111 bolts, E-coated
Sleeve choices 4-1/2 to 16 in lengths, thickness and bolt count by size Standard and light-pattern middle rings; long rings in Style 40
Potable water NSF/ANSI 61 and 372; AWWA C219 NSF/ANSI 61 and 372

Verdict: Dresser 38 wins on pressure, the largest sizes and special gaskets (Viton for heat and hydrocarbons). The 411 wins on hardware: 304 and 316 stainless bolts are stock builds, which is what lasts in wet or corrosive soil. For a standard 150 PSI water main, both do the job.

Long Sleeve: Smith-Blair 411 and 442 vs Dresser Style 40

Spec Smith-Blair 411 long sleeve, 442 Dresser 40
Sleeve lengths 411: up to 16 in; 442 OMNI: 7 and 12 in 12, 16 or 24 in middle rings
Sizes 411 to 48 in; 442 4–16 in Steel 1/2–24 in; cast and DI 2–24 in
Working pressure 411 150 PSI; 442 250 PSI Up to 1,500 PSI steel; 250 PSI CI/DI 4–12 in
OD flexibility 442 range gaskets, transitions on one sleeve One OD per build
Hardware Alloy, 304 or 316 (411); alloy (442) AWWA C111, E-coated

Verdict: for the longest gap, Dresser 40 with a 24 in middle ring reaches farthest. On cast and ductile iron with uncertain ODs, the 442 OMNI long sleeve fits more pipe per part and rates 250 PSI.

Cast and Ductile Iron, Wide Range: Smith-Blair 441 and 461 vs Dresser 138 and TX3

Spec Smith-Blair 441, 461 Dresser 138, TX3
Sizes 441: 2–16 in; 461: 1-1/2–12 in 138: 3–12 in; TX3: 2–24 in
Working pressure 250 PSI 138: 250 PSI; TX3: 275 PSI to 8 in, 260 PSI 10 in and up
Temperature -20°F to +180°F 138: 212°F; TX3: -20°F to 125°F
Range approach 441: range gasket and follower per OD band; 461: one wide-range gasket 138: one coupling per size for any cast iron vintage and DI; TX3: dual-layer wide-range gasket
Hardware Alloy, 304 or 316 (441); alloy or stainless (461) AWWA C111 black E-coat
Spare parts Full OMNI parts catalog: gaskets, followers, sleeves, bolts Gaskets for 138

Verdict: TX3 reaches 24 in and the highest wide-range rating. The 441 is the one you can rebuild part by part and order with 316 stainless bolts; the 461 covers 1-1/2 in. For old cast iron of unknown class, 138, 441 and 461 all work: order by measured OD.

Transition and Reducing: Smith-Blair 413 and 415 vs Dresser 62

Spec Smith-Blair 413, 415 Dresser 62
What it joins 413: same nominal size, two ODs; 415: two different sizes Cast or ductile iron to steel size on size, and different sizes or classes
Sizes 413: 2–48 in; 415: 4–48 in 3–24 in
Working pressure 150 PSI 150 PSI
Construction Steel sleeve, straight or expanded; 415 large end and small end chosen separately Steel middle ring swaged at one end
Hardware Alloy or 304 stainless (413 14–48 in) AWWA C111 black E-coat

Verdict: same 150 PSI rating. Smith-Blair covers far larger sizes (to 48 in) and lets you pair any two catalog ODs. Dresser 62 is a compact one-piece answer for cast iron to steel through 24 in.

Insulating: Smith-Blair 416 vs Dresser Style 39

Spec Smith-Blair 416 Dresser 39
Sizes 2–24 in 3/4–24 in
Working pressure 150 PSI 150 PSI small sizes up to 900 PSI at 6 in
Insulation Single Nitrile insulating boot Grade 41 insulating gasket and full-boot plastic insulator
Potable water NSF/ANSI 61 and 372 Not stated on the listing
Reducing version — Dresser 39-62 insulating reducing

Verdict: Dresser 39 for higher pressure, sizes below 2 in, and insulated cast iron to steel reductions (39-62). Smith-Blair 416 for certified potable water service.

Small Services: Smith-Blair 525 vs Dresser Style 65

Spec Smith-Blair 525 Dresser 65
Sizes 1/2–2 in 1/2–2 in
Pressure 150 PSI Malleable iron to ANSI 150 PSI fittings
Fittings Coupling; copper tube via adapter gaskets Couplings, long couplings, elbows and male adapters
Temperature -20°F to +180°F 150°F max
Body Galvanized ductile or malleable iron Malleable iron, galvanized or E-coat

Verdict: Dresser 65 has more shapes (elbows, male adapters); the Smith-Blair 525 adapts steel size to copper tube with its adapter gaskets.

The short version: Dresser wins on pressure rating, sizes past 48 in, high-temperature gaskets and insulating reducers. Smith-Blair wins on stainless hardware choices, wide-range and Top Bolt designs, rebuildable OMNI parts, and restrained water couplings, which Dresser's water line we carry does not include. On a standard 150 PSI water repair, either brand does the job.

Smith-Blair to Dresser Cross-Reference

Working from a Dresser spec or part number? The closest Smith-Blair style, and where only one brand has it.

Coupling type Smith-Blair Dresser
Steel pipe coupling 411 Steel OD Style 38
Cast and ductile iron coupling 411 Cast and DI OD Style 38 CI/DI
Long coupling 411 long sleeve, 442 Style 40
Cast iron, any class 441 OMNI, 461 Style 138
Wide range transition 461 Quantum, 441 TX3
Transition, two ODs 413 Style 62
Reducing 415, 441 Reducing Style 62
Insulating 416 Style 39
Insulating reducing — Style 39-62
High temperature gasket — Style 38 Viton
Compression, 1/2–2 in 525 Style 65
Top bolt, two bolts 421, 422 —
Tee coupling 418 —
Flexible meter coupling 926 —
Restrained, water 431, EZW, PipeLock 47X Restrained bolted couplings we list are for gas service

Equivalent function, not identical ratings: check pressure, gasket grade and coating against the spec before substituting.

Compare All Smith-Blair Couplings

Smith-Blair datasheet figures. Allowable pressure also depends on the pipe and the installation.

Style Type Restrained Sizes Pressure Best for
411 Fabricated steel No 1/2–48 in 150 PSI Same-OD joins and repairs
413 Steel transition No 2–48 in 150 PSI Two different ODs
415 Steel reducing No 4–48 in 150 PSI Different pipe sizes
416 Insulating No 2–24 in 150 PSI Steel to iron, cathodic
418 Tee coupling No 3/4–2 in 150 PSI Repair plus branch
421, 422 Top Bolt No 2–24 in 260 PSI Deep trenches, gaps
441, 442 OMNI cast No 2–16 in 250 PSI CI/DI, transitions, rebuildable
441 Reducing OMNI cast No 2.65–9.85 in OD 250 PSI Range reductions
461, 462 Quantum wide range No 1-1/2–12 in 250 PSI Unknown ODs
525 Compression No 1/2–2 in 150 PSI Service lines
926 Meter coupling No 1-1/2–2 in 150 PSI Meters
431 RazorLock Yes 4–8 in 250 PSI Fast restrained, any pipe
EZW Maxi-Grip Yes 2–12 in 300 PSI Restrained straight and reducing
471 PipeLock DI Yes 3–48 in 350 PSI Large DI restraint
472 PipeLock PVC Yes 3–36 in 235 PSI PVC to PVC
473 PipeLock PVC x DI Yes 3–36 in 235 PSI PVC to DI or steel

PE and HDPE take Smith-Blair pipe stiffeners in all couplings. Restrained ratings vary by pipe material: see each listing.

Alloy, 304 or 316 Stainless Bolts?

Bolts are usually the first part of a buried coupling to corrode. Pick them for the soil.

Low-Alloy Steel

Coated high-strength low-alloy bolts. The standard on most styles, for normal, well-drained soil.

304 Stainless

For wet or aggressive soil and any location you never want to dig up again. Stock builds on the 411, 413, 441 and 461.

316 Stainless

Molybdenum-bearing stainless for wastewater, chlorides, brackish and coastal ground. Stock builds on the 411 and 441.

Spare Hardware

Replacement OMNI bolts, nuts, gaskets, followers and sleeves are in Smith-Blair Replacement Parts.

Measure the Pipe OD

The same nominal size has different ODs on different pipe. Order by the measured OD.

Nominal size Steel and IPS PVC OD Ductile iron and C900 PVC OD
4 in 4.50 in 4.80 in
6 in 6.63 in 6.90 in
8 in 8.63 in 9.05 in
10 in 10.75 in 11.10 in
12 in 12.75 in 13.20 in
16 in 16.00 in 17.40 in
How to measure: clean the pipe where each gasket will seat, wrap a pi tape around it and take two readings 90° apart. Old cast iron and AC pipe can run larger than these figures depending on class. For a transition, measure both pipes.

Pipe Coupling Questions

Smith-Blair or Dresser couplings: which is better?

Neither across the board. Dresser Style 38 and 40 rate far higher on small sizes (to 1,500 PSI) and reach 60 in OD, with Viton gaskets for heat. Smith-Blair offers 304 and 316 stainless bolts as stock builds, wide-range OMNI and Quantum couplings, Top Bolt couplings and a full line of restrained water couplings. Choose by pressure, pipe and soil.

What is the Smith-Blair equivalent of Dresser Style 38?

The Smith-Blair Style 411: a fabricated steel straight coupling, in steel OD and cast and ductile iron OD builds. Dresser Style 40 corresponds to the long-sleeve 411 or the 442; Dresser 62 to the Smith-Blair 413 or 415; Dresser 39 to the 416; Dresser 65 to the 525.

Can I substitute Smith-Blair for a Dresser spec?

They do the same job and the cross-reference above maps style to style, but pressure ratings, gasket grades and coatings differ. Whether a substitution is allowed is the engineer of record or owner decision. Send the spec page and we quote the style it calls for.

How does a pipe coupling work?

A sleeve spans the joint, a gasket sits at each end, and followers drawn in by the bolts press each gasket onto the pipe. The seal is made on the outside of the pipe, so the coupling cares about the pipe OD, not the material.

Do I need a restrained coupling?

If nothing stops pressure from pushing the pipe out of the joint, yes: dead ends, bends, tees, unanchored PVC and PE, and testing against a closed valve. A standard coupling seals but does not restrain; anchor the pipe or use a 431, EZW or PipeLock.

What is the difference between a transition and a reducing coupling?

A transition coupling joins two pipes of the same nominal size but different ODs, such as 6 in ductile iron (6.90 in) to 6 in steel (6.63 in). A reducing coupling joins two different sizes, such as 8 in to 6 in.

Which coupling for PVC pipe?

Any coupling built to the PVC OD seals it: 411 at steel or iron OD, 441, 461 or 421. Unanchored PVC needs restraint: PipeLock 472 for PVC to PVC, 473 for PVC to ductile iron, or EZW and RazorLock.

Which coupling for HDPE?

Use Smith-Blair pipe stiffeners in the pipe ends with any coupling. For restraint, the RazorLock 431 and EZW take PE DR32.5 or heavier with a stiffener.

Alloy, 304 or 316 stainless bolts?

Coated low-alloy bolts suit normal soil. 304 stainless pays off in wet or aggressive soil and anywhere you never want to dig again. 316 stainless is for wastewater, chlorides, brackish and coastal ground.

Which coupling when I do not know the OD?

A wide-range coupling: the 461 Quantum covers the steel, PVC and ductile iron OD of a size in one part, and the 441 OMNI range gaskets absorb old cast iron classes.

What pressure are Smith-Blair couplings rated for?

411, 413, 415, 416, 418, 525 and 926: 150 PSI. 441, 442, 461, 462 and 431: 250 PSI. 421 and 422: 260 PSI. EZW: 300 PSI. PipeLock 471: 350 PSI; 472 and 473: 235 PSI.

How do I measure for a coupling?

Wrap a pi tape around the cleaned pipe at the joint and take two readings 90° apart; for a transition, measure both pipes. Send the readings with the pipe material and we confirm the part number.

Are couplings returnable?

No. Smith-Blair couplings are made to order and non-returnable, so we confirm OD, build and hardware before the order ships.

What is the warranty?

One year from the date of shipment by Smith-Blair, against defects in materials and workmanship, under Smith-Blair published warranty.

Send the ODs. We Match the Coupling.

Pipe material and measured OD at each end, working pressure, and whether the joint must restrain. We reply the same day with the style, part number, price and ship date.

Technical data on this page is taken from Smith-Blair and Dresser product literature and is subject to change by the manufacturer. Confirm against the current installation instructions before specifying.
Xylem, Smith-Blair, OMNI, Quantum, Top Bolt, RazorLock, Maxi-Grip, PipeLock, Cam-Lock and Flexi-Coat are trademarks of Xylem Inc. or its subsidiaries; Dresser and TX3 are trademarks of their respective owner. All are used here for product identification only.
Watermain Supply is a DBA of E4 Industrial LLC, an independent industrial supplier based in Houston, Texas.
