Smith-Blair Style 431 RazorLock Wide Range Restrained Coupling - 4-8 in

Nominal Size: 4 in
OD Range: 4.44 in to 5.06 in

Product variant with selected options does not exist!
$900
SKU: 431-04440506-031
Weight : 32.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description

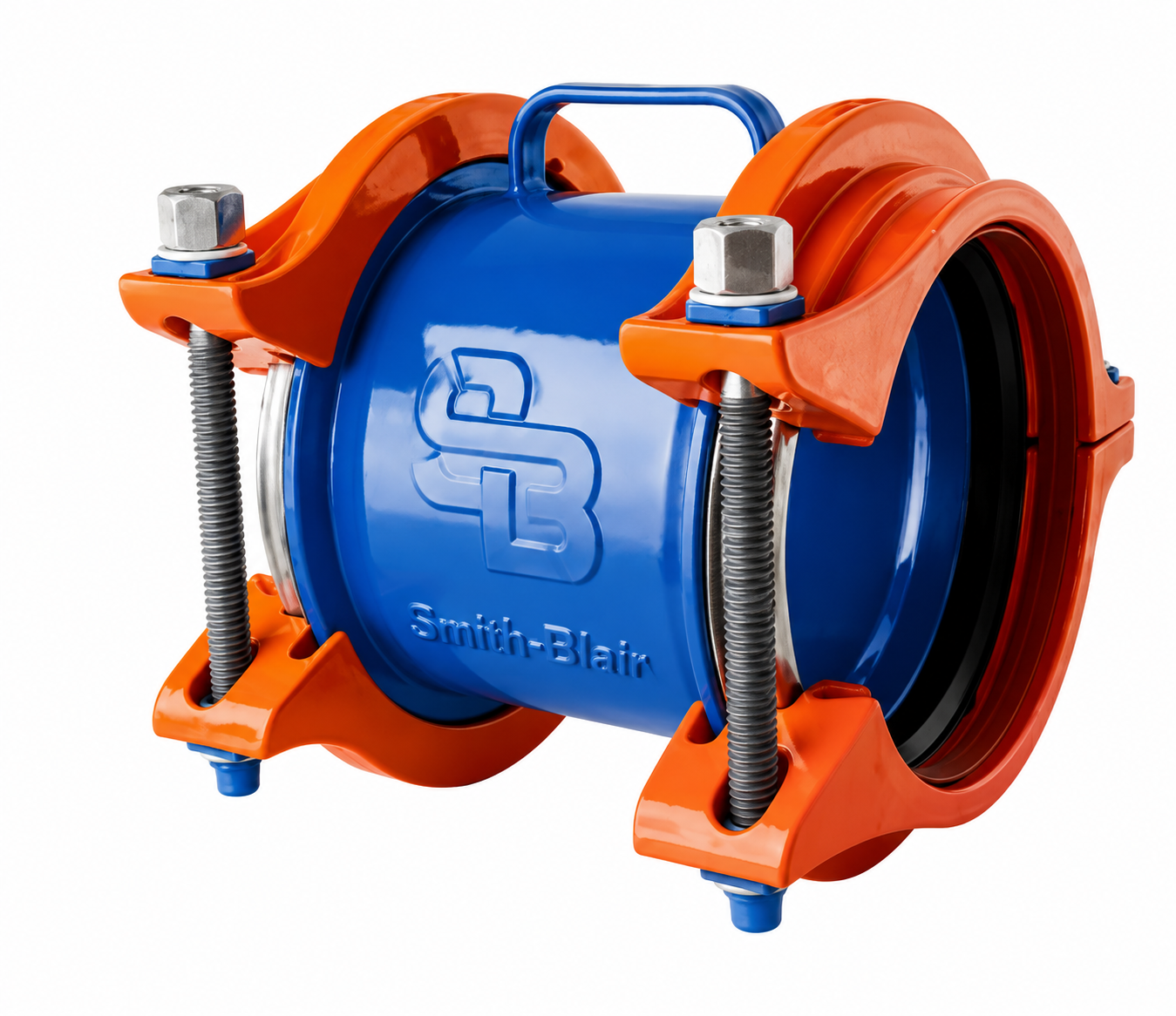

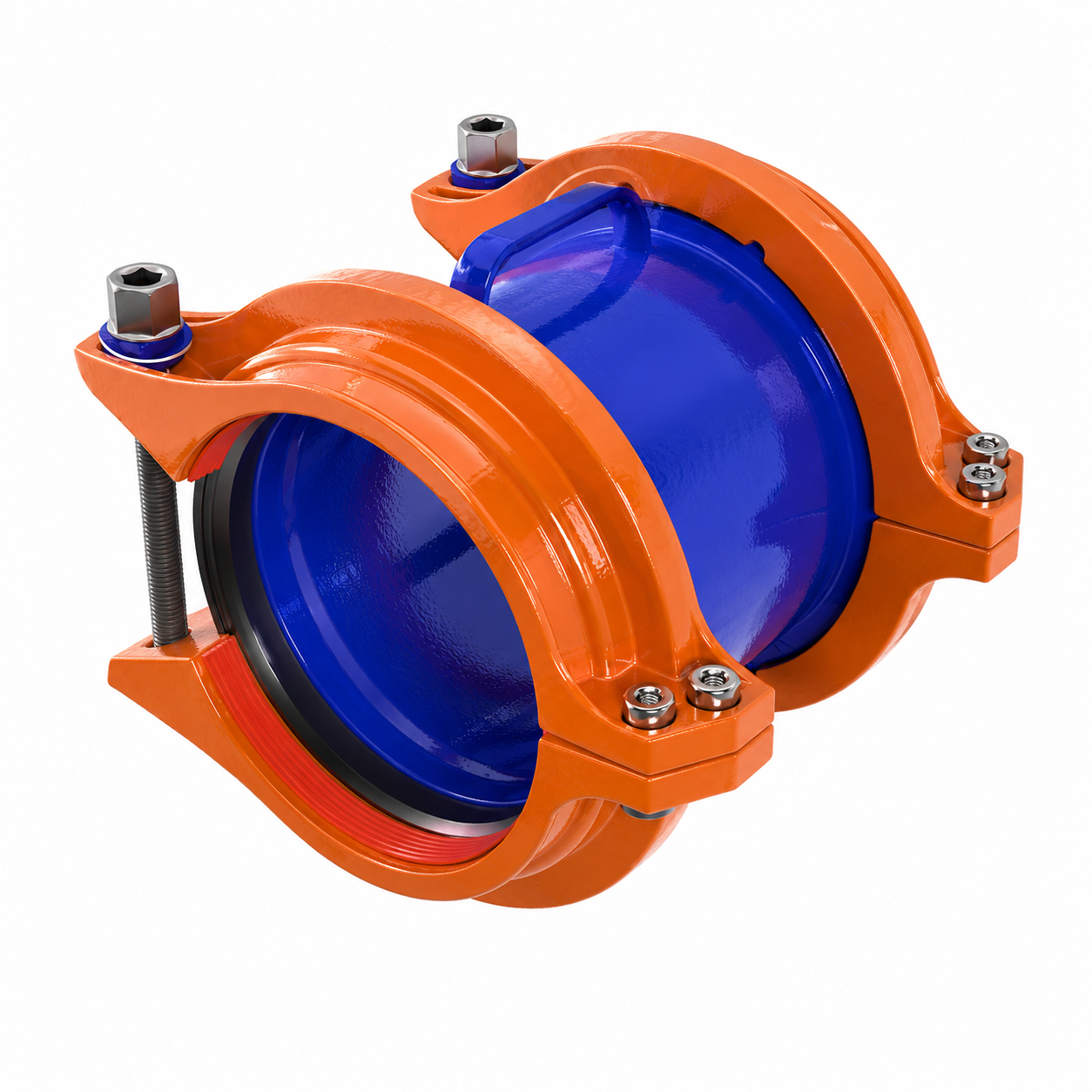

The Smith-Blair Style 431 RazorLock wide range restrained coupling joins and restrains plain-end pipe with a single Dual Drive bolt on each end - no thrust blocks, tie rods, or separate joint restraints required. Each size covers the full OD span of ductile iron, PVC, PVCO, steel, and cast iron pipe within its range, so one coupling on the truck replaces several sized couplings plus restraint hardware.

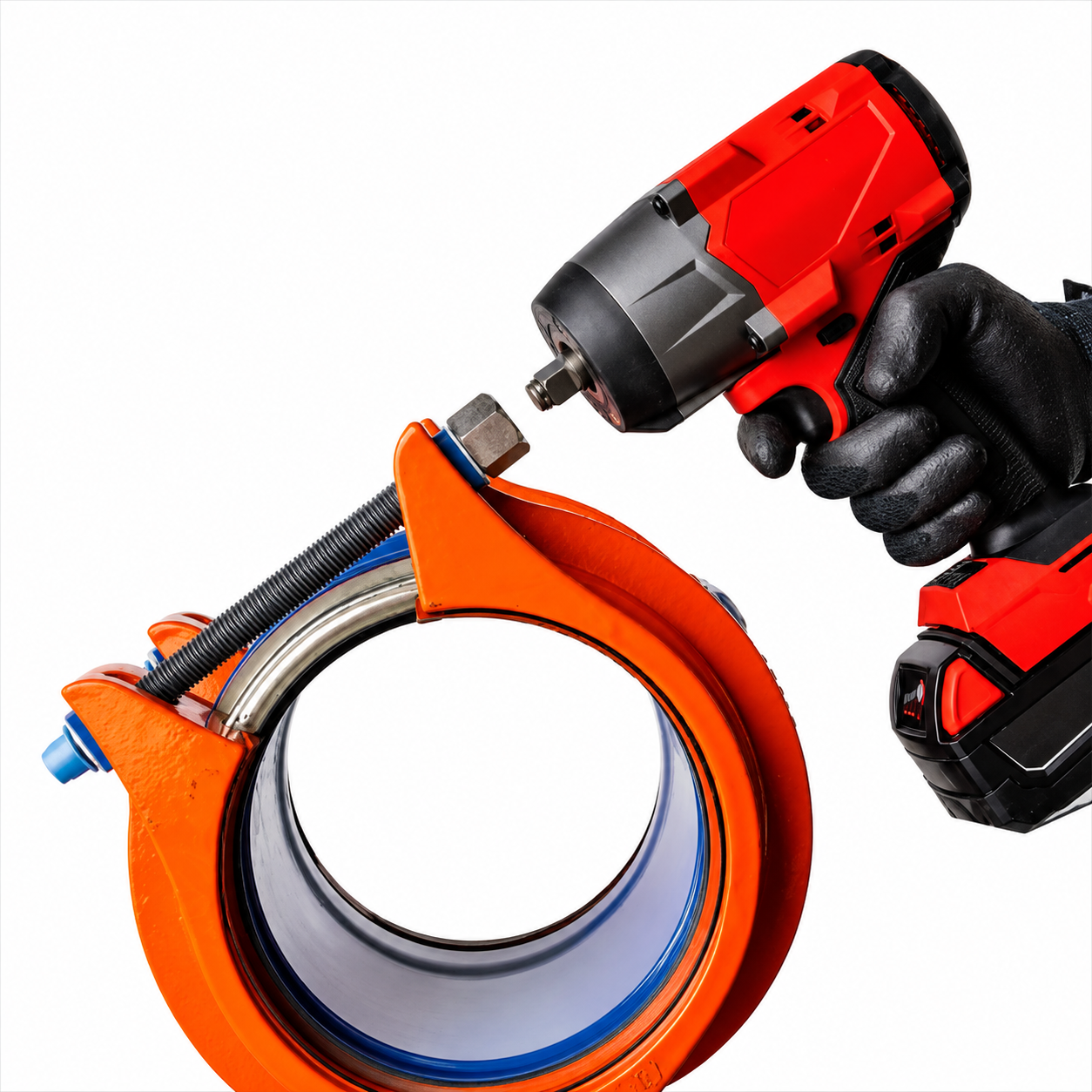

RazorLock installs stab-fit out of the box with no disassembly. As the Dual Drive bolt is tightened, flex points cast into the flanges bend the followers uniformly, compressing the gasket and the one-piece wedge-shaped grip ring around the pipe without point loading or egging. The grip ring's multi-length teeth distribute thrust loads, and engagement increases with internal pressure. The Dual Drive bolt tightens with a standard 1/2 in square drive or a standard-depth heavy hex socket. RazorLock builds on the EZ Maxi-Grip natural gas restraint platform proven in hundreds of thousands of installations, and carries UL certification for health effects (MH59934).

Nominal Size OD Range Bolts Installation Torque
4 in 4.44 in to 5.06 in (2) 5/8 in Dual Drive 100 ft-lb
6 in 6.56 in to 7.16 in (2) 5/8 in Dual Drive 130 ft-lb
8 in 8.53 in to 9.39 in (2) 3/4 in Dual Drive 250 ft-lb
Working pressure 250 psi
Test pressure 375 psi
Restraint rating 100 F delta-T, HDPE DR 9

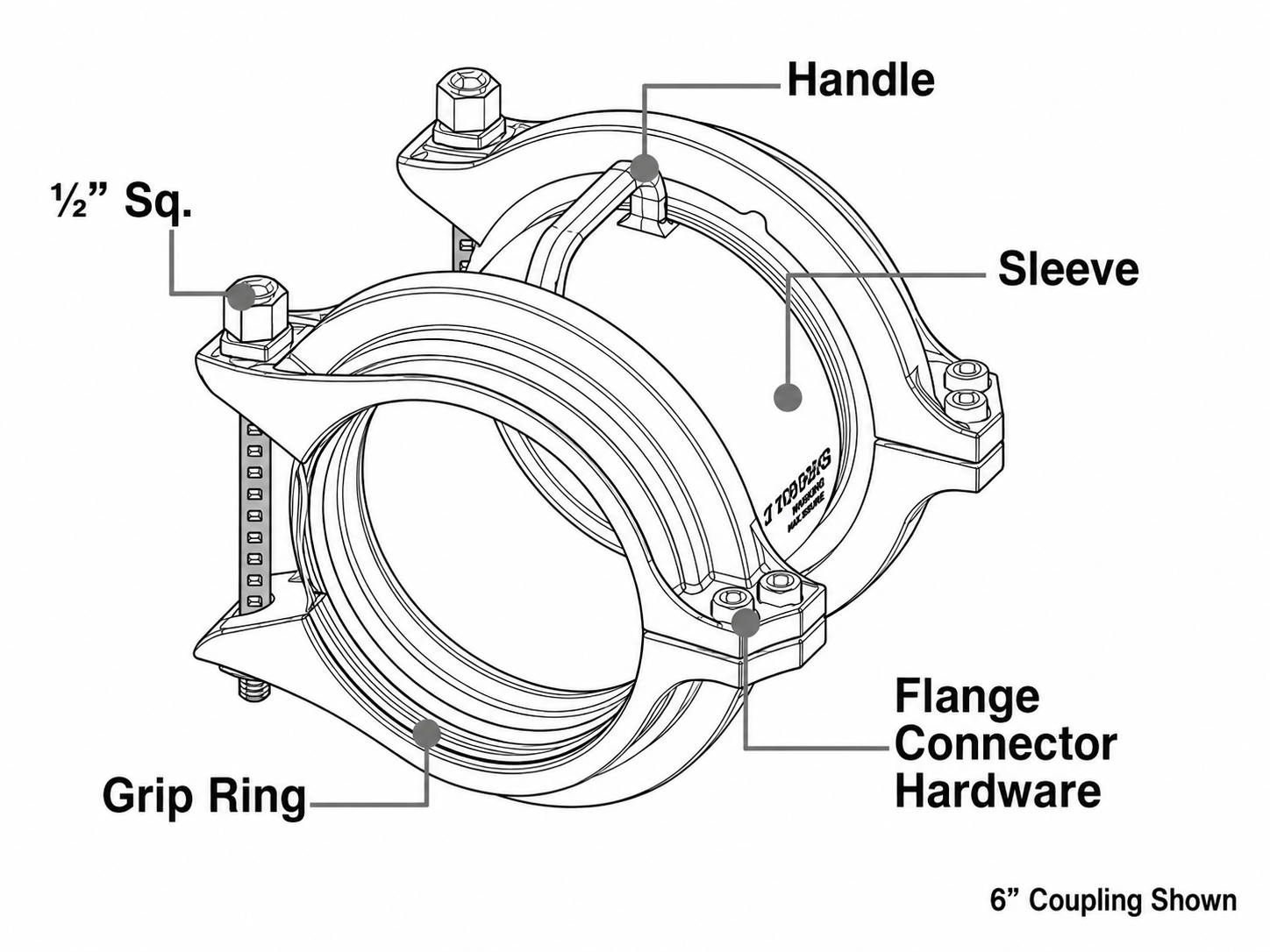

Sleeve Cast ductile iron per ASTM A536, 7 in length, with carrying handle
Flanges Cast ductile iron per ASTM A536 or cast carbon steel, controlled-flex design

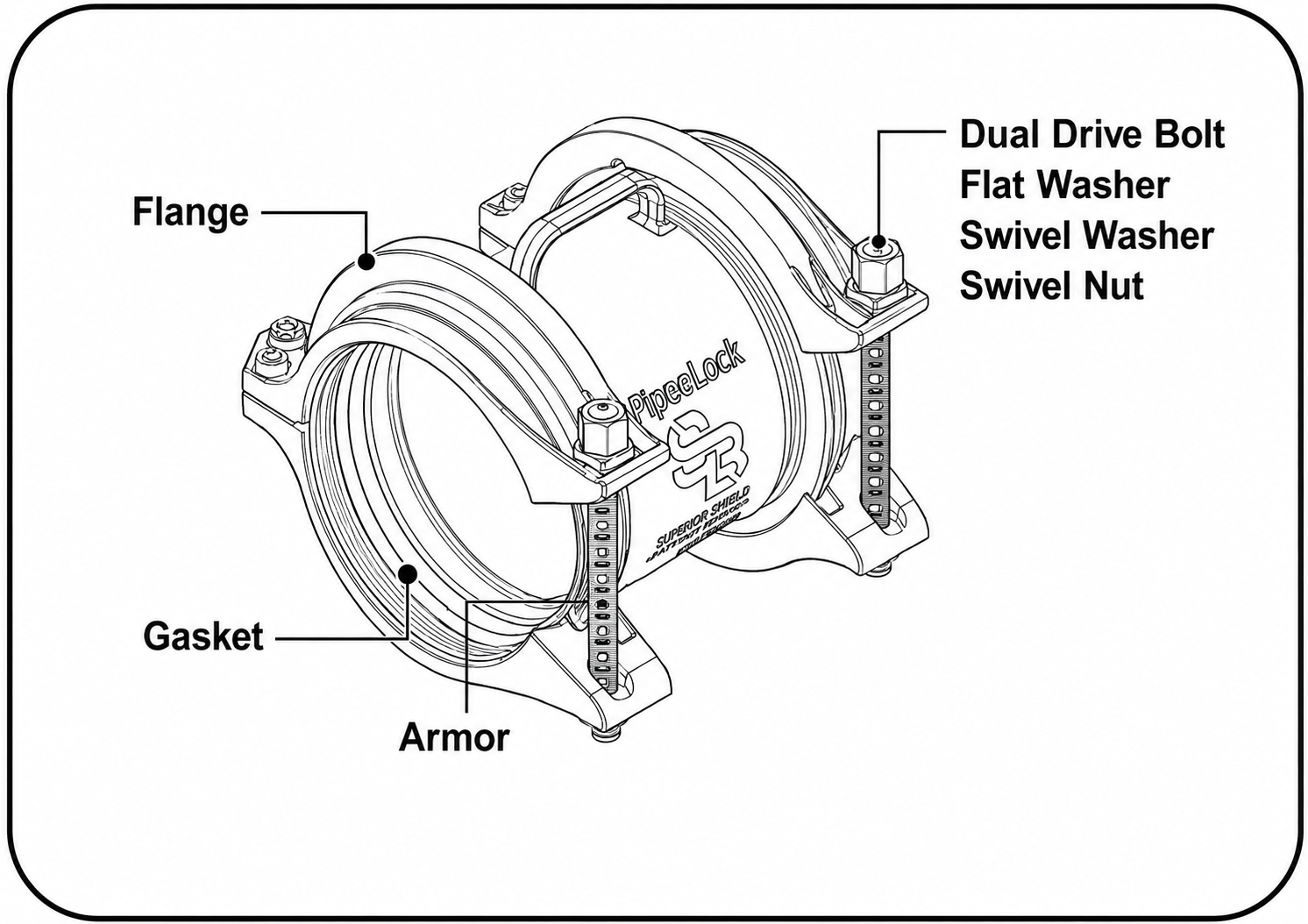

Gasket Molded Buna-N per ASTM D2000 with molded-in corrugated 304 stainless armor, one per end
Grip ring One-piece heat treated carbon steel, wedge-shaped, near-full circumferential
Hardware Stainless steel per ASTM A193 and A194 with anti-galling coating
Coating Fusion bonded epoxy per AWWA C213

Suitable for PVC (DIPS-DR25, IPS-SDR26 minimum thickness), PVCO (CIOD PC235 minimum), PE DR32.5 minimum with stiffeners, ductile iron, carbon steel, and round smooth cast iron. The 8 in size is a new factory release - contact us to confirm current lead time before scheduling installation.

Downloads: Technical Brochure | Product Specification | Product Infographic

For engineering-led selection support, restraint calculations, or a factory submittal, email sales@watermainsupply.com or call 281.664.8000.
