Dresser · Repair Sleeve
Style 80 Ready-Pack Split Sleeve
Cast iron split sleeve for breaks, splits and holes in cast iron pipe, with a 1 to 3 in vent.
150 PSI MAOP, All Sizes
Grade 29 Spec 328 Gaskets
Gray Cast Iron Body
Enclosed Steel Followers
RED-D Shopcoat
1 to 3 in NPT Vent
4.74-7.09 in Pipe OD
45-70 lb Weight
Overview

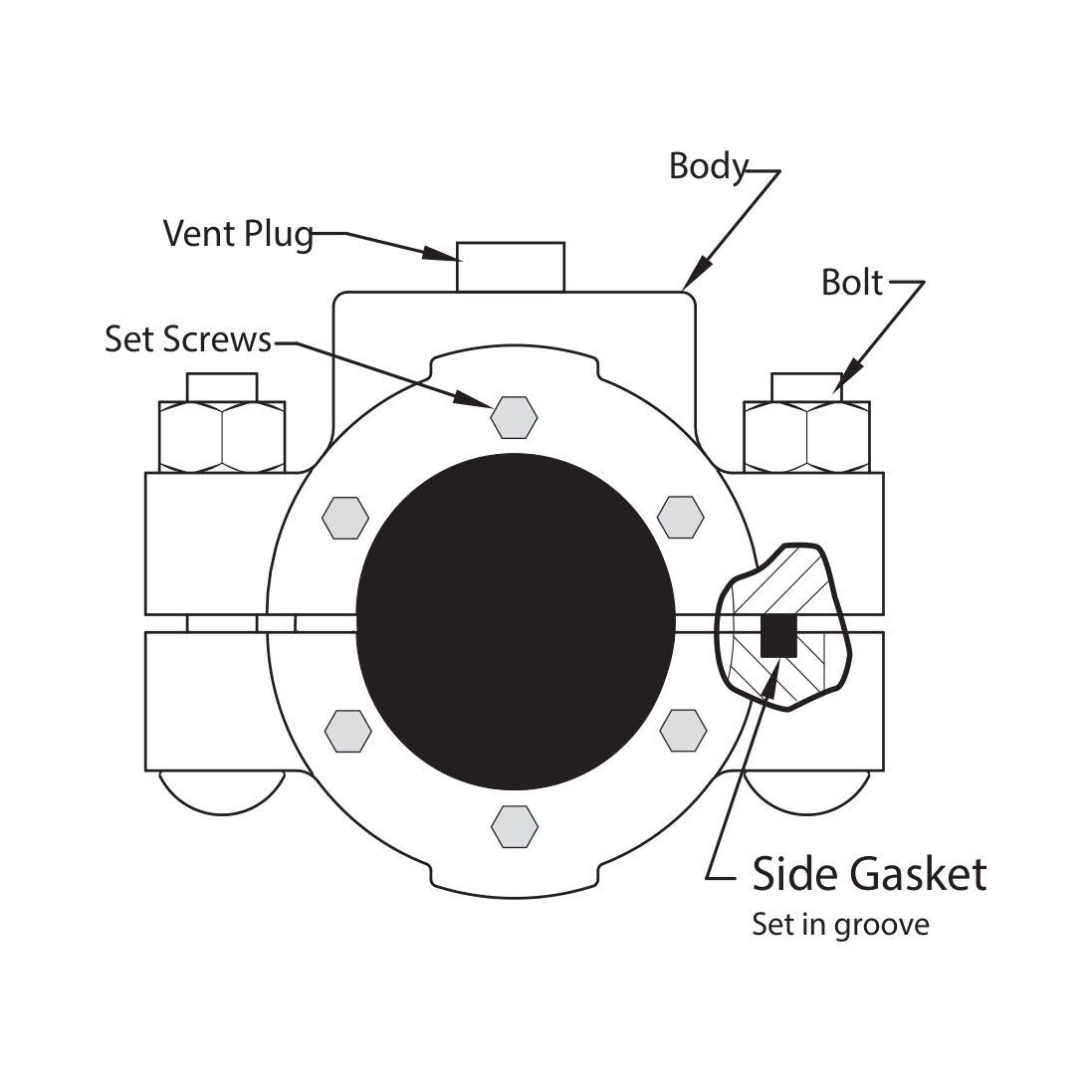

Dresser Style 80 Ready-Pack sleeves enclose and permanently repair breaks, splits and holes in cast iron pipe. Set screws drive the enclosed steel followers to compress the end gaskets around the pipe, and enclosed side bolts seal the split. With a 1 to 3 in vent, the sleeve also serves as a low-cost tapping sleeve for a branch.
Application: Repair and branch tapping on standard-wall cast iron water mains.
- Standard and long pattern bodies; long pattern has six side bolts
- Followers and side bolts enclosed against corrosion
- Vent doubles as a branch outlet
- For all customary pressures on standard cast iron pipe
What Ships and What It Needs to Run
Included: the sleeve halves with gaskets, enclosed followers, set screws, side bolts and vent plug.
Pipe prepared before install: clean, round pipe where the gaskets seat, free of gouges and loose scale.
Anchoring, by others: the fitting seals but does not restrain the pipe.
Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.
Working Pressure
150 PSI MAOP in every size, where the pipe wall meets standard cast iron specifications. The allowable pressure on a job also depends on the pipe, its condition, the service and the workmanship.

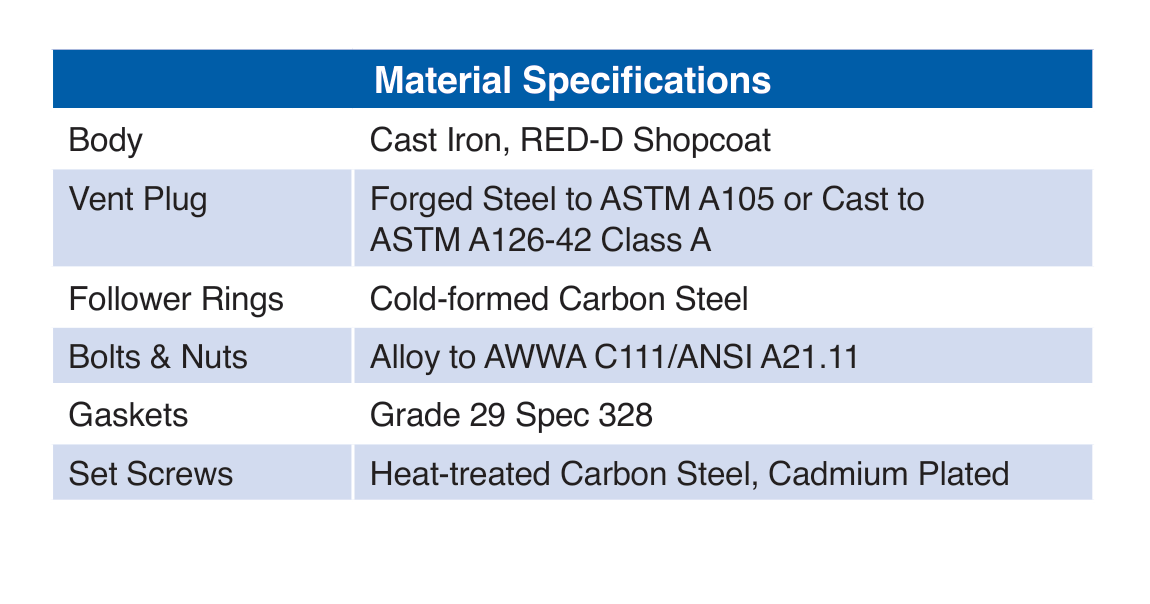

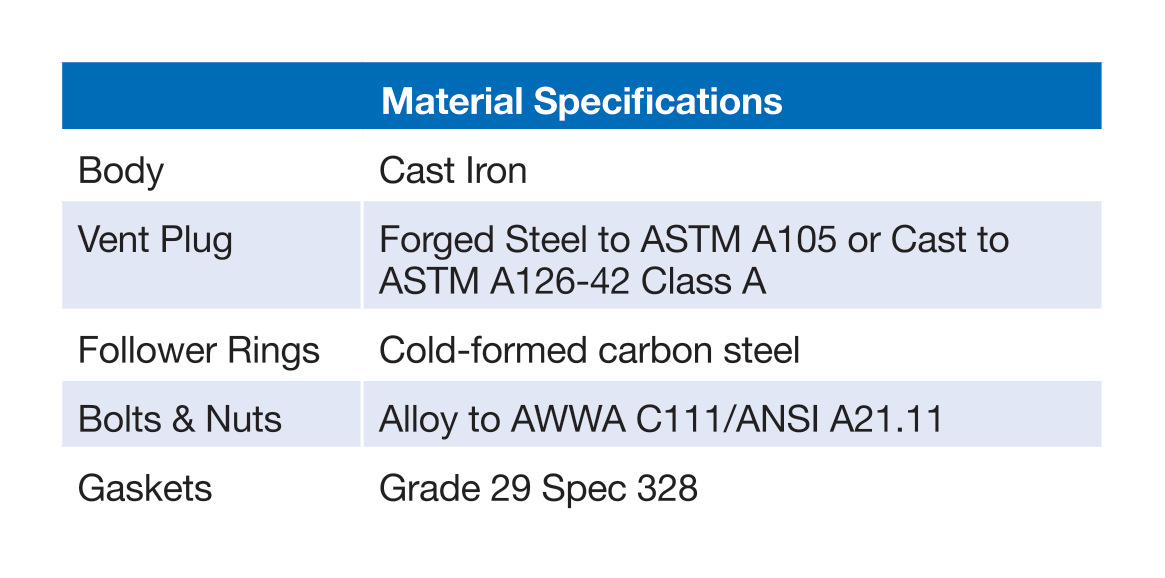

Materials Specifications
| Body |
Cast iron, RED-D shopcoat |
| Vent plug |
Forged steel to ASTM A105 or cast to ASTM A126 Class A |
| Follower rings |
Cold-formed carbon steel |
| Bolts and nuts |
Alloy to AWWA C111 / ANSI A21.11 |
| Gaskets |
Grade 29, Spec 328 |
| Set screws |
Heat-treated carbon steel, cadmium plated |
Source: Dresser Water Repair Products catalog.

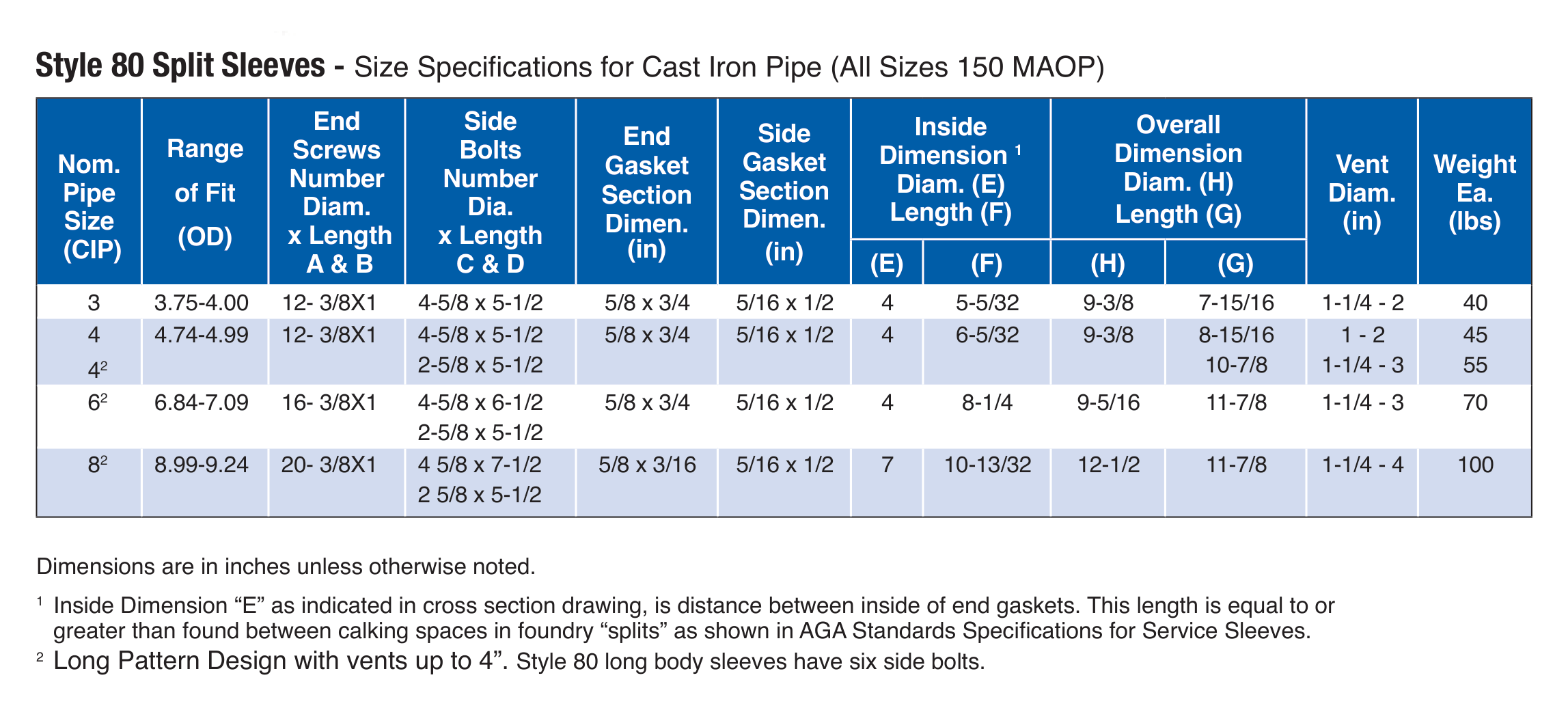

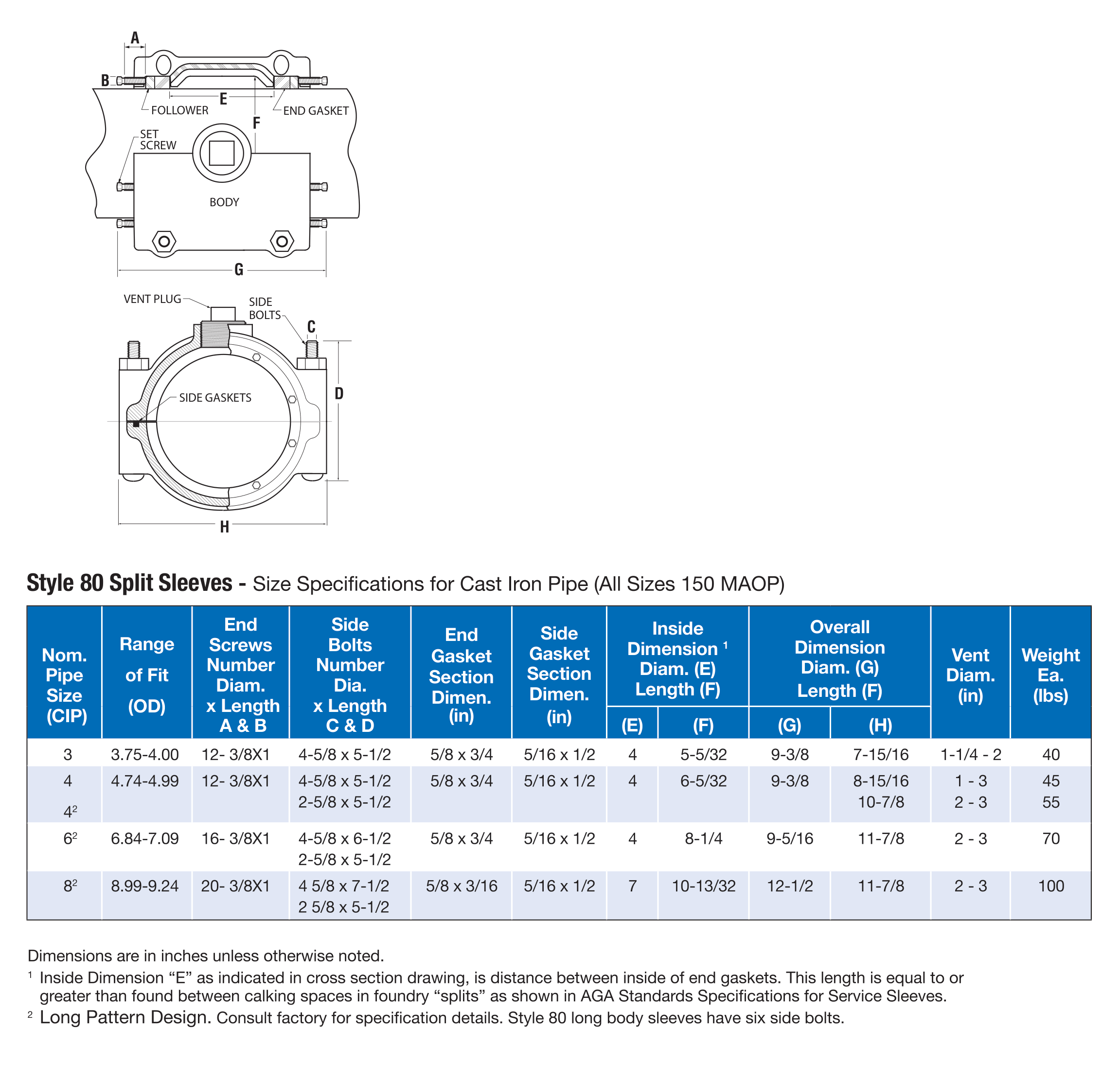

Sizes
| Nominal Size - OD Range |
Length |
| 4 in - 4.74-4.99 in OD |
Long Pattern, Standard |
| 6 in - 6.84-7.09 in OD |
Long Pattern |
Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.
Installation Notes
- Mark the pipe and stab it into the fitting to the full stab depth.
- Anchor the pipe joint wherever pull-out can occur.
- Read the Dresser installation instructions and warnings before installing.
Source: Dresser Gas Product Selection Guide (NGS-DPS-015), product warnings.
Before You Order. Anchor the pipe: the sleeve provides a pressure seal only, and Dresser requires the joint to be anchored wherever pipe pullout could occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email
sales@watermainsupply.com with the pipe OD, material and line content.
