Dresser Split and Reinforcing Sleeves

Split sleeves join or extend pipe runs without welding. Reinforcing sleeves restore structural wall integrity on thinned or corroded pipe without pipe replacement. Dresser Style 80, 126, 110, and 220 cover both functions across a broad size range.

4 products
Sort by:
Best selling
Sort by:
Best selling
Availability
Type
Price
$0
$9,734.71
Dresser Style 80 | Split Sleeve

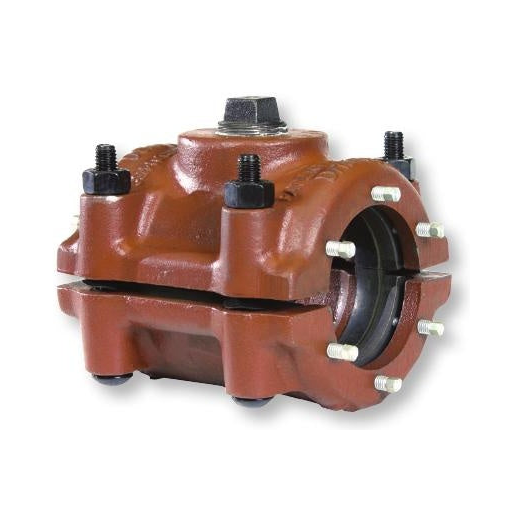

Style 80 split sleeve

Dresser

Dresser Style 80 | Split Sleeve

From $1,284.74
Dresser Style 110 | Reinforcing Sleeve
style 110 reinforcing sleeve

Dresser

Dresser Style 110 | Reinforcing Sleeve

From $562.41
Dresser Style 126 | Split Sleeve

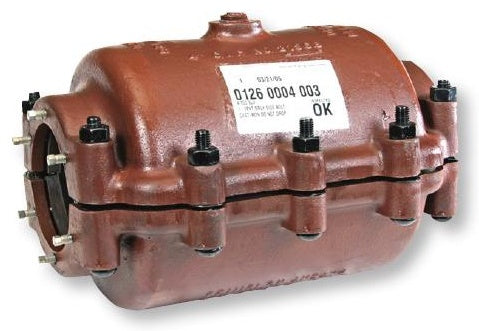

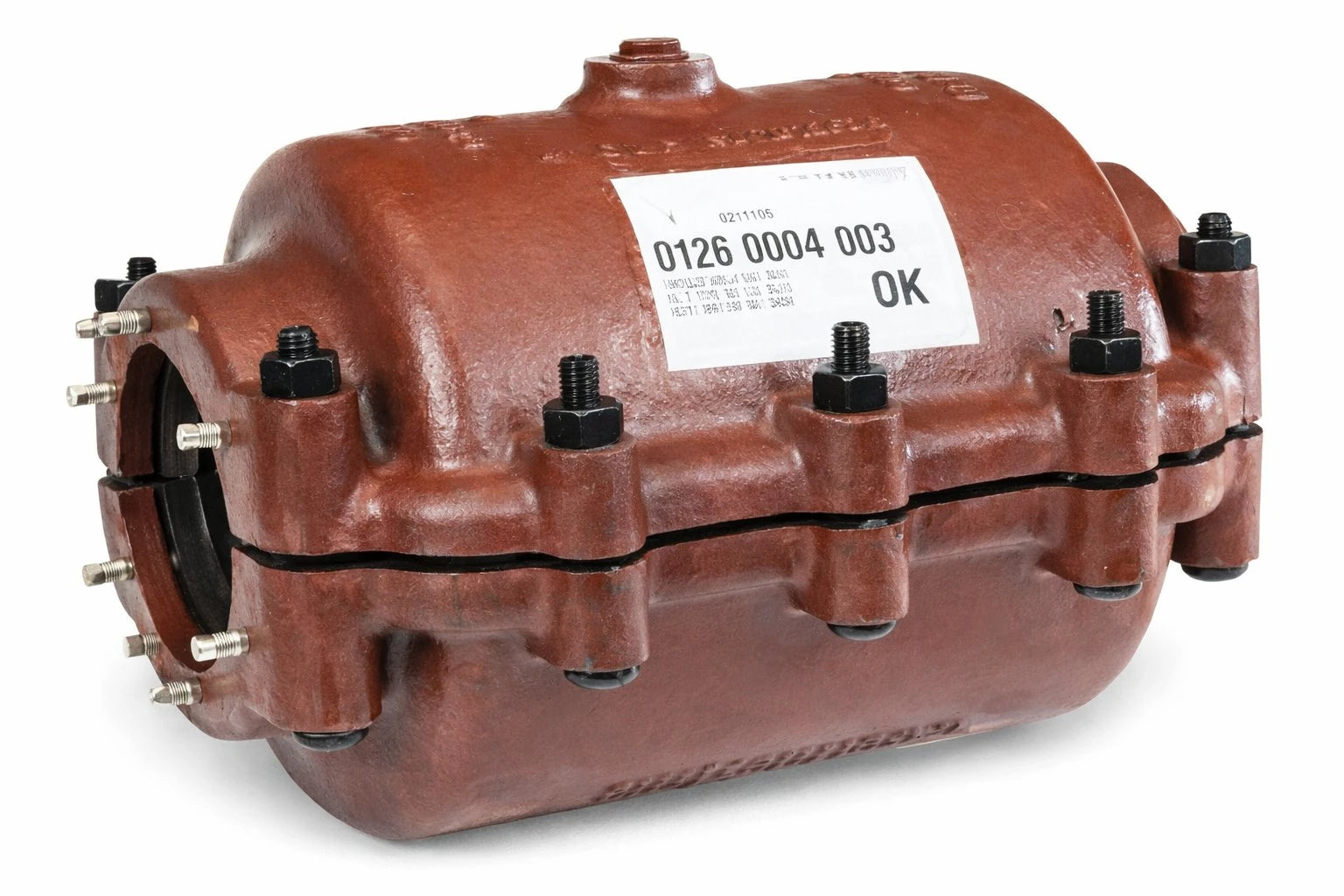

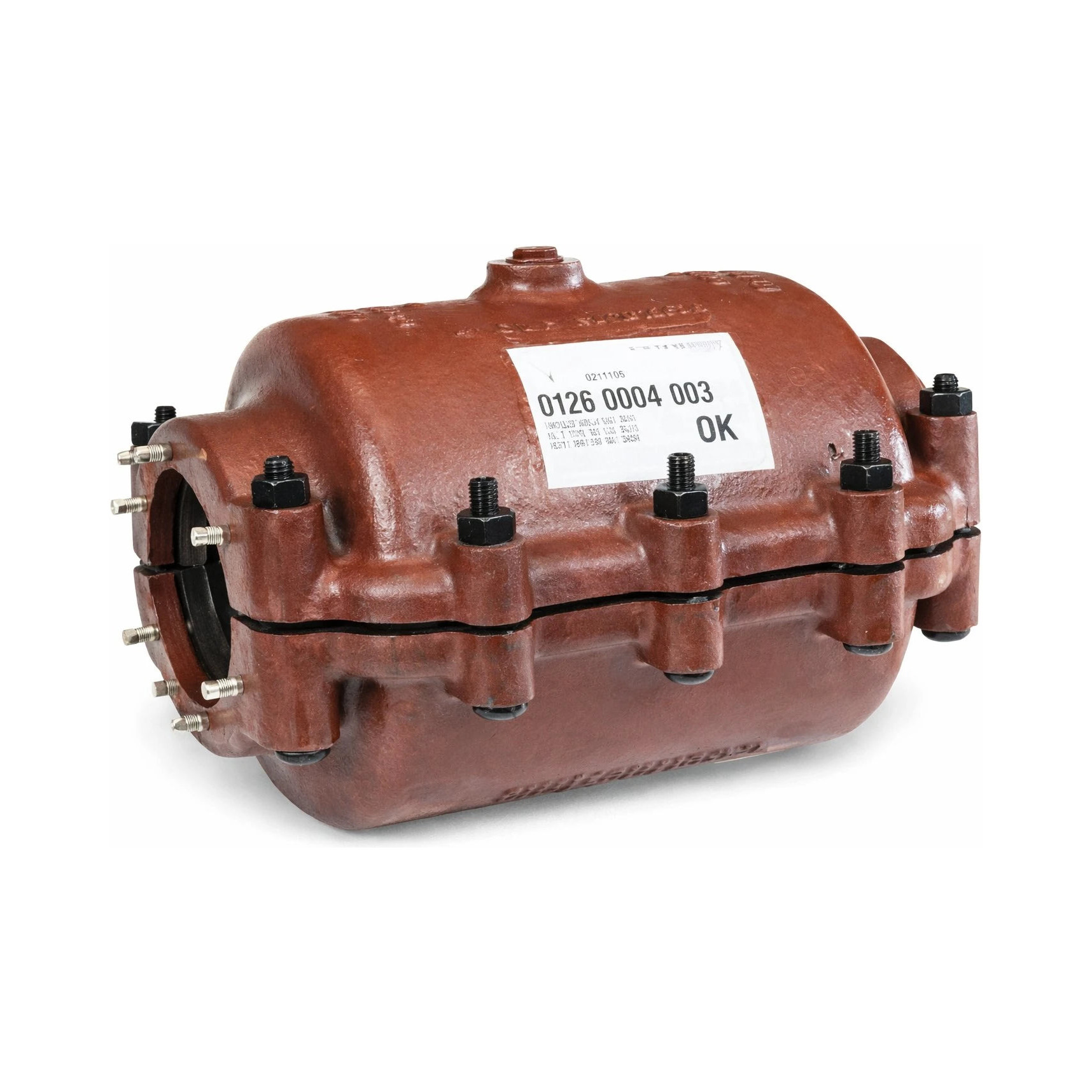

style 126 bell back repair sleeve

Dresser

Dresser Style 126 | Split Sleeve

From $792.97
Dresser Style 220 | Reinforcing Sleeve

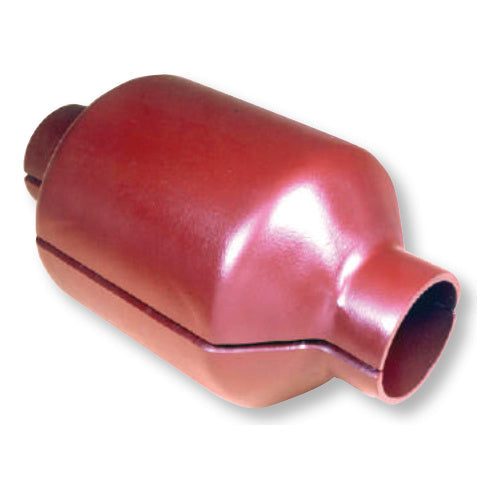

style 220 reinforcing sleeve

Dresser

Dresser Style 220 | Reinforcing Sleeve

From $794.21
Dresser Split and Reinforcing Sleeves
Description

Dresser Split Sleeves & Reinforcing Sleeves

Split sleeves join or extend pipe runs without welding. Reinforcing sleeves restore structural wall integrity on thinned or corroded pipe without pipe replacement. Dresser Style 80, 126, 110, and 220 cover both functions across a broad size range.

4
Sleeve Styles
Split & Reinforcing
Two Functions
No Weld
Installation Method
In-Service
Installation Capable
Product Lines
Split Sleeves and Reinforcing Sleeves
These are functionally different products that are often confused. Read the definitions carefully before specifying.
80Split Sleeve
Style 80 — Split Sleeve
Two-piece hinged sleeve that closes around an existing pipe to provide a coupling without removing pipe ends. Used for in-line pipe extensions, section insertions, and connections where full pipe access is limited.
Hinged Two-PieceIn-LineBolted
126Split Sleeve
Style 126 — Split Sleeve
Heavy-wall split sleeve for larger diameter pipe or higher-pressure applications where the Style 80 wall thickness is not sufficient. Same two-piece hinged design with heavier bolt pattern.
Heavy WallLarge DiameterHigh Pressure
110Reinforcing
Style 110 — Reinforcing Sleeve
Wraps around a section of thinned or pitted pipe wall to restore hoop-stress capacity without replacing the pipe. The sleeve acts as a structural overlay, carrying the internal pressure load that the weakened pipe wall can no longer handle.
Wall RestorationCorrosion RepairStructural
220Reinforcing
Style 220 — Reinforcing Sleeve
Extended-length reinforcing sleeve for corrosion anomalies that span a greater axial length than the Style 110 body covers. Used when ILI or pipe digs reveal extended wall-loss zones on transmission mains.
Extended CoverageTransmission MainILI Anomaly Repair
Fundamental Distinction
Split Sleeve vs Reinforcing Sleeve — Not Interchangeable
These two sleeve types solve entirely different problems. Applying a split sleeve where a reinforcing sleeve is needed — or vice versa — is a specification error that may not be visible until the pipe fails.
Parameter Split Sleeve (80/126) Reinforcing Sleeve (110/220)
Primary Function Mechanical joint / coupling Structural wall restoration
Pipe Condition Sound pipe, joining two pieces Thinned / corroded pipe wall
Gasket Yes — seals pipe end gap Optional — seals only if leaking
Pressure Carrying Coupling-rated Restores pipe-rated capacity
Pipe Preparation Clean OD at ends Full OD cleaning over defect zone
Use Case Joining, extending, bypassing Repair corroded wall without cut-out
The Key Question

Is the pipe wall structurally sound but you need a mechanical joint? → Split Sleeve. Is the pipe wall thinned or pitted by corrosion but the pipe is still in one piece? → Reinforcing Sleeve. Both questions can be true in the same repair trench — order both types if needed.

Style 80 & Style 126
Split Sleeve Selection — When to Step Up to Style 126
Style 80 covers the majority of distribution-main applications. Style 126 is specified when wall thickness, pressure rating, or pipe diameter exceeds Style 80 limits.
⚙️
Style 80 — Standard
Distribution mains 2"–12" at normal operating pressures. Two-piece hinged design allows installation around existing pipe without requiring pipe end access.
Style 80 — General Use
🏗️
Style 126 — Heavy Duty
Transmission mains, high-pressure systems, or larger diameters where additional wall thickness is needed. Heavier bolts and thicker sleeve wall than Style 80.
Style 126 — Elevated Pressure
📐
Sizing Guidance
Order split sleeves by pipe OD and sleeve body length. Body length must bridge the full gap between pipe ends plus allow adequate engagement on both sides.
OD + Gap + Engagement
Style 110 & Style 220
Reinforcing Sleeve Engineering Basis
A reinforcing sleeve works by transferring hoop stress from the weakened pipe wall to the sleeve wall. This only functions correctly if the sleeve has full metallic contact with the pipe OD across the anomaly zone.
Installation Requirements for Effective Reinforcement
1
Full OD Contact
The reinforcing sleeve must contact the pipe OD continuously across the anomaly. Any void between sleeve and pipe creates a span where the weakened pipe wall still carries full pressure load.
2
Overhang Past Defect
Extend the sleeve at least 2" past each edge of the corrosion or wall-loss zone. ILI-based repair programs typically specify 3" minimum overhang on each side.
3
Epoxy Fill (if required)
In some specifications, the annular space between sleeve and corroded pipe is filled with epoxy grout before sleeve closure to eliminate voids. Check project specification before ordering.
ILI-Driven Repair Programs

Inline inspection (ILI) programs on transmission mains identify wall-loss anomalies well before failure. Style 110 and 220 reinforcing sleeves are one of the primary mechanical repair methods specified in ILI-driven repair programs, alongside composite wraps. Dresser sleeves are metallic — appropriate where regulatory or engineering specifications require metallic repair methods.

Not a Substitute for Pipe Replacement

A reinforcing sleeve is a repair tool for isolated anomalies. It does not address systemic corrosion or structural weakness over extended pipe sections. If anomaly density exceeds the defined repair threshold in your integrity management plan, segment replacement should be evaluated.

Application Reference
Matching Sleeve Type to Field Scenario
Quick reference for field engineers and operations crews determining which sleeve type to dispatch to a repair site.
Field Scenario Pipe Condition Correct Sleeve Key Sizing Info
Inserting a new valve or fitting in-line Sound pipe — joining two cut ends Style 80 or 126 Pipe OD + gap width
Extending a main from a dead end Sound pipe — open end Style 80 or 126 Pipe OD + new pipe OD
Isolated corrosion pit found during dig Wall-thinned but intact Style 110 Pipe OD + pit length
Extended wall-loss zone from ILI Wall-thinned, multi-foot span Style 220 Pipe OD + anomaly length
Active leak at body of pipe Through-wall perforation Style 360 Repair Clamp See Repair Clamps section
