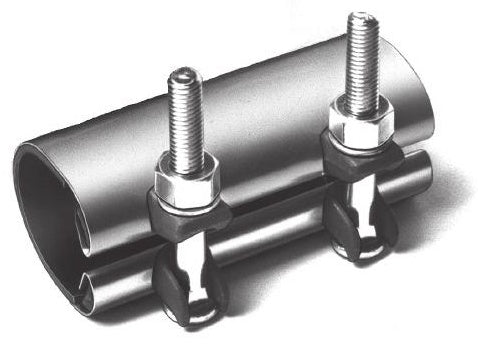

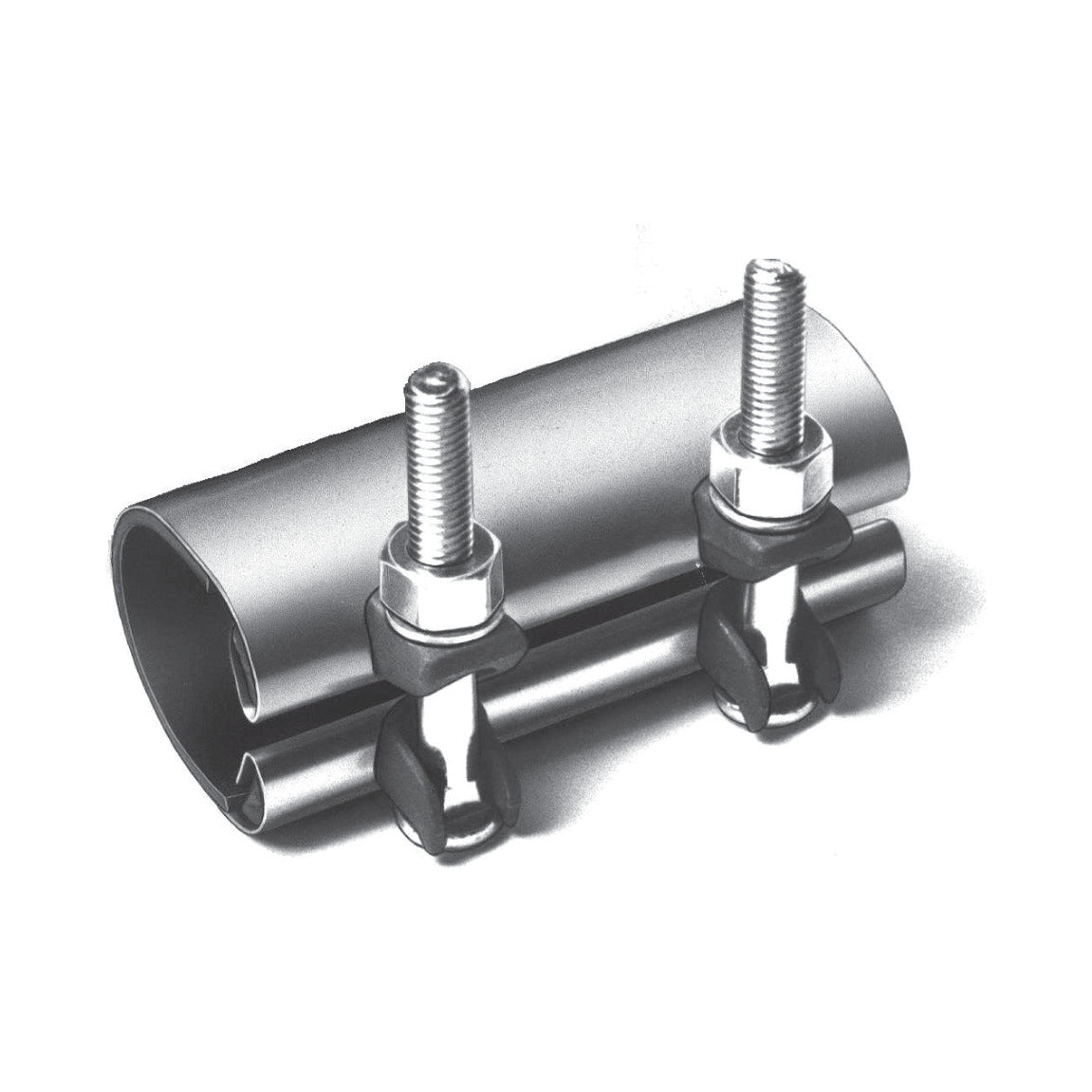

Dresser Style 118 | Repair Clamp Handiband

Nominal Size: 0.5 in
Width: 3 in
$32.97
SKU: 0118-0300-009
Weight: 0.5 lb
Available For Order! Call Sales Counter for accurate lead-time!
Description

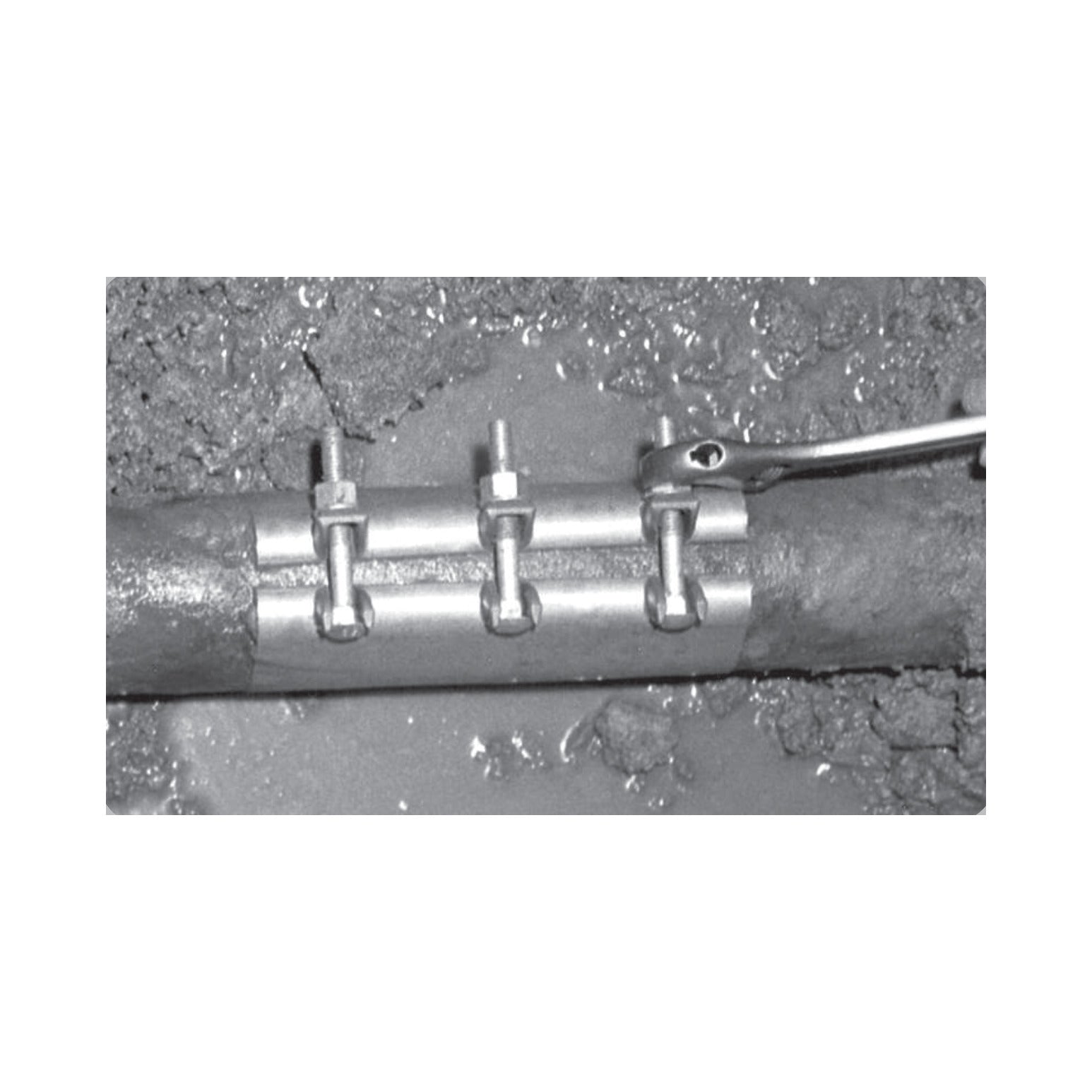

The Dresser Style 118 Handiband™ Clamp is a field-proven, low-cost band-type repair clamp for fast, permanent sealing of pinhole leaks, small holes, and cracks in steel pipe. Installation is fast, easy, and foolproof — simply wrap the clamp around the pipe, drop the bolts through the slotted lugs, and tighten the nuts. Compression of the large-area gasket seals the leak completely and permanently without cutting out pipe or interrupting service.

The Style 118 is constructed with a Type 304 stainless steel band for corrosion resistance and ductile iron lugs for long-term durability. The Dresser rubber compound gasket delivers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline, and condensates — making it well-suited for both water and gas service repair applications. Style 118 clamps ship fully assembled with no loose parts. Available in 3", 6", and 12" lengths to cover a range of defect sizes, in pipe sizes 1/2" through 8".

? NOTE: The Style 118 clamp does not provide a full 360° seal around the pipe. For full-circle seal and repair applications, see the Style 360 repair clamp.
Key Features
  • Fast, permanent repair of pinhole leaks and cracks in steel pipe — no pipe cutting required
  • Foolproof installation: wrap, drop bolts through slotted lugs, tighten nuts
  • Ships fully assembled — no loose parts to misplace in the field
  • Type 304 stainless steel band for corrosion resistance
  • Gasket resists oils, hydrocarbons, gasoline, and condensates
  • Available in 3", 6", and 12" lengths for various leak/defect coverage needs
  • Pipe sizes 1/2" through 8"
Materials of Construction
Component Specification
Band Stainless Steel 18-8, Type 304
Lugs Ductile Iron ASTM 536
Bolts & Nuts Alloy to ANSI A21.11
Gasket Gridded to Dresser Specifications
Size & Weight Specifications
Nom. Size (ID) Outside Dia. OD (in) Overall Length (in) Qty Per Package Approx. Wt. Each (lbs)
1/2 .840 3 20 0.5
6 10 1.0
3/4 1.050 3 16 0.6
6 8 1.1
1 1.315 3 16 0.6
6 8 1.2
1-1/4 1.660 3 12 0.9
6 6 1.7
1-1/2 1.900 3 12 0.9
6 6 1.8
2 2.375 3 8 1.1
6 4 2.3
12 2 4.5
2-1/2 2.875 3 8 1.2
6 2 2.3
3 3.500 3 6 1.2
6 4 2.4
12 2 4.8
3-1/2 4.000 3 6 1.5
6 4 3.0
4 4.500 3 6 1.5
6 4 3.0
12 2 6.3
5 5.563 3 6 1.6
6 4 3.2
6 6.625 3 6 1.8
6 4 3.6
12 1 7.2
8 8.625 3 6 2.0
6 4 4.0
12 1 7.0

* Orders for unpackaged sizes and broken carton quantities will be randomly packaged.

Need a different size or require a full-circle repair clamp?

Contact us at sales@watermainsupply.com or 281.664.8000 — we can help select the right clamp length and confirm availability for your pipe size.
