What's the difference between sump, sewage, effluent, grinder, and utility pumps?
Sump = clean groundwater, ⅛"–½" solids, 1¼"–1½" discharge. Sewage = raw blackwater with toilet waste, 2" solids, 2" discharge required by code. Effluent = pre-treated water (post-septic, greywater), ¾" solids, 1½"–2" discharge. Grinder = cuts solids before pumping for pressure sewer, 3" cut, 1¼" discharge, 103 ft TDH. Utility = portable transfer for water removal jobs, NOT for permanent installation. Confusing categories is the #1 source of premature failure.

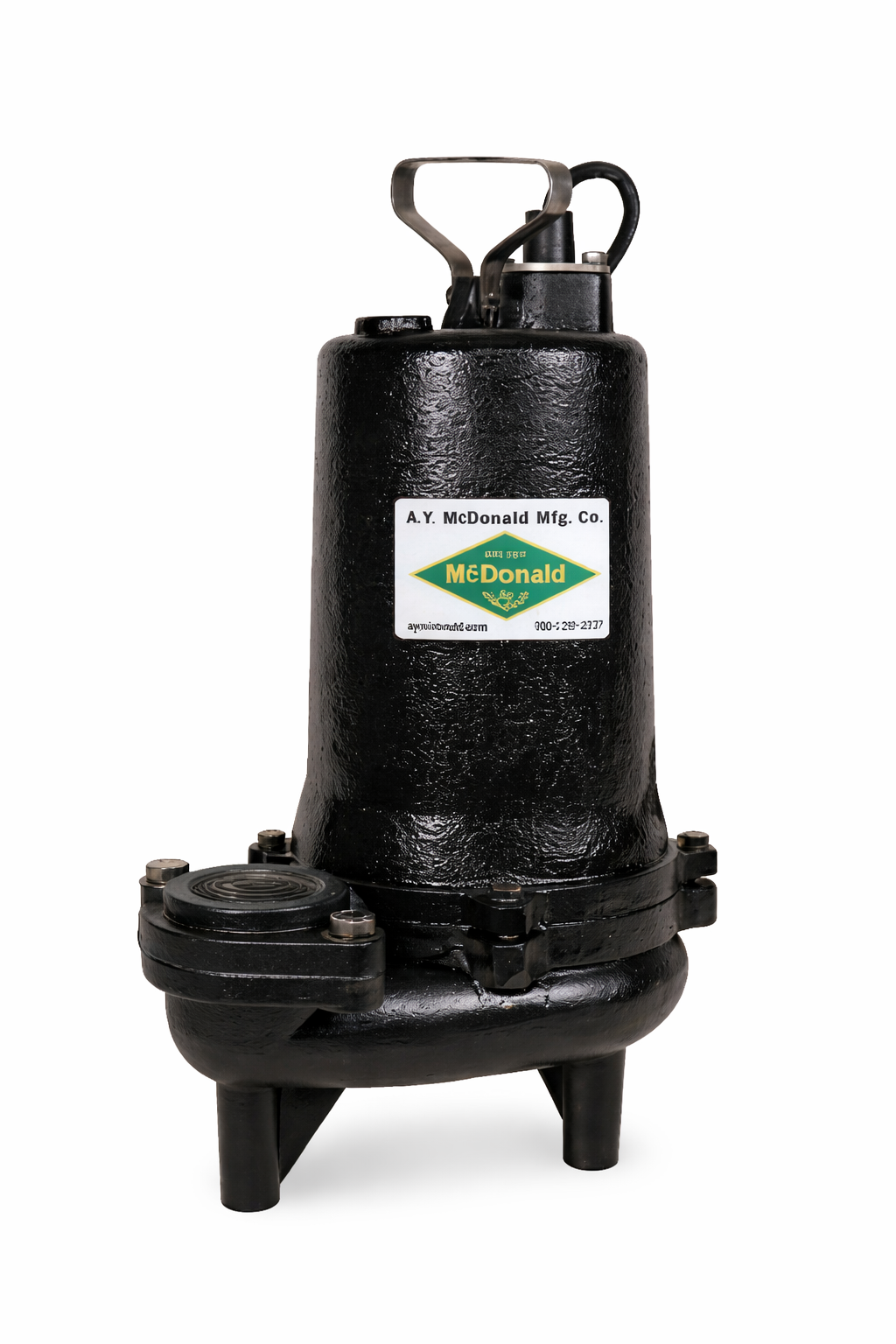

Can I use a sump pump for sewage?
No — sump pumps handle clean water with ⅛"–½" solids. Raw sewage contains 2"+ solids that will clog a sump pump within hours. Use a real sewage pump (5050C SJ series) for any application with toilet waste upstream of the pump. Code in most jurisdictions requires 2" minimum discharge for sewage applications, which sump pumps don't have.
How do I read a Baker DuraMAC model number?
Read left to right per the decoder above: 5=DuraMAC series, 020/025/030/033/040/050=HP code, C/P=construction (cast iron / plastic), T/V/U=switch (tethered/vertical/utility), UP/SP/EF/SJ/PD=pump type (utility/sump/effluent/sewage ejector/pedestal), specials=cord length, EZ install, high-head, battery backup, etc. Example: 5050CTSJH25 = ½ HP cast iron tethered sewage ejector with high head and 25' cord.

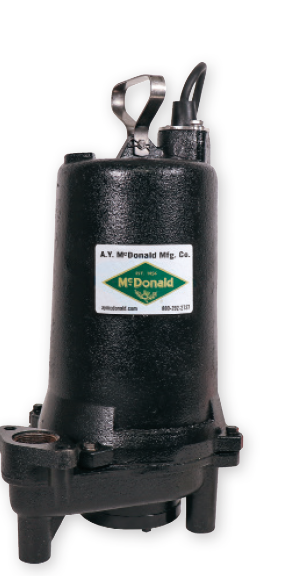

When do I need a grinder pump instead of a sewage pump?
Specify a grinder when: (1) discharge run exceeds ~100 ft horizontal; (2) TDH exceeds 30 ft; (3) system is part of a municipal pressure sewer network; (4) 2" discharge piping won't fit; (5) cold-climate buried piping where smaller pressure line resists freezing better. For typical short-run residential basement bathroom, sewage pump is adequate — don't over-engineer.
Why does code require 2" discharge for sewage pumps?
IPC and UPC mandate 2" minimum on sewage pump discharge specifically because the pump moves solids upward at velocity. Gravity drains can use 1½" because solids fall freely; pumped lines need larger diameter to maintain transport velocity and prevent clogging. The Baker 5050C SJ series is built around 2" discharge — don't reduce it to match existing branch lines, run a separate 2" discharge to where it ties into the gravity main.
Should I oversize my sump pump just to be safe?
No — oversizing is the #1 cause of premature sump pump failure. An oversized pump empties the basin faster than water flows in, then short-cycles repeatedly. Each on/off cycle stresses the motor — frequent cycling = early failure. Size to your measured peak inflow rate with 30-50% margin. Most homes are correctly served by ⅓ HP cast iron (5033CVSP). Only step up to ½ HP for high water tables, large basements, or severe flooding risk.
Tethered or vertical float — which switch type?
Same logic across sump, sewage, and effluent: tethered (T) = wider on/off range, fewer cycles, requires basin ≥ 18" diameter for free swing. Vertical (V) = narrower range, more cycles, fits tight basins where tethered float would catch on basin wall. None / Utility (U) = no switch, for external alarm/duplex/time-dose panel control. Default for modern 18" basins: vertical. Default for older 24"+ basins: tethered.
My pump is short-cycling. What's wrong?
Three causes across all submersible pump types: (1) Failed check valve — water bleeds back into basin between cycles. Replace check valve. (2) Pump oversized — empties basin faster than inflow. Move to smaller HP. (3) Float differential too narrow — switch on/off range too small. Adjust tethered float for wider swing or replace with adjustable vertical switch.
Do I need an alarm on my sewage or effluent pump?
Yes for code compliance in most jurisdictions, and yes for system protection regardless of code. Without an alarm, a failed pump leads to: sewage backing up into the bathroom, septic dose tank overflow, drain field flooding (drain field replacement = $5,000–15,000). Alarms cost $50–150 — they're insurance against catastrophic failure. The Baker simplex packages (PAC, PACSDA, PACDA1) include code-compliant alarms.
Can I install a battery backup with any sump pump?
The Baker 5000PVSPBU is a complete battery backup system that installs alongside (not replacing) your existing primary AC sump pump. Your primary handles routine operation off grid power; the backup activates when grid power fails. Replace the deep-cycle marine battery every 3-5 years. Test the system at least twice a year by unplugging the AC primary and watching the backup activate.
How long do these pumps last?
Properly-sized cast iron pump in residential service: 7–10 years typical. Thermoplastic pumps in light service: 5–7 years. Grinder pumps with 3-year warranty often run 10+ years if maintained. Premature failures (under 5 years) almost always trace to: oversizing causing short-cycling, wrong pump type for application (sump used for sewage, effluent used for raw waste), failed float switch causing lockup, or improper waste damaging the impeller.
What's the warranty on Baker pumps?
Baker provides 1-year limited warranty on residential sump, sewage, effluent, and utility pumps with extended warranty options available. Baker grinder pumps carry a 3-year manufacturer warranty from date of manufacture. We register the warranty with Baker at the time of shipment so you're covered without paperwork. Premature failures should be reported through us — we coordinate the warranty claim and cross-ship a replacement when necessary.
Are you an authorized Baker dealer?
Yes — Watermain Supply (DBA of E4 Industrial LLC) is an authorized Baker Water Systems dealer, plus authorized for A.Y. McDonald, Davey, and Xylem (Goulds Water Technology, Lowara & Flygt). All products ship factory-direct or from Houston stock with full manufacturer warranty.
