A.Y. McDonald · Sewage Pump

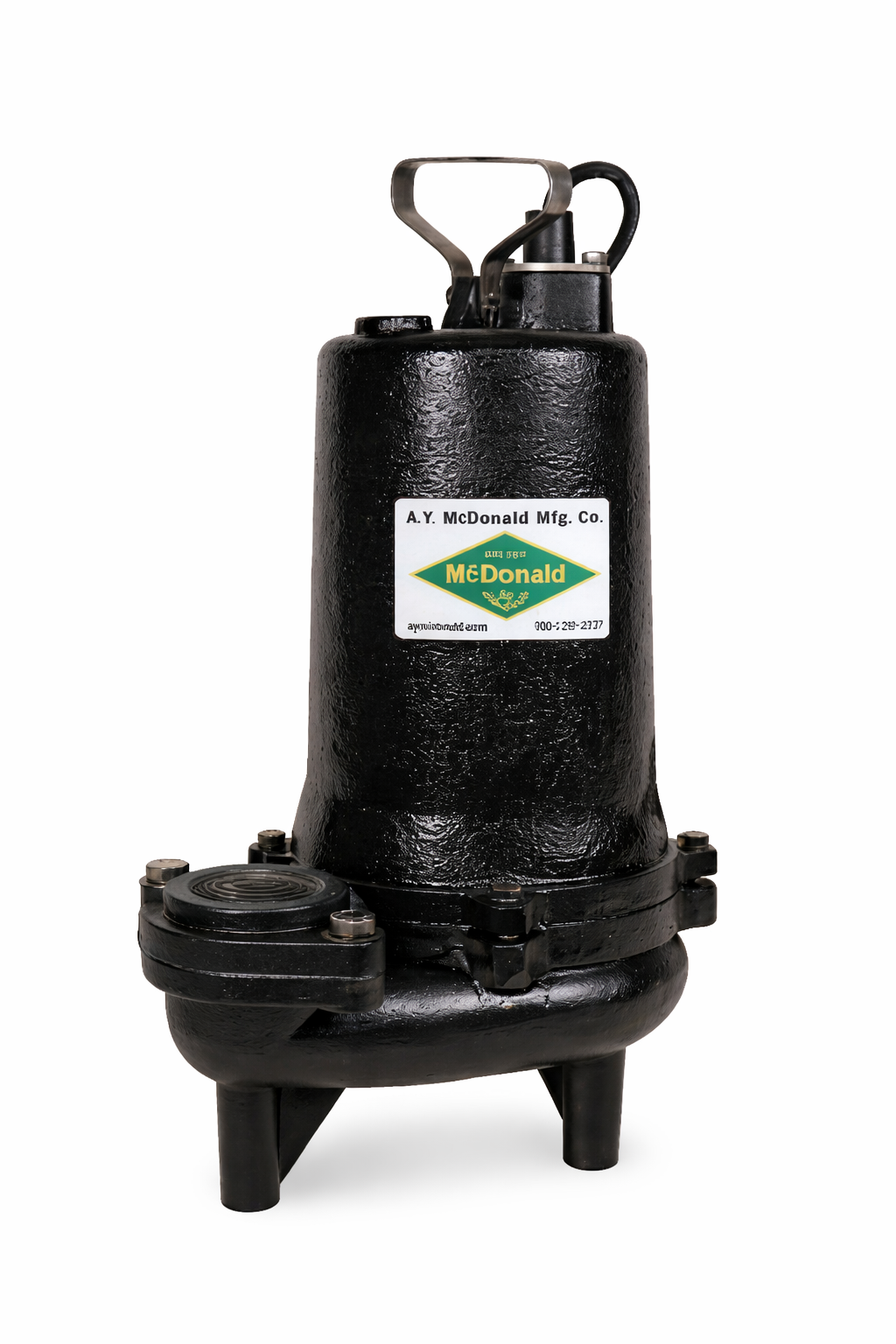

Heavy-Duty Vortex Sewage Pumps, 1/2 to 2 HP
Oil-filled cast iron sewage pumps with a ductile iron vortex impeller for developments, schools, motels, campgrounds and office complexes.
37-76 ft Max Head · 122-219 GPM Max
1/2-2 HP
115V or 208-230V 1Ph
Manual (Piggyback Ready)
2 in Solids

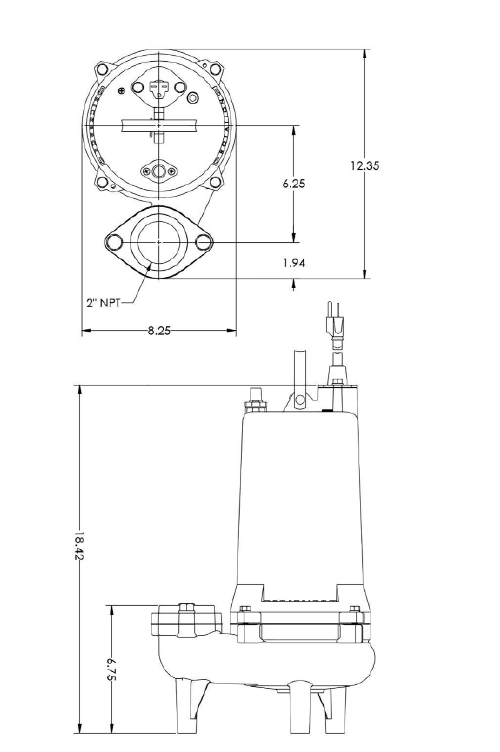

2 in NPT Discharge (3 in Option)
Ductile Iron Vortex Impeller
20 ft Cord
77-85 lb Weight
What Ships and What It Needs to Run
Included: the cast iron sewage pump with oil-filled motor and 20 ft quick-disconnect cord.
Float or control panel required, ordered separately. These models run from a piggyback float or a control panel; three-phase and larger single-phase installs normally use a panel.
Sized at install: basin, guide rail or base, check and shutoff valves, discharge and vent piping, alarm.
Overview
1/2 to 2 HP cast iron pumps that handle up to 2 in solids with a 2 in or 3 in FNPT discharge, for residential developments, wastewater transfer, hospitals, motels, apartments, schools, churches, universities, campgrounds, office complexes and septic systems. Heads reach 77 ft and flows 215 GPM, per the catalog.

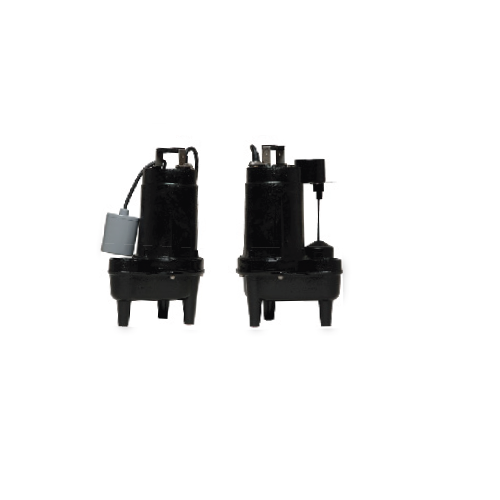

Manual or float? Manual models have no switch: they run from a piggyback float switch plugged in behind the pump cord, or from a control panel. The piggyback design means a defective switch can be replaced without replacing the pump.
-
Ductile iron vortex impeller — passes 2 in solids.
-

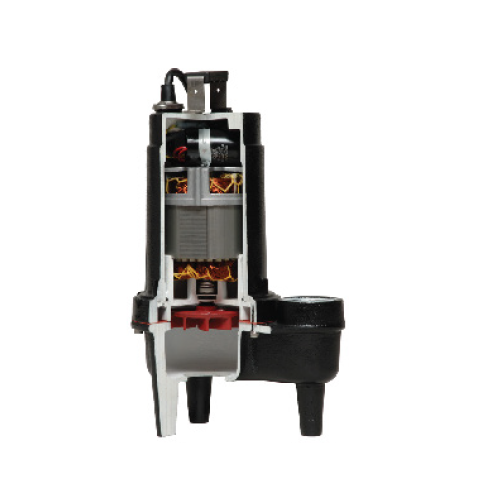

Oil-filled, class F PSC motor with upper and lower ball bearings and internal overload.
-
Optional double seal with seal-failure sensing from the factory.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
1-Year A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Single pump. Duplex stations use two pumps and an alternating control panel; send us the station and we size it.
Models & Ratings (60 Hz)
| Model |
Part No. |
HP |
Volts |
Amps |
Max Head |
Max Flow |
Weight |
| 405011SJX |
6192-021 |
1/2 |
115 |
14.5 |
37 ft |
122 GPM |
79 lb |
| 405012SJX |
6192-022 |
1/2 |
208-230 |
8.1/7.3 |
37 ft |
122 GPM |
77 lb |
| 410012SJX |
6192-023 |
1 |
208-230 |
13.9/12.6 |
48 ft |
165 GPM |
82 lb |
| 415012SJX |
6192-024 |
1-1/2 |
208-230 |
14.7/13.3 |
56 ft |
192 GPM |
84 lb |
| 420012SJX |
6192-025 |
2 |
230 |
18 |
63 ft |
219 GPM |
85 lb |
| 420012SJXH |
6192-026 |
2 |
230 |
18 |
76 ft |
167 GPM |
85 lb |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.

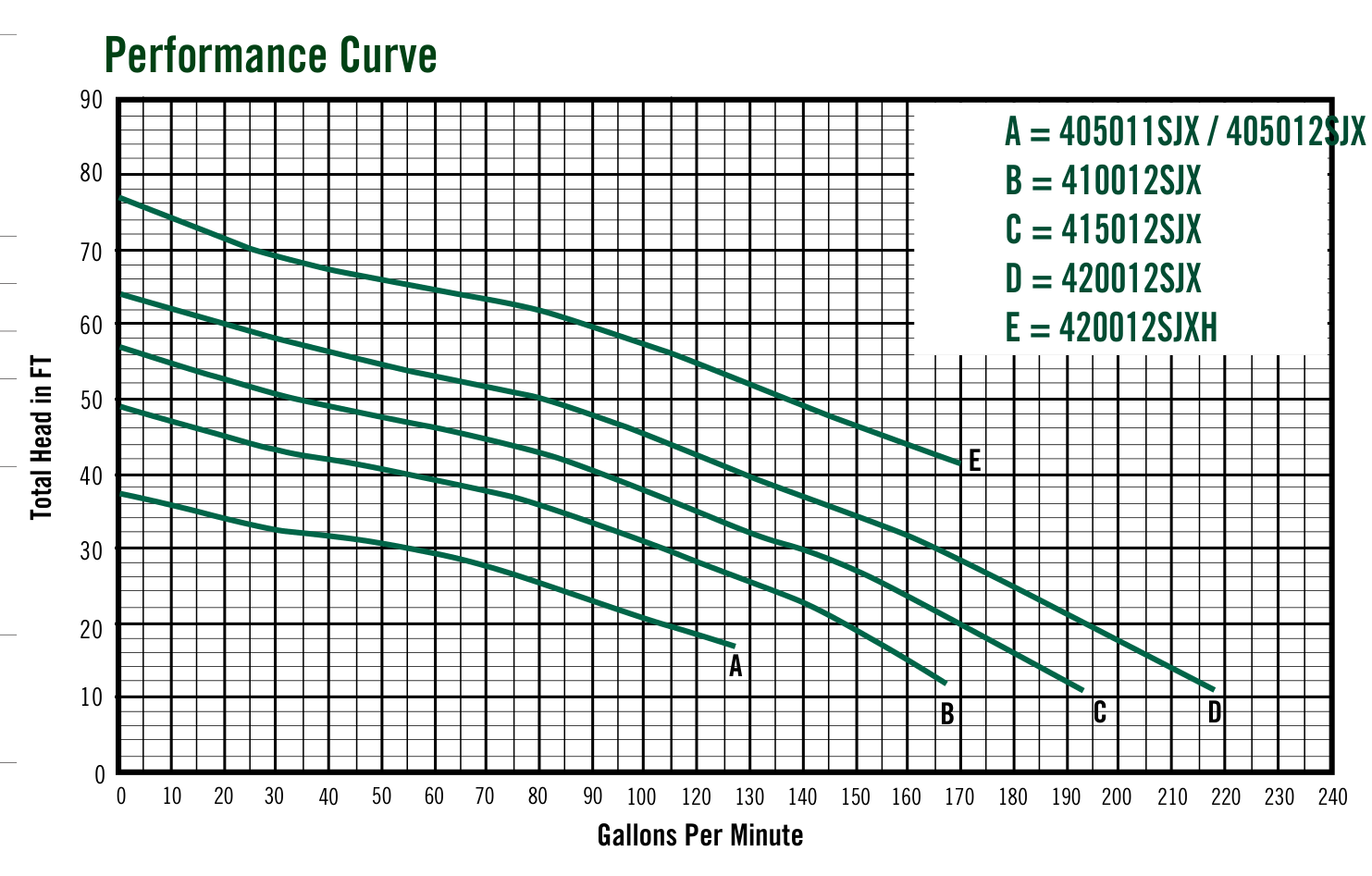

Performance — Will It Do What You Need?
| Flow, GPM → |
0 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
| A: 405011SJX / 405012SJX |
37 |
33 |
31 |
27 |
21 |
— |
— |
— |
— |
| B: 410012SJX |
48 |
44 |
41 |
37 |
32 |
25 |
18 |
— |
— |
| C: 415012SJX |
56 |
51 |
47 |
44 |
39 |
32 |
26 |
17 |
— |
| D: 420012SJX |
63 |
59 |
54 |
51 |
46 |
39 |
33 |
26 |
17 |
| E: 420012SJXH |
76 |
70 |
66 |
63 |
58 |
52 |
45 |
— |
— |
Total head in feet at each flow, digitized from the published curve in the A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 332, and rounded down. A dash is beyond the end of the published curve.
Before You Buy — The Limits That Decide the Fit
| Water |
Raw sewage with up to 2 in solids; plumbing codes call for 2 in solids handling when a toilet drains to the basin. |
| Discharge velocity |
Codes require at least 2 ft/s in the discharge pipe: about 21 GPM in 2 in pipe. Check the table at your total head. |
| Basin |
A sealed, vented sewage basin with a gasketed lid; check local code for vent size. |
| Alarm |
A high-water alarm is good practice and required by many codes. |
| Check valve and shutoff |
Fit a check valve and a full-port shutoff on the discharge. |
| Power |
115V (405011SJX) or 208-230V single phase. |
| Temperature |
140°F intermittent. |
Materials of Construction
| Motor housing, volute, seal plate |
Cast iron |
| Impeller |
Ductile iron vortex |
| Shaft |
416 stainless steel |
| Shaft seal |
Carbon / ceramic, Buna-N; tandem double seal optional |
| Bearings |
Single row ball, oil lubricated |
| Hardware |
300 series stainless steel |
| Cord |
20 ft standard, quick disconnect; up to 100 ft available |
Accessories
| Accessory |
Code |
Description |
| Guide rail sewage pump disconnect |
Campbell |
Lifts the pump out without entering the basin |
