Included: the cast iron submersible pump with its float switch (tethered or vertical, per the model) and the power cord, 10 ft or 25 ft per the model.
Float or control required on No Switch models, ordered separately. The CUSP models run from a piggyback float such as the DuraMAC replacement float switch, or from a control panel.
Sized at install: basin, check valve and discharge pipe, ordered separately.

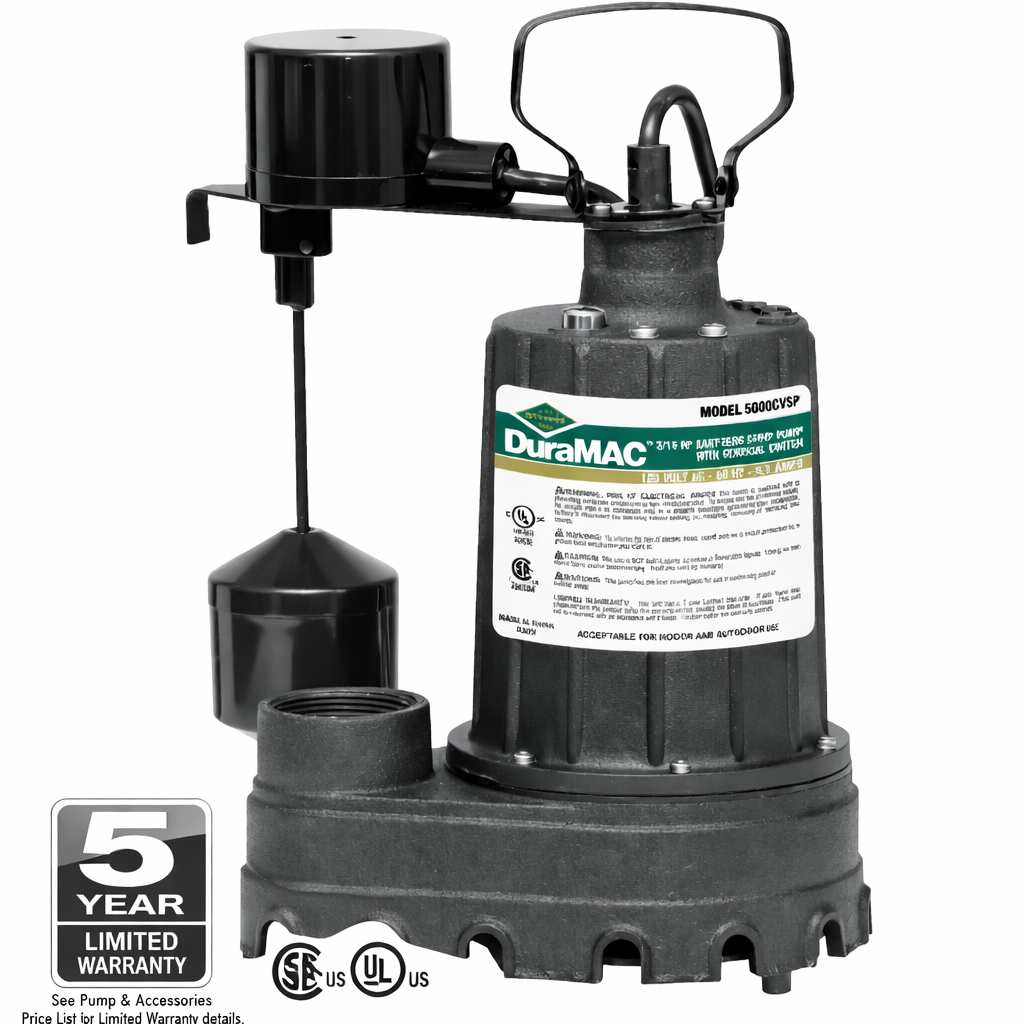

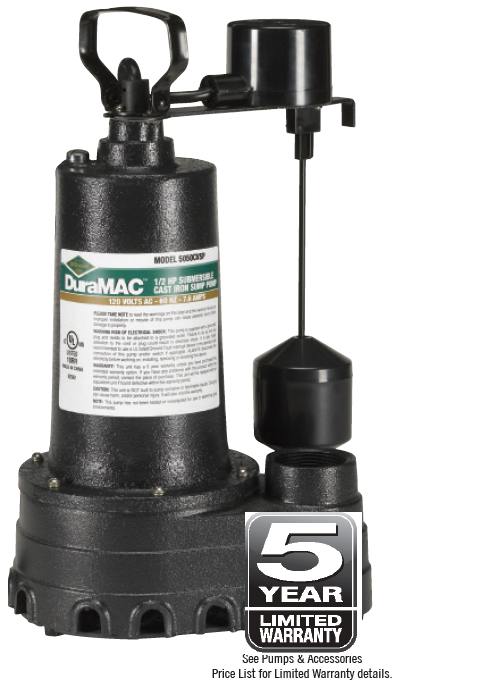

With a rugged cast iron construction, the DuraMAC cast iron sump pumps handle up to 46 GPM (3/10 HP), 60 GPM (1/3 HP) and 70 GPM (1/2 HP). Each lifts water up to 25 ft of vertical height through a 1-1/2 in discharge.
Which switch fits your pit? A vertical float rides up and down on a rod beside the pump, so it works in narrow basins. A tethered float swings on its cord, so it needs more room but gives a longer run between starts. No-switch models run from a separate piggyback float or a control panel, the usual choice when a basin already has its own controls.
Under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26): 5 years from the date of installation: 5030CTSP, 5030CVSP, 5030CUSP, 5030CUSP25, 5033CVSP, 5033CUSP, 5033CUSP25, 5050CVSP, 5050CUSP25. 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first: 5030CTSP25, 5033CTSP. Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Single pump. Two pumps in one basin need a duplex alternating control panel; send us the basin and we size it.
| Model | Part No. | HP | Switch | Cord | Amps | Solids | Max Flow | At 10 ft | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 5030CTSP | 6190-158 | 3/10 | Tethered Float | 10 ft | 4.1 | 3/8 in | 46 GPM | 30 GPM | 19 lb |
| 5030CTSP25 | 6190-186 | 3/10 | Tethered Float | 25 ft | 4.1 | 3/8 in | 46 GPM | 30 GPM | 20 lb |
| 5030CVSP | 6190-148 | 3/10 | Vertical Float | 10 ft | 4.1 | 3/8 in | 46 GPM | 30 GPM | 19 lb |
| 5030CUSP | 6190-162 | 3/10 | No Switch | 10 ft | 4.1 | 3/8 in | 46 GPM | 30 GPM | 18 lb |
| 5030CUSP25 | 6190-160 | 3/10 | No Switch | 25 ft | 4.1 | 3/8 in | 46 GPM | 30 GPM | 19 lb |
| 5033CTSP | 6190-187 | 1/3 | Tethered Float | 10 ft | 5.9 | 1/2 in | 60 GPM | 50 GPM | 25 lb |
| 5033CVSP | 6190-149 | 1/3 | Vertical Float | 10 ft | 5.9 | 1/2 in | 60 GPM | 50 GPM | 25 lb |
| 5033CUSP | 6190-163 | 1/3 | No Switch | 10 ft | 5.9 | 1/2 in | 60 GPM | 50 GPM | 24 lb |
| 5033CUSP25 | 6190-161 | 1/3 | No Switch | 25 ft | 5.9 | 1/2 in | 60 GPM | 50 GPM | 25 lb |
| 5050CVSP | 6190-150 | 1/2 | Vertical Float | 10 ft | 7.6 | 1/2 in | 70 GPM | 58 GPM | 24 lb |
| 5050CUSP25 | 6190-168 | 1/2 | No Switch | 25 ft | 7.6 | 1/2 in | 70 GPM | 58 GPM | 27 lb |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.
| Voltage | 120V, 1 phase, 60 Hz |
| Speed | 3450 RPM |
| Construction | Cast iron |
| Discharge | 1-1/2 in |
| Motor | Split capacitor, continuous duty, thermal protected |

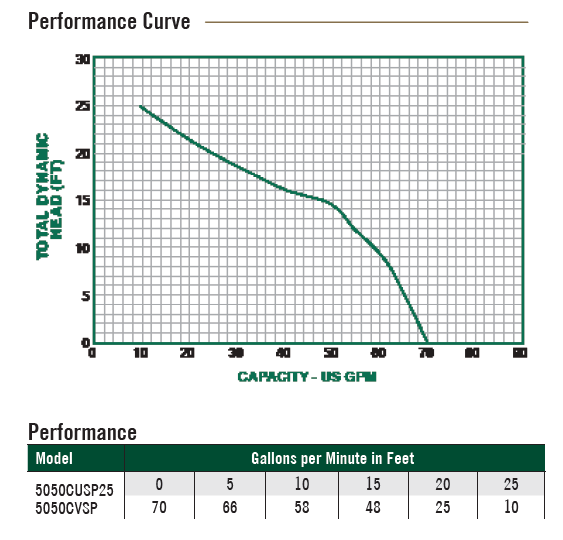

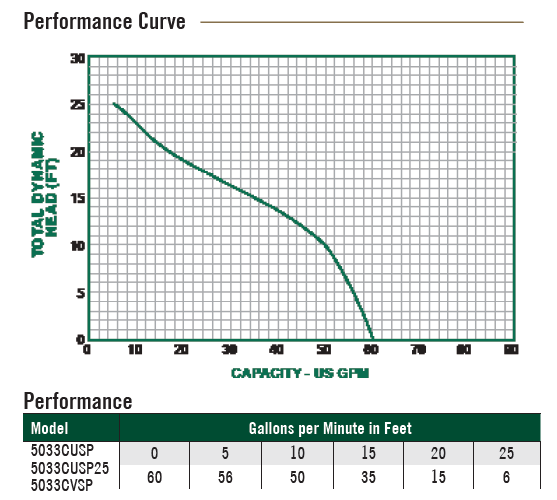

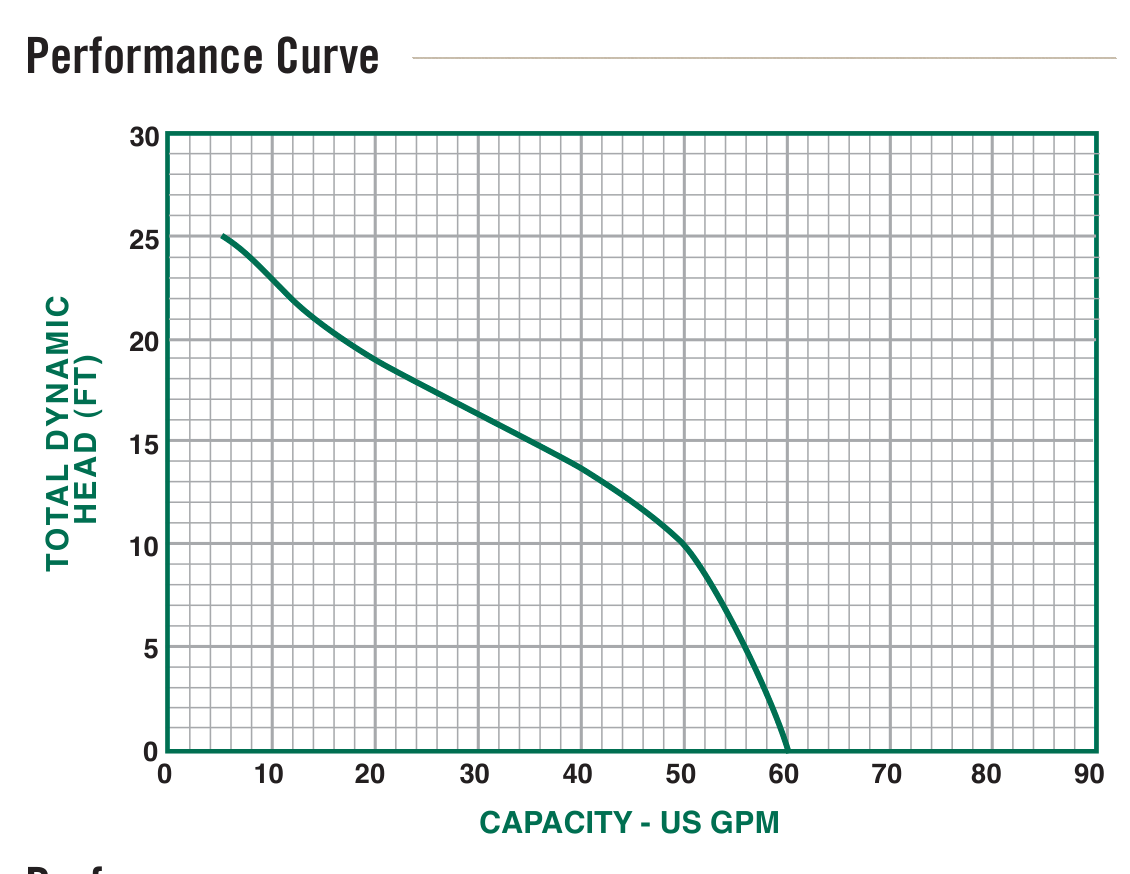

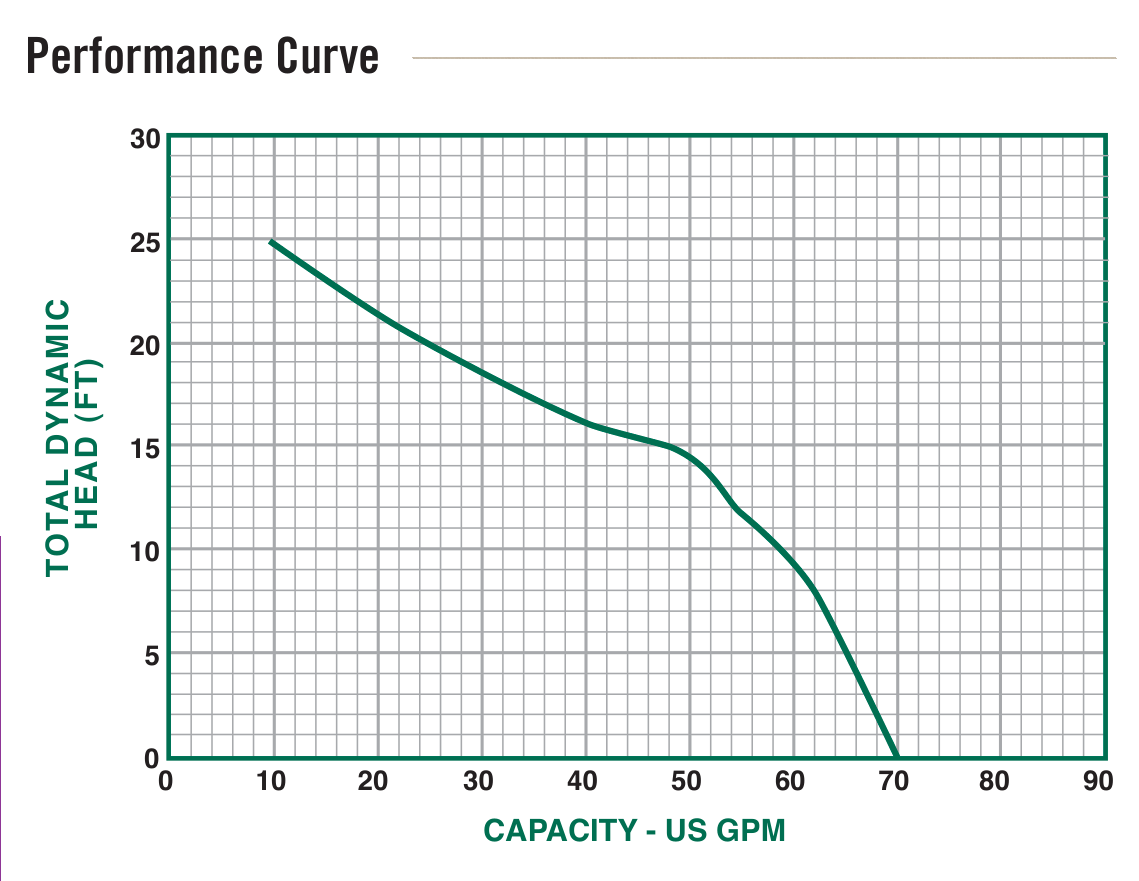

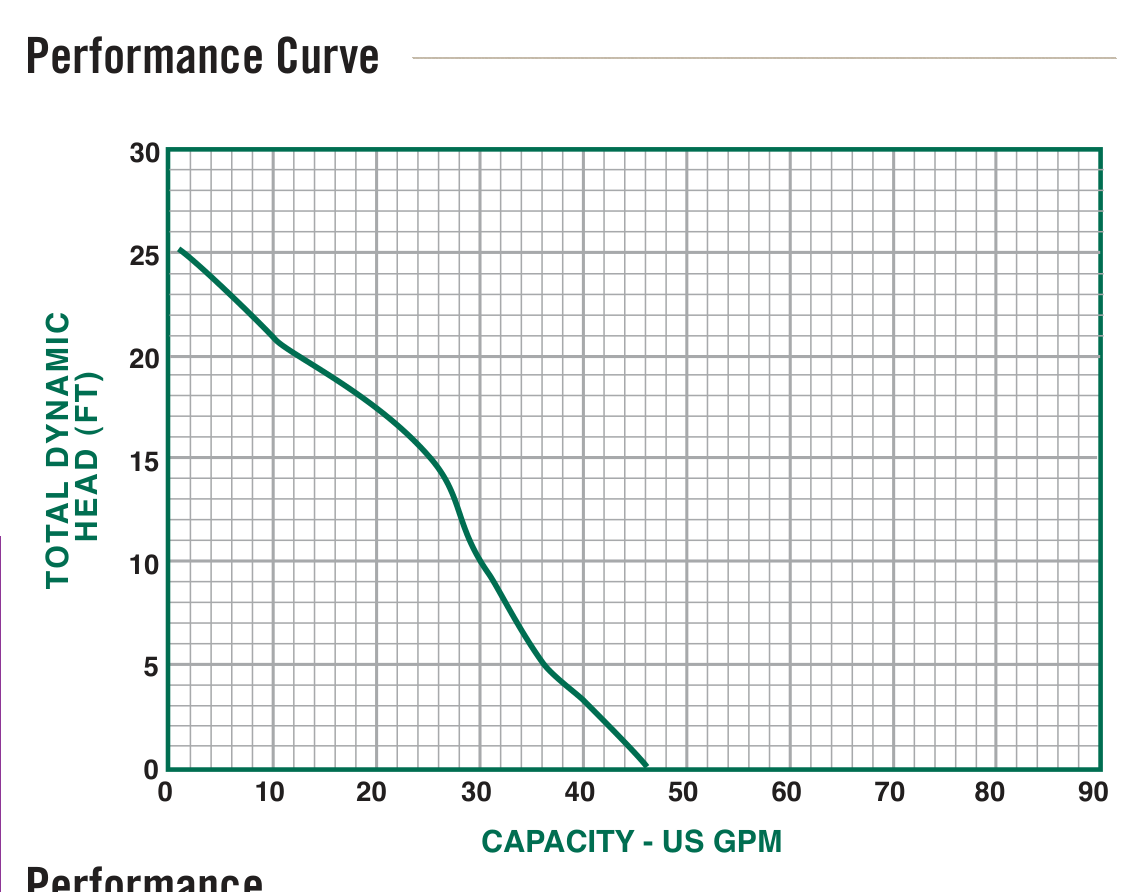

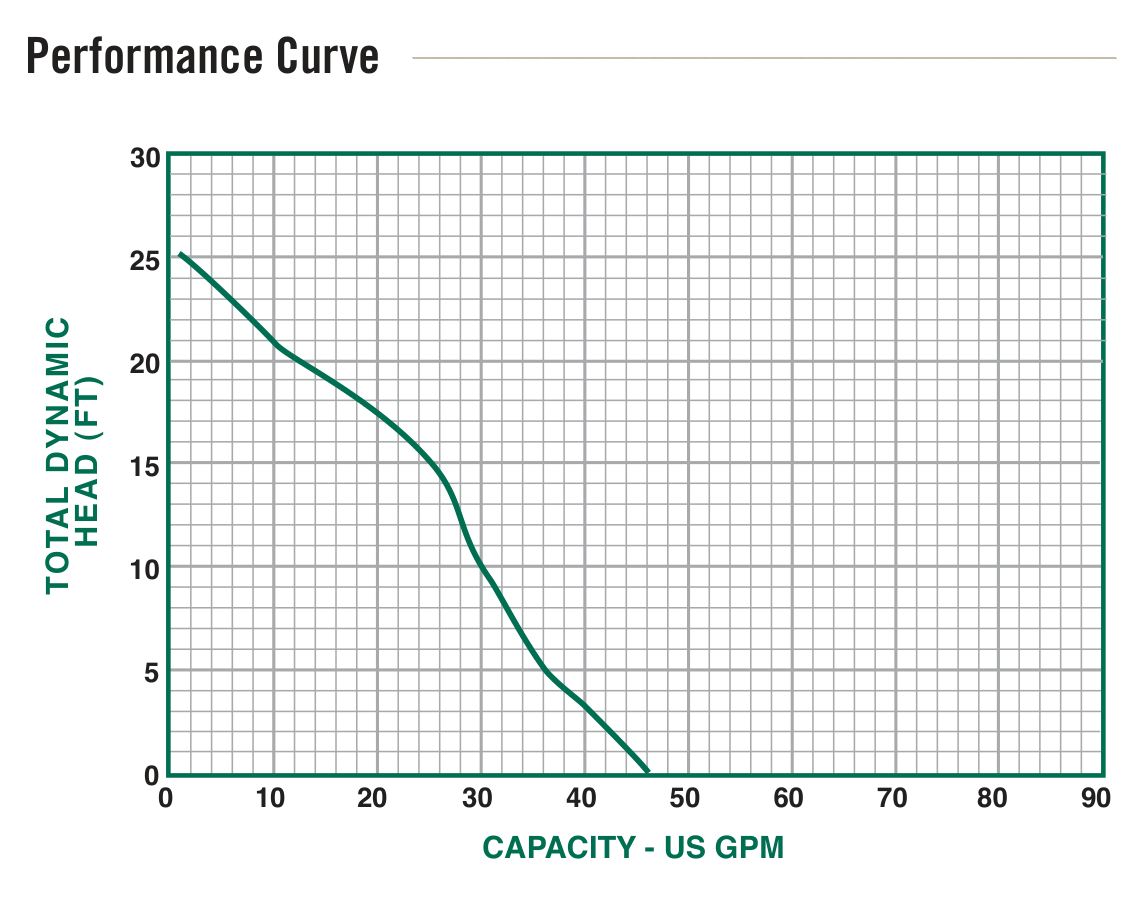

| Total head → | 0 ft | 5 ft | 10 ft | 15 ft | 20 ft | 25 ft |
|---|---|---|---|---|---|---|
| 3/10 HP: 5030 models | 46 | 36 | 30 | 25 | 12 | 1 |
| 1/3 HP: 5033 models | 60 | 56 | 50 | 35 | 15 | 6 |
| 1/2 HP: 5050 models | 70 | 66 | 58 | 48 | 25 | 10 |
Gallons per minute at each total head, as printed by A.Y. McDonald. Total head is the vertical lift from the water level to the highest point of the discharge, plus pipe and fitting friction. A dash is a head the pump does not reach. Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, pp. 294, 295, 297 and 298. The 5030CTSP25 and 5033CTSP are new 7/1/26 price-list models; their figures are those of the same-HP pumps on the catalog pages.
Reading it: at 10 ft of total head the 1/3 HP models move 50 GPM; at 20 ft they move 15 GPM. Lift and pipe friction both count toward total head.
| Water | Clear water and groundwater with small solids (see Solids in the table). A.Y. McDonald lists these pumps as non-potable. |
| Lift | Up to 25 ft of vertical height. Read the performance table at your total head, not at zero. |
| Basin | Vertical-float models suit narrow basins; tethered floats need room to swing. Pedestal and pre-plumbed kits are on separate listings. |
| Check valve | Fit a check valve on the discharge so the pipe does not drain back into the pit after each cycle. |
| Power | 120V single phase, 60 Hz. Plan a dedicated outlet within cord reach. |
| Duty | Split capacitor motor, continuous duty, thermal protected. |
| Pairing | Single pump. For a duplex basin, two pumps run from an alternating control panel. |
| Accessory | Code | Description |
|---|---|---|
| DuraMAC replacement float switch | 5000-V--10 / 5000-T--10 / -25 | Piggyback vertical or tethered float, 10 or 25 ft |
| Mounting block | 5000BLK | Raises the pump off the basin floor |
