A.Y. McDonald · Sewage Pump
1/2 HP Cast Iron Sewage Pumps
Oil-filled 1/2 HP sewage pumps that pass 2 in solids, for basements, add-a-baths, septic systems and small lift stations.
25 ft Max Head · 108 GPM Max
1/2 HP
115V or 230V 1Ph

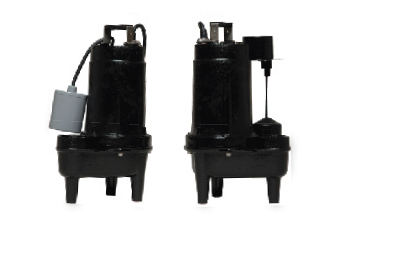

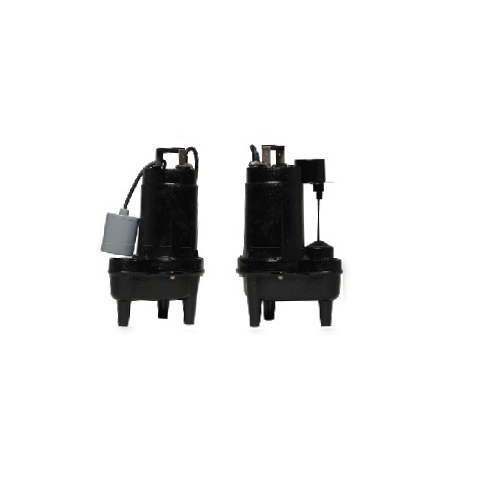

Manual, Wide-Angle or Vertical Float
2 in Solids
2 in NPT Discharge
Cast Iron, Oil-Filled Motor
10 or 20 ft Cord
35-40 lb Weight
What Ships and What It Needs to Run
Included: the cast iron sewage pump with oil-filled motor, quick-disconnect cord and, on the A and V models, a wide-angle or vertical float switch.
Float or control panel required on manual models, ordered separately. Use a piggyback float such as the Pumpmaster or Verticalmaster, or a control panel.
Sized at install: sewage basin and lid, check valve, shutoff valve, discharge and vent piping, alarm.
Overview
1/2 HP submersible pumps that handle up to 2 in solids with a 2 in FNPT discharge, for basements, dewatering, septic systems, sewage lift stations, add-a-baths and truck docks. Heads reach 25 ft and flows 109 GPM, per the catalog.
Manual or float? Manual models have no switch: they run from a piggyback float switch plugged in behind the pump cord, or from a control panel. Wide-angle float models carry their own float. The piggyback design means a defective switch can be replaced without replacing the pump.
-

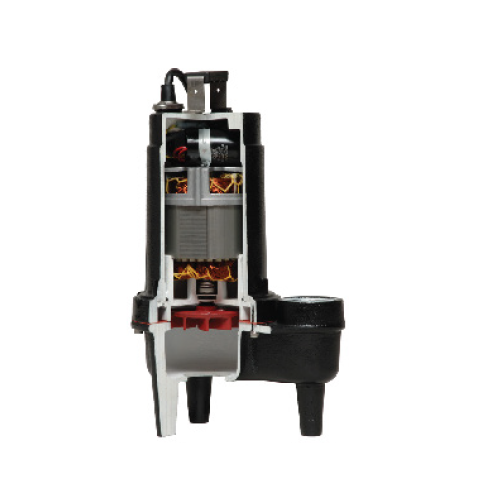

Oil-filled PSC motor — upper and lower ball bearings, internal overload.
-
Type 21 inboard seal with secondary exclusion seal.
- Non-clog cast iron impeller.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
1-Year A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Single pump. For more head or flow see the 1/2 to 2 HP Heavy-Duty Vortex Sewage Pumps.
Models & Ratings (60 Hz)
| Model |
Part No. |
HP |
Volts |
Amps |
Switch |
Cord |
Weight |
| 405011SJ |
6192-032 |
1/2 |
115 |
11.5 |
Manual |
20 ft |
35 lb |
| 405011SJA |
6192-033 |
1/2 |
115 |
11.5 |
Wide-Angle Float |
20 ft |
37 lb |
| 405011SJV |
6192-020 |
1/2 |
115 |
11.5 |
Vertical Float |
10 ft |
40 lb |
| 405012SJ |
6192-034 |
1/2 |
230 |
5.75 |
Manual |
20 ft |
35 lb |
| 405012SJA |
6192-035 |
1/2 |
230 |
5.75 |
Wide-Angle Float |
20 ft |
37 lb |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.

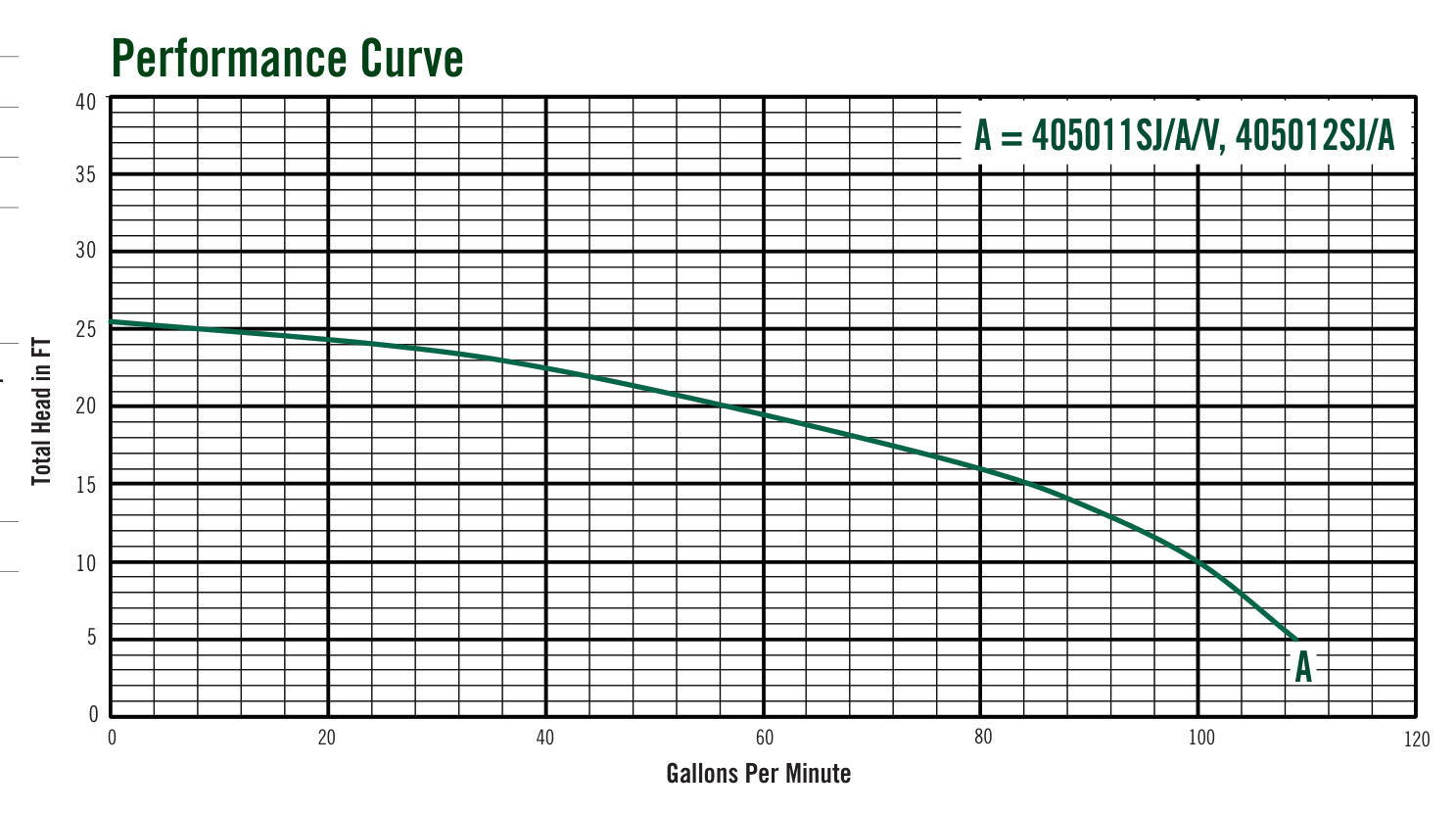

Performance — Will It Do What You Need?
| Flow, GPM → |
0 |
10 |
20 |
40 |
60 |
80 |
100 |
| A: 405011SJ/A/V, 405012SJ/A |
25 |
24 |
24 |
22 |
19 |
15 |
9 |
Total head in feet at each flow, digitized from the published curve in the A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 330, and rounded down. A dash is beyond the end of the published curve.
Before You Buy — The Limits That Decide the Fit
| Water |
Raw sewage with up to 2 in solids; plumbing codes call for 2 in solids handling when a toilet drains to the basin. |
| Discharge velocity |
Codes require at least 2 ft/s in the discharge pipe: about 21 GPM in 2 in pipe. Check the table at your total head. |
| Basin |
A sealed, vented sewage basin with a gasketed lid; check local code for vent size. |
| Alarm |
A high-water alarm is good practice and required by many codes. |
| Check valve and shutoff |
Fit a check valve and a full-port shutoff on the discharge. |
| Power |
115V or 230V single phase, per the model. |
| Temperature |
140°F intermittent. |
Materials of Construction
| Discharge |
2 in NPT, vertical |
| Solids |
2 in |
| Liquid temperature |
140°F (intermittent) |
| Motor housing, volute, seal plate |
Cast iron |
| Impeller |
Cast iron, vane |
| Shaft |
Stainless steel |
| Shaft seal |
Inboard mechanical with secondary exclusion V-seal; carbon / ceramic, Buna-N, 300 series stainless hardware |
| Bearings |
Single row ball, oil lubricated, upper and lower |
| Hardware |
300 series stainless steel |
| O-rings |
Buna-N |
| Cord |
20 ft standard, sealed-entry quick disconnect; up to 100 ft available |
Accessories
| Accessory |
Code |
Description |
| Guide rail sewage pump disconnect |
Campbell |
Lifts the pump out without entering the basin |
| Pumpmaster float switch |
6190-012 and others |
Wide-angle piggyback float |
