A.Y. McDonald · Grinder Pump
1 and 2 HP Cast Iron Grinder Pumps
Grinder pumps that cut sewage to a slurry and push it through 1-1/4 in pipe at up to 104 ft of head, for low-pressure sewer and uphill runs.
55-104 ft Max Head · 42-44 GPM Max
1-2 HP
115V or 208-230V 1Ph
Grinds Up to 3 in Solids
1-1/4 in NPT Discharge (2 in Option)
440 SST Cutter
20 ft Cord
75-78 lb Weight
What Ships and What It Needs to Run
Included: the cast iron grinder pump with oil-filled motor, 440 stainless steel cutter, legs for free-standing installation and a 20 ft quick-disconnect cord; the 110911GRPA adds a wide-angle float.
Control panel required, ordered separately. Grinder pumps run from a simplex or duplex control panel with level floats and a high-water alarm, matched to the pump’s voltage and amps. The 120912GRP also needs external capacitors, normally housed in the panel.
Sized at install: basin, guide rail where used, check and shutoff valves, force main.
Overview
These 1 and 2 HP grinder pumps have a 1-1/4 in vertical discharge (optional 2 in FNPT adapter) and can grind up to 3 in solids. Install them on a rail system or on the supplied legs, for residential developments, commercial developments and wastewater applications. Heads reach 103 ft TDH and flows 44 GPM, per the catalog.
-
440 stainless steel cutter (56-60 Rockwell) — 24,000 cuts per second, designed to reduce overloading and clogging.
-
Cast iron vortex impeller — higher heads, non-overloading performance.
-
Oil-filled, class F PSC motor; single mechanical seal running in oil, allowing dry run and cooling.
-
Piggyback switch design — a switch can be replaced without replacing the pump.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
1-Year A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Outgrow It and You Don’t Replace It
Single pump. Duplex grinder stations use two pumps and an alternating panel.
Models & Ratings (60 Hz)
| Model |
Part No. |
HP |
Volts |
Amps |
Switch |
Max Head |
Max Flow |
| 110911GRP |
6194-001 |
1 |
115V |
13 |
No Switch |
54 ft |
42 GPM |
| 110911GRPA |
6194-002 |
1 |
115V |
13 |
Wide-Angle Float |
54 ft |
42 GPM |
| 110912GRP |
6194-011 |
1 |
208-230V |
6.5 |
No Switch |
54 ft |
42 GPM |
| 120212GRP |
6194-003 |
2 |
208-230V |
15 |
No Switch, Internal Capacitor |
104 ft |
44 GPM |
| 120912GRP |
6194-012 |
2 |
208-230V |
15 |
No Switch, External Capacitor |
104 ft |
44 GPM |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.

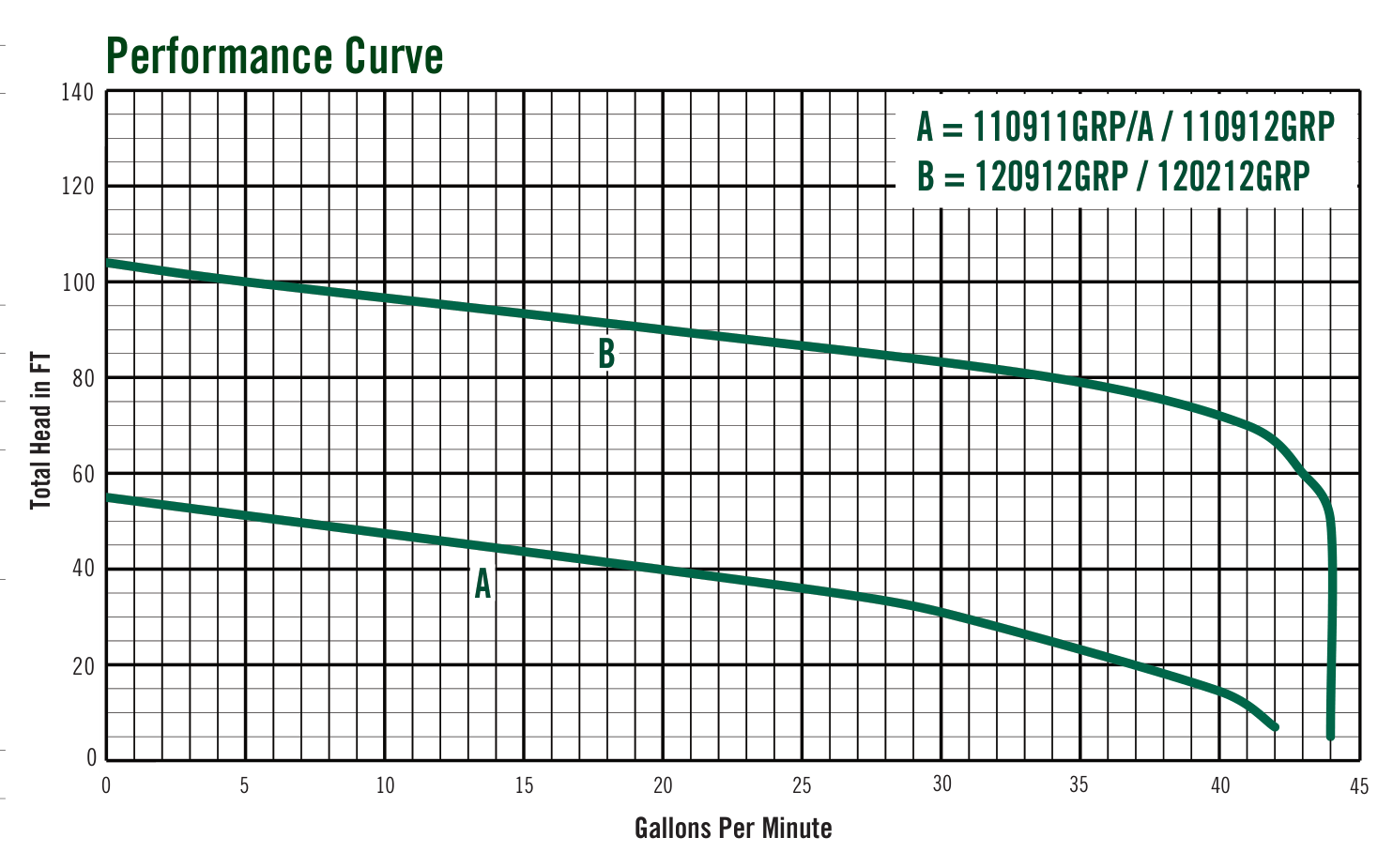

Performance — Will It Do What You Need?
| Flow, GPM → |
0 |
10 |
20 |
30 |
40 |
| A: 110911GRP/A / 110912GRP |
54 |
47 |
40 |
30 |
13 |
| B: 120912GRP / 120212GRP |
104 |
97 |
89 |
82 |
71 |
Total head in feet at each flow, digitized from the published curve in the A.Y. McDonald Pumps by Baker catalog, rev 3/26, p. 334, and rounded down. A dash is beyond the end of the published curve.
Before You Buy — The Limits That Decide the Fit
| Use |
Low-pressure sewer, long or uphill force mains, and basins where solids must be ground. |
| Control panel |
Required; match voltage and amps, and the external capacitors on the 120912GRP. |
| Force main velocity |
Keep at least 2 ft/s: about 9 GPM in 1-1/4 in pipe. |
| Power |
115V (110911GRP/A) or 208-230V single phase. |
| Temperature |
140°F intermittent. |
Materials of Construction
| Motor housing, volute, seal plate |
Cast iron |
| Impeller |
Cast iron vortex |
| Cutter |
440 stainless steel, 56-60 Rockwell |
| Shaft |
Stainless steel |
| Shaft seal |
Single mechanical, carbon / ceramic, Buna-N |
| Cord |
20 ft standard; up to 30 ft with plug, 100 ft without |
