A.Y. McDonald Thermoplastic High Head Effluent Pump - 5, 7 and 15 GPM

Nominal Flow: 5 GPM
HP - Voltage: 1/2 HP - 115V 1Ph
Model - Lead: 22050J2AJ X993 - 25 ft Lead

Product variant with selected options does not exist!
MAP
$1,424.05
SKU: 6634-339
Weight : 23.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
A.Y. McDonald · Effluent Pump
Thermoplastic High Head Effluent Pumps, 5, 7 and 15 GPM
Low-flow multistage effluent builds from the A.Y. McDonald price list: 5 GPM (J), 7 GPM (V) and 15 GPM (L), each with a 25 ft lead.
5, 7 or 15 GPM Nominal
1/2-3/4 HP
115V or 230V 1Ph, 2-Wire
25 ft Lead
1-1/4 in FNPT Discharge
Less Check Valve (X993)
What Ships and What It Needs to Run

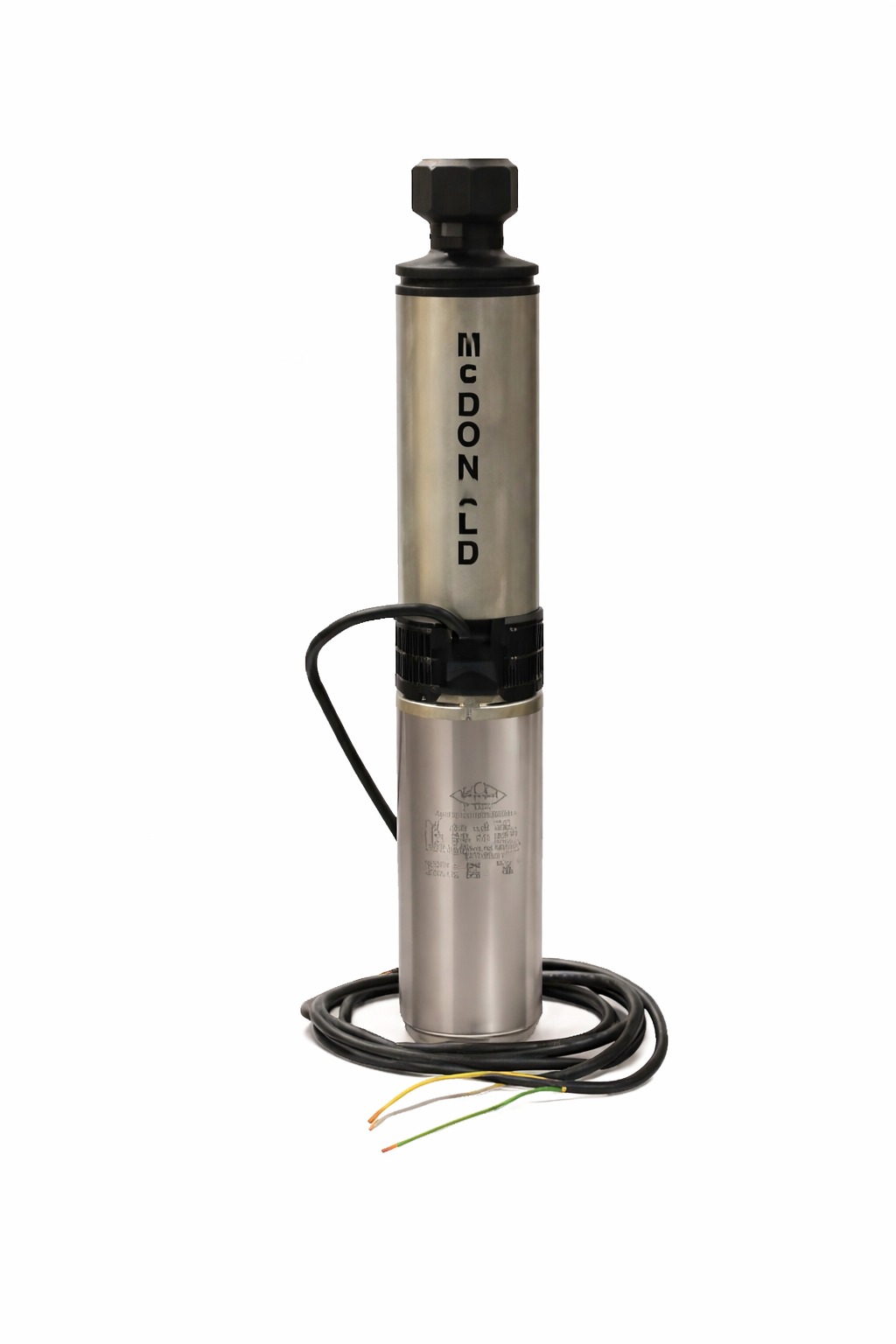

Included: the pump end and Baker stainless steel motor, assembled, with a 25 ft lead; X993 builds ship less check valve, cable guard and screws, with a hole drilled in the center of the discharge.

Control panel required, ordered separately. A dosing control panel or timer with level floats.

Sized at install: flow inducer or vault, effluent screen and discharge piping.

Overview

These are price-list builds of the thermoplastic high head effluent pump at lower nominal flows than the 10, 20 and 30 GPM series. They share the construction of the series: stainless steel shell and shaft, reinforced thermoplastic stages and a Baker stainless steel motor. A.Y. McDonald does not publish a curve for these builds in the current catalog; we confirm the duty with the factory before you order.

Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
3-Year A.Y. McDonald Warranty

Covered for 3 years from the date of manufacture under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). This is Baker’s term for assembled submersible pumps with Baker motors up to 80 GPM pump ends. Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.

Outgrow It and You Don’t Replace It

Single pump.

Models & Ratings (60 Hz)
Model Part No. Nominal Flow HP Volts Lead List
22050J2AJ X993 6634-339 5 GPM 1/2 115 25 ft Price list 7/1/26
22050V2J X993 6634-269 7 GPM 1/2 230 25 ft Price list 7/1/26
22075L2J X993 6634-338 15 GPM 3/4 230 25 ft Price list 7/1/26

Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.

Performance — Will It Do What You Need?

No published curve for these builds. Send us your total head and dose flow and we confirm the model with A.Y. McDonald.

Before You Buy — The Limits That Decide the Fit
Water Screened septic effluent.
Drain-back X993 builds ship less check valve.
Power 115V or 230V single phase, 2-wire.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
