GRUNDFOS · EFFLUENT & SEWAGE PUMP
UNILIFT AP35, AP35B, AP50, AP50B
Vortex-impeller submersible pumps for effluent and domestic sewage, all 230 V with 25 ft of cable, as manual builds or automatic builds with an integral float switch. AP35 passes 1.4 in solids, AP50 passes 2.0 in; the B models add a ring stand and a horizontal 2 in NPT outlet for auto-coupling installation.
1.4 in & 2.0 in Solids
1-1/2 in & 2 in NPT
230V 1Ph · 25 ft Cord
Vortex Impeller
IP68 Submersible
Overview
UNILIFT AP35 is a single-stage submersible pump for drainage water and effluent — dirty water and untreated wastewater excluding toilet discharge, and liquids containing fibres from light industry and laundries, with particles up to 1.4 in. UNILIFT AP50 handles the same duties plus domestic wastewater with or without discharge from water closets, with particles up to 2.0 in.

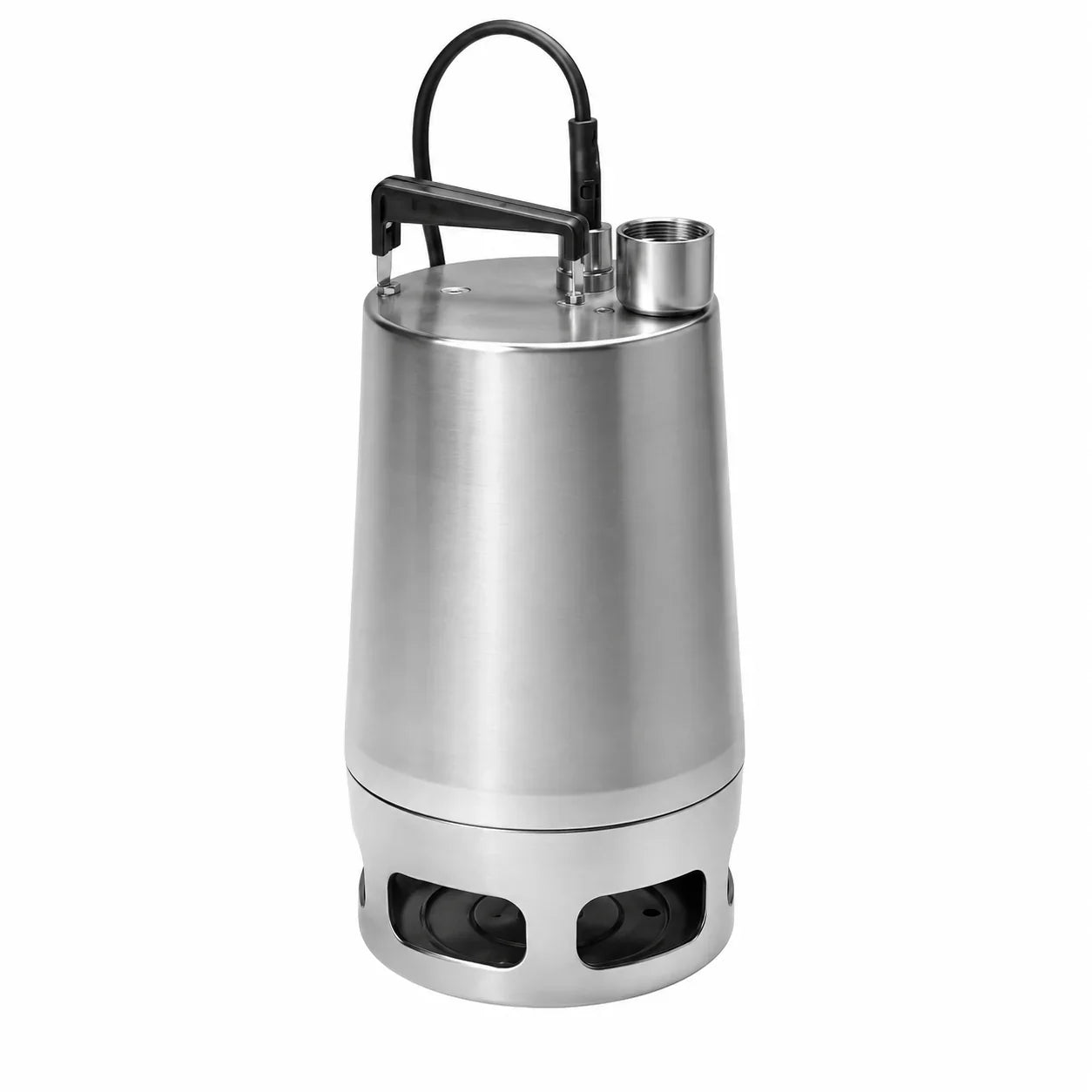

On AP35 and AP50 the stainless-steel pump sleeve is made in one piece with an insulated carrying handle, and the inlet strainer clips onto the pump housing for easy removal. The housing carries an internal riser pipe for high efficiency, perforated to cool the motor during operation, and the cable entry uses a socket and plug connection for quick dismantling. AP35 has a 1-1/2 in NPT vertical outlet; AP50 has a 2 in NPT vertical outlet.

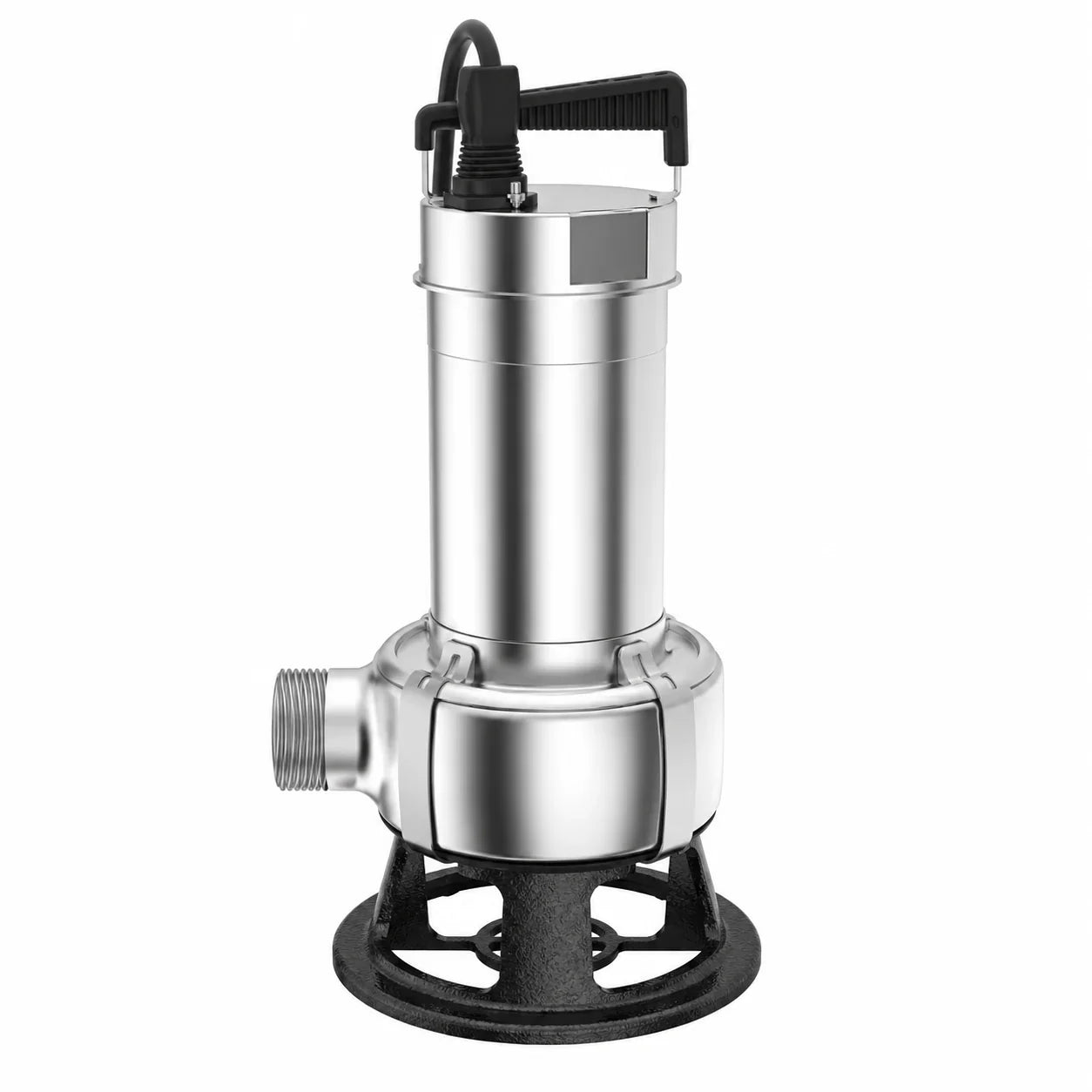

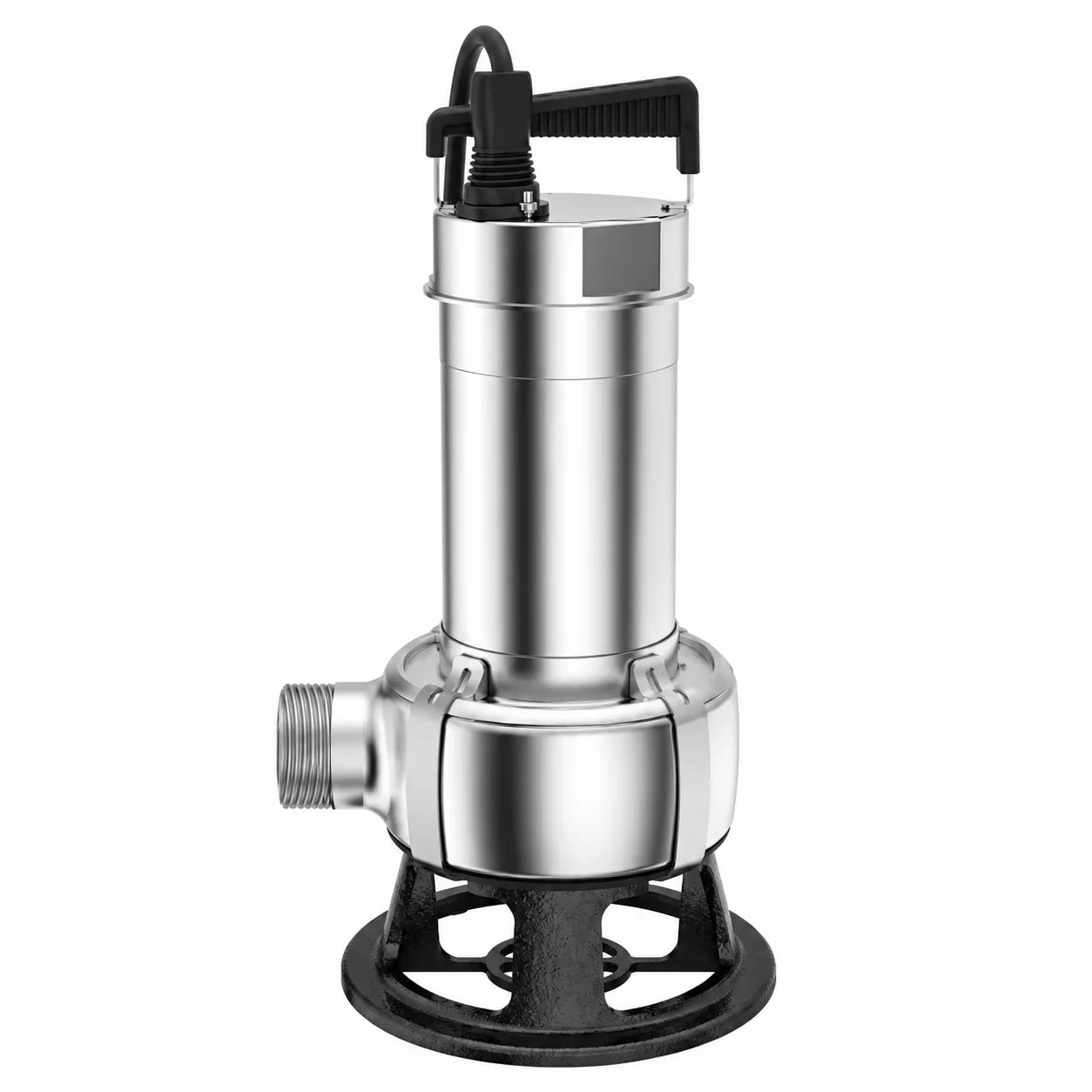

The B models — AP35B and AP50B — use a different housing: a steel tube with a smooth surface and a hydraulically correct shape that gives free passage of particles and a higher head. The ring stand, pump inlet and pump housing are fastened to the motor by four springs for quick dismantling, and the outlet is a threaded 2 in NPT horizontal port, which suits installation on an auto coupling. Liquid temperature on the B models is limited to 104 °F against 131 °F on AP35 and AP50.
All four use a stainless-steel vortex impeller with L-shaped backswept blades and a protective cap that prevents the deposit of long-fibered material. The shaft runs in maintenance-free prelubricated ball bearings; the shaft seal combines a mechanical bellows seal and a lip seal with an oil chamber between, with silicon carbide faces. Motors are single-phase asynchronous dry-rotor motors with built-in thermal protection, IP68 enclosure and class F insulation. The pumps are not designed for continuous operation.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial distributor.
Performance — Will It Do What You Need?
Find your vertical lift down the left. The figure is the maximum combined vertical plus horizontal Schedule 40 PVC pipe run Grundfos allows for that model at that lift.
| Vertical lift |
AP35.40.08 |
AP35B.50.08 |
AP50.50.11 |
AP50B.50.11 |
| 5 ft |
1250 ft |
1500 ft |
1750 ft |
2200 ft |
| 10 ft |
1000 ft |
1200 ft |
1250 ft |
1900 ft |
| 15 ft |
750 ft |
800 ft |
1000 ft |
1500 ft |
| 20 ft |
500 ft |
500 ft |
750 ft |
1000 ft |
| 25 ft |
250 ft |
175 ft |
500 ft |
750 ft |
| 26 ft |
— |
75 ft |
— |
— |
| 30 ft |
150 ft |
— |
250 ft |
450 ft |
| 32 ft |
— |
— |
75 ft |
— |
| 35 ft |
50 ft |
— |
— |
100 ft |
Grundfos publishes this overview as a guide only. If a non-return valve is fitted, deduct approximately 0.6 ft of head from the vertical pipe length. Measure the vertical height of the discharge pipe from the pump stop level. A dash means Grundfos publishes no figure for that model at that lift.
Flow velocity through the discharge pipe must be at least 2.3 ft/s to keep the line self-cleaning: roughly 15 gpm in a 1.61 in inner diameter Schedule 40 PVC pipe, roughly 24 gpm in a 2.067 in inner diameter pipe.
Range ceilings published by Grundfos for each model — maximum flow and maximum head are separate limits, not a single duty point.
| Model |
Max flow |
Max head |
Max solids |
Liquid temperature |
| AP35 |
79 GPM |
39 ft |
1.4 in |
32 °F to 131 °F |
| AP35B |
92 GPM |
43 ft |
1.4 in |
32 °F to 104 °F |
| AP50 |
140 GPM |
41 ft |
2.0 in |
32 °F to 131 °F |
| AP50B |
136 GPM |
49 ft |
2.0 in |
32 °F to 104 °F |
Models, Voltage & Phase
| Model |
HP |
Voltage & Phase |
Level Control |
Outlet |
Duty |
Part No. |
| UNILIFT AP35.40.08.A1V |
1 |
230V 1Ph |
Automatic — float switch |
1-1/2 in NPT vertical |
Effluent, 1.4 in solids |
96847179 |
| UNILIFT AP35B.50.08.A1V |
1 |
230V 1Ph |
Automatic — float switch |
2 in NPT horizontal |
Effluent (Basic), 1.4 in solids |
96846962 |
| UNILIFT AP50.50.11.A1V |
1.5 |
230V 1Ph |
Automatic — float switch |
2 in NPT vertical |
Domestic sewage, 2.0 in solids |
96847183 |
| UNILIFT AP50B.50.11.A1V |
1.5 |
230V 1Ph |
Automatic — float switch |
2 in NPT horizontal |
Domestic sewage (Basic), 2.0 in solids |
96846971 |
| UNILIFT AP35.40.06.1V |
3/4 |
230V 1Ph |
Manual — no float switch |
1-1/2 in NPT vertical |
Effluent, 1.4 in solids |
96010670 |
| UNILIFT AP35.40.06.A1V |
3/4 |
230V 1Ph |
Automatic — float switch |
1-1/2 in NPT vertical |
Effluent, 1.4 in solids |
96847175 |
| UNILIFT AP35.40.08.1V |
1 |
230V 1Ph |
Manual — no float switch |
1-1/2 in NPT vertical |
Effluent, 1.4 in solids |
96010676 |
| UNILIFT AP50.50.08.A1V |
1 |
230V 1Ph |
Automatic — float switch |
2 in NPT vertical |
Domestic sewage, 2.0 in solids |
96847181 |
| UNILIFT AP35B.50.06.1V |
3/4 |
230V 1Ph |
Manual — no float switch |
2 in NPT horizontal |
Effluent (Basic), 1.4 in solids |
96839867 |
| UNILIFT AP35B.50.06.A1V |
3/4 |
230V 1Ph |
Automatic — float switch |
2 in NPT horizontal |
Effluent (Basic), 1.4 in solids |
96846954 |
| UNILIFT AP35B.50.08.1V |
1 |
230V 1Ph |
Manual — no float switch |
2 in NPT horizontal |
Effluent (Basic), 1.4 in solids |
96839950 |
| UNILIFT AP50B.50.08.1V |
1 |
230V 1Ph |
Manual — no float switch |
2 in NPT horizontal |
Domestic sewage (Basic), 2.0 in solids |
96839975 |
| UNILIFT AP50B.50.08.A1V |
1 |
230V 1Ph |
Automatic — float switch |
2 in NPT horizontal |
Domestic sewage (Basic), 2.0 in solids |
96846966 |
| UNILIFT AP50B.50.11.1V |
1.5 |
230V 1Ph |
Manual — no float switch |
2 in NPT horizontal |
Domestic sewage (Basic), 2.0 in solids |
96839985 |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed on the motor terminal board, never at the pressure switch. All models are single phase unless the table states 3Ph.
Key Features
-
Vortex impeller with protective cap — backswept L-shaped blades keep solids moving and stop long fibres depositing on the impeller.
-
Real solids handling — 1.4 in free passage on AP35 and AP35B, 2.0 in on AP50 and AP50B, so toilet discharge is within reach of the AP50 pair.
-
Two housings, two installation styles — AP35 and AP50 are free-standing with a vertical outlet and clip-on strainer; AP35B and AP50B use a smooth steel-tube housing with a horizontal outlet and a ring stand suited to auto coupling.
-
Spring-mounted wet end on the B models — ring stand, pump inlet and housing fasten to the motor with four springs and come apart quickly for service.
-
Silicon carbide shaft seal — mechanical bellows seal and lip seal with an oil chamber between them.
-
Manual or automatic — automatic (A) builds carry an integral float switch and start and stop on level; manual builds run on an external level control or panel.
-
Built-in thermal protection, IP68 enclosure, insulation class F, CSA C/US.
Specifications
| Specification |
Value |
| Pump type |
Single-stage submersible effluent and sewage pumps, free-standing installation |
| Maximum particle size |
AP35 and AP35B: 1.4 in (35 mm) · AP50 and AP50B: 2.0 in (50 mm) |
| Impeller |
Stainless-steel vortex impeller, L-shaped backswept blades with protective cap, 2-pole |
| Liquid temperature |
AP35 and AP50: 32 °F to 131 °F · AP35B and AP50B: 32 °F to 104 °F |
| pH range |
4 to 10 |
| Maximum liquid density |
146.88 oz/gal |
| Maximum installation depth |
34 ft below water level |
| Outlet port |
AP35: 1-1/2 in NPT vertical · AP50: 2 in NPT vertical · AP35B and AP50B: 2 in NPT horizontal |
| Enclosure class |
IP68 |
| Insulation class |
F (311 °F) |
| Motor |
Single-phase asynchronous dry-rotor motor with built-in thermal protection |
| Shaft seal |
Mechanical bellows seal and lip seal with oil chamber, silicon carbide faces (2 fl.oz. on AP35 and AP50, 2.7 fl.oz. on AP35B and AP50B) |
| Bearings |
Maintenance-free prelubricated ball bearings |
| Cable type |
SJOW-A, 25 ft, no plug |
| Minimum well with float switch |
AP35 and AP50: 21.5 in wide × 23.5 in deep · AP35B and AP50B: 22 in wide × 24 in deep |
| Approvals |
CSA C/US |
Electrical & Dimensional Data
| Part No. |
Model |
P1 [hp] |
In [A] |
I start [A] |
Weight [lbs] |
Dimensions |
| 96847179 |
AP35.40.08.A1V |
1.71 |
5.3 |
29 |
28.0 |
A 16.14 in, C 8.5 in |
| 96846962 |
AP35B.50.08.A1V |
1.93 |
6.74 |
24.2 |
20.7 |
A 18.43 in, C 4.57 in, D 2.87 in, d1 9.21 in, d2 8.27 in |
| 96847183 |
AP50.50.11.A1V |
2.37 |
8.4 |
35 |
37.3 |
A 17.17 in, C 9.49 in |
| 96846971 |
AP50B.50.11.A1V |
2.37 |
8.42 |
30 |
24.2 |
On request |
| 96010670 |
AP35.40.06.1V |
1.61 |
5.2 |
— |
25.8 |
— |
| 96847175 |
AP35.40.06.A1V |
1.61 |
5.2 |
— |
28 |
— |
| 96010676 |
AP35.40.08.1V |
1.74 |
6 |
— |
29.8 |
— |
| 96847181 |
AP50.50.08.A1V |
1.88 |
6.3 |
— |
35.5 |
— |
| 96839867 |
AP35B.50.06.1V |
1.73 |
5.91 |
— |
21.8 |
— |
| 96846954 |
AP35B.50.06.A1V |
1.73 |
5.91 |
— |
24.5 |
— |
| 96839950 |
AP35B.50.08.1V |
1.97 |
6.74 |
— |
25.1 |
— |
| 96839975 |
AP50B.50.08.1V |
1.88 |
6.4 |
— |
25.1 |
— |
| 96846966 |
AP50B.50.08.A1V |
1.88 |
6.4 |
— |
27.8 |
— |
| 96839985 |
AP50B.50.11.1V |
2.41 |
8.42 |
— |
25.1 |
— |
P1 is motor input power from the Grundfos technical data table; the HP figure in the models table is the nominal rating. Weights are pump weights; shipping weights differ. Dimensions for the added .06, .08 and manual builds, and AP50B dimensions, are available on request — email sales@watermainsupply.com and we will pull them from Grundfos.
Materials
| Component |
AP35 and AP50 |
AP35B and AP50B |
| Pump housing |
Stainless steel 1.4301 / AISI 304 |
Stainless steel 1.4301 / AISI 304 |
| Impeller |
Stainless steel 1.4301 / AISI 304 |
Stainless steel 1.4301 / AISI 304 |
| Riser pipe |
Stainless steel 1.4301 / AISI 304 |
— |
| Pump sleeve |
Stainless steel 1.4401 / AISI 316 |
— |
| Motor unit complete |
— |
Parts in contact with liquid: stainless steel 1.4401 / AISI 316 |
| Pump shaft — wet end |
Stainless steel 1.4301 / AISI 304 |
Stainless steel 1.4301 / AISI 304 |
| Pump inlet |
— |
Stainless steel 1.4301 / AISI 304 |
| Spring |
— |
Stainless steel 1.4310 |
| Ring stand |
— |
Polycarbonate |
| Bearings |
Heavy-duty prelubricated ball bearings |
Maintenance-free prelubricated ball bearings |
| O-rings |
NBR rubber |
NBR rubber |
| Cables |
Neoprene |
Neoprene |
| Oil |
Shell Ondina X420 |
Shell Ondina X420 |
Applications
- Groundwater lowering
- Pumping in drainage collecting tanks
- Pumping in surface water collecting tanks fed from roof gutters, shafts and tunnels
- Emptying of ponds, tanks and containers
- Fibre-containing wastewater and effluent from laundries and light industry
- Domestic effluent from septic tanks and sludge-treating systems
- Effluents from viaducts and underpasses; ditch drainage water; pool water
- Domestic wastewater without discharge from water closets — all four models
- Domestic wastewater with toilet discharge below sewer level, outdoor installations — AP50 and AP50B only
Ordering Information
Automatic models carry an integral float switch (the A in the type designation); manual models (.1V) have no level switch and run whenever they are energised, so they need an external float or control panel. All models ship with 25 ft of cable and no plug — they are wired in on site at 230 V. The free cable length between the float switch and the pump handle sets the start/stop difference: longer means fewer starts and a larger level swing, shorter means more frequent starts and a smaller swing. Minimum free cable length is 4 in.
Order by the part number in the Models table above.
Before You OrderSolids size drives the choice: if the building has a water closet of any kind the pump must pass 2 in solids, which means AP50 or AP50B. Without a water closet, the 1.4 in passage of AP35 or AP35B is enough. Check the outlet orientation too — AP35 and AP50 discharge vertically, the B models discharge horizontally for auto-coupling installation. On the B models, a pump fitted with a float switch is designed for intermittent duty: with the motor not fully submerged it must not run more than 5 minutes in any 30-minute period.
